Predicting spatio-temporal traffic patterns with Deep Learning
![](https://s3.amazonaws.com/media-p.slid.es/uploads/100758/images/3169389/beuth_logo_weiss.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/100758/images/3169485/2016banner-apps.png)
About me
Project
- Funded by German government and DLR
- Goal: Build up a mobility service plattform
- Addressing small companies
- Crowdsource traffic related data
- Explore / extend spatial data mining tools
![](https://s3.amazonaws.com/media-p.slid.es/uploads/100758/images/3169398/excell_traeger_weiss.png)
So what is Deep Learning?
- It's Machine Learning with neural networks
- "Deep" reflects the anatomy of these nets
- Mostly supervised learning
- Ideal for fuzzy data (images, audio, text)
- Outperfoms other approaches
- New easy-to-use frameworks for DL
Yes, it's a hype
![](https://s3.amazonaws.com/media-p.slid.es/uploads/100758/images/3157089/dl_trend_chart.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/100758/images/3157094/GWF-Brochure-2017-covers-small.jpg)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/100758/images/3157169/alphago.png)
Images
![](https://s3.amazonaws.com/media-p.slid.es/uploads/100758/images/3153169/deepOSM.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/100758/images/3156595/Solutiuons_Oil_carousel_01-500x500.jpg)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/100758/images/3156633/terrapattern_solar.png)
Convolutional Nets
(c) Fjodor Van Veen, Asimov Institute
Input Cell
Kernel
Convolutional
Hidden Cell
Output Cell
Text Mining
![](https://s3.amazonaws.com/media-p.slid.es/uploads/100758/images/3167827/textmining.png)
Text
Text
Memory Networks
=
The entire net repeated and interconnected
Sequences?
![](https://s3.amazonaws.com/media-p.slid.es/uploads/100758/images/3177934/sequence_learner.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/100758/images/3177935/sequence_learner2.png)
Single values (many-to-one)
Sequences (many-to-many)
Daytime? Weekday? Holiday? Weather? Events?
Location?
Spatio-temporal traffic forecasts with neural networks
- Abdulhai et al. (1999) have done it
- Ishak et al. (2003) have done it
- Van Lint et al. (2005) have done it
- Vlahogianni et al. (2007) have done it
- Leonhardt (2008) has done it
- Zeng & Zhang (2012) have done it
- Lv et al. (2014) have done it
- Polson et al. (2015) have done it
- Ma et al. (2015) have done it
- and many more ...
Test Data
- ~ 130 inductive loops (speed, occupancy etc.)
- 9 years of data (atm testing only 1 month of 2014)
- 80% training, 20% test
![](https://s3.amazonaws.com/media-p.slid.es/uploads/100758/images/3169563/vamos_logo.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/100758/images/3169567/tu_dresden_white.png)
Time Series
![](https://s3.amazonaws.com/media-p.slid.es/uploads/100758/images/3171977/oneDay_sensor182_movingAverage.png)
Workflow
- Define a time window (e.g. 15 min of historical data)
- Take moving average from each sensors as input ...
- ... to predict a future value for one sensor (e.g. 15 min ahaed)
- Narrow down to neighbours
- Feed input vectors into network
- Use RMSE as loss function
Spatial Correlation?
![](https://s3.amazonaws.com/media-p.slid.es/uploads/100758/images/3181416/correlation.png)
pos. correlation
neg. correlation
Isochrones
Adjacency Matrix
s1 | s2 | s3 | s4 | s5 | s6 | s7 | s8 | ... | |
---|---|---|---|---|---|---|---|---|---|
s1 | 1 | 1 | 0 | 0 | 1 | 1 | 0 | 0 | ... |
s2 | 1 | 1 | 1 | 0 | 0 | 0 | 0 | 0 | ... |
s3 | 0 | 1 | 1 | 0 | 0 | 0 | 0 | 0 | ... |
s4 | 0 | 0 | 1 | 1 | 0 | 1 | 0 | 1 | ... |
s5 | 1 | 0 | 0 | 0 | 1 | 0 | 1 | 0 | ... |
s6 | 1 | 1 | 0 | 1 | 0 | 1 | 0 | 1 | ... |
s7 | 0 | 0 | 0 | 0 | 1 | 0 | 1 | 0 | ... |
s8 | 0 | 0 | 0 | 1 | 0 | 1 | 0 | 1 | ... |
... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
Python Code (Tensor Flow)
@tf_attributeLock
def prediction(self):
c.debugInfo(__name__,"Adding Prediction nodes to the graph")
with tf.name_scope('layer1'):
weights = tf.Variable(tf.truncated_normal(
(self.n_input,self.n_hidden),stddev=0.1
), name="lay1_weights")
bias = tf.Variable(tf.constant(
0.1,shape=[self.n_hidden]
), name = "lay1_bias")
out_layer1 = tf.nn.sigmoid(tf.matmul(
self.data,weights
)+bias, name = "lay1_output")
with tf.name_scope('layer2'):
weights = tf.Variable(tf.truncated_normal(
(self.n_hidden,self.n_output),stddev=0.1
), name="lay2_weights")
bias = tf.Variable(tf.constant(
0.1,shape=[self.n_output]
), name="lay2_bias")
out_layer2 = tf.nn.sigmoid(tf.matmul(
out_layer1,weights
)+bias, name = "lay2_output")
return out_layer2
Visual Representation
![](https://s3.amazonaws.com/media-p.slid.es/uploads/100758/images/3187064/Screen_Shot_2016-11-02_at_4.21.19_PM.png)
Results

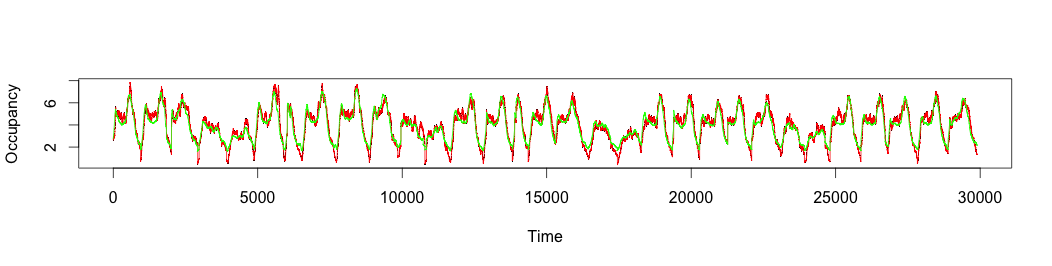

![](https://s3.amazonaws.com/media-p.slid.es/uploads/100758/images/3209675/oneMonthPrediction.png)
- Absolute error of 0.3 for occupancy
- Plans: Extend the input dataset to see differences between months
How it can be used
- Travel time propagation for road network links
- Create more accurate messages on traffic signs
- Recommendation of alternative routes
- Improve traffic simulation software
Caveats?
- It needs A LOT of training data
- Computationally intense = waste of energy?
- DKWGO, but it works!?
- So many hyperparameters to tune
- How often do I need to train the net?
Alternatives?
- Autoregressive methods (STARIMA etc.)
- Support-Vector Machines
Thanks
Felix Kunde
Research Assistant, MAGDa
Beuth University of Applied Science
fkunde@beuth-hochschule.de
