Roof Windows

Roof Window Range

Keylite Operation

Internal Finishes

USPs

Size Matrix

Structural Opening

Skylights

Certifications

Installation

Warranty

Pine

Centre Pivot

Pine

Top Hung

Pine

Electric

Pine

Integral

White Painted

Centre Pivot

White Painted

Top Hung

White Painted

Electric

White Painted

Integral

PVC

Centre Pivot

PVC

Top Hung

PVC

Electric

PVC

Integral

Roof Window Range

Keylite Operations

Centre Pivot (CP)

Centre Pivot roof windows are designed to only pivot from the centre of the frame. This operation allows the internal sash to rotate 180˚enabling access to the external glazing from inside the room.

The opening handle situated at the top of the window also controls ventilation. This allows fresh air flow into the living space even when the window is secure.

Electric & Solar

All Centre Pivot roof windows are also available in Electric and Solar operation.

Electric:

• PEK - Premium Electric Kit
• SEK - Standard Electric Kit

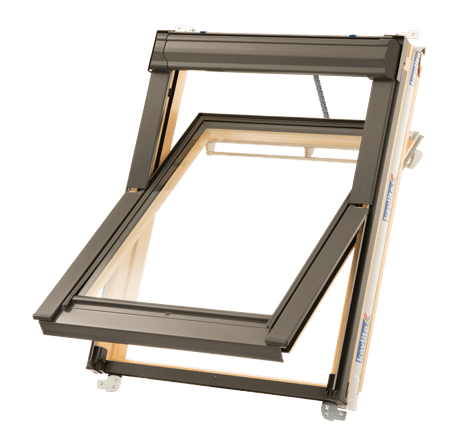

Solar:

• SPEK - Solar Powered Electric Kit

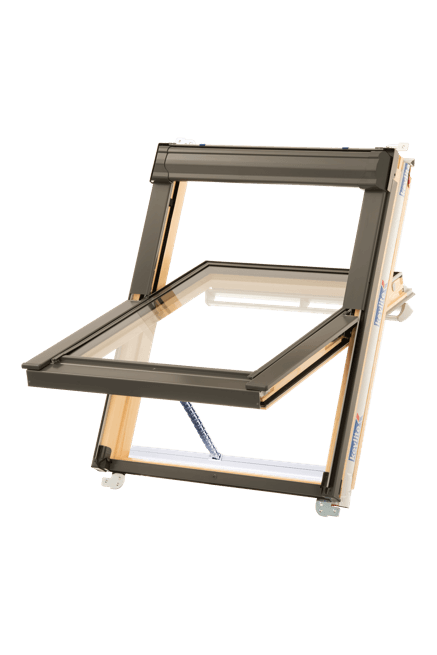

Smoke Ventilation

Keylite Smoke Ventilation kits can only be legally supplied in the UK with two of our Centre Pivot roof window sizes. The sizes which can accommodate SVK operation are:

• 08 (1140mm x 1180mm)
• 10 (1340mm x 1400mm)

Top Hung/ Fire Escape (TH/FE)

Top Hung roof windows also have the ability to pivot from the centre. Activating a Top Hung operation requires the removal of two red bolts situated on either side of the frame. Once the roof window has been successfully installed, removing these bolts will disable the central pivot operation.

A Top Hung roof window has two points of ventilation, the first is identical to a Centre Pivot roof window - at the top of the window.

The second is enabled through the separate opening handle located at the bottom of this style of roof window.

Keylite Fire Escape and Top Hung roof windows are exactly the same product. All available standard sizes except our '01 and 02' roof windows meet the appropriate regulations to market our Top Hung range as Fire Escape roof windows.

Top Hung/ Fire Escape (TH/FE)

Internal Finishes

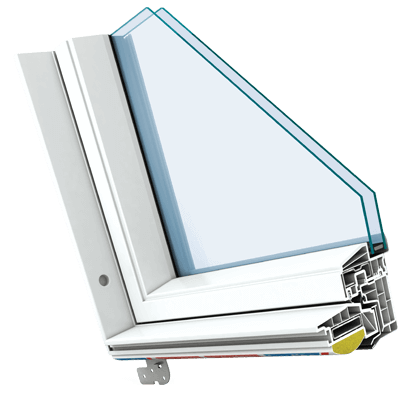

Our PVC roof window provides a brilliant white, maintenance free finish.

• Moisture Resistant
• Ideal for every room in the house including kitchens and bathrooms

PVC

Our White Painted window has an internal timber frame coated with a white polyurethane based paint.

• Durable Coating
• Ideal for contemporary interiors

White Painted

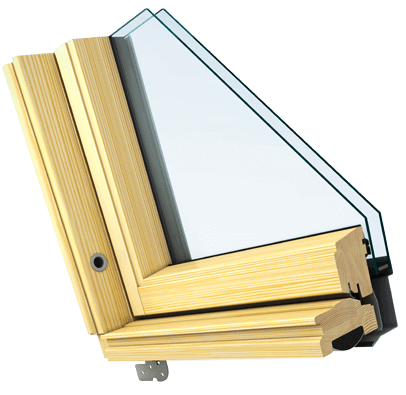

Our Pine window also has an internal timber frame coated with a clear lacquer to provide a sleek finish.

• Enhances the look of natural timber
• Practical and hard-wearing

Pine

USPs

Sash Hinge Finger Spring

Allows the sash to be installed back into the frame in one smooth effortless motion.

Integrated Expanding Thermal Collar

Flick Fit Bracket

Our pre-fitted brackets make the window quicker, easier and safer to install by allowing installation from inside the room.

Our unique thermal collar expands to fill the void between the window frame and the roof, reducing the cold bridging effect.

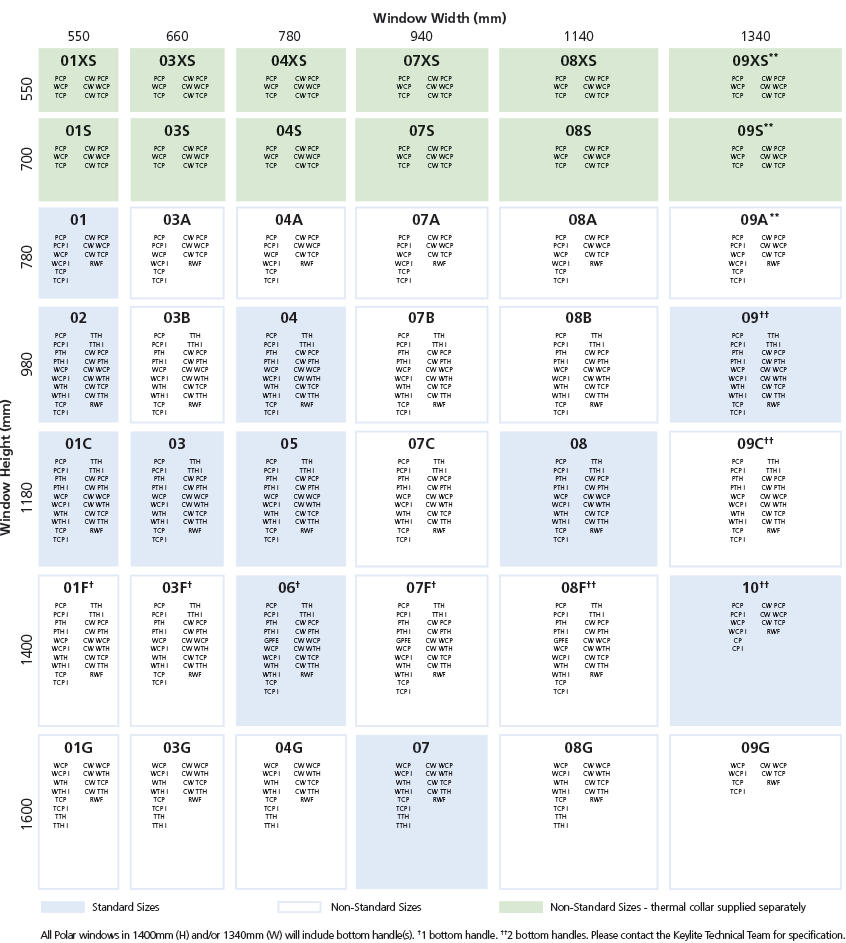

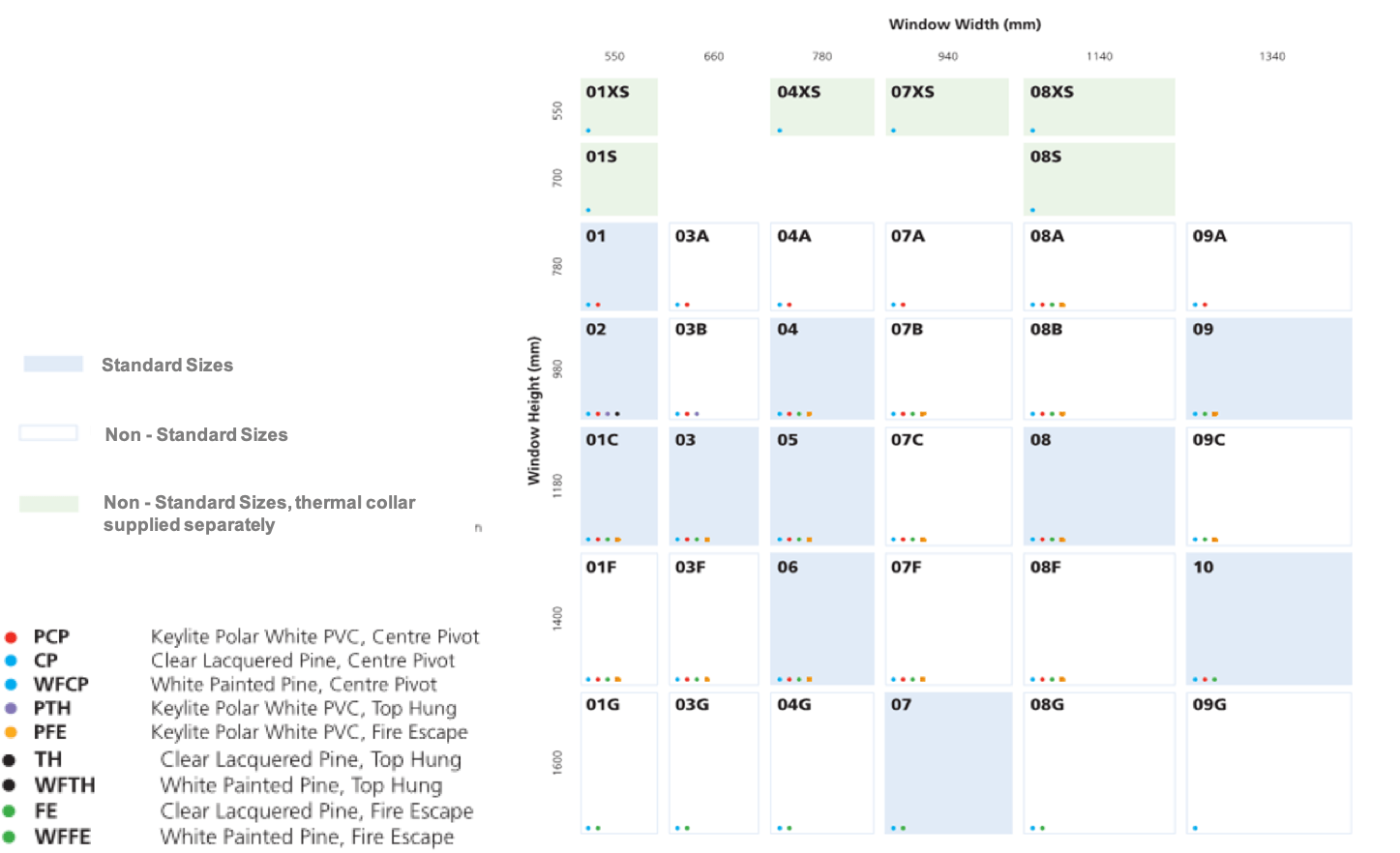

Size Matrix

Our range is available in both standard and non-standard sizes. Keylite's size matrix can be used to establish the dimensions and type of roof window available.

Size Matrix

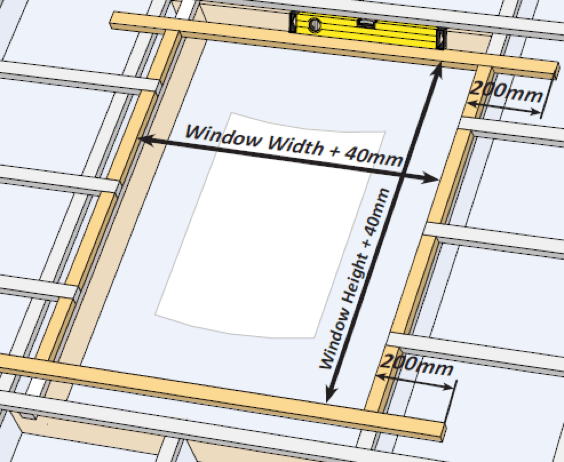

Structural Opening

Structural Opening

The structural opening required for our roof windows will always follow the same rule. The opening must be constructed to allow a 20mm void all the way around the window. Therefore, an additional 40mm will need to be accounted for, on both the width and length of every window installed.

Width of Structural Opening

20mm + Width of Window + 20mm

eg. '04' roof window = 20mm + 780mm + 20mm = 820mm

Height of Structural Opening

20mm + Height of Window + 20mm

eg. '04' roof window = 20mm + 980mm + 20mm = 1020mm

820mm x 1020mm (W x H)

Total Structural Opening

780mm

20mm + 780mm + 20mm = 820mm

980mm

20mm + 980mm + 20mm = 1020mm

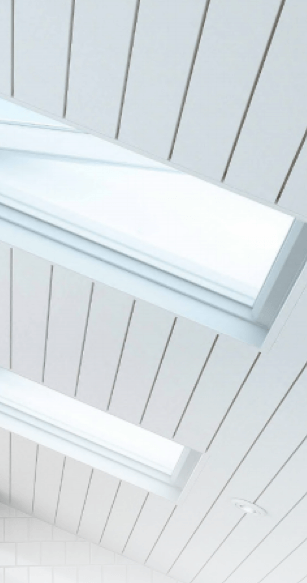

Skylights

RWF

A Skylight is ideal to flood living spaces with natural light in circumstances where opening and closing is not required.

Only available in white painted timber.

Unlike the Fixed Shut Roof Window, the Skylight does not feature a glazed sash. The glazing element is incorporated into the frame.

Certifications

Certification

Keylite has proudly attained a number of certificates over the years for their responsible production management.


Accreditations have been awarded across all areas of our business.

FSC

Keylite Roof Windows is a FSC certified company. Only timber from well managed forests and other controlled sources are selected for our products.

BBA

The British Board of Agrément certifies; Structural Ability, Ventilation, Weather Tightness & properties in relation to fire and thermal insulation. Obtaining a pass and certificate from the BBA represents that our products are of an extremely high quality.

CE Marking

The CE Marking on our products declares they comply with the European health, safety and environmental protection legislation requirements.

ISO 9001

Internationally recognised Quality Management System. Designed to be a powerful business improvement tool to help you to continually improve, streamline operations and reduce costs.

Installation

Guarantee

Guarantee
