Stage 2

Competitor Coding

19 Slides

Keylite Academy
Logging An Enquiry On CRM & NAV Quoting

Comparison Overview

Key Link
Comparison Overview

With all comparison quotes the hardest part is knowing how to read our competitors codes and, whilst this may seem like a daunting prospect at first, it is actually fairly simple. The trick is realising that, much like our own, our competitors codes can be broken down into individual pieces with each piece referring to a set aspect of the products specification. When you know how to break down the codes it is simply a matter of working out what each part means and matching them to our own products.

Breaking Down A

Velux Code

Key Link
Breaking Down a Velux Code

GGL CK04 3070 - this is a standard Velux window code, it’s for a centre pivot pine window with safety double glazing in a 550 x 980mm window size. This code can be broken into 6 pieces, as shown below:

GG / L / CK / 04 / 30 / 70

GG – Refers to the how the window operates.

L – Refers to the material the window is manufactured from.

CK – Refers to the window width.

04 – Refers to the window length.

30 – Refers to the internal finish of the window.

70 – Refers to the glazing specification.

Key Link
Breaking Down a Velux Code

Basic Velux Comparisons

Key Link
Basic Velux Comparisons

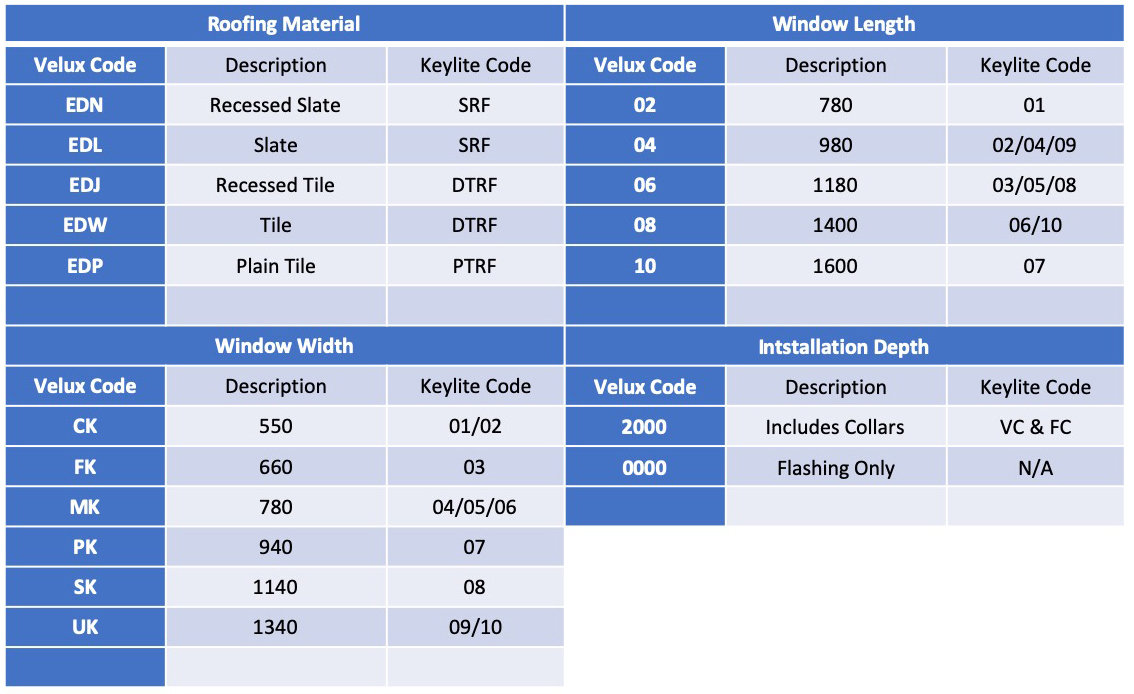

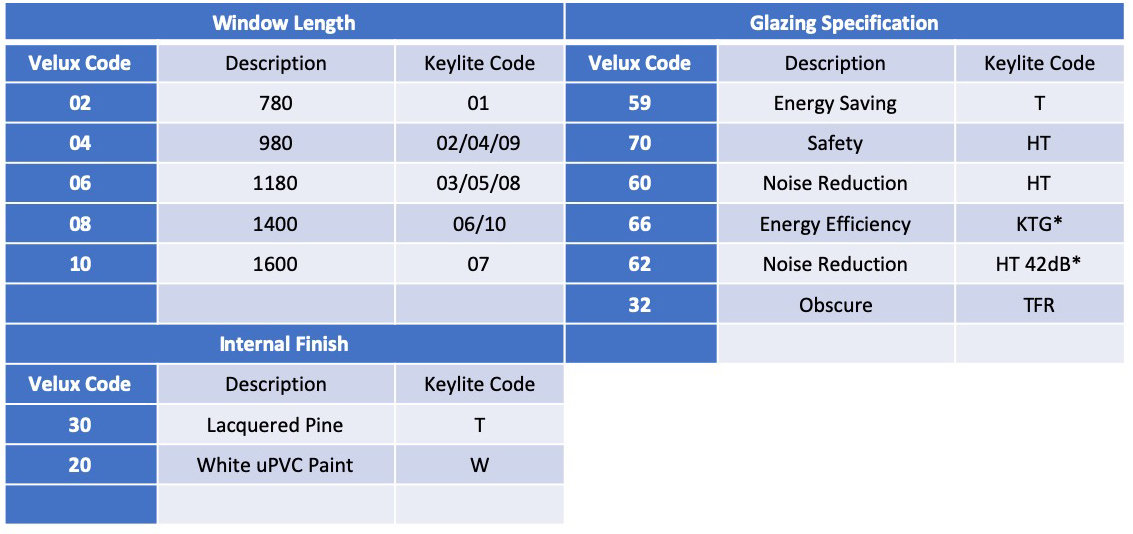

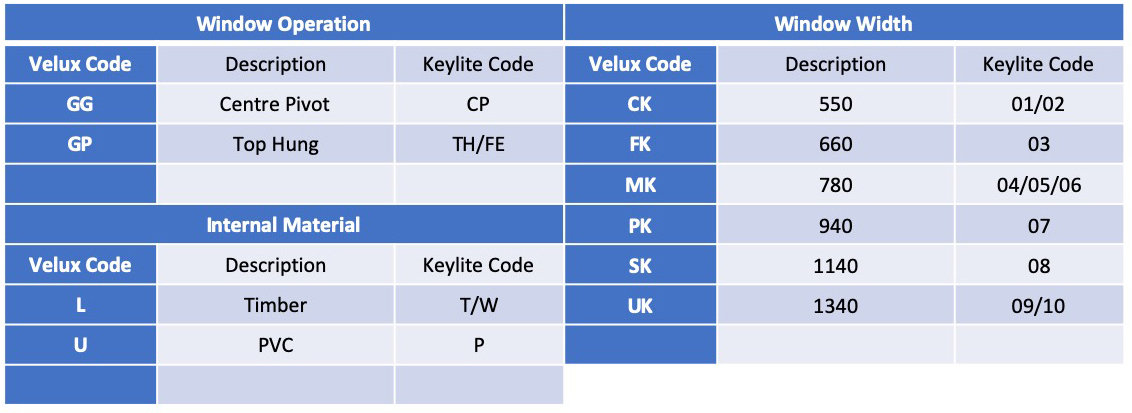

The tables below include the most common Velux window and flashing codes, what they refer to and, when available, our alternative. These can be used to work out exactly what the majority of Velux window codes mean and will help you to understand how to specify our alternatives.

* No Direct Equivalent, Offered As An Alternative Only

Key Link
Basic Velux Comparison

Key Link
Basic Velux Comparisons

* No Direct Equivalent, Offered As An Alternative Only

Breaking Down

a Fakro Code

Key Link
Breaking Down a Fakro Code

FTP-V P2 02 - this is a standard Fakro window code, it’s for a centre pivot vented pine window with safety double glazing in a 550 x 980mm window size. This code can be broken into 6 pieces, as shown below:

F / T / P / V / P2 / 02

F – Refers to the material the window is manufactured from.

T – Refers to the how the window operates.

P – Refers to the internal finish of the window.

V – Refers to the fact that the window is vented.

P2 – Refers to the glazing specification.

02 – Is the window size code.

All standard Fakro window codes can be broken down in this way and will conform to this structure.

Key Link
Breaking Down a Fakro Code

EHN 02 - this is a standard Fakro flashing code, it’s to suit deeply profiled roof coverings, sitting at a standard depth, in a 550 x 980mm window size. This code can be broken into 3 pieces, as shown below:

EH / N / 02

EH – Refers to the roofing material the flashing is suitable for.

N – Refers to the depth at which the window is installed.

02 – Is the window size code.

Basic Fakro Comparisons

Key Link
Basic Fakro Comparisons

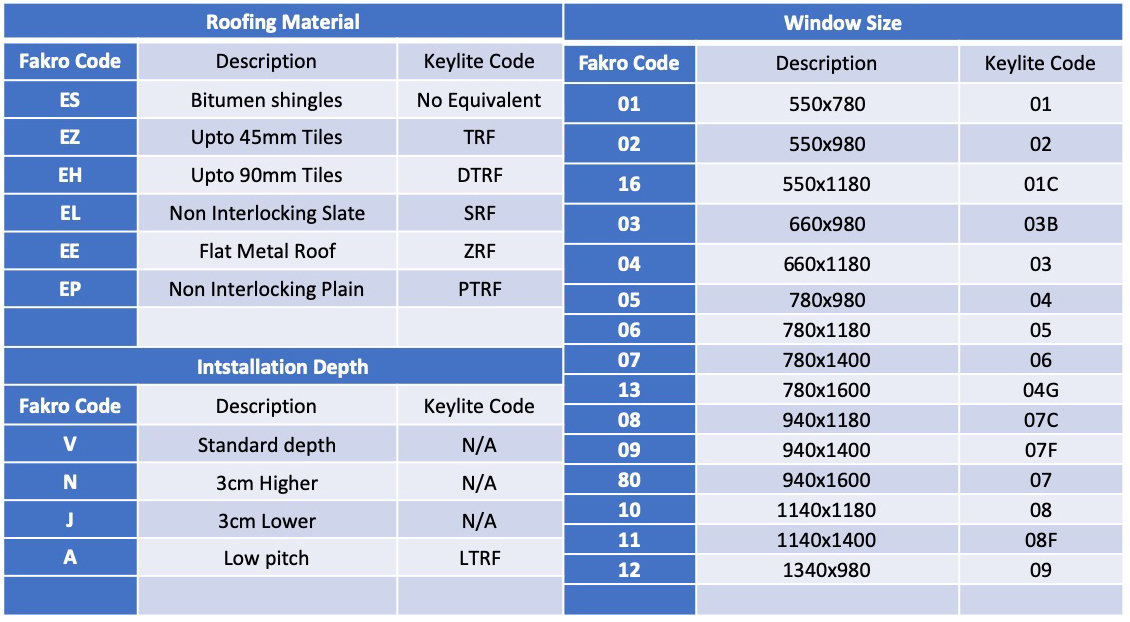

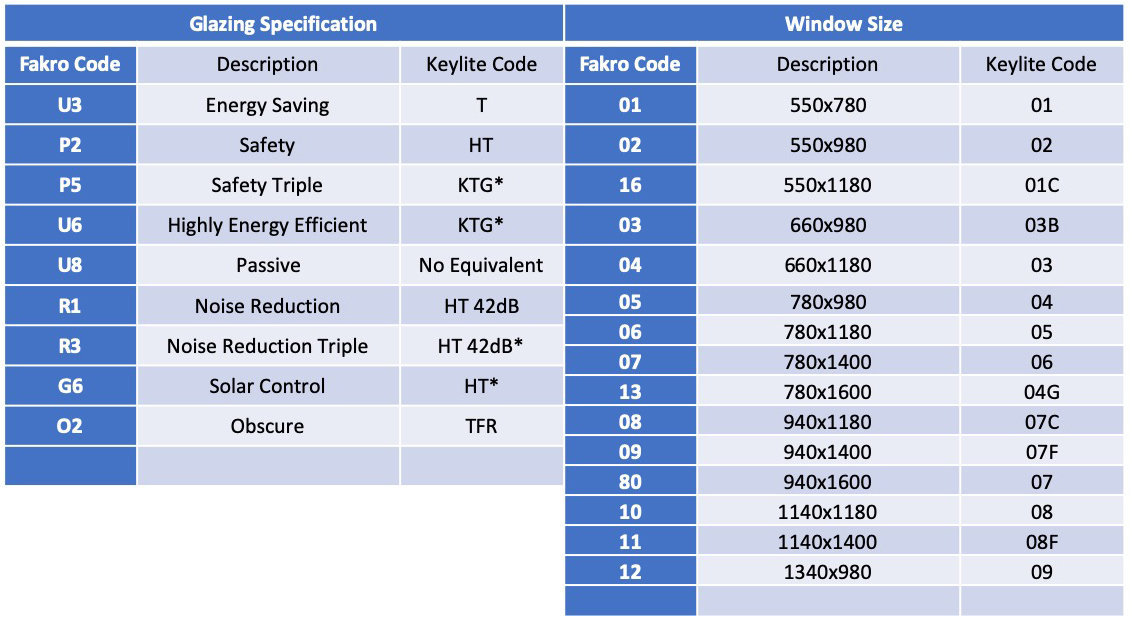

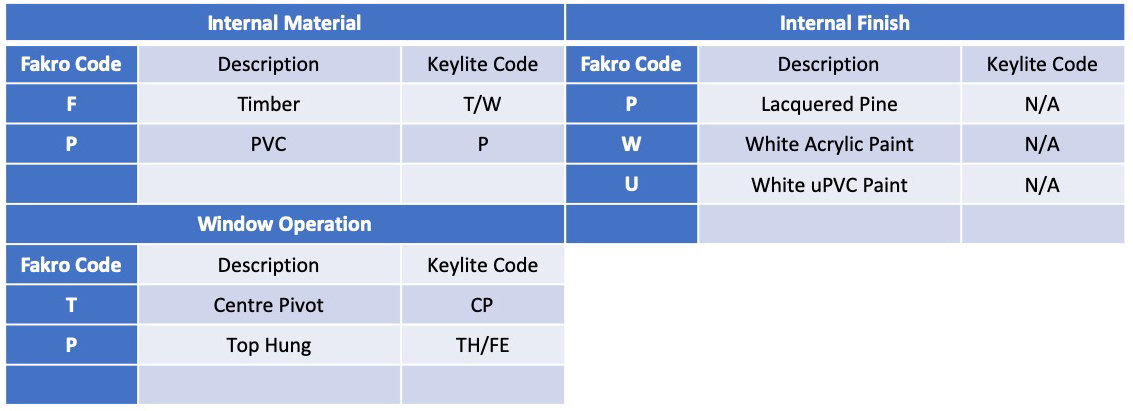

The tables below include the most common Fakro window and flashing codes, what they refer to and, when available, our alternative. These can be used to work out exactly what the majority of Fakro window codes mean and will help you to understand how to specify our alternatives.

* No Direct Equivalent, Offered As An Alternative Only

Key Link
Basic Fakro Comparisons

* No Direct Equivalent, Offered As An Alternative Only

Key Link
Basic Fakro Comparisons

* No Direct Equivalent, Offered As An Alternative Only

Quiz

Please continue to the quiz below
