Brainhack Boston 2023

MACHINE

PSYCHOLOGY

DANIELHAEHN.COM

TRAKO

and more!

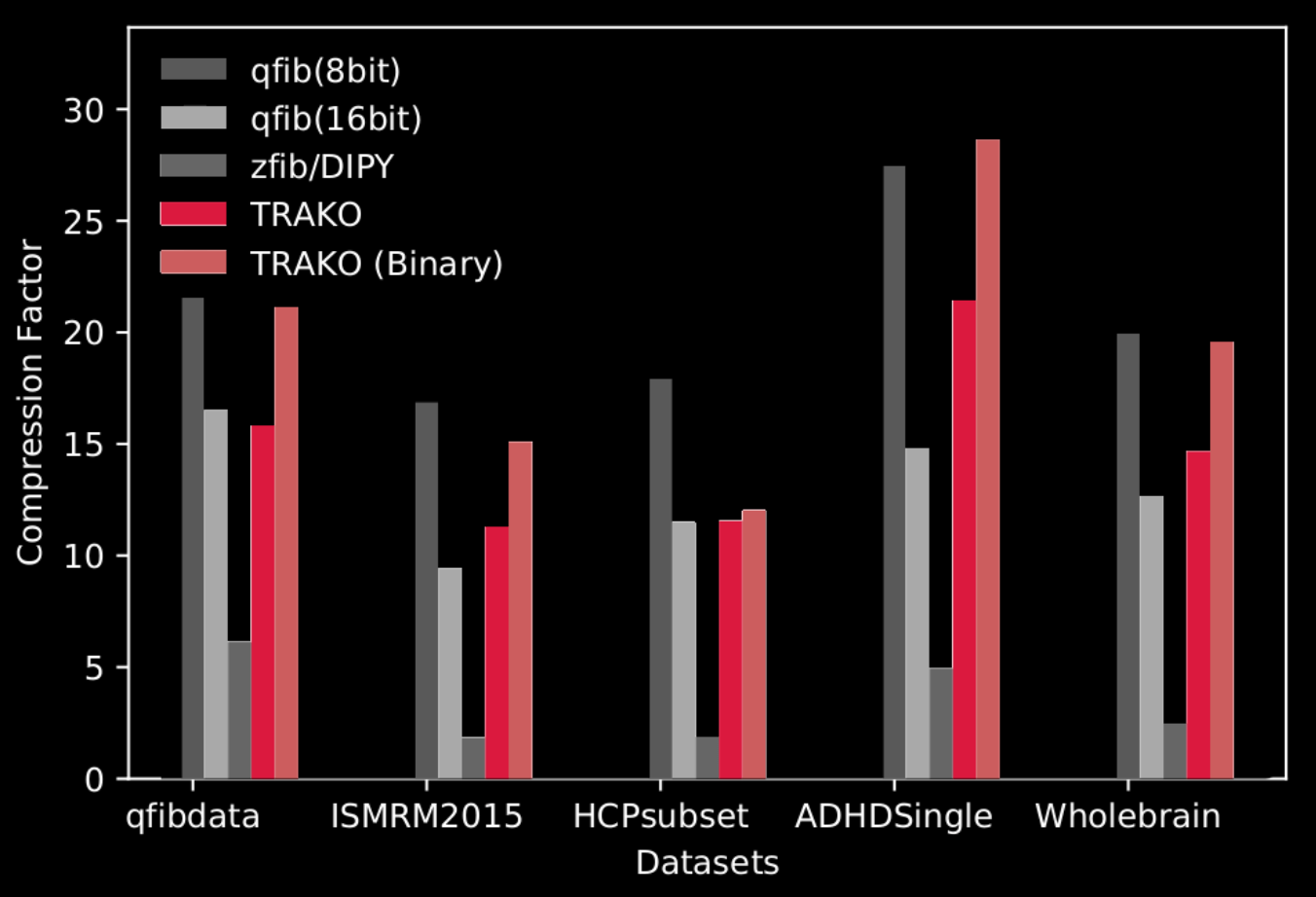

compression up to 28x

ready for immediate
rendering and processing

TRAKO: Efficient Transmission of Tractography Data for Visualization

Daniel Haehn Fan Zhang Steve Pieper Yogesh Rathi

Loraine Franke Suheyla C.-Karayumak Lauren O'Donnell

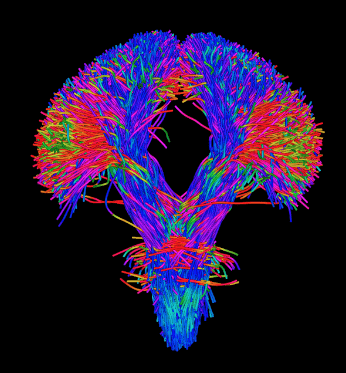

ABCD Study: Thousands of Subjects/Scans

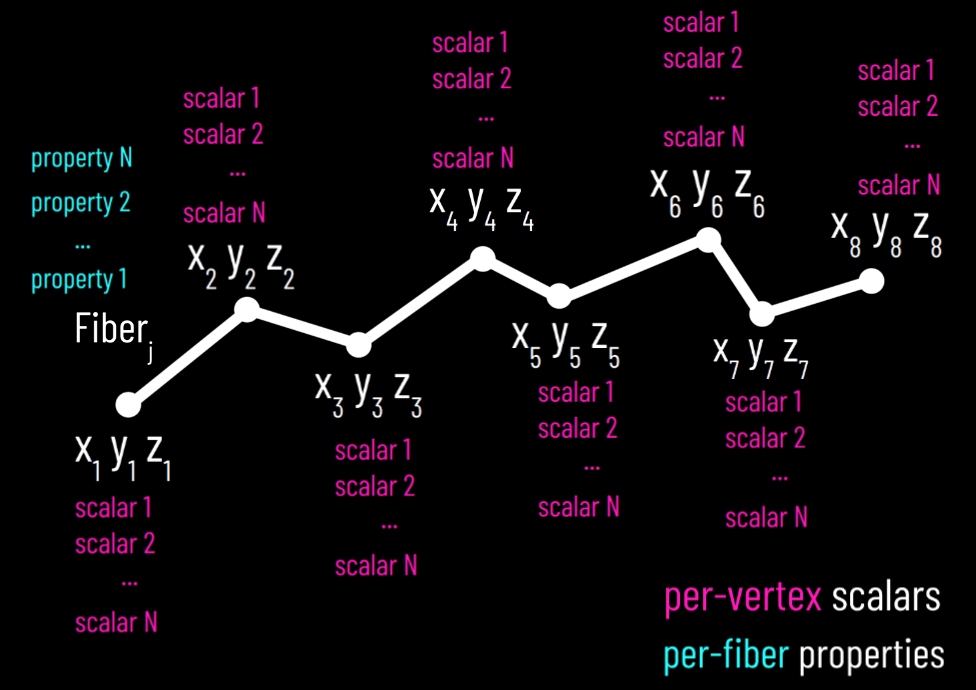

can have arbitrary type and dimension

examples are uncertainty quantification, acquisition parameters, or matrices

gigabytes of data

compression!

existing methods

a) reduce number of fiber tracts

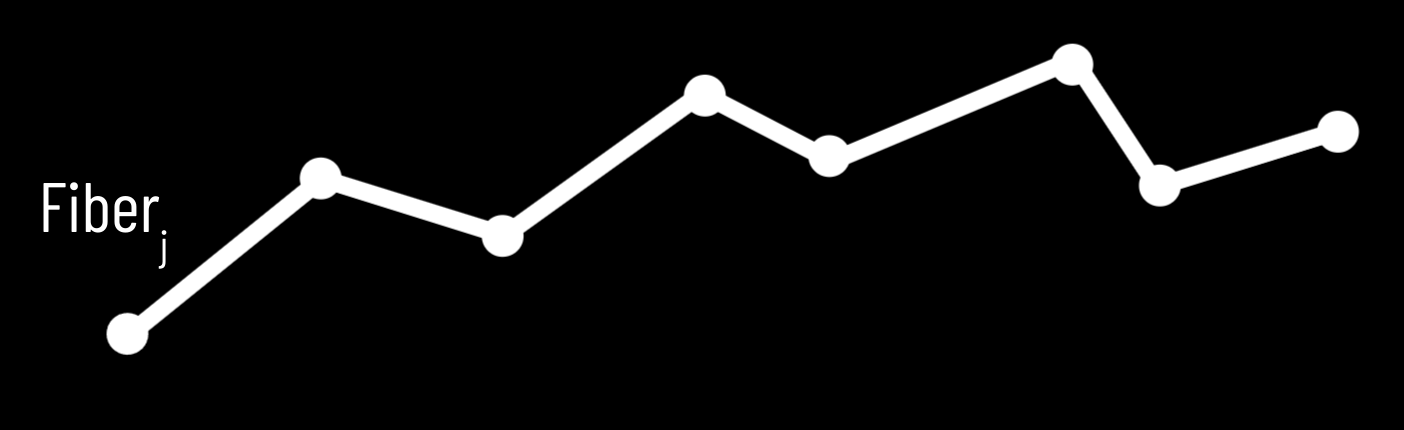

b) or compress individual fibers

TRAKO

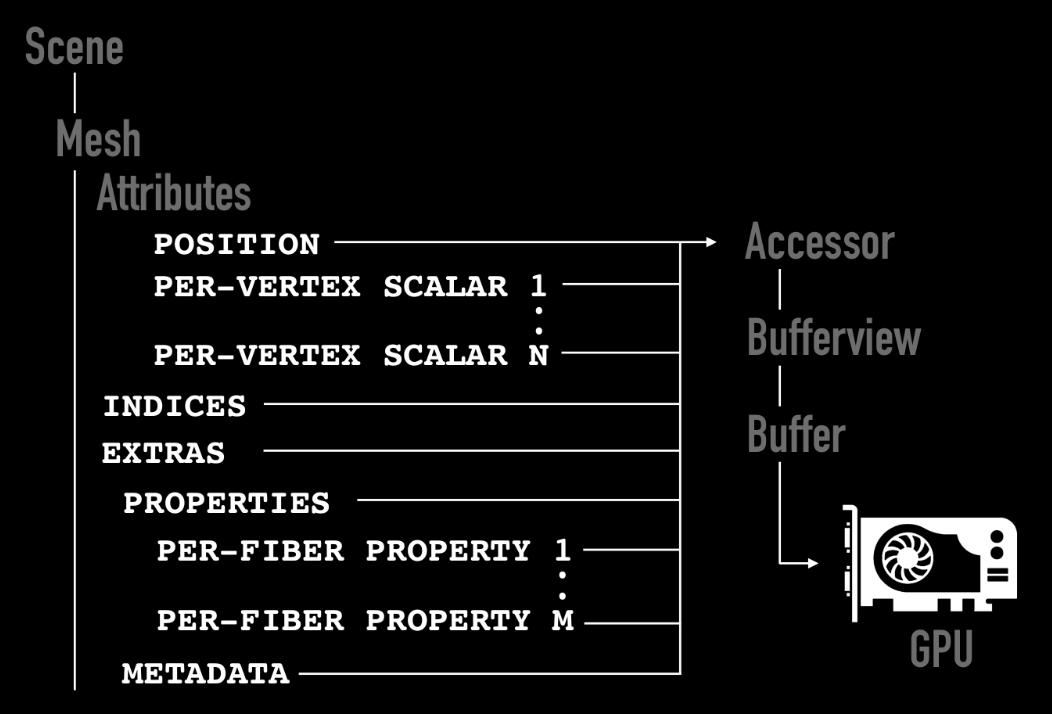

Tractography Data Format

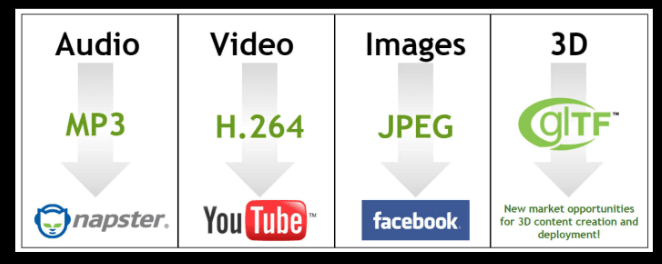

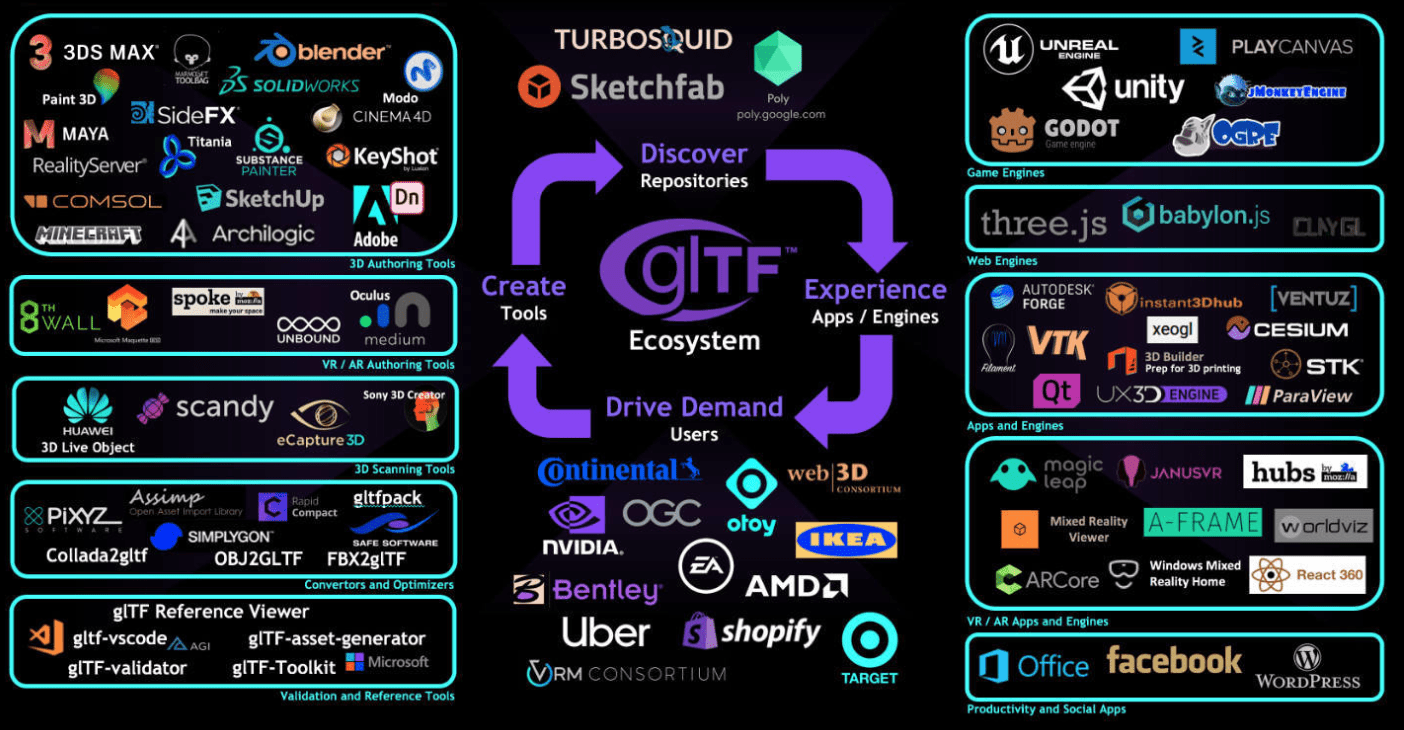

glTF Container "JPEG of 3D"

state-of-the-art 3D geometry compression

.TKO-files

TRAKO

sequential encoding method

order-preserving entropy reduction

configurable quantization rate

TRAKO

works with .VTK, .VTP, .TCK, .TRK

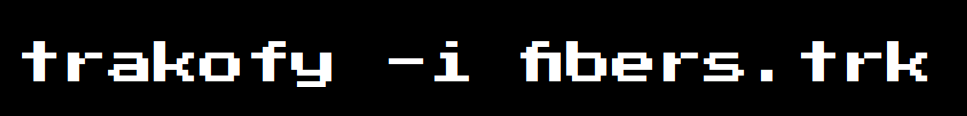

pip install trako

TRAKO

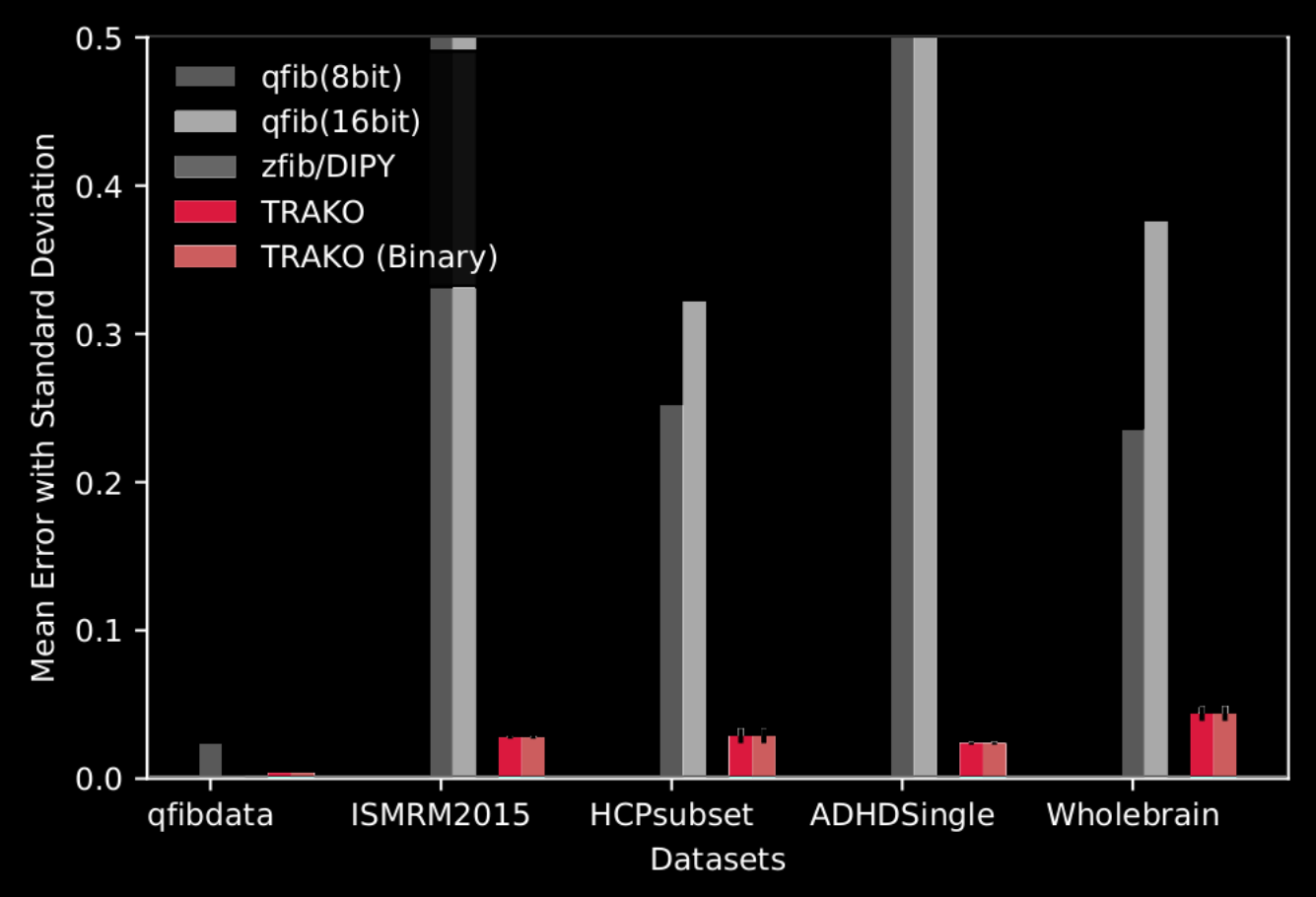

lossy compression

good enough?

TRAKO

sensitivity analysis after compress/restore

STFC between ADHD and healthy population

high overlap of fiber tract points

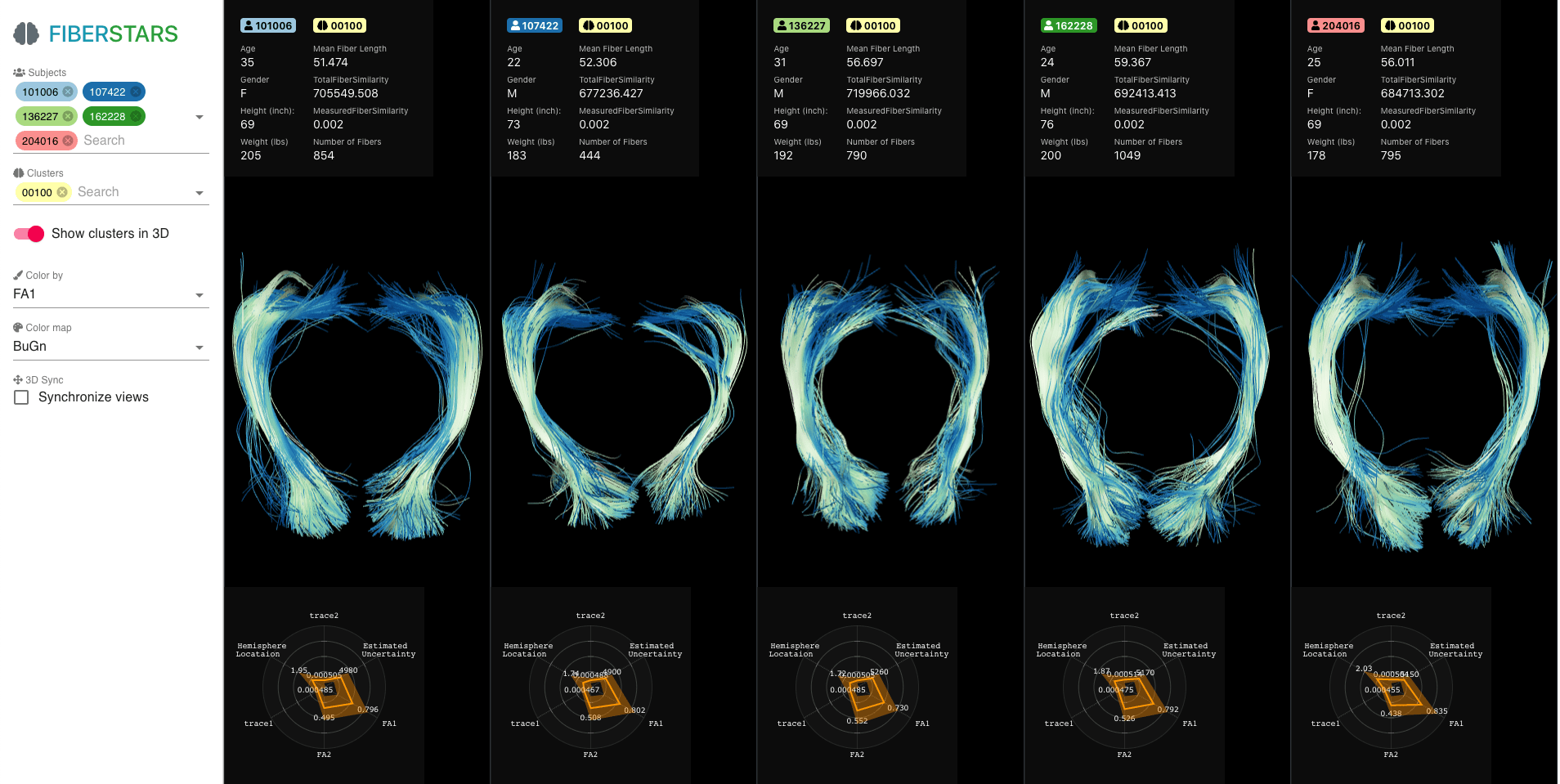

Loraine Franke

github.com/lorifranke/FiberStars

github.com/bostongfx/TRAKO

goXTK.com

https://boostlet.org

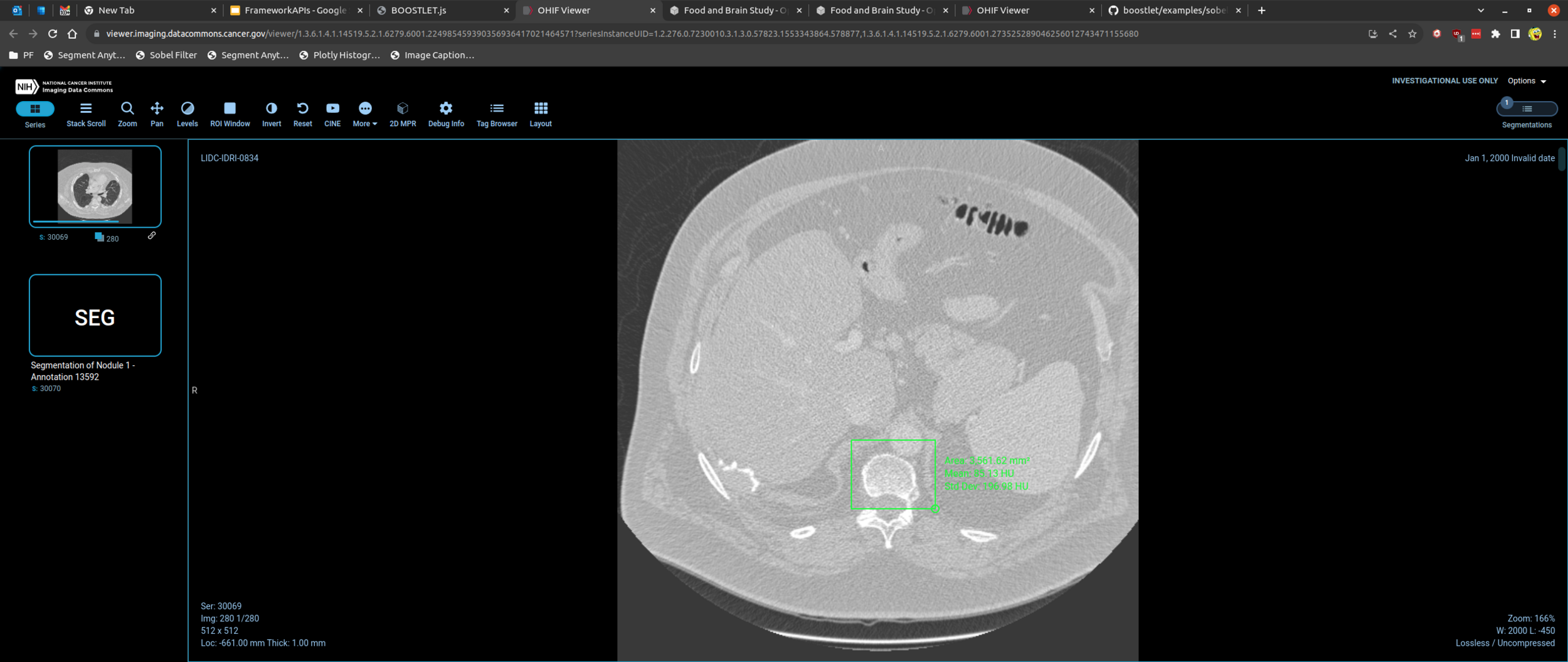

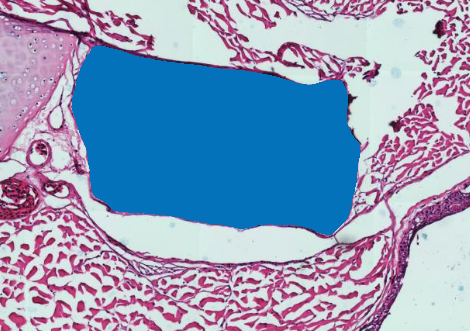

Segment Anything

develop a processing module...

...that works with many different visualization frameworks

script = document.createElement("script");
script.type = "text/javascript";
script.src = "https://boostlet.org/dist/boostlet.min.js";
script.onload = run;
document.head.appendChild(script);
eval(script);


function run() {

  // detect visualization framework
  Boostlet.init();

  image = Boostlet.get_image();

  kernel = [
    -1, 0, 1,
    -2, 0, 2,
    -1, 0, 1
  ];

  filtered = Boostlet.filter(image.data, image.width, image.height, kernel);

  Boostlet.set_image( filtered );

}
