CSS 101

Web Programming Course

SUT • Fall 2018

TOC

  • History of CSS
  • Anatomy
  • How to
  • CSS Selectors
    • Simple Selectors
    • Combinators
    • Grouping Selectors
    • Pseudo-elements
    • Selectors Level 3
  • Cascading & Inheritance
  • Specificity of Selectors
  • Styling (part I)
    • Text, Links
    • Backgrounds
  • Values & Units
  • Element's Level
  • Box Model
  • Styling (part II)
    • Lists
    • Tables
    • Forms

History of CSS

CSS was first proposed by Håkon Wium Lie in 1994. At the time, Lie was working with Tim Berners-Lee at CERN.

Separation of document structure from the document's layout

More on w3.org

Anatomy

NOT a Markup language NOR a programming language, but a stylesheet language

More on MDN

CSS How To

More on MDN

  • External stylesheet





  • Internal stylesheet







  • Inline style
<head>
  <link rel="stylesheet" href="style.css">
</head>
<head>
  <style>
    p { color: red; }
  </style>
</head>
<body>
  <p style="color:red;">This is my first CSS example</p>
</body>

Selectors

More on MDN

Simple Selectors

<head>
  <style>
    /* All <a> elements. */
    a {
      color: red;
    }
  </style>
</head>

Type Selector

Matching elements by node name

<head>
  <style>
    /* All elements. */
    * {
      color: green;
    }
  </style>
</head>

Universal Selector

Matching all elements

Selectors

More on MDN

/* All elements w/ 'red' class */
.red {
  color: red;
}

Class Selector

Matching elements based on the contents of their class attribute

/* The element with id="demo" */
#demo {
  border: red 2px solid;
}

ID Selector

Matching elements based on their id

Simple Selectors

Online Demo

Selectors

More on MDN

/* All paragraphs w/ 'red' class */
p.red {
  color: red;
}

/* The <div> with id="site-header" */
div#site-header {
  padding: 16px;
}

Chaining Simple Selectors

Begins with a type/universal selector

Simple Selectors

Selectors

More on MDN

/* All elements with alt attribute */
[alt]            {}
/* All elements with rel=nofollow */
[rel="nofollow"] {}
/* All elements with class="red ..."
   same as .red class selector */
[class~="red"]   {}
/* All elements with lang="fa" or lang="fa-IR" */
[lang|="fa"]     {}
/* All elements with an href starts with 'http' */
[href^="http"]   {}
/* All elements with an href ends with '.png' */
[href$=".png"]   {}
/* All elements with class contains 'col-' substring */
[class*="col-"]  {}

Attribute Selectors

Matching elements based on their attributes

Simple Selectors

Selectors

More on MDN

/* All <a> elements that are links! (having href)
   and not yet been visited */
a:link {
  color: blue;
}

/* All visited links */
a:visited {
  color: purple;
}

Pseudo-classes

Matching elements based on information lies outside of the document tree
or cannot be expressed using other simple selectors.

Simple Selectors

:some-thing()

Selectors

More on MDN

Combinators

... whitespace, "greater-than sign" (U+003E, >), "plus sign" (U+002B, +) and "tilde" (U+007E, ~). White space may appear between a combinator and the simple selectors around it. Only the characters "space" (U+0020), "tab" (U+0009), "line feed" (U+000A), "carriage return" (U+000D), and "form feed" (U+000C) can occur in whitespace. Other space-like characters, such as "em-space" (U+2003) and "ideographic space" (U+3000), are never part of whitespace.

Selectors

More on MDN

/* Descendant combinator describes all descentants */
ul li {
  border: 1px dashed orange;
}

/* Child combinator describes all children */
ul.site-links > li {
  border: 1px dashed orange;
}

Combinators

Selectors

More on MDN

/* Next-sibling combinator */
li + li {
  border-top: 1px solid orange;
}

/* Subsequent-sibling combinator */
p.from-here ~ p {
  color: green;
}

Combinators

Selectors

h1 { font-family: sans-serif }
h2 { font-family: sans-serif }
h3 { font-family: sans-serif }

/* is equivalent to: */

h1, h2, h3 { font-family: sans-serif }

Grouping

h1 { font-family: sans-serif }
h2..foo { font-family: sans-serif } /* ERR */
h3 { font-family: sans-serif }

/* is NOT equivalent to: */

h1,
h2..foo, /* ERR */
h3 { font-family: sans-serif }
/* the entire style rule is dropped */

Selectors

Pseudo-elements

::some-thing()

Create abstractions about the document tree beyond those specified by the document language.

::first-line

::first-letter

::selection

::before

::after

...

More on MDN

Selectors

Other Selectors

:not()

:only-child

:first-child

:last-child

:nth-child()

:only-of-type

:nth-of-type()

...

More on MDN

Mostly standardized in CSS selectors level 3

Cascading & Inheritance

More on w3.org

  • Some properties inherit the value
  • The Cascade
    • User-agent stylesheet
    • Author stylesheet
    • User style
  • !important to escape the cascade

Cascading & Inheritance

More on w3.org

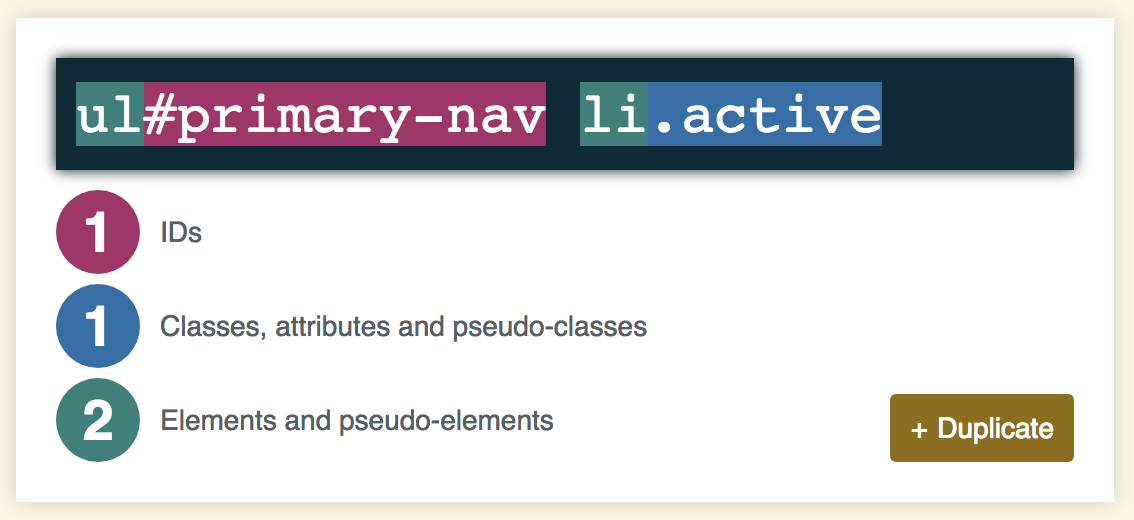

Specificity of Selectors

Determines how much a selector is specific, strong.

Styling!

<style>
  html {
    background-color: #f7f7f7;
    background-image: url(images/background.png);
    background-attachment: fixed;
    background-size: cover;
  }

  p {
    font-family: Arial;
    font-size: 20px;
    font-weight: 300;
  }

  a {} a:link {} a:hover, a:focus {} a:active {}
</style>

Values & Units

More on MDN

Numeric Types

<integer>, <number>, <percentage>

<length> Type

Textual Types

<string>, <url>

.box::after {
  content: 'Hi' '\21';
  background: url(../bg.png);
}

.box {
  width: 80%;
  line-height: 1.4;
}



.box {
  /* 90% of viewport H. */
  height: 90vh;

  /* 2rem ~ 2*16px */
  font-size: 2rem;

  border: 10px solid gray;
}

Values & Units

More on MDN

Functional Notations

url()

calc()

attr()

...

Other Types

<color>, <position>


.box {
  background-color: rgba(230, 185, 15, .6);
  background-image: url(../bg.png);
  background-position: 20% 60%;
}

.box {
  width: calc(100vw - 30px);
  padding: 10px 15px;
}

.box::after {
  content: attr(data-foo)
}

RE: Elements' Levels

<!-- inline elements are placed on the baseline
     beside each other -->
<a href="..."> link </a>
<strong> an important thing </strong>

<!-- block-level elements take their
     parent horizontal space -->
<p> paragraphs are block-level elements </p>

<!-- making an anchor a block-level element -->
<a href="..." style="display: block"> ... </a>

Online DIY

Box Model

More on MDN

margin

padding

border

width

height



min-width

max-width

min-height

max-height

Box Model

More on MDN

Changing the box model: box-sizing

Box Model

More on MDN

Margin Collapsing

  • Top and bottom margins of adjacent block-level elements (in the same BFC)

  • Top and bottom margins of a parent and its in-flow first/last block-level child

  • Top and bottom margins of an empty block-level element

Box Model

More on MDN

Margin Uncollapsing!

  • Establishing a new Block Formatting Context

  • Separating margin edges with border, padding, ...

  • Full-width inline-block elements

  • ...

More Styling!

Reference
