Web APIs 101

Web Programming Course

SUT • Fall 2018

TOC

  • Document Object Model (DOM)

    • Introduction

    • Data Types

    • Selectors

    • DOM Manipulation

    • Events

    • DOM Tree

  • Asynchronous JavaScript And XML (AJAX)

    • XMLHttpRequest

    • Fetch API

    • Promise (ES2015)

  • Web Storage
    • cookie
    • localStorage
    • sessionStorage

DOM

document.getElementById("img1")
  .style
  .borderWidth = '1px';

Is this JavaScript?

document.addEventListener('click', function () {
  // some stuff
}, false);

What about this?

Intro

More on MDN

DOM

What is DOM

The Document Object Model (DOM) is a programming interface for HTML and XML documents. It represents the page so that programs can change the document structure, style, and content. The DOM represents the document as nodes and objects. That way, programming languages can connect to the page.

Intro

DOM

<!DOCTYPE html>
<html>
  <body>
    <p>
      Hello World
    </p>
    <div>
      <img src="example.png"/>
    </div>
  </body>
</html>

w3.org/DOM/DOMTR

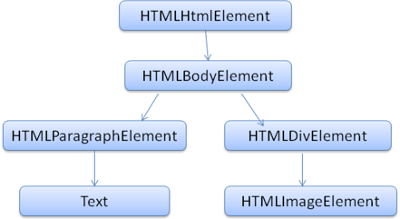

Parsing

Intro

More on MDN

DOM

More on MDN

// the document object
window.document;

// returns an Element
document.getElementById('foo');

// returns a NodeList
document.getElementsByTagName('a');

Data Types

DOM

More on JavaScript.info

Selectors

Also on an element

To match an element or a NodeList collection

DOM

More on JavaScript.info

Manipulation

  • Styles:
    • Read/Write width, height, ...
  • Attributes:
    • Read/Write class attribute value, data-*, ...
  • Add element:
    • Creating children tree, moving an element, ...
  • ...

DOM

More on MDN

Example

Manipulation

DOM

More on JavaScript.info

Events

A signal that something has happened.

3 ways to assign event handlers:

  1. HTML attribute​
    onclick="..."
  2. DOM property
    elem.onclick = function(){};.
  3. Methods
    elem.addEventListener(event, handler[, phase]) to add, removeEventListener to remove.

DOM

More on JavaScript.info

Example

Events

DOM

More on JavaScript.info

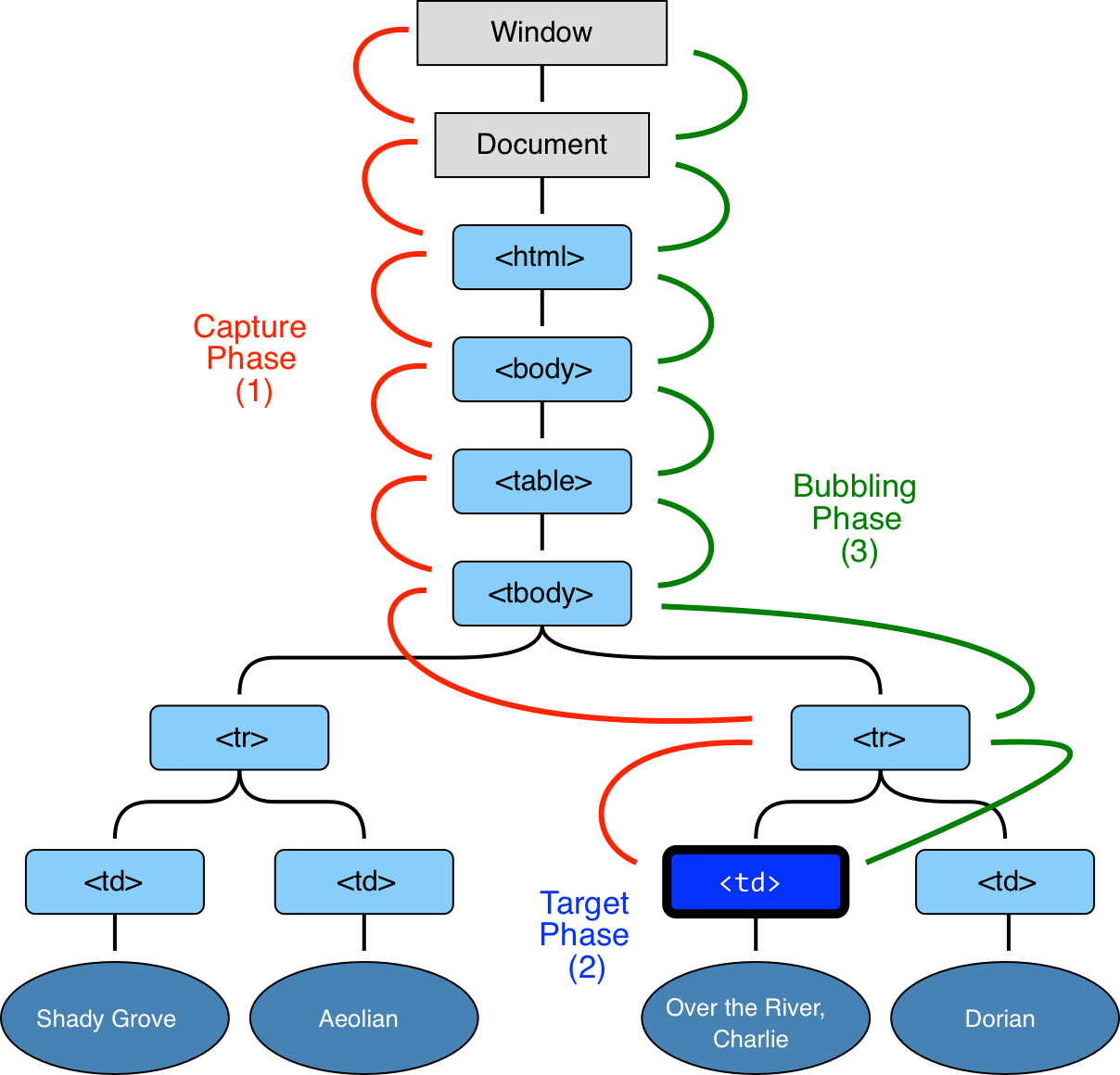

Bubbling & Capturing

Events

1. Capturing Phase

2. Target Phase

3. Bubbling Phase

event.stopPropagation()

DOM

More on JavaScript.info

Tree

Creating new elements "on the fly", modifying the page

AJAX

To partially updating the web page

More on MDN

... is a set of Web development techniques using many Web technologies on the client side to create asynchronous Web applications [that] can send and retrieve data from a server without interfering with the display and behavior of the existing page. By decoupling the data interchange layer from the presentation layer, Ajax allows Web pages to change content dynamically without the need to reload the entire page.[3] ... modern implementations utilize JSON instead of XML due to the advantages of JSON being native to JavaScript.

AJAX

XMLHttpRequest API

More on MDN

var xhr = new XMLHttpRequest();
xhr.open('GET', '/my/url');
xhr.send();

xhr.onload = function() {
  // we can check
  // status, statusText - for response HTTP status
  // responseText, responseXML (content-type: text/xml)

  if (this.status != 200) {
    // handle error
    alert( 'error: ' + this.status);
    return;
  }

  // get the response from this.responseText
};

xhr.onerror = function() {
  // handle error
};

AJAX

fetch API

More on MDN

fetch('/my/url', { method: 'GET' })
  .then(function(response) {
    if (response.ok) {
      return response.json();
    }

    throw new Error('Network response was not ok.');
  })
  .then(function(data) {
    // do something with data
  })
  .catch(function(error) {
    console.error(error);
  });

AJAX

A future value for the completion of an asynchronous operation.

More on JavaScript.info

Promise Intro

new Promise(function(resolve, reject) {
  // the function is executed automatically with `new Promise`
  // after the async job: call resolve(value) or reject(reason)
});

AJAX

More on JavaScript.info

Promise Example

Web Storage

Mechanisms by which browsers can store data

More on MDN

Use-cases

  • Authentication (persist token)
  • To keep user's preferences
  • ...

Web Storage

More on MDN

Cookie

Response (Set-Cookie header)

Set-Cookie: <cookie-name>=<cookie-value>

Set-Cookie: yummy_cookie=choco
Set-Cookie: tasty_cookie=strawberry

Request (Cookie header)

Cookie: <cookie-list>

Cookie: name=value
Cookie: name=value; name2=value2; name3=value3

Web Storage

More on MDN

Cookie

Web Storage

More on MDN

document.cookie

// getting all cookies
// semicolon-separated list of all cookies
// (e.g. "key1=value1; key2=value2")
allCookies = document.cookie;

// writing a new cookie
document.cookie = newCookie;

Cookie

API

Web Storage

More on MDN

localStorage

sessionStorage

// adding a data item
localStorage.setItem('myCat', 'Tom');

// reading an item
var cat = localStorage.getItem('myCat');

// removing an item
localStorage.removeItem('myCat');

// clear all items
localStorage.clear();

Storage

Web Storage

More on MDN

Storage
