Atomic Design, Pattern Lab & Drupal

Big Takeaways

  • How Drupal theming works
  • Atomic Design
  • Prototyping
  • Prototyping with Pattern Lab
  • Fitting Pattern Lab together with Drupal

Drupal

Makes

<HTML/>

Drupal theming

Wordpress

Makes

<HTML/>

Wordpress theming

Linux,

Apache,

MySQL

PHP

Drupal theming

Linux,

Apache,

MySQL

PHP

Wordpress theming

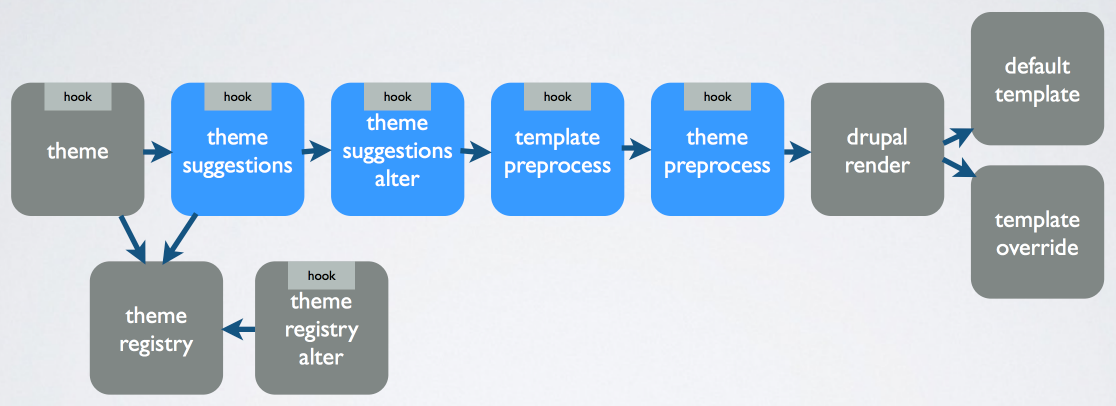

Drupal 8 theming pipeline

Drupal theming

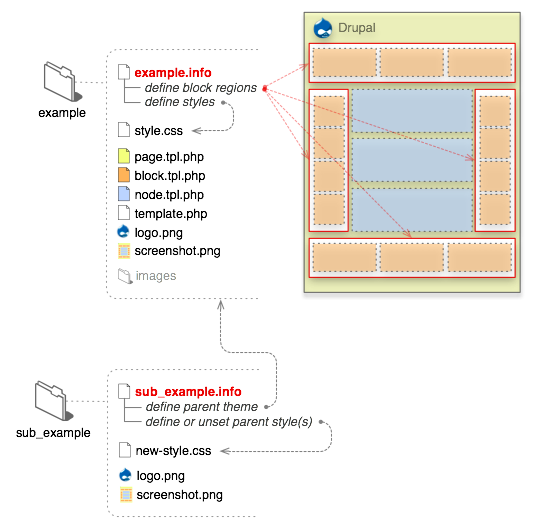

Theme template files (D7)

Drupal theming

TL:DR

Drupal theming to produce HTML is very powerful and very flexible

Drupal theming

Linux,

Apache,

MySQL

PHP

Drupal theming

A website is made of:

  • HTML
  • CSS
  • Javascript
  • Images/Icons
  • Fonts

?

The tools used to create site assets are ultimately up to us.

Brain Space:

Atomic Design

  • A way of thinking about design to build
  • Documentation of a design system
  • A vocabulary for building web apps/sites
  • "Fences" to guide design for the web
  • Consistent approach from design to frontend to backend development
  • Establish conventions within the site for a better experience
  • Design systems, not "pages".

Atomic Design

The Why:

Atomic Design

  • If design is not already done when a project starts, guides design in sustainable ways
  • If design is "done" when project starts, provides consistent approach to decomposing UI patterns in prep for development
  • Quantify design!

Atomic Design

The How:

Atomic Design

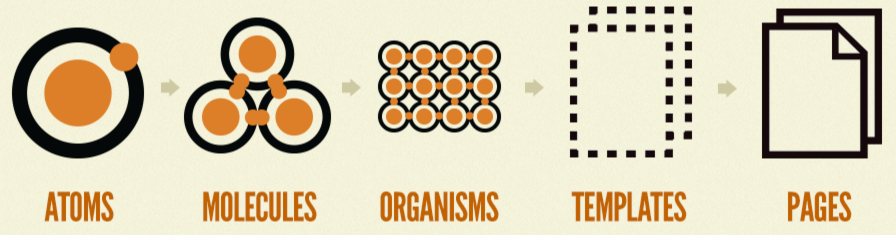

  • Break designs down into: Atoms, Molecules, Organisms, Templates, Pages
  • Compose more complex visual patterns from simpler visual patterns
  • Process and discipline at the design level that carries forward to the implementation

Atomic Design

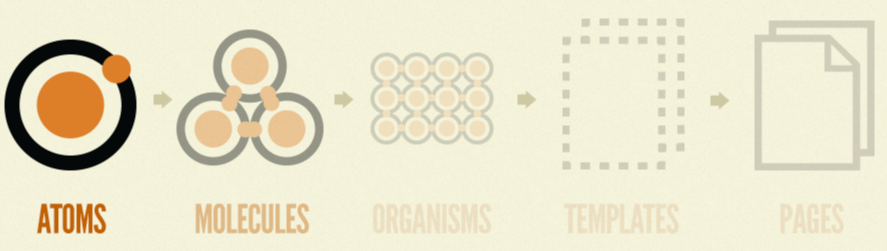

Atomic Design

If atoms are the basic building blocks of matter, then the atoms of our interfaces serve as the foundational building blocks that comprise all our user interfaces. These atoms include basic HTML elements like form labels, inputs, buttons, and others that can’t be broken down any further without ceasing to be functional.



http://demo.patternlab.io/?p=viewall-atoms-text

Atomic Design

Atoms

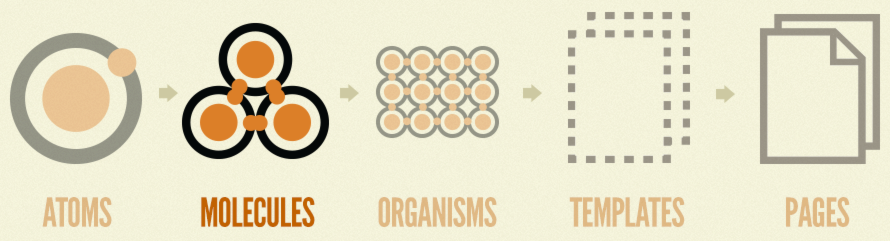

In interfaces, molecules are relatively simple groups of UI elements functioning together as a unit. For example, a form label, search input, and button can join together to create a search form molecule.



http://demo.patternlab.io/?p=molecules-primary-nav

Atomic Design

Molecules

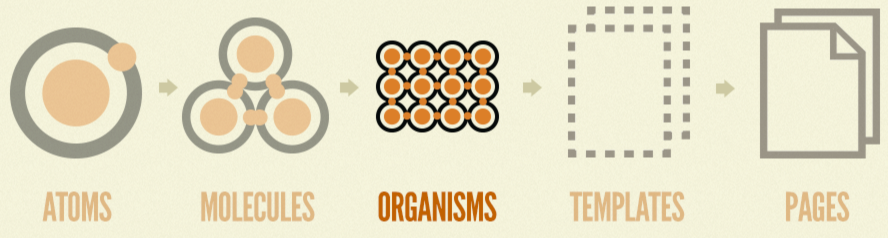

Organisms are relatively complex UI components composed of groups of molecules and/or atoms and/or other organisms. These organisms form distinct sections of an interface.



http://demo.patternlab.io/?p=organisms-header

Atomic Design

Organisms

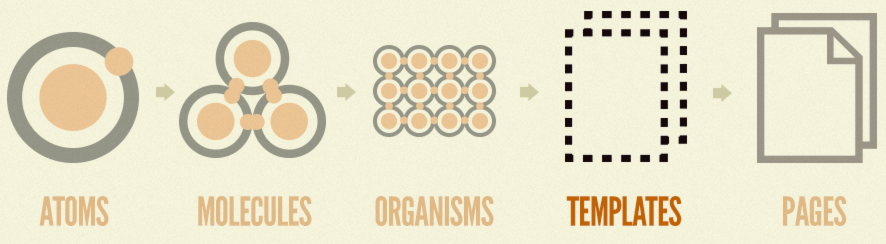

Templates are page-level objects that place components into a layout and articulate the design’s underlying content structure.



http://demo.patternlab.io/?p=templates-homepage

Atomic Design

Templates

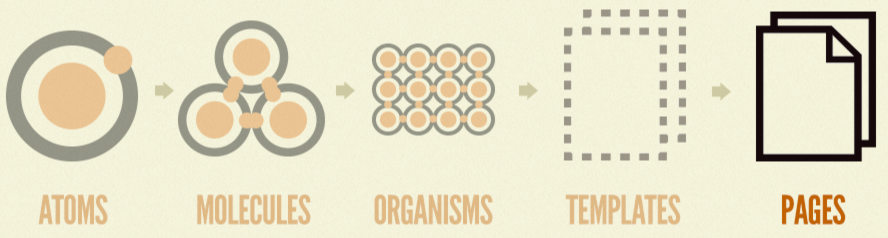

Pages are specific instances of templates that show what a UI looks like with real representative content in place.



http://demo.patternlab.io/?p=pages-homepage

Atomic Design

Pages

Atomic Design

Bring sanity, process, and structure to the design process in preparation for development of user interfaces.

The Case for Prototyping

Our prototyping definition:

"Simple, rapid, iterative generation of HTML, CSS, Javascript, and other assets expressly for the purpose of informing - and consumption by - builds in more complex systems."

Prototyping

Prototyping

  • Solve problems early, before backend dev
  • Test UX early with real code
  • Iterate on designs rapidly
  • Frontend development is FAST
  • Generate assets (CSS/JS/Icons) at STEP ONE
  • Parallel development with "backend"
  • Roadmap for backend development

Prototyping

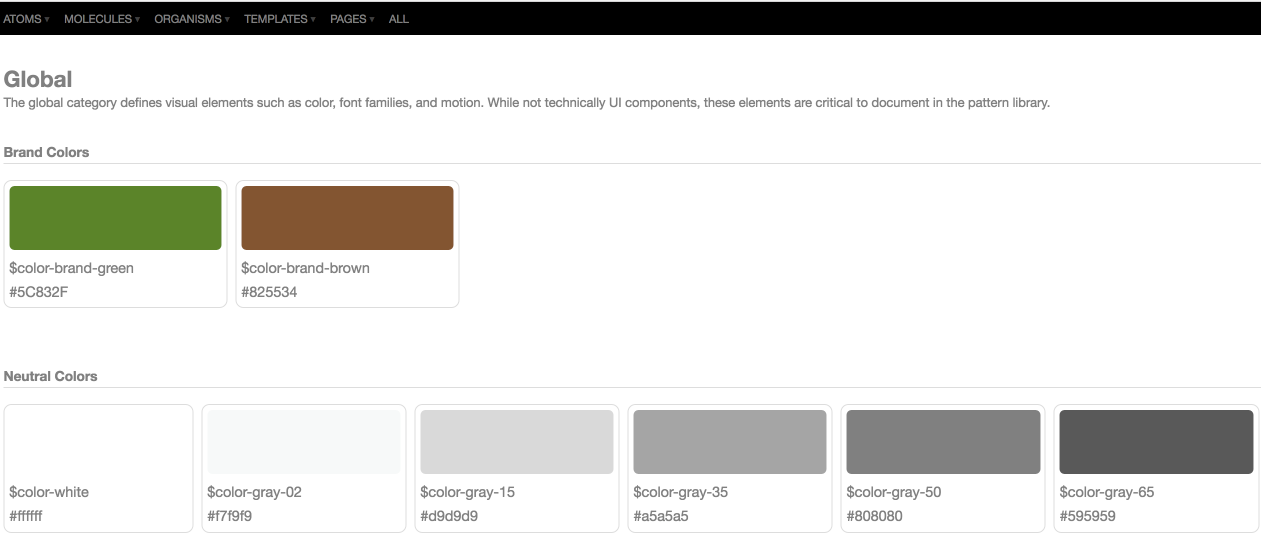

Prototyping with Pattern Lab

http://patternlab.io

  • A program to facilitate the creation of Atomic Design patterns using Twig, resulting in HTML, CSS, and javascript
  • Robust interface to navigate all components of a design
  • The actual, delivered styleguide as a fully  qualified website
  • Lives beside (and shares all assets with) the final implementation (Drupal)

Prototyping - Pattern Lab

Pattern Lab (cont'd)

  • Works locally, generates static, hostable code
  • A full interface to navigate style guides, prototypes
  • A design audit
  • Responsive tools built in
  • Is un-opinionated about *how* those assets are written
    • BEM, SMACSS, Sass/Less
    • Task runners: Grunt, Gulp

Prototyping - Pattern Lab

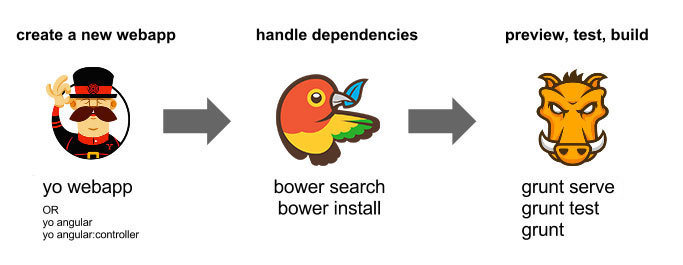

Modern Prototyping Power Tools

Prototyping - Pattern Lab

  • Twig
  • Yeoman
  • Bower
  • Grunt/Gulp
  • SCSS
  • Sass/JS linting

Don't throw away the prototype.

Pattern Lab + Drupal

Pattern Lab + Drupal

Pattern Lab

Drupal

sitename
|- themes
    |- mytheme
        |- patternlab
        |- css
        |- js
        |- img
        |- fonts
        |- icons

Pattern Lab lives inside a Drupal theme. There is NO duplication, no "moving" of files. Both systems share the exact same assets.

Molecule: card.twig

<div class="card">

  {% if card_header %}
    {% block card_header %}
      <div class="card-header">
        {{ card_header }}
      </div>
    {% endblock %}
  {% endif %}

  {% if card_image_top %}
    {% block card_image_top %}
      <img class="card-img-top" src="{{ image_medium }}" />
    {% endblock %}
  {% endif %}

  <div class="card-block">

  ....

Pattern Lab + Drupal

Drupal uses PL patterns

/**
 * @file
 * node--article--teaser.html.twig
 */

{% embed "@molecules/cards/card.twig"
  with {
    "element": "article",
    "url": url,
    "title": label,
    "card_image_top": true,
    "card_links": true,
    "card_footer": node.bundle|title
  }
%}
  {% block card_image_top %}
    {{ content.field_image }}
  {% endblock %}

  {% block card_links %}
    {{ content.links }}
  {% endblock %}
{% endembed %}

Pattern Lab + Drupal

Prototyping and CMS

By Christopher Bloom

Prototyping and CMS

Frontend development is much better served from a robust prototyping tool that produces assets consumed by complex systems like Drupal or Wordpress.
