Aim 3: Posterior Sampling and Uncertainty
September 20, 2022
Problem Statement (refresher)
y = x + v_0,~v_0 \sim \mathcal{N}(0, \sigma_0^2 \mathbb{I})
retrieval of \(x\) is ill-posed
\hat{x} \sim p(x \mid y)
sample \(\hat{x}\) without access to \(p(x)\)
A Brief History on Langevin Dynamics
3. [Kadkhodaie, 21] \(\mathbb{E}[x \mid \tilde{x}] = \tilde{x} + \sigma^2 \nabla_x \log~p(x)\)
0. Langevin diffusion equation
x_{t+1} = x_t - \alpha \nabla U(x_t) + \sqrt{2\alpha}z_t
2. [Song, 19 & 21] Noise Conditional Score Networks
U(x) = -\log~p(x),~\nabla_x \log~p(x_t) \approx s(\theta^*, \sigma)\\
\theta^* = \arg \min \mathbb{E}_{(x,~\tilde{x} \sim \mathcal{N}(x, \{\sigma_i\}_{i=1}^L\mathbb{I}))} [\|\sigma s_\theta(x, \sigma) + \frac{\tilde{x} - x}{\sigma^2}\|^2]
4. [Kawar, 21] Stochastic Denoising
\tilde{x}_{t+1} = \tilde{x}_t + \alpha \nabla_x \log~p(\tilde{x}_t \mid y) + \sqrt{2\alpha}z_t\\
\nabla_x \log~p(\tilde{x}_t \mid y) = s_{\theta^*}(x, \sigma_t) + \frac{y - \tilde{x}_t}{\sigma_0^2 - \sigma_i^2}
Stochastic Denoising With an NCSN

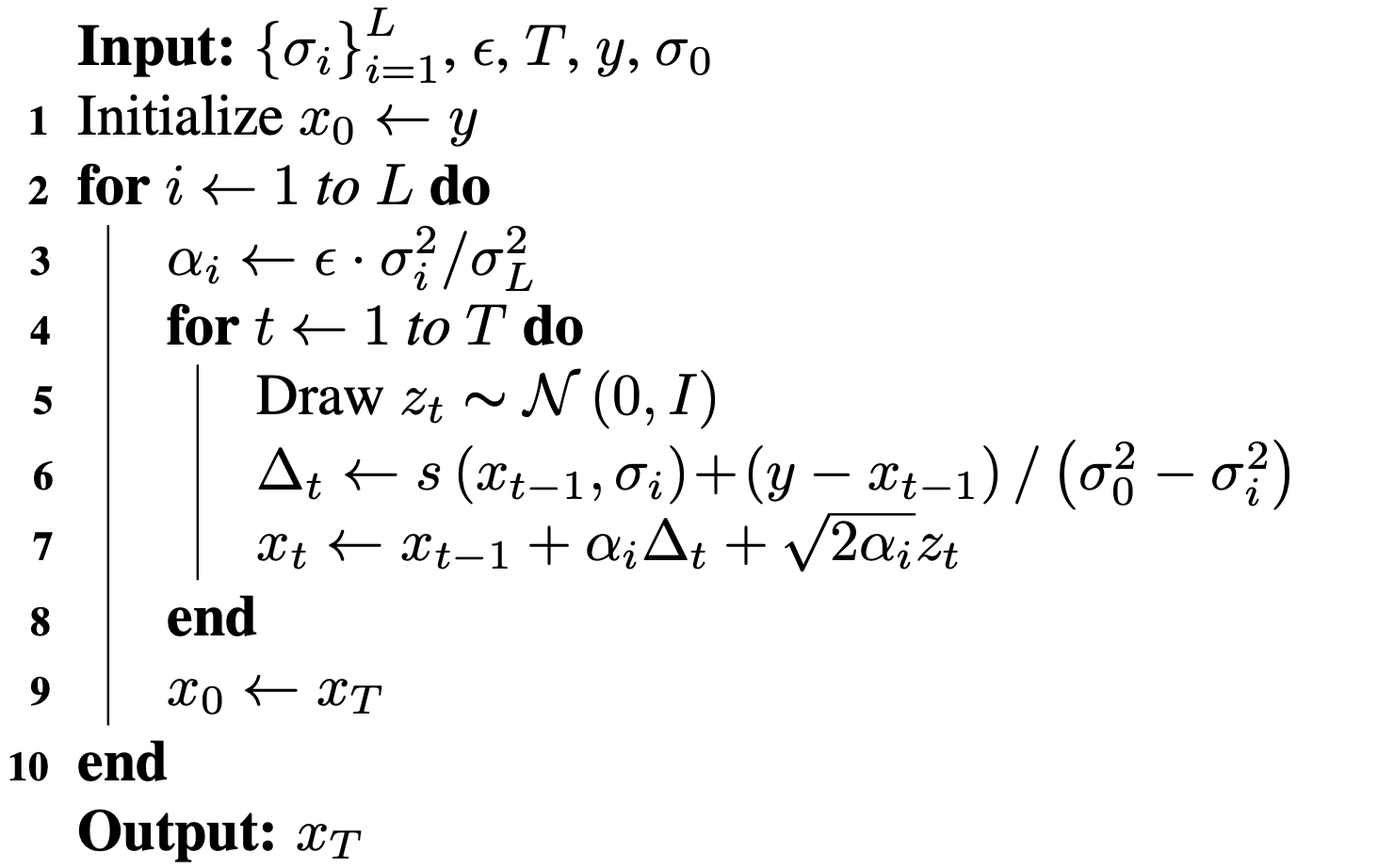

Algorithm 1: Stochastic image denoiser, [Kawar, 21]
Training an NCSN on Abdomen CT - I
Figure 2: Some example images from the validation split.
Figure 1: Some augmented example images from the training split.
Training an NCSN on Abdomen CT - II
Noise scales: \(\{\sigma_i\}_{i=1}^L,~\sigma_1 > \sigma_2 > ... > \sigma_L = 0.01\)
\sigma_1 \approx \max_{(x, x') \in S_{\text{train}}} \|x - x'\|_2 \approx 124,\\
\frac{\sigma_i}{\sigma_{i+1}} = \gamma \approx 1.008356 \implies L \approx 1183
(from Song, 21)
Hardware: 8 NVIDIA RTX A5000 (24 GB of RAM each)
Preliminary Sampling Results - I
We set \(\epsilon = 1 \times 10^{-6},~T = 3\) in Algorithm 1
Original
Sampled
\(\sigma_0 = 0.1\)
Perturbed
Preliminary Sampling Results - II
We set \(\epsilon = 1 \times 10^{-6},~T = 3\) in Algorithm 1
Original
Sampled
\(\sigma_0 = 0.2\)
Perturbed
Preliminary Sampling Results - III
We set \(\epsilon = 1 \times 10^{-6},~T = 3\) in Algorithm 1
Sampled
\(\sigma_0 = 0.1\)
Perturbed
\(\sigma_0 = 0.2\)
\(\sigma_0 = 0.3\)
\(\sigma_0 = 0.4\)
Original
Preliminary Sampling Results - IV
Sampled
Perturbed
Preliminary Sampling Results - III
We sample \(8\) times for \(128\) validation images
Next Steps: Score SDE
0. Ito process
\text{d}x = f(x, t)\text{d}t + g(t)\text{d}w
1. [Anderson, 82] Reverse-time SDE
\text{d}x = [f(x, t) - g^2(t)~\nabla_x \log~p_t(x)]\text{d}t + g(t)\text{d}\bar{w}
\(\implies\)
2. [Song, 21] SDE Score Network
\theta^* = \arg \min \mathbb{E}_{(t,~x(0),~x(t) \mid x(0))}\left[\| s_\theta(x(t), t) - \nabla_x \log~p_{0t}(x(t)\mid x(0))\|_2^2\right]
Denoising Reverse-time SDE
\text{d}x = \sqrt{\frac{\text{d}}{\text{d}t}\sigma^2(t)} \text{d}w,~\sigma(t) = \sigma_m \cdot \left(\frac{\sigma_M}{\sigma_m}\right)^t\\
x_t = x_{t + 1} + \sigma^2(t + 1) \left[s_{\theta^*}(x_{t+1}, t + 1) + \frac{y - x_{t+1}}{\sigma^2 - \sigma^2(t + 1)}\right]~\Delta t + \sigma(t+1)z_{t+1}\sqrt{\Delta t}
Denoising Reverse-time SDE
x_t = x_{t + 1} + \sigma^2(t + 1) \left[s_{\theta^*}(x_{t+1}, t + 1) + \frac{y - x_{t+1}}{\sigma^2 - \sigma^2(t + 1)}\right]~\Delta t + \sigma(t+1)z_{t+1}\sqrt{\Delta t}
Euler-Maruyama discretization
Next Steps
1. Increase image size to 512 x 512
2. Different noise priors other than Gaussian
3. Use of a pretrained denoiser vs score network
4. Questions?
Appendix: Score Matching References
[09/20/22] Aim 3: Posterior Sampling and Uncertainty
By Jacopo Teneggi
