Beta Series Correlation:
What do they measure?
Goals
- understand beta series correlations
- compare task and rest data
- first level comparison
- graph theory measures
- multiple parcellations
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/6572156/human_brain.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/6573762/hrf_example_small.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/6573761/hrf_example_large.png)
How do we model brain activity?

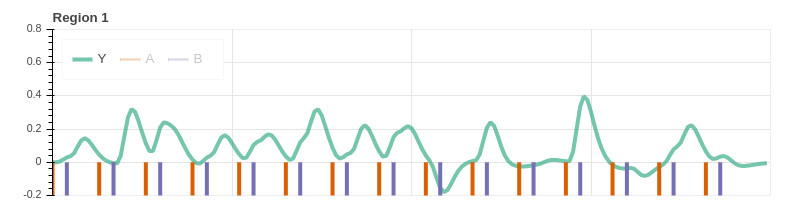

The Brain during a Task
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/6572160/region1_y.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/6572163/region2_y.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/6572156/human_brain.png)
How do we model brain activity?
Condition A (Orange)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/6572263/region1_ya.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/6572267/region2_ya.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/6572286/region1_ya_betas.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/6572287/region2_ya_betas.png)
How do we model brain activity?
Condition A (Orange)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/6572300/beta_series_a.png)
How do we model brain activity?
Condition B (Blurple)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/6572332/region1_yb.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/6572333/region2_yb.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/6572351/region1_yb_betas.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/6572353/region2_yb_betas.png)
How do we model brain activity?
Condition B (Blurple)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/6572360/beta_series_b.png)
How do we model brain activity?
- Brain Regions Conditionally Correlated
- Activated vs Activated Together
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/6572300/beta_series_a.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/6572360/beta_series_b.png)
How do we model brain activity?
But Data are Noisy
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/6572459/noisy_data.png)
How do we model brain activity?
And Trials Occur Close Together
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/6572469/noisy_ab_data.png)
How do we model brain activity?
LSA
(least squares all)
- Computationally Cheap
- Works when intertrial interval is long
LSS
(least squares separate)
- Computationally Expensive
- Works regardless of inter trial interval
Estimate Activation (Betas) of Individual Trials
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/6572353/region2_yb_betas.png)
How do we model brain activity?
Task Switching
Task 1: High or Low
Task 2: Odd or Even
4
Task Switching
Task 1: High or Low
Task 2: Odd or Even
4
Validation of Beta Series
Treat resting state fMRI AS IF task switching was performed.
Hypothesis: There should be a normal distribution of correlations between regions with a mean of 0.
Methods
![](https://www.ncbi.nlm.nih.gov/pmc/articles/PMC6095216/bin/bhx179f04.jpg)
- Run fmriprep on all participants for both the task and rest data
- calculate beta series for both task and rest
- use the Schaefer (2018) atlas to define regions
- generate correlations between regions
Compare within/between network correlation
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/7102795/within_between.png)
Compare within/between network correlation
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/7102877/within_between_networks.png)
Switch - Repeat
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/7102930/switch_repeat_difference.png)
Task - Rest
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/7102933/task_rest_difference.png)
Task - Rest
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/7102940/task_rest_difference_heatmap_pval.png)
Task - Rest
![](https://s3.amazonaws.com/media-p.slid.es/uploads/850763/images/7102968/task_rest_difference_heatmap_estimates.png)
Graph Theory Measures
Participation Coefficient:
how much a parcel connects to all other parcels, with 1 meaning the parcel is connected to all other parcels equally.
Result:
Default network has increased participation coefficient during task relative to rest.
Task Positive Regions
Instead of using the Schaefer atlas, use task activations.
Task activation
Data Update
