Automatic REST APIs with

Jett Durham

@thejettdurham

Who I Am...

Lead Software Developer

What I Am...

full stack and then some

What I Am Not...

postgREST contributor

SQL or PostgreSQL expert

Network Security Expert

Talk Overview

  • Building REST APIs (the hard way)

  • Enter PostgREST

  • DEMO: Exploration

  • Security with PostgREST

  • DEMO: Hospitable Takeover

  • Final Thoughts

Building REST APIs

The hard way

The Layer Cake Pattern

Your Application

Web Server

Database

Request

Response

What's in an App?

HTTP Request Handling

ERROR HANDLING

Authentication

Authorization

Request Parsing

Request Validation

Database Communication

Database Response Handling

HTTP Response Building

Layers in Layers

Your Application

Your Code

Data Handling Library

Object Relational Mapper

Authentication Framework

Application Framework

Much Better!

Active Record cut my lines of code in half!

oAuth lets me stop worrying about my API security!

Play Framework makes writing web apps so easy!

Much Better?

I updated Active Record and the API broke.  How to fix?

The last version of oAuth had a security flaw that leaked our customer emails to spambots

Play Framework updated again, time for another rewrite!  And updating to Java 8.  And updating to Gradle 2.8.  And...

Libraries are great!

But know the tradeoffs

A Baker's (Half)-Dozen

Mark's Social Network

Gordon's Coffee Shop

David's DVD Store

Larry's Search Engine

Jeff's Warehouse

Daniel's Streaming Service

Most APIs kinda look the same...

2 Sides of a Coin

GET

POST

PATCH

DELETE

SELECT

INSERT

UPDATE

DELETE

What do?

Enter PostgREST

Where it fits

Your Application

Web Server

Database

Request

Response

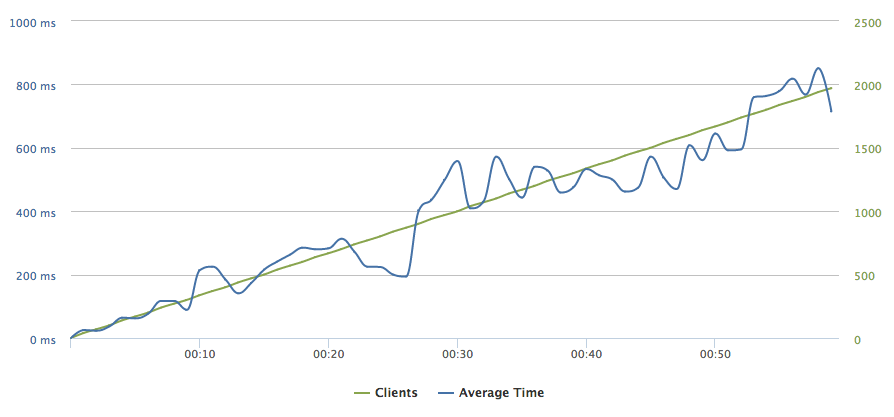

Is It Fast?

TL;DR: subsecond response times for up to 2000 requests/sec on Heroku free tier.

TL;DR;TL;DR: Wicked Fast!

What is this sorcery?!

Haskell

PostgreSQL

Warp Web Server

Need to Scale?

DEMO

Exploration

Demo System

10.0.3.2

:5432

/dvdrental

:3000

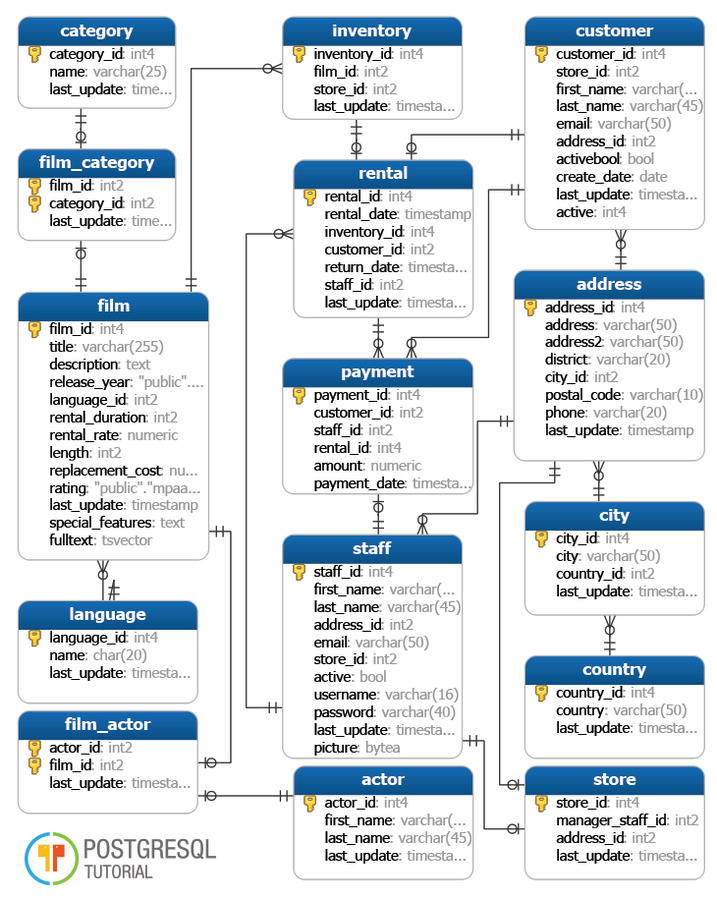

Demo Database

Sakila Sample Database

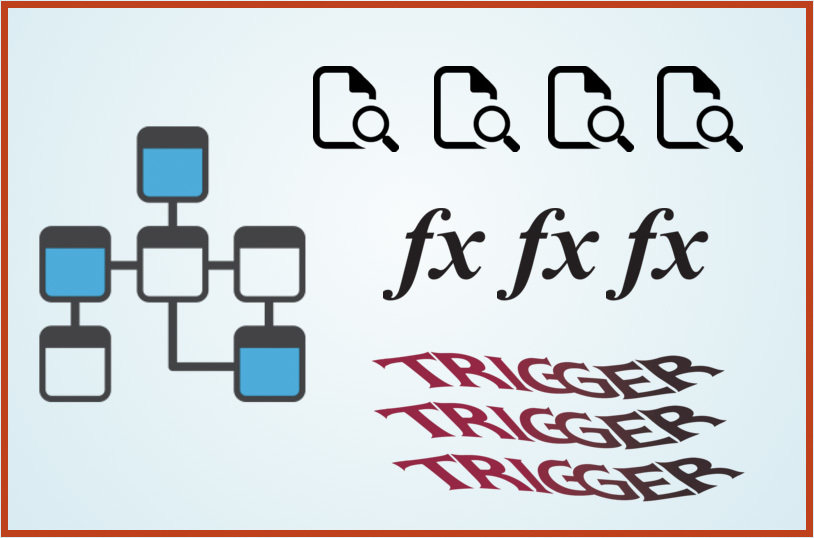

  • Tables
  • Views
  • Functions
  • Triggers

Security with PostgREST

SSL?

No...

...but wait!

It Doesn't Need To

Authentication?

Authorization?

JSON Web Tokens

{
  "user": "seth",
  "role": "administrator"
}

+

eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VybmFtZSI6InNldGgiLCJyb2xlIjoiYWRtaW5pc3RyYXRvciJ9.3KPWRfCmFTsMN7D8p8Uz0s4Xsxxuuu9QOB83TkSnLq0

Special DB Users

Anonymous

Authenticator

Unauthenticated

{
  "user": "seth",
  "role": "administrator"
}

eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VybmFtZSI6InNldGgiLCJyb2xlIjoiYWRtaW5pc3RyYXRvciJ9.3KPWRfCmFTsMN7D8p8Uz0s4Xsxxuuu9QOB83TkSnLq0

Authenticated

DEMO

Hospitable Takeover

The DVD store has been assimilated

One API to rule them all

Internal Admin Panel

Public Website: Film search

President

All Access

Michael Bluth

Accountant

List & modifies payments



Also has Worker permissions

Gob Bluth

Worker

Lists films, categories, actors, languages, & customers



List & Creates Rentals

George Michael Bluth

John Q Public

Lists films

John Q

Final Thoughts

What is it really good for?

Domain Model

Database Tables

Old Databases

public

apiv1

Public-facing API?

Probably not...

Private APIs!

Competition?

Third Party Alternatives

mongodb-rest

Third Party Alternatives

Automatic API REST

Third Party Alternatives

phprestsql

Third Party Alternatives

arrest-db

Third Party Alternatives

restSQL

First-Party Alternatives

HTTP API

First-Party Alternatives

HTTP API

The Future of PostgREST?

In Review...

REST APIs are important

Building & Maintaining APIs can be hard!

PostgREST can set you free!

We're at the start of the auto API trend

fin

Jett Durham

@thejettdurham

Essential Concepts

Tables, Rows, Columns

0 michael develop... 3 56500 ...
1 john analyst 6 47900 ...
user_id name job_title dept_id salary notes
employee

Keys: Primary, Foreign

0 michael develop... 3 56500 ...
1 john analyst 6 47900 ...
user_id name job_title dept_id salary notes
employee

Views

Functions & Triggers

-- SAMPLE FUNCTION
CREATE FUNCTION tf1 (acct_no integer, debit numeric)
RETURNS numeric AS $$
    UPDATE bank
        SET balance = balance - $2
        WHERE accountno = $1
    RETURNING balance;
$$ LANGUAGE SQL;
-- SAMPLE TRIGGER
CREATE TRIGGER emp_stamp
    BEFORE INSERT OR UPDATE ON employees
    FOR EACH ROW EXECUTE PROCEDURE emp_stamp();

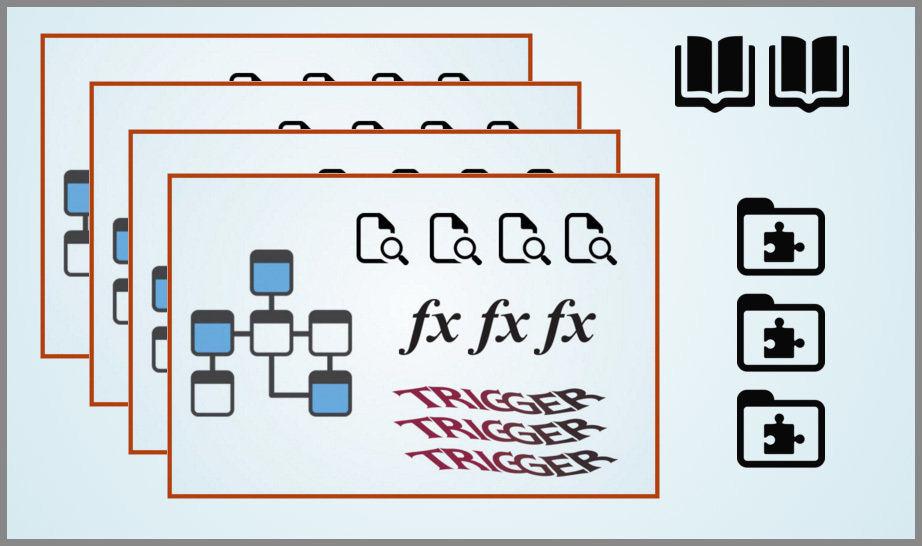

Schemas

Databases

Database Server

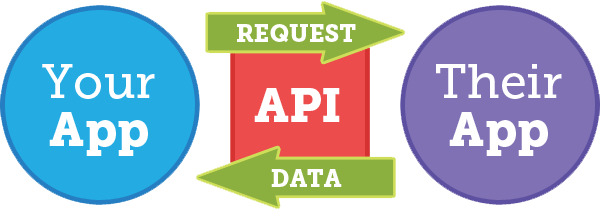

REST API Recap

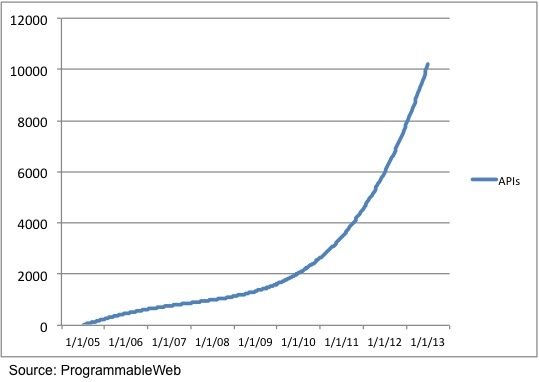

REST APIs power the modern web

Why REST APIs?

Interoperability

Ease of Consumption

Ease of Development

?

REST Nuts & Bolts

HTTP Request

https://

api.twitter.com

/1.1

/users/suggestions.json

?id=foo

  • GET
  • POST
  • PUT
  • DELETE
  • PATCH
  • OPTIONS
  • HEAD

HTTP Method

KEY VALUE
Authorization ...
Content-Type application/json

Request Headers

Request Body

{
  "glossary": {
    "title": "example glossary",
  "GlossDiv": {
      "title": "S",
    "GlossList": {
        "GlossEntry": {
          "ID": "SGML",
      "SortAs": "SGML",
      "GlossTerm": "Standard Generalized Markup Language",
      "Acronym": "SGML",
      "Abbrev": "ISO 8879:1986",
      "GlossDef": {
            "para": "A meta-markup language, used to create markup languages such as DocBook.",
      "GlossSeeAlso": ["GML", "XML"]
          },
      "GlossSee": "markup"
        }
      }
    }
  }
}

URL

HTTP Response

  • 200
  • 301
  • 403
  • 404
  • 451
  • 500

Status Code

KEY VALUE
Connection keep-alive
Content-Type application/json

Response Headers

Response Body

{
  "glossary": {
    "title": "example glossary",
  "GlossDiv": {
      "title": "S",
    "GlossList": {
        "GlossEntry": {
          "ID": "SGML",
      "SortAs": "SGML",
      "GlossTerm": "Standard Generalized Markup Language",
      "Acronym": "SGML",
      "Abbrev": "ISO 8879:1986",
      "GlossDef": {
            "para": "A meta-markup language, used to create markup languages such as DocBook.",
      "GlossSeeAlso": ["GML", "XML"]
          },
      "GlossSee": "markup"
        }
      }
    }
  }
}

JSON

{
  "Count": 1670,
  "Username": "jdurham",
  "IsPresent": true,
  "JobTitles": [
    "Software Developer",
    "Software Engineer",
    "Sysadmin",
    "Supervisor"
  ],
  "Addresses": [
    {
      "Name": "home",
      "Street": "123 Main St.",
      "City": "Wichita",
      "State": "Kansas",
      "Zip": 67212
    },
    {
      "Name": "work",
      "Street": "266 N Main St.",
      "City": "Wichita",
      "State": "Kansas",
      "Zip": 67202
    }
  ]
}
  • Lightweight

  • Expressive

  • Readable

  • Portable
