DynamoDB



For the Rest of Us

The NoSQL Debate

How NoSQL databases work



Why they are thought about in the wrong way



Using Dynamo as a case study





Intro

Martin McKeaveney

TODO

Co-founder @

What is DynamoDB?

Amazon DynamoDB is a fully managed, multi region key-value and document database, providing single digit millisecond performance at any scale.



Relational Databases - A Primer

  • Simple
  • Common
  • Flexible
  • JOINS
  • RDBMS query each table, scan the rows and JOIN all the results together into a view returned to the client
  • Referential integrity
  • Vertically Scalable



  • JOINS are the bottleneck
  • Unpredictable at scale
  • SQL Queries are boundless
  • It's very easy to write a bad SQL query
  • Horizontal Scaling is hard

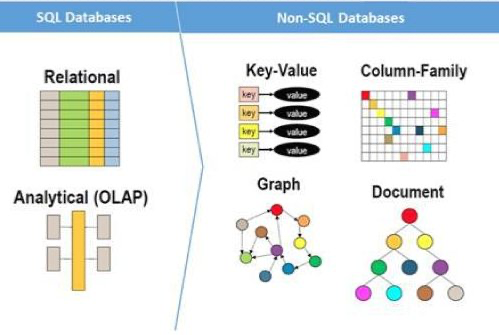

NoSQL Databases

  • NoSQL Databases were invented to handle scale and throughput that SQL cannot
  • No JOINS
  • Data segmented
  • Storage Optimised -> CPU Optimised

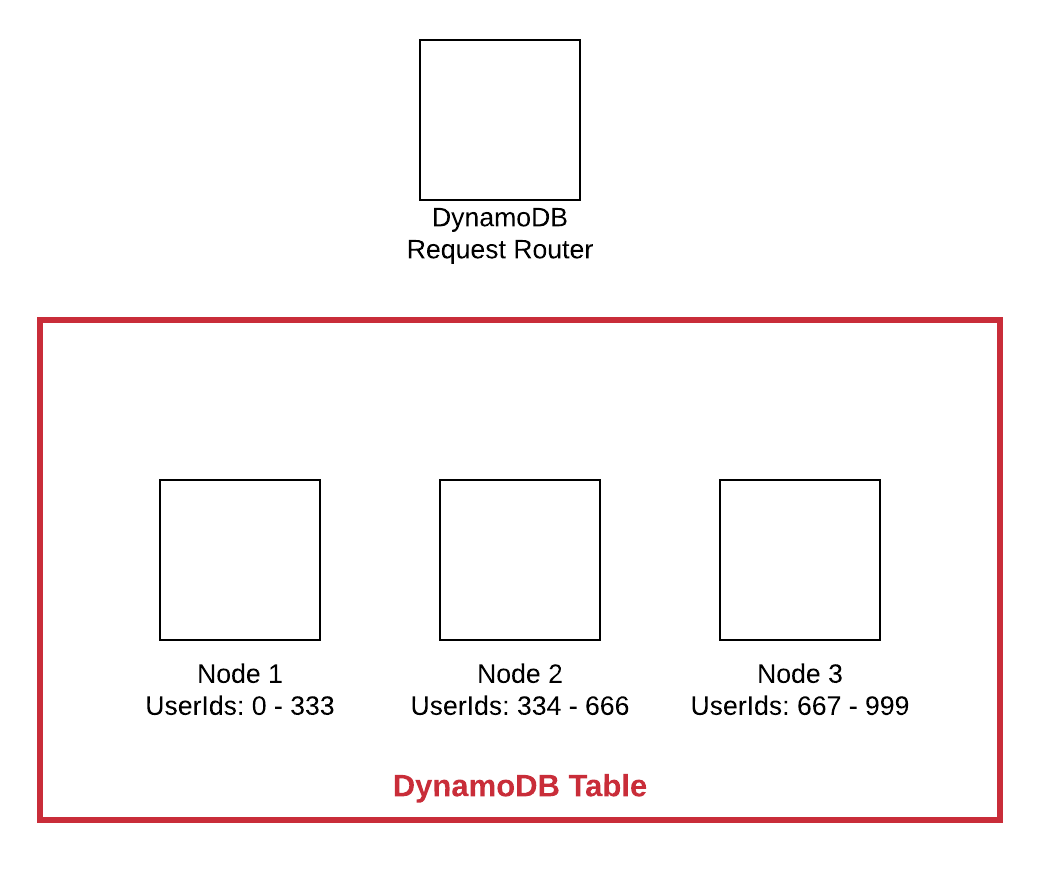

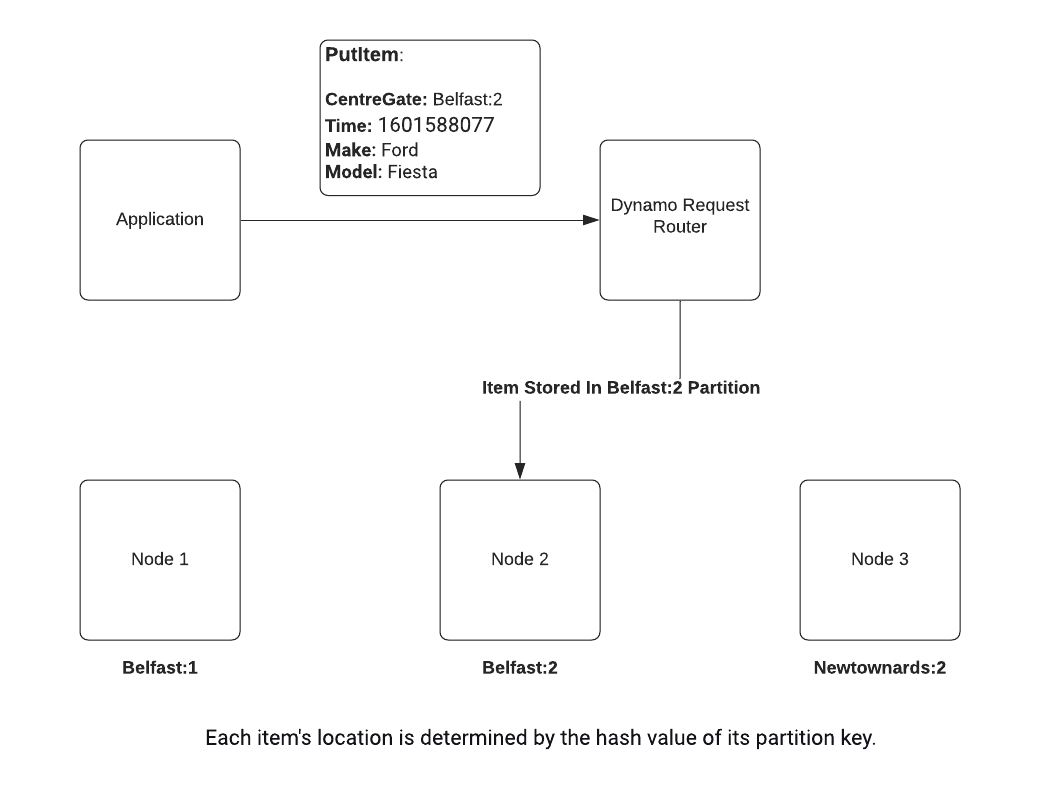

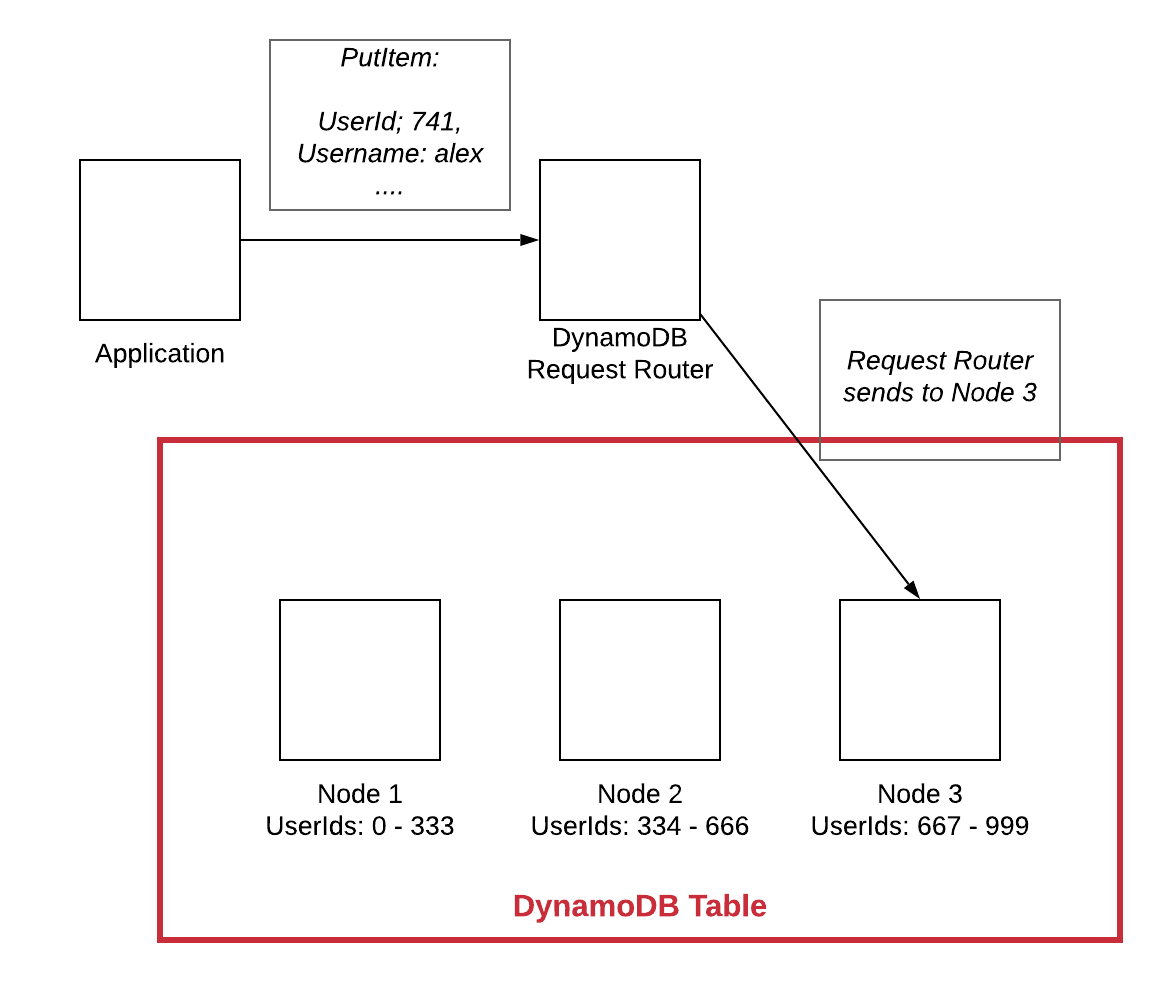

How NoSQL Works: Writes

  • Architecture of most NoSQL Databases
  • Use of partition keys and "segments"

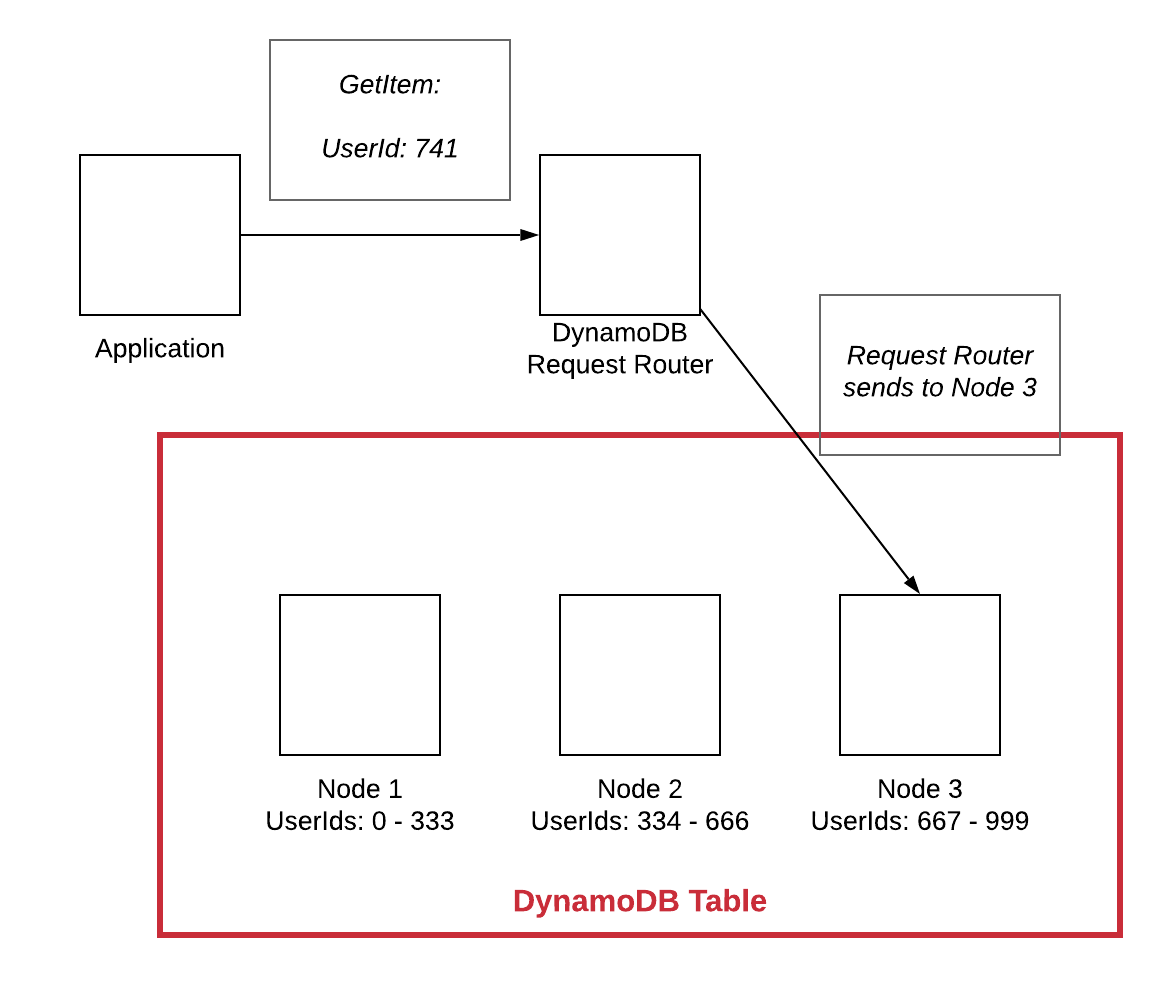

How NoSQL Works: Reads

Faux-SQL vs NoSQL

  • NoSQL is not "worse" - people give up because they aren't used to it and try to apply relational patterns to it

  • "Flexibility" is ultimately a sales pitch for NoSQL

  • Extra work upfront.

  • Define your access patterns

  • OLAP vs OLTP - Aggregations and rollups

  • You know what’s really good at maintaining referential integrity and optimizing JOINs? A relational database.

DynamoDB Then

  • Amazon created dynamo to outscale their Oracle infrastructure
  • Most operations were key value, or only operate on single tables

  •  Amazon built dynamo in house

  • Dynamo paper published in 2007
  • Inspired many other databases of it's kind
  • The managed DynamoDB service was launched in 2012

DynamoDB Now



  • Dynamo serves over 1 trillion requests per day

  • DynamoDB is used by Lyft to store GPS locations for all their rides,

  • Tinder to store millions of user profiles and make billions of matches

  • BMW to run its car-as-a-sensor service that can scale up and down by two orders of magnitude within 24 hours

  • Under Armour to support its connected fitness community of 200 million users

  • Toyota Racing to make real time decisions on pit-stops, tire changes, and race strategy, and another 100,000+ AWS customers for a wide variety of high-scale, high-performance use cases.

Benefits



  • Durable and Highly-Available
  • Performant
  • Fully Managed
  • Adaptive Capacity
  • Access Control
  • Bounded Queries
DynamoDB won't let you write a bad query"



The Basics

Tables

A grouping of data records.

Think Tables in SQL

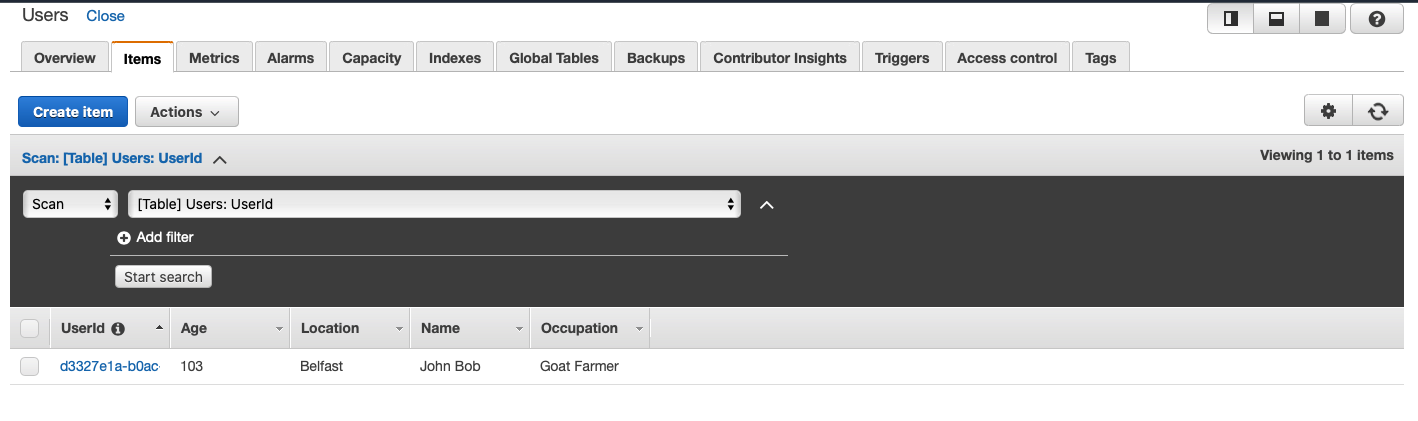

Items

An item is a single data record in a table.

uniquely identified by the stated primary key of the table.



Think Rows in SQL

Attributes

Attributes are pieces of data attached to a single item.

Attributes must have a type.

Think columns in SQL



  • Scalar − These types represent a single value, and include number, string, binary, Boolean, and null.

  • Document − These types represent a complex structure possessing nested attributes, and include lists and maps.

  • Set − These types represent multiple scalars, and include string sets, number sets, and binary sets.

Primary Key: Simple

2 Types



 Simple  or Composite

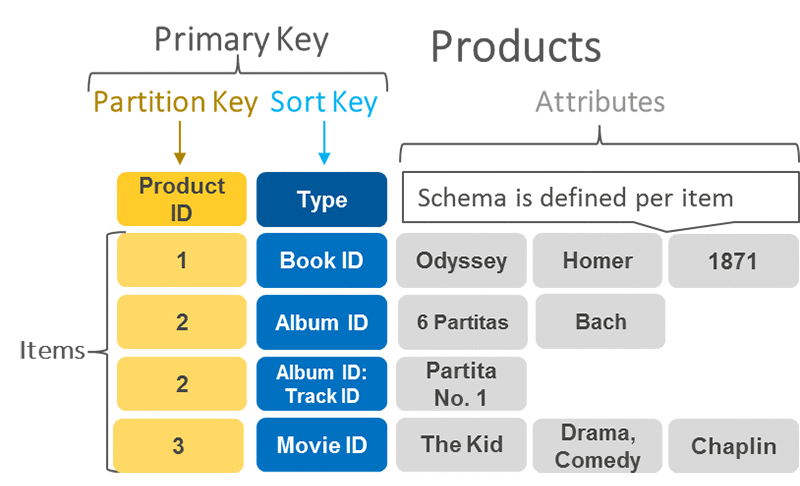

Primary Key: Composite

Example

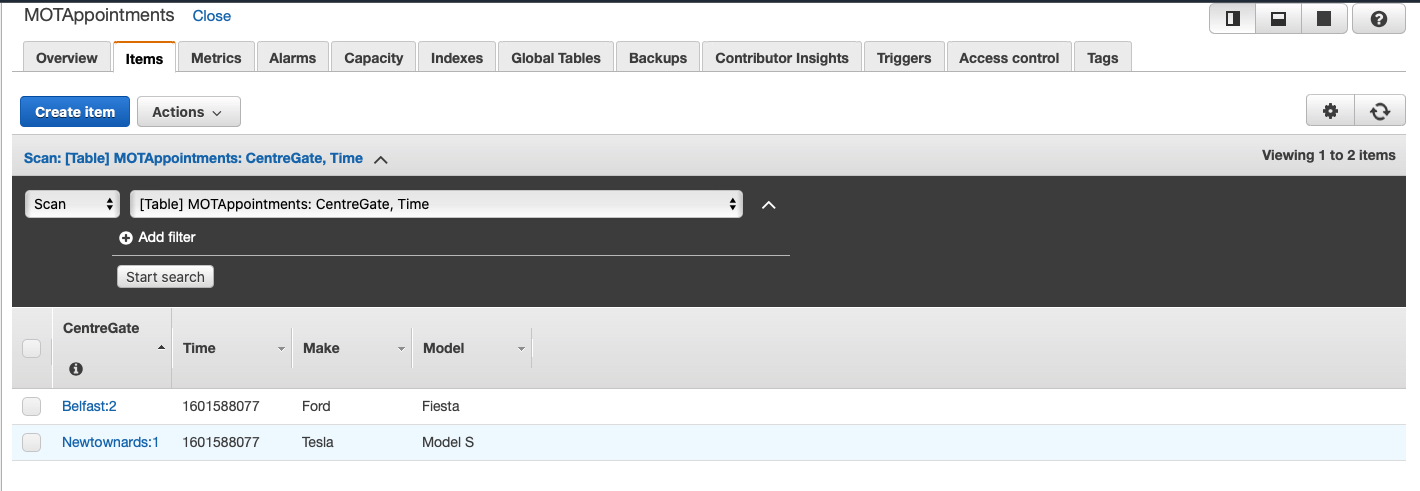

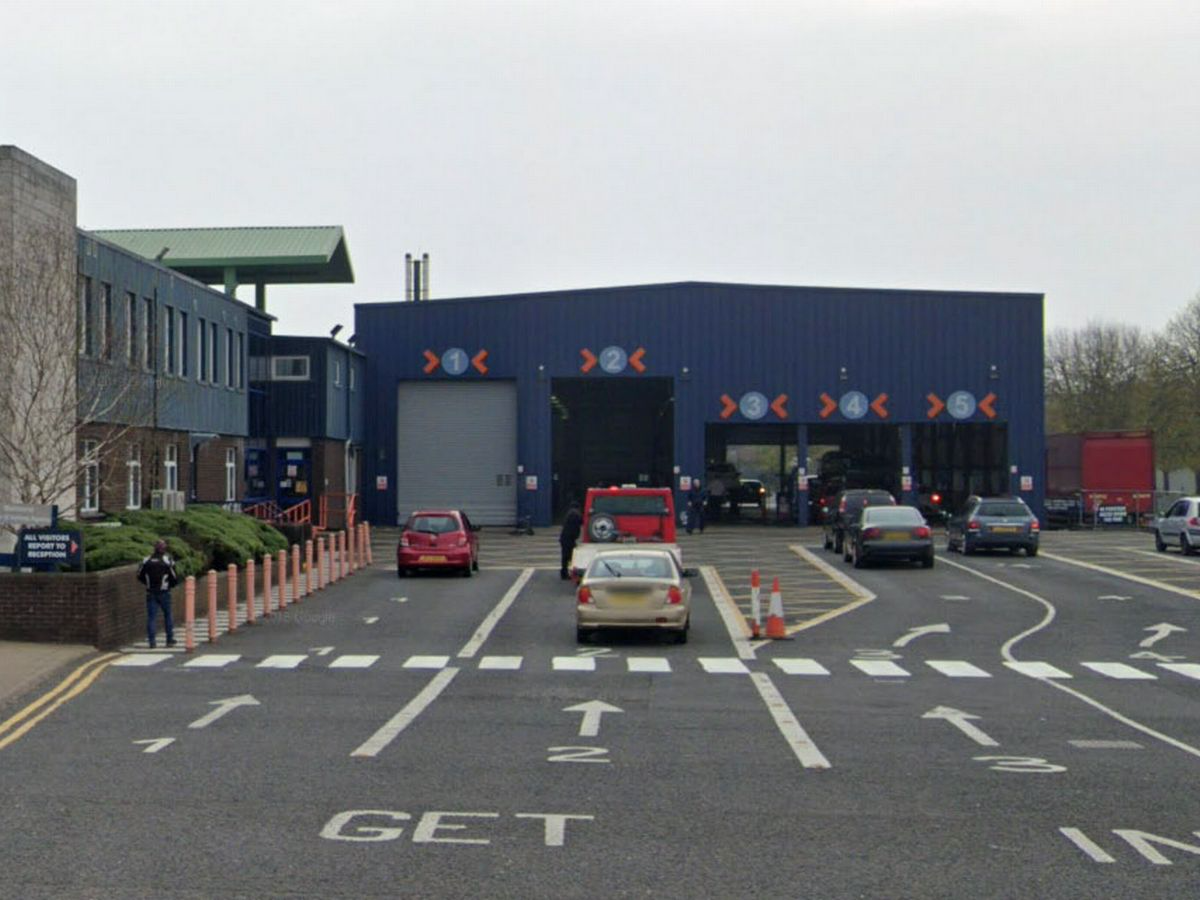

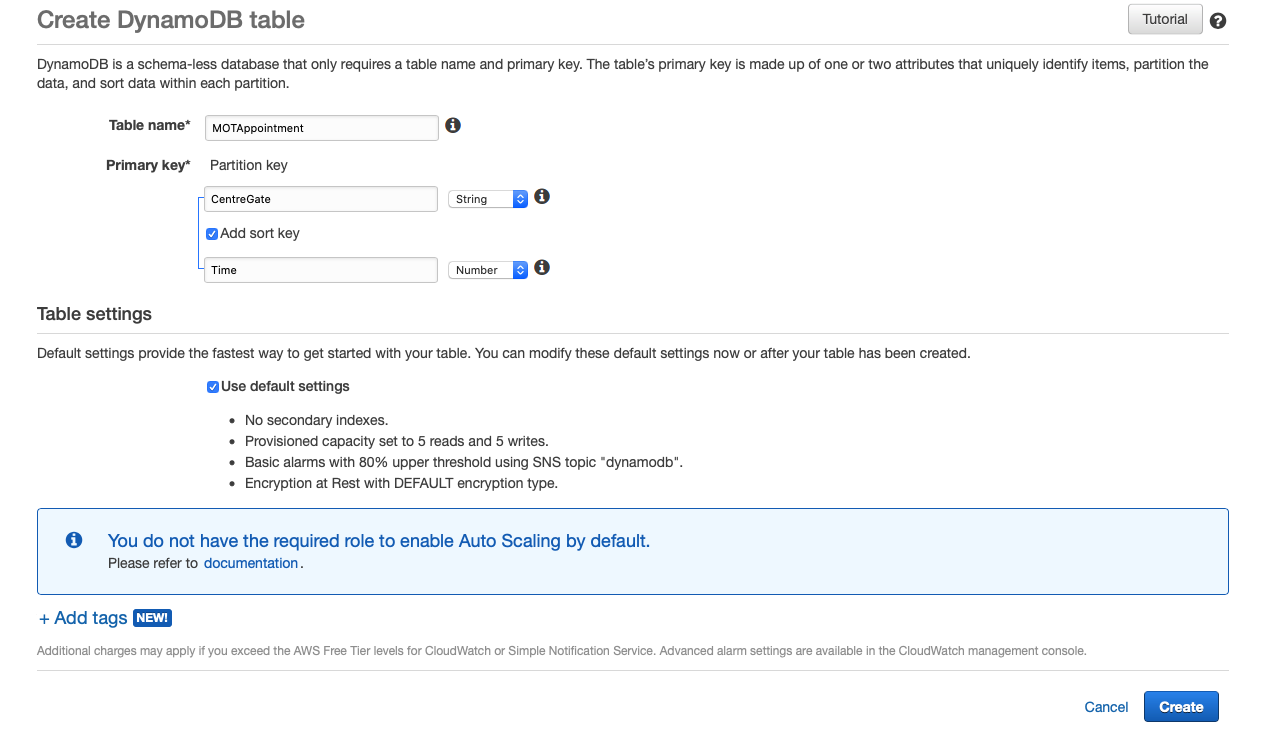

MOT Example

MOT Example

MOT Example

MOT Example

"Give me all the MOT appointments at the Belfast test centre, gate 2 ordered by time."

MOT Example

// async function abstraction
async function queryItems(centreGate){
  const params = {
    TableName: 'MOTAppointment',
    ExpressionAttributeNames: { '#key': 'CentreGate' },
    ExpressionAttributeValues: { ':centregate': centreGate },
    // this is the actual query
    KeyConditionExpression: '#key = :centregate',
  }
  try {
    const data = await docClient.query(params).promise()
    return data
  } catch (err) {
    return err
  }
}

queryItems("Belfast:2");
// returns all MOT appointments in at gate 2 in Belfast
// ordered by time ascending

Consistency

Cost

  • Read request unit: A strongly consistent read request of up to 4 KB requires one read request unit. For items up to 4 KB in size, an eventually consistent read request requires one-half read request unit.

  • Write request unit: A standard write request unit can write an item up to 1 KB. For items larger than 1 KB, additional write request units are required.

Querying Dynamo

You can only QUERY indexed data in dynamo. This is how it stays fast and scalable.

We can't query non-key attributes without doing a filter.

A filter will filter down the results AFTER a query, meaning you are paying for all the rows you query before the filter.

Indexes



  • Secondary Indexes let you specify alternate key structures
  • Increase query flexibility
  • Avoid scans and filters
  • You will also pay for extra writes on the indexes

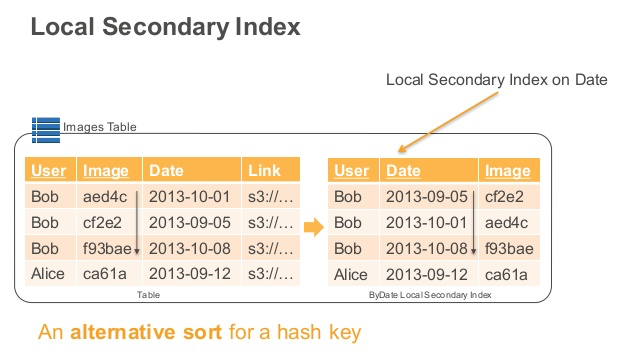

Local Secondary Indexes

Can only be used on a table with a composite primary key.

You specify an index with the same PARTITION key but a different SORT key for a table.

Must be defined on table creation

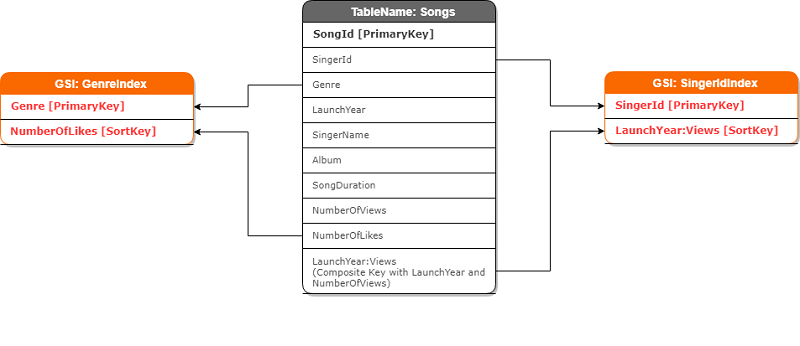

Global Secondary Indexes

Global secondary indexes can be used to specify a completely different key structure for a table.

Best Practices

  • Know your access patterns up front
  • "Pre Join"

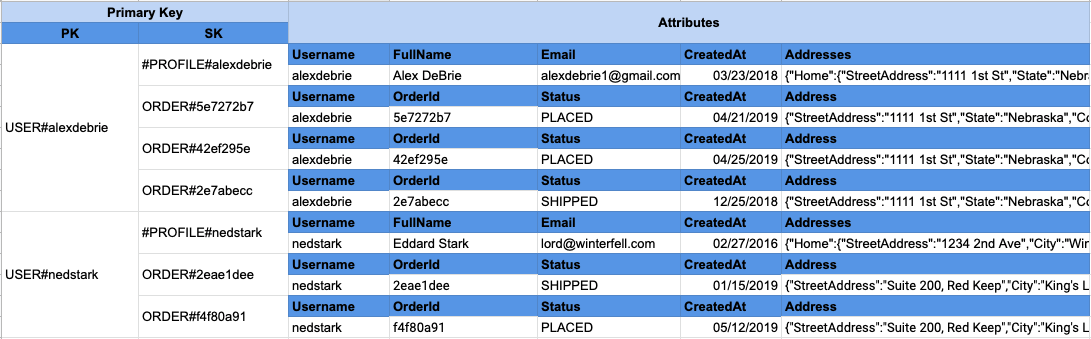

  • Single Table Design
  • Selecting Indexes
  • You should generally go for eventually consistent reads
  • Avoid filters and scans
  • Abuse IDs

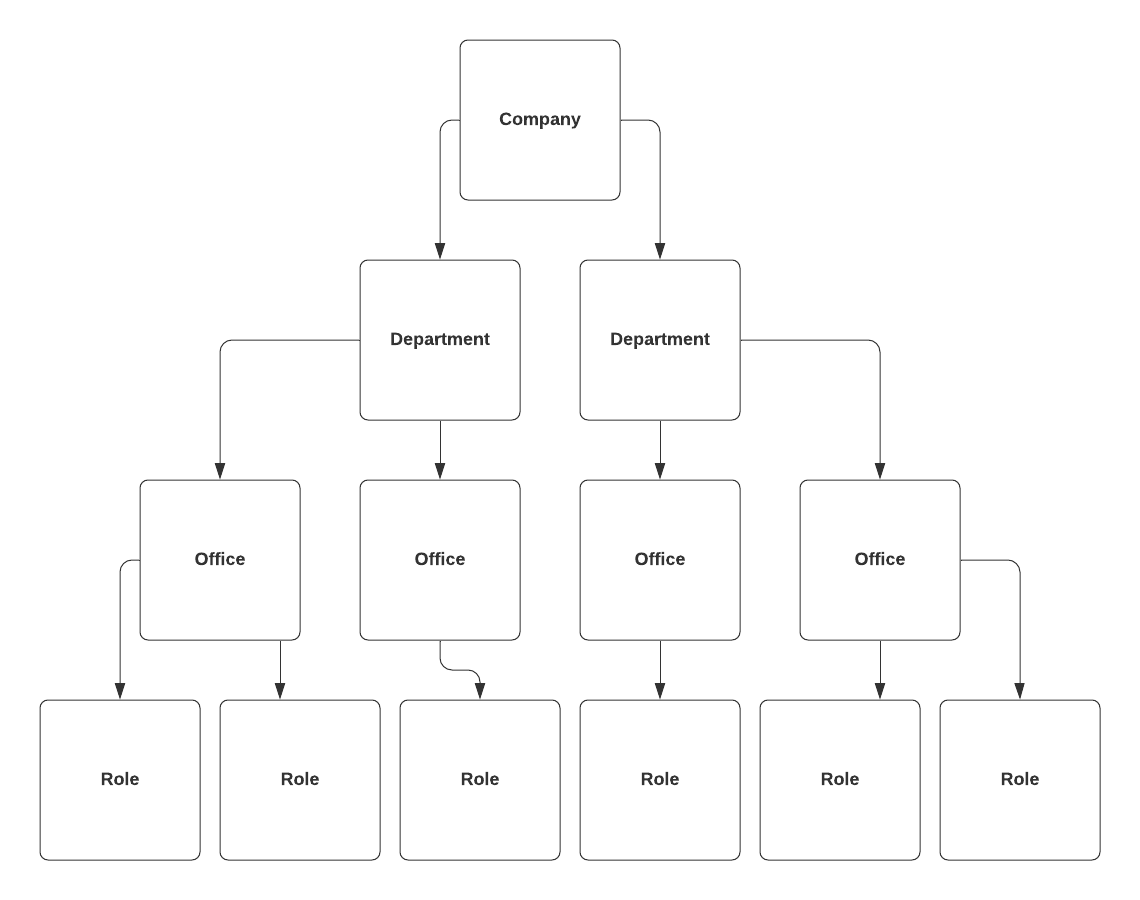

Data Modelling: Hierarchical

  • Common data model expressed with JOINs in SQL databases

Step 1: Identify Access Patterns

  • Retrieve a single person by their Employee ID

  • Gather all people in a particular company

  • Gather all people from a certain department

  • Gather all people in a certain office

  • Gather all people with a certain job role

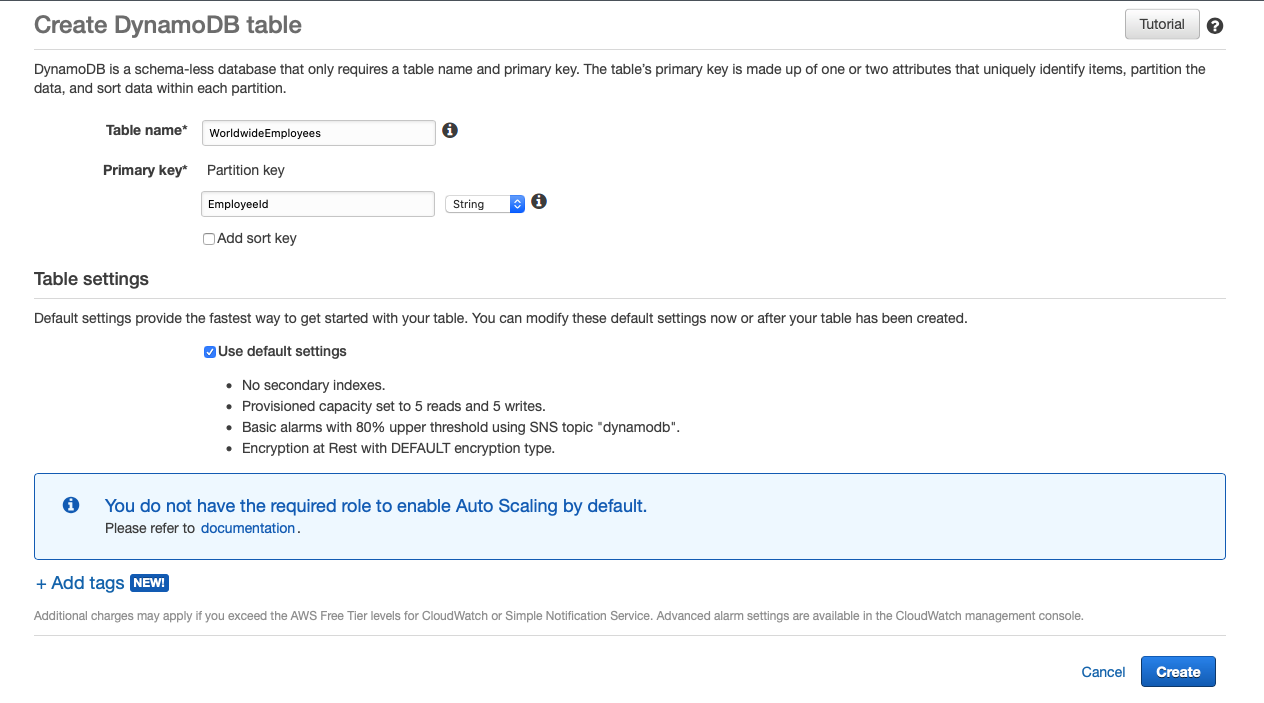

Step 2: Primary Keys

  • Choosing a good primary key:
    • it enables you to uniquely identify each item for writes & updates
    • it evenly distributes your data across the partition key.

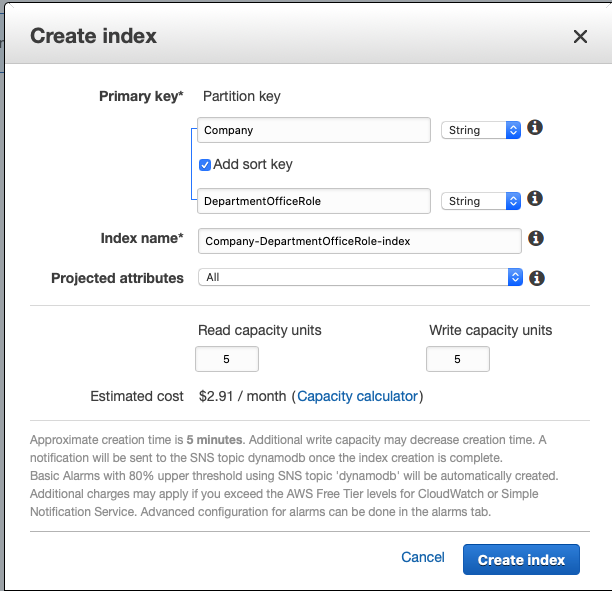

Step 3: Indexes

Eg. Engineering#Dublin#VP

  • We need a GSI
  • a PARTITION key of Company
  • a SORT key named DepartmentOfficeRole



Step 4:

Query

// async function abstraction
async function queryItems(company, depOfficeRole) {
  const params = {
    TableName: "WorldwideEmployees",
    ExpressionAttributeNames: {
      "#company": "Company",
      "#depOfficeRole": "DepartmentOfficeRole",
    },
    KeyConditionExpression:
      "#company = :company and begins_with(#depOfficeRole, :depOfficeRole)",
    ExpressionAttributeValues: {
      ":company": company,
      ":depOfficeRole": officeDepartmentRole,
    },
  };
  try {
    const data = await docClient.query(params).promise();
    return data;
  } catch (err) {
    return err;
  }
}

// Give me everyone who works at Stripe,
// organised by department office and job role
queryItems("Stripe");

// Give me everyone who works in Engineering at Googles Zurich Office
queryItems("Google", "Engineering#Zurich");

// Give me all the Designers in Intercoms San Francisco Office
queryItems("Intercom", "UX#SanFrancisco#Designer");

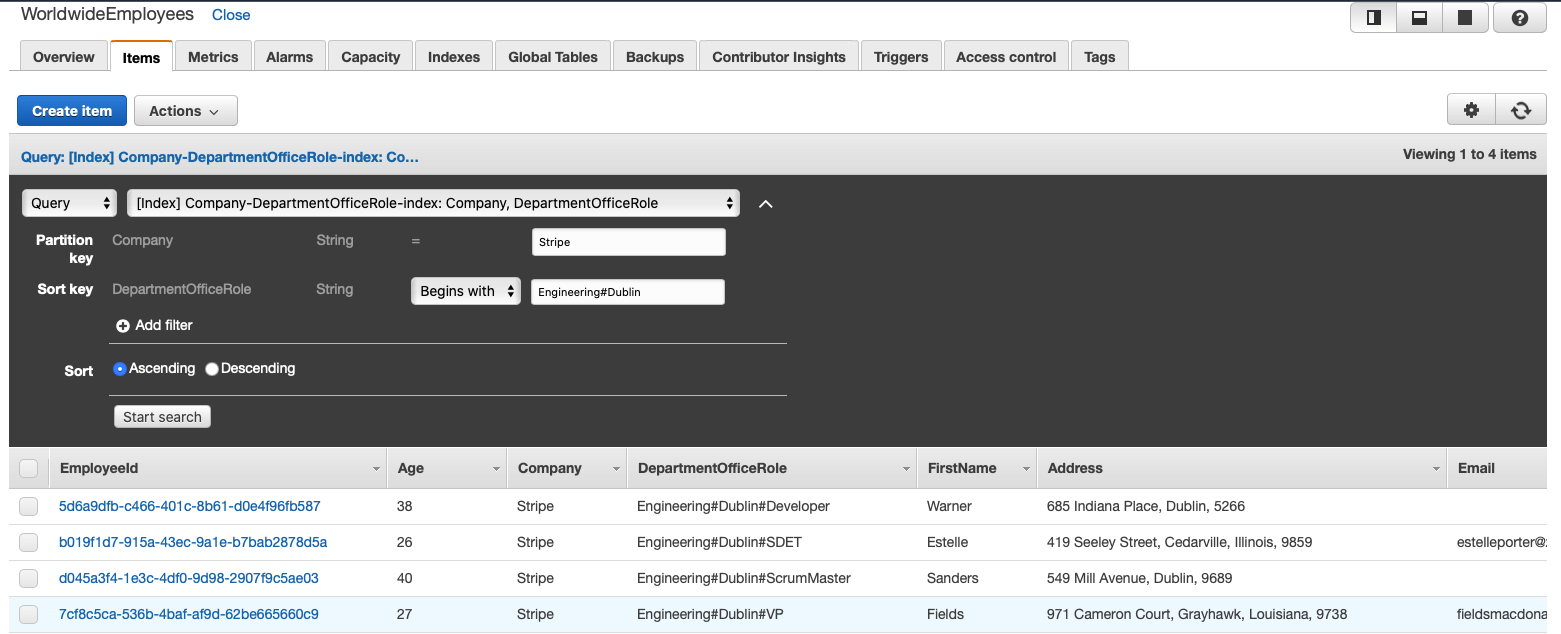

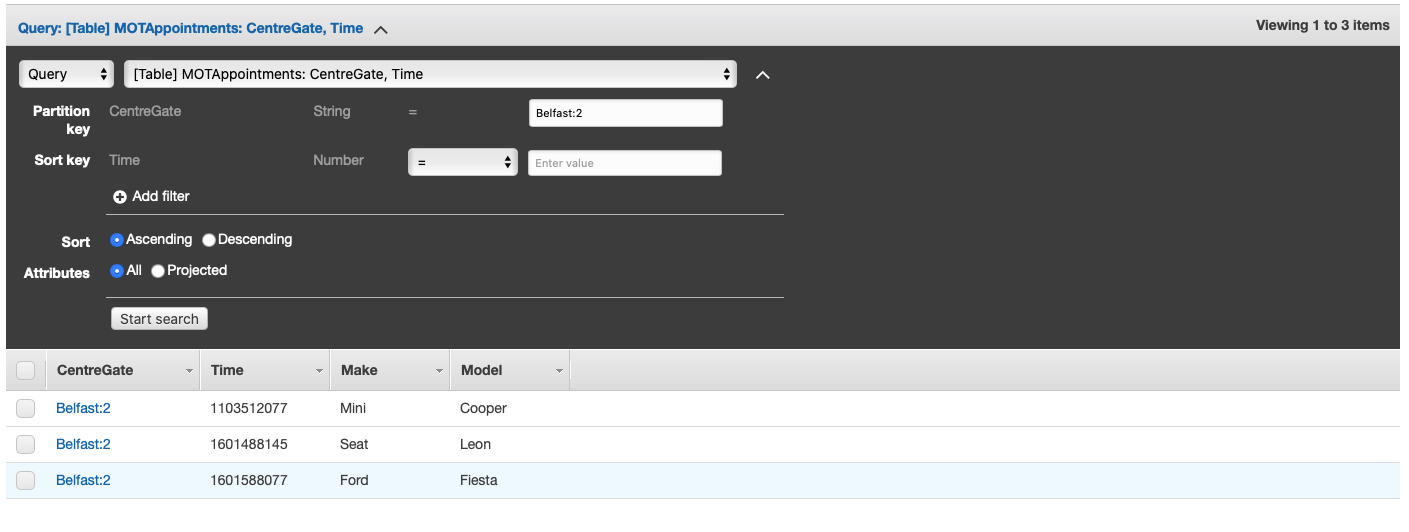

Query Results

Thanks!
