DSA1 | Week 3

The Card Stack Data Structure

The CARDSTACK data structure

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

8

7

1

2

3

4

5

6

8

7

1

2

3

4

5

6

8

7

1

2

3

4

5

6

8

7

1

2

3

4

5

6

8

7

1

2

3

4

5

6

8

7

...after the riffle shuffle.

The CardStack Data Structure

Introducing...

< maintain an ordered stack of cards >

The Data

how many cards in the stack?

Operations & Queries

pull out the top \(k\) cards

pull out the bottom \(k\) cards

cut shuffle at \(k\) cards

typedef struct s_card {
    int cardvalue;




} t_card;

42

typedef struct s_card {
    int cardvalue;

    struct s_card *next;
    struct s_card *prev;

} t_card;
last
first
typedef struct s_cardstack {

    struct s_card *first;
    struct s_card *last;

} t_cardstack;
t_cardstack* cardstackInit()
{

    t_cardstack* cardstack;
    cardstack = malloc(sizeof(t_cardstack));

    cardstack->first = NULL;
    cardstack->last = NULL;

    return cardstack;

}

The initialization is pretty straightforward.

Next up...

...let us write a simple helper function

to check if our stack of cards is empty.

int isEmpty(t_cardstack *cardstack)
{
    return !cardstack->first;
}
int isEmpty(t_cardstack *cardstack)
{
    return cardstack->first;
}
int isEmpty(t_cardstack *cardstack)
{
    return !cardstack->last;
}
int isEmpty(t_cardstack *cardstack)
{
    return cardstack->last;
}

A

B

C

D

Here is what the card stack looks like, schematically.

first
last
pushFront(cardstack, card)
first
last
first
last
first
last
first
last
first
last
first
last
first
last
first
last
void pushFront(t_cardstack* cardstack, int cardvalue)
{

    t_card *node = malloc(sizeof(t_card));

    node->cardvalue = cardvalue;

    node->prev = NULL;

    node->next = cardstack->first;

    if(cardstack->last) // the stack is NOT empty
        cardstack->first->prev = node;
    else
        cardstack->last = node;

    cardstack->first = node;

}
popBack(cardstack)
first
last
first
last
first
last
first
last
first
last
int popBack(t_cardstack *cardstack)
{
    t_card *node;
    int cardvalue;

    if (isEmpty(cardstack))
        return -1;

    node = cardstack->last;
    cardstack->last = node->prev;

    if (!cardstack->last)
        cardstack->first = NULL;
    else
        cardstack->last->next = NULL;

    cardvalue = node->cardvalue;
    free(node);
    return cardvalue;
}
Front Back
Add allowed allowed
Remove allowed allowed

DEQUES

Front Back
Add allowed
Remove allowed

STACKS

Front Back
Add allowed
Remove allowed

STACKS

Front Back
Add allowed
Remove allowed

QUEUES

Front Back
Add allowed
Remove allowed

QUEUES

Any number of cut shuffles are done.

Five people pull out the top five cards in order.

A deck is given to someone in class.

Magic with Cards

The ones with red cards stand up.

All cards are identified.

The Card Identifier

X Y A B C

00 - ♣️ | 01 - ♠️ | 10 - ♦️ | 11 - ♥️

Five bits correspond to a card

A B C - value of the card (000 interpreted as 8)

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

The Sequence

Want: 32 bits so that each location gives us a unique read.

00000100101100111110001101110101

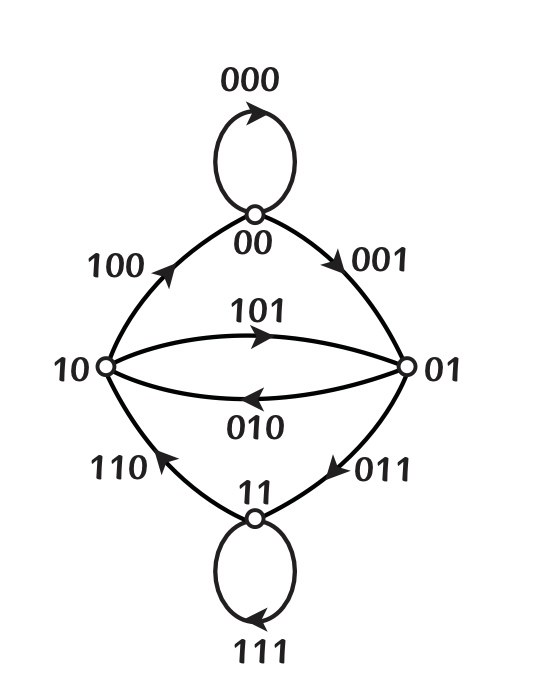

ABCD

WXYZ

When should you add this edge?
