When Houdini met goldblum

Part 1:

What even is "Houdini"?!

CSS Houdini is a W3C effort to define lower-level CSS DOM APIs for authors to understand, recreate, and extend high-level CSS authoring features.

HOUDINI

definition: wiki.mozilla.org/CSS/Houdini

What is Houdini?

"God help us, we're in the hands of engineers"

Houdini is

a Toolbox

that

future-proofs

styling



a Toolbox



future-proofs

HOUDINI

What is Houdini?

Low-level APIs
+
Feedback
⇒
Adoption

read: The Extensible Web Manifesto

Why is Houdini being developed like this?

  • Paint API

  • Animation API

  • Layout API

  • Typed OM

  • Properties & VALUES

HOUDINI

visit: houdini.glitch.me

Worklets

Houdini Ingredients

Worklets

  • Isolated JavaScript contexts
  • Must be parallelised (at least 2 instances)
  • Invoked by the rendering engine
  • Almost no access to global scope

"The foundation on which

Houdini is built"

@snugug

Worklets: Paint API

  • Canvas-like drawing context
  • Can "paint" anywhere images are supported
  • Already shipped in Blink-based browsers! 🥳

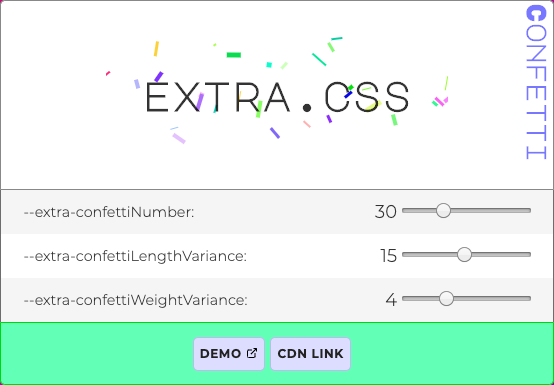

visit: extra.css

h1 {
  --extra-confettiNumber: 30;
  --extra-confettiLengthVariance: 15;
  --extra-confettiWeightVariance: 4;

  background: paint(extra-confetti);
}

Worklets: Animation API

  • Allows animations based on user input
  • Unlocks performant parallax (please use sparingly!)

read: Houdini's Animation Worklet

Worklets: Layout API

  • Complete control over the display property
  • Able to polyfill layout specs like Container Queries

watch: Custom Layout Walkthrough

Typed Om

  • Types are preserved between CSS & JS
  • Already shipped in Blink-based browsers! 🥳
el.attributeStyleMap.set('opacity', CSS.number(.5));
el.attributeStyleMap.get('opacity');
// CSSUnitValue {
  value: 0.5,
  unit: 'number'
};

read: Working with the new CSS Typed Object Model

attributeStyleMap
el.style.opacity = 0.3;
typeof el.style.opacity === 'string'

Current CSSOM

Typed OM

Typed Om

const cs = document.querySelector('.content').computedStyleMap();

cs.get('background-position').x;
// CSSUnitValue {
//   value: 50,
//   unit: 'percent',
// }

cs.get('background-position').y;
// CSSMathSum {
//   operator: 'sum',
//   values: CSSNumericArray {
//     0: CSSUnitValue { value: -10, unit: 'px' },
//     1: CSSUnitValue { value: 100, unit: 'percent' },
//   },
// }
.content {
  background-position: center bottom 10px;
}

sample.css

sample.js

computedStyleMap

Properties and values

CSS.registerProperty({
  name: "--gradientStart",
  syntax: "<color>",
  initialValue: "#61BFD9",
  inherits: true
});
@property --gradientStart {
  syntax: "<color>";
  initialValue: "#61BFD9";
  inherits: true;
};

Proposed CSS syntax

Current JS syntax

Polyfill: PostCSS Register Property

"Houdini" is a reference to CSS being able to free itself

from the constraints of big bang releases

What's in a name?

Part 2:

The one where Jeff
Goes Viral

TDD: Twitter-Driven Development 👍

  • Gradients are static images
  • No individual access to colour stops
.app__header {
  background-image: linear-gradient(#e66465, #9198e5);
}

But Wait!

what if we use Custom Properties?

Having individual access to the variables means

we can update the gradient dynamically!

:root {
  --gradientStart: #e66465;
  --gradientEnd: #9198e5;
}

.app__header {
  background-image: linear-gradient(
    var(--gradientStart),
    var(--gradientEnd)
  );
}

Codepen: Magic Gradient

document.addEventListener('mousemove', (e) => {
  // Translate mouseX into degrees for HSL
  const xDegree  = getXDegree(e.clientX) // 0 - 360

  // Update custom properties
  setStyle('--grad-start', xDegree)       // => 180
  setStyle('--grad-end', xDegree + 120)   // => 300
})

Magic Gradient: Animated Gradient

<html style="--grad-start: 180; --grad-end: 300">
:root {
  --grad-start: 180;
  --grad-end:   300;
}

body {
  background: linear-gradient(
    hsl(var(--grad-start), 100%, 75%),
    hsl(var(--grad-end), 100%, 50%)
  )
}
CSS
JS
HTML

Codepen: Magic Gradient

p {
  &::before {
    content: 'hsl(' var(--grad-start) ', 100%, 75%)';
  }

  &::after {
    content: 'hsl(' var(--grad-end) ', 100%, 50%)';
  }
}

Magic Gradient: Pseudo-content & Custom Props

Didn't work 😭

CSS IS A TYPED LANGUAGE

🤯

p {
  // Map custom-idents hueStart & hueEnd to Custom Props
  counter-reset:
    hueStart var(--grad-start)
    hueEnd var(--grad-end);

  // Use the value returned by counter(custom-ident)
  &::before {
    content: 'hsl(' counter(hueStart) ', 100%, 75%)';
  }
  &::after {
    content: 'hsl(' counter(hueEnd) ', 100%, 50%)';
  }
}

Magic Gradient: Pseudo-content & Custom Props

Type-juggling in CSS… 🤪

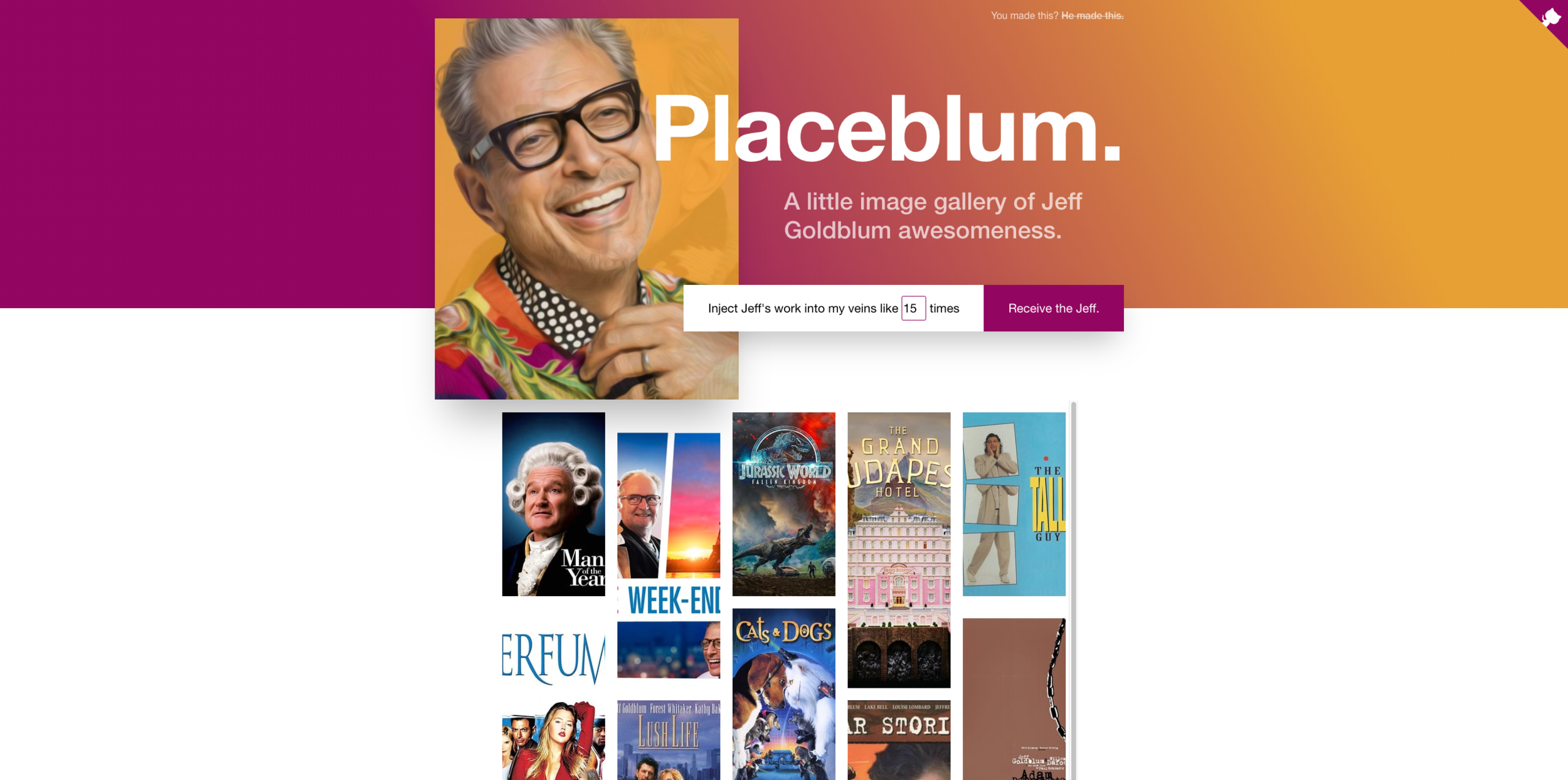

One month Later...

Mind. Blown.

Let's take a deeper look

Technique: stacked divs, animated opacity & z-index

<header class="app__header">
  <!-- Backgrounds -->
  <div class="jeff1-bg"></div>
  <div class="jeff2-bg"></div>
  <div class="jeff3-bg"></div>

  <!-- Portraits -->
  <figure class="header__jeffs">
    <img src="/img/jeff1.jpg" alt="Jeff YEAH" />
    <img src="/img/jeff2.jpg" alt="Jeff again" />
    <img src="/img/jeff3.jpg" alt="It's all Jeff" />
  </figure>
</header>

IMPERATIVE

vs

Declarative

IMPERATIVE

vs

Declarative

telling machines what to do, letting them figure out to how to do it

<header class="app__header">
  <!-- Backgrounds -->
  <div class="jeff1-bg"></div>
  <div class="jeff2-bg"></div>
  <div class="jeff3-bg"></div>

  <!-- Portraits -->
  <figure class="header__jeffs">
    <img src="/img/jeff1.jpg" alt="Jeff YEAH" />
    <img src="/img/jeff2.jpg" alt="Jeff again" />
    <img src="/img/jeff3.jpg" alt="It's all Jeff" />
  </figure>
</header>

Current structure

  • Gradient information disconnected from images
  • Adding content means editing multiple files
  • Implicitly imperative
<header class="app__header">
  <figure class="header__jeffs">
    <img
      src="/img/jeff1.jpg"
      alt="Jeff YEAH"
      data-grad-start="#61bfd9"
      data-grad-end="#0551b4"
    />
    <img
      src="/img/jeff2.jpg"
      alt="Jeff again"
      data-grad-start="#15AF88"
      data-grad-end="#6C429A"
    />
    <img
      src="/img/jeff3.jpg"
      alt="It's all Jeff"
      data-grad-start="#EEA031"
      data-grad-end="#930560"
    />
  </figure>
</header>

Desired structure: declarative

<img src="jeff1.jpg" data-grad-start="#61bfd9" data-grad-end="#0551b4" />

<img src="jeff2.jpg" data-grad-start="#15AF88" data-grad-end="#6C429A" />

<img src="jeff3.jpg" data-grad-start="#EEA031" data-grad-end="#930560" />

This won't work

😭

:root {
  --gradientStart: #61BFD9;
  --gradientEnd: #0551B4;
}

@keyframes interpolate {
  from {
    --gradientStart: #61BFD9;
    --gradientEnd: #0551B4;
  }
  to {
    --gradientStart: #15AF88;
    --gradientEnd: #6C429A;
  }
}

.app__header {
  animation: interpolate 3s ease-in-out;
}

The browser knows how to turn one number into another

But if the variable type isn't a number…

¯\_(ツ)_/¯

"God help us, we're in the hands of engineers"

Custom Props are just spicy strings

Part 3:

How I learned to stop worrying and love Houdini

CSS.registerProperty lets us fix the type of the Custom Property

Properties & Variables API

CSS.registerProperty({
  name: "--gradientStart",
  syntax: "<color>",
  initialValue: "#61BFD9",
  inherits: true
});

CSS.registerProperty({
  name: "--gradientEnd",
  syntax: "<color>",
  initialValue: "#0551b4",
  inherits: true
});
const jeffs = [...hero.querySelectorAll("img")];
const jeffNum = jeffs.length;

export const showJeff = (currentIndex = 0) => {
  // Extract gradient start/end from data attribute
  const jeff = jeffs[currentIndex];
  const { gradientStart, gradientEnd } = jeff.dataset;

  // Update the Custom Props
  root.style.setProperty("--gradientStart", gradientStart);
  root.style.setProperty("--gradientEnd", gradientEnd);

  // Slide next <img/> in (and get the next pair of gradients)
  jeff.style.zIndex = 2;
  jeff
    .animate([
      { opacity: 0, transform: "scale(1.2, 1.2)" },
      { opacity: 1, transform: "scale(1, 1)" }
    ], {duration: 3000})
    .onfinish = () => {
      const nextIdx = currentIndex + 1;
      setTimeout(switchJeff, 3000, jeff, nextIdx % jeffNum);
    };
};

Updating --gradientStart/End triggers a smooth transition

.app__header {
  transition: --gradientStart 3s, --gradientEnd 3s;

  background-image: linear-gradient(
    var(--gradientStart),
    var(--gradientEnd)
  );
}
CSS.layoutWorklet.addModule("/js/worklets/masonry.js");
.main__gallery {
  --padding: 20;
  --columns: 5;

  display: layout(masonry);
}
main.js
main.css

display: familiar property, new value

[emotions not to scale]

Part 3:

How soon is now?

visit: ishoudinireadyyet.com

Download: Microsoft Edge Insider

Part 4:

How do I get started?

Explainer: Houdini Spellbook

Aggregator: Awesome-CSS-Houdini

Examples: css-houdini.rocks

examples: Google Chrome Labs

in-depth articles: developers.google.com

Part 5:

Closing thoughts

Shareable, reusable, drop-in code: extra.css

Houdini is going to change

the way we write CSS

Houdini is great for

performance

  • To device:  3Kb JS
  • On device: 60FPS

Houdini is a

progressive enhancement

Houdini helps us write

more robust code

<header class="app__header">
  <figure class="header__jeffs">
    <img
      src="/img/jeff1.jpg"
      alt="Jeff YEAH"
      data-grad-start="#61bfd9"
      data-grad-end="#0551b4"
    />
    <img
      src="/img/jeff2.jpg"
      alt="Jeff again"
      data-grad-start="#15AF88"
      data-grad-end="#6C429A"
    />
    <img
      src="/img/jeff3.jpg"
      alt="It's all Jeff"
      data-grad-start="#EEA031"
      data-grad-end="#930560"
    />
  </figure>
</header>
  • Consistent types
  • Clamped values
  • No more string-based arithmetic bugs

CSS

♥

JS

vs

2014-2019

CSS

♥

JS

What Houdini really means

Thank you FOR COMING TO

 MY TED JEFF TALK

@oliverturner

Bonus slide: have an easter egg!

When Houdini met Goldblum

By Oliver Turner

Made with Slides.com

When Houdini met Goldblum

A practical talk about learning Houdini: what it is, how it solved a problem I had, useful resources, the current landscape and thoughts about where we'll be soon. Delivered at CSS Camp 2019
