Nim - the first high performance language with full support for hot code-reloading at runtime

by Viktor Kirilov

Me, myself and I

  • my name is Viktor Kirilov - from Bulgaria
  • creator of doctest - the fastest C++ testing framework
  • apparently I like text-heavy slides and reading from them...!
    • deal with it :|

Talk agenda

  • some Nim code
  • the performant programming language landscape
    • read: heavily biased C++ rant
  • Nim compilation model

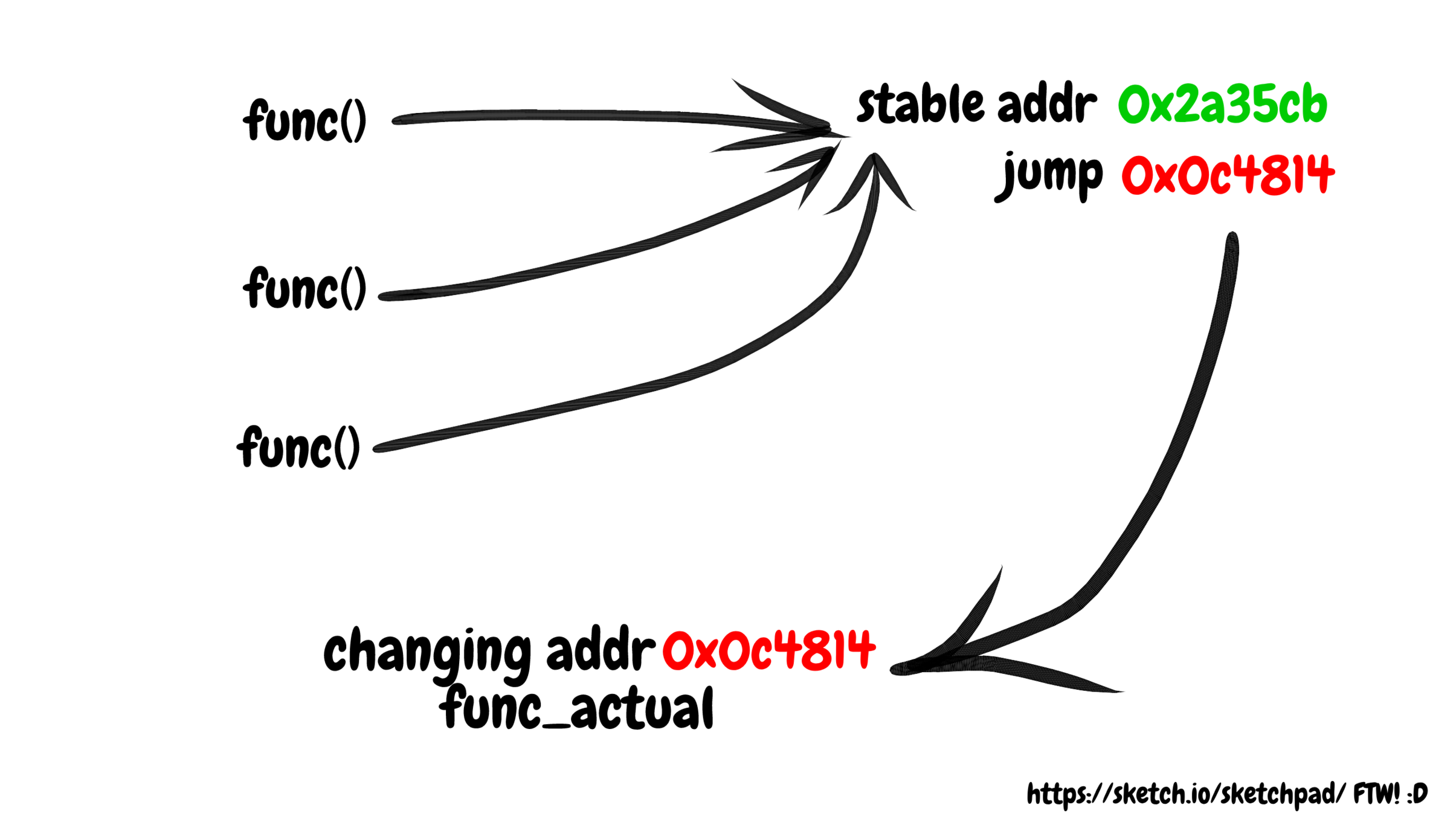

  • hot code reloading
    • usage & implementation
    • ".dll" => assume .so/.dylib (platform-agnostic)
  • demo
  • comments & conclusions

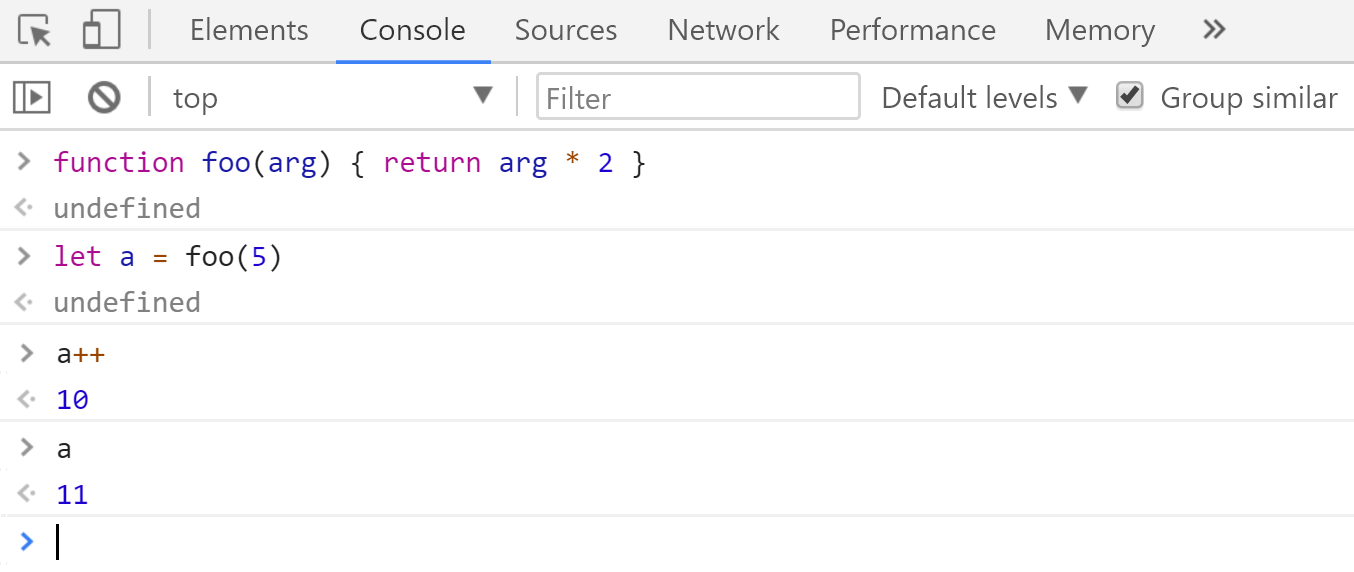

  • a bit on REPLs

Hello

echo "Hello World"

Currencies

type
  # or use {.borrow.} here to inherit everything
  Dollars* = distinct float

proc `+` *(a, b: Dollars): Dollars {.borrow.}

var a = 20.Dollars

a = 25  # Doesn't compile
a = 25.Dollars  # Works fine

a = 20.Dollars * 20.Dollars # Doesn't compile
a = 20.Dollars + 20.Dollars # Works fine

Sets

Iterators

type
  CustomRange = object
    low: int
    high: int

iterator items(range: CustomRange): int =
  var i = range.low
  while i <= range.high:
    yield i
    inc i

iterator pairs(range: CustomRange): tuple[a: int, b: char] =
  for i in range:  # uses CustomRange.items
    yield (i, char(i + ord('a')))

for i, c in CustomRange(low: 1, high: 3):
  echo c

# prints: b, c, d

Variants

# This is an example how an abstract syntax tree could be modelled in Nim
type
  NodeKind = enum  # the different node types
    nkInt,          # a leaf with an integer value
    nkFloat,        # a leaf with a float value
    nkString,       # a leaf with a string value
    nkAdd,          # an addition
    nkSub,          # a subtraction
    nkIf            # an if statement
  Node = ref object
    case kind: NodeKind  # the ``kind`` field is the discriminator
    of nkInt: intVal: int
    of nkFloat: floatVal: float
    of nkString: strVal: string
    of nkAdd, nkSub:
      leftOp, rightOp: Node
    of nkIf:
      condition, thenPart, elsePart: Node

var n = Node(kind: nkFloat, floatVal: 1.0)
# the following statement raises an `FieldError` exception, because
# n.kind's value does not fit:
n.strVal = ""

Multi methods

type
  Thing = ref object of RootObj
  Unit = ref object of Thing
    x: int

method collide(a, b: Thing) {.inline.} =
  quit "to override!"

method collide(a: Thing, b: Unit) {.inline.} =
  echo "1"

method collide(a: Unit, b: Thing) {.inline.} =
  echo "2"

var a, b: Unit
new a
new b
collide(a, b) # output: 2

Meta-programming

  • what is it
    • a program that can read, generate, analyze or transform other programs
  • why do it
    • can optimise code – by compile-time rewrites
      • think expression templates
    • can enforce better coding patterns
    • can increase code readability and maintainability
      • with great power comes great responsibility
  • reflection - when the meta language is the actual language

Meta-programming in Nim

  • works on the Abstract Syntax Tree
  • respects the type system
  • levels of complexity:
    • normal procs and inline iterators
    • generic procs and closure iterators
    • templates
    • macros

Templates

template withFile(f: untyped, filename: string,
                  mode: FileMode,
                  body: untyped): typed =
  let fn = filename
  var f: File
  if open(f, fn, mode):
    try:
      body
    finally:
      close(f)
  else:
    quit("cannot open: " & fn)

withFile(txt, "ttempl3.txt", fmWrite):
  txt.writeLine("line 1")
  txt.writeLine("line 2")

AST

dumpTree:
  var mt: MyType = MyType(a:123.456, b:"abcdef")

# output:
#   StmtList
#     VarSection
#       IdentDefs
#         Ident "mt"
#         Ident "MyType"
#         ObjConstr
#           Ident "MyType"
#           ExprColonExpr
#             Ident "a"
#             FloatLit 123.456
#           ExprColonExpr
#             Ident "b"
#             StrLit "abcdef"

Macros

import macros

type
  MyType = object
    a: float
    b: string

macro myMacro(arg: untyped): untyped =
  var mt: MyType = MyType(a:123.456, b:"abcdef")
  let mtLit = newLit(mt)

  result = quote do:
    echo `arg`
    echo `mtLit`

myMacro("Hallo")

# The call to myMacro will generate the following code:
echo "Hallo"
echo MyType(a: 123.456'f64, b: "abcdef")

More macros

import macros
dumpAstGen:
  proc hello() =
    echo "hi"
nnkStmtList.newTree(
  nnkProcDef.newTree(
    newIdentNode(!"hello"),
    newEmptyNode(),
    newEmptyNode(),
    nnkFormalParams.newTree(
      newEmptyNode()
    ),
    newEmptyNode(),
    newEmptyNode(),
    nnkStmtList.newTree(
      nnkCommand.newTree(
        newIdentNode(!"echo"),
        newLit("hi")
      )
    )
  )
)

More macros - continue from last slide

import macros
macro gen_hello(): typed =
  result = nnkStmtList.newTree(
    nnkProcDef.newTree(
      newIdentNode(!"hello"),
      newEmptyNode(),
      newEmptyNode(),
      nnkFormalParams.newTree(
        newEmptyNode()
      ),
      newEmptyNode(),
      newEmptyNode(),
      nnkStmtList.newTree(
        nnkCommand.newTree(
          newIdentNode(!"echo"),
          newLit("hi")
        )
      )
    )
  )
gen_hello()
hello() # << same as from last slide!

HTML DSL

import html_dsl

html page:
  head:
    title("Title")
  body:
    p("Hello")
    p("World")
    dv:
      p "Example"

echo render(page())

HTML DSL result

<!DOCTYPE html>
  <html class='has-navbar-fixed-top' >
  <head>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <title>Title</title>
  </head>
  <body class='has-navbar-fixed-top' >
    <p >Hello</p>
    <p >World</p>
    <div>
      <p>Example</p>
    </div>
  </body>
</html>

Simply Nim

  • statically typed
  • high performance (compiles to native binaries - comparable to C/C++)
  • very clean & elegant - no, beauty is NOT subjective!
  • garbage collected (can do manual memory management too)
  • expressive - some of the most powerful metaprogramming
    • compiler has an interpreter inside
  • compiles to: C/C++/ObjC/Javascript
    • non-idiomatic - not for reading but optimal for execution
  • suited for: systems programming, applications & web
    • all types of software!
  • backed by Status since 2018 (#65 cryptocurrency by marketshare)
    • Status - working on one of the first implementations of Ethereum 2.0
    • just like Rust is backed by Mozilla (although with a lot less...)
  • has a rich stdlib, package manager, docs, some IDE support

Feature rundown

  • uniform call syntax (extension methods) - obj.method() OR method(obj)
    • that's why there are no real "methods" defined in types
  • function call parens are optional - echo("hello") OR echo "hello"
  • case-insensitive - also underscore-insensitive but that's another topic :|
  • generics
  • templates (meta-programming^2)
  • macros (meta-programming^3) - evaluated in the compiler by the NimVM
  • concepts
  • discriminated unions
  • strong typedefs (distinct type) - can has $ currency?
  • coroutines & closures
  • switch & pattern matching
  • dynamic dispatch & multi-methods
  • converters - explicit (for implicit conversions)
  • effect system (transitive)
  • extensible pragmas, "defer", exceptions, "discard", named args... good defaults!

My "favourite" aspect of C++

A bit on C++

  • C++20 is shaping up to be a huge release
    • lots of cool stuff, but complexity is through the roof
    • Expert-"tolerable" - prestige when you come up with yet more complicated TMP
  • simple example using ranges from C++20 - blog post
    • 3 seconds of compile time for ~20 lines of code, forget about "Debug" builds
  • Remember the Vasa! - Bjarne Stroustrup
  • There should come a time for a clean slate
    • C++ is a great and valuable ongoing research
    • The 2 biggest reasons C++ is so widely used today:
      • legacy and maturity - too much software written already
      • inertia - attachment and lack of interest to learn new languages
    • C++ is a HUGE time/money cost on the scale of hundreds of millions
      • developer productivity, bug & safety
      • business should back a better language & push for development + learning

Some quotes & thoughts

  • Fifty years of programming language research, and we end up with C++?
    • Richard A. O’Keefe
  • There are only two kinds of programming languages: those people always bitch about and those nobody uses.
    • Bjarne Stroustrup
  • Nim is the next iteration of practical language design
    • ​by humble !!! >> me << !!!
  • Nim: speed of C, elegance of Python, flexibility of Perl
    • Peter Munch-Ellingsen
  • Nim is to C++ as CoffeeScript is to JavaScript

Comparison with others

  • D, Rust, Jai, Zig
    • out of scope for this talk
  • Go
    • not really a *pinnacle* of abstraction and innovation :|
  • C++
    • <optional> - 5k+ LOC for a T and a bool... safe_int - same horror story
    • The next big thing: "Design by introspection" - Andrei Alexandrescu
  • Nim is one of the most logical paths forward
    • on-par performance with C/C++ (compiles to them)
    • some of the most easy interop with C/C++ ........ (compiles to them)
    • uses any C/C++ compiler ........ (compiles to them)
    • already quite far in terms of implementation
    • meta-programming on steroids

Nim compilation model

  • nim c -d:release main.nim
    • always compile only the main file, follow the imports
    • whole program analysis
    • a .c file for each .nim file in a "nimcache" (temp) folder (also .obj files)
    • only referenced (imported) modules are compiled in the end
  • entire project is always "compiled" by Nim (currently no "minimal" rebuild)
    • ~4-5 sec for the entire source of Nim - 135 files (without the C compiler)
    • the C/C++ compiler rebuilds only changed files (takes a bit more time)
    • will change when per-module caching is introduced - even faster!
# main.nim

import a

echo a()
# a.nim

import b

proc a*(): string =
  return from_b
# b.nim

let local = "B!"

let from_b* = local
          ^
# means "exported"

Nim to C/C++: nimbase.h

// nimbase.h

#define N_NIMCALL(rettype, name) rettype __fastcall name
#define N_CDECL(rettype, name) rettype __cdecl name
//...
#define N_NIMCALL_PTR(rettype, name) rettype (__fastcall *name)
//...
#define N_LIB_PRIVATE __attribute__((visibility("hidden")))
//...
#define N_LIB_EXPORT  extern __declspec(dllexport)
//...
#define STRING_LITERAL(name, str, length) \
   static const struct {                  \
     TGenericSeq Sup;                     \
     char data[(length) + 1];             \
  } name = {{length, (int) ((unsigned)length | NIM_STRLIT_FLAG)}, str}

included by all .c/.cpp files

handles different platforms - convenience macros

Nim procs to C/C++

proc foo() =
  echo "hello"

foo()
#include <nimbase.h>

// forward declarations / type definitions / constants section
struct TGenericSeq { int len; int reserved; };
struct NimStringDesc : public TGenericSeq { ... };
typedef NimStringDesc* tyArray_nHXaesL0DJZHyVS07ARPRA[1];

STRING_LITERAL(TM_r9bkcJ6PRJ5n7ORNxxJ5ryg_3, "hello", 5); // << string literal
NIM_CONST tyArray_nHXaesL0DJZHyVS07ARPRA TM_r9bkcJ6PRJ5n7ORNxxJ5ryg_2 =
    {((NimStringDesc*) &TM_r9bkcJ6PRJ5n7ORNxxJ5ryg_3)};

N_LIB_PRIVATE N_NIMCALL(void, foo_iineYNh8S9cE6Ry7dr2Tz2A)(void); // << fwd decl

// definition section
N_LIB_PRIVATE N_NIMCALL(void, foo_iineYNh8S9cE6Ry7dr2Tz2A)(void) { // << def
    echoBinSafe(TM_r9bkcJ6PRJ5n7ORNxxJ5ryg_2, 1); // the echo call
}

// code execution section
foo_iineYNh8S9cE6Ry7dr2Tz2A(); // << call

Nim types to C/C++

type
  MyData = object
    answer: int
    ready: bool
proc newData(): MyData = return MyData(answer: 42, ready: true)
echo newData().answer
// forward declarations / type definitions / constants section
struct tyObject_MyData {
    int answer;
    bool ready;
};
// definition section
N_LIB_PRIVATE N_NIMCALL(tyObject_MyData, newData)(void) {
    tyObject_MyData result; // always an implicit "result"
    nimZeroMem((void*)(&result), sizeof(tyObject_MyData));
    result.answer = ((int) 42);
    result.ready = true;
    return result;
}

// code execution section
tyObject_MyData T2_;
T2_ = newData(); // << call
//...

Nim closures to C/C++ (resumable funcs)

iterator closure_iter*(): int {.closure.} = # a resumable function
  var x = 1
  while x < 10:
    yield x
    inc x
for i in closure_iter(): echo i
struct state_type : public RootObj {
    int colonstate_; // state progress - there are some GOTOs using this
    int x1; // the state
};

struct closure_type {
    N_NIMCALL_PTR(int, c_ptr) (void* e_ptr); // function ptr
    void* e_ptr; // environment ptr
};

N_LIB_PRIVATE N_CLOSURE(int, func)(void* e_ptr) { // def omitted for simplicity

state_type st; // the state
closure_type local; // the closure
local.c_ptr = func; // assign the func
local.e_ptr = &st; // assign environment
//...
i = local.c_ptr(local.e_ptr); // the call in the loop

Nim compilation to C/C++: a BIG win

  • smaller scope for the compiler
  • all the cutting-edge optimization for C/C++ for free
  • out-of-the-box support for tons of platforms
  • easiest C/C++ interop possible
  • exceptions - reusing those of C++ when using that backend
  • nim to C/C++ code mapping with #line directives for debuggers
  • no generated headers for the exported parts of modules
  • each .c/.cpp file contains everything (and only what) it needs
    • forward declarations for external functions
    • type definitions
  • each .c/.cpp file includes nimbase.h and a few C stdlib headers
  • high level macros & templates => simple structs and functions

Interfacing with C/C++

proc printf(formatstr: cstring)
    {.header: "<stdio.h>", importc: "printf", varargs.}
{.emit: """
using namespace core;
""".}

{.compile: "logic.c".}

other pragmas - for use in Nim:

We can also call Nim code from C/C++:

# fib.nim
proc fib(a: cint): cint {.exportc.} # do not mangle
nim c --noMain --noLinking --header:fib.h fib.nim
// user.c
#include <fib.h>

Interfacing with C/C++

c2nim tool - generate C/C++ bindings for Nim

type
  StdMap {.importcpp: "std::map", header: "<map>".} [K, V] = object
proc `[]=`[K, V](this: var StdMap[K, V]; key: K; val: V) {.
  importcpp: "#[#] = #", header: "<map>".}

var x: StdMap[cint, cdouble]
x[6] = 91.4
std::map<int, double> x;
x[6] = 91.4;

C++ template constructs

Generated C++

  • much faster iteration times
    • no need to restart the program - can preserve state
  • less need for a scripting language
    • no need for a virtual machine
    • no binding layer
    • code in one language
  • can hack something quickly
    • introspection, queries
      • debuggers aren't infinitely powerful
    • fine-tuning values
  • interactive (REPL-like): very useful for exploration and teaching

Runtime compilation - WHY

Runtime compilation for C/C++: HOW

Replace "compiling" with "restarting"

Hot code-reloading (HCR) in Nim

# main.nim

import hotcodereloading # for reload
import other

while true:
  echo readLine(stdin) # pause
  performCodeReload()  # reload
  echo getInt()        # call
# other.nim

import hotcodereloading # for after handler

var glob = 42

proc getInt*(): int = return glob + 1 # exported

afterCodeReload:
  glob = 666

built as an .exe/.dll depending on the project type

built as a reloadable .dll

ends up in the "nimcache"

Effects of HCR

  • all interaction between .nim modules => through pointers
  • functions - changes:
    • forward declarations become function pointers
    • definitions get "_actual" as a suffix
    • pointers are assigned the "_actual" on startup
    • calls stay the same (pointer has the same name)
  • globals - changes:
    • turned into pointers
    • allocated on the heap and initialized on startup
      • state is preserved when reloading
    • dereferenced wherever used

Effects of HCR

// fwd decl/globals section
static N_NIMCALL_PTR(int, getInt_omy6T2FkprLEReOy2ITmIQ)(void);
static int* glob_v1zK9aUOu9aNNcsxruuK8NdA;

// definitions
N_LIB_PRIVATE N_NIMCALL(int, getInt_omy6T2FkprLEReOy2ITmIQ_actual)(void) {
	int result;                                       // ^^ the suffix
	result = (*glob_v1zK9aUOu9aNNcsxruuK8NdA);
	return result;
}

// usage
(*glob_v1zK9aUOu9aNNcsxruuK8NdA) = getInt_omy6T2FkprLEReOy2ITmIQ();

// init on startup (naive)
glob_v1zK9aUOu9aNNcsxruuK8NdA = new int(42);
getInt_omy6T2FkprLEReOy2ITmIQ = getInt_omy6T2FkprLEReOy2ITmIQ_actual

Trampolines

Initialization

// naive
glob_v1zK9aUOu9aNNcsxruuK8NdA = new int(42);
getInt_omy6T2FkprLEReOy2ITmIQ = getInt_omy6T2FkprLEReOy2ITmIQ_actual
// reality
getInt_omy6T2FkprLEReOy2ITmIQ = (tyProc_vVu2P82aVLv9c8X0xbI1NJw) hcrRegisterProc(
    "D:\\play\\nimcache/play.cpp.dll",            // "domain" (AKA module)
    "getInt_omy6T2FkprLEReOy2ITmIQ",              // "key"
    (void*)getInt_omy6T2FkprLEReOy2ITmIQ_actual); // the real function

if(hcrRegisterGlobal("D:\\play\\nimcache/play.cpp.dll",        // "domain" (AKA module)
                     "glob_v1zK9aUOu9aNNcsxruuK8NdA",          // "key"
                     sizeof((*glob_v1zK9aUOu9aNNcsxruuK8NdA)), // size for allocation
                     NULL, // for the GC - simple integer is simple, so NULL
                     (void**)&glob_v1zK9aUOu9aNNcsxruuK8NdA))  // address to pointer
{
    // hcrRegisterGlobal returns "true" only if not already inited
    (*glob_v1zK9aUOu9aNNcsxruuK8NdA) = ((int) 42); // init with value (or side effects)
}

Initialization

  • the HCR.dll runtime holds pointers to all globals/functions
  • hcrRegisterProc
    • allocates executable memory (a few bytes)
    • writes a jump instruction (trampoline) to the "_actual"
    • returns an address to the trampoline
    • this way "_actual" can be changed on reloading
      • changed by calling it again with a different address
      • all pointers to the trampoline stay the same
  • all symbols are registered per "domain" (.dll)
    • no name clashes (even though they are mangled...)
    • better management - can remove all symbols for module X

Initialization

# main.nim

import a, b

echo from_a()
echo from_b()
# a.nim

import b

proc from_a*(): string =
  result = "A!"
  result.add from_b()
# b.nim

proc from_b*(): string =
  return "B!"
  1. main.exe loads the hcr.dll (and the Nim GC in rtl.dll)
  2. main.exe calls init() from hcr.dll and passes a list of imports (a, b)
  3. hcr.dll loads a.dll and gets a list of imports (b)
  4. hcr.dll loads b.dll and fully initializes it (it has no imports)
    1. registers from_b() and does nothing else
  5. hcr.dll fully initializes a.dll
    1. registers ​from_a() and gets the address for from_b()
  6. hcr.dll skips b.dll (part of the imports of main.exe) since it is already initialized
  7. main.exe is initialized
    1. gets the addresses for from_a() and from_b()
    2. executes the top-level code (the 2 echo statements)
  • a DFS traversal with POST visit
  • when module A imports a symbol from B
    • symbol is first registered in B
    • symbol is "gotten" in A after B is inited
  • basically a custom dynamic linker :|
  • imports are discovered on-the-go
  • HCR.dll constructs a tree of imports and maintains it
  • many details omitted
    • initialization is broken into multiple passes
      • registration of type infos (for the GC) is a pre-pass
  • each .dll exports just a few functions which the HCR.dll uses
    • getImports(), and the ones for the passes

Initialization

when we call performCodeReload():

  • HCR.dll will check hasAnyModuleChanged()
    • basically scanning if any .dll has been modified (timestamp)
  • changes shouldn't affect .dll files which are part of the current active callstack when reload() is called! or crash :|
    • ==> main module can never be reloaded
  • execute the "beforeCodeReload" handlers if about to reload
  • in a DFS traversal, for each modified module:
    • same as the init - get its imports, load them (if changed or new), init everything in proper order
      • supports discovery of new imports!
      • also removes no longer referenced modules and their symbols
  • execute the "afterCodeReload" handlers

Reloading

Reloading - handlers

# main.nim
import a, b, hotcodereloading

beforeCodeReload:
  echo "before main"
afterCodeReload:
  echo "after main"
# a.nim
import b, hotcodereloading

beforeCodeReload:
  echo "before a"
afterCodeReload:
  echo "after a"
# b.nim
import hotcodereloading

beforeCodeReload:
  echo "before b"
afterCodeReload:
  echo "after b"
  • DFS traversal with POST visit
  • handlers can be added/removed
  • can be used to update globals
  • fine-grained control:
    • hasModuleChanged(<module>)

only A changes => all handlers are executed on reload:

before b
before a
before main
after b
after a
after main

Reloading - global scope

  • top-level code (global scope) is executed only on initial load
    • for new top-level code use before/after handlers
  • changing the initializer of a global doesn't do anything
    • use a before/after handler
    • or remove the global entirely, reload, and re-add it
      • brand new symbol!
  • new globals can be added - and will be initialized properly

The initial HCR example revisited

# main.nim

import hotcodereloading # for reload
import other

while true:
  echo readLine(stdin) # pause
  performCodeReload() # reload
  echo getInt() # call
# other.nim

import hotcodereloading # for after handler

var glob = 42

proc getInt*(): int = return glob # exported

afterCodeReload:
  glob = 666

Makes more sense now, doesn't it?

LIVE
DEMO

Encountered problems

  • processes lock loaded .dll files in the filesystem on Windows
    • when reloading we copy x.dll to x_copy.dll and load the copy
  • changing module X can affect module Y
    • such changes shouldn't reach the main module
    • mangling of symbols being affected by attributes (purity)
    • mangling affected by where "inline" functions get used first
    • mangling affected by which module instantiates a generic
  • C vs C++
    • missing forward declarations - fine in C!
    • multiple identical forward declarations
      • multiple definitions of global function pointers - fine in C!

Visual Studio debug symbols - PDB drama

  • .dll/.exe have hardcoded paths to the .pdb (copying the .dll doesn't matter)

  • the VS Debugger keeps the .pdb files locked for .dlls even after unloaded



  • someone managed to close the file handles to no longer needed .pdb files (.dll has been unloaded) to the external VS debugger process (live++)

  • embed the debug info in the actual binaries just like on unix

    • /Z7 embeds it in .obj files but not for the final .dll/.exe when linking them

  • different names for the .pdb using /PDB:<filename> (with the date/time (including milliseconds) as a suffix)
    • the "hardcoded" paths to .pdb files are always different
    • try to delete all <dll_name>_*.pdb files for a given .dll when linking
      • failure to delete them means the VS debugger still holds them locked
      • links: l1, l2, l3, l4

solutions:

HCR performance

  • snappy compression algorithm - x2-x4 times slower
    • for reference: zlib (c code) to javascript (asm.js) ==> x2 slow down

  • calls within a translation unit are direct (the "_actual" version gets called)

  • calls between modules => indirection: pointer to function

    • + additional jump from trampoline to actual function

  • link time optimization (AKA whole program optimization) cannot help
    • devirtualization techniques are not applicable either
  • compactness in memory VS a single binary => instruction cache misses
  • /hotpatch for MSVC and Live++ (which are faster):
    • not going through function pointers

    • by default there are no jumps in the function preamble (padding)

  • slowdown depends a lot on the type/scale of software - x2 to x5...

HCR performance

possible optimizations:

  • write more "inline" procs
    • their body is emitted wherever used => skip indirections
  • pragmas for excluding files (extension of the first point in this list)
    • register the module procs but no indirections between them
  • relocate all code from loaded binaries close in memory?
  • PLOT TWIST!
    • debug builds are currently affected a lot less (<x2 slowdown)
      • HCR is mainly for development => probably debug builds

HCR TODO

  • Nim stdlib has trouble compiling with the GC as a separate SO
    • "-d:useNimRtl" needs to be enabled for all compiler tests
    • currently no real-world project can be built with HCR
  • detecting type changes
    • error when detected
    • OR ability for users to handle it (migrate data)
  • check if "reload" would affect functions from the current call stack
  • expose state for outside manipulation with interactive speeds
    • imagine a slider in the IDE for a variable or a color picker widget
  • performance & bug fixes

HCR Implementation choice

  • pros
    • any modern (desktop) OS supports dynamic libraries
    • works with any C/C++ compiler
    • near-native speeds
    • final binaries are debuggable
    • a REPL is easily built on top of this
    • (arguably) less complex than using LLVM / JIT / whatever
    • changes are isolated (only the C backend which is a few files)
    • program can be changed in (almost) any way
    • novel approach - someone had to try it
  • cons
    • not as optimal as the /hotpatch for MSVC or Live++
    • (arguably) more complex than using LLVM / JIT / whatever
    • not sure how NLVM (Nim on top of LLVM) will support HCR

REPL - Read Eval Print Loop

  • interpreted languages have it (JavaScript, Python, etc.)
  • consoles/shells - cmd.exe, bash
  • can iteratively append/execute code (definitions, side effects, etc.)
  • education, scientific community, rapid prototyping of any kind

REPL/Nim quote

Nim is the language I have always thought was a brilliant idea that I never get to use. It's a shame.
Nim is to C/C++ as CoffeeScript is to JavaScript. A highly extensible template language atop a portable language with libraries for practically everything.
So why haven't I hopped on the bandwagon? Outside of C++, C, and Fortran - the only way I have ever learned a new language is through using a REPL. How much of Python's and MATLAB's (and maybe even Julia's) success is due to having a brilliant REPL?
I am not complaining, and I do not have any free time to fix it. But man... if Nim just had a killer REPL that allowed me to slowly learn the language properly while not being blocked from my daily work... it would be just killer!



cjhanks on Apr 18, 2017

https://news.ycombinator.com/item?id=14143521

REPL on top of HCR

2 files:

  • main module
    • has the main loop
    • handles code submissions
  • imported file
    • gets modified based on submissions
    • rebuilt + reloaded

Talk abstract was a lie! didn't get to implementing it in time...

should be well below half a second

REPL on top of HCR

you submit this:

import tables

var a = {1: "one", 2: "two"}.toTable

echo a

and it gets translated to this:

import hotcodereloading # for the before/after handlers

import tables

var a = {1: "one", 2: "two"}.toTable

afterCodeReload:
  echo a

REPL on top of HCR

later you append:

let b = a

echo b

and it gets translated to this:

import hotcodereloading # for the before/after handlers

import tables

var a = {1: "one", 2: "two"}.toTable

let b = a # the new code

# only the new side effects are still present
afterCodeReload:
  echo b

Jupyter kernel

The road ahead for Nim

  • version 1.0 - promise of stability
  • compiler cache for unchanged modules
    • because compilation starts always from the main module
    • of great benefit for HCR/REPL
  • more features
  • better tooling
  • better docs
  • taking over the world
  • get involved - still in early stages - you can have an impact

Q&A

Nim - the first high performance language with full support for hot code-reloading at runtime

By Viktor Kirilov

Nim - the first high performance language with full support for hot code-reloading at runtime

About the Nim programming language and the implementation of this feature: https://github.com/nim-lang/Nim/issues/8927

  • 95
Loading comments...

More from Viktor Kirilov
