Angular to the Cloud

Angular to the Cloud

Build and Deploy Enterprise Angular Apps

@kokkisajee

www.sajeetharan.com

@kokkisajee

In a nutshell

Communities

Social Developer

Recognitions

Cloud Solution Architect @Microsoft

Full-stack developer



I'm Sajeetharan Sinnathurai

www.sajeetharan.com

It's game time!

Nightmares?....

Stress?......

Insomnia?......

Top 3  lies by Me

  • It works on my machine
  • We have not changed anything
  • You're testing it wrong

Common mistakes

Deciding what is a common dependency.

Not leverage tooling, enough.

 Finding effective naming conventions

Sticking to methodologies that help stay modular

Repeat ourselves. A LOT.

Business needs

Innovation,Costs,Speed,Control

Text

Old World

Focus on planning

Compete, not collaborate

Static hierarchies

Individual productivity

Efficiency of process

Assumptions, not data

New World

Focus on delivering

Collaborate to win

Fluid and flexible teams

Collective value creation

Effectiveness of outcomes

Experiment, learn through data and respond

Awesomeness is when

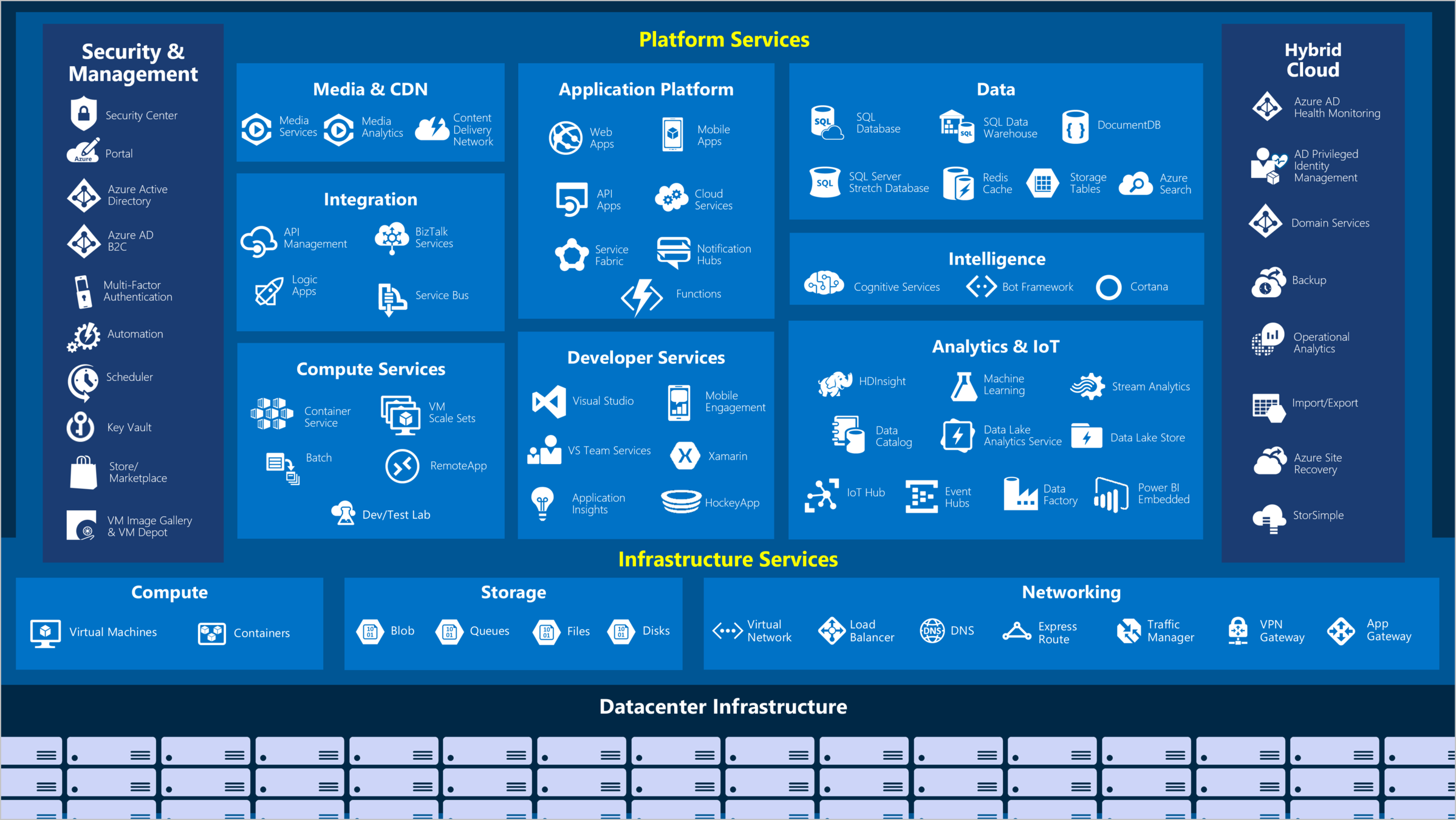

Azure - Cloud for all

Exactly 8 years Ago

My Desktop

deploy/ftp?

pray

smoke or manual test

did it worked?

no

yes

pray more

smoke or manual test

Most of the times this happened

Start using CI/CD for Angular

And you stop worrying about....

  • It worked on my laptop
  • It worked with my-dependency v1.X.X
  • It worked with the previous API
  • It worked...

What are the options?

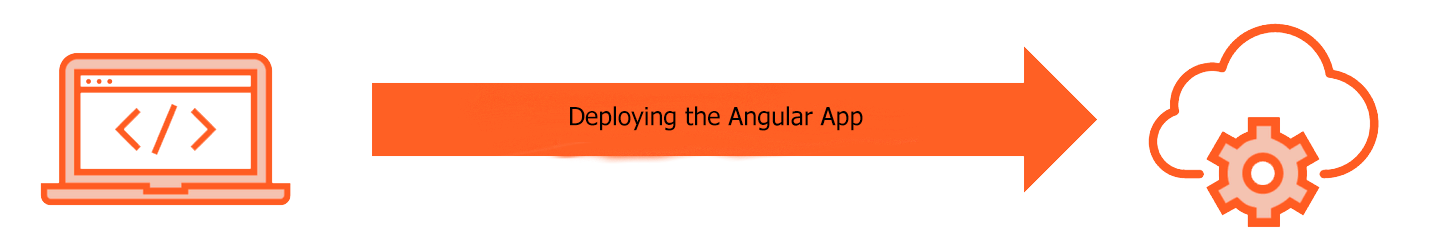

Build & Deploy Angular to Azure

Create

Devops

Pipeline

Add

Code

Coverage

Add

Linting

Results

Add

E2E

Tests

Challenge for the Day!

Code

&

Build

Get Ready Folks!

Create Emotion Detection App

https://github.com/sajeetharan/ngNepal

Access code from:

"Give your apps a human side"

  1. App Service
  2. Cognitive Service
  3. Azure Devops



Create build/deploy pipeline

Step 1 :

Navigate to https://dev.azure.com

Step 2 :

Add the web.config file under /src

<configuration>
    <system.webServer>
      <rewrite>
        <rules>
          <rule name="Angular" stopProcessing="true">
            <match url=".*" />
            <conditions logicalGrouping="MatchAll">
              <add input="{REQUEST_FILENAME}" matchType="IsFile" negate="true" />
              <add input="{REQUEST_FILENAME}" matchType="IsDirectory" negate="true" />
            </conditions>
            <action type="Rewrite" url="/" />
          </rule>
        </rules>
      </rewrite>
    </system.webServer>
</configuration>

Step 3:

Create AppService on Azure

Create build/deploy pipeline

Step 4 :

Refer web.config in angular.json

Step 5 :

Select the source and target branch

 "assets": [
              "src/favicon.ico",
              "src/assets",
              "src/web.config"
            ]

Step 6 :

Add task to Install angular/cli

Step 7 :

Add task to Install packages

Create build/deploy pipeline

Step 8 :

Build the App

Step 9 :

Step 10 :

App service deploy

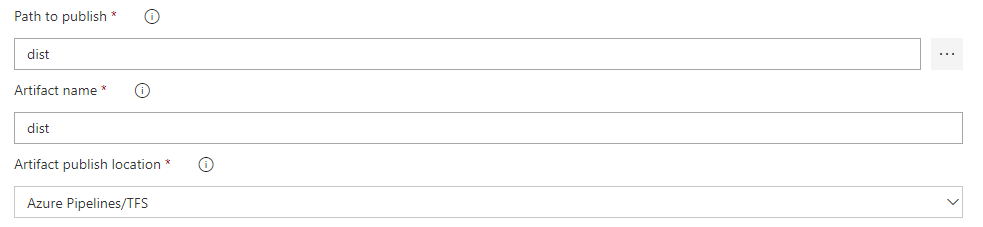

Publish Artifact

Add/Publish Tests

Step 11 :

Add the karma-junit-reporter

Step 12 :

npm install karma-junit-reporter --save-dev
// Karma configuration file, see link for more information
// https://karma-runner.github.io/1.0/config/configuration-file.html

module.exports = function (config) {
  config.set({
    basePath: '',
    frameworks: ['jasmine', '@angular-devkit/build-angular'],
    plugins: [
      require('karma-jasmine'),
      require('karma-chrome-launcher'),
      require('karma-jasmine-html-reporter'),
      require('karma-coverage-istanbul-reporter'),
      require('@angular-devkit/build-angular/plugins/karma'),
      require('karma-junit-reporter')
    ],
    client: {
      clearContext: false // leave Jasmine Spec Runner output visible in browser
    },
    coverageIstanbulReporter: {
      dir: require('path').join(__dirname, '../coverage/ngColomboAI'),
      reports: ['html', 'lcovonly', 'text-summary','cobertura'],
      fixWebpackSourcePaths: true
    },
    reporters: ['progress', 'kjhtml','junit'],
    junitReporter: {
      outputDir: '../junit'
    },
    port: 9876,
    colors: true,
    logLevel: config.LOG_INFO,
    autoWatch: true,
    browsers: ['ChromeHeadless'],
    singleRun: false,
    restartOnFileChange: true
  });
};

Add/Publish Tests

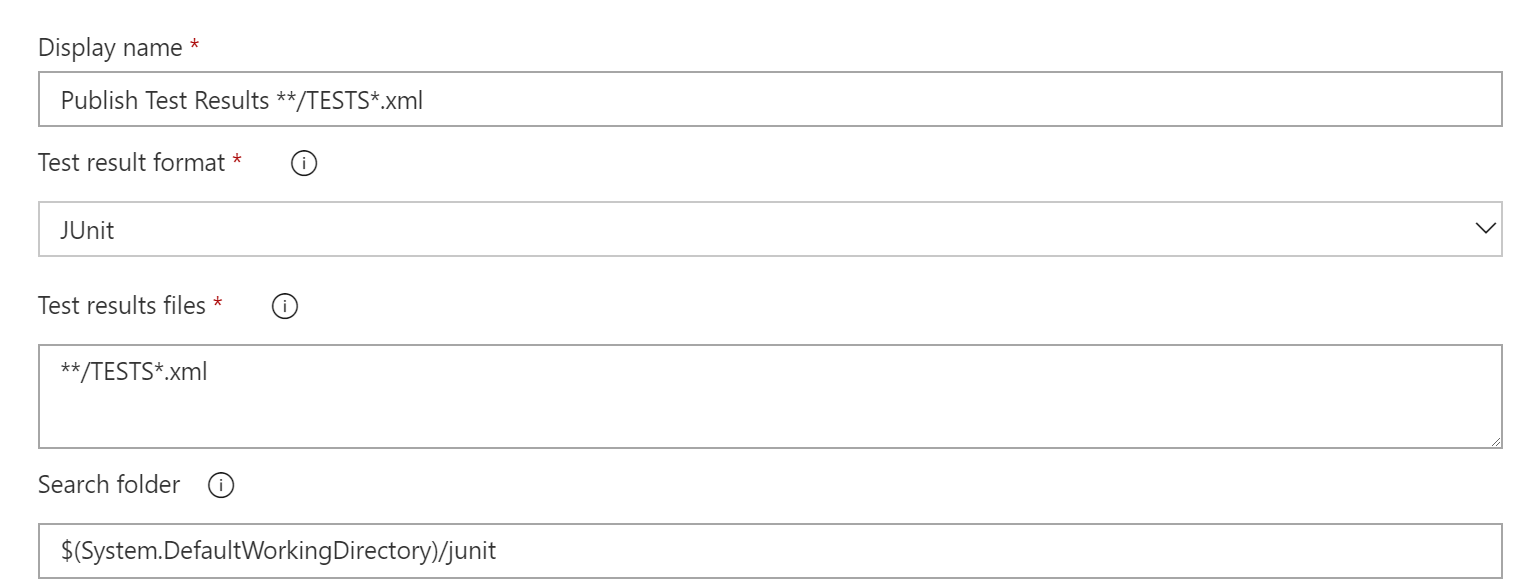

Publish Test Results :

Step 13 :

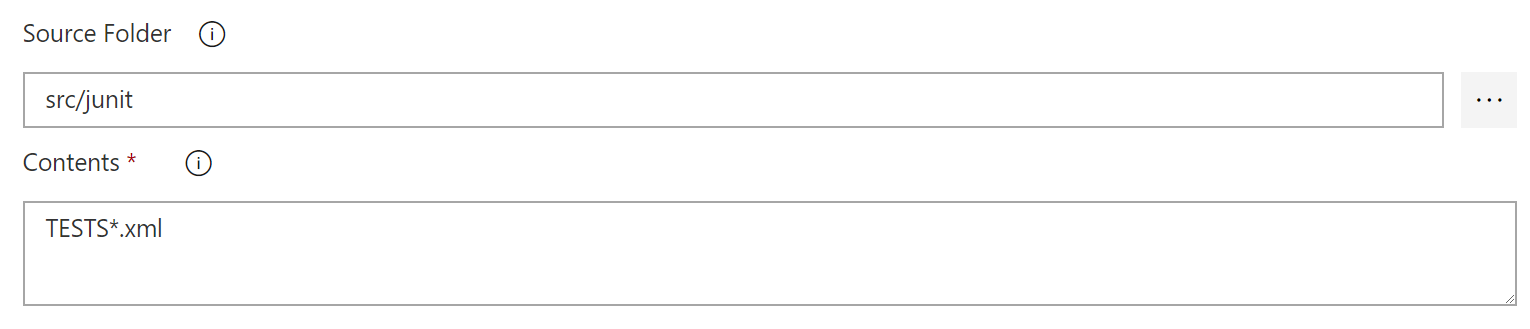

Delete Junit Files

Step 14 :

Congratulations

Things to Remember

When you build

Analyze and Optimize

ng build --prod
ng build --prod  --build-optimizer=true
ng build --prod --source-map
npm i -g source-map-explorer
source-map-explorer dist/ngNepal/main.bundle.js

my laptop

run build on

create a pull request

  unit and   e2e tests

did it work?

no

yes

merge pull request

run build on

did it work?

yes

publish to staging

no

New version

What we learnt!

Where to go from here?

- Automate everything

- Containerize your solution

- Build apps with Azure

- Send your queries @kokkisajee

- Be a part of Ng-SriLanka

https://www.rateevent.com/speeches/SCAAA365

 Explore by yourself and learn.

Enterprise angular apps

By Sajeetharan Sinnathurai
