The                 revolution is here

https://sajeetharan.com | @kokkisajee

NSBM Green University | 27/02/2019

THE CHALLENGE

"Build Hybrid app using Ionic"

  1. Using Cordova
  2. Using Capacitor

If you don't know what to do

Watch this innings by KJP!

Once upon a time..

a sweet little Web developer...

Yep, this stickman dude

He was happy

writing desktop &

Web apps...

Like normal happy

Then mobile apps

took over the world
and he was like...

"Man, I know nothing
but JavaScript, HTML
and CSS!" #Meh

He wanted to

build mobile apps
like crazy...

But still he had to learn new languages and stuff that would take forever

Then he discovered

Ionic...

Arguably he could have learned some Java, Objective-C, Swift,
<you-name-it>
but you know...

More Girl Friends..More Problems

Web technologies you already know and love

Websites: How?

Traditional Website

Request

Client requests website via URL.

Server responds with HTML document. This includes CSS and JavaScript links.

Mobile Apps: How?

Mobile App

Request

Mobile app already includes layout files, requests data from server.

Server responds with data (JSON). Mobile app populates local layout with returned data.

Types of Mobile App

Native

Web

Hybrid

Native Apps

Built specifically for one platform: e.g. iOS

Written in platform-specific language: Swift (iOS), Java (Android), C# (Windows Phone)

Will always be the most performant: closest 'to the metal'

Need to completely rewrite the app for each target platform

Full access to hardware sensors

Web Apps

Regular web pages, designed for small screens

Accessed through web browser on any device

Access to some hardware sensors (geolocation, accelerometer)

Will never be as performant as native apps

No App Store presence

Hybrid Apps

A mixture of native and web technologies

Write app using JavaScript

Wrap in a native container, deliver through app stores

'Feels' like a native app, but code can be reused across platforms

Which type to use?

Games, highly customised designs: native will be the most perfomant.

Simple web presence, runs on a broad range of devices, don't care about app stores: mobile web.

Otherwise: Many apps will benefit from a hybrid approach.



  • Thousands of $$$ in savings
  • Single Codebase
  • Faster Updates
  • Future of Hardware

Why hybrid?

Yeah bro! It exists!

  • An open source framework  for developing hybrid mobile apps with Angular, Sass and Cordova

  • It is the most popular SDK to build Hybrid Apps.

  • It combines 2 frameworks: Angular (>=2) and Apache Cordova.

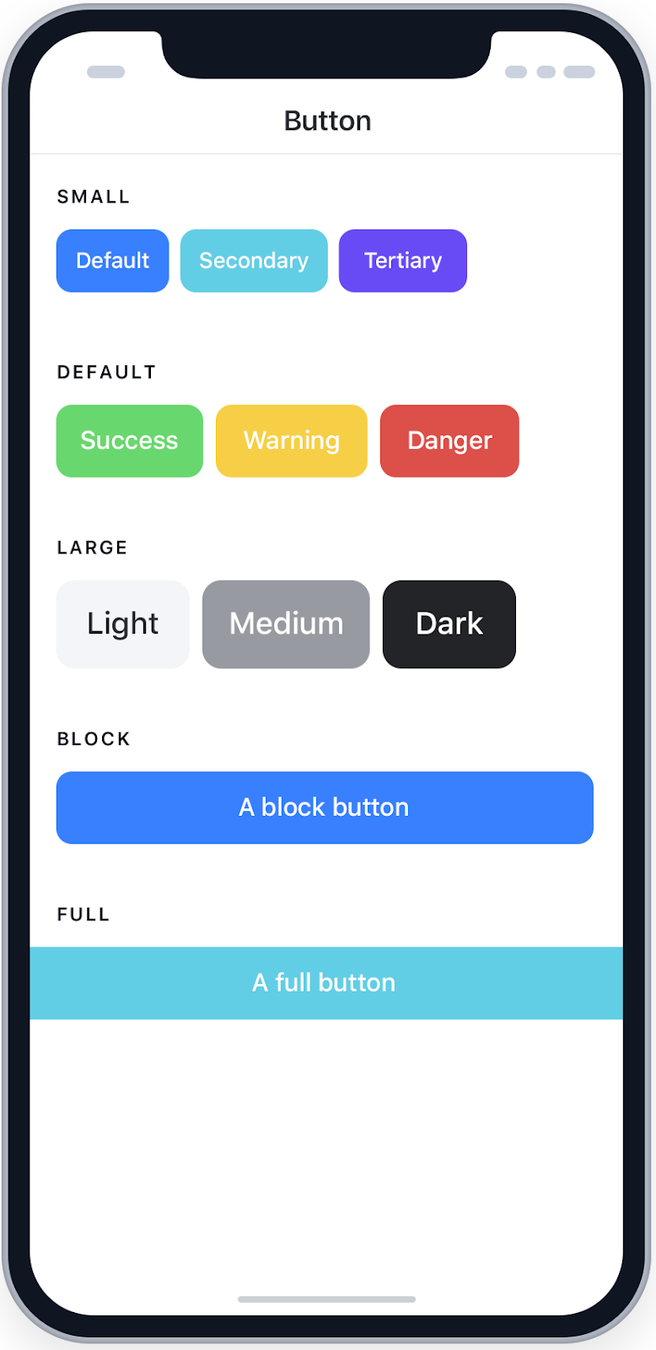

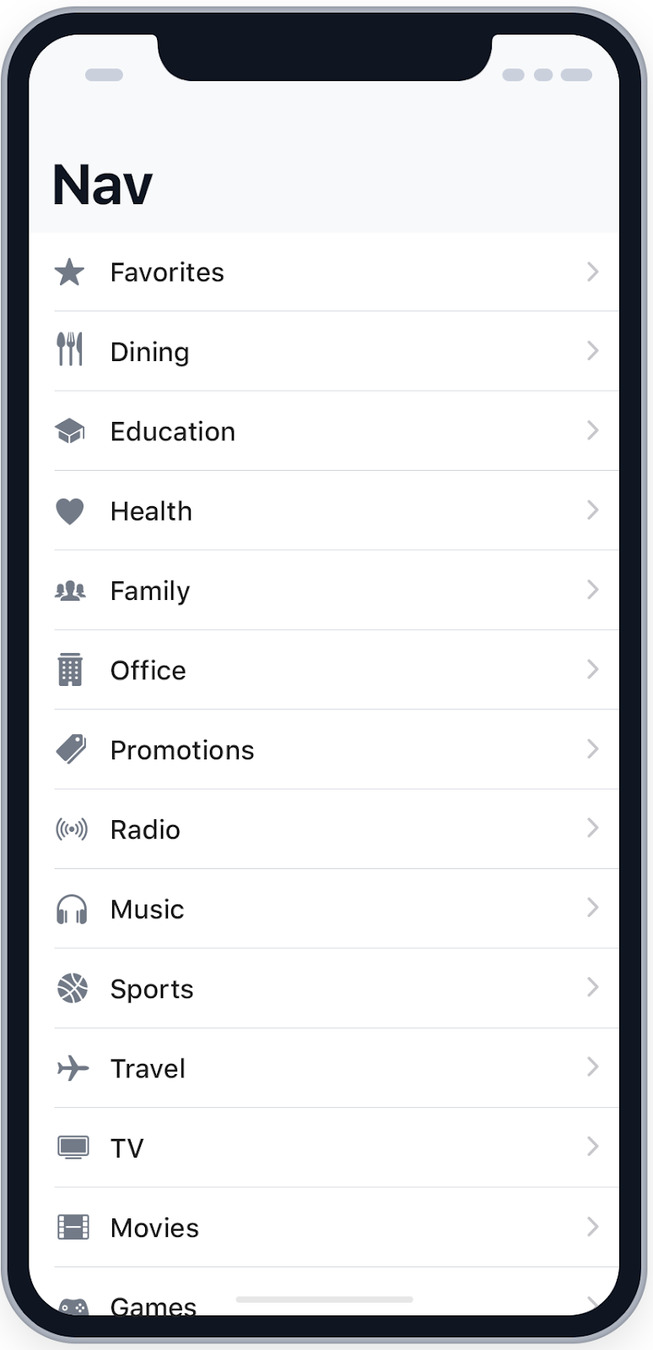

  • Ionic UI Components make the deployed app look native.

  • Pre built Gestures and Animations

  • A large,vibrant world-wide community

Mobile platform native code

Cordova core

(Cordova plugins)

WebView

JavaScript

HTML

CSS

Angular + Ionic

+

Ionic to the rescue 💪

Why Ionic?

  • #1 cross-platform mobile framework
  • Vibrant community of 6M developers​
  • More than 5M apps built with Ionic

Code once. Deploy everywhere.

  • Built on top of Angular - advanced framework with an active community
  • Native like UI - Standard native mobile app UI guidelines for each OS
  • Native SDKs - via Ionic Native and Cordova
  • Progressive Web App - Runs in the browser
  • Powerful CLI
  • Performance obsessed - Hardware accelerated transitions, touch-optimized gestures, native scrolling

Some Amazing facts

https://showcase.ionicframework.com/apps/top



  • Cover 37 , 000+ stars on GitHub
  • Top 50 most popular open source projects
  • Consistently Top 10 Trending JS Github repos
  • Ionic CLI averages 3,300 downloads per day
  • 700,000+ apps have been created


Prototype apps with Creator

A simple drag-and-drop prototyping tool for creating real Ionic apps.

http://UseCreator.com


Custom components with Stencil

Magical resuable component compiler

https://stenciljs.com/​

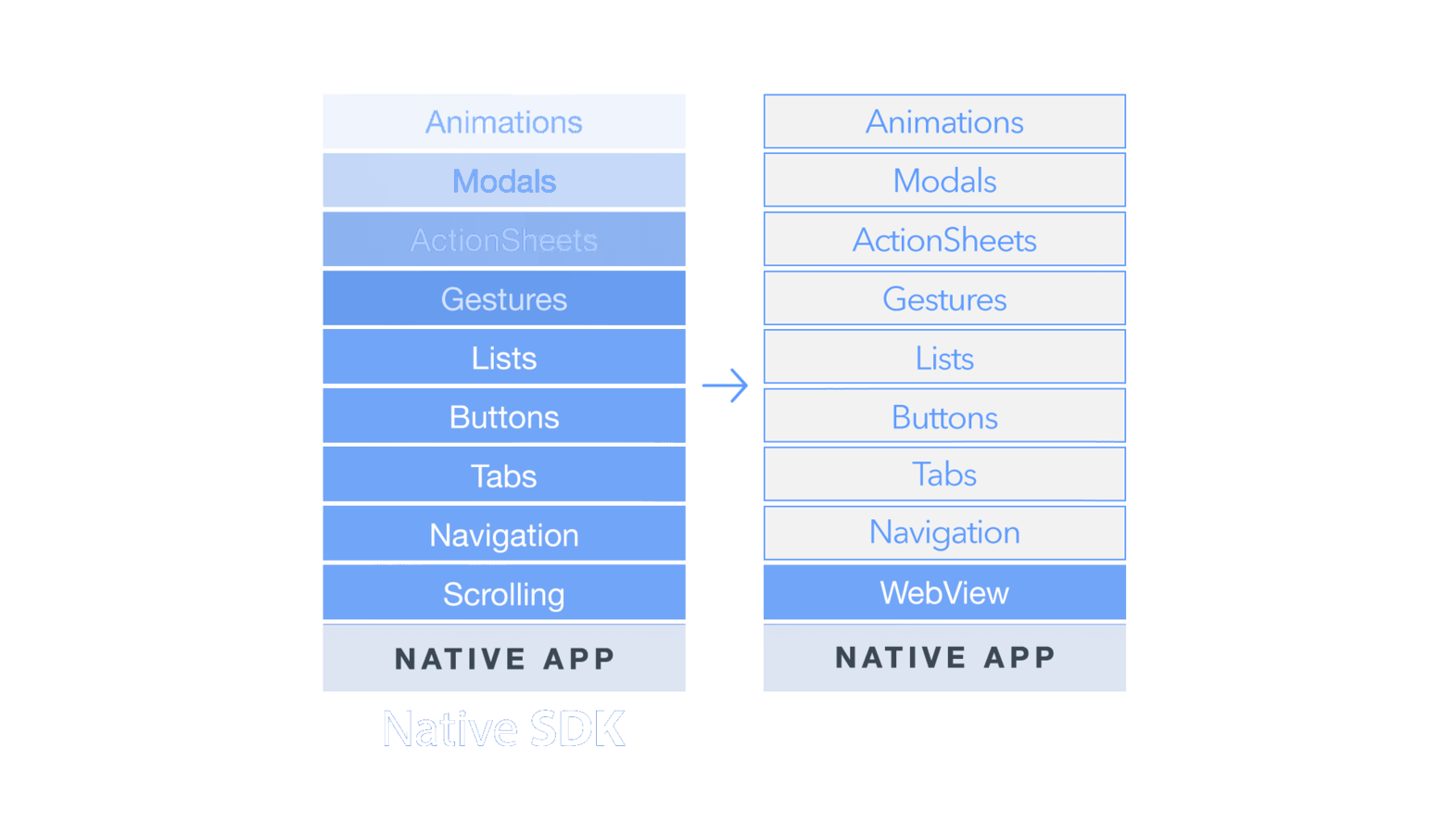

Ionic is like an onion

Angular

Ionic

Cordova

Native Device

UI Components(100+)

Ready?

Download

Install

Run!

https://nodejs.org/en/download/
npm i -g ionic

npm -v
node -v
ionic -v
https://code.visualstudio.com/
npm i -g cordova

https://developer.android.com/studio

We will start by creating a new blank project

 ionic start nsbmNewsApp tabs

Create a new Project

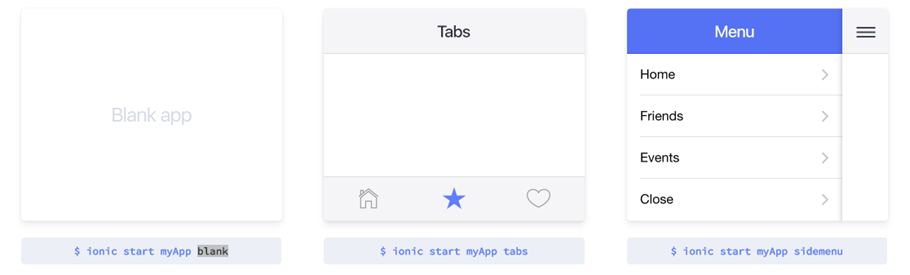

ionic start is a command to create a new ionic project. You pass in the directory name to create, and the template to use. The template can be a built-in one (tabs, blank) or can point to a GitHub URL.

You can run the project by

cd nsbmNewsApp
Ionic serve
Ionic serve -l

Run the project

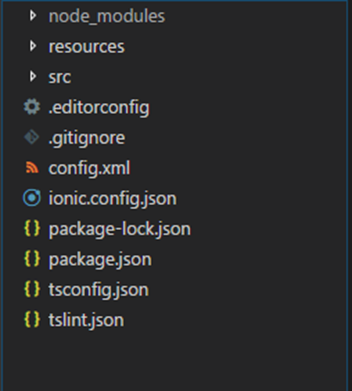

Structure

This starts a local web server and opens your browser at the URL, showing the Ionic app in your desktop browser. Remember, ionic is just HTML, CSS and JavaScript!

Build and Emulate

ionic cordova build android

Build & Emulate

https://gradle.org/install/

ionic cordova emulate android

Install Gradle

Advantages

  • Programs are less prone to errors
  • IDEs and editors can: Autocomplete,Refactor, navigate to the definition ...
  • The types are optional
  • You can combine js and ts

{

Property Typescript file

export class Tab1Page{
  name: string;
  age: number;
  girls: number;
  constructor(){
    this.name = "Azkar Moulana";
    this.age = 25;
    this.girls = 100000;
  }
}

Page

Generate News Page

ionic g page news
ionic g page news-detail

Generate News Detail Page

Generate News Service

ionic g service service/news

Page

Generate API Key

https://newsapi.org/
export const environment = {
  production: false,
  apiUrl: 'https://newsapi.org/v2',
  apiKey: '815b2ff5f1764a65bcfb12cd8a9290ff'
};

Open environement.ts

Routes


const routes: Routes = [
  {
    path: 'tabs',
    component: TabsPage,
    children: [
      {
        path: 'tab1',
        children: [
          {
            path: '',
            loadChildren: '../tab1/tab1.module#Tab1PageModule'
          }
        ]
      },
      {
        path: 'tab2',
        children: [
          {
            path: '',
            loadChildren: '../tab2/tab2.module#Tab2PageModule'
          }
        ]
      },
      {
        path: 'tab3',
        children: [
          {
            path: '',
            loadChildren: '../tab3/tab3.module#Tab3PageModule'
          }
        ]
      },
      {
        path: 'news',
        children: [
          {
            path: '',
            loadChildren: '../news/news.module#NewsPageModule'
          }
        ]
      },
      {
        path: 'news-detail',
        children: [
          {
            path: '',
            loadChildren: '../news-detail/news-detail.module#NewsDetailPageModule'
          }
        ]
      },
      {
        path: '',
        redirectTo: '/tabs/news',
        pathMatch: 'full'
      }
    ]
  },
  {
    path: '',
    redirectTo: '/tabs/news',
    pathMatch: 'full'
  }
];

tabs.router.module.ts

Service

Call the API and get news

https://newsapi.org/
const API_URL = environment.apiUrl;
const API_KEY = environment.apiKey;
export class NewsService {
  currentNews: any;
  constructor( private http : HttpClient ) { }

  getNews(url){
    return this.http.get(`${API_URL}/${url}&apiKey=${API_KEY}`);
  }
}

Service

Call the API and populate news in the component

export class NewsPage implements OnInit {
  data: any;
  constructor(private newsService: NewsService, private _router: Router) { }

  ngOnInit() {
    this.newsService.getNews('everything?q=cricket&from=2019-02-22&sortBy=publishedAt').subscribe(
      data => { this.data = data; console.log(JSON.stringify(this.data)); }
    )
  }
  goToSinglePage(news) {
    this.newsService.currentNews = news;
    this._router.navigate(['/tabs/news-detail']);
  }
}

'everything?q=cricket&from=2019-02-22&sortBy=publishedAt'

news.page.ts

Service

news.page.html

<ion-header>
  <ion-toolbar>
    <ion-title>NSBM news</ion-title>
  </ion-toolbar>
</ion-header>

<ion-content padding>
  <ion-card *ngFor= "let article of data?.articles" (click) = "goToSinglePage(article)">
    <ion-img [src]="article.urlToImage"></ion-img>
    <ion-card-content>
      <ion-card-title>{{article.title}}</ion-card-title>
      <p>{{article.description}}</p>
    </ion-card-content>
  </ion-card>
</ion-content>

Service

news-detail.page.html

<ion-header>
  <ion-toolbar>
    <ion-title>{{article.title}}</ion-title>
  </ion-toolbar>
</ion-header>

<ion-content padding>
  <ion-card>
    <ion-img [src]="article.urlToImage"></ion-img>
    <ion-card-content>
      <ion-card-title>{{article.title}}</ion-card-title>
      <p>{{article.description}}</p>
    </ion-card-content>
  </ion-card>
</ion-content>

Service

news-detail.page.ts

export class NewsDetailPage implements OnInit {

  constructor(private newsService : NewsService) { }

  article : any;

  ngOnInit() {
    this.article = this.newsService.currentNews;
  }

}

Congratulations

Home work

Build a VisionDiary app

Download the repo:

https://github.com/sajeetharan/IonicNSBM

Azure  vision API

"Cross platform app run time making it easy to build web apps that runs natively on IOS,Android,Electron and Web"

What is a capacitor?

The Next Generation Cordova

https://capacitor.ionicframework.com/docs/

using Capacitor

Build your app

npm run build

Init Capacitor with your app information

npx cap init [appName] [appId]

Install capacitor

npm install --save @capacitor/cli @capacitor/core

Create Ionic app

ionic start nsbmApp tabs

using Capacitor

Open IDE to build

npx cap add ios
npx cap add android

Syncing your app with Capacitor

npx cap copy

Add Platform

npx cap open ios
npx cap open android

Hope things go smoothly

Otherwise





Getting started guide
ionicframework.com/getting-started

Documentation
ionicframework.com/docs

Visit the Community Forum
forum.ionicframework.com

Contribute on GitHub
github.com/driftyco/ionic

Get Started with Ionic

Where to go from here?

- Build Apps

  Quiz App

  Slack Clone

  Mini Game

- Send your queries @kokkisajee

- Be a part of Ng-SriLanka

https://www.rateevent.com/rate/SCAAA717

Explore by yourself and learn.
