Sebastian Hörl

28 September 2026

MATSim User Meeting 2026

Benchmarking on-demand mobility algorithms using a new
remote dispatching interface for MATSim

Introduction

• MATSim provides the DRT / DVRP packages that allow simulating on-demand mobility services

• As standalone simulations (given fixed trips) or as part of the whole loop (agent deciding for DRT)

Fleet dispatching

• Fleet dispatching means defining which vehicle should pick up and drop off which requests and in which order


• Assignments need to adhere to constraints (latest pickup time, latest dropoff time, maximum detour, ...)

• DRT Algorithm
  Default implementation in MATSim
  Myopic insertion heuristic

• Alonso-Mora
  Overrides default implementation
  Dynamic reconstruction of schedules

matsim-org/alonso-mora

Idea

• Let's flexibilize the way we can hook dispatching algorithms into MATSim!

• Rapid development using Python and other languages
• Reuse of existing libraries (machine learning, inference, ...)

• Reuse of existing algorithms in literature

• Concrete use case: connecting Fleetpy to MATSim

TUM-VT/FleetPy

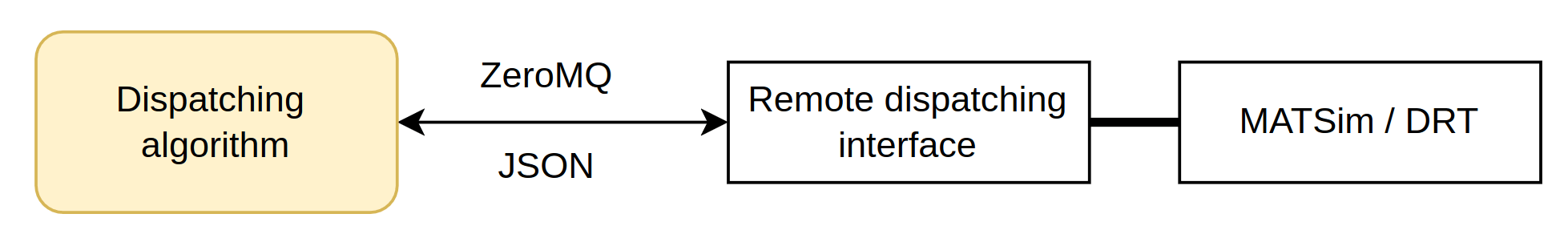

Messaging concept

• MATSim (server) and dispatcher (client)


• Connection via ZeroMQ
  • REQREP mode: one request follows a response follows a request
  • Keeping the message exchange simple


• Messages encoded in JSON
  • Not optimal, but easy to follow (potential to replace)

• Dispatching step parametrizable in MATSim, for each

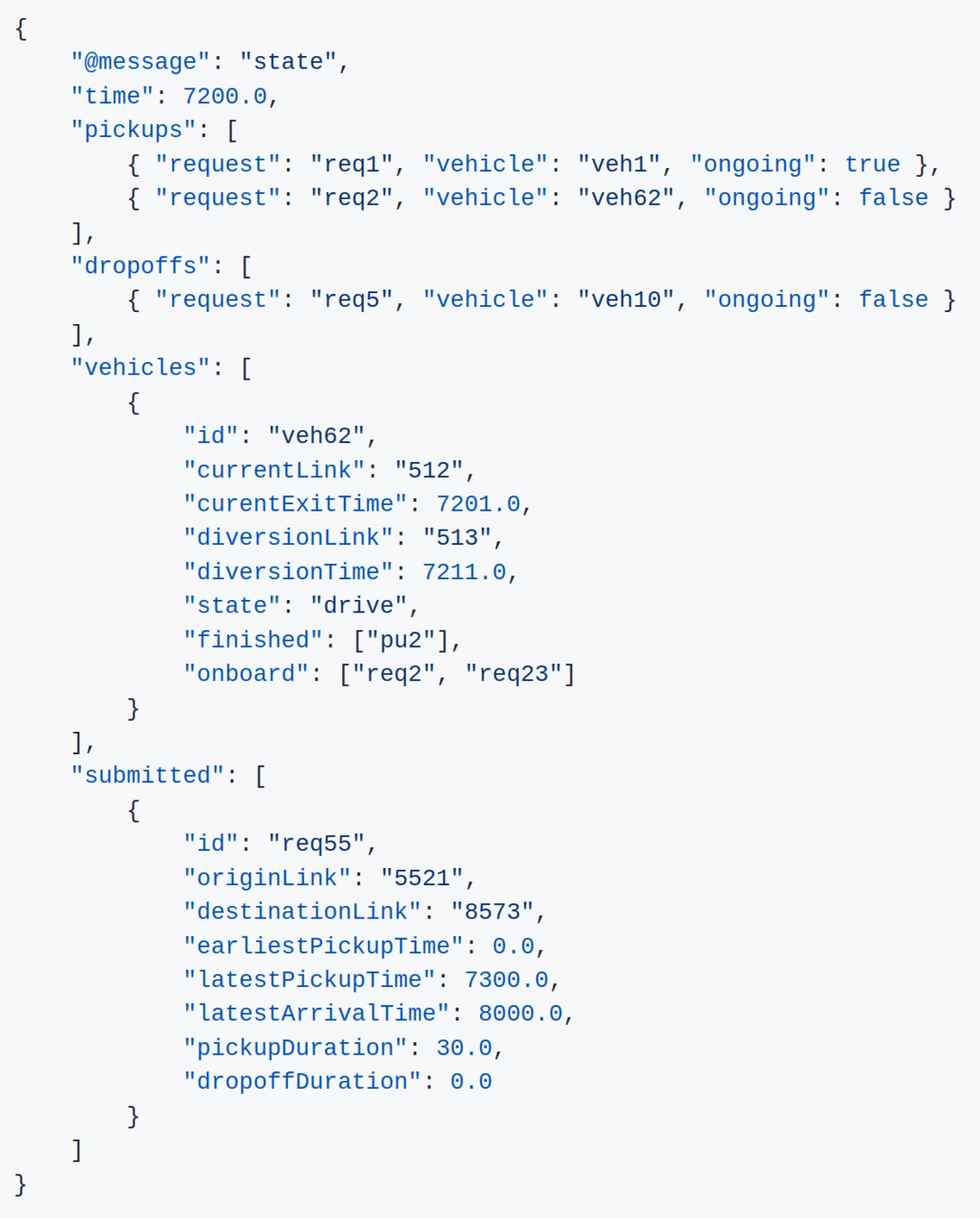

  • MATSim sends state (vehicles, requests, ...)
  • Dispatcher answer with assignment (vehicle schedules, ...)

Additional information

Implemented

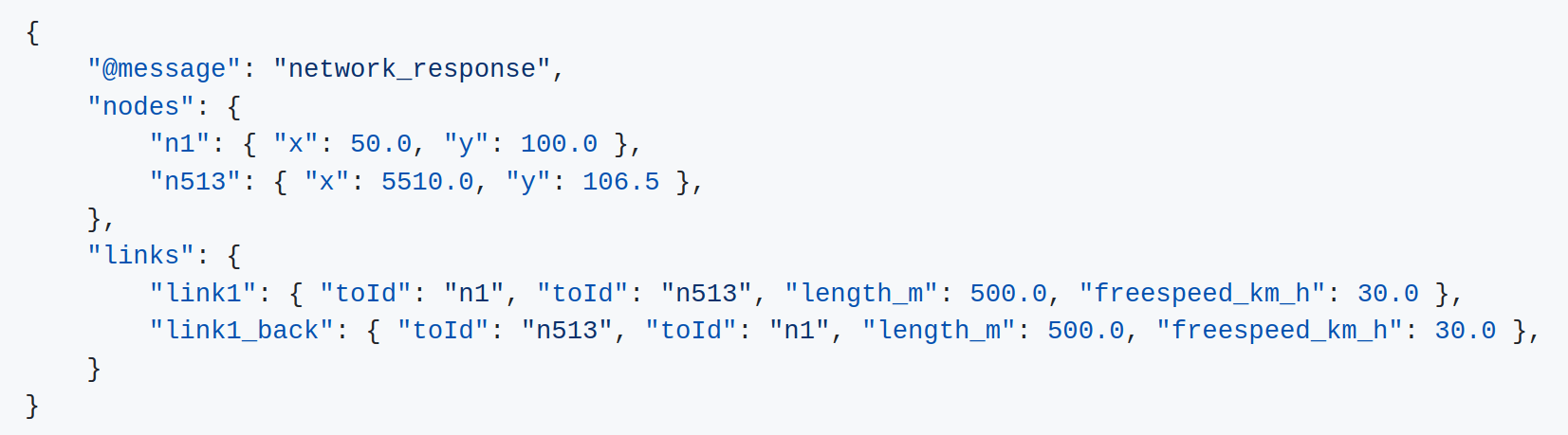

• Request network information to have an idea about the topology











• Request travel time information from MATSim




Future

• Routing service to load off routing information to MATSim
• Charging state, charging stations, ...
• ...

Example implementations

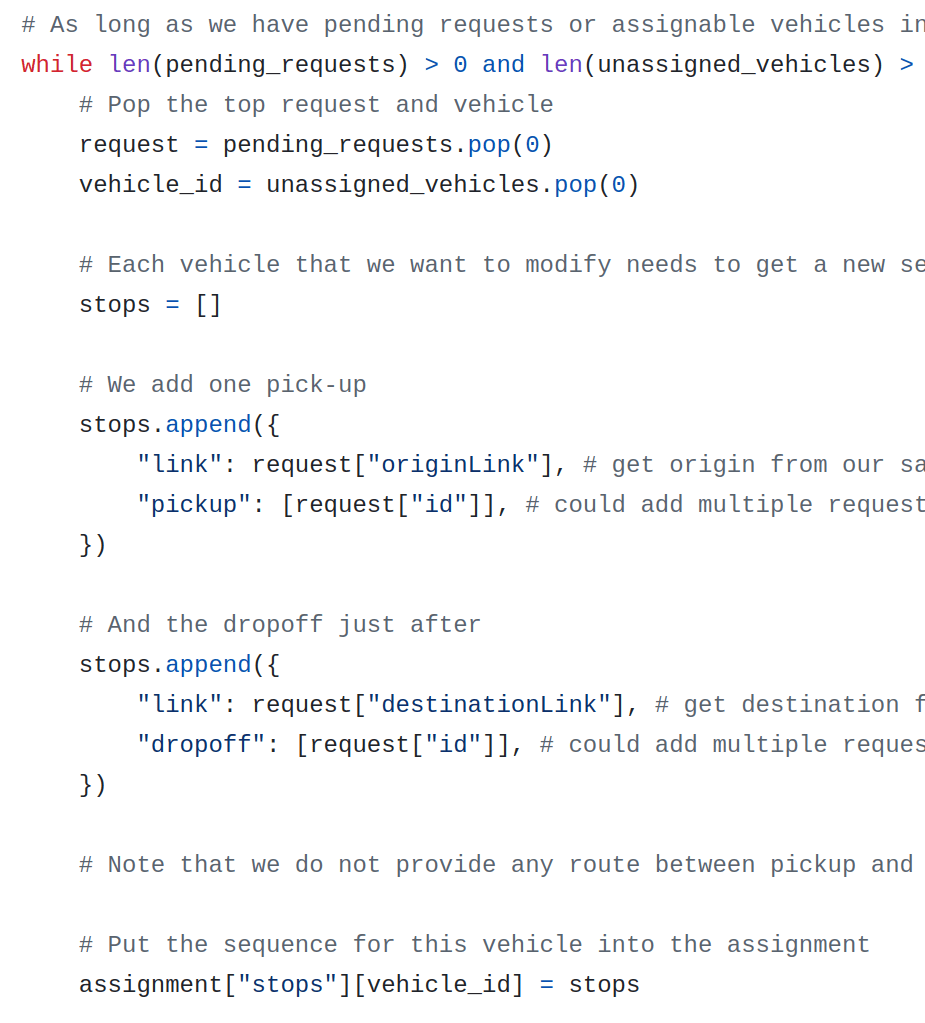

• Random assignment
  Random request meets random vehicle

• Bipartite matching
  Minimize overall empty distance

• Roaming dispatcher
  Cruising and serving next found request

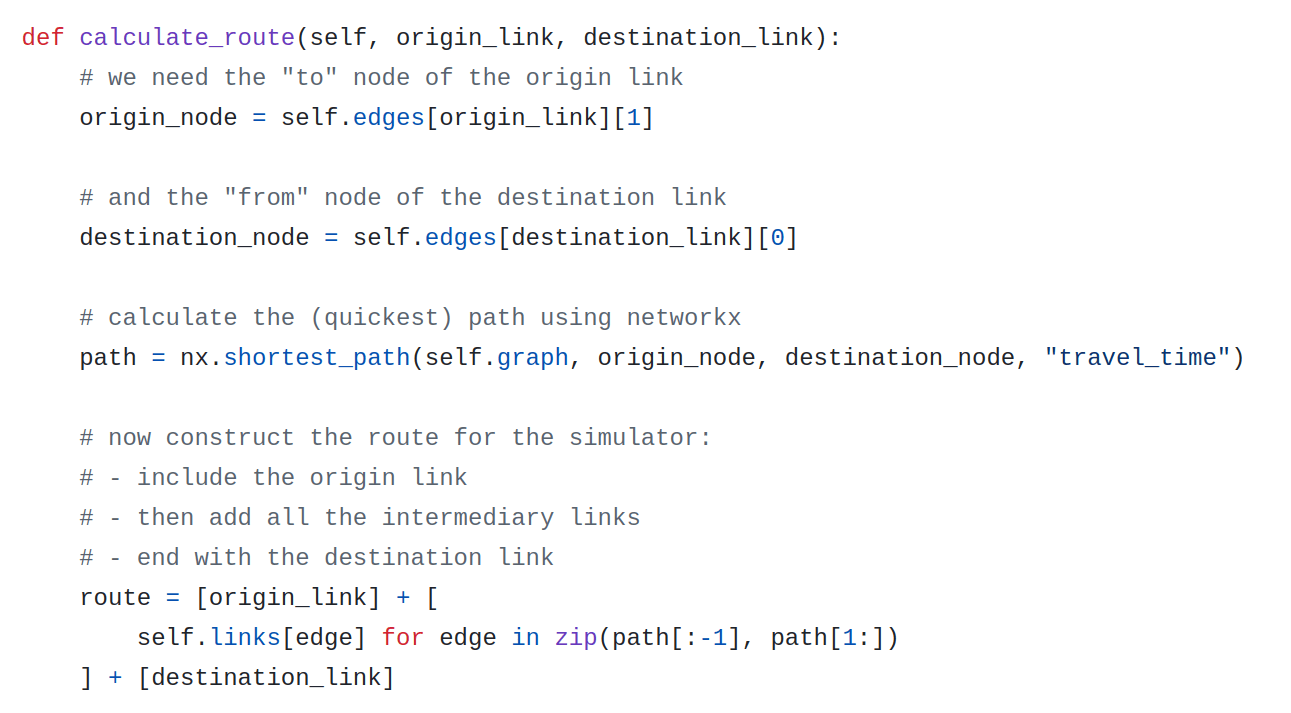

  Manual routing using networkx

• Insertion dispatcher
  Python-version of DRT algorithm (almost)

• Q-learning dispatcher
  Learns a rebalancing matrix over iterations

Chouaki, T., Hörl, S., & Puchinger, J. (2022). Implementing reinforcement learning for on-demand vehicle rebalancing in MATSim. Procedia Computer Science, The 13th International Conference on Ambient Systems, Networks and Technologies (ANT 2022), 201, 134–141. https://doi.org/10.1016/j.procs.2022.03.020

Example implementations

• Random assignment
  Random request meets random vehicle

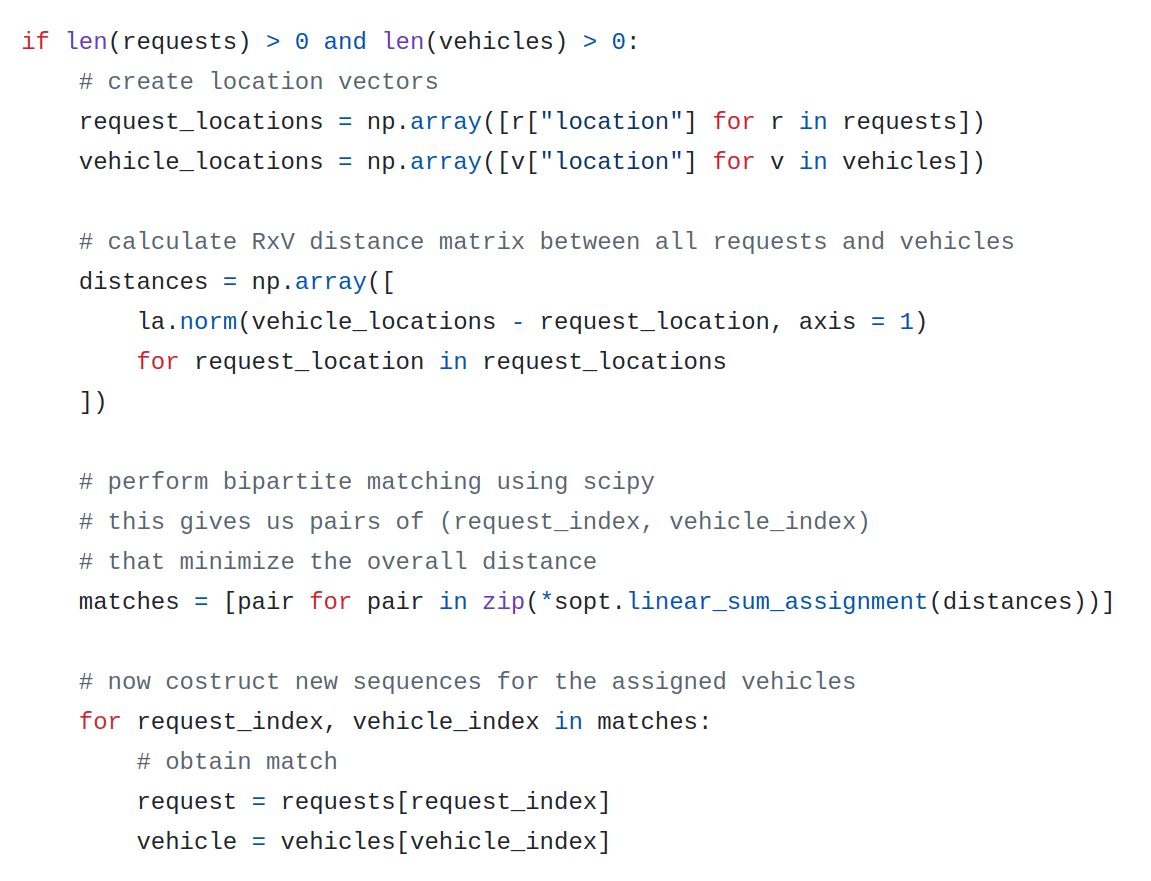

• Bipartite matching
  Minimize overall empty distance

• Roaming dispatcher
  Cruising and serving next found request

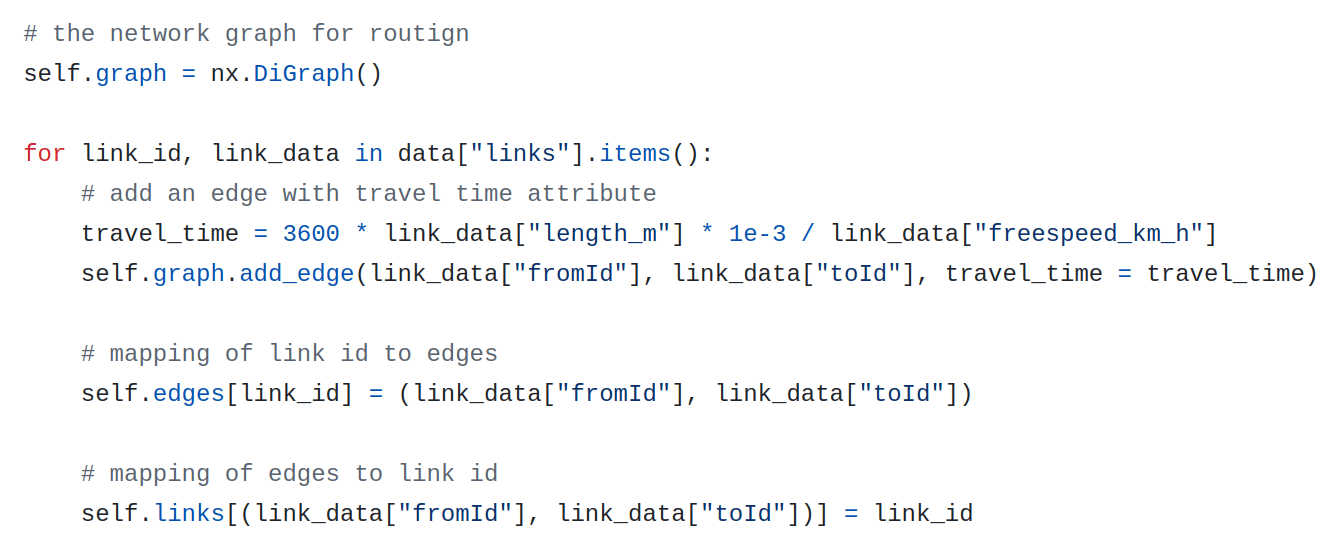

  Manual routing using networkx

• Insertion dispatcher
  Python-version of DRT algorithm (almost)

• Q-learning dispatcher
  Learns a rebalancing matrix over iterations

Chouaki, T., Hörl, S., & Puchinger, J. (2022). Implementing reinforcement learning for on-demand vehicle rebalancing in MATSim. Procedia Computer Science, The 13th International Conference on Ambient Systems, Networks and Technologies (ANT 2022), 201, 134–141. https://doi.org/10.1016/j.procs.2022.03.020

Example implementations

• Random assignment
  Random request meets random vehicle

• Bipartite matching
  Minimize overall empty distance

• Roaming dispatcher
  Cruising and serving next found request
  Manual routing using networkx

• Insertion dispatcher
  Python-version of DRT algorithm (almost)

• Q-learning dispatcher
  Learns a rebalancing matrix over iterations

Chouaki, T., Hörl, S., & Puchinger, J. (2022). Implementing reinforcement learning for on-demand vehicle rebalancing in MATSim. Procedia Computer Science, The 13th International Conference on Ambient Systems, Networks and Technologies (ANT 2022), 201, 134–141. https://doi.org/10.1016/j.procs.2022.03.020

Benchmarking testbed

• Road network of Paris provided as an example (OpenStreetMap)

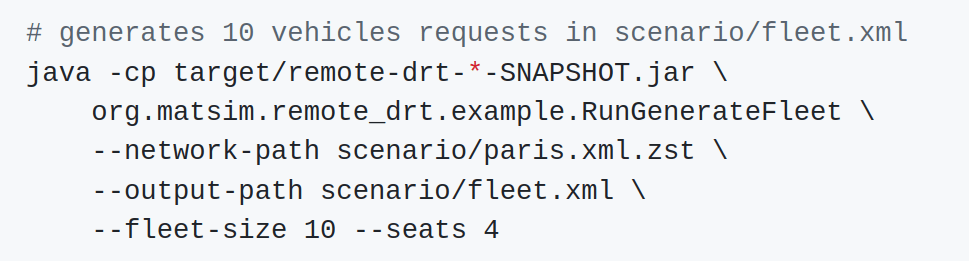

• Fleet generation script: random distribution of vehicles in the network

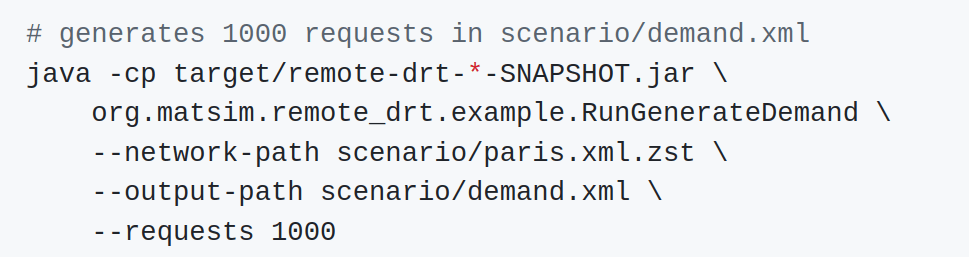

• Demand generation script
  • Definition of N attractors / emitters with morning / evening factors
  • Requests are generated from / to those points depending on time of day
  • Represents directionality by time of day and spatial imbalance

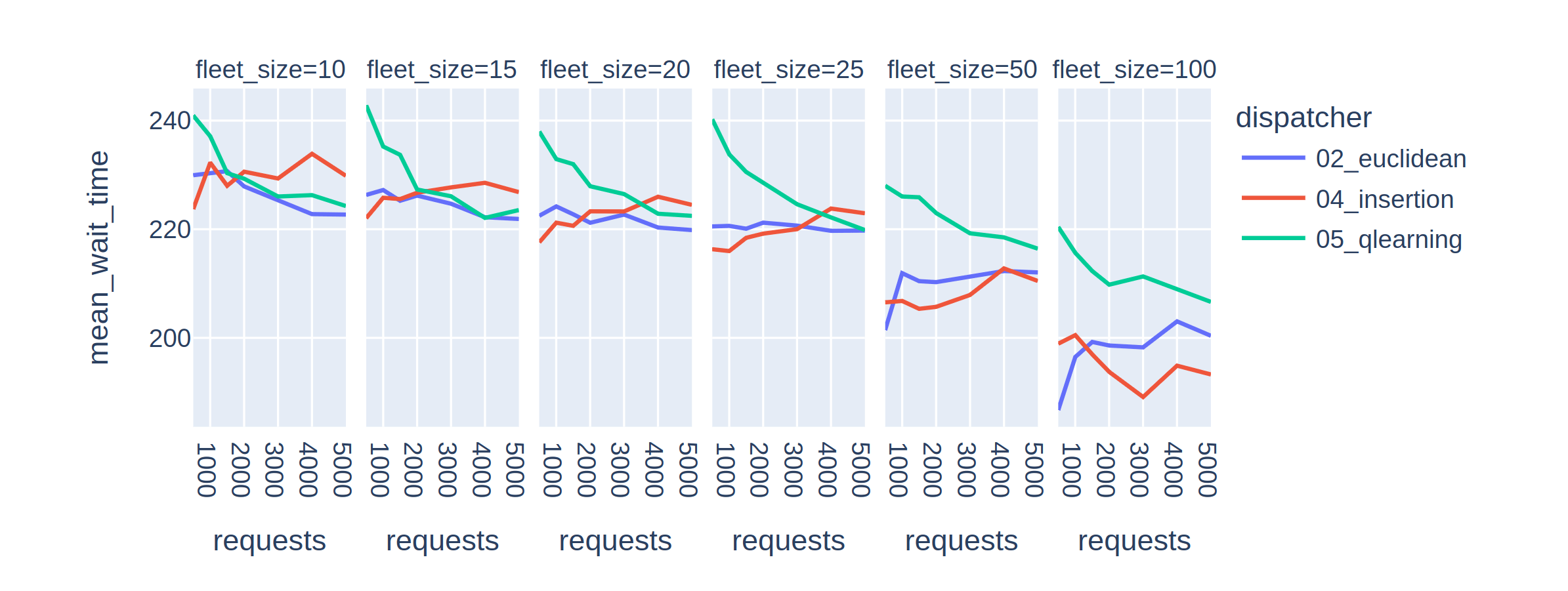

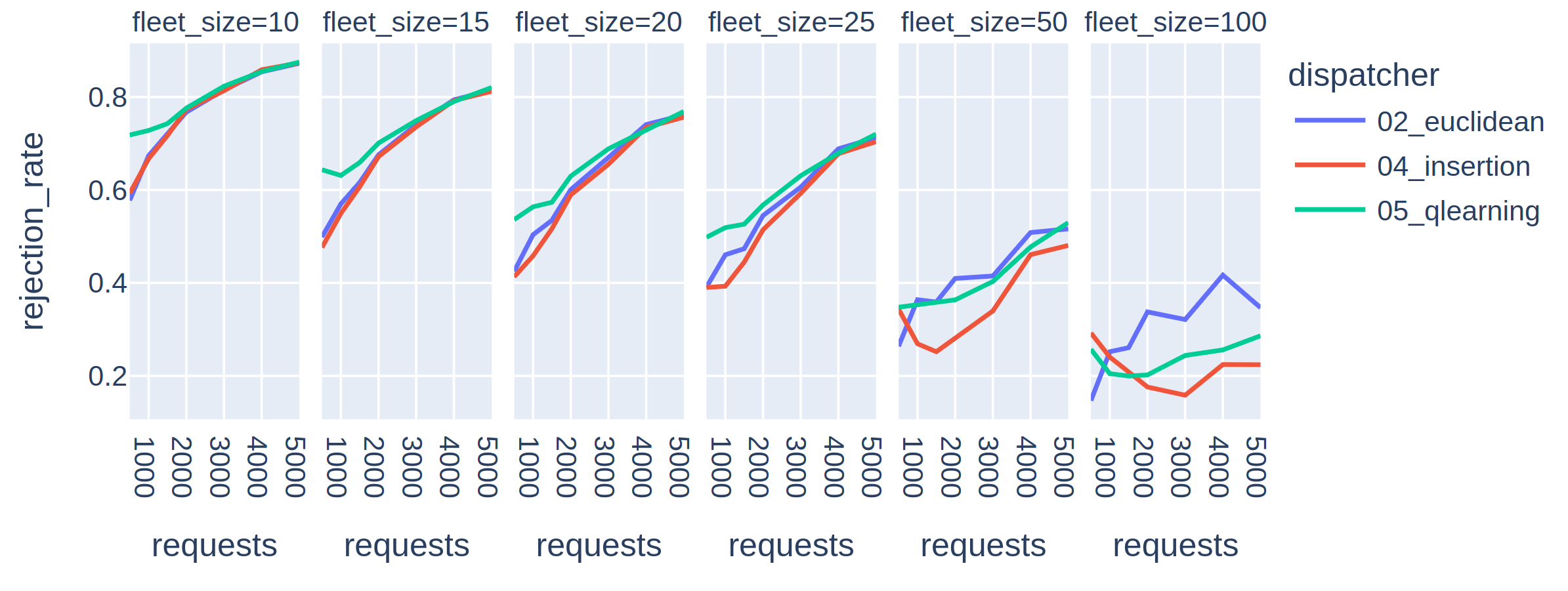

Benchmarking results

Three dispatchers

• Euclidean bipartite matching
• Insertion heuristic (DRT)
• Q-Learning

Analysis

• Average over 10 seeds

Benchmarking results

Three dispatchers

• Euclidean bipartite matching
• Insertion heuristic (DRT)
• Q-Learning

Analysis

• Average over 10 seeds

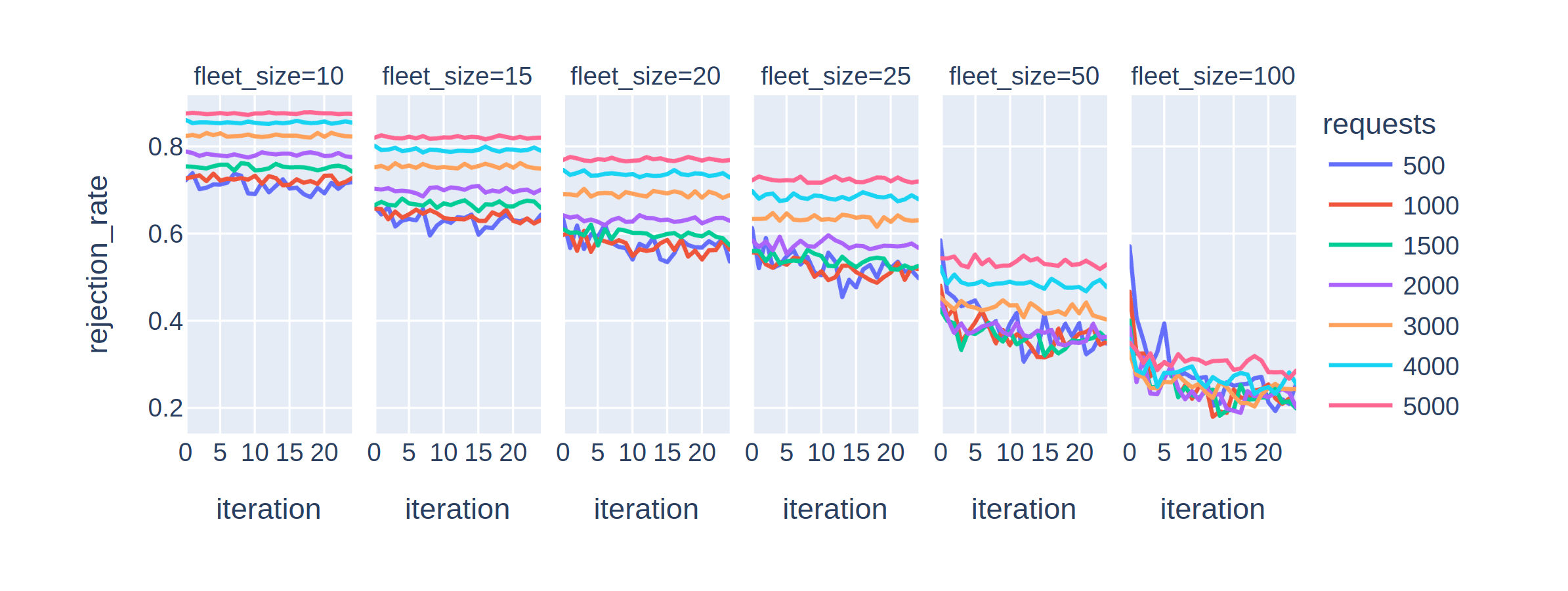

• Q-Learning: 25 iterations

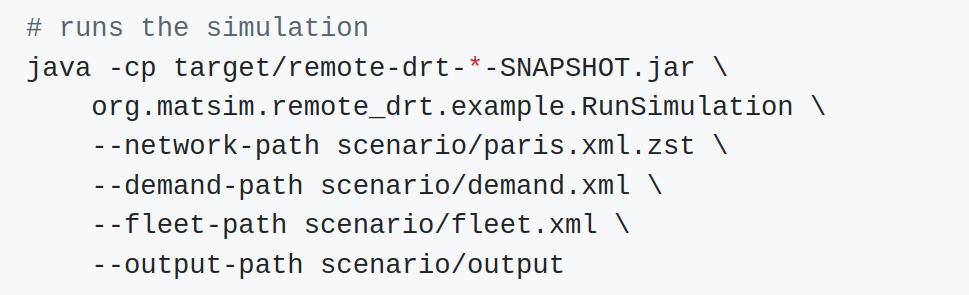

How to run

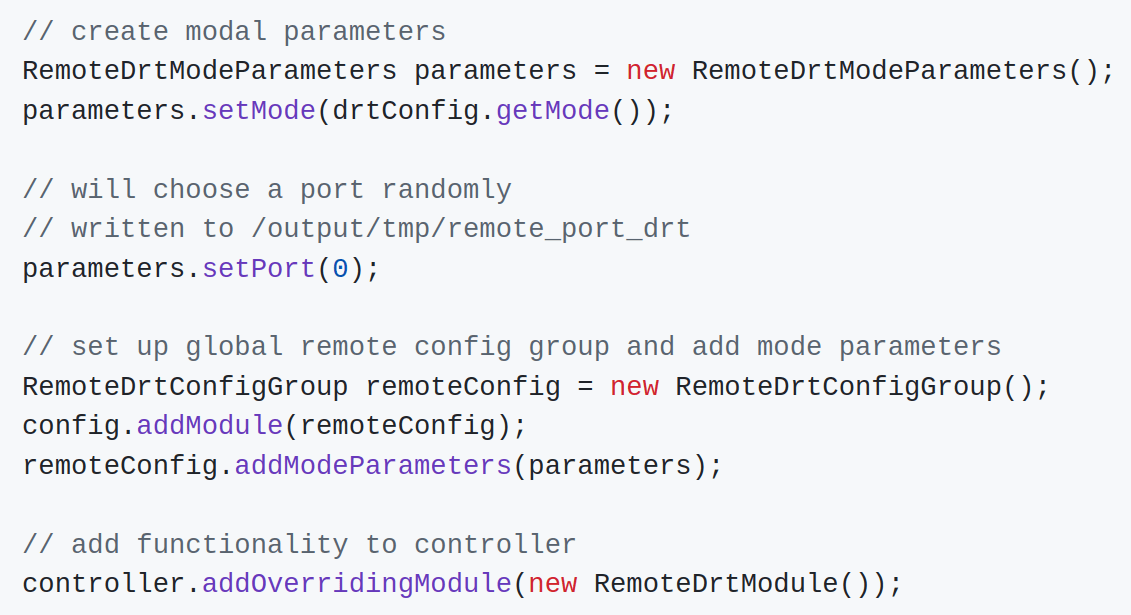

As a module

• Replaces individual DRT modes (configurable)
• Port given in configuration or written to tmp

sebhoerl/matsim-remote-drt

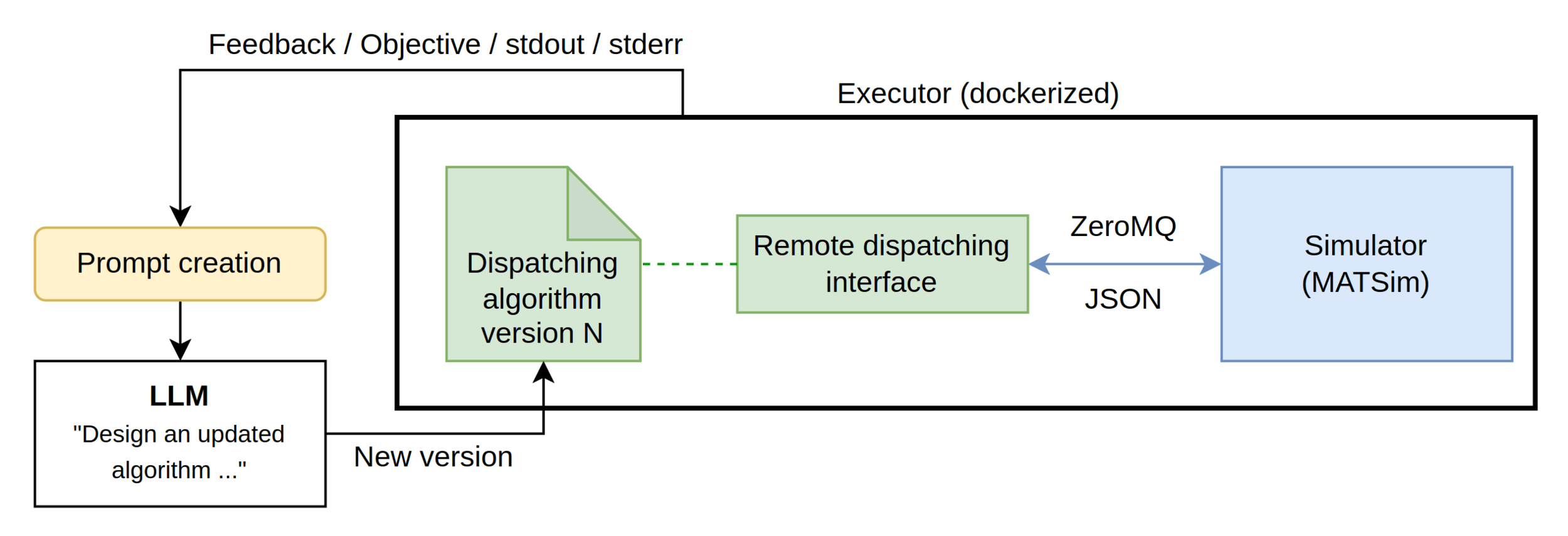

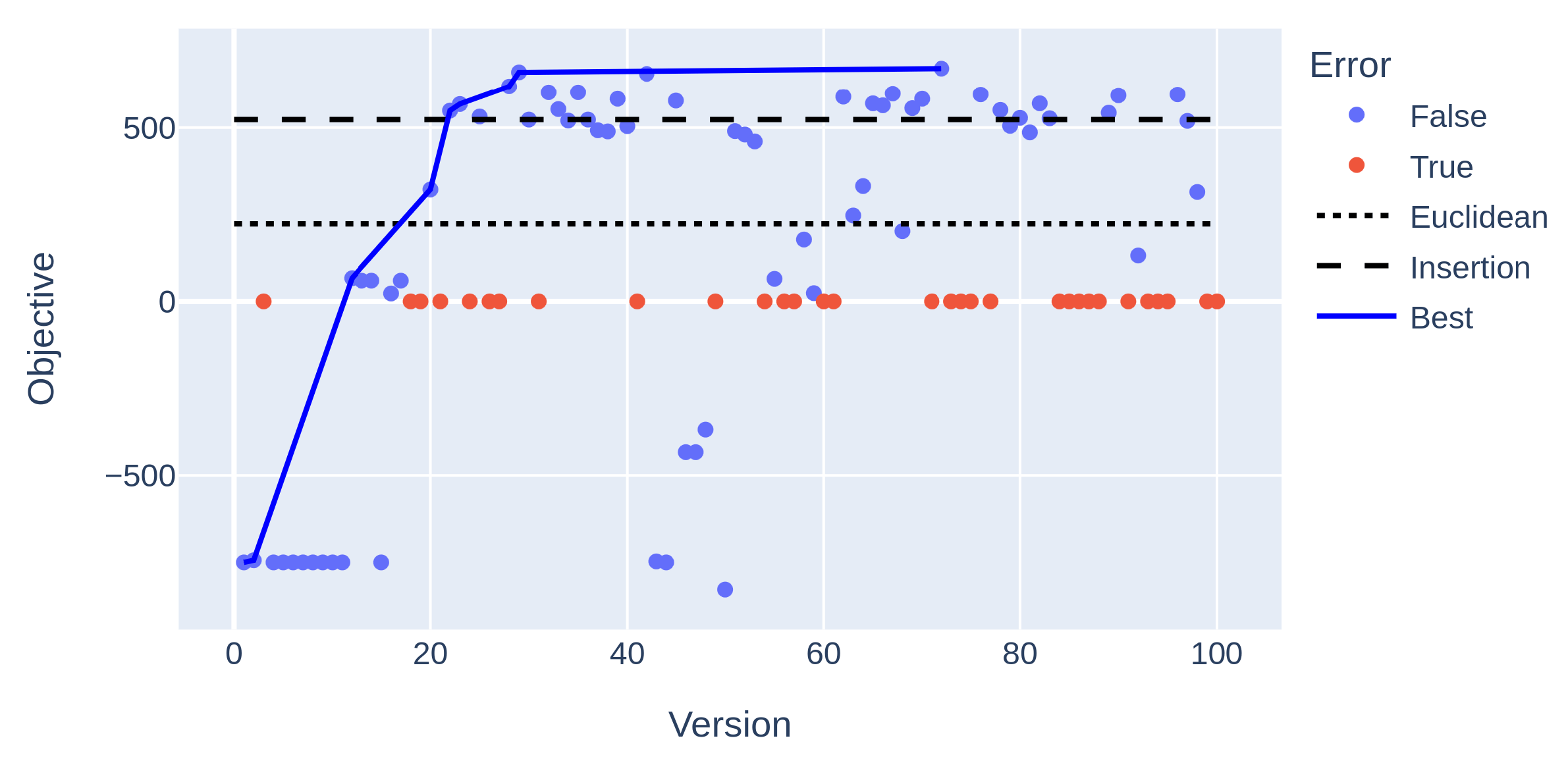

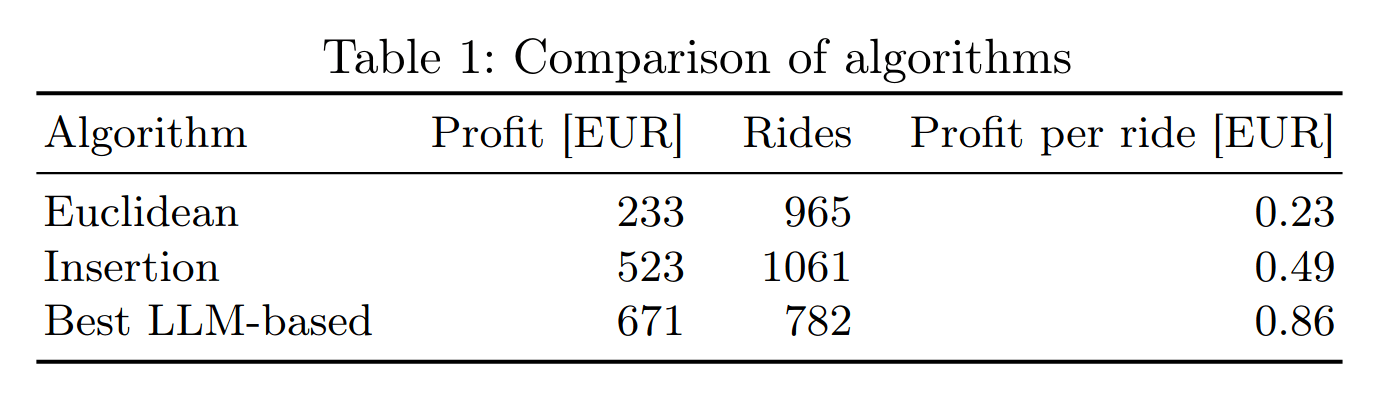

Teaser: LLM-based algorithm adaptation

• Algorithms are often general purpose

• What if we integrate context-specific heuristics (bridges, bottlenecks)?
  • Local knowledge > translation into rules > implementation > testing
  • Work-intensive process!

• Let's let an LLM take an algorithm and customize it iteratively!

Thank you!
