SCM.256 - Spring 2024
Guest Lecture:
(Some) Recent ML trends/applications
Shen Shen
May 13, 2024

Notable trends lately
(in CV and NLP)
- Self-supervision
- Scaling up
- Multi-modality
- Transformer-based architecture stack
- Diffusion-based generative algorithms
Self-supervision (masking)


It seems
It seems

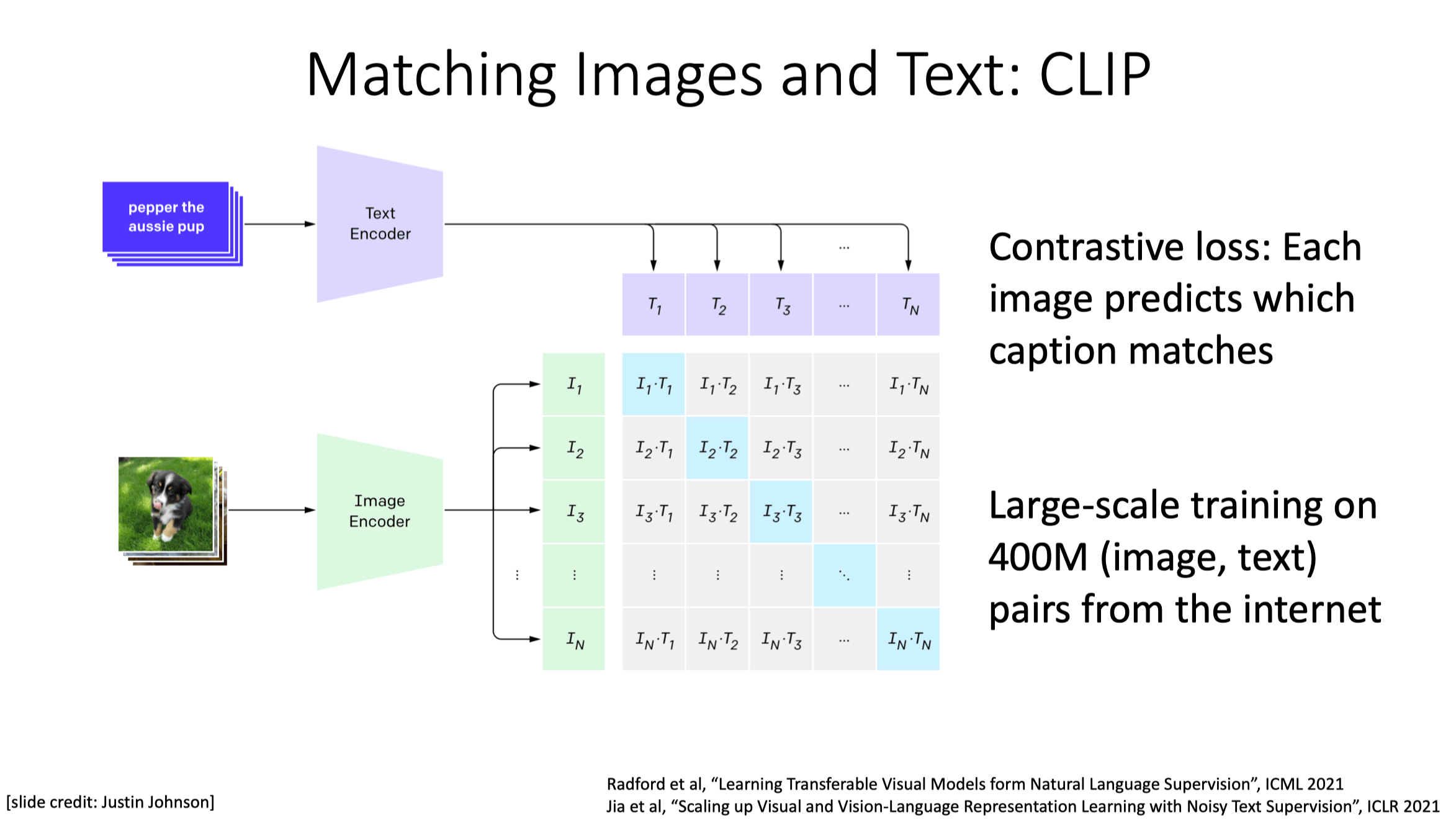

Multi-modality

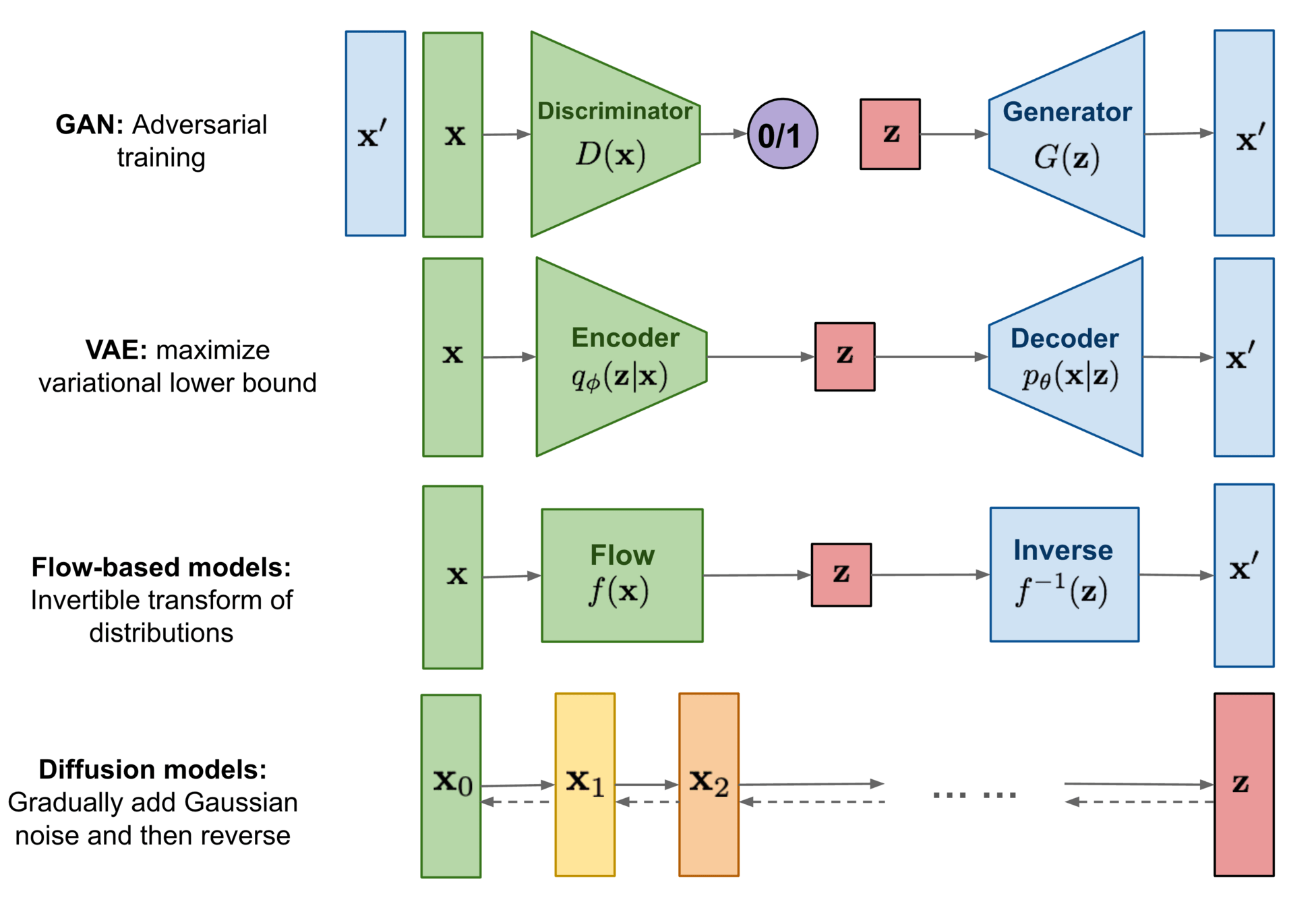

Diffusion/score-based

[image credit: Lilian Weng]
Dall-E 2 (UnCLIP): CLIP + GLIDE

[https://arxiv.org/pdf/2204.06125.pdf]
Outline Today
Part 1: Some echoing trends in Robotics
Part 3: Some more domain-specific applications
- Engineering

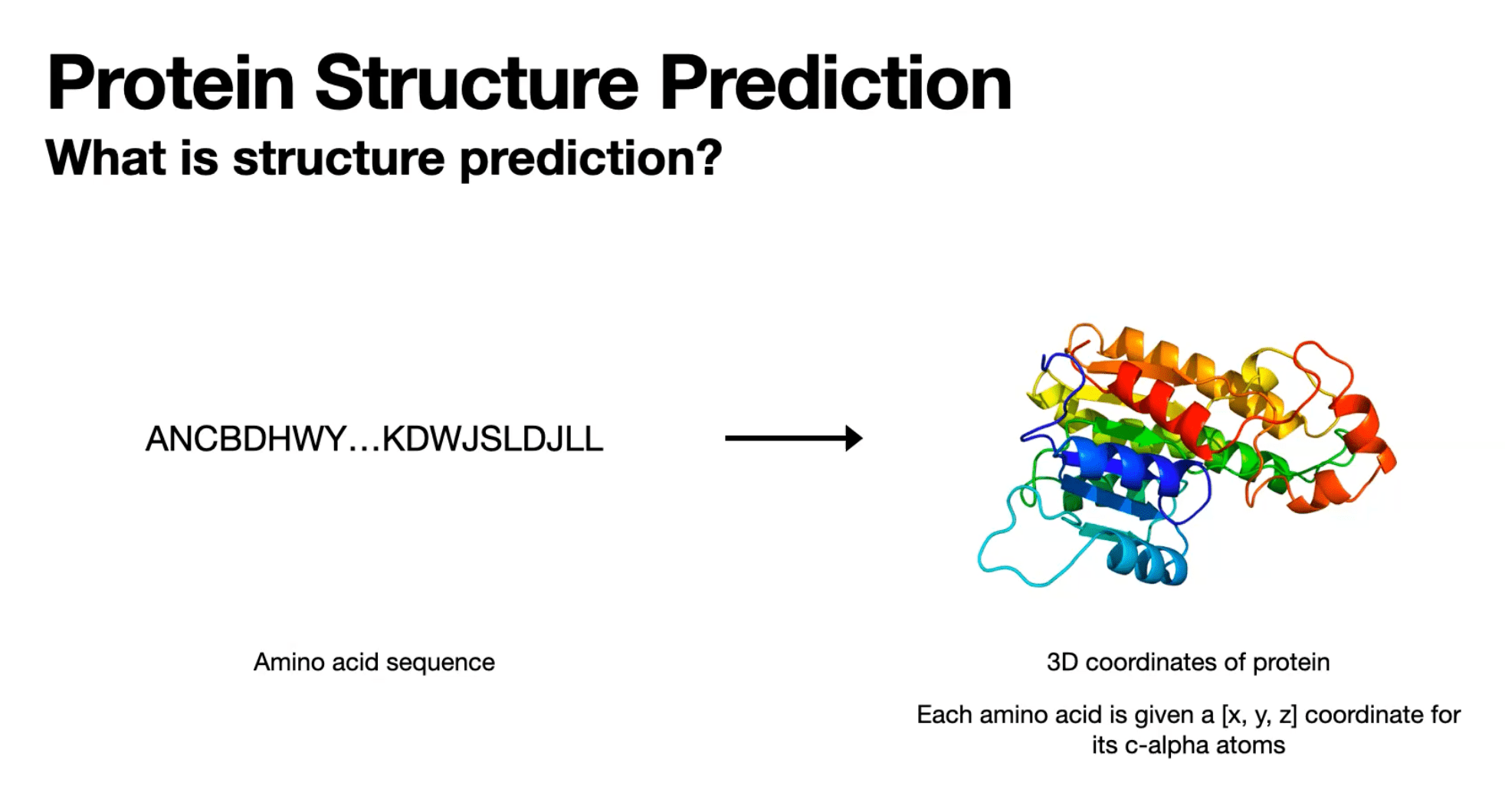

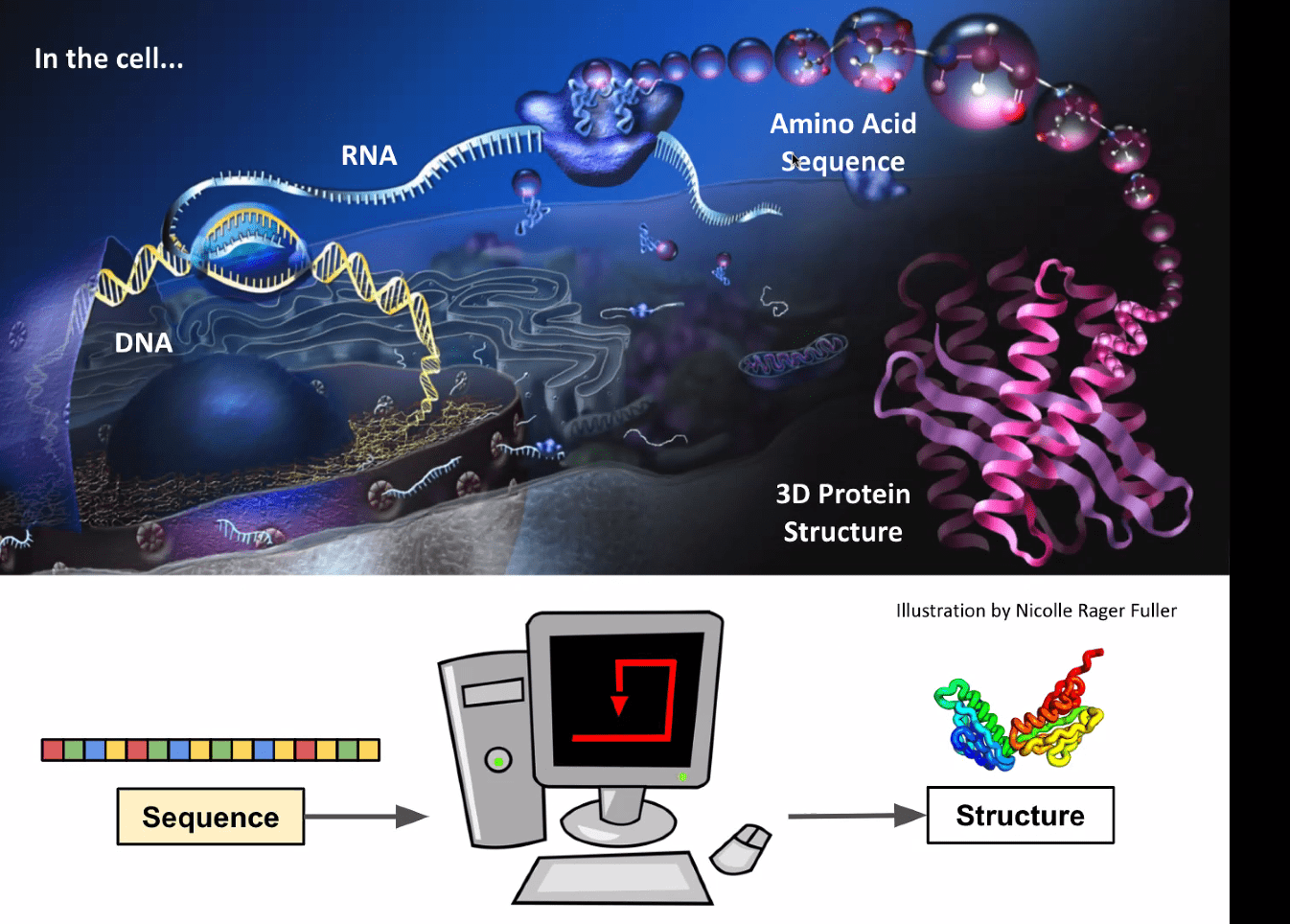

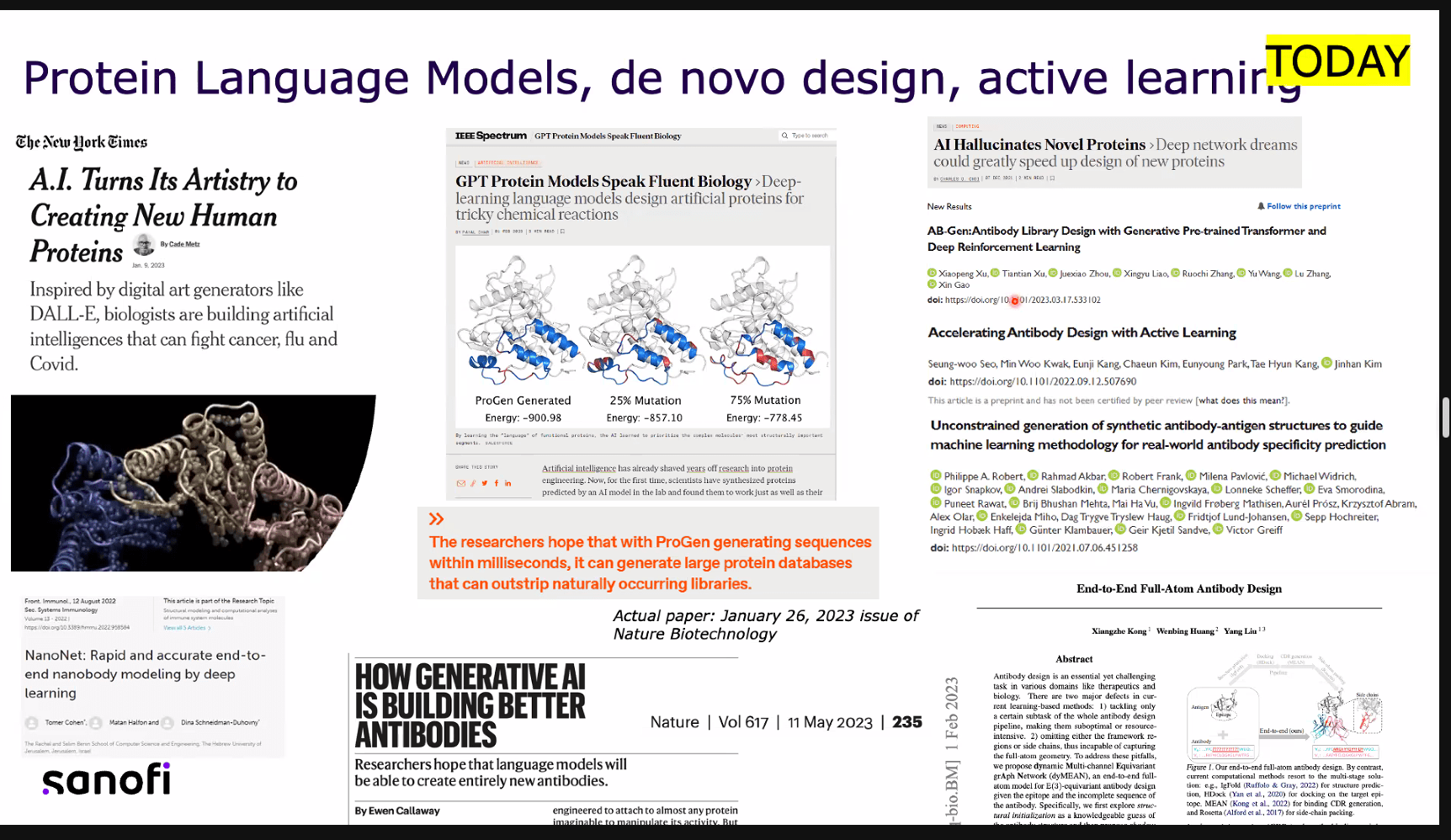

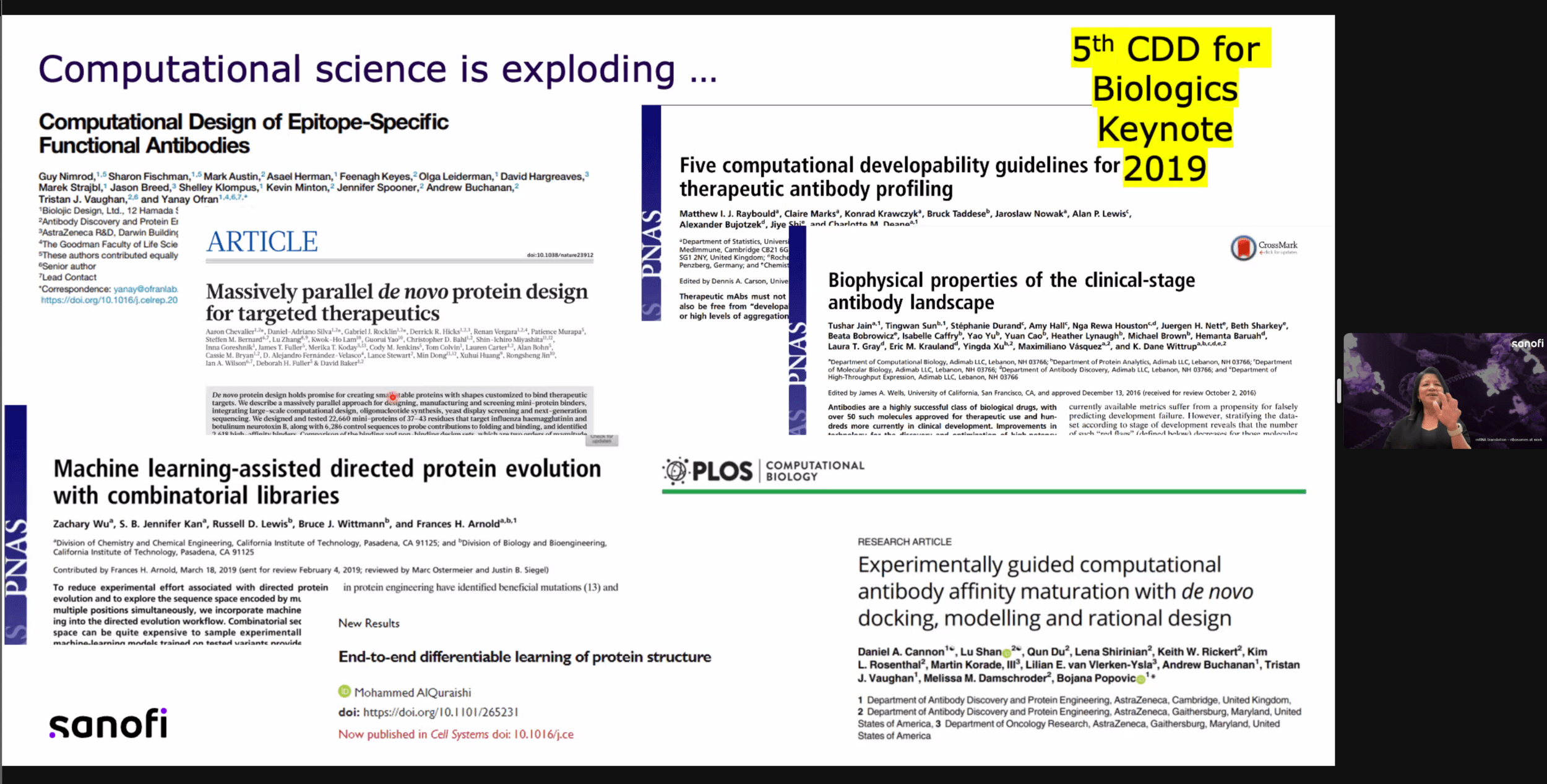

- Natural sciences (e.g. life sciences, health care)
- Math, algorithms
- Social sciences (e.g. political, ethical impact)
Part 2: Some future directions in CV/NLP/Robotics

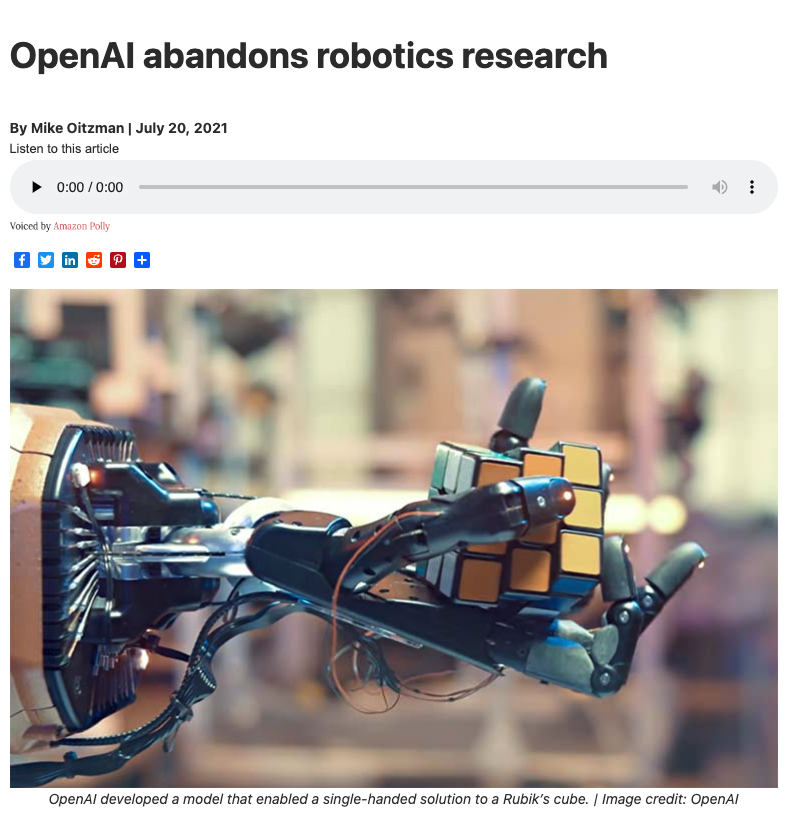

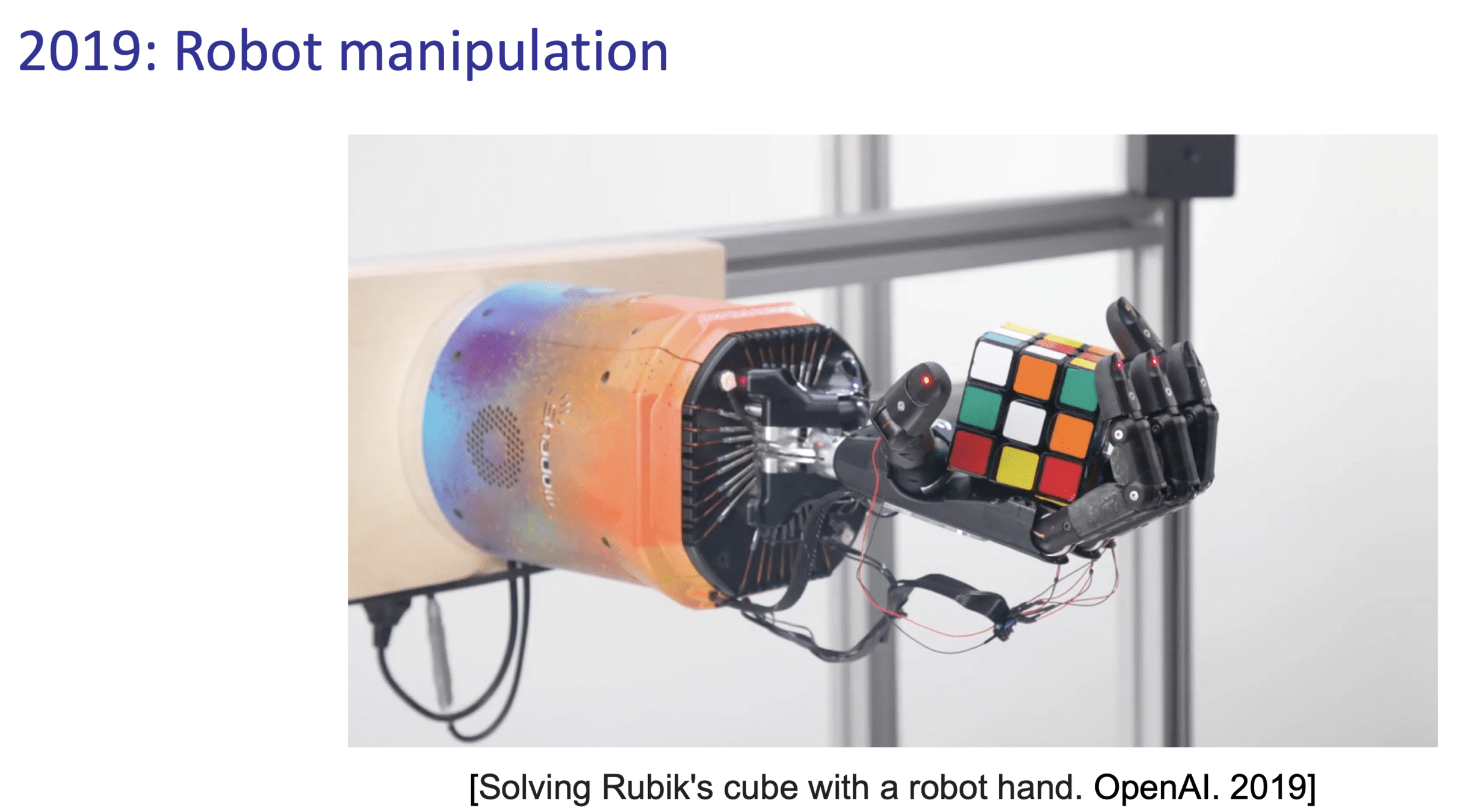

Part 1: Robotics
Lots of slides adapted from
2004 - Uses vanilla policy gradient (actor-critic)
uses first-principle (modeling, control, optimization stack)
For the next challenge:
Good control when we don't have useful models?

For the next challenge:
Good control when we don't have useful models?
- Rules out:
- (Multibody) Simulation
- Simulation-based reinforcement learning (RL)
- State estimation / model-based control
- Some top choices:
- Learn a dynamics model
- Behavior cloning (imitation learning)

Levine*, Finn*, Darrel, Abbeel, JMLR 2016
Visuomotor policies

perception network
(often pre-trained)

policy network
other robot sensors
learned state representation
actions

x history

manipulation (and general control) is hard because?
partially because the data is scarce

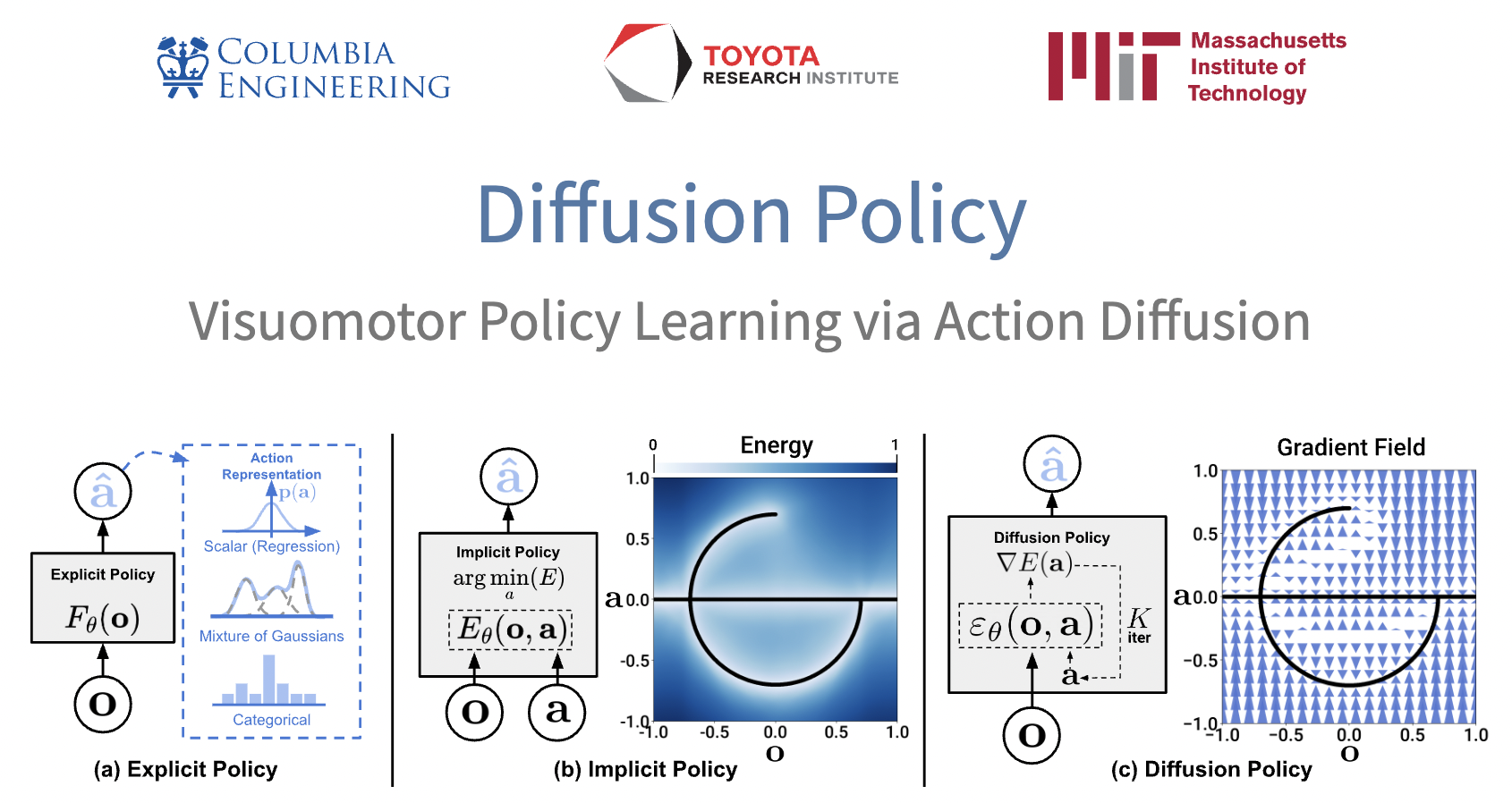

Denoising diffusion models
(for actions)
Image source: Ho et al. 2020
Denoiser can be conditioned on additional inputs, u: pθ(xt−1∣xt,u)


Image backbone: ResNet-18 (pretrained on ImageNet)
Total: 110M-150M Parameters
Training Time: 3-6 GPU Days ($150-$300)
Why (Denoising) Diffusion Models?
- High capacity + great performance
- Small number of demonstrations (typically ~50)
- Multi-modal (non-expert) demonstrations
- Training stability and consistency
- no hyper-parameter tuning
- Generates high-dimension continuous outputs
- vs categorical distributions (e.g. RT-1, RT-2)
- Action-chunking transformers (ACT)
- Solid mathematical foundations (score functions)
- Reduces nicely to the simple cases (e.g. LQG / Youla)
Scaling Up
- We've discussed training one skill
-
Wanted: few shot generalization to new skills
- multitask, language-conditioned policies
- connects beautifully to internet-scale data
-
Big Questions:
- How do we feed the data flywheel?
- What are the scaling laws?
Discussion
What if we did have a good model? (and well-specified objective)
- Core challenges:
- Control from pixels
- Control through contact
- Optimizing rich robustness objective
- The most effective approach today:
- RL on privileged information + teacher-student

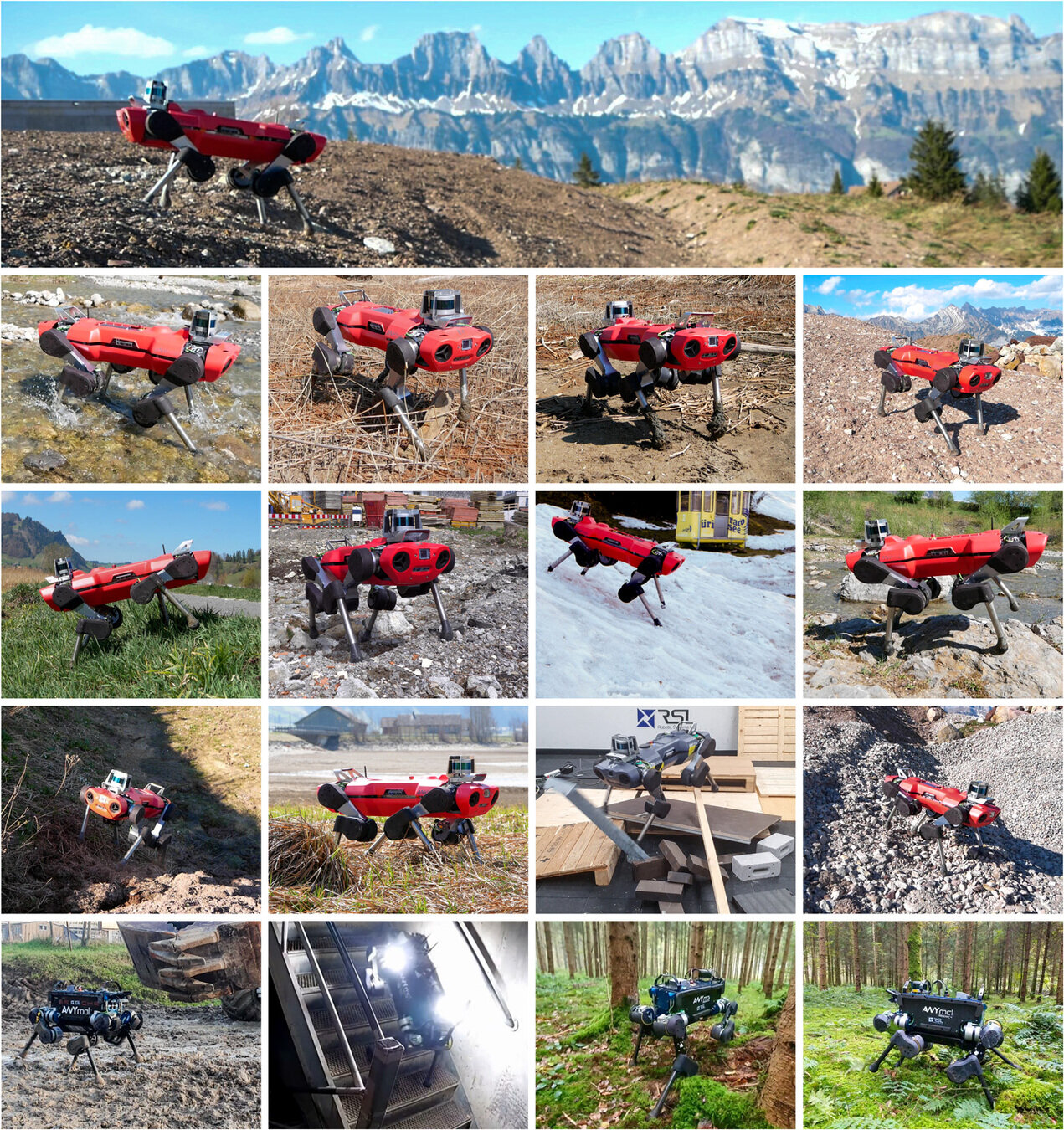

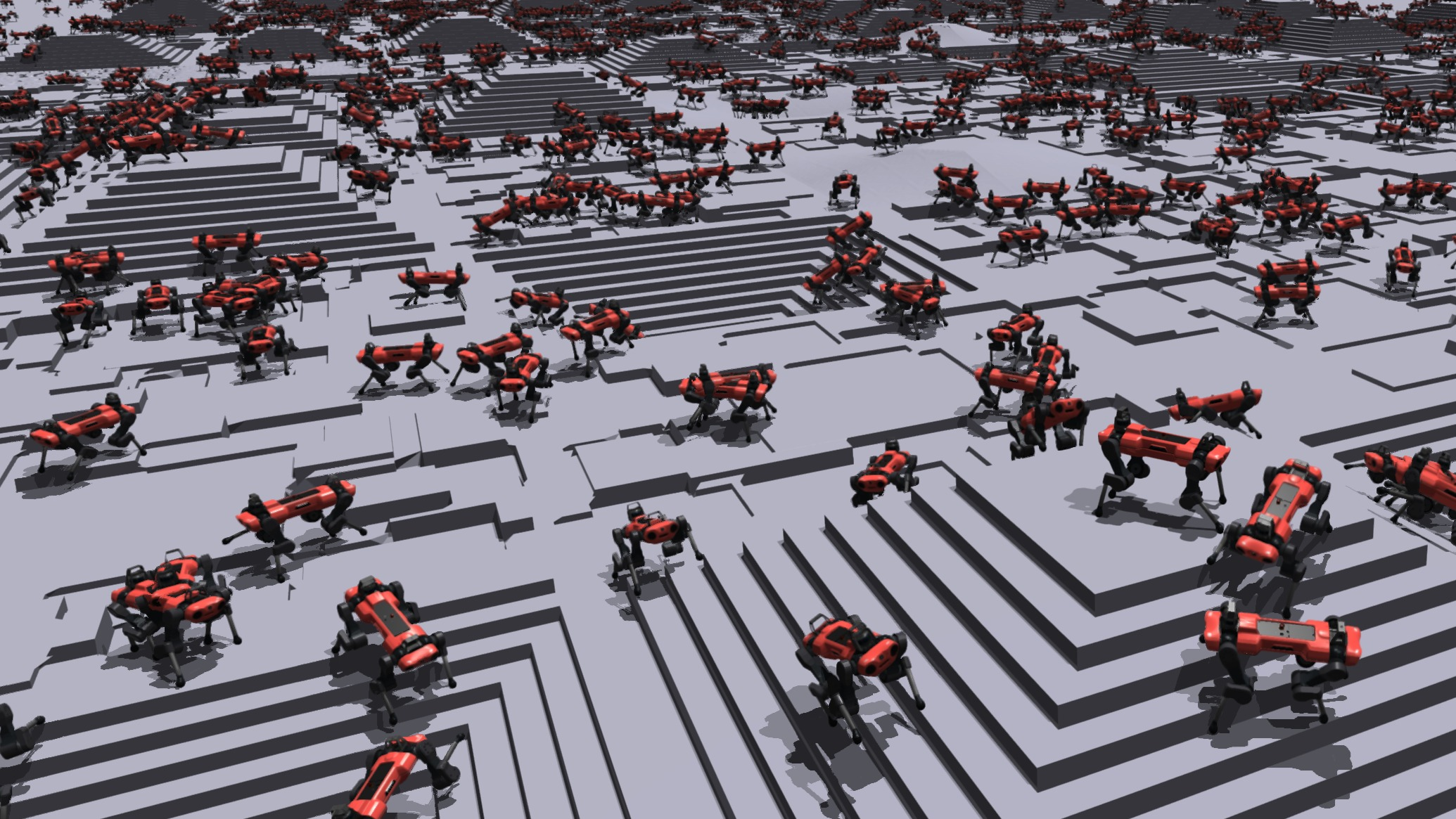

Deep RL + Teacher-Student


Lee et al., Learning quadrupedal locomotion over challenging terrain, Science Robotics, 2020

Deep RL + Teacher-student
Magic of Modality
- Modality = image, video, 3d mesh, text etc.
- One recipe (motivated by data):
- Use discriminative model on data-rich domain to guide training in data-scarce domains
- Use generative model on data-rich domains to synthesize data for data-scarce domains
Task Planning with LLM
Connect unstructured world with structured algorithms

What humans would want:

Task: clean up the spilled coke
- Set the coke can into an upright position
- Find some napkins
- Pick up napkins
- Wipe the spilled coke with napkins
- Wipe the coke can
- Throw away the used napkins
Humans: Language as tasks
Language as plans!

Can we use human priors & knowledges
It turns out humans activities on the internet produces a massive amount of knowledge in the form of text that are really useful!

Highlight

- Given a fixed list of options, can evaluate likelihood with LM
- Given all vocabularies, can sample with likelihood to generate
Ingredient 1
- Bind each executable skill to some text options
- Have a list of text options for LM to choose from
- Given instruction, choose the most likely one

Ingredient 2
- Prompt LLM to output in a more structured way
- Parse the structure output

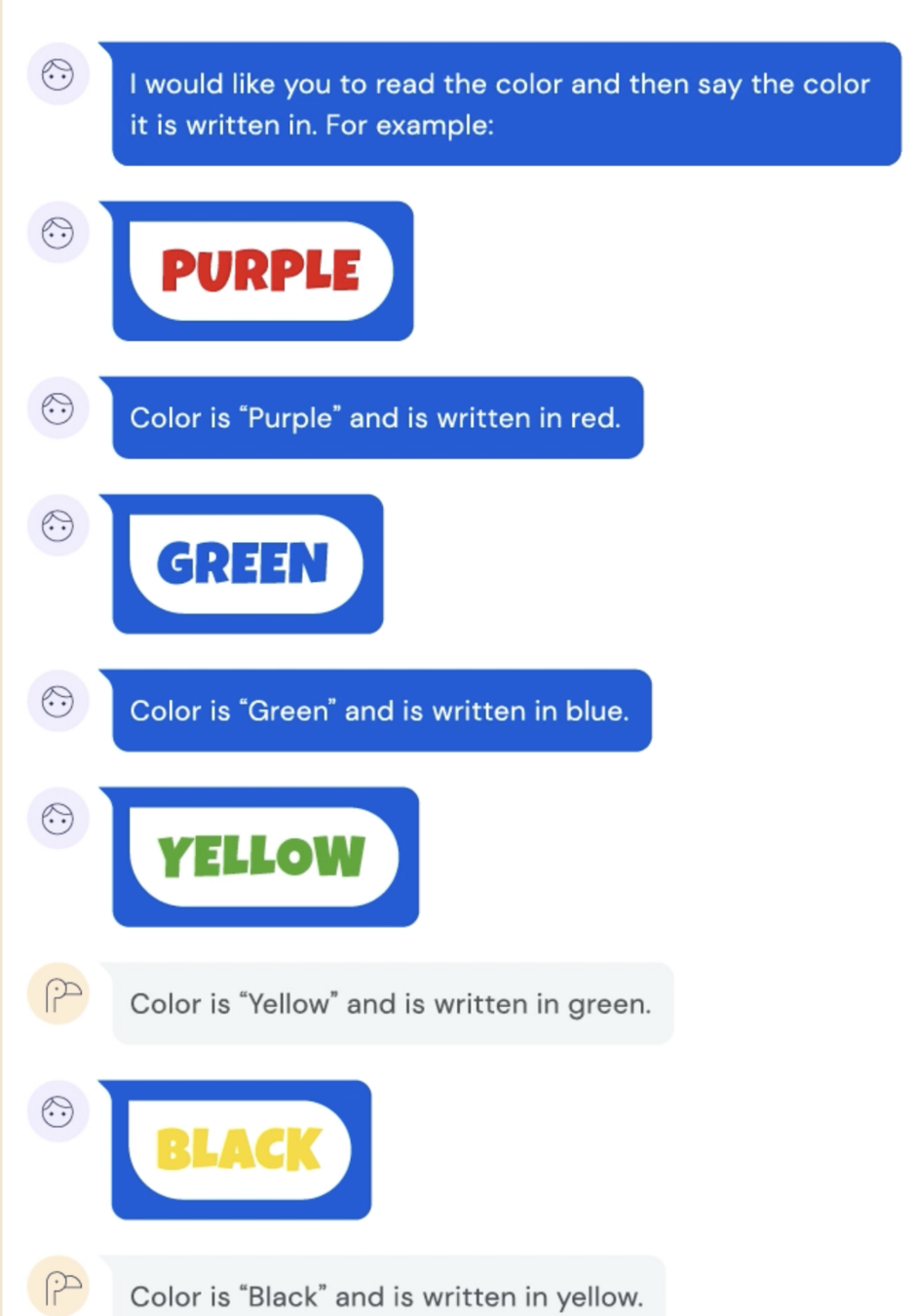

Few-shot prompting of Large Language Models

LLMs can copy the logic and extrapolate it!
Prompt Large Language Models to do structured planning


Do As I Can, Not As I Say: Grounding Language in Robotic Affordances, Ahn et al. , 2022
LLMs for robotics

Do As I Can, Not As I Say: Grounding Language in Robotic Affordances, Ahn et al. , 2022

What task-based affordances reminds us of in MDP/RL?
Value functions!
[Value Function Spaces, Shah, Xu, Lu, Xiao, Toshev, Levine, Ichter, ICLR 2022]
Robotic affordances
Combine LLM and Affordance

Do As I Can, Not As I Say: Grounding Language in Robotic Affordances, Ahn et al. , 2022
LLM x Affordance

Do As I Can, Not As I Say: Grounding Language in Robotic Affordances, Ahn et al. , 2022
- Language Models as Zero-Shot Planners:
Extracting Actionable Knowledge for Embodied Agents - Inner Monologue: Embodied Reasoning through Planning with Language Models
- PaLM-E: An Embodied Multimodal Language Model
- Chain-of-thought prompting elicits reasoning in large language models
- Tree of Thoughts: Deliberate Problem Solving with Large Language Models
Extended readings in
LLM + Planning
Part 2: Current/future directions
- NLP -- credits: Andrej Karpathy (nov 2023)
- CV -- credits: Kaiming He (oct 23)
- Robotics -- credits: CoRL debate (nov 23)





















Interpretability


Why video
- Video is how human perceive the world (physics, 3D)
- Video is widely available on internet
- Internet videos contain human actions and tutorials
- Pre-train on entire youtube, first image + text -> video
- Finetune on some robot video
- Inference time, given observation image + text prompt -> video of robot doing the task -> back out actions
A lot of actions/tutorials
(The demo won't embed in PDF. But the direct link below works.)
Magic of Modality

Text, Image, Video -> Text
Video -> 3D shape
Magic of Modality
Boom of 3D data
Universal dynamics model
UniSim: Learning Interactive Real-World Simulators, Du et al., 2023

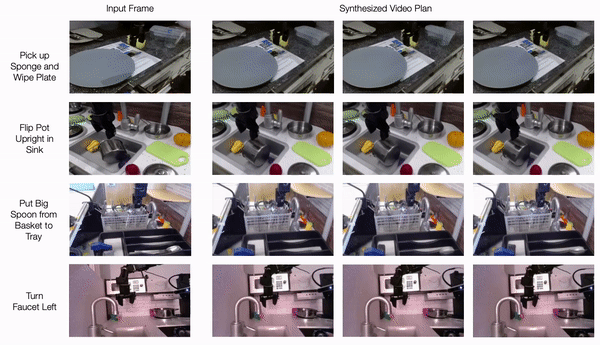

Video Prediction for Robots
Learning Universal Policies via Text-Guided Video Generation, Du et al. 2023

Video Prediction for Robots
Learning Universal Policies via Text-Guided Video Generation, Du et al. 2023

Video + Language
Video Language Planning, Du et al. 2023

Video + Language
Video Language Planning, Du et al. 2023
Instruction: Make a Line

Video + RL
Mastering Diverse Domains through World Models, Hafner et al. 2023

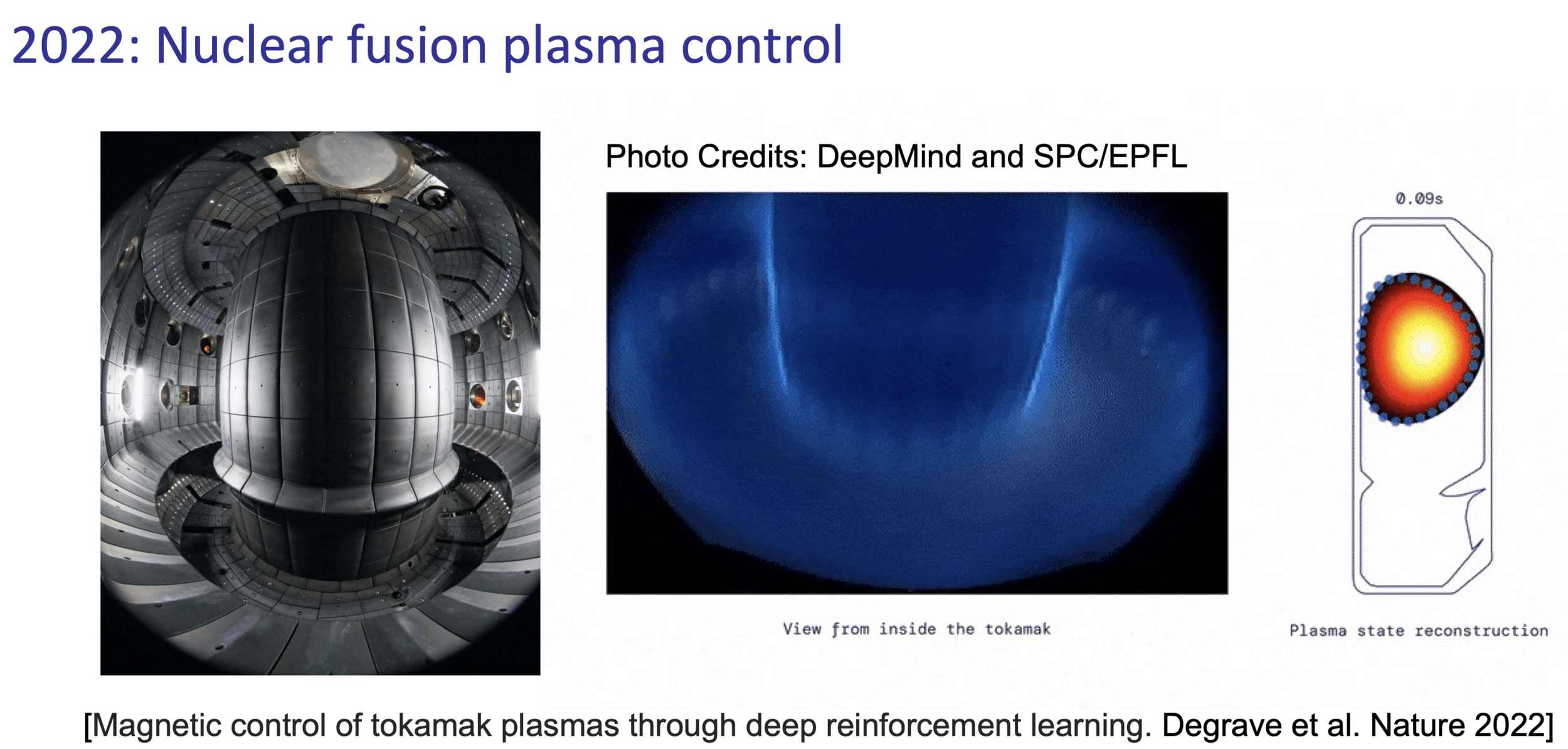

Part 3: Other domain-specific applications

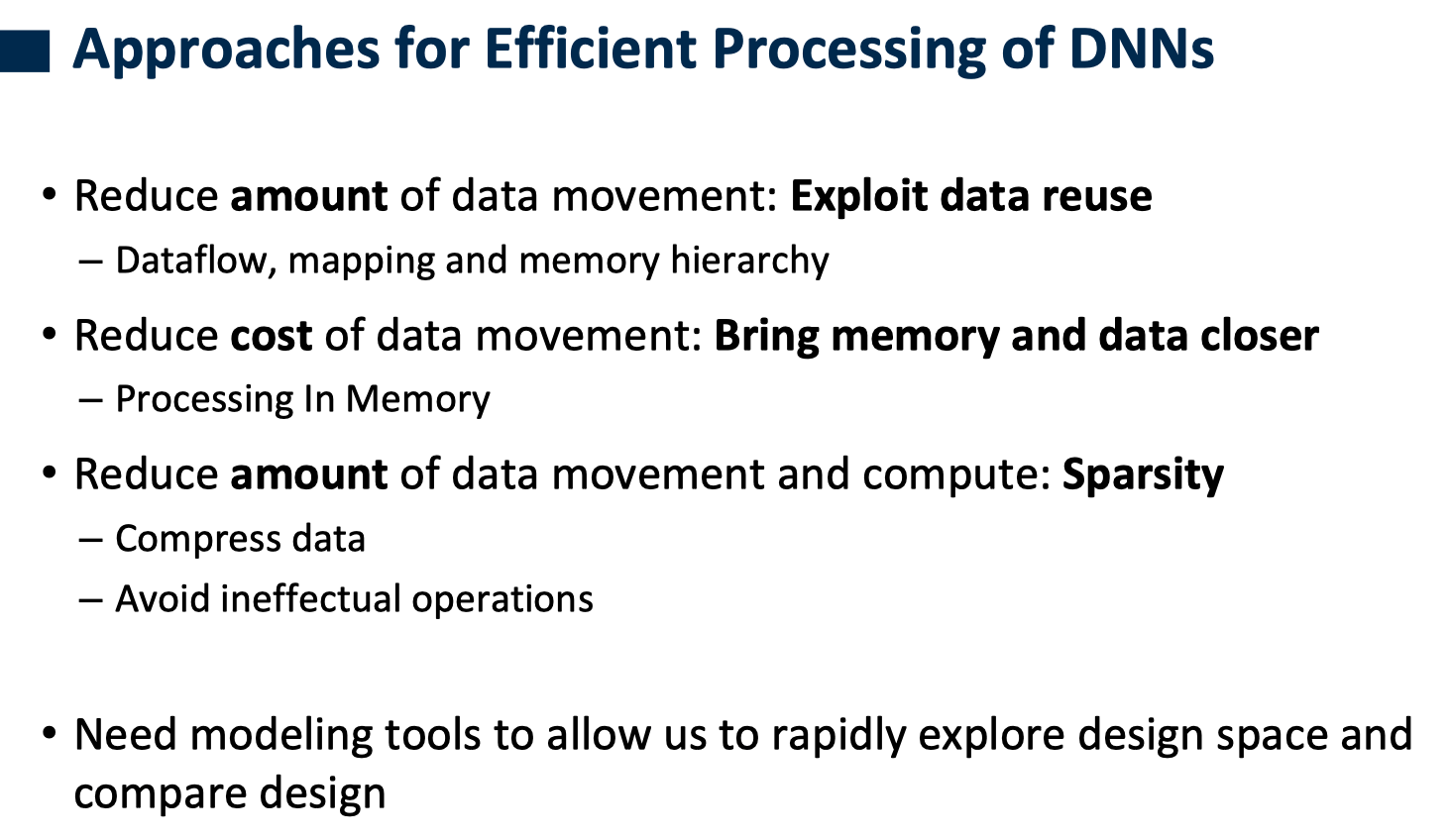

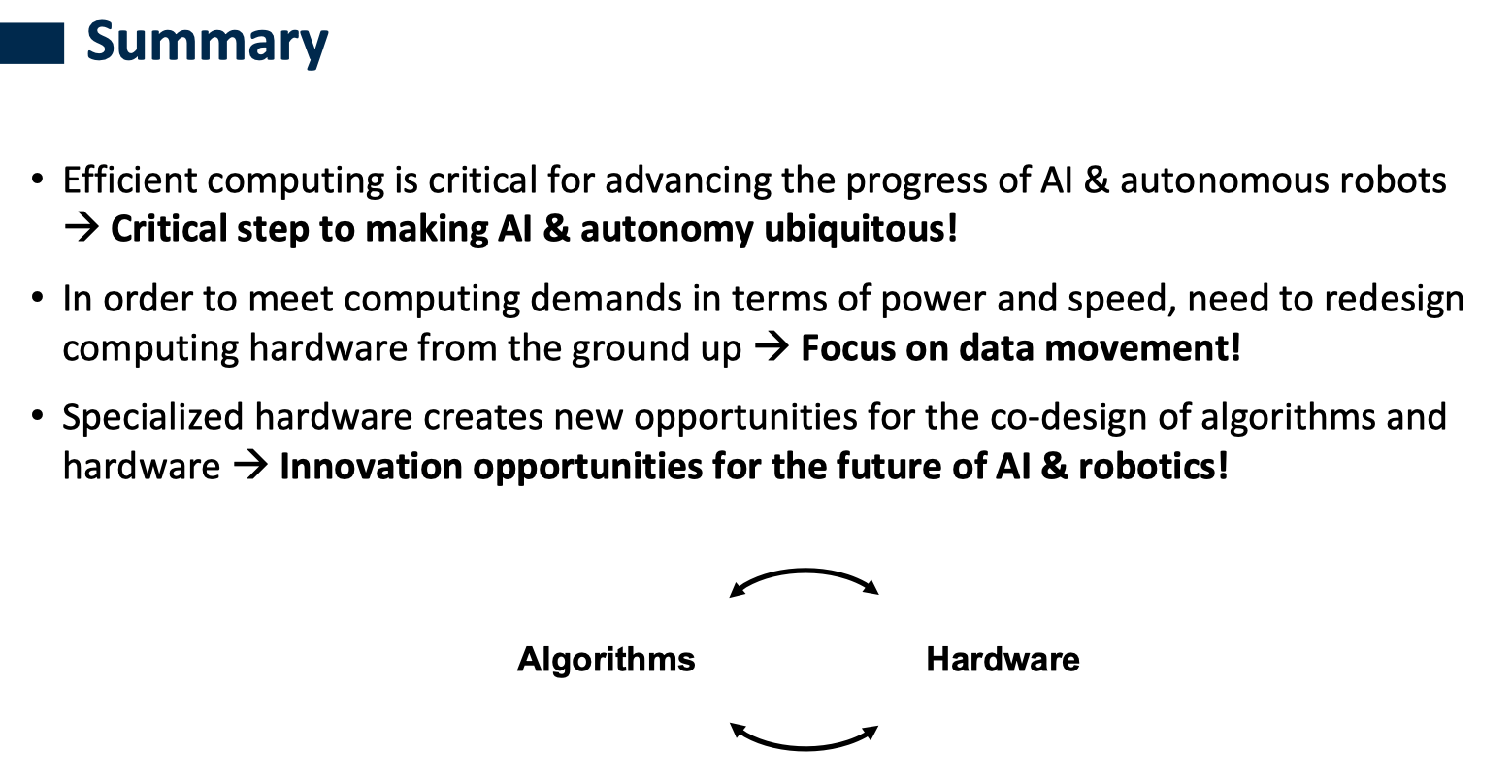

Efficient Hardware Co-design



Hardware section slides credit and link:

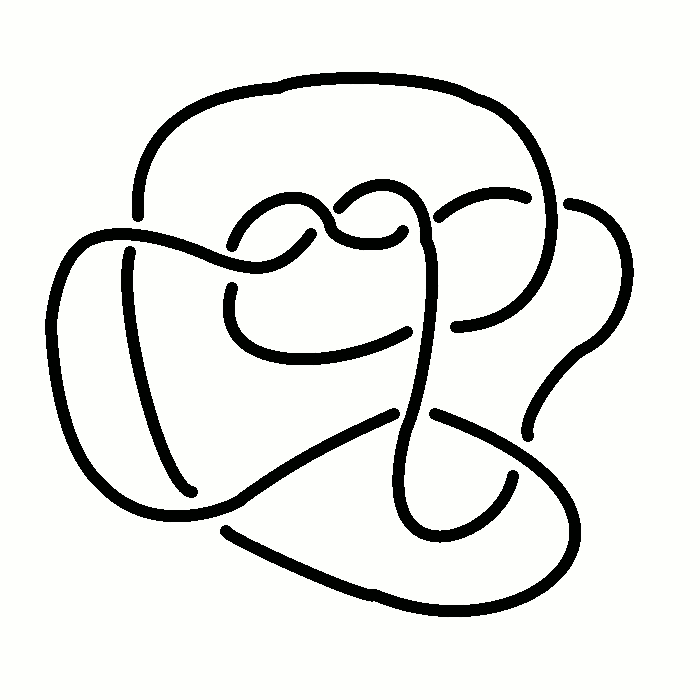

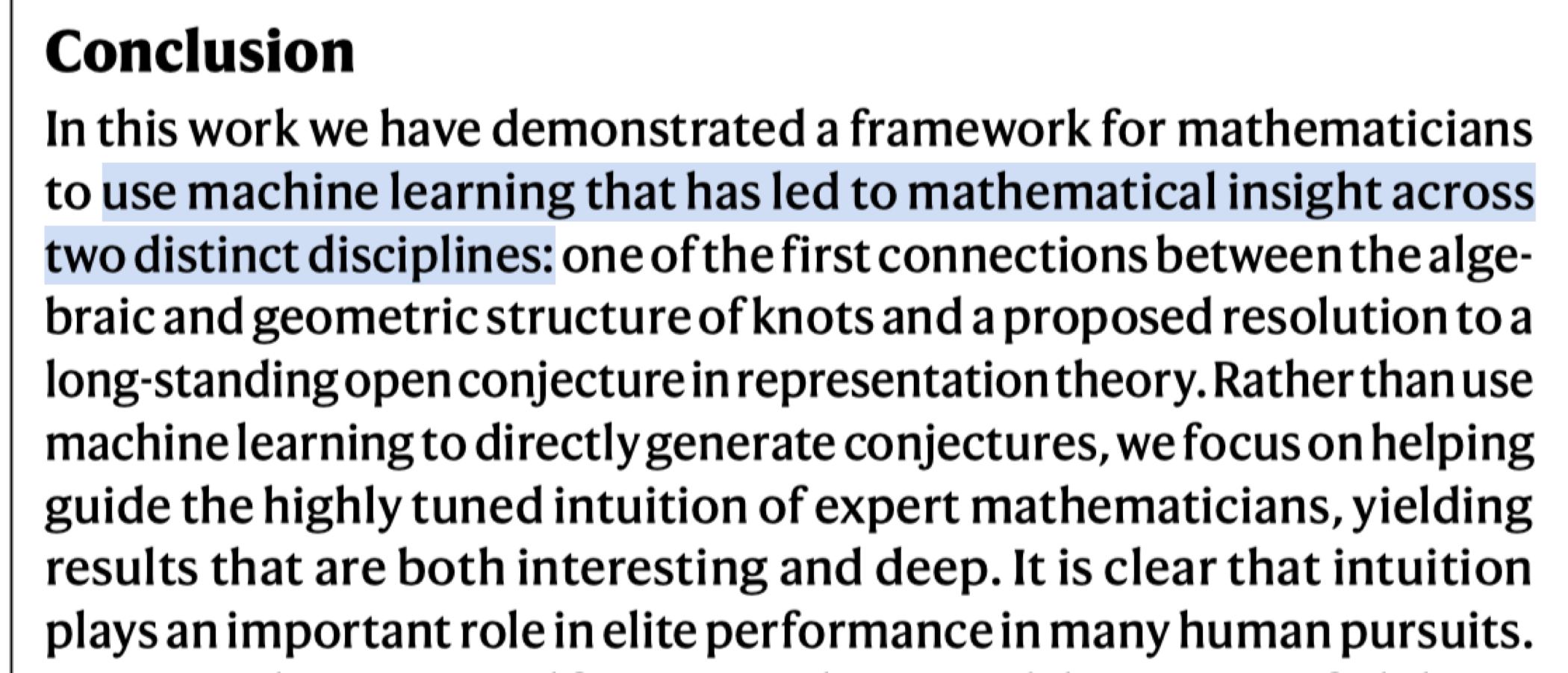

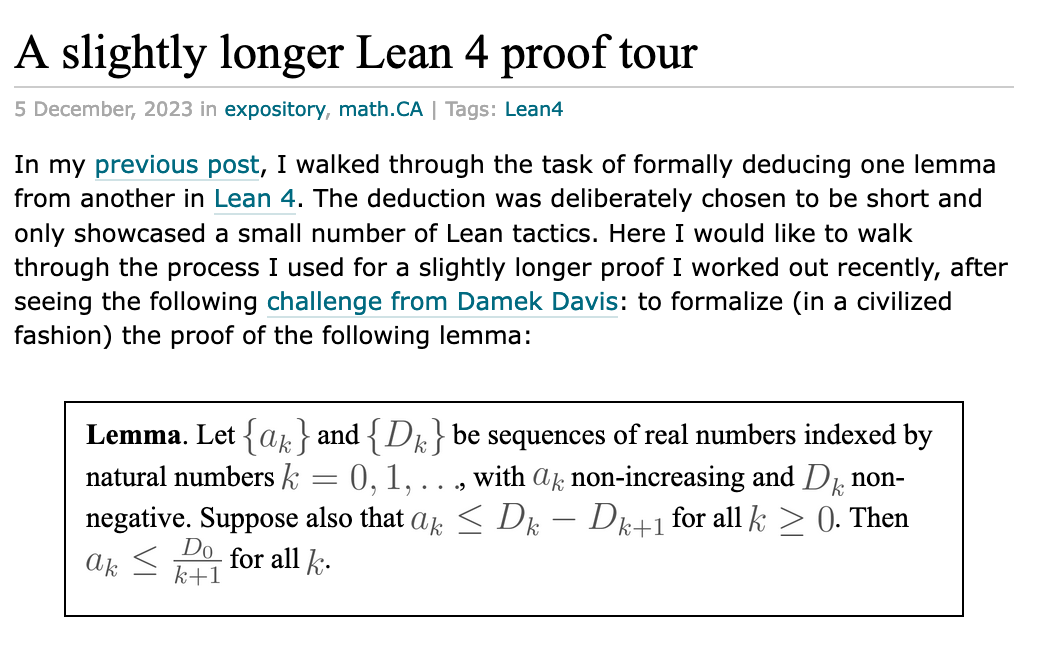

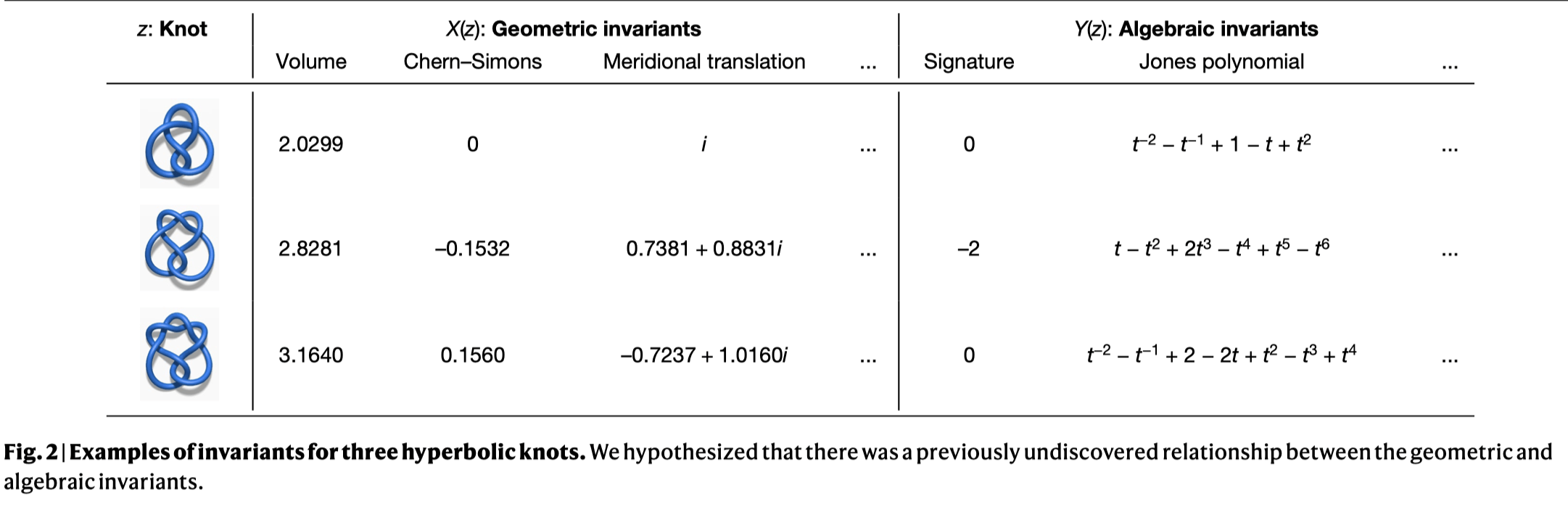

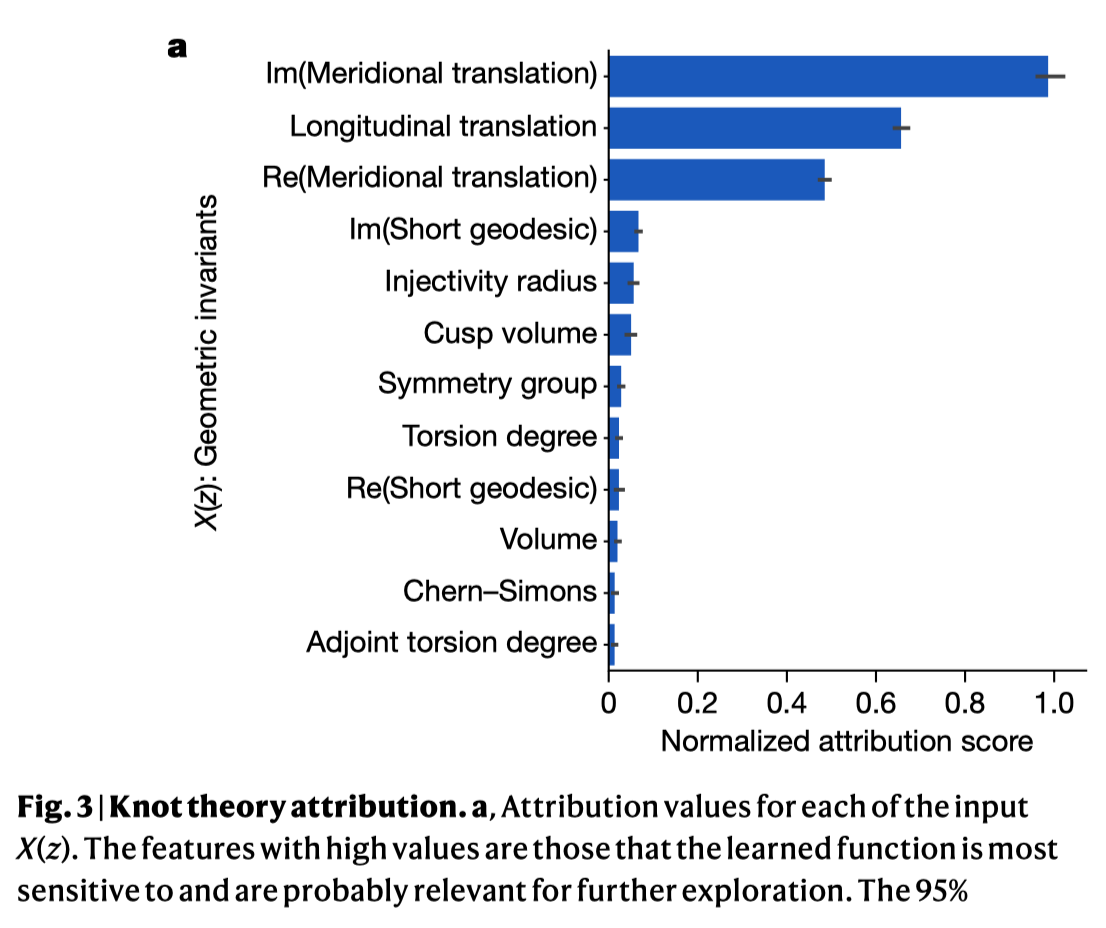

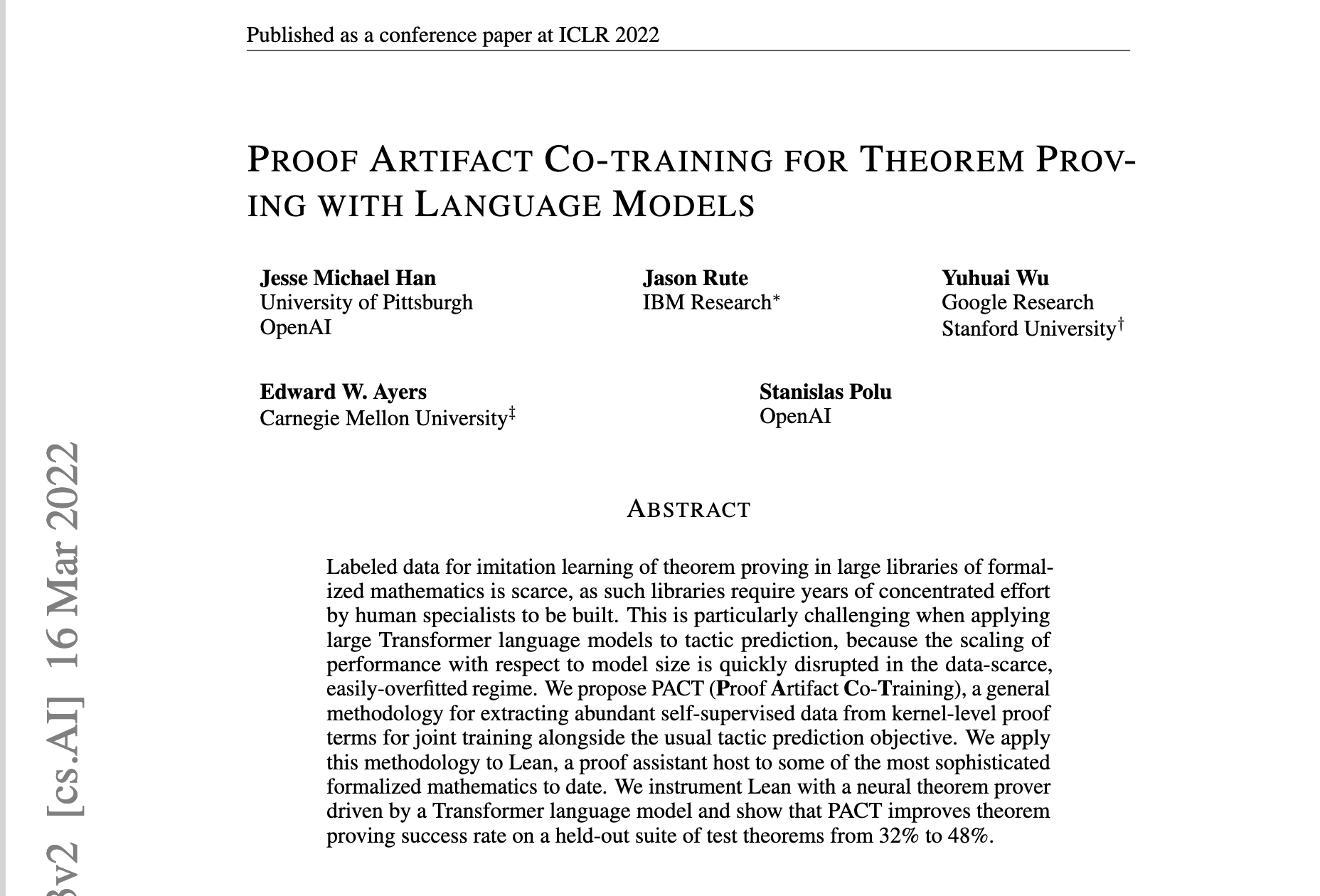

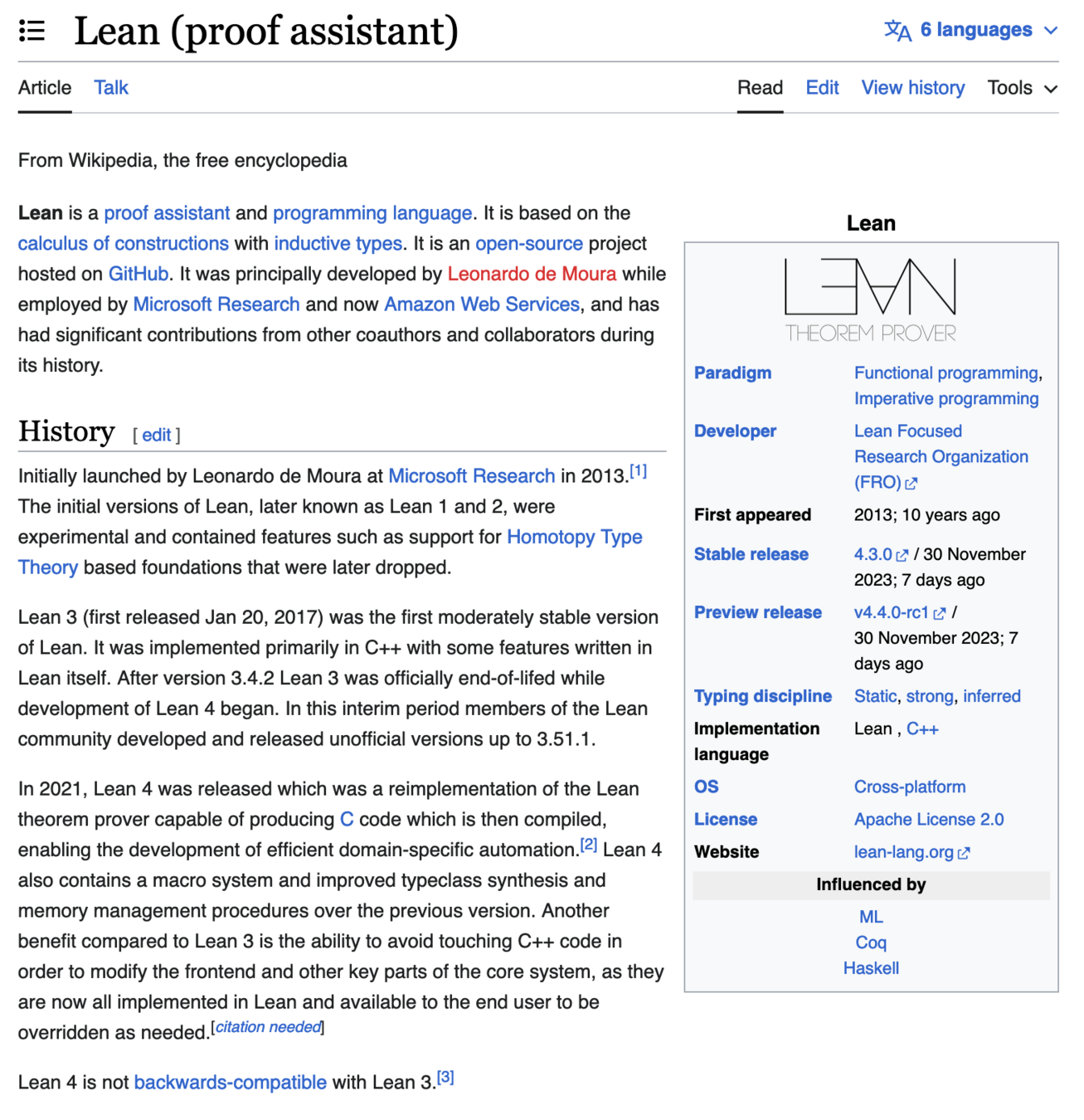

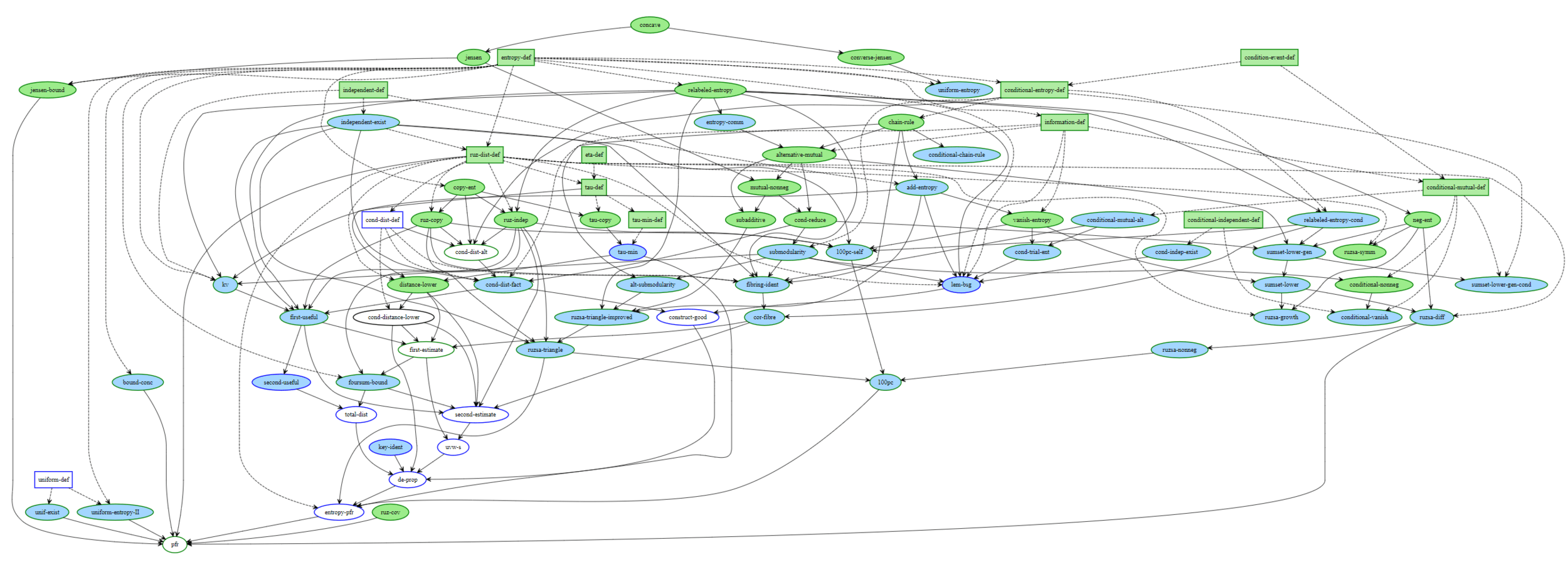

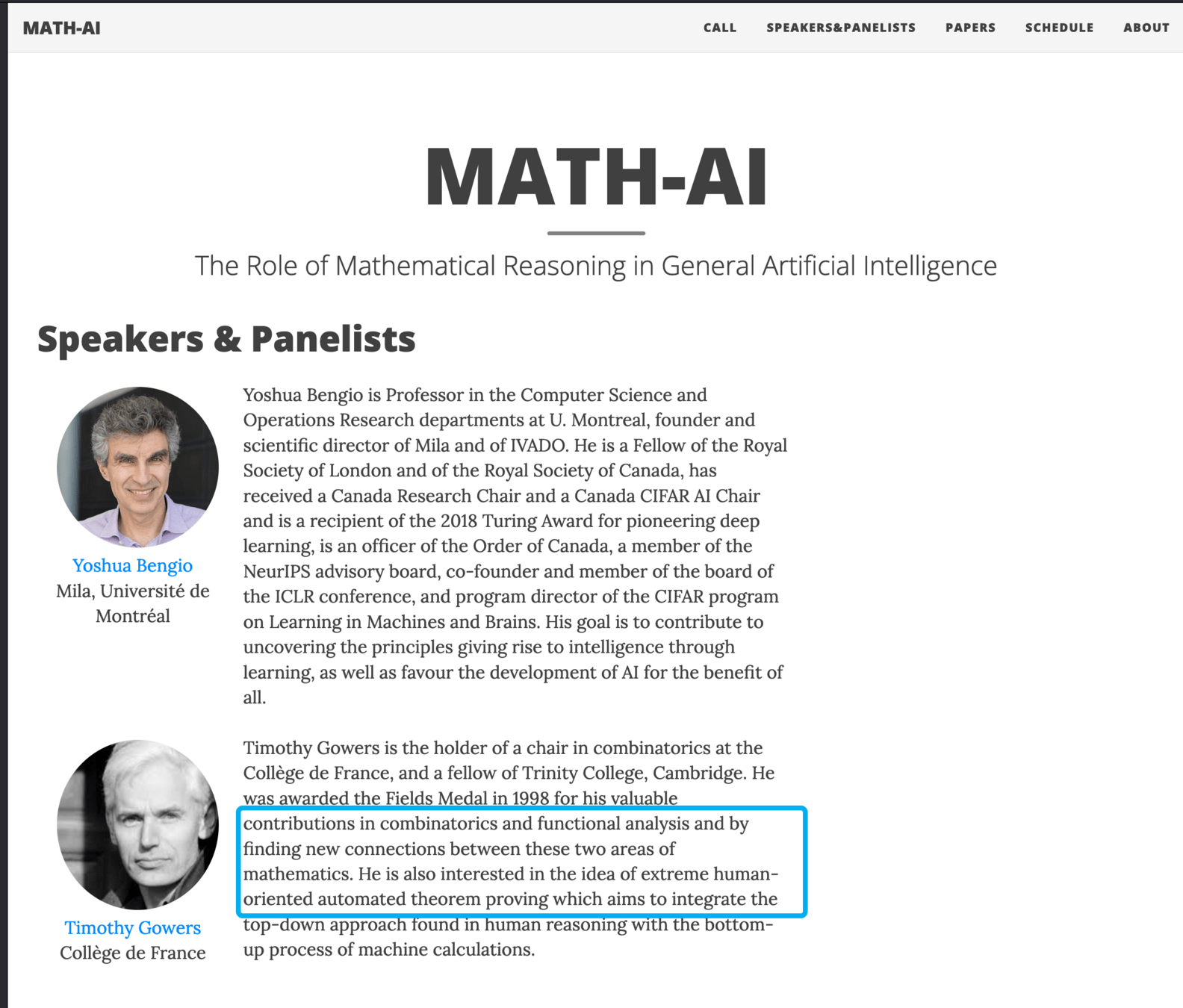

Mathematics/Algorithmetic

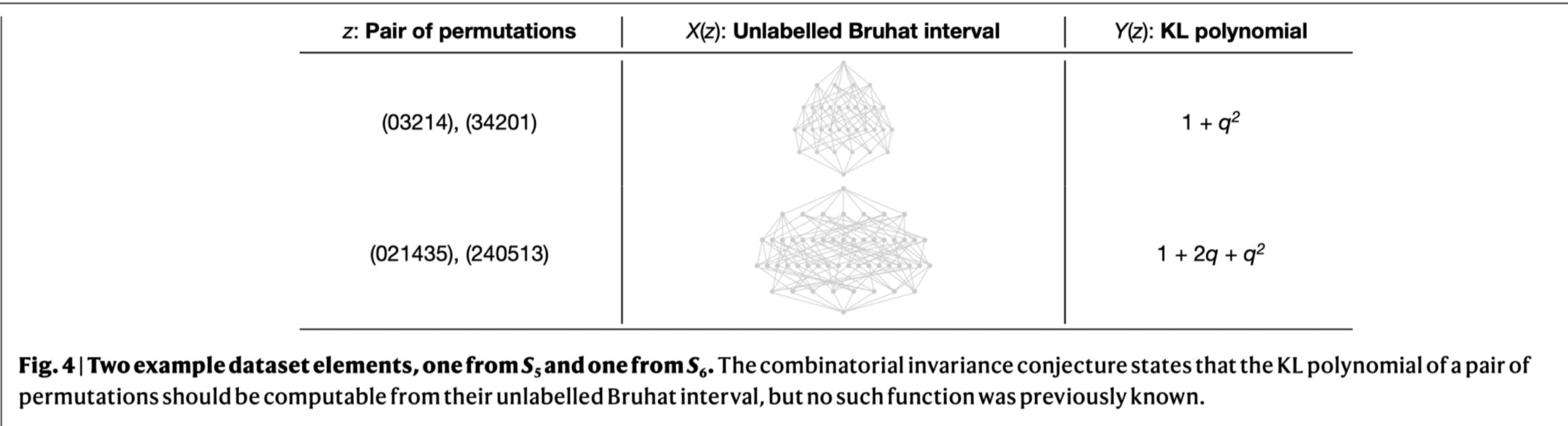

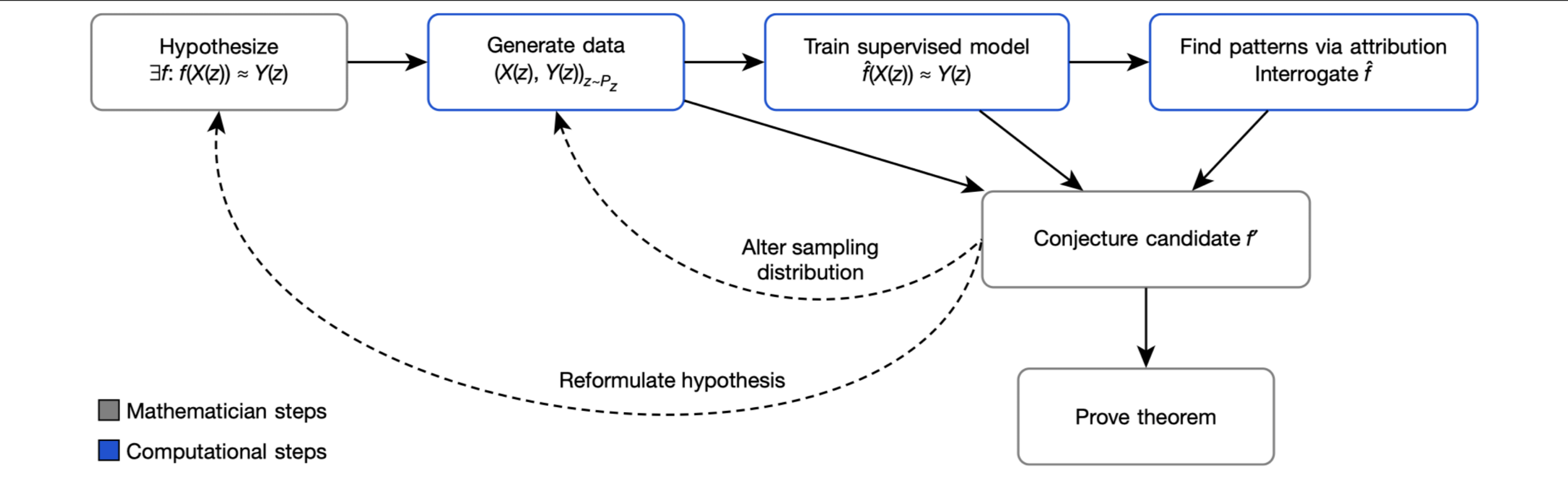

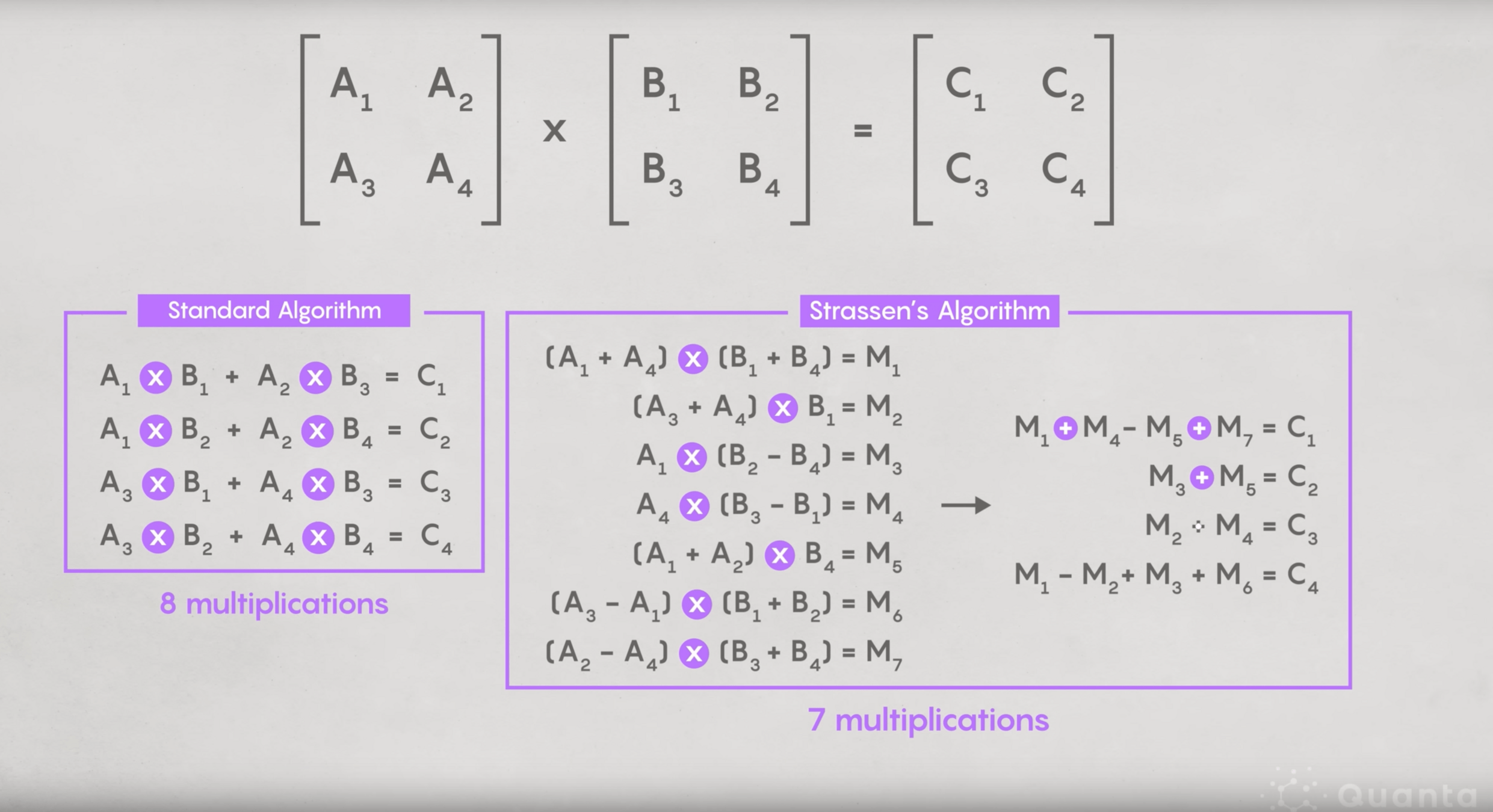

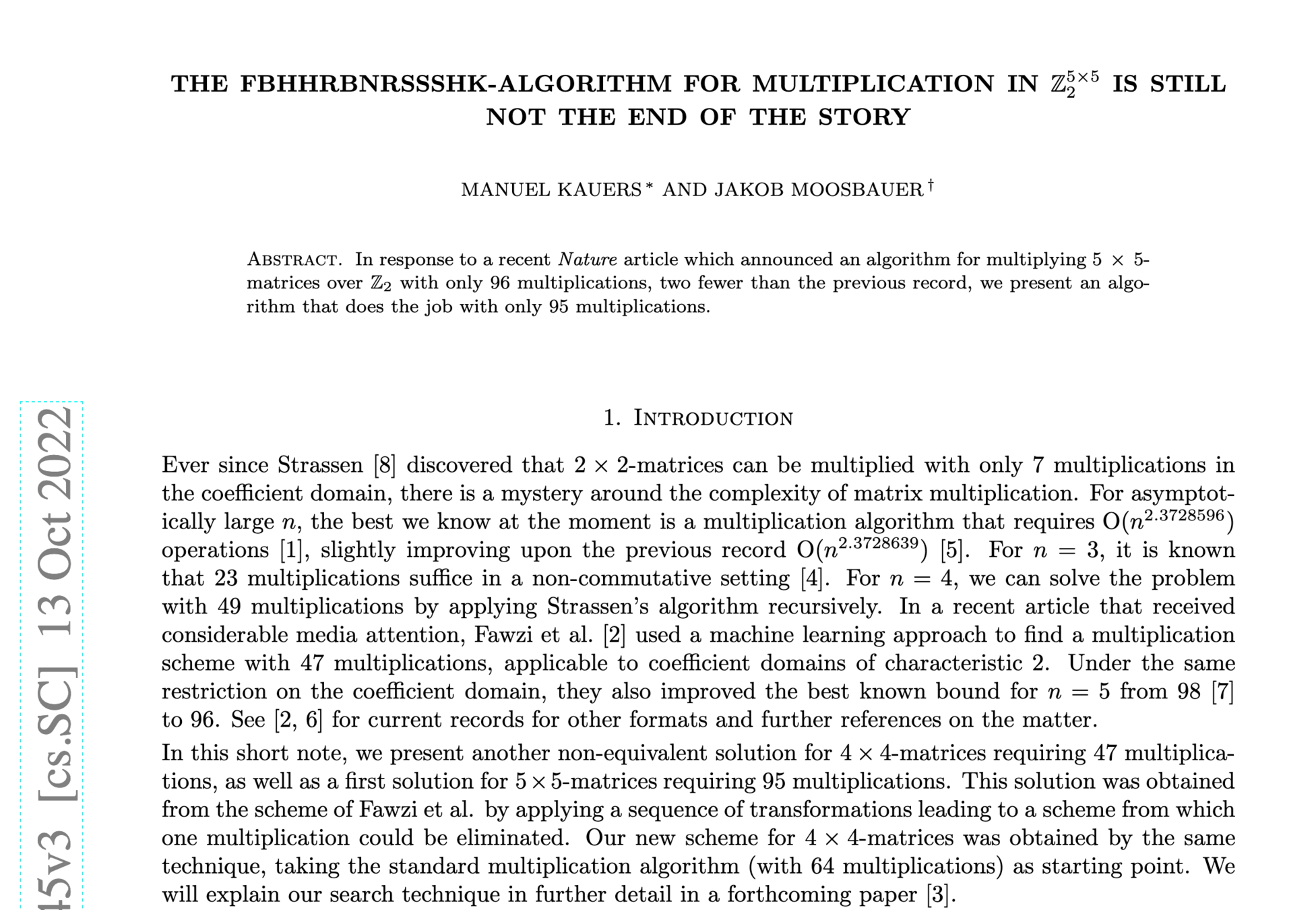

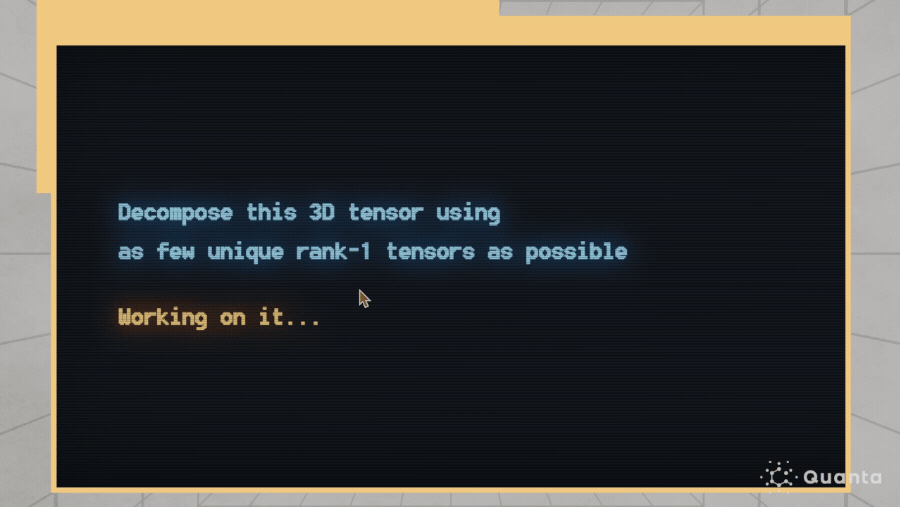

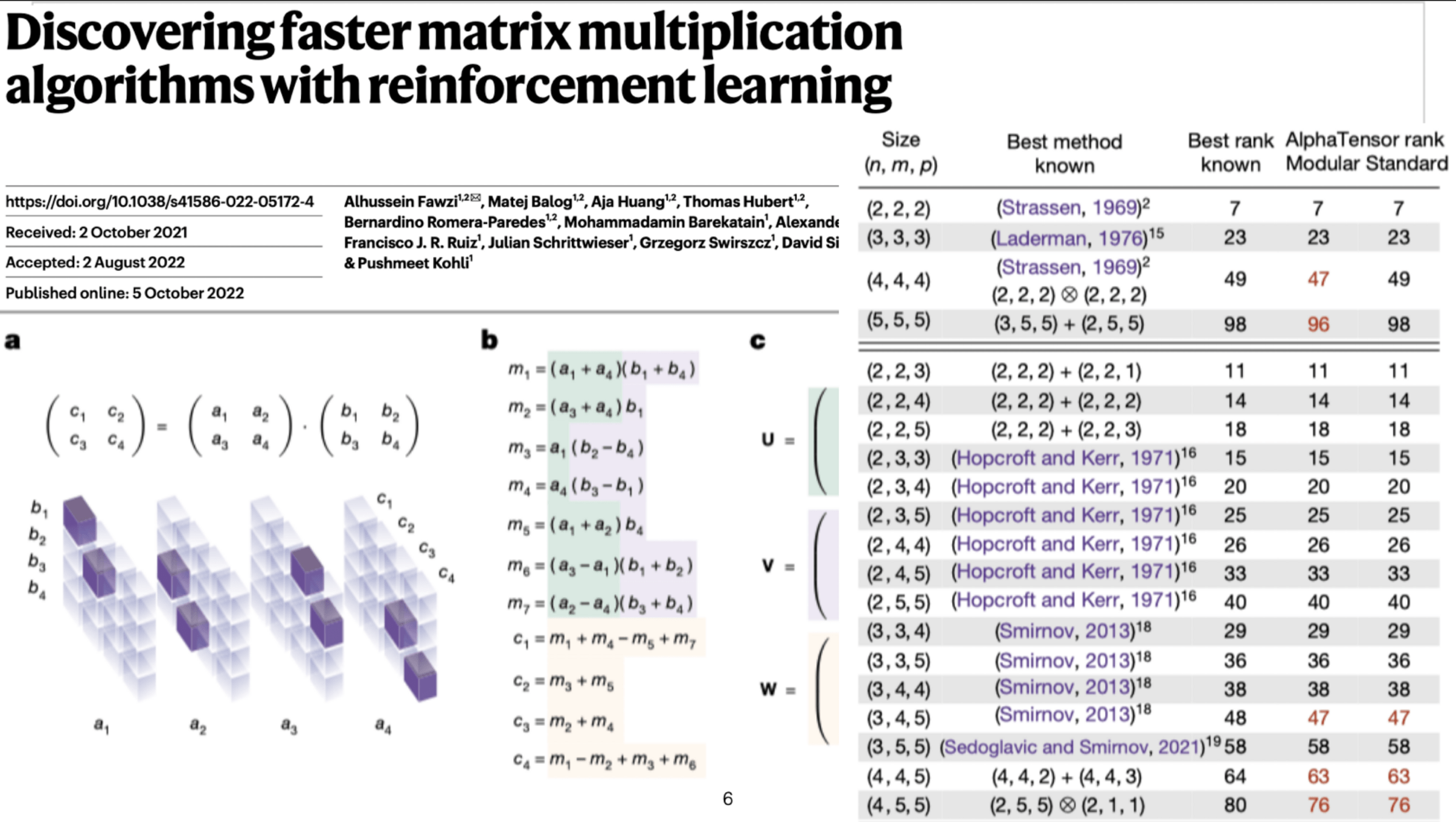

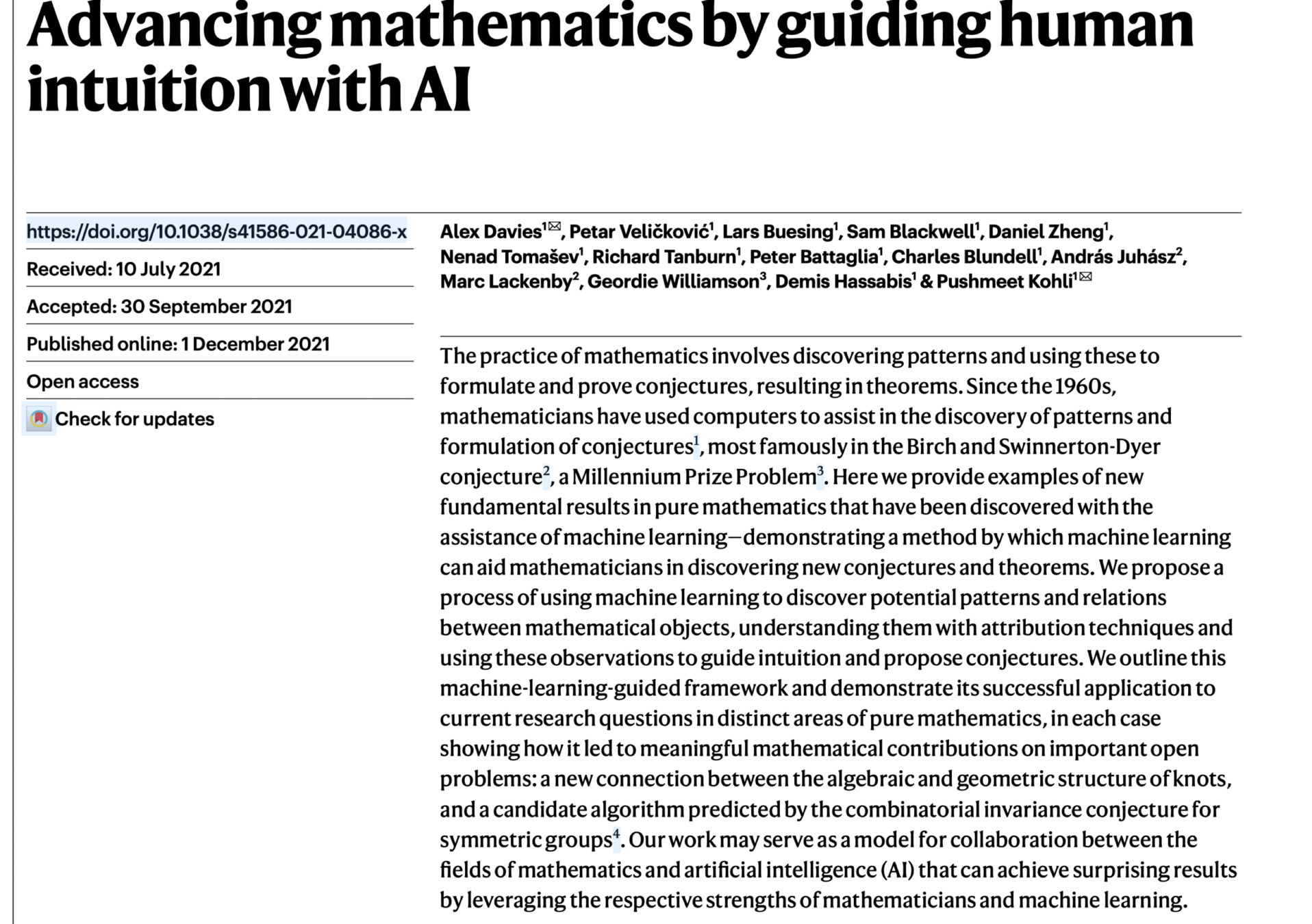

Algorithmic Discovery

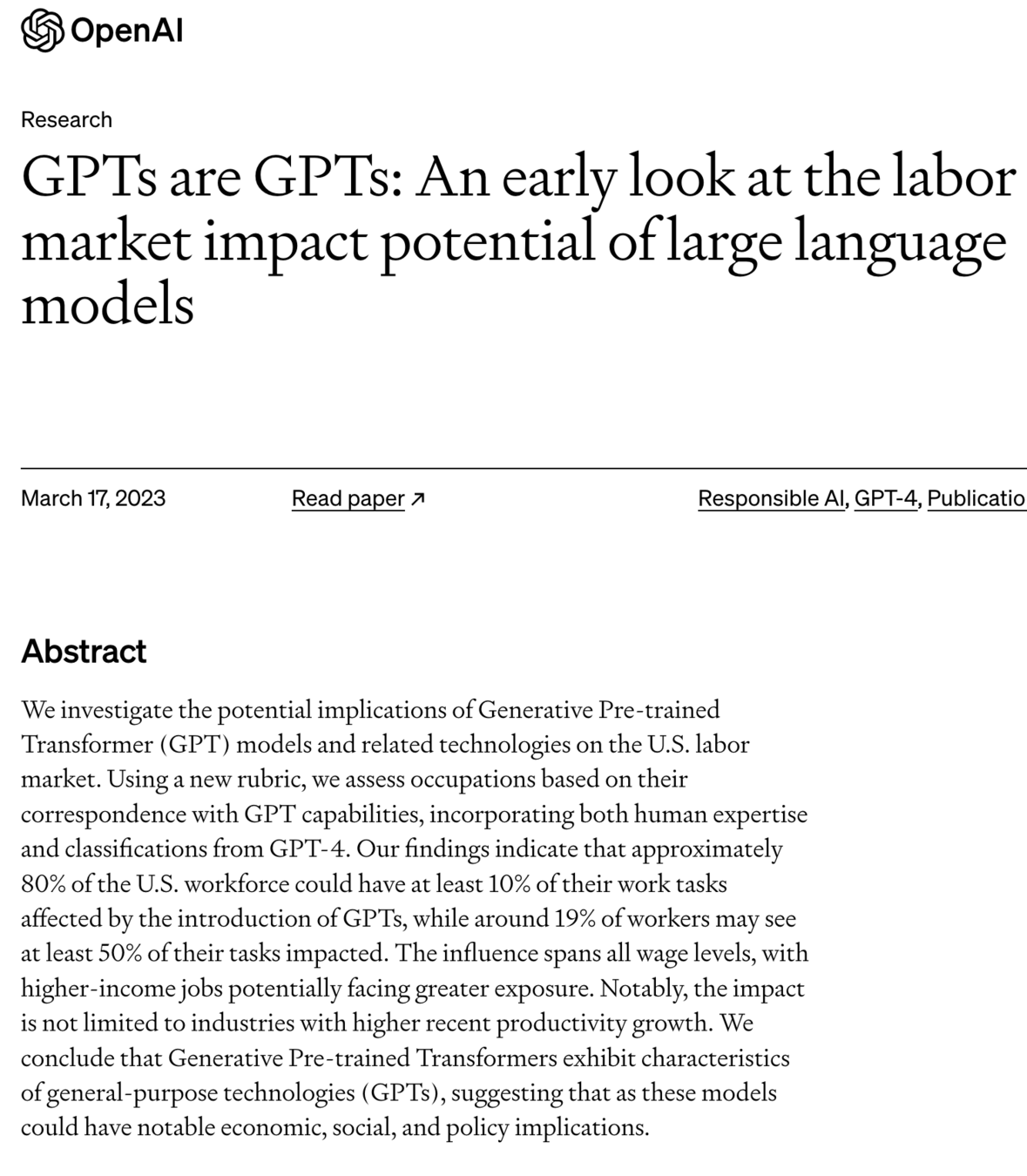

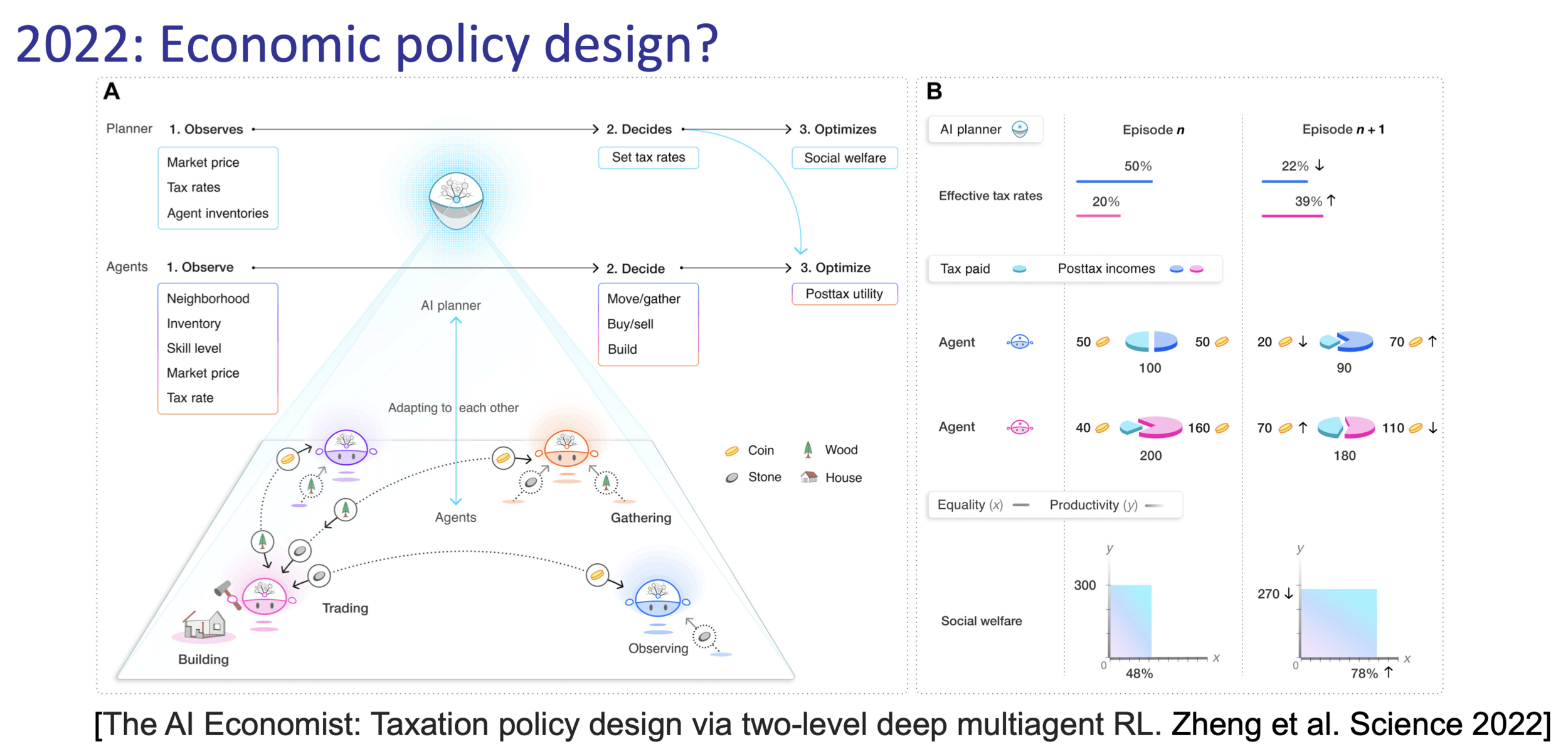

Societal impact

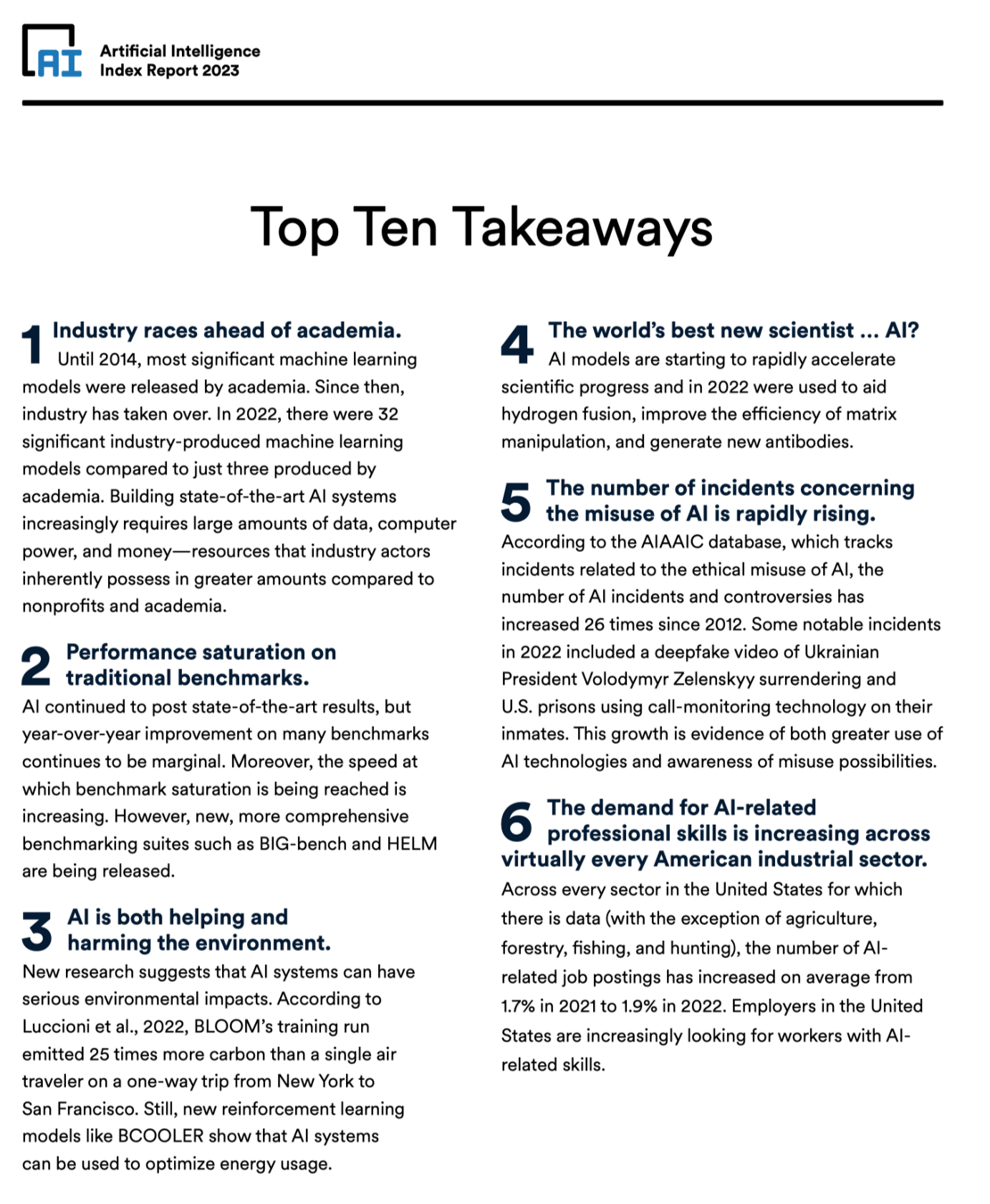

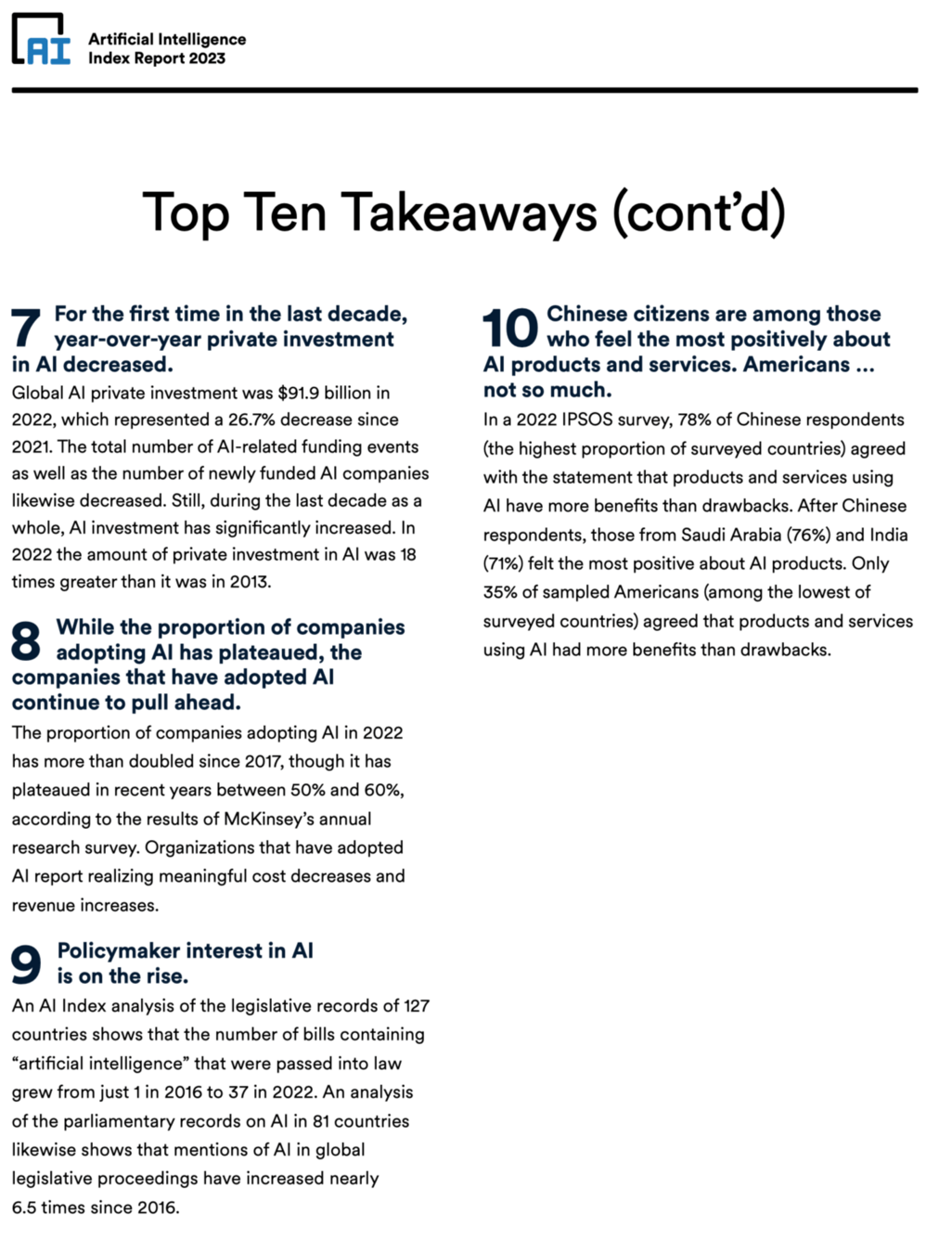

“The AI Index 2023 Annual Report,” HAI, Stanford University, April 2023.

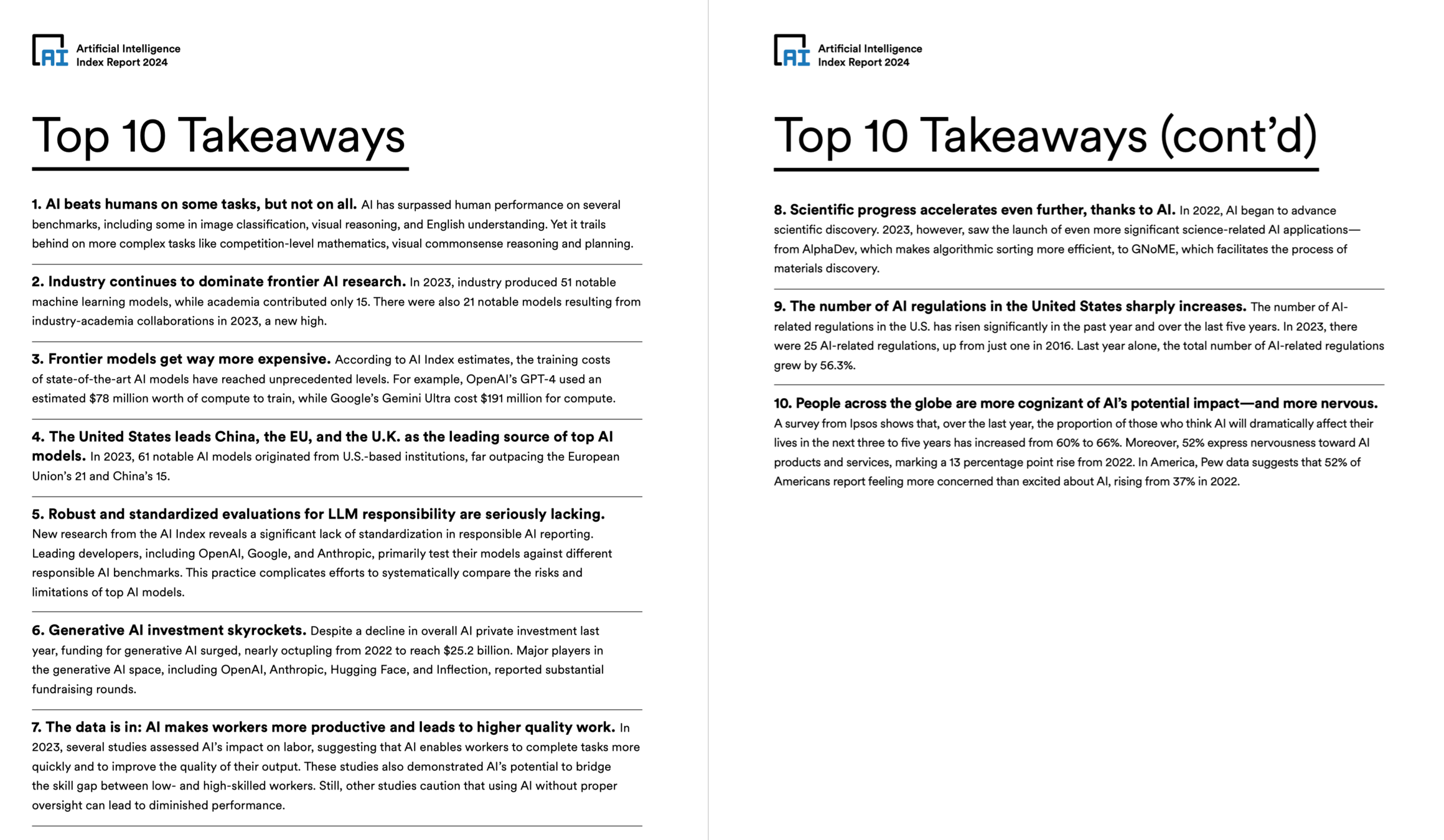

“The AI Index 2024 Annual Report,” HAI, Stanford University, April 2024.
