Lecture 10: Non-parametric Models

Shen Shen

Nov 6, 2025

11am, Room 10-250

Interactive Slides and Lecture Recording

Intro to Machine Learning

Outline

Non-parametric models overview
Supervised learning non-parametric
- \(k\)-nearest neighbor
- Decision Tree
Unsupervised learning non-parametric

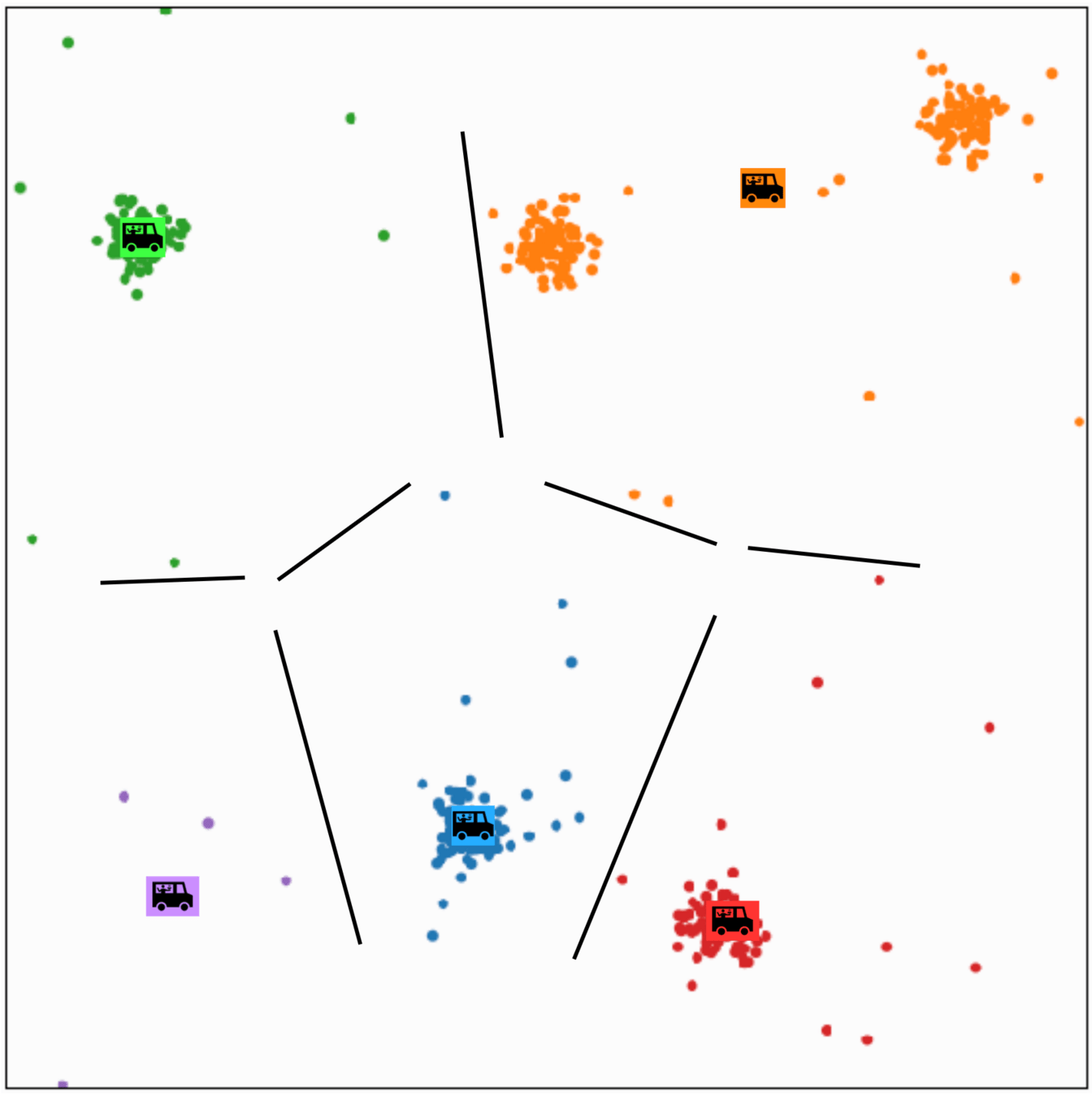

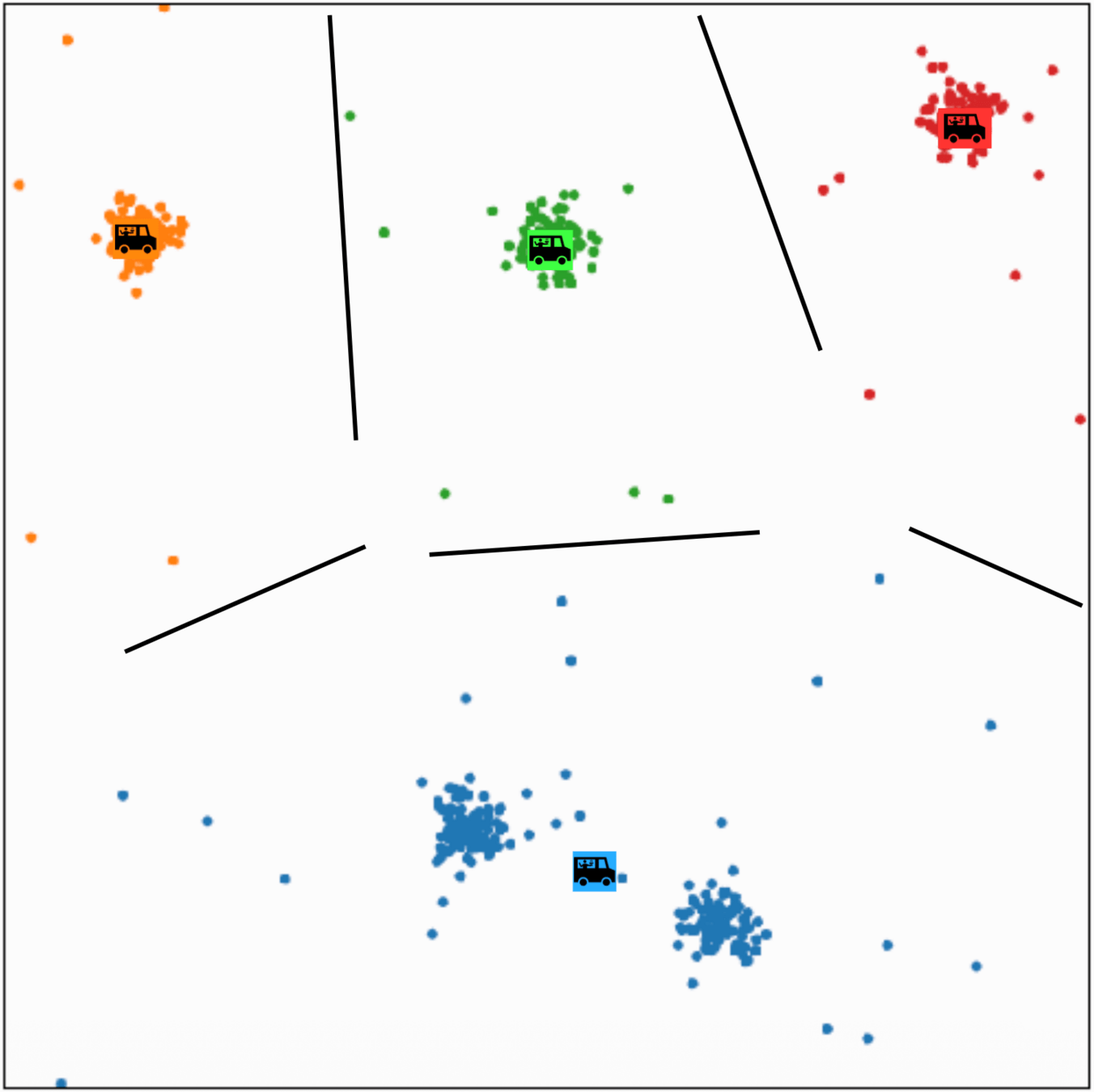

- \(k\)-means clustering

Neural networks reason over billions of parameters, have incredible predictive power

Yet in many situations, we may not want to immediately fully commit to deep learning

A look at Mathurin's toolkit, which he keeps coming back to:

Packages: scikit learn, pandas, numpy
Frameworks: Keras, Tensorflow, Pytorch and Fastai
Algorithms: lightgbm, xgboost, catboost
AutoML tools: Prevision.io, h2o and other open sources such as TPOT, auto sklearn
Cloud services: Google colab and kaggle kernels

"The choices were made to simplify the exposition and implementation: methods need to be transparent to be adopted as part of the election process and to inspire public confidence. [An alternative] might be more efficient, but because of its complexity would likely meet resistance from elections officials and voting rights groups." —Philip Stark, 2008

[source]

There’s more to machine learning than predictive power

Interpretability — understanding why a model makes a decision.
Adaptivity — updating to new data without retraining from scratch.
Transparency & trust — explaining results to humans and stakeholders.

Data exploration — learning structure before committing to a model.
Efficiency — using the right model for the right data scale.
Insight generation — discovering mechanisms, not just correlations.

Even if all we care about is vanilla predictive power, we

All ML models learn parameters — but not all are parametric.

Non-parametric doesn't mean no parameters

Instead, it means the model doesn't assumes a fixed functional form for \(h\)

the model complexity grows with data
usually fast to implement and train, and often effective as a baseline

Electronic	Transistors, logic gates, amplifiers
Chemical	Catalytic converters, enzyme reactions
Biological	Vision, photosynthesis, DNA repair
Computational	Algorithms, logic circuits, neural networks
Social or economic	Market price formation, voting dynamics

"Having parameters" ≠ "Being parametric,"

just as "Having mechanisms" ≠ "Being mechanical":

Outline

Non-parametric models overview
Supervised learning non-parametric
- \(k\)-nearest neighbor
- Decision Tree
Unsupervised learning non-parametric
- \(k\)-means clustering

Predicting (inferencing, testing):

For a new data point \(x_{\text{new}}\), take majority (class) or mean (regression) label of its \(k\) nearest neighbors.

Training: None (just memorize the entire training data)

hyper-parameter:

\(k:\) number of neighbors considered
distance metric (typically Euclidean or Manhattan distance)
tie-breaking scheme (typically at random)

When we can't fit an equation, we just remember examples.

parameters learned:

the entire training dataset's features and labels

training data

\(k=1\)

\(k=5\)

training data

\(k=3\)

\(k=5\)

\(k=10\)

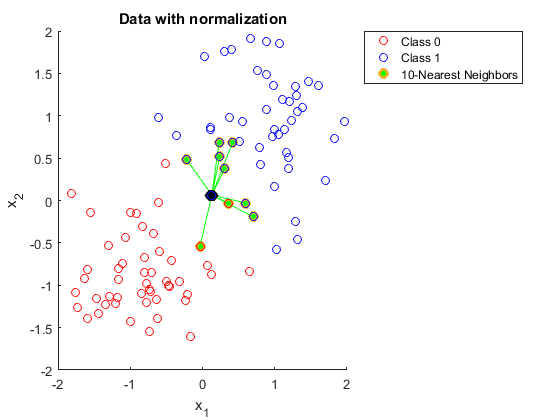

\(k\)-NN is a good choice when:

Decision boundary is irregular / hard to parametrize.
Dataset is small-to-medium (memory fits; latency acceptable).

Be cautious when:

Very large \(n\) or \(d\) (naively needs all pair-wise distance calc, curse of dimensionality).
Many irrelevant/noisy features (distance metric degrades).

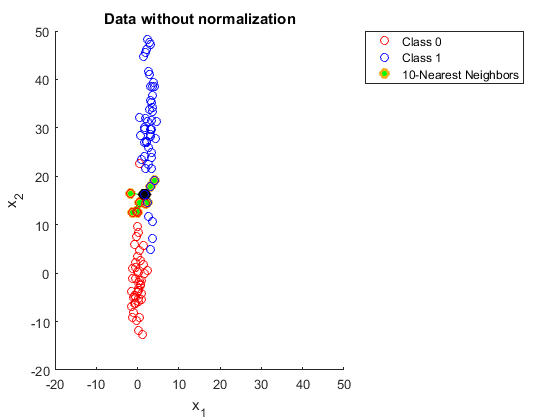

Features on different scales (must scale/normalize first).

[source]

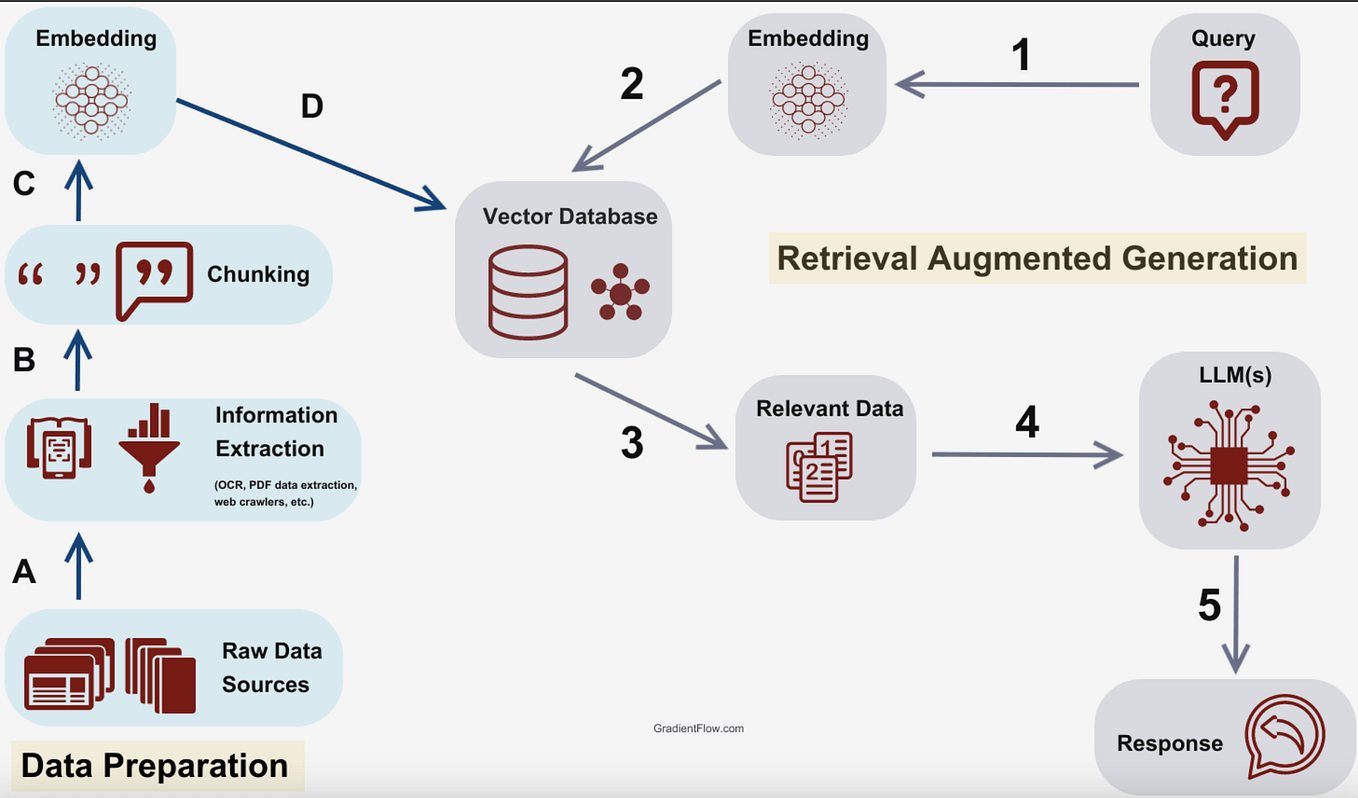

In a sense, it made modern language models non-parametric again.

Outline

Non-parametric models overview
Supervised learning non-parametric
- \(k\)-nearest neighbor
- Decision Tree
Unsupervised learning non-parametric
- \(k\)-means clustering

Reading a classification decision tree

features:
\(x_1\) : date
\(x_2\) : age
\(x_3\) : height
\(x_4\) : weight
\(x_5\) : sinus tachycardia?
\(x_6\) : min systolic bp, 24h
\(x_7\) : latest diastolic bp

labels \(y\) :
1: high risk
-1: low risk

Node (root)

Leaf (terminal)

Node (internal)

Decision tree terminologies

Split dimension

Split value

A node can be specified by

Node(split dim, split value, left child, right child)

A leaf is specified by `Leaf(leaf_value)

0.3

features:

\(x_1\): temperature (deg C)
\(x_2\): precipitation (cm/hr)

label: km run

Reading a regression decision tree

0.3

-5

\(x_2 \geq 0.3\)

\(x_1 \geq -5 \)

\(x_1 \geq 33\)

temperature

precipitation

Each axis-aligned box in feature space shares one prediction

label: km run

temperature

precipitation

🌳 How to Grow a Regression Tree

The big idea:

Grow — start with all data at the root.
Try candidate splits along each feature.
Split — pick the split that best reduces prediction error
(lowest weighted variance of target values).
Stop — if a region is small or already consistent
(data within ≤ leaf size, or variance below a threshold), make it a leaf.

recursive partitioning: each split divides data into regions where the target values are more similar, and each leaf predicts by the average of its data points.

set of indices

hyper-parameter: largest leaf size

maximum number of training samples allowed in a leaf

\(\operatorname{BuildTree}(I, k, \mathcal{D})\)

10. Set \(\hat{y}=\) average \(_{i \in I} y^{(i)}\)

1. if \(|I| > k\)

2. for each split dim \(j\) and split value \(s\)

3. Set \(I_{j, s}^{+}=\left\{i \in I \mid x_j^{(i)} \geq s\right\}\)

4. Set \(I_{j, s}^{-}=\left\{i \in I \mid x_j^{(i)}<s\right\}\)

5. Set \(\hat{y}_{j, s}^{+}=\) average \(_{i \in I_{j, s}^{+}} y^{(i)}\)

6. Set \(\hat{y}_{j, s}^{-}=\) average \(_{i \in I_{j, s}^{-}} y^{(i)}\)

7. Set \(E_{j, s}=\sum_{i \in I_{j, s}^{+}}\left(y^{(i)}-\hat{y}_{j, s}^{+}\right)^2+\sum_{i \in I_{j, s}^{-}}\left(y^{(i)}-\hat{y}_{j, s}^{-}\right)^2\)

8. Set \(\left(j^*, s^*\right)=\arg \min _{j, s} E_{j, s}\)

9. else

11. return \(\operatorname{Leaf}\)(leave_value=\(\hat{y})\)

12. return \(\operatorname{Node}\left(j^*, s^*, \operatorname{BuildTree}\left(I_{j^*, s^*}^{-}, k, \mathcal{D}\right), \operatorname{BuildTree}\left(I_{j^*, s^*}^{+}, k, \mathcal{D}\right)\right)\)

Choose \(k=2\)
\(\operatorname{BuildTree}(\{1,2,3\};2)\)
Line 1 true

({x}^{(1)},{y}^{(1)})

({x}^{(2)},{y}^{(2)})

({x}^{(3)},{y}^{(3)})

\(\operatorname{BuildTree}(I, k, \mathcal{D})\)

10. Set \(\hat{y}=\) average \(_{i \in I} y^{(i)}\)

1. if \(|I| > k\)

2. for each split dim \(j\) and split value \(s\)

3. Set \(I_{j, s}^{+}=\left\{i \in I \mid x_j^{(i)} \geq s\right\}\)

4. Set \(I_{j, s}^{-}=\left\{i \in I \mid x_j^{(i)}<s\right\}\)

5. Set \(\hat{y}_{j, s}^{+}=\) average \(_{i \in I_{j, s}^{+}} y^{(i)}\)

6. Set \(\hat{y}_{j, s}^{-}=\) average \(_{i \in I_{j, s}^{-}} y^{(i)}\)

7. Set \(E_{j, s}=\sum_{i \in I_{j, s}^{+}}\left(y^{(i)}-\hat{y}_{j, s}^{+}\right)^2+\sum_{i \in I_{j, s}^{-}}\left(y^{(i)}-\hat{y}_{j, s}^{-}\right)^2\)

8. Set \(\left(j^*, s^*\right)=\arg \min _{j, s} E_{j, s}\)

9. else

11. return \(\operatorname{Leaf}\)(leave_value=\(\hat{y})\)

12. return \(\operatorname{Node}\left(j^*, s^*, \operatorname{BuildTree}\left(I_{j^*, s^*}^{-}, k\right), \operatorname{BuildTree}\left(I_{j^*, s^*}^{+}, k\right)\right)\)

({x}^{(1)},{y}^{(1)})

({x}^{(2)},{y}^{(2)})

({x}^{(3)},{y}^{(3)})

\(\operatorname{BuildTree}(I, k, \mathcal{D})\)

1. if \(|I| > k\)

2. for each split dim \(j\) and split value \(s\)

3. Set \(I_{j, s}^{+}=\left\{i \in I \mid x_j^{(i)} \geq s\right\}\)

4. Set \(I_{j, s}^{-}=\left\{i \in I \mid x_j^{(i)}<s\right\}\)

5. Set \(\hat{y}_{j, s}^{+}=\) average \(_{i \in I_{j, s}^{+}} y^{(i)}\)

6. Set \(\hat{y}_{j, s}^{-}=\) average \(_{i \in I_{j, s}^{-}} y^{(i)}\)

7. Set \(E_{j, s}=\sum_{i \in I_{j, s}^{+}}\left(y^{(i)}-\hat{y}_{j, s}^{+}\right)^2+\sum_{i \in I_{j, s}^{-}}\left(y^{(i)}-\hat{y}_{j, s}^{-}\right)^2\)

8. Set \(\left(j^*, s^*\right)=\arg \min _{j, s} E_{j, s}\)

9. else

10. Set \(\hat{y}=\) average \(_{i \in I} y^{(i)}\)

11. return \(\operatorname{Leaf}\)(leave_value=\(\hat{y})\)

12. return \(\operatorname{Node}\left(j^*, s^*, \operatorname{BuildTree}\left(I_{j^*, s^*}^{-}, k\right), \operatorname{BuildTree}\left(I_{j^*, s^*}^{+}, k\right)\right)\)

For this fixed \((j, s)\)
- \(I_{j, s}^{+} = \{2,3\}\)
- \(I_{j, s}^{-} = \{1\}\)
- \(\hat{y}_{j, s}^{+} = 5\)
- \(\hat{y}_{j, s}^{-} = 0\)
- \(E_{j, s} =0\)

({x}^{(1)},{y}^{(1)})

({x}^{(2)},{y}^{(2)})

({x}^{(3)},{y}^{(3)})

\(\operatorname{BuildTree}(I, k, \mathcal{D})\)

1. if \(|I| > k\)

2. for each split dim \(j\) and split value \(s\)

3. Set \(I_{j, s}^{+}=\left\{i \in I \mid x_j^{(i)} \geq s\right\}\)

4. Set \(I_{j, s}^{-}=\left\{i \in I \mid x_j^{(i)}<s\right\}\)

5. Set \(\hat{y}_{j, s}^{+}=\) average \(_{i \in I_{j, s}^{+}} y^{(i)}\)

6. Set \(\hat{y}_{j, s}^{-}=\) average \(_{i \in I_{j, s}^{-}} y^{(i)}\)

7. Set \(E_{j, s}=\sum_{i \in I_{j, s}^{+}}\left(y^{(i)}-\hat{y}_{j, s}^{+}\right)^2+\sum_{i \in I_{j, s}^{-}}\left(y^{(i)}-\hat{y}_{j, s}^{-}\right)^2\)

8. Set \(\left(j^*, s^*\right)=\arg \min _{j, s} E_{j, s}\)

9. else

10. Set \(\hat{y}=\) average \(_{i \in I} y^{(i)}\)

11. return \(\operatorname{Leaf}\)(leave_value=\(\hat{y})\)

12. return \(\operatorname{Node}\left(j^*, s^*, \operatorname{BuildTree}\left(I_{j^*, s^*}^{-}, k\right), \operatorname{BuildTree}\left(I_{j^*, s^*}^{+}, k\right)\right)\)

For this fixed \((j, s)\)
- \(I_{j, s}^{+} = \{2,3\}\)
- \(I_{j, s}^{-} = \{1\}\)
- \(\hat{y}_{j, s}^{+} = 5\)
- \(\hat{y}_{j, s}^{-} = 0\)
- \(E_{j, s} =0\)

({x}^{(1)},{y}^{(1)})

({x}^{(2)},{y}^{(2)})

({x}^{(3)},{y}^{(3)})

\(\operatorname{BuildTree}(I, k, \mathcal{D})\)

1. if \(|I| > k\)

2. for each split dim \(j\) and split value \(s\)

3. Set \(I_{j, s}^{+}=\left\{i \in I \mid x_j^{(i)} \geq s\right\}\)

4. Set \(I_{j, s}^{-}=\left\{i \in I \mid x_j^{(i)}<s\right\}\)

5. Set \(\hat{y}_{j, s}^{+}=\) average \(_{i \in I_{j, s}^{+}} y^{(i)}\)

6. Set \(\hat{y}_{j, s}^{-}=\) average \(_{i \in I_{j, s}^{-}} y^{(i)}\)

7. Set \(E_{j, s}=\sum_{i \in I_{j, s}^{+}}\left(y^{(i)}-\hat{y}_{j, s}^{+}\right)^2+\sum_{i \in I_{j, s}^{-}}\left(y^{(i)}-\hat{y}_{j, s}^{-}\right)^2\)

8. Set \(\left(j^*, s^*\right)=\arg \min _{j, s} E_{j, s}\)

9. else

10. Set \(\hat{y}=\) average \(_{i \in I} y^{(i)}\)

11. return \(\operatorname{Leaf}\)(leave_value=\(\hat{y})\)

12. return \(\operatorname{Node}\left(j^*, s^*, \operatorname{BuildTree}\left(I_{j^*, s^*}^{-}, k\right), \operatorname{BuildTree}\left(I_{j^*, s^*}^{+}, k\right)\right)\)

Line 2: It suffices to consider a finite number of \((j, s)\) combo suffices (those that split in-between data points)

({x}^{(1)},{y}^{(1)})

({x}^{(2)},{y}^{(2)})

({x}^{(3)},{y}^{(3)})

\(\operatorname{BuildTree}(I, k, \mathcal{D})\)

1. if \(|I| > k\)

2. for each split dim \(j\) and split value \(s\)

3. Set \(I_{j, s}^{+}=\left\{i \in I \mid x_j^{(i)} \geq s\right\}\)

4. Set \(I_{j, s}^{-}=\left\{i \in I \mid x_j^{(i)}<s\right\}\)

5. Set \(\hat{y}_{j, s}^{+}=\) average \(_{i \in I_{j, s}^{+}} y^{(i)}\)

6. Set \(\hat{y}_{j, s}^{-}=\) average \(_{i \in I_{j, s}^{-}} y^{(i)}\)

7. Set \(E_{j, s}=\sum_{i \in I_{j, s}^{+}}\left(y^{(i)}-\hat{y}_{j, s}^{+}\right)^2+\sum_{i \in I_{j, s}^{-}}\left(y^{(i)}-\hat{y}_{j, s}^{-}\right)^2\)

8. Set \(\left(j^*, s^*\right)=\arg \min _{j, s} E_{j, s}\)

9. else

10. Set \(\hat{y}=\) average \(_{i \in I} y^{(i)}\)

11. return \(\operatorname{Leaf}\)(leave_value=\(\hat{y})\)

12. return \(\operatorname{Node}\left(j^*, s^*, \operatorname{BuildTree}\left(I_{j^*, s^*}^{-}, k\right), \operatorname{BuildTree}\left(I_{j^*, s^*}^{+}, k\right)\right)\)

Line 8: picks the "best" among these finite choices of \((j, s)\) combos (random tie-breaking).

({x}^{(1)},{y}^{(1)})

({x}^{(2)},{y}^{(2)})

({x}^{(3)},{y}^{(3)})

\(\operatorname{BuildTree}(I, k, \mathcal{D})\)

1. if \(|I| > k\)

2. for each split dim \(j\) and split value \(s\)

3. Set \(I_{j, s}^{+}=\left\{i \in I \mid x_j^{(i)} \geq s\right\}\)

4. Set \(I_{j, s}^{-}=\left\{i \in I \mid x_j^{(i)}<s\right\}\)

5. Set \(\hat{y}_{j, s}^{+}=\) average \(_{i \in I_{j, s}^{+}} y^{(i)}\)

6. Set \(\hat{y}_{j, s}^{-}=\) average \(_{i \in I_{j, s}^{-}} y^{(i)}\)

7. Set \(E_{j, s}=\sum_{i \in I_{j, s}^{+}}\left(y^{(i)}-\hat{y}_{j, s}^{+}\right)^2+\sum_{i \in I_{j, s}^{-}}\left(y^{(i)}-\hat{y}_{j, s}^{-}\right)^2\)

8. Set \(\left(j^*, s^*\right)=\arg \min _{j, s} E_{j, s}\)

9. else

10. Set \(\hat{y}=\) average \(_{i \in I} y^{(i)}\)

11. return \(\operatorname{Leaf}\)(leave_value=\(\hat{y})\)

12. return \(\operatorname{Node}\left(j^*, s^*, \operatorname{BuildTree}\left(I_{j^*, s^*}^{-}, k\right), \operatorname{BuildTree}\left(I_{j^*, s^*}^{+}, k\right)\right)\)

Suppose line 8 sets this \((j^*,s^*)\),

say = \((j^*,s^*) = (1, 1.7)\)

({x}^{(1)},{y}^{(1)})

({x}^{(2)},{y}^{(2)})

({x}^{(3)},{y}^{(3)})

\(\operatorname{BuildTree}(I, k, \mathcal{D})\)

1. if \(|I| > k\)

2. for each split dim \(j\) and split value \(s\)

3. Set \(I_{j, s}^{+}=\left\{i \in I \mid x_j^{(i)} \geq s\right\}\)

4. Set \(I_{j, s}^{-}=\left\{i \in I \mid x_j^{(i)}<s\right\}\)

5. Set \(\hat{y}_{j, s}^{+}=\) average \(_{i \in I_{j, s}^{+}} y^{(i)}\)

6. Set \(\hat{y}_{j, s}^{-}=\) average \(_{i \in I_{j, s}^{-}} y^{(i)}\)

7. Set \(E_{j, s}=\sum_{i \in I_{j, s}^{+}}\left(y^{(i)}-\hat{y}_{j, s}^{+}\right)^2+\sum_{i \in I_{j, s}^{-}}\left(y^{(i)}-\hat{y}_{j, s}^{-}\right)^2\)

8. Set \(\left(j^*, s^*\right)=\arg \min _{j, s} E_{j, s}\)

9. else

10. Set \(\hat{y}=\) average \(_{i \in I} y^{(i)}\)

11. return \(\operatorname{Leaf}\)(leave_value=\(\hat{y})\)

12. return \(\operatorname{Node}\left(j^*, s^*, \operatorname{BuildTree}\left(I_{j^*, s^*}^{-}, k\right), \operatorname{BuildTree}\left(I_{j^*, s^*}^{+}, k\right)\right)\)

\operatorname{BuildTree}\left(\{1\}; 2\right)

\operatorname{BuildTree}\left(\{2,3\}; 2\right)

Line 12 recursion

\(x_1 \geq 1.7\)

({x}^{(1)},{y}^{(1)})

({x}^{(2)},{y}^{(2)})

({x}^{(3)},{y}^{(3)})

\(\operatorname{BuildTree}(I, k, \mathcal{D})\)

1. if \(|I| > k\)

2. for each split dim \(j\) and split value \(s\)

3. Set \(I_{j, s}^{+}=\left\{i \in I \mid x_j^{(i)} \geq s\right\}\)

4. Set \(I_{j, s}^{-}=\left\{i \in I \mid x_j^{(i)}<s\right\}\)

5. Set \(\hat{y}_{j, s}^{+}=\) average \(_{i \in I_{j, s}^{+}} y^{(i)}\)

6. Set \(\hat{y}_{j, s}^{-}=\) average \(_{i \in I_{j, s}^{-}} y^{(i)}\)

7. Set \(E_{j, s}=\sum_{i \in I_{j, s}^{+}}\left(y^{(i)}-\hat{y}_{j, s}^{+}\right)^2+\sum_{i \in I_{j, s}^{-}}\left(y^{(i)}-\hat{y}_{j, s}^{-}\right)^2\)

8. Set \(\left(j^*, s^*\right)=\arg \min _{j, s} E_{j, s}\)

9. else

10. Set \(\hat{y}=\) average \(_{i \in I} y^{(i)}\)

11. return \(\operatorname{Leaf}\)(leave_value=\(\hat{y})\)

12. return \(\operatorname{Node}\left(j^*, s^*, \operatorname{BuildTree}\left(I_{j^*, s^*}^{-}, k\right), \operatorname{BuildTree}\left(I_{j^*, s^*}^{+}, k\right)\right)\)

\operatorname{BuildTree}\left(\{1\}; 2\right)

\operatorname{BuildTree}\left(\{2,3\}; 2\right)

\(x_1 \geq 1.7\)

({x}^{(1)},{y}^{(1)})

({x}^{(2)},{y}^{(2)})

({x}^{(3)},{y}^{(3)})

\(\operatorname{BuildTree}(I, k, \mathcal{D})\)

1. if \(|I| > k\)

2. for each split dim \(j\) and split value \(s\)

3. Set \(I_{j, s}^{+}=\left\{i \in I \mid x_j^{(i)} \geq s\right\}\)

4. Set \(I_{j, s}^{-}=\left\{i \in I \mid x_j^{(i)}<s\right\}\)

5. Set \(\hat{y}_{j, s}^{+}=\) average \(_{i \in I_{j, s}^{+}} y^{(i)}\)

6. Set \(\hat{y}_{j, s}^{-}=\) average \(_{i \in I_{j, s}^{-}} y^{(i)}\)

7. Set \(E_{j, s}=\sum_{i \in I_{j, s}^{+}}\left(y^{(i)}-\hat{y}_{j, s}^{+}\right)^2+\sum_{i \in I_{j, s}^{-}}\left(y^{(i)}-\hat{y}_{j, s}^{-}\right)^2\)

8. Set \(\left(j^*, s^*\right)=\arg \min _{j, s} E_{j, s}\)

9. else

10. Set \(\hat{y}=\) average \(_{i \in I} y^{(i)}\)

11. return \(\operatorname{Leaf}\)(leave_value=\(\hat{y})\)

12. return \(\operatorname{Node}\left(j^*, s^*, \operatorname{BuildTree}\left(I_{j^*, s^*}^{-}, k\right), \operatorname{BuildTree}\left(I_{j^*, s^*}^{+}, k\right)\right)\)

\operatorname{BuildTree}\left(\{2,3\}; 2\right)

\(x_1 \geq 1.7\)

({x}^{(1)},{y}^{(1)})

({x}^{(2)},{y}^{(2)})

({x}^{(3)},{y}^{(3)})

\(\operatorname{BuildTree}(I, k, \mathcal{D})\)

1. if \(|I| > k\)

2. for each split dim \(j\) and split value \(s\)

3. Set \(I_{j, s}^{+}=\left\{i \in I \mid x_j^{(i)} \geq s\right\}\)

4. Set \(I_{j, s}^{-}=\left\{i \in I \mid x_j^{(i)}<s\right\}\)

5. Set \(\hat{y}_{j, s}^{+}=\) average \(_{i \in I_{j, s}^{+}} y^{(i)}\)

6. Set \(\hat{y}_{j, s}^{-}=\) average \(_{i \in I_{j, s}^{-}} y^{(i)}\)

7. Set \(E_{j, s}=\sum_{i \in I_{j, s}^{+}}\left(y^{(i)}-\hat{y}_{j, s}^{+}\right)^2+\sum_{i \in I_{j, s}^{-}}\left(y^{(i)}-\hat{y}_{j, s}^{-}\right)^2\)

8. Set \(\left(j^*, s^*\right)=\arg \min _{j, s} E_{j, s}\)

9. else

10. Set \(\hat{y}=\) average \(_{i \in I} y^{(i)}\)

11. return \(\operatorname{Leaf}\)(leave_value=\(\hat{y})\)

12. return \(\operatorname{Node}\left(j^*, s^*, \operatorname{BuildTree}\left(I_{j^*, s^*}^{-}, k\right), \operatorname{BuildTree}\left(I_{j^*, s^*}^{+}, k\right)\right)\)

\operatorname{BuildTree}\left(\{2,3\}; 2\right)

\(x_1 \geq 1.7\)

({x}^{(1)},{y}^{(1)})

({x}^{(2)},{y}^{(2)})

({x}^{(3)},{y}^{(3)})

\(\operatorname{BuildTree}(I, k, \mathcal{D})\)

1. if \(|I| > k\)

2. for each split dim \(j\) and split value \(s\)

3. Set \(I_{j, s}^{+}=\left\{i \in I \mid x_j^{(i)} \geq s\right\}\)

4. Set \(I_{j, s}^{-}=\left\{i \in I \mid x_j^{(i)}<s\right\}\)

5. Set \(\hat{y}_{j, s}^{+}=\) average \(_{i \in I_{j, s}^{+}} y^{(i)}\)

6. Set \(\hat{y}_{j, s}^{-}=\) average \(_{i \in I_{j, s}^{-}} y^{(i)}\)

7. Set \(E_{j, s}=\sum_{i \in I_{j, s}^{+}}\left(y^{(i)}-\hat{y}_{j, s}^{+}\right)^2+\sum_{i \in I_{j, s}^{-}}\left(y^{(i)}-\hat{y}_{j, s}^{-}\right)^2\)

8. Set \(\left(j^*, s^*\right)=\arg \min _{j, s} E_{j, s}\)

9. else

10. Set \(\hat{y}=\) average \(_{i \in I} y^{(i)}\)

11. return \(\operatorname{Leaf}\)(leave_value=\(\hat{y})\)

12. return \(\operatorname{Node}\left(j^*, s^*, \operatorname{BuildTree}\left(I_{j^*, s^*}^{-}, k\right), \operatorname{BuildTree}\left(I_{j^*, s^*}^{+}, k\right)\right)\)

\(x_1 \geq 1.7\)

🌳 How to Grow a Classification Tree

The big idea:

Grow — start with all data at the root.
Try candidate splits along each feature.
Split — pick the split that best separates the classes
(lowest weighted entropy or highest information gain).
Stop — if a region is small or already pure
(data within ≤ leaf size, or most data share the same label), make it a leaf.

Recursive partitioning: each split divides data into regions that are more homogeneous in class labels, and each leaf predicts by the majority label of its data points.

entropy \(H:=-\sum_{\text {class }_c} \hat{P}_c (\log _2 \hat{P}_c)\)

(about 1.1)

for example: \(c\) iterates over 3 classes

\frac{4}{6}

\frac{1}{6}

\(\hat{P}_c:\)

\(H= -[\frac{4}{6} \log _2\left(\frac{4}{6}\right)+\frac{1}{6} \log _2\left(\frac{1}{6}\right)+\frac{1}{6} \log _2\left(\frac{1}{6}\right)]\)

(about 1.252)

\frac{3}{6}

\(\hat{P}_c:\)

\(H= -[\frac{3}{6} \log _2\left(\frac{3}{6}\right)+\frac{3}{6} \log _2\left(\frac{3}{6}\right)+ 0]\)

\frac{6}{6}

\(\hat{P}_c:\)

\(H= -[\frac{6}{6} \log _2\left(\frac{6}{6}\right)+ 0+ 0]\)

(= 0)

empirical probability

\(\operatorname{BuildTree}(I, k, \mathcal{D})\)

10. Set \(\hat{y}=\) majority \(_{i \in I} y^{(i)}\)

1. if \(|I| > k\)

2. for each split dim \(j\) and split value \(s\)

3. Set \(I_{j, s}^{+}=\left\{i \in I \mid x_j^{(i)} \geq s\right\}\)

4. Set \(I_{j, s}^{-}=\left\{i \in I \mid x_j^{(i)}<s\right\}\)

5. Set \(\hat{y}_{j, s}^{+}=\) majority \(_{i \in I_{j, s}^{+}} y^{(i)}\)

6. Set \(\hat{y}_{j, s}^{-}=\) majority \(_{i \in I_{j, s}^{-}} y^{(i)}\)

7. Set \(E_{j, s} = \frac{\left|I_{j, s}^{-}\right|}{|I|} \cdot H\left(I_{j, s}^{-}\right)+\frac{\left|I_{j, s}^{+}\right|}{|I|} \cdot H\left(I_{j, s}^{+}\right)\)

8. Set \(\left(j^*, s^*\right)=\arg \min _{j, s} E_{j, s}\)

9. else

11. return \(\operatorname{Leaf}\)(leave_value=\(\hat{y})\)

12. return \(\operatorname{Node}\left(j^*, s^*, \operatorname{BuildTree}\left(I_{j^*, s^*}^{-}, k\right), \operatorname{BuildTree}\left(I_{j^*, s^*}^{+}, k\right)\right)\)

weighted average entropy (WAE)

as performance metric

majority vote

as regional prediction

For classification

\(\operatorname{BuildTree}(I, k, \mathcal{D})\)

10. Set \(\hat{y}=\) majority \(_{i \in I} y^{(i)}\)

1. if \(|I| > k\)

2. for each split dim \(j\) and split value \(s\)

3. Set \(I_{j, s}^{+}=\left\{i \in I \mid x_j^{(i)} \geq s\right\}\)

4. Set \(I_{j, s}^{-}=\left\{i \in I \mid x_j^{(i)}<s\right\}\)

5. Set \(\hat{y}_{j, s}^{+}=\) majority \(_{i \in I_{j, s}^{+}} y^{(i)}\)

6. Set \(\hat{y}_{j, s}^{-}=\) majority \(_{i \in I_{j, s}^{-}} y^{(i)}\)

7. Set \(E_{j, s} = \frac{\left|I_{j, s}^{-}\right|}{|I|} \cdot H\left(I_{j, s}^{-}\right)+\frac{\left|I_{j, s}^{+}\right|}{|I|} \cdot H\left(I_{j, s}^{+}\right)\)

8. Set \(\left(j^*, s^*\right)=\arg \min _{j, s} E_{j, s}\)

9. else

11. return \(\operatorname{Leaf}\)(leave_value=\(\hat{y})\)

12. return \(\operatorname{Node}\left(j^*, s^*, \operatorname{BuildTree}\left(I_{j^*, s^*}^{-}, k\right), \operatorname{BuildTree}\left(I_{j^*, s^*}^{+}, k\right)\right)\)

\( \frac{4}{6} \cdot H\left(I_{j, s}^{-}\right)+\frac{2}{6} \cdot H\left(I_{j, s}^{+}\right)\)

fraction of points to the left of the split

fraction of points to the right of the split

\(E_{j,s}= \)

\(\operatorname{BuildTree}(I, k, \mathcal{D})\)

10. Set \(\hat{y}=\) majority \(_{i \in I} y^{(i)}\)

1. if \(|I| > k\)

2. for each split dim \(j\) and split value \(s\)

3. Set \(I_{j, s}^{+}=\left\{i \in I \mid x_j^{(i)} \geq s\right\}\)

4. Set \(I_{j, s}^{-}=\left\{i \in I \mid x_j^{(i)}<s\right\}\)

5. Set \(\hat{y}_{j, s}^{+}=\) majority \(_{i \in I_{j, s}^{+}} y^{(i)}\)

6. Set \(\hat{y}_{j, s}^{-}=\) majority \(_{i \in I_{j, s}^{-}} y^{(i)}\)

7. Set \(E_{j, s} = \frac{\left|I_{j, s}^{-}\right|}{|I|} \cdot H\left(I_{j, s}^{-}\right)+\frac{\left|I_{j, s}^{+}\right|}{|I|} \cdot H\left(I_{j, s}^{+}\right)\)

8. Set \(\left(j^*, s^*\right)=\arg \min _{j, s} E_{j, s}\)

9. else

11. return \(\operatorname{Leaf}\)(leave_value=\(\hat{y})\)

12. return \(\operatorname{Node}\left(j^*, s^*, \operatorname{BuildTree}\left(I_{j^*, s^*}^{-}, k\right), \operatorname{BuildTree}\left(I_{j^*, s^*}^{+}, k\right)\right)\)

\( -[\frac{3}{4} \log _2\left(\frac{3}{4}\right)+\frac{1}{4} \log _2\left(\frac{1}{4}\right)+0] \approx 0.811\)

\( \frac{4}{6} \cdot H\left(I_{j, s}^{-}\right)+\frac{2}{6} \cdot H\left(I_{j, s}^{+}\right)\)

\frac{3}{4}

\frac{0}{4}

\frac{1}{4}

\(\hat{P}_c:\)

\(\operatorname{BuildTree}(I, k, \mathcal{D})\)

10. Set \(\hat{y}=\) majority \(_{i \in I} y^{(i)}\)

1. if \(|I| > k\)

2. for each split dim \(j\) and split value \(s\)

3. Set \(I_{j, s}^{+}=\left\{i \in I \mid x_j^{(i)} \geq s\right\}\)

4. Set \(I_{j, s}^{-}=\left\{i \in I \mid x_j^{(i)}<s\right\}\)

5. Set \(\hat{y}_{j, s}^{+}=\) majority \(_{i \in I_{j, s}^{+}} y^{(i)}\)

6. Set \(\hat{y}_{j, s}^{-}=\) majority \(_{i \in I_{j, s}^{-}} y^{(i)}\)

7. Set \(E_{j, s} = \frac{\left|I_{j, s}^{-}\right|}{|I|} \cdot H\left(I_{j, s}^{-}\right)+\frac{\left|I_{j, s}^{+}\right|}{|I|} \cdot H\left(I_{j, s}^{+}\right)\)

8. Set \(\left(j^*, s^*\right)=\arg \min _{j, s} E_{j, s}\)

9. else

11. return \(\operatorname{Leaf}\)(leave_value=\(\hat{y})\)

12. return \(\operatorname{Node}\left(j^*, s^*, \operatorname{BuildTree}\left(I_{j^*, s^*}^{-}, k\right), \operatorname{BuildTree}\left(I_{j^*, s^*}^{+}, k\right)\right)\)

\( \frac{4}{6} \cdot H\left(I_{j, s}^{-}\right)+\frac{2}{6} \cdot H\left(I_{j, s}^{+}\right)\)

\(\approx 0.811\)

\( -[\frac{1}{2} \log _2\left(\frac{1}{2}\right)+\frac{1}{2} \log _2\left(\frac{1}{2}\right)+0] = 1\)

\frac{1}{2}

\frac{0}{2}

\(\hat{P}_c:\)

\(\operatorname{BuildTree}(I, k, \mathcal{D})\)

10. Set \(\hat{y}=\) majority \(_{i \in I} y^{(i)}\)

1. if \(|I| > k\)

2. for each split dim \(j\) and split value \(s\)

3. Set \(I_{j, s}^{+}=\left\{i \in I \mid x_j^{(i)} \geq s\right\}\)

4. Set \(I_{j, s}^{-}=\left\{i \in I \mid x_j^{(i)}<s\right\}\)

5. Set \(\hat{y}_{j, s}^{+}=\) majority \(_{i \in I_{j, s}^{+}} y^{(i)}\)

6. Set \(\hat{y}_{j, s}^{-}=\) majority \(_{i \in I_{j, s}^{-}} y^{(i)}\)

7. Set \(E_{j, s} = \frac{\left|I_{j, s}^{-}\right|}{|I|} \cdot H\left(I_{j, s}^{-}\right)+\frac{\left|I_{j, s}^{+}\right|}{|I|} \cdot H\left(I_{j, s}^{+}\right)\)

8. Set \(\left(j^*, s^*\right)=\arg \min _{j, s} E_{j, s}\)

9. else

11. return \(\operatorname{Leaf}\)(leave_value=\(\hat{y})\)

12. return \(\operatorname{Node}\left(j^*, s^*, \operatorname{BuildTree}\left(I_{j^*, s^*}^{-}, k\right), \operatorname{BuildTree}\left(I_{j^*, s^*}^{+}, k\right)\right)\)

\( \frac{4}{6} \cdot H\left(I_{j, s}^{-}\right)+\frac{2}{6} \cdot H\left(I_{j, s}^{+}\right)\)

\(\approx 0.811\)

\( = 1\)

(for this split choice, line 7 \(E_{j, s}\approx\) 0.874)

\(\approx \frac{4}{6}\cdot0.811+\frac{2}{6}\cdot 1\)

\(= 0.874\)

\(\operatorname{BuildTree}(I, k, \mathcal{D})\)

10. Set \(\hat{y}=\) majority \(_{i \in I} y^{(i)}\)

1. if \(|I| > k\)

2. for each split dim \(j\) and split value \(s\)

3. Set \(I_{j, s}^{+}=\left\{i \in I \mid x_j^{(i)} \geq s\right\}\)

4. Set \(I_{j, s}^{-}=\left\{i \in I \mid x_j^{(i)}<s\right\}\)

5. Set \(\hat{y}_{j, s}^{+}=\) majority \(_{i \in I_{j, s}^{+}} y^{(i)}\)

6. Set \(\hat{y}_{j, s}^{-}=\) majority \(_{i \in I_{j, s}^{-}} y^{(i)}\)

7. Set \(E_{j, s} = \frac{\left|I_{j, s}^{-}\right|}{|I|} \cdot H\left(I_{j, s}^{-}\right)+\frac{\left|I_{j, s}^{+}\right|}{|I|} \cdot H\left(I_{j, s}^{+}\right)\)

8. Set \(\left(j^*, s^*\right)=\arg \min _{j, s} E_{j, s}\)

9. else

11. return \(\operatorname{Leaf}\)(leave_value=\(\hat{y})\)

12. return \(\operatorname{Node}\left(j^*, s^*, \operatorname{BuildTree}\left(I_{j^*, s^*}^{-}, k\right), \operatorname{BuildTree}\left(I_{j^*, s^*}^{+}, k\right)\right)\)

\( \frac{5}{6} \cdot H\left(I_{j, s}^{-}\right)+\frac{1}{6} \cdot H\left(I_{j, s}^{+}\right)\)

\( -[\frac{4}{5} \log _2\left(\frac{4}{5}\right)+\frac{1}{5} \log _2\left(\frac{1}{5}\right)+0] \approx 0.722\)

\( -[1 \log _2\left(1\right)+0+0] = 0\)

(line 7, overall \(E_{j, s}\approx\) 0.602)

\(\operatorname{BuildTree}(I, k, \mathcal{D})\)

10. Set \(\hat{y}=\) majority \(_{i \in I} y^{(i)}\)

1. if \(|I| > k\)

2. for each split dim \(j\) and split value \(s\)

3. Set \(I_{j, s}^{+}=\left\{i \in I \mid x_j^{(i)} \geq s\right\}\)

4. Set \(I_{j, s}^{-}=\left\{i \in I \mid x_j^{(i)}<s\right\}\)

5. Set \(\hat{y}_{j, s}^{+}=\) majority \(_{i \in I_{j, s}^{+}} y^{(i)}\)

6. Set \(\hat{y}_{j, s}^{-}=\) majority \(_{i \in I_{j, s}^{-}} y^{(i)}\)

7. Set \(E_{j, s} = \frac{\left|I_{j, s}^{-}\right|}{|I|} \cdot H\left(I_{j, s}^{-}\right)+\frac{\left|I_{j, s}^{+}\right|}{|I|} \cdot H\left(I_{j, s}^{+}\right)\)

8. Set \(\left(j^*, s^*\right)=\arg \min _{j, s} E_{j, s}\)

9. else

11. return \(\operatorname{Leaf}\)(leave_value=\(\hat{y})\)

12. return \(\operatorname{Node}\left(j^*, s^*, \operatorname{BuildTree}\left(I_{j^*, s^*}^{-}, k\right), \operatorname{BuildTree}\left(I_{j^*, s^*}^{+}, k\right)\right)\)

this split \(E_{j, s}\approx\) 0.602

this split \(E_{j, s}\approx\) 0.874

line 8, set the better \((j, s)\)

Key takeaway:

Entropy measures impurity → the best split minimizes the weighted entropy.

(Weighted = each branch's entropy weighted by how many samples fall there.)

🪓 In classification decision trees, we keep "cutting" where uncertainty drops the most.

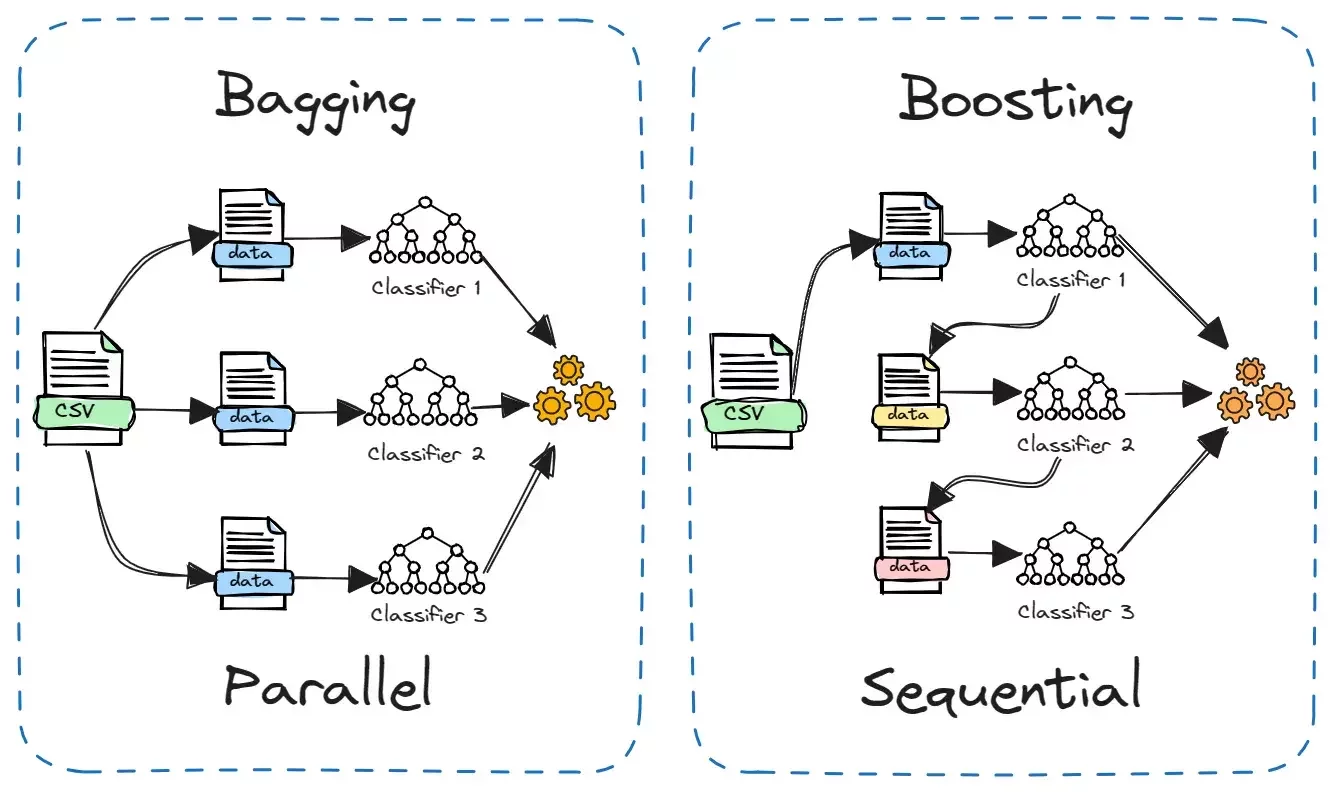

Ensemble

One of multiple ways to make and use an ensemble
Bagging = Bootstrap aggregating

Bagging

\dots

Draw with replacement from \(\mathcal{D}_n,\) create \(B\) new data sets of size \(n\)

\(\tilde{\mathcal{D}}_n^{(1)}\)

\(\tilde{x}^{(1)}, \tilde{y}^{(1)}\)

\(\tilde{x}^{(2)}, \tilde{y}^{(2)}\)

\(\tilde{x}^{(4)}, \tilde{y}^{(4)}\)

\(\tilde{x}^{(3)}, \tilde{y}^{(3)}\)

\(\tilde{\mathcal{D}}_n^{(2)}\)

\(\tilde{x}^{(1)}, \tilde{y}^{(1)}\)

\(\tilde{x}^{(2)}, \tilde{y}^{(2)}\)

\(\tilde{x}^{(4)}, \tilde{y}^{(4)}\)

\(\tilde{x}^{(3)}, \tilde{y}^{(3)}\)

\(\left(x^{(2)}, y^{(2)}\right)\)

\(\tilde{\mathcal{D}}_n^{(B)}\)

\(\tilde{x}^{(4)}, \tilde{y}^{(4)}\)

\(\tilde{x}^{(3)}, \tilde{y}^{(3)}\)

\(\tilde{x}^{(1)}, \tilde{y}^{(1)}\)

Training data \(\mathcal{D}_n\)

\(\left(x^{(1)}, y^{(1)}\right)\)

\(\left(x^{(2)}, y^{(2)}\right)\)

\(\left(x^{(3)}, y^{(3)}\right)\)

\(\left(x^{(4)}, y^{(4)}\right)\)

\(\hat{h}^{(B)}\)

\(\hat{h}^{(1)}\)

\(\hat{h}^{(2)}\)

\dots

for regression, average; for classification, vote

\(\hat{h}_{\text {bag }}(x)\)

(boosting)

Outline

Non-parametric models overview
Supervised learning non-parametric
- \(k\)-nearest neighbor
- Decision Tree (read a tree, BuildTree, Bagging)
Unsupervised learning non-parametric
- \(k\)-means clustering

x_1

x_2

x_1

x_2

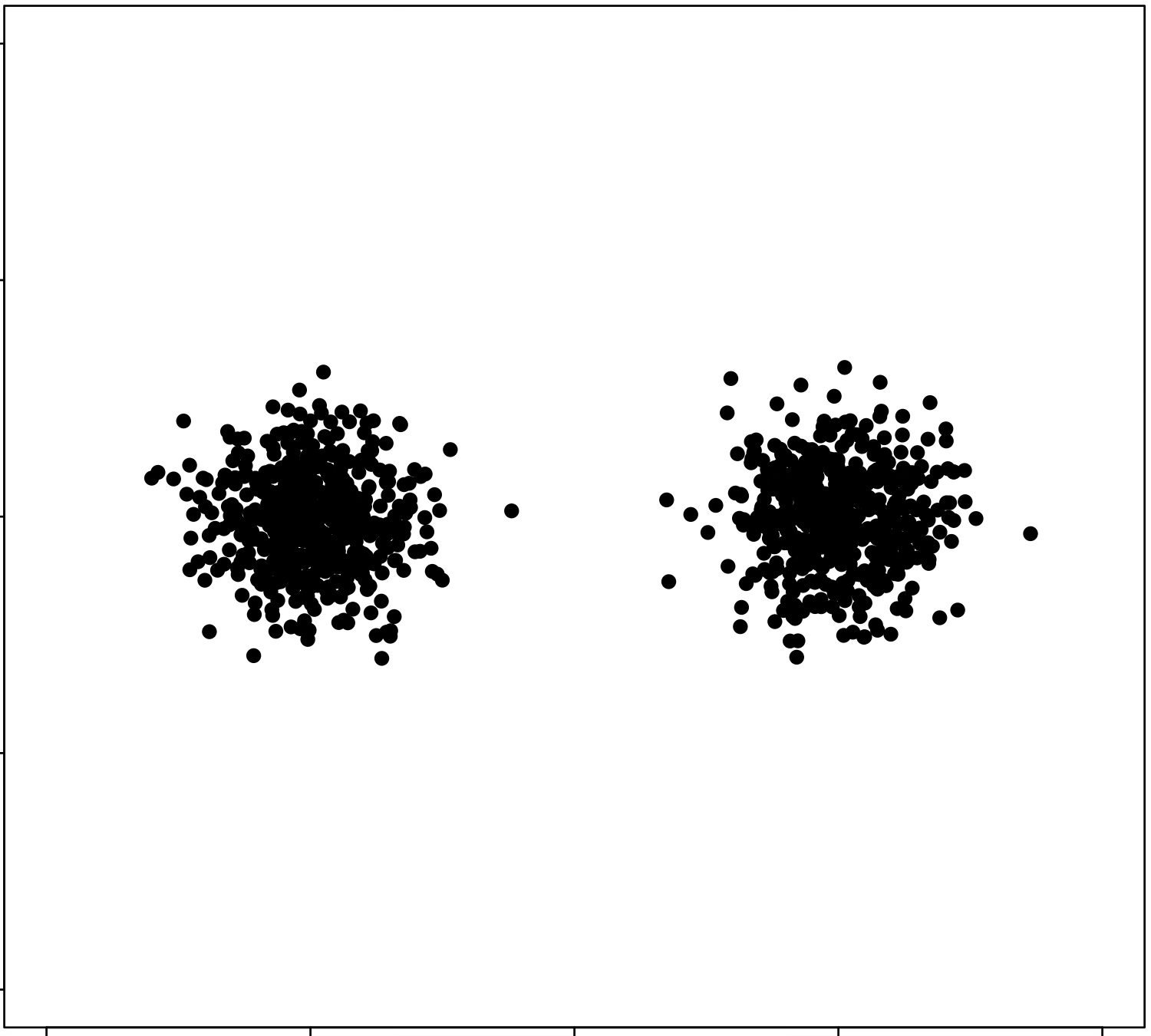

\(k\)-means clustering

structure discovery without labels

\(x_1\): longitude, \(x_2\): latitude
\(n\) person, person \(i\) location \(x^{(i)}\)

x_1

x_2

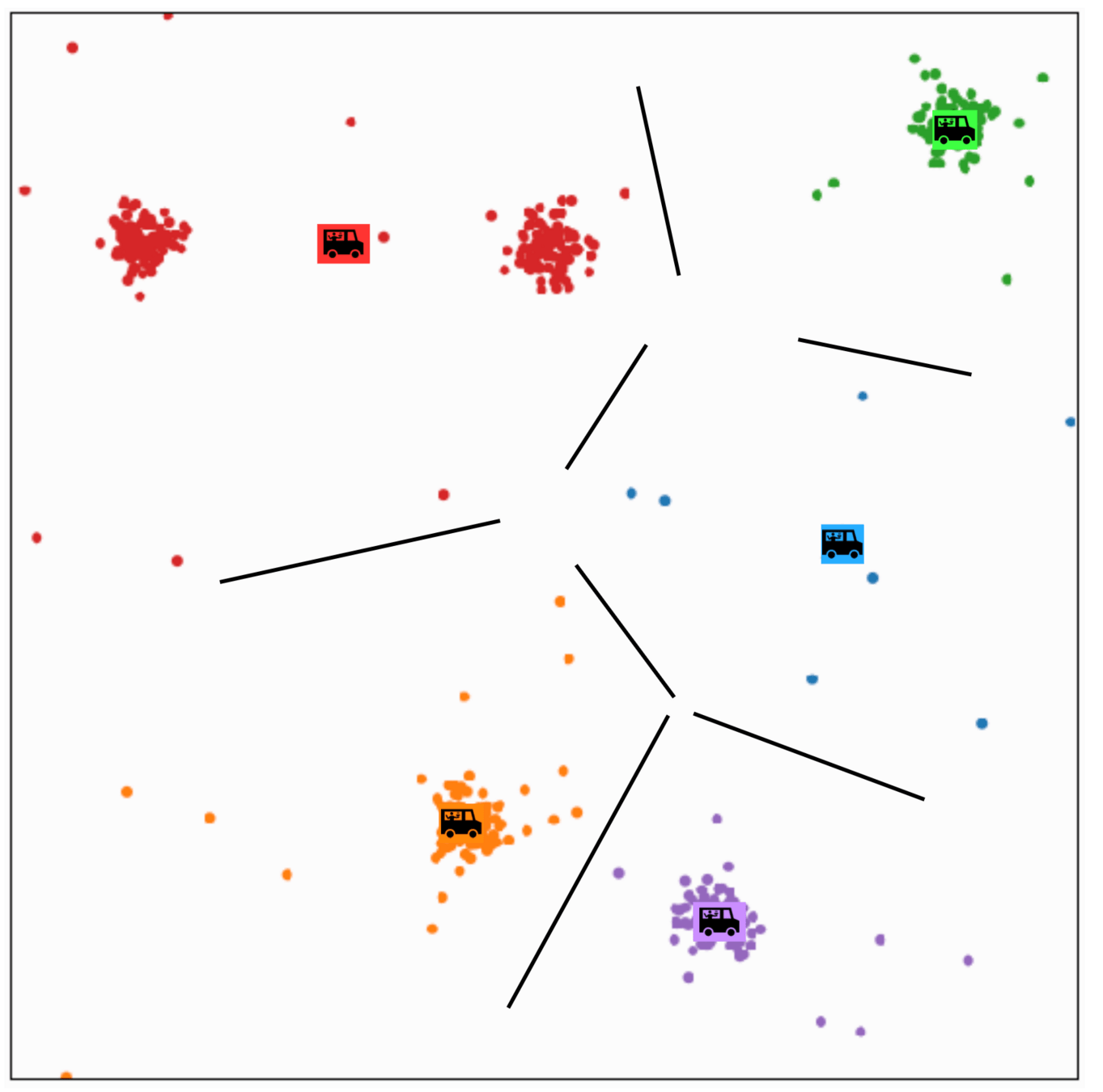

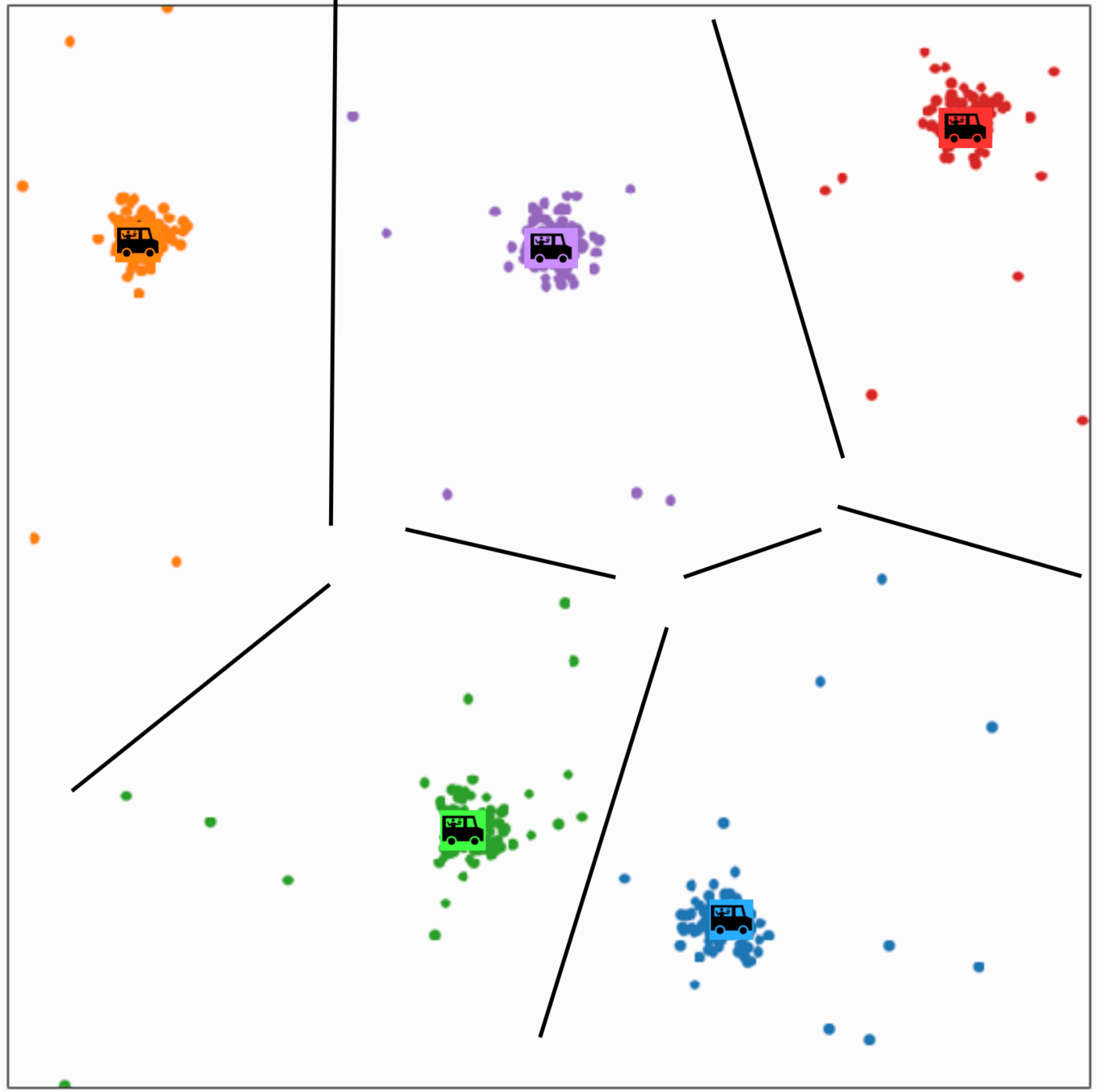

Food-truck placement

\(x_1\): longitude, \(x_2\): latitude
\(n\) person, person \(i\) location \(x^{(i)}\)
\(k\) food trucks, say \(k=5\)

Food-truck placement

x_1

x_2

\(x_1\): longitude, \(x_2\): latitude
\(n\) person, person \(i\) location \(x^{(i)}\)
\(k\) food trucks, say \(k=5\)
Food truck \(j\) location \(\mu^{(j)}\)

Food-truck placement

x_1

x_2

\(x_1\): longitude, \(x_2\): latitude
\(n\) person, person \(i\) location \(x^{(i)}\)
\(k\) food trucks, say \(k=5\)
Food truck \(j\) location \(\mu^{(j)}\)
Loss for \(i\) to walk to truck \(j\) : \(\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

Food-truck placement

x_1

x_2

\(x_1\): longitude, \(x_2\): latitude
\(n\) person, person \(i\) location \(x^{(i)}\)
\(k\) food trucks, say \(k=5\)
Food truck \(j\) location \(\mu^{(j)}\)
Loss for \(i\) to walk to truck \(j\) : \(\left\|x^{(i)}-\mu^{(j)}\right\|^2\)
Index of the truck to which \(i\) walks: \(y^{(i)}\)
Person \(i\) overall loss:

\(\sum_{j=1}^k \mathbf{1}\left\{y^{(i)}=j\right\}\left\|x^{(i)}-\mu^{(j)}\right\|_2^2\)

indicator function

1 if person \(i\) is assigned to truck \(j,\) 0 o/w.

x_1

x_2

Food-truck placement

\( \sum_{j=1}^k \mathbf{1}\left\{y^{(i)}=j\right\}\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

\(k\)-means objective

clustering membership

clustering centroid location

sum over cluster

sum over data points

can switch the order = \(\sum_{j=1}^k \sum_{i=1}^n \mathbf{1}\left\{y^{(i)}=j\right\}\left\|x^{(i)}-\mu^{(j)}\right\|_2^2\)

what we learn

\(\sum_{i=1}^n\)

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

10 return \(\mu, y\)

3 \(y_{\text {old }} = y\)

x_1

x_2

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

10 return \(\mu, y\)

3 \(y_{\text {old }} = y\)

x_1

x_2

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

10 return \(\mu, y\)

3 \(y_{\text {old }} = y\)

x_1

x_2

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

x_1

x_2

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

10 return \(\mu, y\)

3 \(y_{\text {old }} = y\)

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

x_1

x_2

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

10 return \(\mu, y\)

3 \(y_{\text {old }} = y\)

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

x_1

x_2

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

10 return \(\mu, y\)

3 \(y_{\text {old }} = y\)

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

person \(i\) assigned to food truck \(j\), feature space partition color-coded.

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

\(\dots\)

3 \(y_{\text {old }} = y\)

x_1

x_2

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

3 \(y_{\text {old }} = y\)

x_1

x_2

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

10 return \(\mu, y\)

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

\(N_j = \sum_{i=1}^n \mathbf{1}\left\{y^{(i)}=j\right\}\)

move food truck \(j\) to the central location of all people assigned to it.

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

\(\dots\)

3 \(y_{\text {old }} = y\)

x_1

x_2

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

2 for \(t=1\) to \(\tau\)

3 \(y_{\text {old }} = y\)

x_1

x_2

10 return \(\mu, y\)

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

2 for \(t=1\) to \(\tau\)

3 \(y_{\text {old }} = y\)

x_1

x_2

10 return \(\mu, y\)

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

2 for \(t=1\) to \(\tau\)

3 \(y_{\text {old }} = y\)

x_1

x_2

10 return \(\mu, y\)

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

3 \(y_{\text {old }} = y\)

x_1

x_2

10 return \(\mu, y\)

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

3 \(y_{\text {old }} = y\)

x_1

x_2

10 return \(\mu, y\)

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

3 \(y_{\text {old }} = y\)

x_1

x_2

10 return \(\mu, y\)

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

3 \(y_{\text {old }} = y\)

x_1

x_2

10 return \(\mu, y\)

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

2 for \(t=1\) to \(\tau\)

3 \(y_{\text {old }} = y\)

x_1

x_2

10 return \(\mu, y\)

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

3 \(y_{\text {old }} = y\)

x_1

x_2

10 return \(\mu, y\)

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

3 \(y_{\text {old }} = y\)

x_1

x_2

10 return \(\mu, y\)

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

3 \(y_{\text {old }} = y\)

x_1

x_2

10 return \(\mu, y\)

x_1

x_2

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

3 \(y_{\text {old }} = y\)

10 return \(\mu, y\)

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

3 \(y_{\text {old }} = y\)

x_1

x_2

10 return \(\mu, y\)

x_1

x_2

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

3 \(y_{\text {old }} = y\)

10 return \(\mu, y\)

x_1

x_2

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

3 \(y_{\text {old }} = y\)

10 return \(\mu, y\)

x_1

x_2

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

3 \(y_{\text {old }} = y\)

10 return \(\mu, y\)

x_1

x_2

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

3 \(y_{\text {old }} = y\)

10 return \(\mu, y\)

x_1

x_2

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

3 \(y_{\text {old }} = y\)

10 return \(\mu, y\)

x_1

x_2

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

3 \(y_{\text {old }} = y\)

10 return \(\mu, y\)

x_1

x_2

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

3 \(y_{\text {old }} = y\)

10 return \(\mu, y\)

x_1

x_2

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

3 \(y_{\text {old }} = y\)

10 return \(\mu, y\)

x_1

x_2

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

3 \(y_{\text {old }} = y\)

10 return \(\mu, y\)

x_1

x_2

K-MEANS\((k, \tau, \left\{x^{(i)}\right\}_{i=1}^n)\)

6 for \(j=1\) to \(k\)

\(7 \quad \quad\quad\quad \quad \mu^{(j)}=\frac{1}{N_j} \sum_{i=1}^n \mathbf{1}\left(y^{(i)}=\mathfrak{j}\right) x^{(i)}\)

1 \(\mu, y=\) random initialization

2 for \(t=1\) to \(\tau\)

8 if \(y==y_{\text {old }}\)

9\(\quad \quad \quad\quad \quad\)break

4 for \(i=1\) to \(n\)

\(5 \quad \quad\quad\quad \quad y^{(i)}=\arg \min _j\left\|x^{(i)}-\mu^{(j)}\right\|^2\)

3 \(y_{\text {old }} = y\)

10 return \(\mu, y\)

\(k\)-means algorithm is sensitive to initialization

\(k\)-means algorithm is sensitive to \(k\)

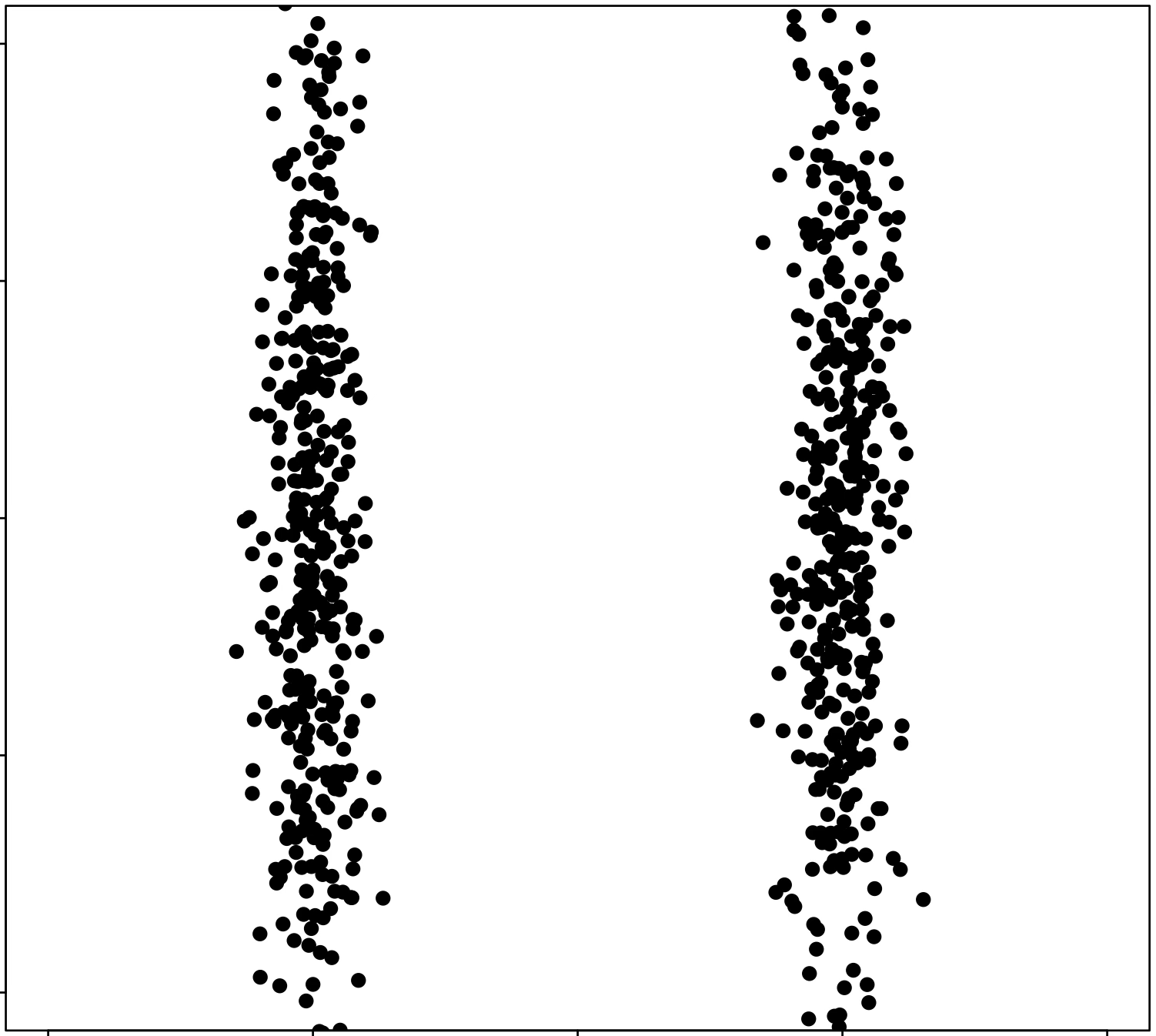

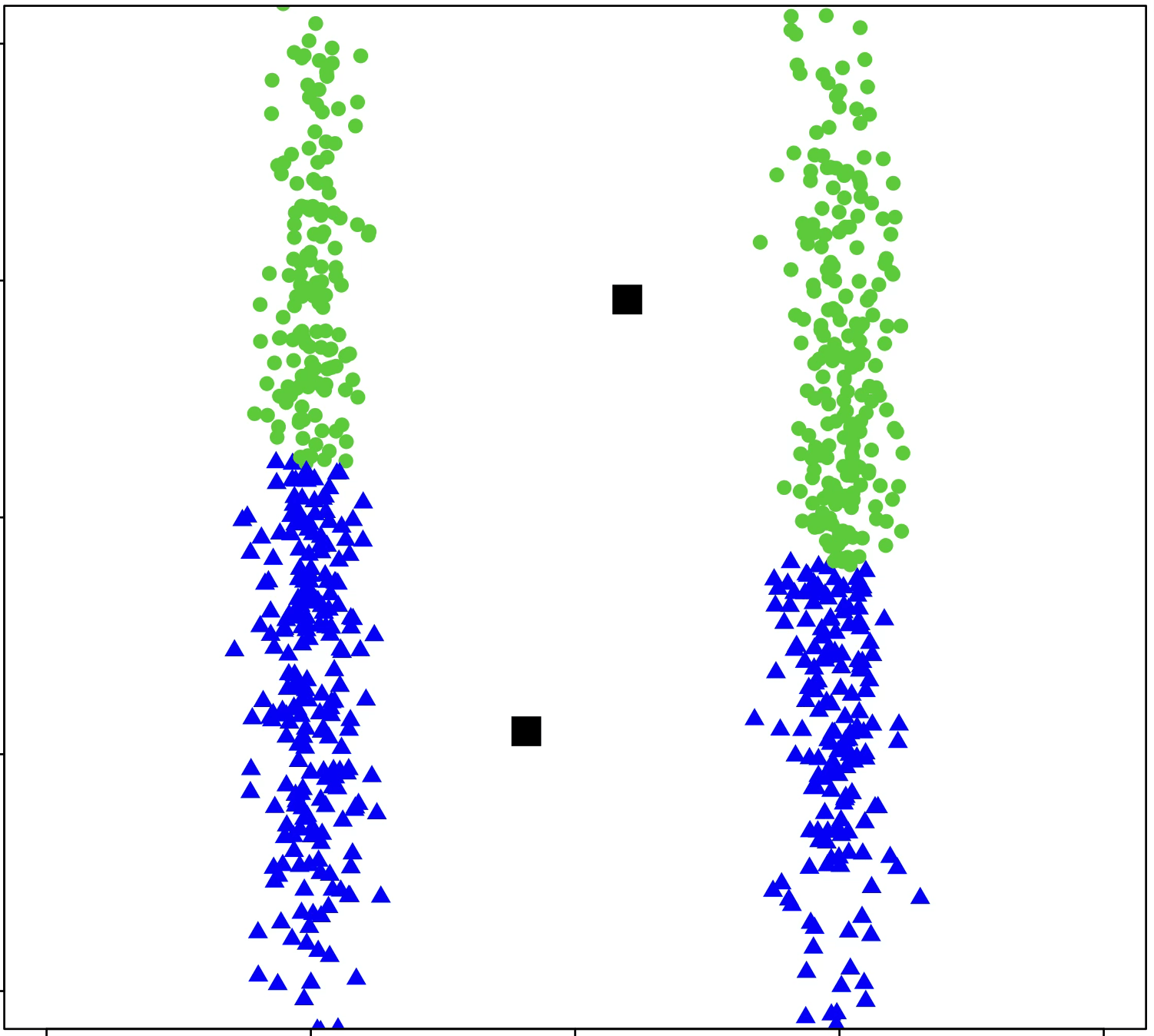

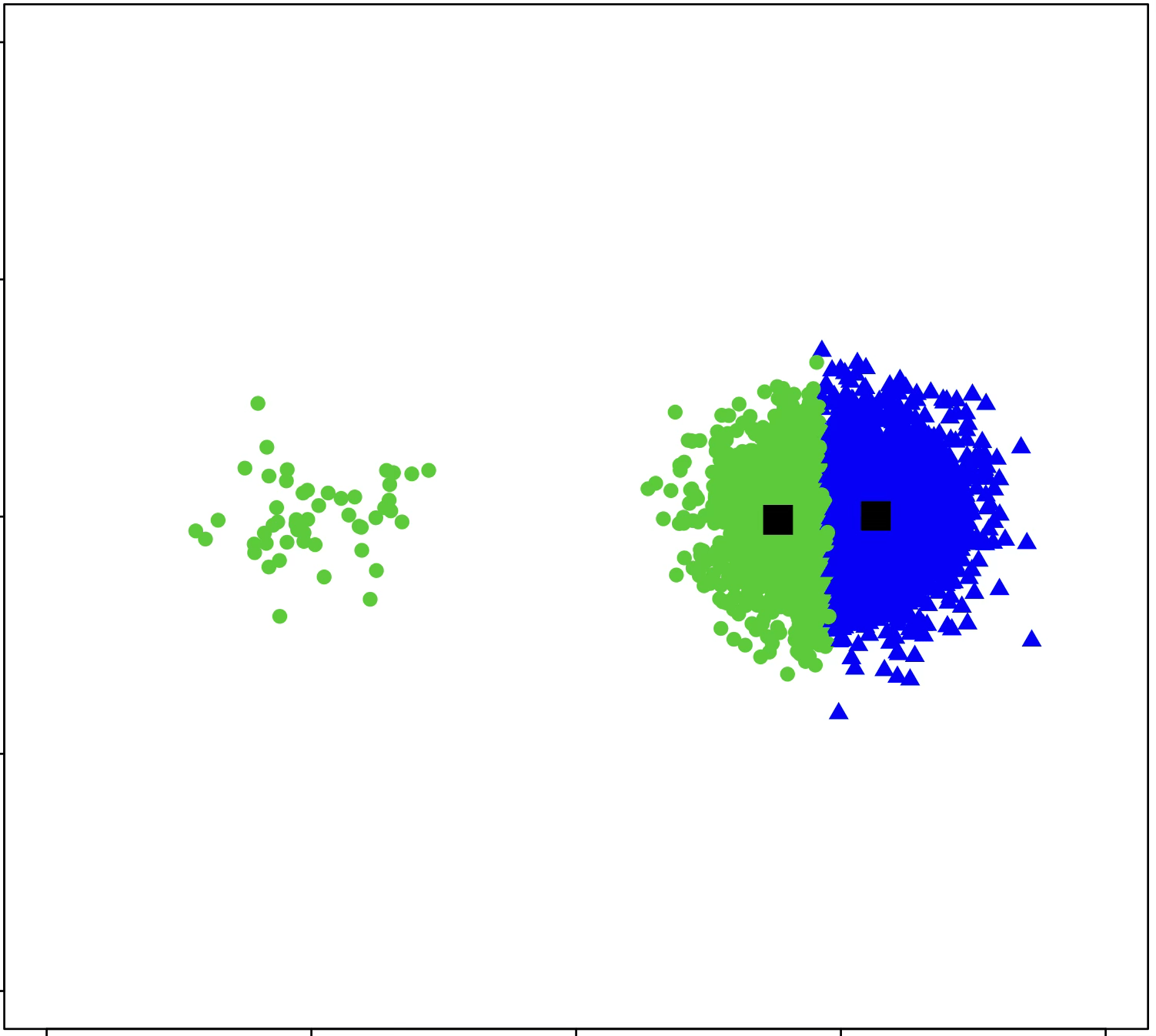

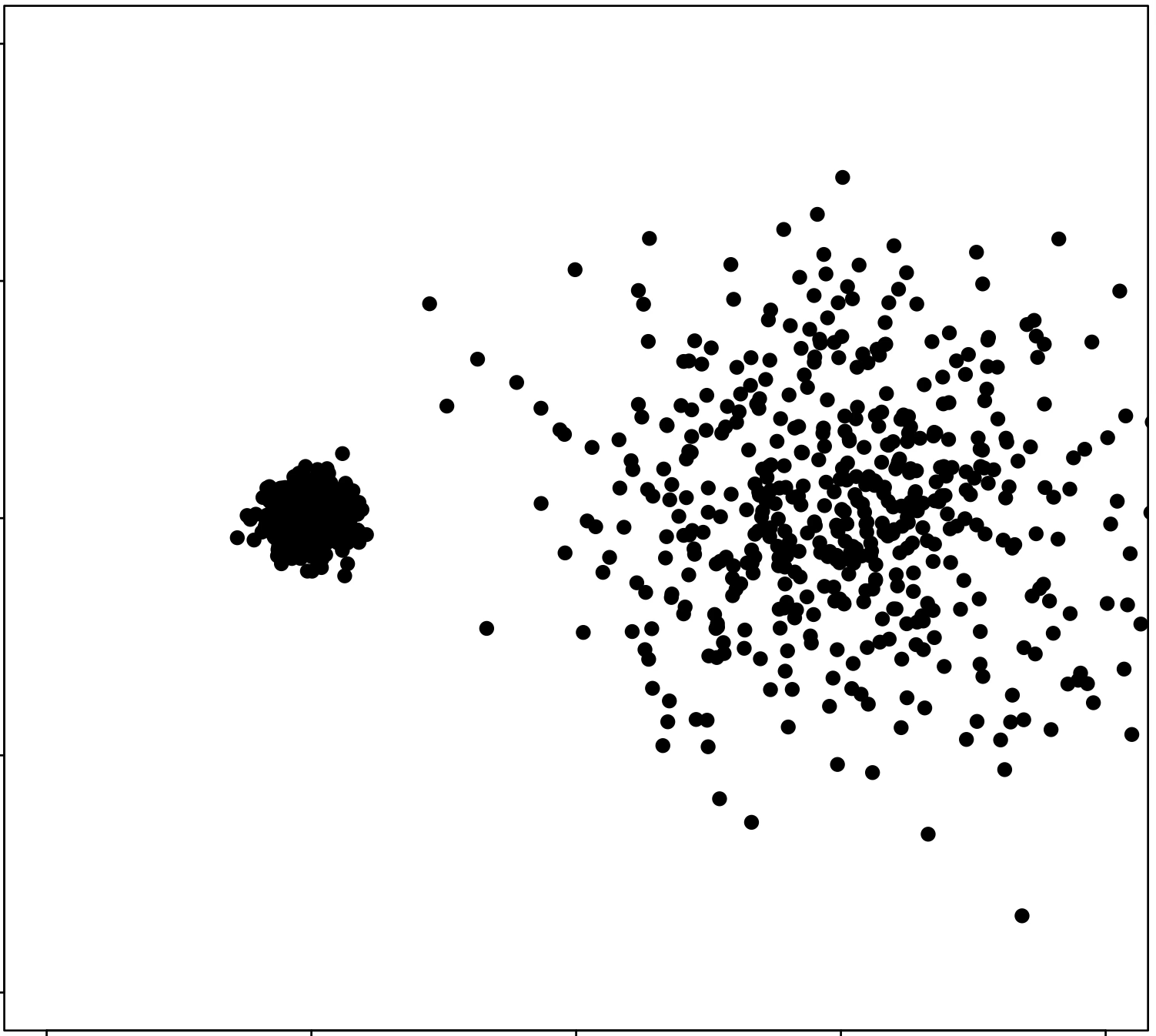

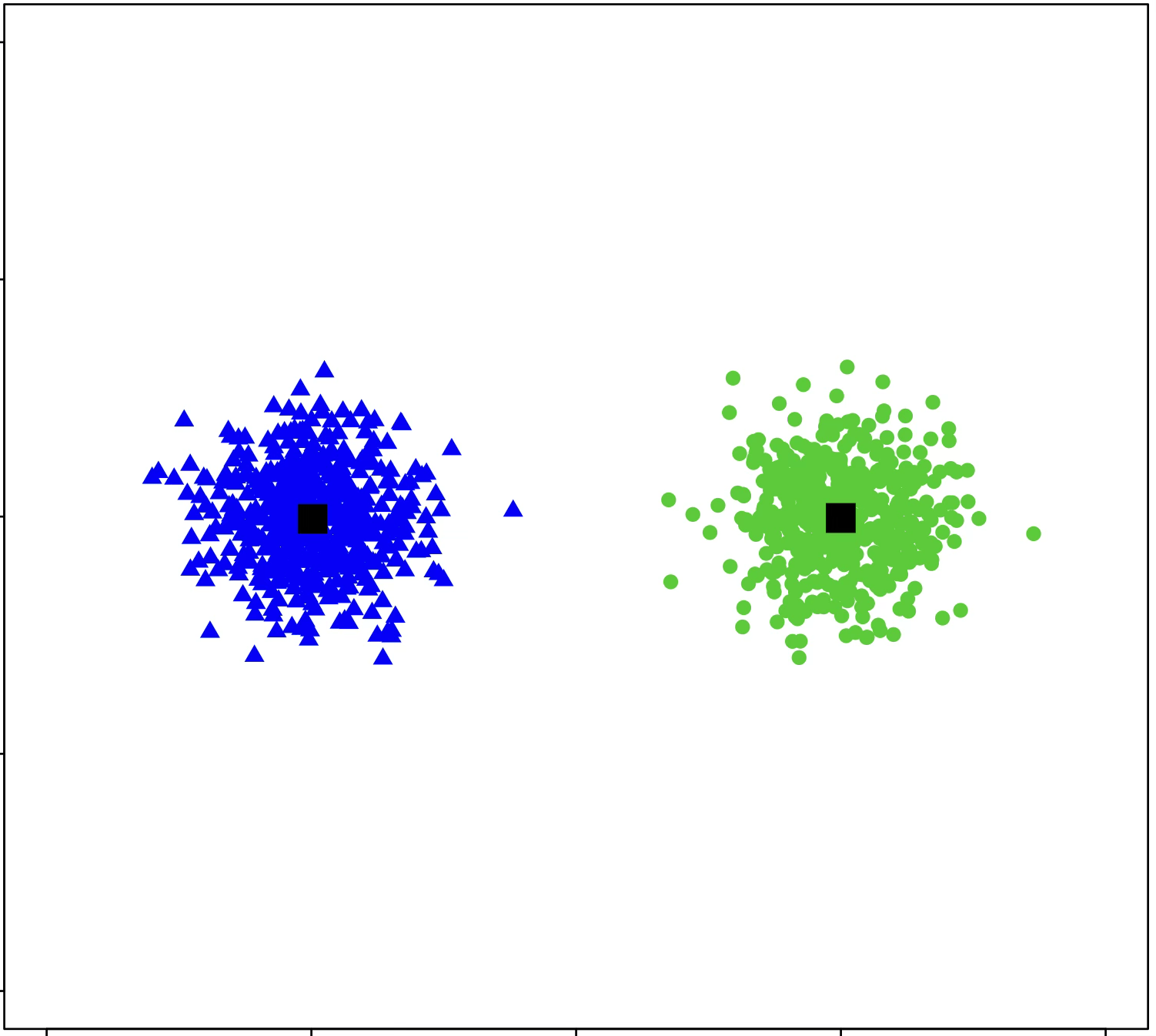

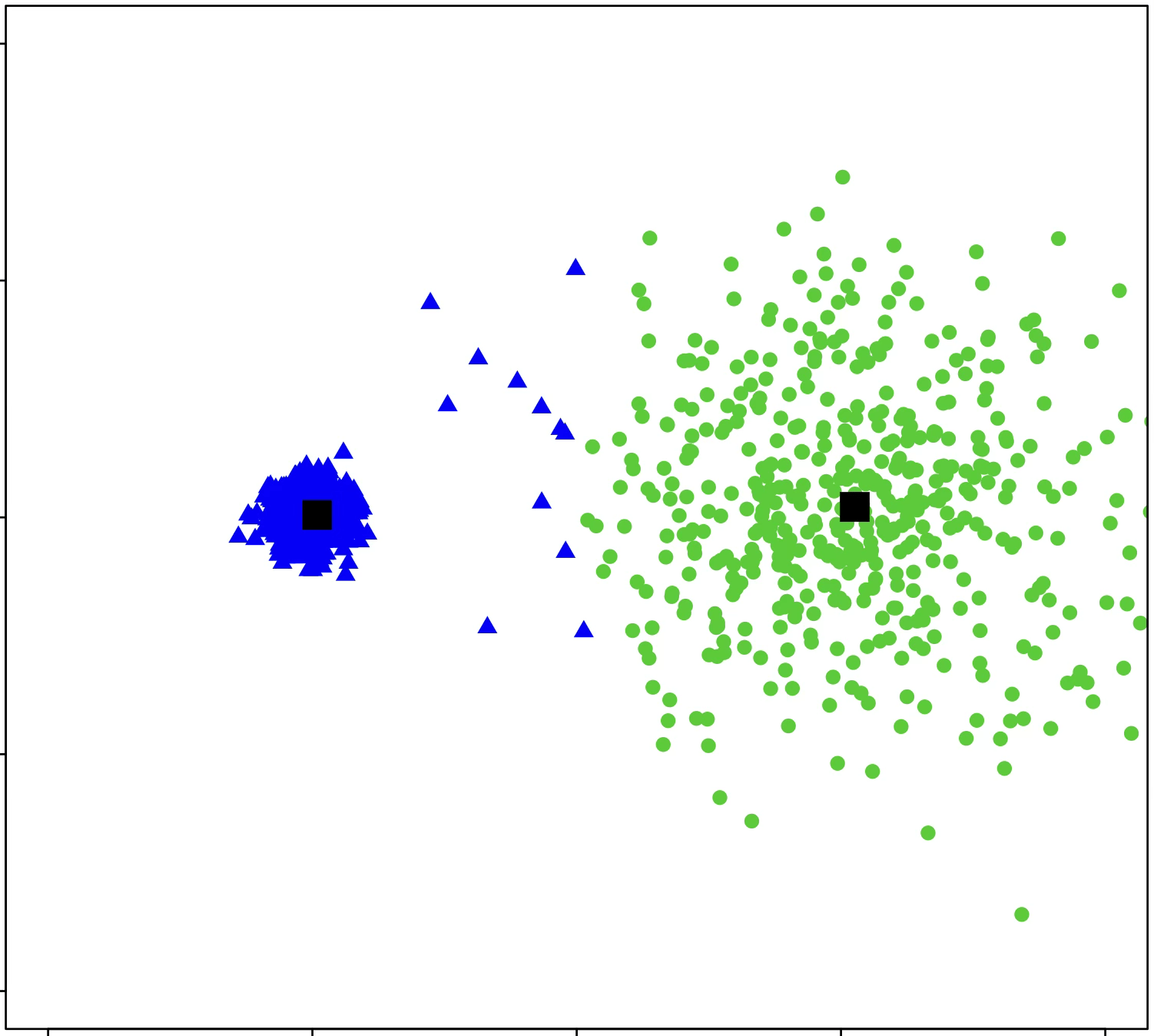

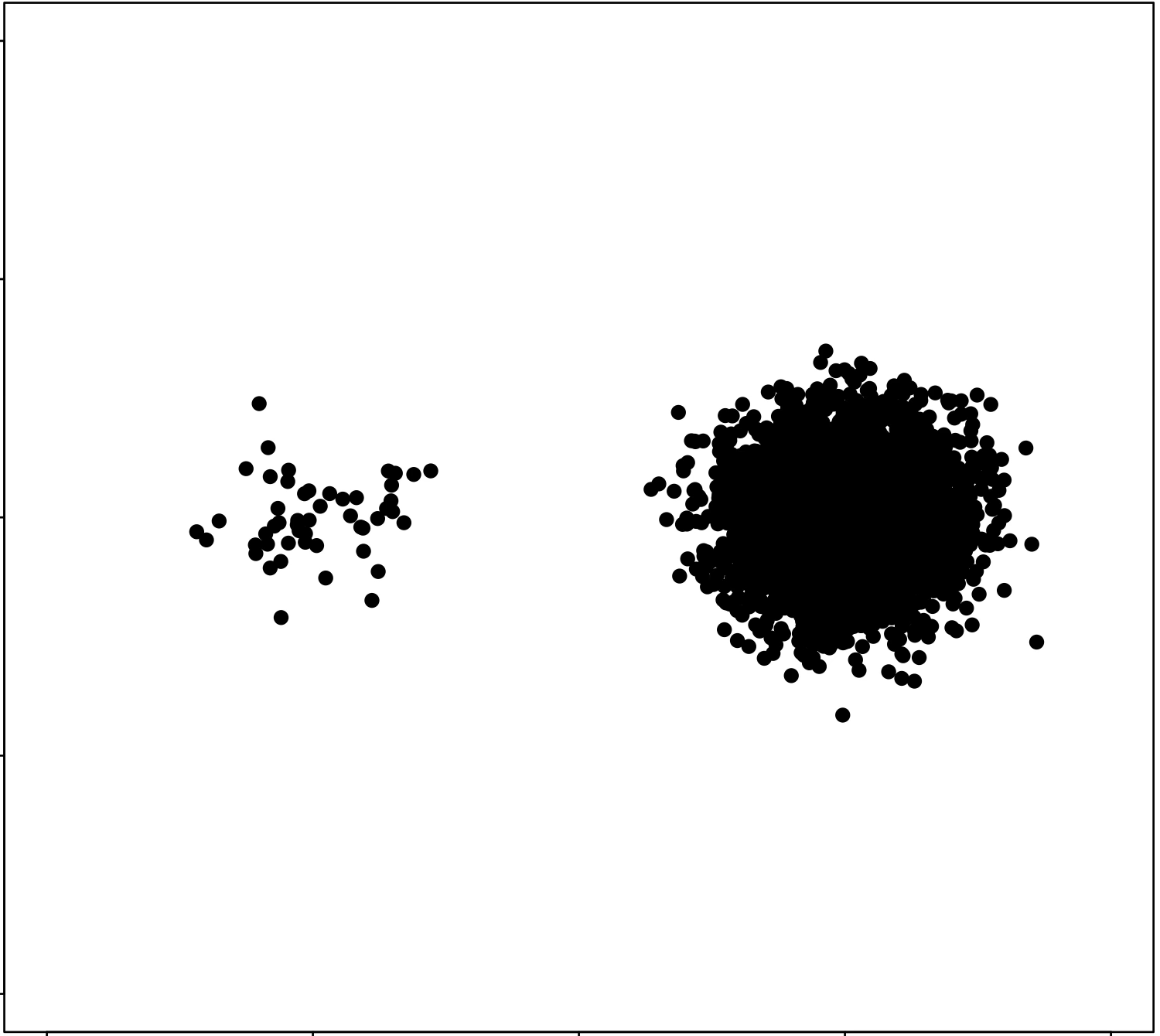

(\(k\)-means works well for well-separated circular clusters of the same size)

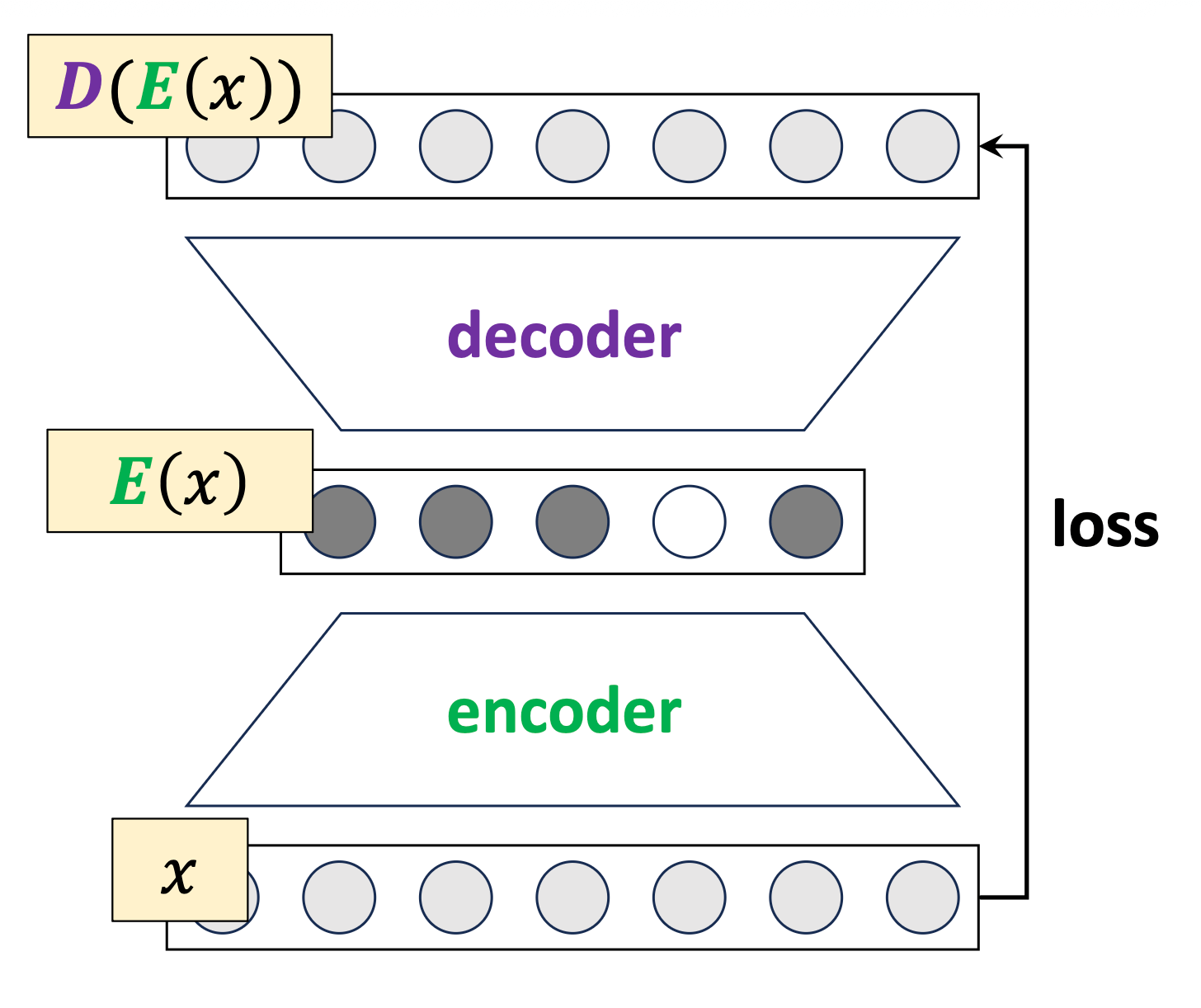

(\(k\)-means can be thought of as performing special auto-encodering)

encoder 𝑬: map 𝑥 to a (one-hot) code

decoder 𝑫: map a code to a center

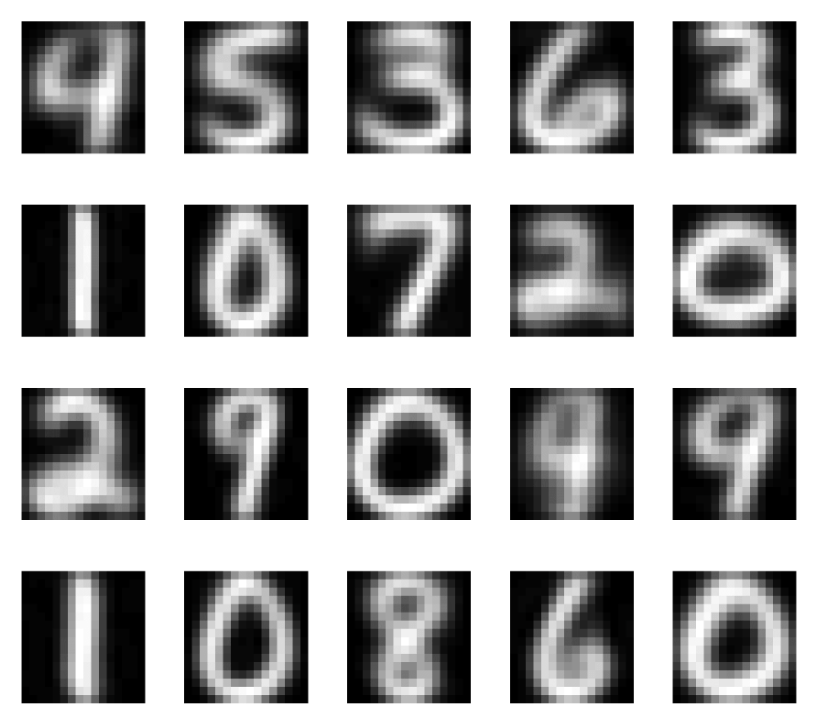

(cluster center are prototypes)

not actual data points MNIST However, they clearly show that MNIST has strong cluster structure defined by the different digit types.

learned representations

Summary

Non-parametric models let data define structure — balancing flexibility, interpretability, and intuition. Complexity grows with data; make few assumptions about functional form.
\(k\)-Nearest Neighbors (kNN): Predict by looking at nearby training points; depends on chosen distance metric. Works well for small, low-dim data but costly in high dimensions.
Decision Trees: Learn interpretable, flow-chart-like rules by recursively splitting data. Regularize by growing deep trees, then pruning to simplify. Ensembles: Combine many simple models so they can vote → stronger, more stable predictors.
\(k\)-Means Clustering: Unsupervised grouping of similar data using a distance measure. The k-means algorithm is sensitive to initialization and the choice of \(k\).
kNN ↔ local averaging, Trees ↔ adaptive partition, Ensembles ↔ aggregation, k-Means ↔ unsupervised structure.

Thanks!

We'd love to hear your thoughts.

Bagging

Training data \(\mathcal{D}_n\)

\(\left(x^{(1)}, y^{(1)}\right)\)

\(\left(x^{(2)}, y^{(2)}\right)\)

\(\left(x^{(3)}, y^{(3)}\right)\)

\(\left(x^{(4)}, y^{(4)}\right)\)

\(\left(x^{(5)}, y^{(5)}\right)\)

\(\tilde{\mathcal{D}}_n^{(1)}\)

\(\tilde{x}^{(1)}, \tilde{y}^{(1)}\)

\(\tilde{x}^{(2)}, \tilde{y}^{(2)}\)

\(\tilde{x}^{(4)}, \tilde{y}^{(4)}\)

\(\tilde{x}^{(3)}, \tilde{y}^{(3)}\)

\(\tilde{x}^{(5)}, \tilde{y}^{(5)}\)

Training data \(\mathcal{D}_n\)
For \(b=1, \ldots, B\)
- Draw a new "data set" \(\tilde{\mathcal{D}}_n^{(b)}\) of size \(n\) by sampling with replacement from \(\mathcal{D}_n\)

Lecture 10: Non-parametric Models

Intro to Machine Learning

Outline

Outline

Outline

Outline

Summary

Thanks!

6.390 IntroML (Fall25) - Lecture 10 Non-parametric Models

6.390 IntroML (Fall25) - Lecture 10 Non-parametric Models

Shen Shen

Lecture 10: Non-parametric Models

Intro to Machine Learning

Outline

Outline

Outline

Outline

Summary

Thanks!

6.390 IntroML (Fall25) - Lecture 10 Non-parametric Models

More from Shen Shen
