RO-Crate, workflows and
FAIR Digital Objects



Stian Soiland-Reyes

eScience lab, The University of Manchester

INDElab, University of Amsterdam

FAIR Digital Object Forum
CWFR & FDO SEM meeting
2021-07-02

H2020-INFRAEOSC-2018-2 824087

H2020-INFRAEDI-2018-1 823830

H2020-INFRAIA-2017-1 730976

H2020-INFRADEV-2019-2 871118

H2020-INFRAIA-2018-1 823827

Findable

Accessible

Interoperable

Reusable

To be Findable:

F1. (meta)data are assigned a globally unique and persistent identifier

F2. data are described with rich metadata (defined by R1 below)

F3. metadata clearly and explicitly include the identifier of the data it describes

F4. (meta)data are registered or indexed in a searchable resource



To be Findable:

F1. (meta)data are assigned a globally unique and persistent identifier

F2. data are described with rich metadata (defined by R1 below)

F3. metadata clearly and explicitly include the identifier of the data it describes

F4. (meta)data are registered or indexed in a searchable resource



To be Accessible:

A1. (meta)data are retrievable by their identifier using a standardized communications protocol

A1.1 the protocol is open, free, and universally implementable

A1.2 the protocol allows for an authentication and authorization procedure, where necessary

A2. metadata are accessible, even when the data are no longer available

To be Findable:

F1. (meta)data are assigned a globally unique and persistent identifier

F2. data are described with rich metadata (defined by R1 below)

F3. metadata clearly and explicitly include the identifier of the data it describes

F4. (meta)data are registered or indexed in a searchable resource



To be Accessible:

A1. (meta)data are retrievable by their identifier using a standardized communications protocol

A1.1 the protocol is open, free, and universally implementable

A1.2 the protocol allows for an authentication and authorization procedure, where necessary

A2. metadata are accessible, even when the data are no longer available

To be Interoperable:

I1. (meta)data use a formal, accessible, shared, and broadly applicable language for knowledge representation.

I2. (meta)data use vocabularies that follow FAIR principles

I3. (meta)data include qualified references to other (meta)data



To be Findable:

F1. (meta)data are assigned a globally unique and persistent identifier

F2. data are described with rich metadata (defined by R1 below)

F3. metadata clearly and explicitly include the identifier of the data it describes

F4. (meta)data are registered or indexed in a searchable resource



To be Accessible:

A1. (meta)data are retrievable by their identifier using a standardized communications protocol

A1.1 the protocol is open, free, and universally implementable

A1.2 the protocol allows for an authentication and authorization procedure, where necessary

A2. metadata are accessible, even when the data are no longer available

To be Interoperable:

I1. (meta)data use a formal, accessible, shared, and broadly applicable language for knowledge representation.

I2. (meta)data use vocabularies that follow FAIR principles

I3. (meta)data include qualified references to other (meta)data



To be Reusable:

R1. meta(data) are richly described with a plurality of accurate and relevant attributes

R1.1. (meta)data are released with a clear and accessible data usage license

R1.2. (meta)data are associated with detailed provenance

R1.3. (meta)data meet domain-relevant community standards

To be Findable:

F1. (meta)data are assigned a globally unique and persistent identifier

F2. data are described with rich metadata (defined by R1 below)

F3. metadata clearly and explicitly include the identifier of the data it describes

F4. (meta)data are registered or indexed in a searchable resource



To be Accessible:

A1. (meta)data are retrievable by their identifier using a standardized communications protocol

A1.1 the protocol is open, free, and universally implementable

A1.2 the protocol allows for an authentication and authorization procedure, where necessary

A2. metadata are accessible, even when the data are no longer available

To be Interoperable:

I1. (meta)data use a formal, accessible, shared, and broadly applicable language for knowledge representation.

I2. (meta)data use vocabularies that follow FAIR principles

I3. (meta)data include qualified references to other (meta)data



To be Reusable:

R1. meta(data) are richly described with a plurality of accurate and relevant attributes

R1.1. (meta)data are released with a clear and accessible data usage license

R1.2. (meta)data are associated with detailed provenance

R1.3. (meta)data meet domain-relevant community standards



https://doi.org/10.1038/d41586-019-01307-2

They ride with what I refer to as the four horsemen of the reproducibility apocalypse:
  1. Publication bias
  2. Low statistical power
  3. P-value hacking
  4. HARKing (hypothesizing after results are known)





Reproducibility?

Workflows

Automation

– Automate computational aspects
– Repetitive pipelines, sweep campaigns

Scalingcompute cycles

– Make use of computational infrastructure
– Handle large data

Abstraction⁠—people cycles

– Shield complexity and incompatibilities
– Report, re-usue, evolve, share, compare
– Repeat—Tweak—Repeat
– First-class commodities

Provenancereporting

– Capture, report and utilize log and data lineage
– Auto-documentation
– Tracable evolution, audit, transparency
– Reproducible science

Findable

Accessible

Interoperable

Reusable

(Reproducible)

Why use workflows?

cwlVersion: v1.0
class: Workflow
inputs:
  inp: File
  ex: string

outputs:
  classout:
    type: File
    outputSource: compile/classfile

steps:
  untar:
    run: tar-param.cwl
    in:
      tarfile: inp
      extractfile: ex
    out: [example_out]

  compile:
    run: arguments.cwl
    in:
      src: untar/example_out
    out: [classfile]

Nature 573, 149-150 (2019)
https://doi.org/10.1038/d41586-019-02619-z

cwlVersion: v1.0
class: Workflow

inputs:
  toConvert: File


outputs:
  converted:
    type: File
    outputSource: convertMethylation/converted
  combined:
    type: File
    outputSource: mergeSymmetric/combined


steps:
  convertMethylation:
    run: interconverter.cwl
    in:
      toConvert: toConvert
    out: [converted]
  mergeSymmetric:
    run: symmetriccpgs.cwl
    in:
      toCombine: convertMethylation/converted
    out: [combined]
cwlVersion: v1.0
class: CommandLineTool
inputs:
  toConvert:
    type: File
    inputBinding:
      prefix: -i
outputs:
  converted:
    type: File
    outputBinding:
      glob: "*.meth"
baseCommand: interconverter.sh
arguments: ["-d", $(runtime.outdir)]

hints:
  - class: DockerRequirement
    dockerPull: "quay.io/neksa/screw-tool"
cwlVersion: v1.0
class: CommandLineTool
inputs:
  toCombine:
    type: File
    inputBinding:
      prefix: -i
outputs:
  combined:
    type: File
    outputBinding:
      glob: "*.sym"

baseCommand: symmetriccpgs.sh
arguments: ["-d", $(runtime.outdir)]

hints:
  - class: DockerRequirement
    dockerPull: "quay.io/neksa/screw-tool"

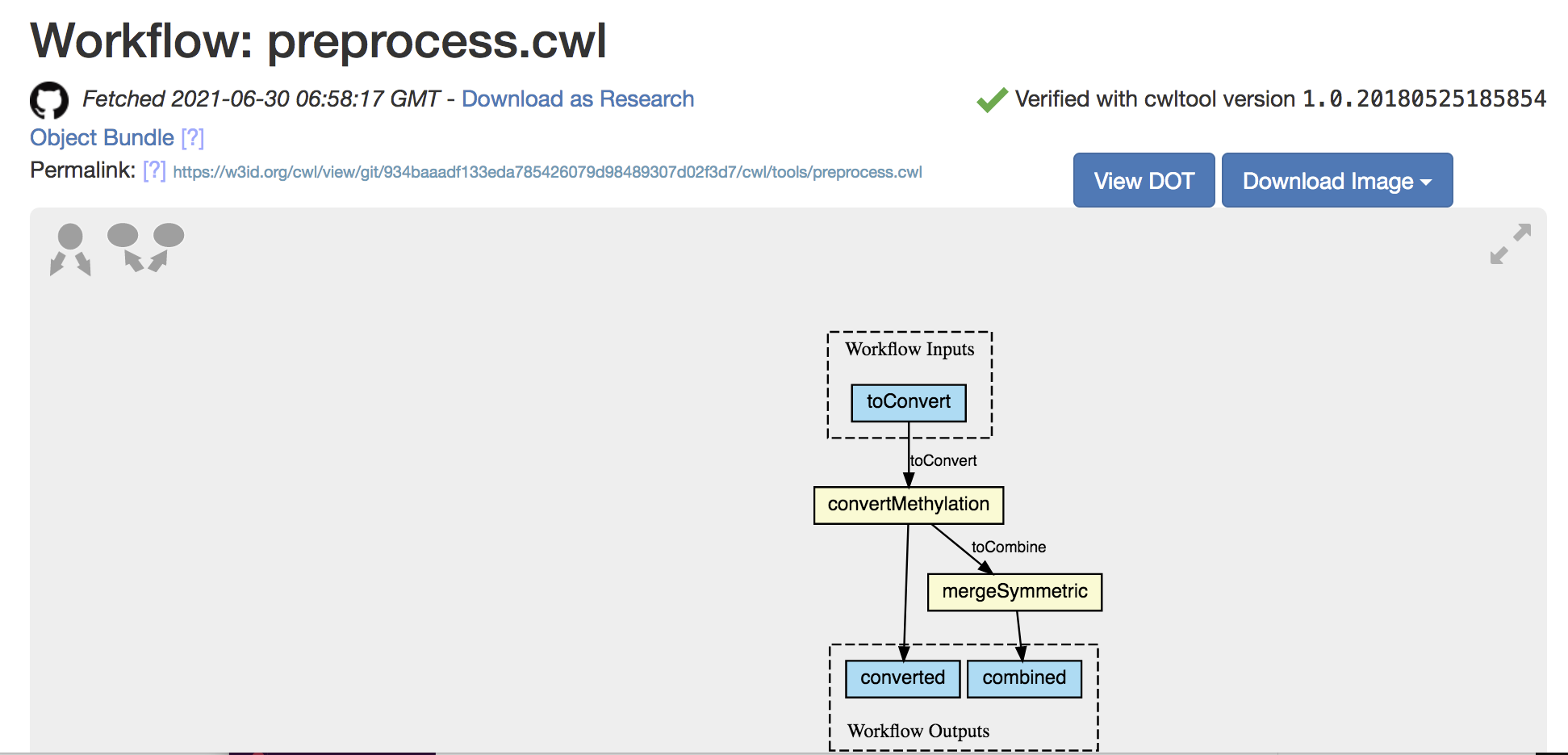

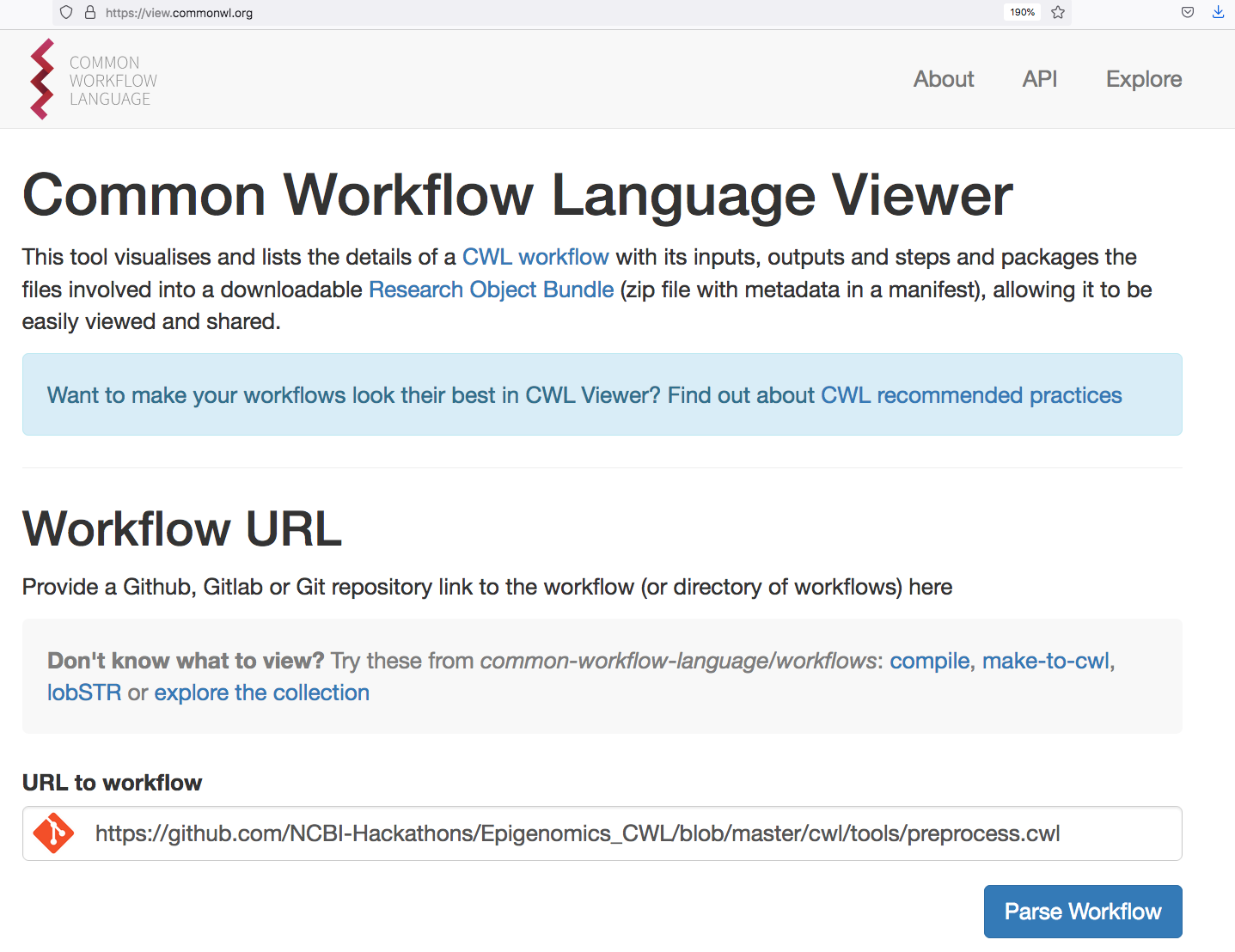

Digital Objects for CWL workflows


<https://w3id.org/cwl/view/git/934baaadf133eda785426079d98489307d02f3d7/cwl/tools/symmetriccpgs.cwl>
        a                cwl:CommandLineTool ;
        cwl:arguments    ( "-d" "$(runtime.outdir)" ) ;
        cwl:baseCommand  ( "symmetriccpgs.sh" ) ;
        cwl:cwlVersion   cwl:v1.0 ;
        cwl:hints        [ a                             cwl:DockerRequirement ;
                           DockerRequirement:dockerPull  "quay.io/neksa/screw-tool"
                         ] ;
        cwl:inputs       <https://w3id.org/cwl/view/git/934baaadf133eda785426079d98489307d02f3d7/cwl/tools/symmetriccpgs.cwl#toCombine> ;
        cwl:outputs      <https://w3id.org/cwl/view/git/934baaadf133eda785426079d98489307d02f3d7/cwl/tools/symmetriccpgs.cwl#combined> .

<https://w3id.org/cwl/view/git/934baaadf133eda785426079d98489307d02f3d7/cwl/tools/preprocess.cwl>
        a               cwl:Workflow ;
        Workflow:steps  <https://w3id.org/cwl/view/git/934baaadf133eda785426079d98489307d02f3d7/cwl/tools/preprocess.cwl#convertMethylation> , <https://w3id.org/cwl/view/git/934baaadf133eda785426079d98489307d02f3d7/cwl/tools/preprocess.cwl#mergeSymmetric> ;
        cwl:cwlVersion  cwl:v1.0 ;
        cwl:inputs      <https://w3id.org/cwl/view/git/934baaadf133eda785426079d98489307d02f3d7/cwl/tools/preprocess.cwl#toConvert> ;
        cwl:outputs     <https://w3id.org/cwl/view/git/934baaadf133eda785426079d98489307d02f3d7/cwl/tools/preprocess.cwl#combined> , <https://w3id.org/cwl/view/git/934baaadf133eda785426079d98489307d02f3d7/cwl/tools/preprocess.cwl#converted> .

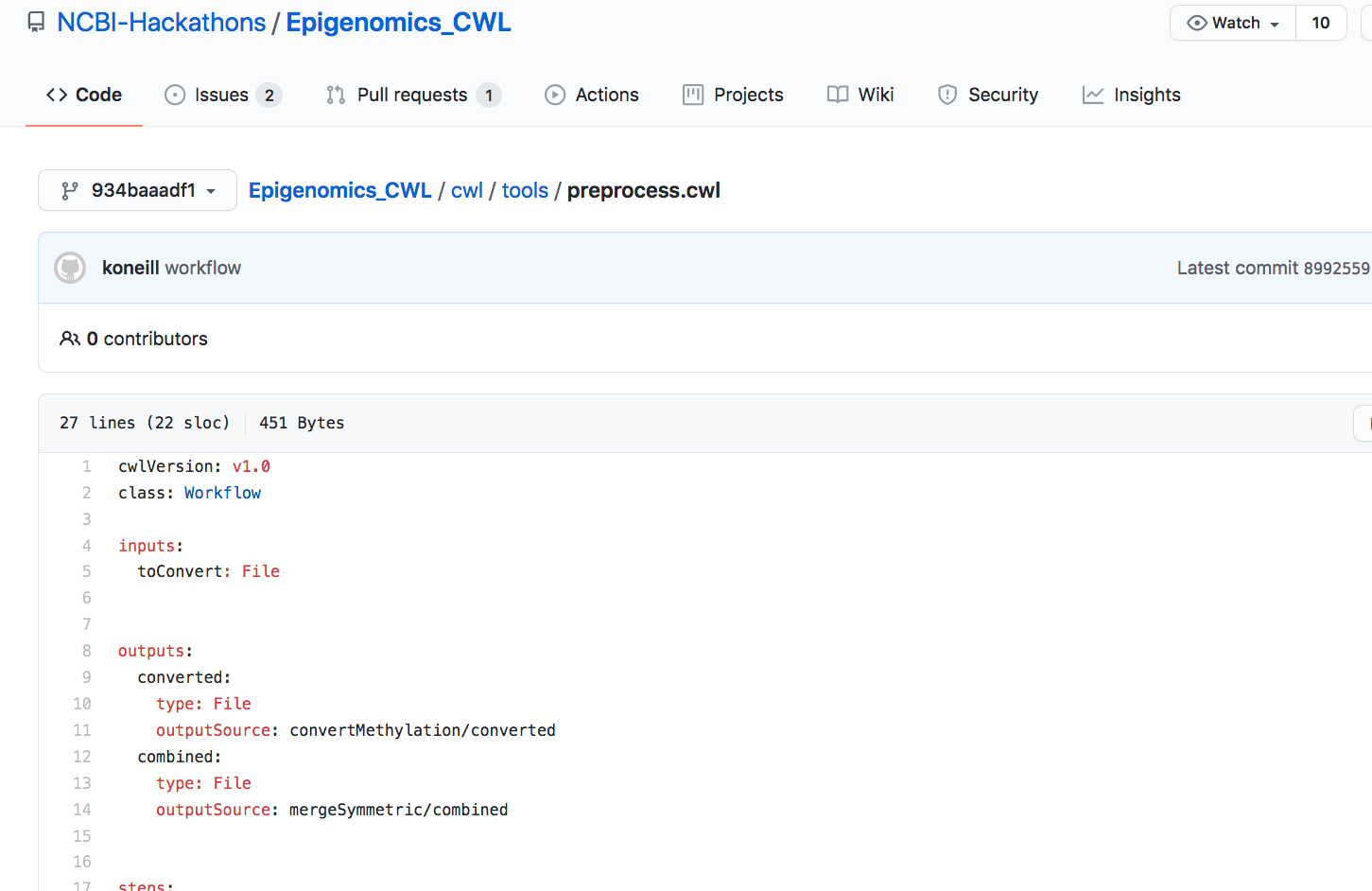

cwlVersion: v1.0
class: Workflow

inputs:
  toConvert: File


outputs:
  converted:
    type: File
    outputSource: convertMethylation/converted
  combined:
    type: File
    outputSource: mergeSymmetric/combined


steps:
  convertMethylation:
    run: interconverter.cwl
    in:
      toConvert: toConvert
    out: [converted]
  mergeSymmetric:
    run: symmetriccpgs.cwl
    in:
      toCombine: convertMethylation/converted
    out: [combined]
cwlVersion: v1.0
class: CommandLineTool
baseCommand: interconverter.sh
hints:
  - class: DockerRequirement
    dockerPull: "quay.io/neksa/screw-tool"
arguments: ["-d", $(runtime.outdir)]
inputs:
  toConvert:
    type: File
    inputBinding:
      prefix: -i
outputs:
  converted:
    type: File
    outputBinding:
      glob: "*.meth"
cwlVersion: v1.0
class: CommandLineTool
baseCommand: symmetriccpgs.sh
arguments: ["-d", $(runtime.outdir)]
hints:
  - class: DockerRequirement
    dockerPull: "quay.io/neksa/screw-tool"

inputs:
  toCombine:
    type: File
    inputBinding:
      prefix: -i
outputs:
  combined:
    type: File
    outputBinding:
      glob: "*.sym"

?

What is RO-Crate?

RO-Crate is method for self-decribed datasets as a digital object using a single Linked Data metadata document

Credit: Peter Sefton
Adapted from https://arkisto-platform.github.io/standards/ro-crate/

The dataset may contain any kind of
resource, about anything, in any format
as a file, URL or PID

Credit: Peter Sefton
Adapted from https://arkisto-platform.github.io/standards/ro-crate/

Each resource have a machine readable description in JSON-LD format

Credit: Peter Sefton
Adapted from https://arkisto-platform.github.io/standards/ro-crate/

A human-readable description/preview in an HTML file that lives alongside the metadata

Credit: Peter Sefton
Adapted from https://arkisto-platform.github.io/standards/ro-crate/

Provenance and workflow information can be included
– to assist in re-use of data and research processes

Credit: Peter Sefton
Adapted from https://arkisto-platform.github.io/standards/ro-crate/

RO-Crate Digital Objects may be packaged for distribution eg via Zip, Bagit and OCFL
– or simply be published on the Web

Credit: Peter Sefton
Adapted from https://arkisto-platform.github.io/standards/ro-crate/

Techie deep-dive!

Warning: JSON ahead

RO-Crate for data scientists

Credit: Marco La Rosa, Peter Sefton

Making your own RO-Crate with Describo

FAIR is not just machine-readable!

RO-Crate for digital humanities

Capturing cultural heritage records
as RO-Crates

RO-Crate for repositories

RO-Crate as a
metadata archival format

Metadata held alongside hetereogeneous data

Exchange mechanism (import/export)

Avoid vendor lock-in

RO-Crate for
workflow descriptions

Describing workflows with RO-Crate

Describing workflows
with RO-Crate

Containers

Describe workflow

Tests

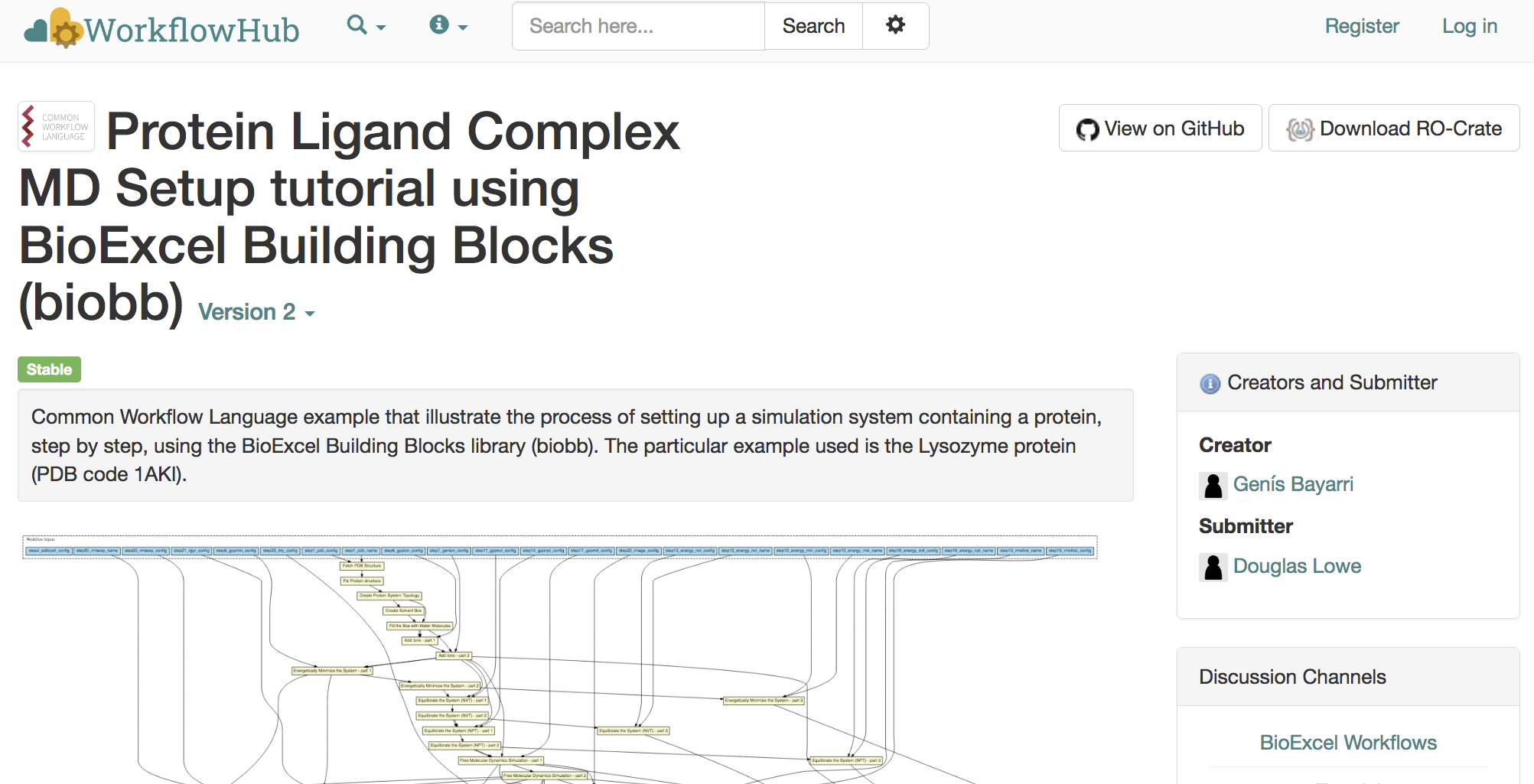

Registry

Workflows

Authors and contributors

Credit: Thanasis Vergoulis

https://doi.org/10.5281/zenodo.4671709

Executing Workflow RO-Crates

RO-Crate for
workflow test specifications

Workflow Testing RO-Crate

  • Workflow definition (e.g. Galaxy, Snakemake)
  • Test suite: Instances of Test definitions
  • Binds to particular test engines, e.g. Planemo, Jenkins

RO-Crate for
computational tools

Making Canonical Workflow Building Blocks interoperable across workflow languages

RO-Crate for
workflow run provenance

RO-Crate minimal provenance: Some software was used

Credit: José Mª Fernández, ELIXIR All Hands, 2021-06-11

What is needed for a Workflow Run RO-Crate?

  • Workflow language & version

  • Workflow engine & version (e.g. Toil)

  • Workflow definition

  • Input data (or pointers to such)

  • Parameters? What can be implicit and explicit? (see BCO?)

  • Tool Dependencies to install (mostly implied by CWL/Nextflow/Galaxy, but might need versions/repos)

  • Container platform requirement [e.g. Docker, Conda]

  • Operating system requirement

  • Hardware requirements (memory, CPU, GPU)

    • Equivalent of AWS cloud instance type sufficient?

  • Where to run/submit (e.g. usegalaxy.eu)

  • Explicit/resolved container IDs

  • Archive containers from Docker Hub (protect against image expiration)

  • ...

Join discussion in the
Workflow Hub Club community!
https://about.workflowhub.eu/

--> Separation of concern

RO-Crate for
regulatory sciences

IEEE2791-2020

Alternate metadata views

Domain-specific explanation: BCO

General index: RO-Crate

ro-crate-metadata.json
{
  "@context": [
    "https://w3id.org/ro/crate/1.0/context",
    {
      "@vocab": "https://schema.org/"
    }
  ],
  "@graph": [
    {
      "@id": "ro-crate-metadata.json",
      "@type": "CreativeWork",
      "about": {
        "@id": "./"
      },
      "identifier": "ro-crate-metadata.json",
      "conformsTo": {
        "@id": "https://w3id.org/ro/crate/1.0"
      },
      "license": {
        "@id": "https://creativecommons.org/licenses/by-sa/3.0"
      },
      "description": "Made with Describo: https://uts-eresearch.github.io/describo/"
    },
    {
      "@type": "Dataset",
      "author": {
        "@id": "https://orcid.org/0000-0001-9842-9718"
      },
      "citation": {
        "@id": "https://doi.org/10.5281/zenodo.3966161"
      },
      "contactPoint": {
        "@id": "https://github.com/biocompute-objects/bco-ro-example-chipseq/issues"
      },
      "datePublished": "2020-09-09T23:00:00.000Z",
      "description": "Workflow run of a ChIP-seq peak-calling, QC and differential analysis pipeline",
      "distribution": {
        "@id": "https://github.com/biocompute-objects/bco-ro-example-chipseq/archive/main.zip"
      },
      "hasPart": [
        {
          "@id": "https://raw.githubusercontent.com/nf-core/chipseq/1.2.1/main.nf"
        },
        {
          "@id": "chipseq_20200910.json"
        },
        {
          "@id": "results/"
        },
        {
          "@id": "nextflow.log"
        },
        {
          "@id": ".nextflow.log"
        }
      ],
      "license": {
        "@id": "https://spdx.org/licenses/CC0-1.0"
      },
      "name": "Workflow run of nf-core/chipseq",
      "publisher": {
        "@id": "https://biocomputeobject.org/"
      },
      "@id": "./"
    },
    {
      "@type": "File",
      "dateModified": "2020-09-10T13:10:50.246Z",
      "name": ".nextflow.log",
      "@reverse": {
        "hasPart": [
          {
            "@id": "./"
          }
        ]
      },
      "@id": ".nextflow.log"
    },
    {
      "@type": "File",
      "conformsTo": {
        "@id": "https://w3id.org/ieee/ieee-2791-schema/"
      },
      "dateModified": "2020-09-10T13:50:02.378Z",
      "identifier": {
        "@id": "urn:uuid:dc308d7c-7949-446a-9c39-511b8ab40caf"
      },
      "license": {
        "@id": "https://spdx.org/licenses/CC0-1.0"
      },
      "name": "chipseq_20200910.json",
      "description": "IEEE 2791 description",
      "@reverse": {
        "hasPart": [
          {
            "@id": "./"
          }
        ]
      },
      "@id": "chipseq_20200910.json"
    },
    {
      "@type": "Organization",
      "description": " Two non-overlapping entities work in parallel to help drive BioCompute, the IEEE 2791-2020 Standard, and a Public Private Partnership. Leadership for the Public Private Partnership consists of an Executive Steering Committee and a Technical Steering Committee. The schema that is referenced by the current draft of the IEEE standard is maintained by an IEEE GitLab repository. ",
      "name": "BioCompute Objects",
      "@reverse": {
        "publisher": [
          {
            "@id": "./"
          }
        ]
      },
      "@id": "https://biocomputeobject.org/"
    },
    {
      "@type": "ScholarlyArticle",
      "name": "nf-core/chipseq: nf-core/chipseq v1.2.1 - Platinum Mole",
      "@reverse": {
        "citation": [
          {
            "@id": "./"
          },
          {
            "@id": "https://raw.githubusercontent.com/nf-core/chipseq/1.2.1/main.nf"
          }
        ]
      },
      "@id": "https://doi.org/10.5281/zenodo.3966161"
    },
    {
      "@type": "CreativeWork",
      "identifier": "https://spdx.org/licenses/MIT",
      "name": "MIT License",
      "@reverse": {
        "license": [
          {
            "@id": "https://raw.githubusercontent.com/nf-core/chipseq/1.2.1/main.nf"
          }
        ]
      },
      "@id": "https://github.com/nf-core/chipseq/blob/1.2.1/LICENSE"
    },
    {
      "@type": "CreativeWork",
      "description": "\nMIT License\n\nCopyright (c) 2018 nf-core\n\nPermission is hereby granted, free of charge, to any person obtaining a copy\nof this software and associated documentation files (the \"Software\"), to deal\nin the Software without restriction, including without limitation the rights\nto use, copy, modify, merge, publish, distribute, sublicense, and/or sell\ncopies of the Software, and to permit persons to whom the Software is\nfurnished to do so, subject to the following conditions:\n\nThe above copyright notice and this permission notice shall be included in all\ncopies or substantial portions of the Software.\n\nTHE SOFTWARE IS PROVIDED \"AS IS\", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR\nIMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,\nFITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE\nAUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER\nLIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,\nOUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE\nSOFTWARE.",
      "name": "MIT License",
      "@reverse": {
        "license": [
          {
            "@id": "results/"
          }
        ]
      },
      "@id": "https://github.com/nf-core/test-datasets/blob/atacseq/LICENSE"
    },
    {
      "@type": "DataDownload",
      "path": "https://github.com/biocompute-objects/bco-ro-example-chipseq/archive/main.zip",
      "license": {
        "@id": "https://spdx.org/licenses/CC0-1.0"
      },
      "name": "GitHub download of biocompute-objects/bco-ro-example-chipseq",
      "@reverse": {
        "distribution": [
          {
            "@id": "./"
          }
        ]
      },
      "@id": "https://github.com/biocompute-objects/bco-ro-example-chipseq/archive/main.zip"
    },
    {
      "@type": "ContactPoint",
      "name": " bco-ro-example-chipseq GitHub issue tracker",
      "url": "https://github.com/biocompute-objects/bco-ro-example-chipseq/issues",
      "@reverse": {
        "contactPoint": [
          {
            "@id": "./"
          }
        ]
      },
      "@id": "https://github.com/biocompute-objects/bco-ro-example-chipseq/issues"
    },
    {
      "@type": "Person",
      "name": "Stian Soiland-Reyes",
      "@reverse": {
        "author": [
          {
            "@id": "./"
          },
          {
            "@id": "results/"
          }
        ]
      },
      "@id": "https://orcid.org/0000-0001-9842-9718"
    },
    {
      "@type": [
        "ComputationalWorkflow",
        "File"
      ],
      "author": [
        {
          "@id": "#714de175-aa77-47f1-9f99-6a4fba65530a"
        },
        {
          "@id": "#bfb876e7-e767-4209-ad66-e1e1379c249f"
        },
        {
          "@id": "#0164006f-bd58-4ebc-9a50-b8bd4ac3025c"
        },
        {
          "@id": "#556c747c-376a-4a85-82a1-9b99520d24fd"
        },
        {
          "@id": "#93c23523-03b5-41dc-be4c-6a9a2e0e221d"
        },
        {
          "@id": "#781b9b5a-dc06-4709-8f14-65ee08b8c543"
        },
        {
          "@id": "#f652b13e-0ba2-4394-a990-7304f54c7b9a"
        },
        {
          "@id": "#a58abf42-751d-49bd-a477-1d5065ac70c6"
        },
        {
          "@id": "#e11af59b-8e24-4cc8-8f5e-cef411ab0823"
        },
        {
          "@id": "#f262954b-a218-480d-8a01-0e0b1ca20ffc"
        },
        {
          "@id": "#64bd387d-60ad-4df8-804e-1f6b9ea72de5"
        }
      ],
      "citation": {
        "@id": "https://doi.org/10.5281/zenodo.3966161"
      },
      "description": "nfcore/chipseq is a bioinformatics analysis pipeline used for Chromatin ImmunopreciPitation sequencing (ChIP-seq) data",
      "license": {
        "@id": "https://github.com/nf-core/chipseq/blob/1.2.1/LICENSE"
      },
      "name": "nf-core/chipseq",
      "@reverse": {
        "hasPart": [
          {
            "@id": "./"
          }
        ],
        "about": [
          {
            "@id": "results/pipeline_info/pipeline_dag.svg"
          },
          {
            "@id": "#fcb32545-04bd-474d-9b6e-0fb7321c38b4"
          }
        ]
      },
      "@id": "https://raw.githubusercontent.com/nf-core/chipseq/1.2.1/main.nf"
    },
    {
      "@type": "File",
      "creator": {
        "@id": "#db65dfb7-4867-400e-a12f-a1652d46a333"
      },
      "dateModified": "2020-09-10T13:10:50.250Z",
      "name": "nextflow.log",
      "@reverse": {
        "hasPart": [
          {
            "@id": "./"
          }
        ]
      },
      "@id": "nextflow.log"
    },
    {
      "@type": "Dataset",
      "author": {
        "@id": "https://orcid.org/0000-0001-9842-9718"
      },
      "creator": {
        "@id": "#db65dfb7-4867-400e-a12f-a1652d46a333"
      },
      "dateModified": "2020-09-10T13:20:49.143Z",
      "description": "Nextflow outputs from examplar run of nf-core/ pipeline workflow.",
      "hasPart": [
        {
          "@id": "results/bwa/"
        },
        {
          "@id": "results/fastqc/"
        },
        {
          "@id": "results/genome/"
        },
        {
          "@id": "results/igv/"
        },
        {
          "@id": "results/multiqc/"
        },
        {
          "@id": "results/pipeline_info/"
        },
        {
          "@id": "results/trim_galore/"
        }
      ],
      "license": {
        "@id": "https://github.com/nf-core/test-datasets/blob/atacseq/LICENSE"
      },
      "name": "results",
      "@reverse": {
        "hasPart": [
          {
            "@id": "./"
          }
        ]
      },
      "@id": "results/"
    },
    {
      "@type": "Dataset",
      "dateModified": "2020-09-10T12:00:09.238Z",
      "hasPart": {
        "@id": "results/bwa/mergedLibrary/"
      },
      "name": "bwa",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/"
          }
        ]
      },
      "@id": "results/bwa/"
    },
    {
      "@type": "Dataset",
      "dateModified": "2020-09-10T12:02:59.495Z",
      "hasPart": [
        {
          "@id": "results/bwa/mergedLibrary/bigwig/"
        },
        {
          "@id": "results/bwa/mergedLibrary/deepTools/"
        },
        {
          "@id": "results/bwa/mergedLibrary/macs/"
        },
        {
          "@id": "results/bwa/mergedLibrary/phantompeakqualtools/"
        },
        {
          "@id": "results/bwa/mergedLibrary/picard_metrics/"
        }
      ],
      "name": "mergedLibrary",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/bwa/"
          }
        ]
      },
      "@id": "results/bwa/mergedLibrary/"
    },
    {
      "@type": "Dataset",
      "dateModified": "2020-09-10T12:04:31.692Z",
      "hasPart": {
        "@id": "results/bwa/mergedLibrary/bigwig/scale/"
      },
      "name": "bigwig",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/bwa/mergedLibrary/"
          }
        ]
      },
      "@id": "results/bwa/mergedLibrary/bigwig/"
    },
    {
      "@type": "Dataset",
      "dateModified": "2020-09-10T12:04:31.696Z",
      "name": "scale",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/bwa/mergedLibrary/bigwig/"
          }
        ]
      },
      "@id": "results/bwa/mergedLibrary/bigwig/scale/"
    },
    {
      "@type": "Dataset",
      "dateModified": "2020-09-10T12:11:43.943Z",
      "hasPart": [
        {
          "@id": "results/bwa/mergedLibrary/deepTools/plotFingerprint/"
        },
        {
          "@id": "results/bwa/mergedLibrary/deepTools/plotProfile/"
        }
      ],
      "name": "deepTools",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/bwa/mergedLibrary/"
          }
        ]
      },
      "@id": "results/bwa/mergedLibrary/deepTools/"
    },
    {
      "@type": "Dataset",
      "dateModified": "2020-09-10T12:05:17.700Z",
      "name": "plotFingerprint",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/bwa/mergedLibrary/deepTools/"
          }
        ]
      },
      "@id": "results/bwa/mergedLibrary/deepTools/plotFingerprint/"
    },
    {
      "@type": "Dataset",
      "dateModified": "2020-09-10T12:26:12.375Z",
      "name": "plotProfile",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/bwa/mergedLibrary/deepTools/"
          }
        ]
      },
      "@id": "results/bwa/mergedLibrary/deepTools/plotProfile/"
    },
    {
      "@type": "Dataset",
      "dateModified": "2020-09-10T12:02:33.471Z",
      "name": "macs",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/bwa/mergedLibrary/"
          }
        ]
      },
      "@id": "results/bwa/mergedLibrary/macs/"
    },
    {
      "@type": "Dataset",
      "dateModified": "2020-09-10T12:04:26.336Z",
      "name": "phantompeakqualtools",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/bwa/mergedLibrary/"
          }
        ]
      },
      "@id": "results/bwa/mergedLibrary/phantompeakqualtools/"
    },
    {
      "@type": "Dataset",
      "dateModified": "2020-09-10T12:04:45.952Z",
      "name": "picard_metrics",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/bwa/mergedLibrary/"
          }
        ]
      },
      "@id": "results/bwa/mergedLibrary/picard_metrics/"
    },
    {
      "@type": "Dataset",
      "dateModified": "2020-09-10T11:58:56.905Z",
      "hasPart": {
        "@id": "results/fastqc/zips/"
      },
      "name": "fastqc",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/"
          }
        ]
      },
      "@id": "results/fastqc/"
    },
    {
      "@type": "Dataset",
      "dateModified": "2020-09-10T11:58:56.909Z",
      "name": "zips",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/fastqc/"
          }
        ]
      },
      "@id": "results/fastqc/zips/"
    },
    {
      "@type": "Dataset",
      "dateModified": "2020-09-10T11:56:45.292Z",
      "hasPart": {
        "@id": "results/genome/genome.fa"
      },
      "name": "genome",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/"
          }
        ]
      },
      "@id": "results/genome/"
    },
    {
      "@type": "File",
      "dateModified": "2020-09-10T11:56:45.324Z",
      "name": "genome.fa",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/genome/"
          }
        ]
      },
      "@id": "results/genome/genome.fa"
    },
    {
      "@type": "Dataset",
      "dateModified": "2020-09-10T12:26:50.263Z",
      "hasPart": {
        "@id": "results/igv/broadPeak/"
      },
      "name": "igv",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/"
          }
        ]
      },
      "@id": "results/igv/"
    },
    {
      "@type": "Dataset",
      "dateModified": "2020-09-10T12:26:50.267Z",
      "hasPart": {
        "@id": "results/igv/broadPeak/igv_session.xml"
      },
      "name": "broadPeak",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/igv/"
          }
        ]
      },
      "@id": "results/igv/broadPeak/"
    },
    {
      "@type": "File",
      "dateModified": "2020-09-10T12:26:50.267Z",
      "name": "igv_session.xml",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/igv/broadPeak/"
          }
        ]
      },
      "@id": "results/igv/broadPeak/igv_session.xml"
    },
    {
      "@type": "Dataset",
      "dateModified": "2020-09-10T12:26:59.183Z",
      "hasPart": {
        "@id": "results/multiqc/broadPeak/"
      },
      "name": "multiqc",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/"
          }
        ]
      },
      "@id": "results/multiqc/"
    },
    {
      "@type": "Dataset",
      "dateModified": "2020-09-10T12:26:59.183Z",
      "hasPart": [
        {
          "@id": "results/multiqc/broadPeak/multiqc_data/"
        },
        {
          "@id": "results/multiqc/broadPeak/multiqc_report.html"
        }
      ],
      "name": "broadPeak",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/multiqc/"
          }
        ]
      },
      "@id": "results/multiqc/broadPeak/"
    },
    {
      "@type": "Dataset",
      "dateModified": "2020-09-10T12:26:59.207Z",
      "name": "multiqc_data",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/multiqc/broadPeak/"
          }
        ]
      },
      "@id": "results/multiqc/broadPeak/multiqc_data/"
    },
    {
      "@type": "File",
      "dateModified": "2020-09-10T12:26:59.191Z",
      "name": "multiqc_report.html",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/multiqc/broadPeak/"
          }
        ]
      },
      "@id": "results/multiqc/broadPeak/multiqc_report.html"
    },
    {
      "@type": "Dataset",
      "creator": {
        "@id": "#db65dfb7-4867-400e-a12f-a1652d46a333"
      },
      "dateModified": "2020-09-10T12:27:01.599Z",
      "hasPart": {
        "@id": "results/pipeline_info/pipeline_dag.svg"
      },
      "name": "pipeline_info",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/"
          }
        ]
      },
      "@id": "results/pipeline_info/"
    },
    {
      "@type": [
        "WorkflowSketch",
        "File"
      ],
      "about": {
        "@id": "https://raw.githubusercontent.com/nf-core/chipseq/1.2.1/main.nf"
      },
      "dateModified": "2020-09-10T12:27:01.755Z",
      "encodingFormat": "image/svg+xml",
      "name": "pipeline_dag.svg",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/pipeline_info/"
          }
        ]
      },
      "@id": "results/pipeline_info/pipeline_dag.svg"
    },
    {
      "@type": "Dataset",
      "dateModified": "2020-09-10T11:57:13.996Z",
      "hasPart": [
        {
          "@id": "results/trim_galore/fastqc/"
        },
        {
          "@id": "results/trim_galore/logs/"
        }
      ],
      "name": "trim_galore",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/"
          }
        ]
      },
      "@id": "results/trim_galore/"
    },
    {
      "@type": "Dataset",
      "dateModified": "2020-09-10T11:58:55.705Z",
      "hasPart": {
        "@id": "results/trim_galore/fastqc/zips/"
      },
      "name": "fastqc",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/trim_galore/"
          }
        ]
      },
      "@id": "results/trim_galore/fastqc/"
    },
    {
      "@type": "Dataset",
      "dateModified": "2020-09-10T11:58:55.705Z",
      "name": "zips",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/trim_galore/fastqc/"
          }
        ]
      },
      "@id": "results/trim_galore/fastqc/zips/"
    },
    {
      "@type": "Dataset",
      "dateModified": "2020-09-10T11:58:55.705Z",
      "name": "logs",
      "@reverse": {
        "hasPart": [
          {
            "@id": "results/trim_galore/"
          }
        ]
      },
      "@id": "results/trim_galore/logs/"
    },
    {
      "@type": "Person",
      "name": "Phil Ewels",
      "@reverse": {
        "author": [
          {
            "@id": "https://raw.githubusercontent.com/nf-core/chipseq/1.2.1/main.nf"
          }
        ]
      },
      "@id": "#0164006f-bd58-4ebc-9a50-b8bd4ac3025c"
    },
    {
      "@type": "CreativeWork",
      "identifier": "https://spdx.org/licenses/CC0-1.0",
      "name": "Creative Commons Zero v1.0 Universal",
      "@reverse": {
        "license": [
          {
            "@id": "./"
          },
          {
            "@id": "chipseq_20200910.json"
          },
          {
            "@id": "https://github.com/biocompute-objects/bco-ro-example-chipseq/archive/main.zip"
          }
        ]
      },
      "@id": "https://spdx.org/licenses/CC0-1.0"
    },
    {
      "@type": "Person",
      "name": "Alexander Peltzer",
      "@reverse": {
        "author": [
          {
            "@id": "https://raw.githubusercontent.com/nf-core/chipseq/1.2.1/main.nf"
          }
        ]
      },
      "@id": "#556c747c-376a-4a85-82a1-9b99520d24fd"
    },
    {
      "@type": "Person",
      "name": "Winni Kretzschmar",
      "@reverse": {
        "author": [
          {
            "@id": "https://raw.githubusercontent.com/nf-core/chipseq/1.2.1/main.nf"
          }
        ]
      },
      "@id": "#64bd387d-60ad-4df8-804e-1f6b9ea72de5"
    },
    {
      "@type": "Person",
      "name": "Harshil Patel",
      "@reverse": {
        "author": [
          {
            "@id": "https://raw.githubusercontent.com/nf-core/chipseq/1.2.1/main.nf"
          }
        ]
      },
      "@id": "#714de175-aa77-47f1-9f99-6a4fba65530a"
    },
    {
      "@type": "Person",
      "name": "Drew Behrens",
      "@reverse": {
        "author": [
          {
            "@id": "https://raw.githubusercontent.com/nf-core/chipseq/1.2.1/main.nf"
          }
        ]
      },
      "@id": "#781b9b5a-dc06-4709-8f14-65ee08b8c543"
    },
    {
      "@type": "Person",
      "name": "Tiago Chedraoui Silva",
      "@reverse": {
        "author": [
          {
            "@id": "https://raw.githubusercontent.com/nf-core/chipseq/1.2.1/main.nf"
          }
        ]
      },
      "@id": "#93c23523-03b5-41dc-be4c-6a9a2e0e221d"
    },
    {
      "@type": "Person",
      "name": "mashehu",
      "@reverse": {
        "author": [
          {
            "@id": "https://raw.githubusercontent.com/nf-core/chipseq/1.2.1/main.nf"
          }
        ]
      },
      "@id": "#a58abf42-751d-49bd-a477-1d5065ac70c6"
    },
    {
      "@type": "Person",
      "name": "Chuan Wang",
      "@reverse": {
        "author": [
          {
            "@id": "https://raw.githubusercontent.com/nf-core/chipseq/1.2.1/main.nf"
          }
        ]
      },
      "@id": "#bfb876e7-e767-4209-ad66-e1e1379c249f"
    },
    {
      "@type": "Person",
      "name": "Nextflow 19.10.0",
      "@reverse": {
        "creator": [
          {
            "@id": "nextflow.log"
          },
          {
            "@id": "results/"
          },
          {
            "@id": "results/pipeline_info/"
          }
        ]
      },
      "@id": "#db65dfb7-4867-400e-a12f-a1652d46a333"
    },
    {
      "@type": "Person",
      "name": "Rotholandus",
      "@reverse": {
        "author": [
          {
            "@id": "https://raw.githubusercontent.com/nf-core/chipseq/1.2.1/main.nf"
          }
        ]
      },
      "@id": "#e11af59b-8e24-4cc8-8f5e-cef411ab0823"
    },
    {
      "@type": "Person",
      "name": "Sofia Haglund",
      "@reverse": {
        "author": [
          {
            "@id": "https://raw.githubusercontent.com/nf-core/chipseq/1.2.1/main.nf"
          }
        ]
      },
      "@id": "#f262954b-a218-480d-8a01-0e0b1ca20ffc"
    },
    {
      "@type": "Person",
      "name": "Maxime Garcia",
      "@reverse": {
        "author": [
          {
            "@id": "https://raw.githubusercontent.com/nf-core/chipseq/1.2.1/main.nf"
          }
        ]
      },
      "@id": "#f652b13e-0ba2-4394-a990-7304f54c7b9a"
    },
    {
      "@type": "PropertyValue",
      "name": "object_id",
      "value": "dc308d7c-7949-446a-9c39-511b8ab40caf",
      "@reverse": {
        "identifier": [
          {
            "@id": "chipseq_20200910.json"
          }
        ]
      },
      "@id": "urn:uuid:dc308d7c-7949-446a-9c39-511b8ab40caf"
    }
  ]
}

RO-Crate for enabling a
large number of
data citations

Credit: Paolo Manghi
AGU Data Citation Workshop

https://doi.org/10.5281/zenodo.4916734

RO-Crate as aggregation:
data citation reliquary

4-dimensional RO-Crates?

Credit: Oscar Corcho, Carole Goble
https://doi.org/10.5281/zenodo.4913285

RO-Crate profiles

Credit: Carole Goble
Dataverse Community Meeting 2021

https://www.slideshare.net/carolegoble/

FAIR Digital Objects

…with RO-Crate as metadata object

RO-Crate as FAIR Digital Object (FDO)

+ FAIR Signposting

Credit:

Herbert van de Sompel
FAIR Signposting: A KISS Approach to a Burning Issue

https://www.slideshare.net/hvdsomp/

FAIR Signposting

Credit:

Herbert van de Sompel
FAIR Signposting: A KISS Approach to a Burning Issue

https://www.slideshare.net/hvdsomp/

FAIR Signposting

HEAD https://doi.org/10.17026/dans-xdg-jtew HTTP/2
Accept: */*

HTTP/2 302
date: Tue, 29 Jun 2021 15:02:06 GMT
content-type: text/html;charset=utf-8
vary: Accept
location: https://easy.dans.knaw.nl/ui/datasets/id/easy-dataset:32697
expires: Tue, 29 Jun 2021 15:28:25 GMT
…
HEAD https://doi.org/10.17026/dans-xdg-jtew HTTP/2
Accept: */*

HTTP/2 302
date: Tue, 29 Jun 2021 15:02:06 GMT
content-type: text/html;charset=utf-8
vary: Accept
location: https://easy.dans.knaw.nl/ui/datasets/id/easy-dataset:32697
expires: Tue, 29 Jun 2021 15:28:25 GMT
…
HEAD https://easy.dans.knaw.nl/ui/datasets/id/easy-dataset:32697 HTTP/1.1
Connection: close

HTTP/1.1 200 OK
Date: Tue, 29 Jun 2021 15:02:06 GMT
Cache-Control: no-cache, max-age=0, must-revalidate
Link: <https://doi.org/10.17026/dans-xdg-jtew> ; rel="cite-as"
Link: <https://doi.org/10.17026/dans-xdg-jtew> ; rel="describedby" ; type="application/vnd.datacite.datacite+xml"
Link: <https://doi.org/10.17026/dans-xdg-jtew> ; rel="describedby" ; type="application/vnd.citationstyles.csl+json"
Link: <http://www.persistent-identifier.nl?identifier=urn%3Anbn%3Anl%3Aui%3A13-k7v-xhk> ; rel="cite-as"
Link: <https://easy.dans.knaw.nl/ui/resources/easy/export?sid=easy-dataset%3A32697&format=XML> ;
        rel="describedby" ; type="application/xml" ; profile="https://easy.dans.knaw.nl/easy/easymetadata/",
      <https://easy.dans.knaw.nl/ui/resources/easy/export?sid=easy-dataset%3A32697&format=CSV> ;
        rel="describedby" ; type="txt/csv"
Content-Type: text/html;charset=UTF-8
Content-Language: en-US
Strict-Transport-Security: max-age=31536000; includeSubDomains
HEAD https://easy.dans.knaw.nl/ui/datasets/id/easy-dataset:32697 HTTP/1.1
Connection: close

HTTP/1.1 200 OK
Date: Tue, 29 Jun 2021 15:02:06 GMT
Cache-Control: no-cache, max-age=0, must-revalidate
Link: <https://doi.org/10.17026/dans-xdg-jtew> ; rel="cite-as"
Link: <https://doi.org/10.17026/dans-xdg-jtew> ; rel="describedby" ; type="application/vnd.datacite.datacite+xml"
Link: <https://doi.org/10.17026/dans-xdg-jtew> ; rel="describedby" ; type="application/vnd.citationstyles.csl+json"
Link: <http://www.persistent-identifier.nl?identifier=urn%3Anbn%3Anl%3Aui%3A13-k7v-xhk> ; rel="cite-as"
Link: <https://easy.dans.knaw.nl/ui/resources/easy/export?sid=easy-dataset%3A32697&format=XML> ;
        rel="describedby"; type="application/xml" ; profile="https://easy.dans.knaw.nl/easy/easymetadata/",
      <https://easy.dans.knaw.nl/ui/resources/easy/export?sid=easy-dataset%3A32697&format=CSV> ;
        rel="describedby"; type="txt/csv"
Link: <http://example.com/api/datasets/export?exporter=schema.org&persistentId=doi:10.17026/dans-xdg-jtew>;
        rel="describedby"; type="application/json+ld",
Link: <https://schema.org/AboutPage>; rel="type",
      <https://schema.org/Dataset>; rel="type",
Link: https://creativecommons.org/licenses/cc0/;rel="license"
Link: <http://example.com/api/datasets/:persistentId/versions/1.0/linkset?persistentId=doi:10.17026/dans-xdg-jtew> ;
        rel="linkset"; type="application/linkset+json"
Content-Type: text/html;charset=UTF-8
Content-Language: en-US
Strict-Transport-Security: max-age=31536000; includeSubDomains
HEAD https://easy.dans.knaw.nl/ui/datasets/id/easy-dataset:32697 HTTP/1.1
Connection: close

HTTP/1.1 200 OK
Date: Tue, 29 Jun 2021 15:02:06 GMT
Cache-Control: no-cache, max-age=0, must-revalidate
Link: <https://doi.org/10.17026/dans-xdg-jtew> ; rel="cite-as"
Link: <https://doi.org/10.17026/dans-xdg-jtew> ; rel="describedby" ; type="application/vnd.datacite.datacite+xml"
Link: <https://doi.org/10.17026/dans-xdg-jtew> ; rel="describedby" ; type="application/vnd.citationstyles.csl+json"
Link: <http://www.persistent-identifier.nl?identifier=urn%3Anbn%3Anl%3Aui%3A13-k7v-xhk> ; rel="cite-as"
Link: <https://easy.dans.knaw.nl/ui/resources/easy/export?sid=easy-dataset%3A32697&format=XML> ;
        rel="describedby"; type="application/xml" ; profile="https://easy.dans.knaw.nl/easy/easymetadata/",
      <https://easy.dans.knaw.nl/ui/resources/easy/export?sid=easy-dataset%3A32697&format=CSV> ;
        rel="describedby"; type="txt/csv"
Link: <http://example.com/api/datasets/export?exporter=schema.org&persistentId=doi:10.17026/dans-xdg-jtew>;
        rel="describedby"; type="application/json+ld",
Link: <https://schema.org/AboutPage>; rel="type",
      <https://schema.org/Dataset>; rel="type",
Link: https://creativecommons.org/licenses/cc0/;rel="license"
Link: <http://example.com/api/datasets/:persistentId/versions/1.0/linkset?persistentId=doi:10.17026/dans-xdg-jtew> ;
        rel="linkset"; type="application/linkset+json"
Content-Type: text/html;charset=UTF-8
Content-Language: en-US
Strict-Transport-Security: max-age=31536000; includeSubDomains
{
  "linkset": [
    {
      "anchor": "http://localhost:8080/dataset.xhtml?persistentId=doi:10.17026/dans-xdg-jtew",
      "cite-as": [
        {
          "href": "https://doi.org/10.17026/dans-xdg-jtew"
        }
      ],
      "type": [
        {
          "href": "https://schema.org/AboutPage"
        },
        {
          "href": "https://schema.org/Dataset"
        }
      ],
      "license": {
        "href": "https://creativecommons.org/licenses/cc0/"
      },
      "describedby": [
        {
          "href": "https://doi.org/10.17026/dans-xdg-jtew",
          "type": "application/vnd.citationstyles.csl+json"
        },
        {
          "href": "http://localhost:8080/api/datasets/export?exporter=schema.org&persistentId=doi:10.17026/dans-xdg-jtew",
          "type": "application/json+ld"
        }
      ],
      "item": []
    }
  ]
}

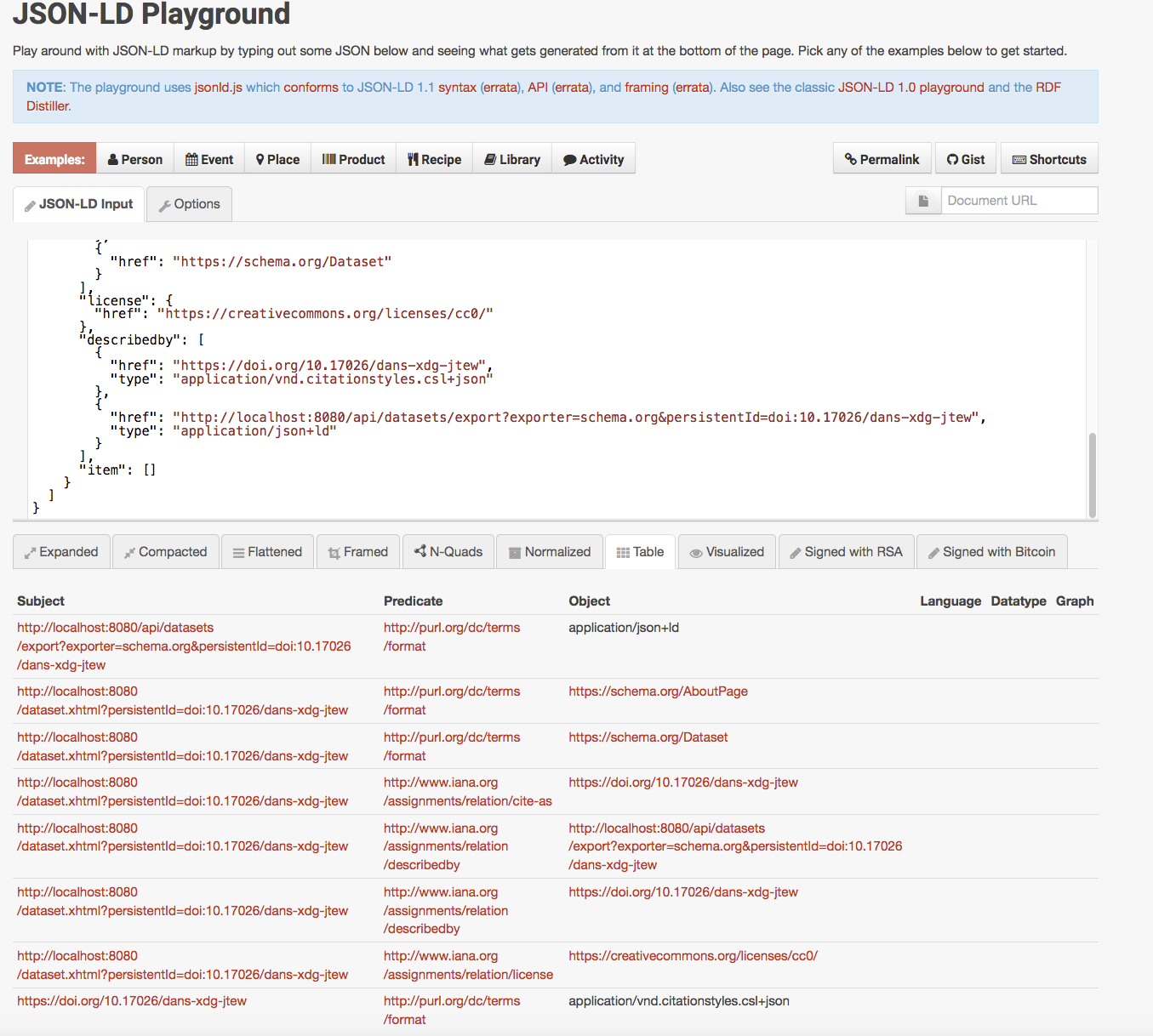

Interpreting application/linkset+json as JSON-LD

https://tinyurl.com/yfjkefqf

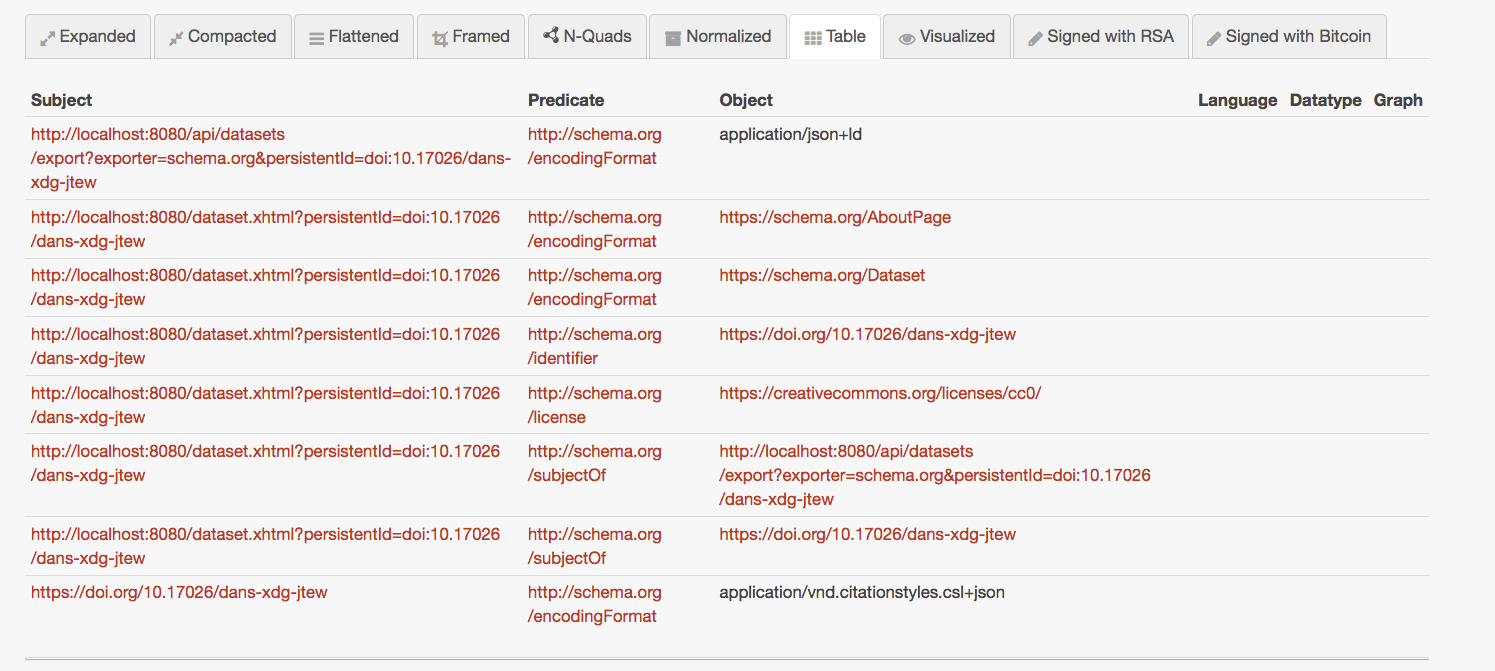

… or mapped to schema.org

https://tinyurl.com/24az3rrw

FDO for Workflow RO-Crate



Accept: text/html

Resolving an RO-Crate with content-negotiation

ComputationalWorkflow
Accept: text/html
Accept: application/zip

Resolving an RO-Crate with content-negotiation

Accept: text/html
Accept: application/ld+json;
  profile=https://w3id.org/ro/crate
Accept: application/zip

Resolving an RO-Crate with content-negotiation

Accept: application/ld+json;
  profile=https://w3id.org/ro/crate

Downside: Indirection to find core metadata

author
@type
ComputationalWorkflow
license
hasPart
isBasedOn

Parse JSON, find the right node

HEAD https://workflowhub.eu/workflows/29?version=2

200 OK
Link: <https://doi.org/10.48546/workflowhub.workflow.29.2>;rel=cite-as
Link: <https://workflowhub.eu/workflows/29/ro_crate?version=2>;rel=describedby
Link: <https://orcid.org/0000-0003-0513-0288>;rel=author
…




Resolving an RO-Crate with FAIR Signposting

rel=author
rel=type
ComputationalWorkflow
rel=license
rel=item
rel=describedby;
type="application/ld+json;profile=https://w3id.org/ro/crate"
rel=cite-as
rel=item;
type="application/zip"

More FDOs?



More workflow FDOs?

Canonical workflow (e.g. BioBB)

Workflow entry (e.g. WorkflowHub)

Workflow definition (e.g. Galaxy file)

Example run of workflow (e.g. CWLProv, BCO)

Workflow visualizations (e.g. CWL Viewer)

Tool definitions used by workflow step

Container image run from definition

(Recipe for container image)

Software package(s) installed in container

Entry in software registry (bio.tools, RRID, ASCL)

Software citations (e.g. JoSS)





Lessons learnt

Lessons Learnt



  • Workflows are hetereogeneous
    • Need to unify core metadata and extract structure
      --> derived resources
    • Workflows may have many sub-components
  • Workflows may already have a Web or Git presence
    • … or may be uploaded from disk
    • --> WorkflowHub as DOI provider
  • Workflows involve existing digital objects 'out of our control'
    • Tools, containers, GitHub Repos
  • Tools and software are heterogeneous compound objects
  • Workflow runs show (all) the details
    --> need for explanation and context


RO-Crate Community

The RO-Crate Community is open for anyone to join us!

https://www.researchobject.org/ro-crate/community

2021-07-02 Introduction to RO-Crate, FAIR workflows and a FAIR Digital Object profile

By Stian Soiland-Reyes

2021-07-02 Introduction to RO-Crate, FAIR workflows and a FAIR Digital Object profile

Presented 2021-07-02 at joint meeting of The Canonical Workflow Frameworks for Research (CWFR) and Semantics (SEM) working groups of the FAIR Digital Object Forum initiative.

  • 183
Loading comments...

More from Stian Soiland-Reyes
