Shape analysis and actions of the diffeomorphism group
Faculty of Science, University of Copenhagen
Stefan Sommer
Department of Computer Science, University of Copenhagen
\( \phi \)
Statistical Shape models
Session 1: (L 9-9:45) Shape analysis and actions of the diffeomorphism group
Session 2: (E 10-10:45) Landmark analysis in Theano Geometry
Session 3: (L 11-11:45) Linear representations and random orbit model
Session 4: (E 12:30-13:15) Landmarks statistics in Theano Geometry
Session 5: (L 13:30-14:15) Shape spaces of images, curves and surfaces
Session 6: (E 14:30-15:15) Analysis of continuous shapes
Slides: https://slides.com/stefansommer/shape-analysis-X/ (X=1,2,3)
Shapes
Objects on which the diffeomorphism group acts
\(d=2,3\)
- landmarks in \(\mathbb{R}^d\): \(\mathbf{q}=(q_1,\ldots,q_n)\)
- curves: \(\gamma:\mathbb{S}^1\to\mathbb{R}^d\)
- surfaces: \(\gamma:\mathbb{S}^2\to\mathbb{R}^d\)
- images: \(I:\Omega\to\mathbb{R}\), \(\Omega\subset\mathbb{R}^d\)
- tensor fields: \(\Omega\to\mathcal{T}^k_l\), \(\Omega\subset\mathbb{R}^d\)
- ...
Shape analysis via actions
move analysis from
- the complicated, nonlinear shape space to
- the (less complicated) space of diffeomorphisms
treat all shape types with in one framework
Shape analysis via actions
LDDMM: Large Deformation Diffeomorphic Metric Mapping
Grenander, Christensen, Trouve, Younes, Miller, Joshi, Holm, etc.

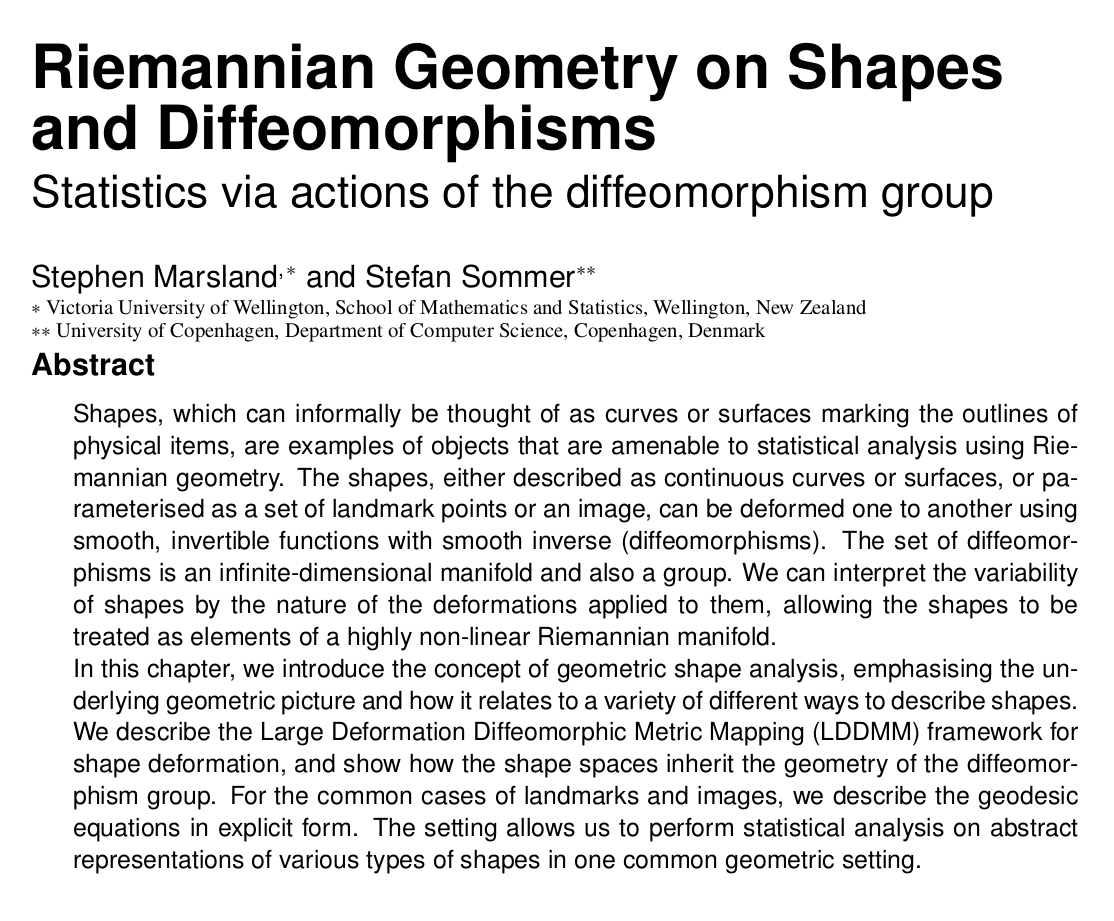

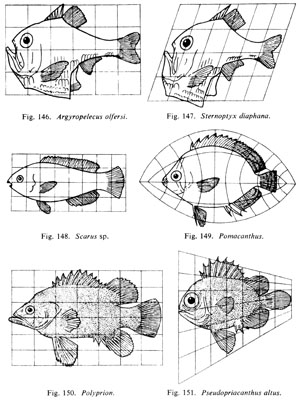

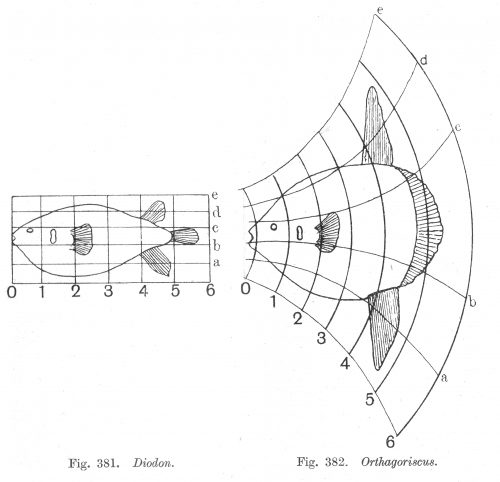

Shape analysis from deformations
\( \phi \)
One framework - multiple shape types
Actions
\( \phi \)
\(\phi\) deformation of domain \(\Omega\)
action: shape follows deformation
Actions
\(G = \mathrm{Diff}(\Omega)\)
\(\phi\in G\): smooth (\(C^k\)), invertible, smooth inverse
Actions:
- \(\phi.\mathbf{q}:=(\phi(q_1),\ldots,\phi(q_N))\)
- curves: \(\phi.\gamma:=\phi\circ\gamma\)
- surfaces: \(\phi.\gamma:=\phi\circ\gamma\)
- images: \(\phi.I:=I\circ\phi^{-1}\)
- tensor fields: \(\phi.T:=\phi_*T\) (push-forward action)
- ...
Actions
shape \(s\) (e.g. \(s=\mathbf{q}\) or \(s=I\))
left actions satisfy
- Identity: e.s = s
- compatibility: (gh).s=g.(h.s)
Landmark action:
- \(\phi.\mathbf{q}:=(\phi(q_1),\ldots,\phi(q_N))\)
\((\psi\circ\phi).\mathbf{q}:=((\psi\circ\phi)(q_1),\ldots,(\psi\circ\phi)(q_N))\)
\( =(\psi(\phi(q_1)),\ldots,\psi(\phi(q_N)))\)
\( =\psi.(\phi(q_1),\ldots,\phi(q_N))=\psi.(\phi.\mathbf{q})\)
Shape Matching
E_{s_0,s_1}(\phi)=R(\phi)+\frac1\lambda S(\phi.s_0,s_1)
\( \phi\in\mathrm{Diff}(\Omega) \) diffeomorphism of domain \(\Omega\)
\( \phi \)
Variational problem to find optimal \(\phi\in G\):
Group and quotient
Hamilton's Equations for Landmarks
\[ \frac{d}{dt} q = \quad \frac{\partial H(q,p)}{\partial p} \]
\[ \frac{d}{dt} p = -\frac{\partial H(q,p)}{\partial q} \]
LDDMM landmark matching:
- \(q=(q_1,\ldots,q_n)\) configuration of \(n\) landmarks
- \(p\) landmark momentum
- matching of \(q_0\) to \(q_1\) by finding optimal trajectory \(q(t)\) with \(q(0)=q_0\)
Hamilton's Equations for Landmarks
\[ \frac{d}{dt} q = \quad \frac{\partial H(q,p)}{\partial p} \]
\[ \frac{d}{dt} p = -\frac{\partial H(q,p)}{\partial q} \]
Geodesics for Riemannian metric on landmark shape space:
- Landmarks \(\mathbf{q}=(q_1,\ldots,q_n),\,q_i\in\Omega\subseteq\mathbb R^d\)
- LDDMM cometric \( \left<\xi,\eta\right>_{\mathbf q}=\xi^T K(\mathbf q,\mathbf q)\eta\)
- \(p(0)\) (or \(v(0)\)) determines the entire evolution
Hamiltonian
\[ \frac{d}{dt} q = \quad \frac{\partial H(q,p)}{\partial p} \]
\[ \frac{d}{dt} p = -\frac{\partial H(q,p)}{\partial q} \]
LDDMM landmark matching:
- \(q=(q_1,\ldots,q_n)\) configuration of \(n\) landmarks
- \(p\) landmark momentum
Hamiltonian:
\[ H(q,p) = \sum_{i,j=1}^n p_i^TK(x_i,x_j)p_j\]
\(K\) RKHS kernel, e.g. \(K(q_i,q_j)=\alpha e^{-\frac{\|q_i-q_j\|^2}{2\sigma^2}}\)
Landmark geodesic equations
Hamiltonian:
\[ H(q,p) = \sum_{i,j=1}^n p_i^TK(q_i,q_j)p_j\]
\(K\) RKHS kernel, e.g. \(K(q_i,q_j)=\alpha e^{-\frac{\|q_i-q_j\|^2}{2\sigma^2}}\)
\frac{d}{dt} p = \, -\frac{\partial H(q,p)}{\partial q} = - \sum_{j=1}^n p_j^T D_1K (q_i , q_j )^T p_i
\frac{d}{dt} q = \quad \frac{\partial H(q,p)}{\partial p} = \quad \sum_{j=1}^n K (q_i , q_j) p_j
Entire evolution \((q(t),p(t)\) determined by \((q_0,p_0)\) or \((q_0,v_0)\), \(v_0=Kp_0\)
Hamilton's Equations in Theano
x = T.tensor3('x')
# landmark RKHS kernel
def K(q1,q2):
r_sq = T.sqr(q1.dimshuffle(0,'x',1)-q2.dimshuffle('x',0,1)).sum(2)
return T.exp( - r_sq / (2.*sigma**2) )
#Hamiltonian
def H(q,p):
return 0.5*T.tensordot(p,T.tensordot(K(q,q),p,[[1],[0]]),[[0,1],[0,1]])
# Hamiltons equations
dq = lambda q,p: T.grad(H(q,p),p)
dp = lambda q,p: -T.grad(H(q,p),q)
# ODE
def ode_f(x):
dqt = dq(x[0],x[1])
dpt = dp(x[0],x[1])
return T.stack((dqt,dpt))
# Euler step
def euler(x,dt):
return x+dt*ode_f(x)
# Euler integration: symbolic loop
(cout, updates) = theano.scan(fn=euler,outputs_info=[x],non_sequences=[dt],
n_steps=n_steps)
# compile it
simf = function(inputs=[x],outputs=cout,updates=updates)
# and loss function for matching
loss = 1./N*T.sum(T.sqr(cout[-1,0]-qtarget0))
# gradient
dloss = T.grad(loss,x)
# compile
lossf = function(inputs=[x],outputs=loss,updates=updates)
dlossf = function(inputs=[x],outputs=[loss, dloss],updates=updates)
# shooting
from scipy.optimize import minimize,fmin_bfgs,fmin_cg
def shoot(q0,p0):
def fopts(x):
[y,gy] = dlossf(np.stack([q0,x.reshape([N.eval(),DIM])]).astype(theano.config.floatX),)
return (y,gy[1].flatten())
res = minimize(fopts, p0.flatten(), method='L-BFGS-B', jac=True)
return(res.x,res.fun)Theano Geometry
Theano Geometry: Hamiltonian Dynamics
# # This file is part of Theano Geometry
#
# ...
from src.setup import *
from src.utils import *
###############################################################
# geodesic integration, Hamiltonian form #
###############################################################
def initialize(M):
q = M.coords()
p = M.coordscovector()
dq = lambda q,p: T.grad(M.H(q,p),p)
dp = lambda q,p: -T.grad(M.H(q,p),q)
def ode_Hamiltonian(t,x):
dqt = dq(x[0],x[1])
dpt = dp(x[0],x[1])
return T.stack((dqt,dpt))
M.Hamiltonian_dynamics = lambda q,p: integrate(ode_Hamiltonian,T.stack((q,p)))
M.Hamiltonian_dynamicsf = theano.function([q,p], M.Hamiltonian_dynamics(q,p))
## Geodesic
M.Exp_Hamiltonian = lambda q,p: M.Hamiltonian_dynamics(q,p)[1][-1,0]
M.Exp_Hamiltonianf = theano.function([q,p], M.Exp_Hamiltonian(q,p))
Hamilton's Equations in Theano
Exercise session:

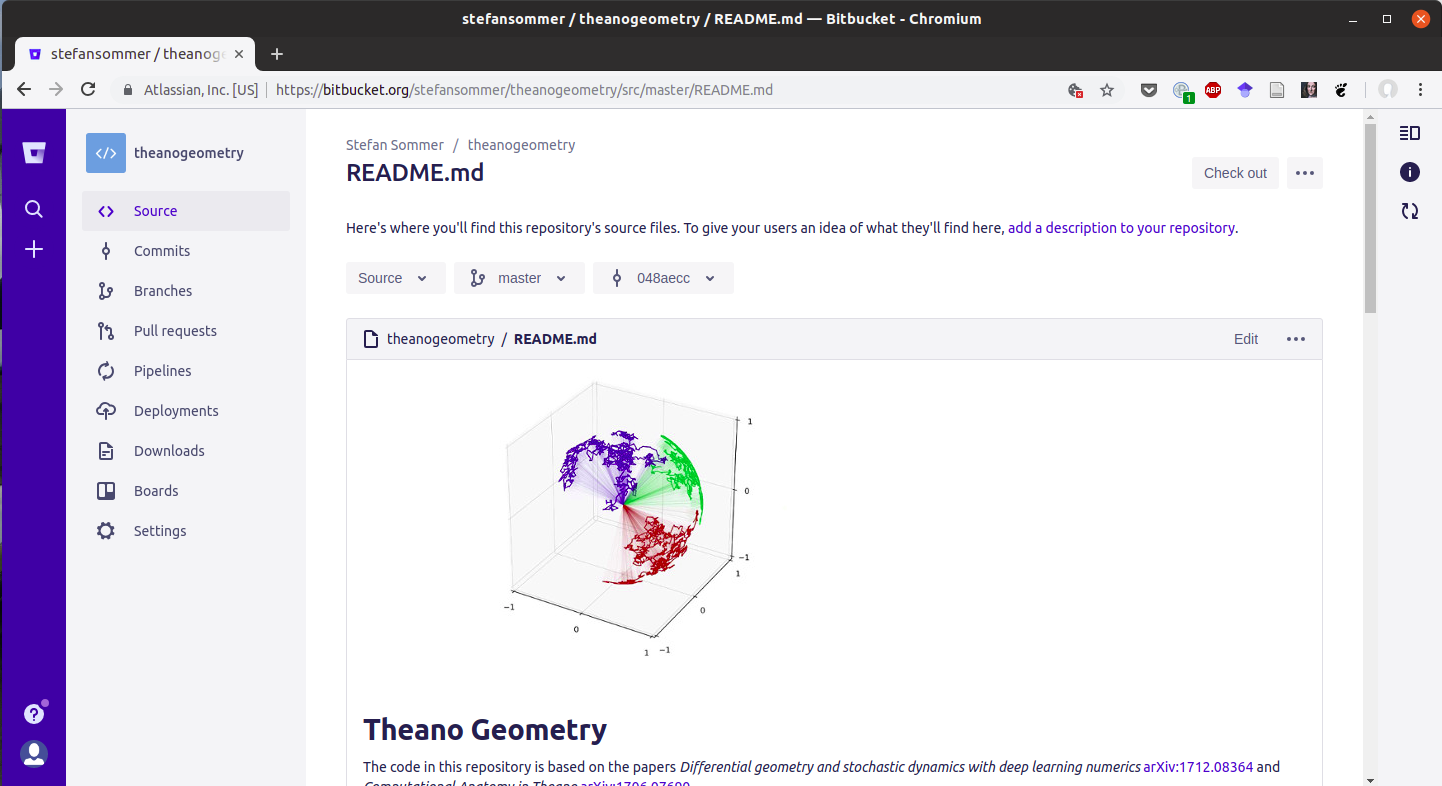

- download Theano geometry
- open notebook courses/shape19-E1.ipynb. It contains template code you can base your solutions on
- forward integrate with different momenta + kernel parameters
- what happens when shooting landmarks together?
- define two nontrivial shapes and match them
- plot underlying grid deformation and discuss the result. Try varying the kernel width. How is the result related to lifting from shape space to \(\mathrm{Diff}(\Omega)\)?
Slides: https://slides.com/stefansommer/shape-analysis-X/ (X=1,2,3)
