stochastic shapes and probabilistic geometric statistics

w/ Alexis Arnaudon, Darryl Holm, Sarang Joshi, Tom Fletcher, Frank v.d. Meulen, Moritz Schauer, Benjamin Eltzner, Line Kuhnel, Mathias H. Jensen, Pernille E.H. Hansen

Novo nordisk foundation

Villum foundation

Carlsberg foundation

Statistical shape analysis

Geometric statistics

Generalization of Euclidean statistical notions and techniques to spaces without vector space structure

i.i.d. samples $y_1,\ldots,y_N\in M$
Fréchet mean
$\bar{x}=\mathrm{argmin}_{x\in M}\sum_{i=1}^Nd(x,y_i)^2$

The Fréchet mean is not an expected value.

There is no equivalence between different characterizations of means

- in contrast to Euclidean statistics

Geometric data: Directional statistics

Plane directions: $\mathbb{S}^1$

Geographical data: $\mathbb{S}^2$

3D directions: $\mathrm{SO}(3), \mathbb{S}^2$

Angles: $\mathbb{T}^N$

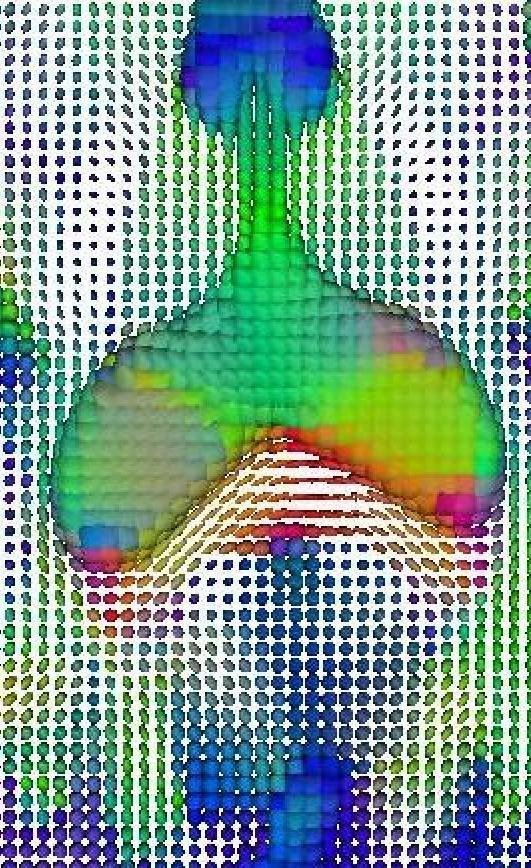

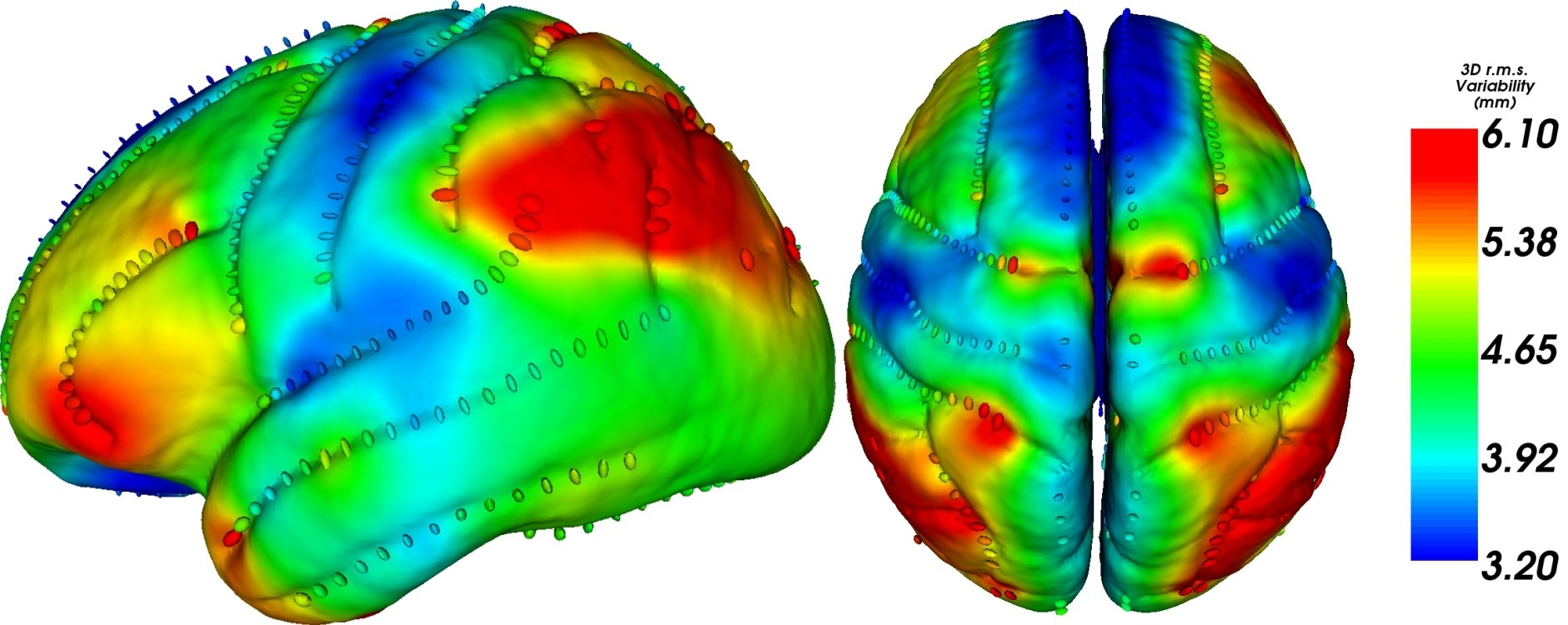

Geometric data: Diffusion MRI

Positive, symmetric 3 tensors: SPD(3)

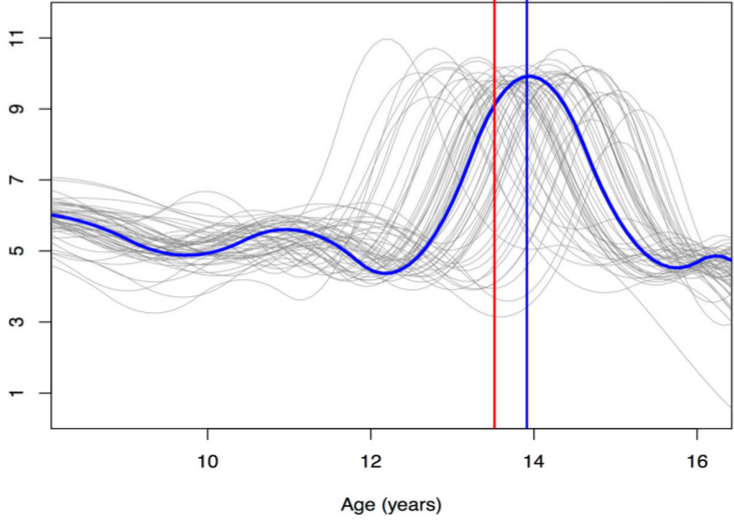

Geometric data: Functional signals

continuous curves: $\mathrm{Emb}(\mathbb S^1,\mathbb R^2)/\mathrm{Diff}(\mathbb S^1)$

Mieritz et al.,JCEM'15

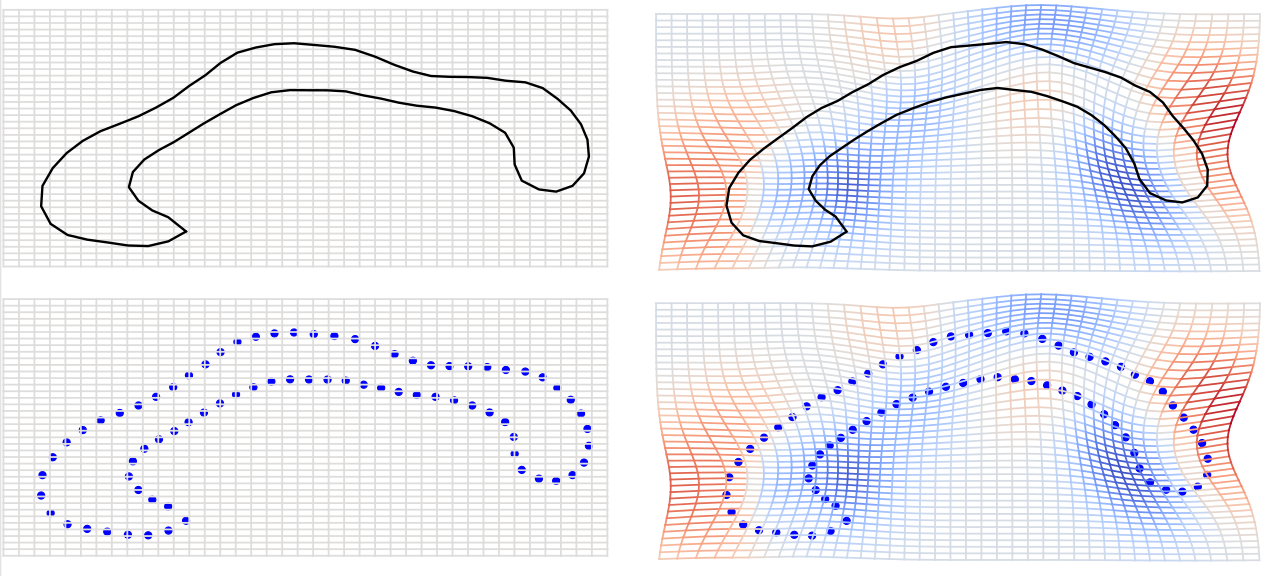

Shape matching

E_{s_0,s_1}(\phi)=R(\phi)+\frac1\lambda S(\phi.s_0,s_1)

E_{s_0,s_1}(\phi)=R(\phi)+\frac1\lambda S(\phi.s_0,s_1)

$\phi\in\mathrm{Diff}(\Omega)$ diffeomorphism of domain $\Omega$
action: $\phi.s=\phi\circ s$ (shapes)
$\phi.s=s\circ\phi^{-1}$ (images)

$\phi$

Riemannian view

R(\phi_t)=\int_0^T\|\partial_t \phi_t\|_{\phi_t}^2dt

R(\phi_t)=\int_0^T\|\partial_t \phi_t\|_{\phi_t}^2dt

$\phi_t:[0,T]\to\mathrm{Diff}(\Omega)$ path of diffeomorphisms (parameter t)

\mathrm{Diff}(\Omega)

\mathrm{Diff}(\Omega)

\mathrm{Id}_{\mathrm{Diff}(\Omega)}

\mathrm{Id}_{\mathrm{Diff}(\Omega)}

\varphi_t

\varphi_t

LDDMM: Grenander, Miller, Trouve, Younes, Christensen, Joshi, et al.

Evolution with noise

\partial_t \phi_t = F(\phi_t)\ \to\ d\phi_t=F(\phi_t)dt\color{blue}{+\sigma(\phi_t) dW_t}

\partial_t \phi_t = F(\phi_t)\ \to\ d\phi_t=F(\phi_t)dt\color{blue}{+\sigma(\phi_t) dW_t}

\mathrm{Diff}(\Omega)

\mathrm{Diff}(\Omega)

\mathrm{Id}_{\mathrm{Diff}(\Omega)}

\mathrm{Id}_{\mathrm{Diff}(\Omega)}

\phi_t

\phi_t

Trouve,Vialard,QAM'12;Vialard,SPA'13;Marsland/Shardlow,SIIMS'17
Arnaudon,Holm,Sommer,IPMI'17; FoCM'18; JMIV'19

Least-squares $\leftrightarrow$ probabilistic

Deterministic:

$\phi_t$ geodesic evolution
exact matching:
$\quad\mathrm{argmin}_{\phi_1.s_0=s_1} E(\phi_t)$
inexact matching:
$\quad\mathrm{argmin}_{\phi_t} E(\phi_t)$
distance:
$\quad d(s_0,s1)^2=E(\phi_t)$
Riemannian least-
squares

Stochastic:

$\phi_t$ stochastic process
bridge:
$\quad \phi_t|\phi_T.s_0=s_1$
bridge + noise in observation:
$\quad \phi_t|\phi_T.s_0+\epsilon=s_1$
(log) transition density
$\quad -\log p_T(s_1; s_0)$
ML/MAP

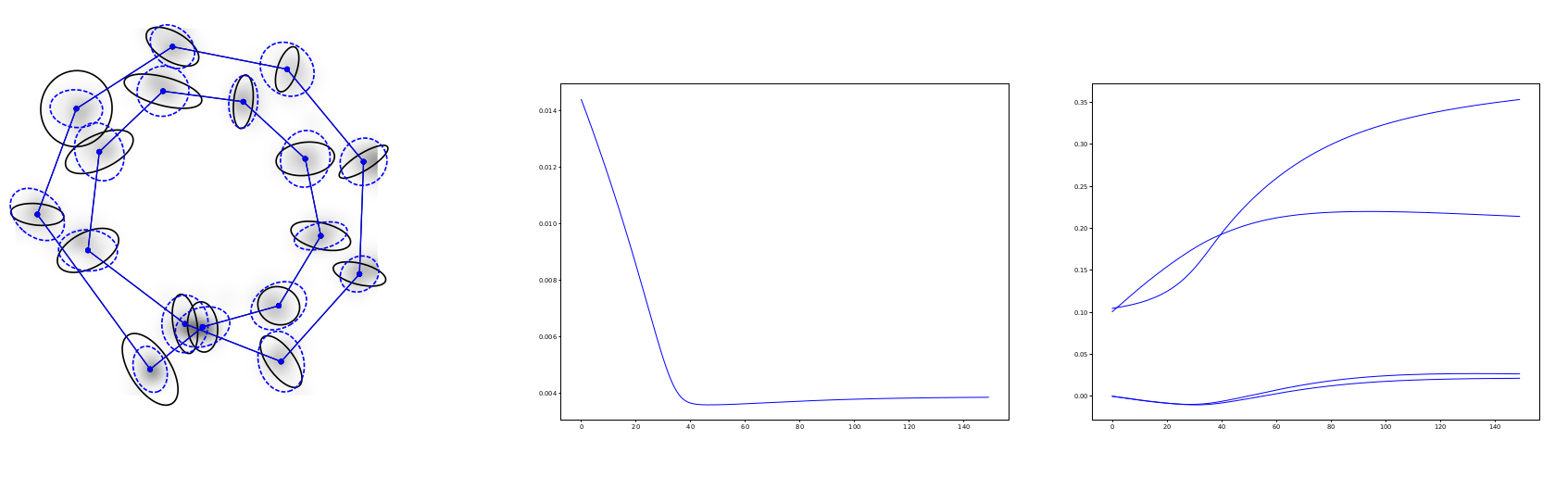

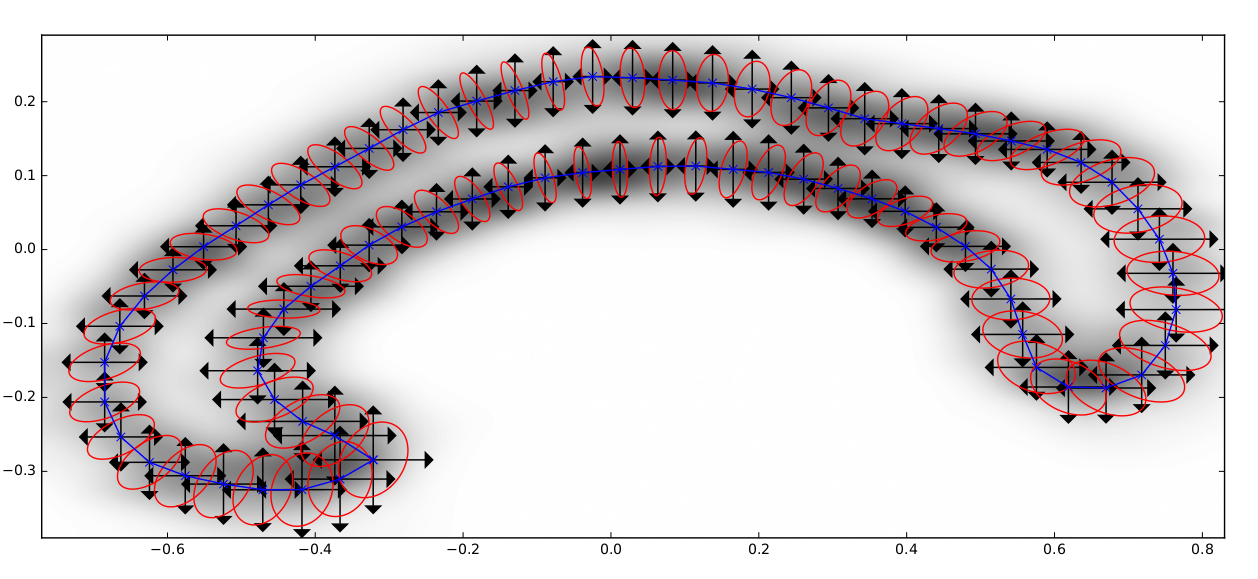

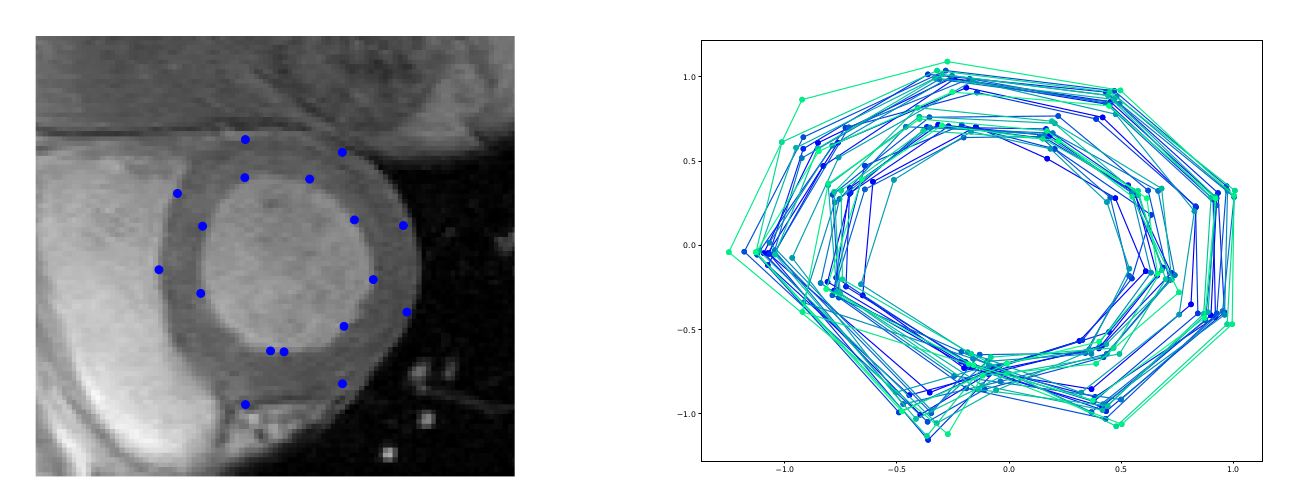

Inferring geometry of landmarks spaces

Landmarks $\mathbf{q}=(q_1,\ldots,q_n),\,q_i\in\Omega\subseteq\mathbb R^d$
LDDMM cometric $\left<\xi,\eta\right>_{\mathbf q}=\xi^T K(\mathbf q,\mathbf q)\eta$
kernel $K(\mathbf q_1,\mathbf q_2)=\alpha e^{-1\frac12 x^T\Sigma^{-1}x}\mathrm{Id}_d$
Riemannian Brownian motion
$dq_t^i=g^{kl}\Gamma(\mathbf q_t)^i_{kl}dt+\sqrt{g^*(\mathbf q_t)}^idW_t$

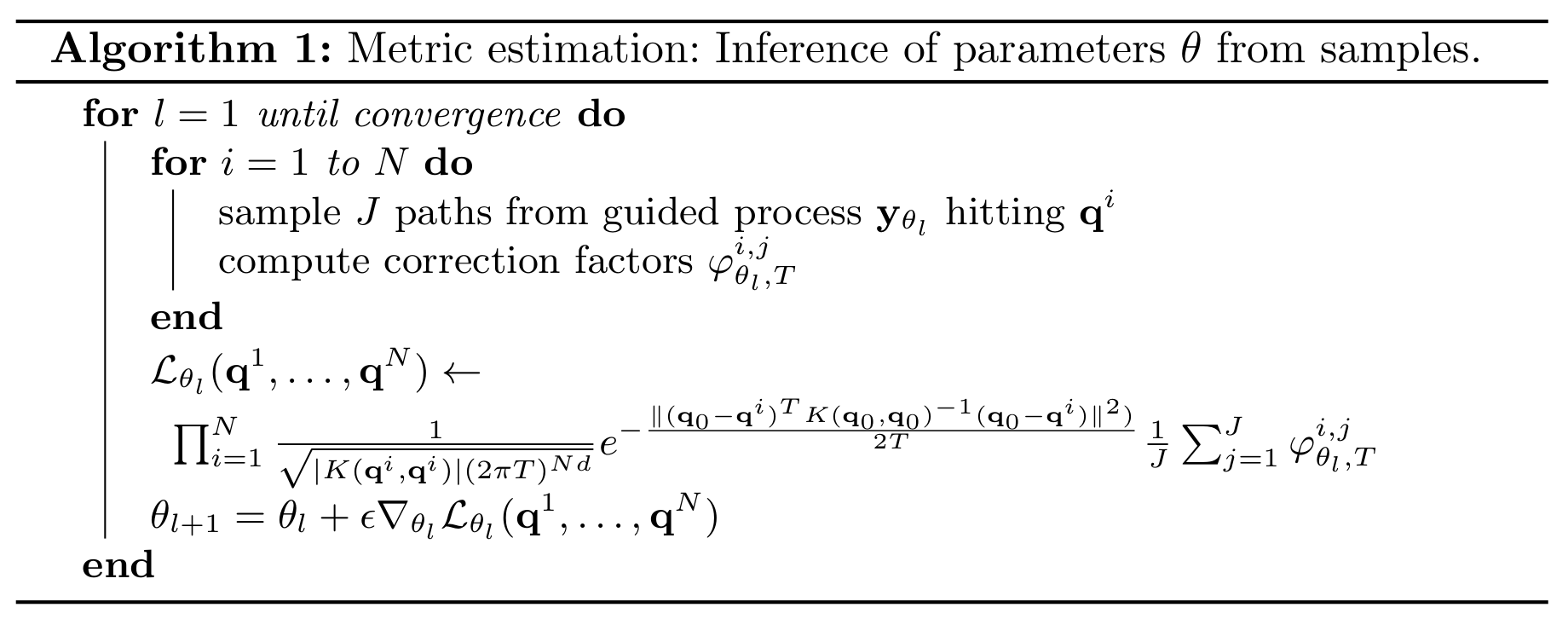

Brownian motion transition density
$p_{T,\theta}(\mathbf v)=\frac1{\sqrt{|K(\mathbf v,\mathbf v)|(2\pi T)^{Nd}}}e^{-\frac{\|(\mathbf q_0-\mathbf v)^TK(\mathbf q_0,\mathbf q_0)^{-1}(\mathbf q_0-\mathbf v)\|^2}{2T}}\mathbb E_{\mathbf y_\theta}[\varphi_{\theta}(\mathbf y)]$

Sommer,Arnaudon,Kuhnel,Josh,MFCA'17

Stochastic matching

geometric bridge sampling

dx_t = b(t,x_t)dt +\sigma(t,x_t)dW_t

dx_t = b(t,x_t)dt +\sigma(t,x_t)dW_t

Delyon/Hu 2006 + v.d. Meulen, Schauer:

$\sigma$ invertible:

guided bridge proposal $dy_t = b(t,y_t)dt - \frac{y_t-v}{T-t}dt + \sigma(t,y_t)dW_t$
$y_T=v$ a.s.
$x_t|x_T=v$ absolute continuous wrt. $y_t$
$\mathbb E_{x_t|x_T=v}[f(x_t)]\propto \mathbb E_{y_t}[f(y_t)\varphi(y_t)]$

$v$

$x_0$

$x_t$

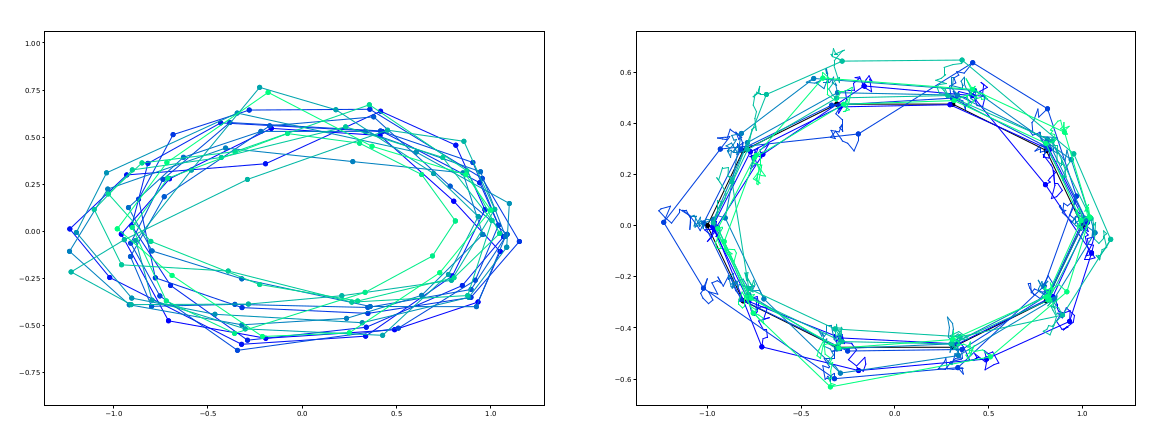

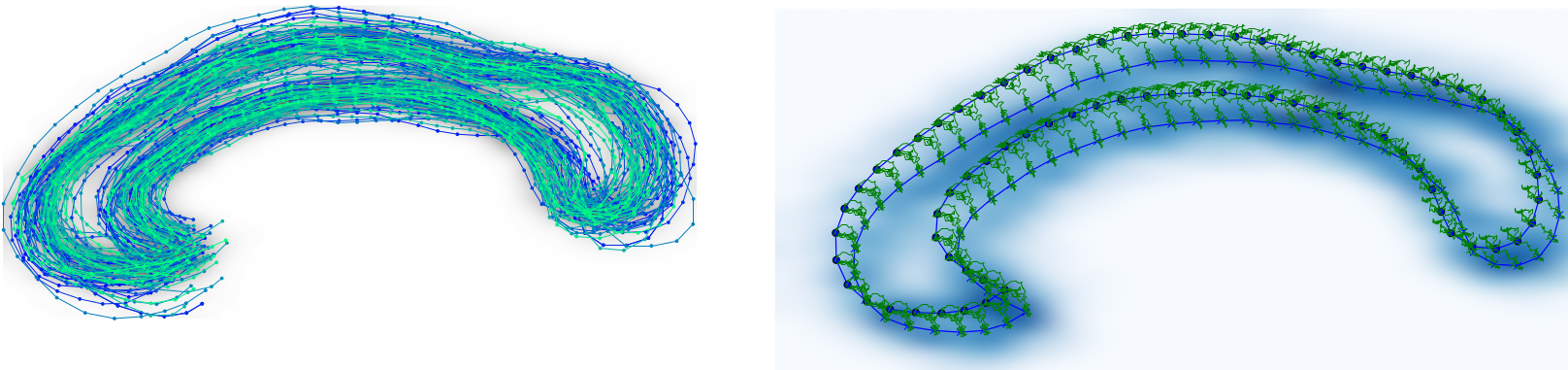

Schauer/v.d. Meulen shape bridges

v.d. Meulen,Schauer,Arnaudon,Sommer,arxiv'20

Stochastic Euler-Poincaré equations

Stochastic perturbation of the reconstruction equation

right-invariant noise, momentum map preserved
stochastic Euler-Poincare principle
landmark equations:
$\quad q_i = \frac{\partial h}{\partial p_i} dt+\sum_{l=1}^J\frac{\partial\phi_l}{\partial p_i}\circ dW_t^l$
$\quad p_i = -\frac{\partial h}{\partial q_i} dt+\sum_{l=1}^J\frac{\partial\phi_l}{\partial q_i}\circ dW_t^l$
image equations:
$\quad 0=d\mathbf m+\big( (\mathbf u\cdot\nabla)\mathbf m+\mathbf m\cdot(D\mathbf v)^T+\mathrm{div}(\mathbf u)\mathbf m\big)dt$
$\quad\quad+\sum_{l=1}^J\big(\mathbf\sigma_l\cdot\nabla)\mathbf m+\mathbf m\cdot(D\mathbf\sigma_l)^T+\mathrm{div}(\mathbf\sigma_l)\mathbf m\big)\circ dW^l_t$
$\quad dI=-\nabla I\cdot\mathbf udt+\sum_{l=1}^J\nabla I\cdot\mathbf\sigma_l\circ dW_t^l$

d\frac{\delta l}{\delta u} + \mathrm{ad}^*_{u_t} \frac{\delta l}{\delta u}dt + \color{blue}{\sum_{l=1}^J \mathrm{ad}^*_{\sigma_l} \frac{\delta l}{\delta u}\circ dW^l_t=0}

d\frac{\delta l}{\delta u} + \mathrm{ad}^*_{u_t} \frac{\delta l}{\delta u}dt + \color{blue}{\sum_{l=1}^J \mathrm{ad}^*_{\sigma_l} \frac{\delta l}{\delta u}\circ dW^l_t=0}

dg_t = u_t( g_t) dt + \color{blue}{\sum_{l=1}^J \sigma_l( g_t) \circ dW^l_t}

dg_t = u_t( g_t) dt + \color{blue}{\sum_{l=1}^J \sigma_l( g_t) \circ dW^l_t}

Arnaudon,Holm,Sommer,IPMI'17; FoCM'18; JMIV'19

d\frac{\delta l}{\delta u} + \mathrm{ad}^*_{u_t} \frac{\delta l}{\delta u}dt=0

d\frac{\delta l}{\delta u} + \mathrm{ad}^*_{u_t} \frac{\delta l}{\delta u}dt=0

dg_t = u_t( g_t) dt

dg_t = u_t( g_t) dt

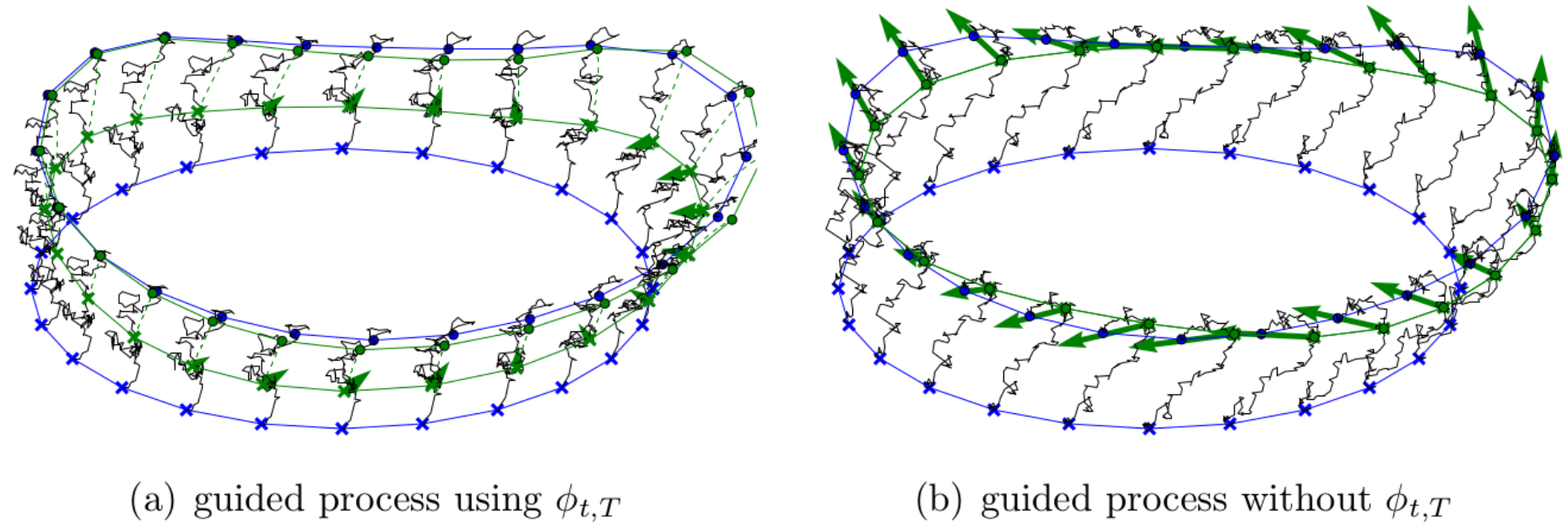

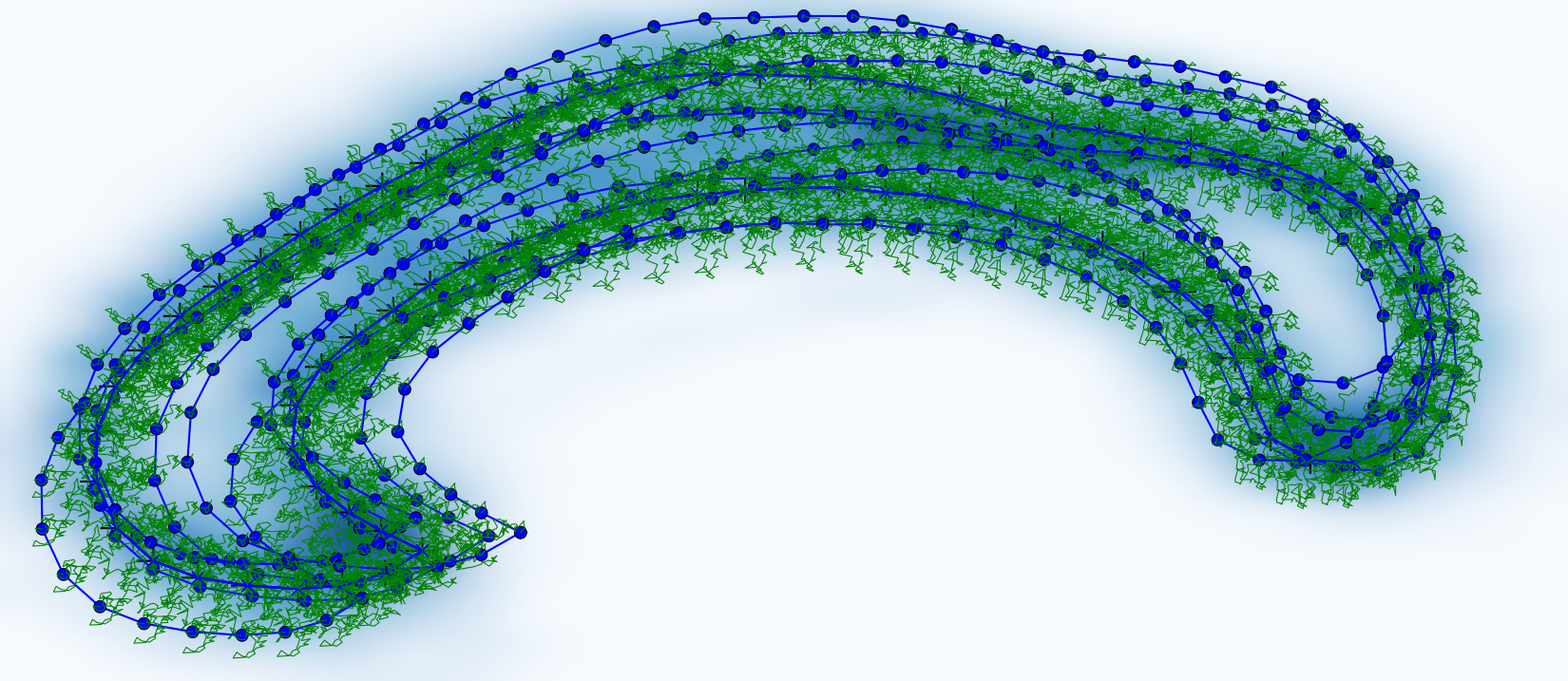

Landmark E-P bridges

conditioning on $\mathbf v=(v_1,\ldots,v_N)$
$\phi_{t,T}$ approximates expected endpoint
$\Sigma$ is not invertible, using $\Sigma_{\mathbf q}^\dagger$ pseudo-inverse
appropriate continuity of density $p(\mathbf q_0,\mathbf p_0; \mathbf q,T)$

Theorem:

\begin{pmatrix} d\hat{\mathbf q} \\ d\hat{\mathbf p} \end{pmatrix} = b(\hat{\mathbf q},\hat{\mathbf p})dt - \frac{\Sigma(\hat{\mathbf q},\hat{\mathbf p})\Sigma_{\mathbf q}(\hat{\mathbf q})^\dagger(\phi_{t,T}(\hat{\mathbf q},\hat{\mathbf p})-\mathbf v)} {T-t}dt + \Sigma(\hat{\mathbf q},\hat{\mathbf p}) \circ dW

\begin{pmatrix} d\hat{\mathbf q} \\ d\hat{\mathbf p} \end{pmatrix} = b(\hat{\mathbf q},\hat{\mathbf p})dt - \frac{\Sigma(\hat{\mathbf q},\hat{\mathbf p})\Sigma_{\mathbf q}(\hat{\mathbf q})^\dagger(\phi_{t,T}(\hat{\mathbf q},\hat{\mathbf p})-\mathbf v)} {T-t}dt + \Sigma(\hat{\mathbf q},\hat{\mathbf p}) \circ dW

\mathbb E_{(\mathbf q,\mathbf p)|\mathbf v}[f(\mathbf q,\mathbf p)] = \lim_{t\rightarrow T} \frac{ \mathbb E_{(\hat{\mathbf q},\hat{\mathbf p})}\left [ f(\hat{\mathbf q},\hat{\mathbf p}) \varphi(\hat{\mathbf q},\hat{\mathbf p},t) \right ] }{\mathbb E_{(\hat{\mathbf q},\hat{\mathbf p})}[\varphi(\hat{\mathbf q},\hat{\mathbf p},t)]}

\mathbb E_{(\mathbf q,\mathbf p)|\mathbf v}[f(\mathbf q,\mathbf p)] = \lim_{t\rightarrow T} \frac{ \mathbb E_{(\hat{\mathbf q},\hat{\mathbf p})}\left [ f(\hat{\mathbf q},\hat{\mathbf p}) \varphi(\hat{\mathbf q},\hat{\mathbf p},t) \right ] }{\mathbb E_{(\hat{\mathbf q},\hat{\mathbf p})}[\varphi(\hat{\mathbf q},\hat{\mathbf p},t)]}

p(\mathbf q_0,\mathbf p_0; \mathbf q,T) = \left(\frac{\left|A(\mathbf v)\right|}{2\pi T}\right)^{\frac d2} e^{-\frac{\|\Sigma_\mathbf q(\mathbf q_0)^\dagger(\mathbf q_0-v)\|^2}{2T}} \lim_{t\to T} \mathbb E_{(\hat{\mathbf q},\hat{\mathbf p})} [\varphi(\hat{\mathbf q},\hat{\mathbf p},t)]

p(\mathbf q_0,\mathbf p_0; \mathbf q,T) = \left(\frac{\left|A(\mathbf v)\right|}{2\pi T}\right)^{\frac d2} e^{-\frac{\|\Sigma_\mathbf q(\mathbf q_0)^\dagger(\mathbf q_0-v)\|^2}{2T}} \lim_{t\to T} \mathbb E_{(\hat{\mathbf q},\hat{\mathbf p})} [\varphi(\hat{\mathbf q},\hat{\mathbf p},t)]

Landmark E-P bridges

v.d. Meulen,Schauer,Arnaudon,Sommer,arxiv'20

parametric families of probability distributions $\mu_\theta$
likelihood from density:
$\quad\mathcal{L}(\theta; y_1,\ldots,y_N)=\prod_{i=1}^Np_\theta(y_i)$
ML/MAP estimates:
$\quad\bar{\theta}=\mathrm{argmax}_\theta\mathcal{L}(\theta; y_1,\ldots,y_N)$

Diffusion mean:
$\quad x_t\in M$ Brownian motion
$\quad\theta=x_0$
assume $y\sim x_T$ :
$\quad\bar{x}_{\mathrm{ML}}=\mathrm{argmax}_\theta\mathcal{L}(\theta)$

Generalization of Euclidean statistical notions and techniques.

i.i.d. samples $y_1,\ldots,y_N\in M$
Fréchet mean:
$\bar{x}=\mathrm{argmin}_{x\in M}\sum_{i=1}^Nd(x,y_i)^2$

Sommer,IPMI'15; Sommer,Svane,JGM'15;
Sommer,GSI'17; Sommer,Sankhya A'19

The Fréchet mean is not an expected value.

There is no equivalence between different characterizations of means

- in contrast to Euclidean statistics

Geometric statistics

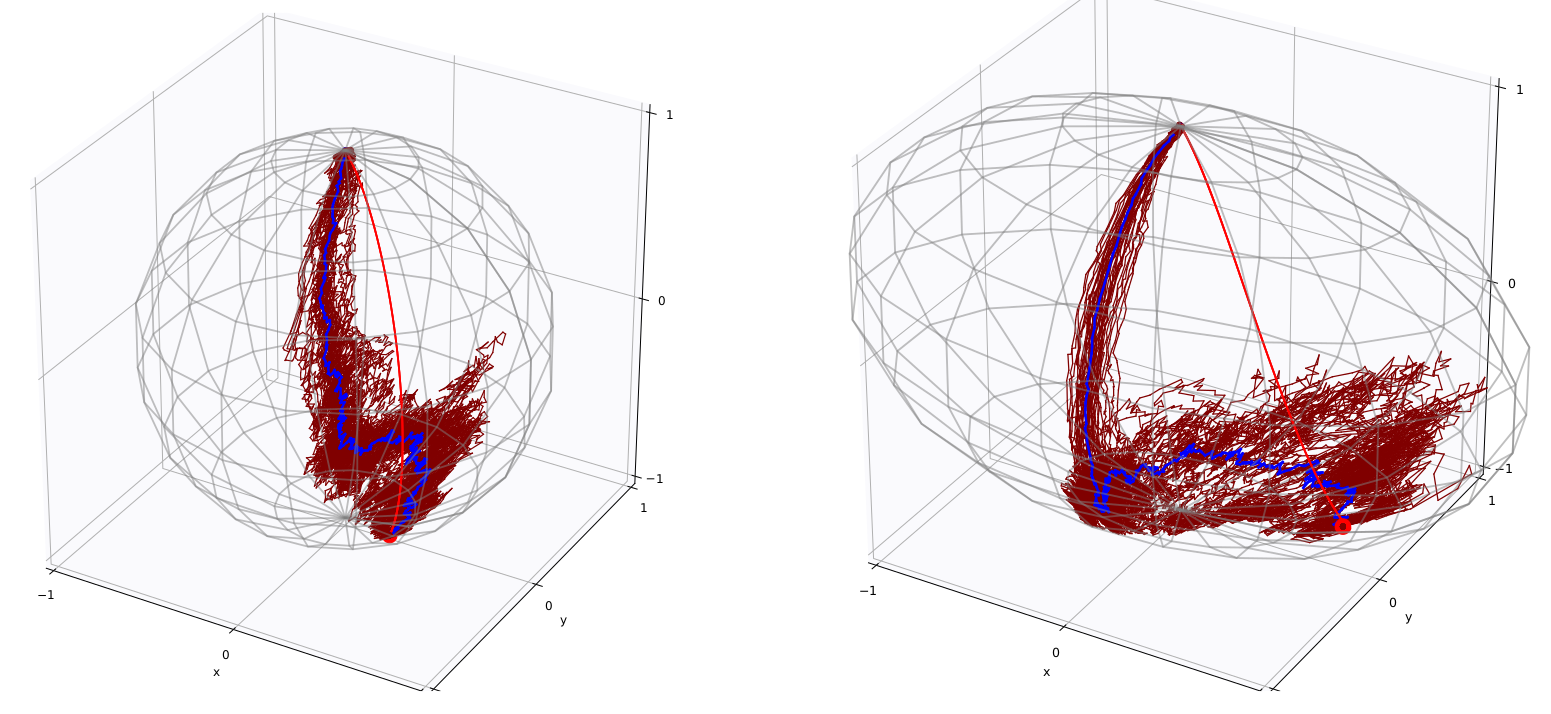

Diffusion mean on $\mathbb S^2$

$x_t\in M$ Brownian motion
$\theta=x_0$ , $y\sim x_T$
$\bar{x}_{\mathrm{ML}}=\mathrm{argmax}_\theta\mathcal{L}(\theta)$

dx_t= -\frac12g(x_t)^{kl}\Gamma(x_t)_{kl}dt + \sqrt{g(x_t)^*}dW_t

dx_t= -\frac12g(x_t)^{kl}\Gamma(x_t)_{kl}dt + \sqrt{g(x_t)^*}dW_t

Brownian motion starting point

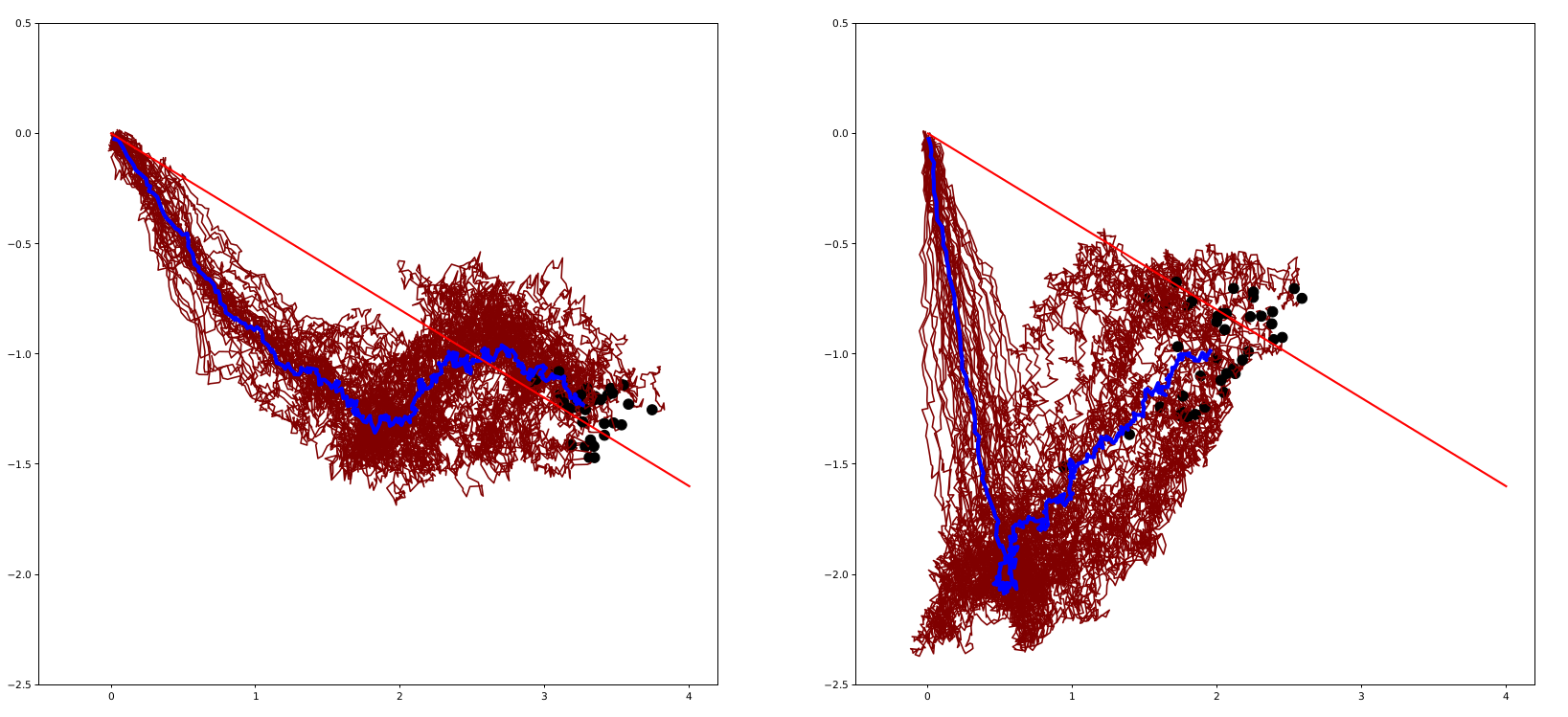

Manifold bridges

Højgaard,Sommer,in preparation

From means to covariance
$SO(3)$ and $\mathbb S^2$

$A$ quadratic form on $so(3)$
$x_t\in SO(3)$ Brownian motion
$\theta=(x_0,A)$
$(\bar{x}_{\mathrm{ML}},\bar{A})=\mathrm{argmax}_\theta\mathcal{L}(\theta)$

$\pi$

Sommer,Joshi,Højgaard, in preparation

Beyond the mean: PCA

Non-Euclidean generalizations of PCA:

Principal Geodesic Analysis (PGA, Fletcher et al., ’04)
Geodesic PCA (GPCA, Huckeman et al., ’10)
Horizontal Component Analysis (HCA, Sommer, ’13)
Principal Nested Spheres ((C)PNS, Jung et al., ’12)
Barycentric Subspaces (BS, Pennec, ’15)

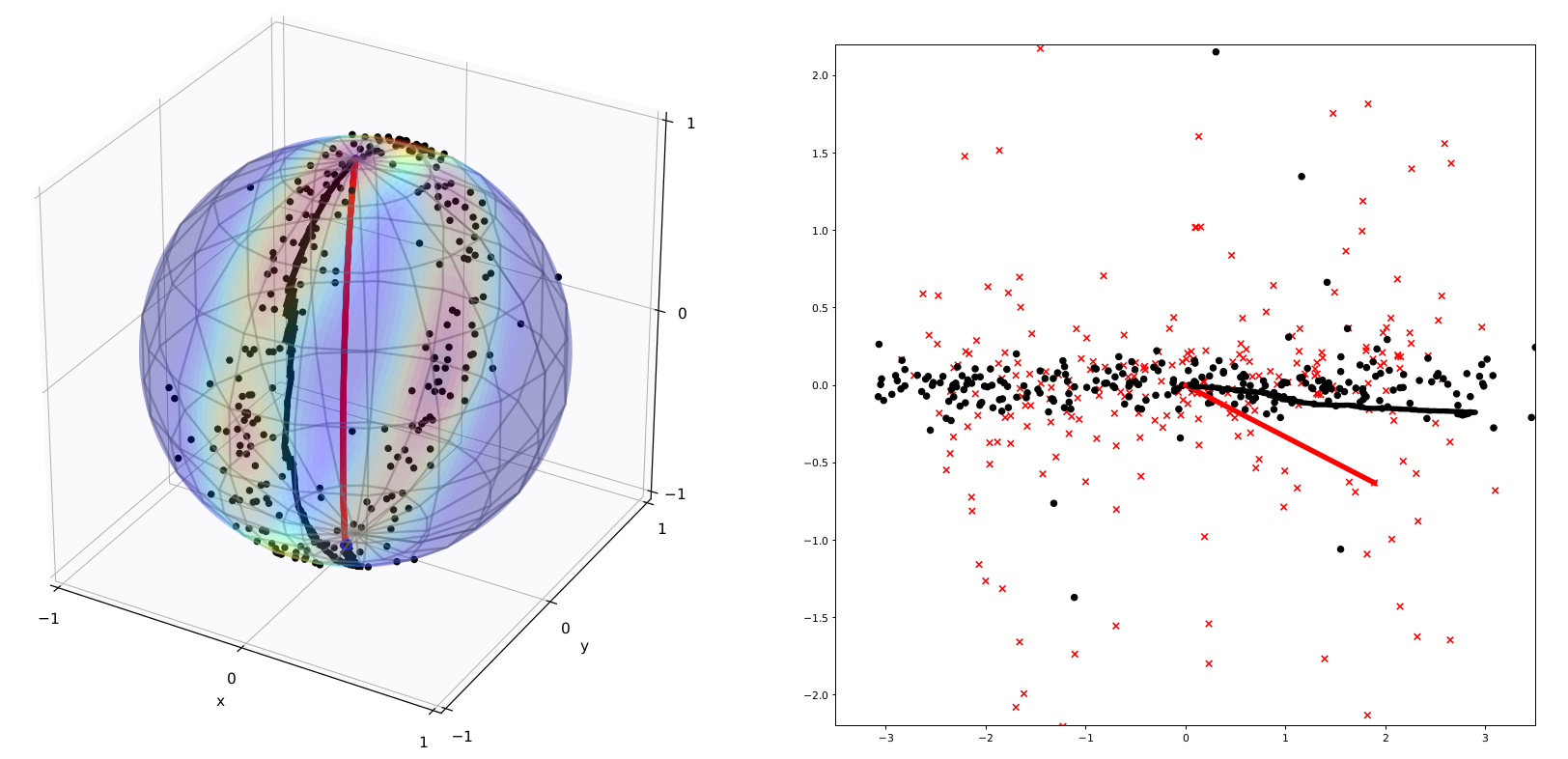

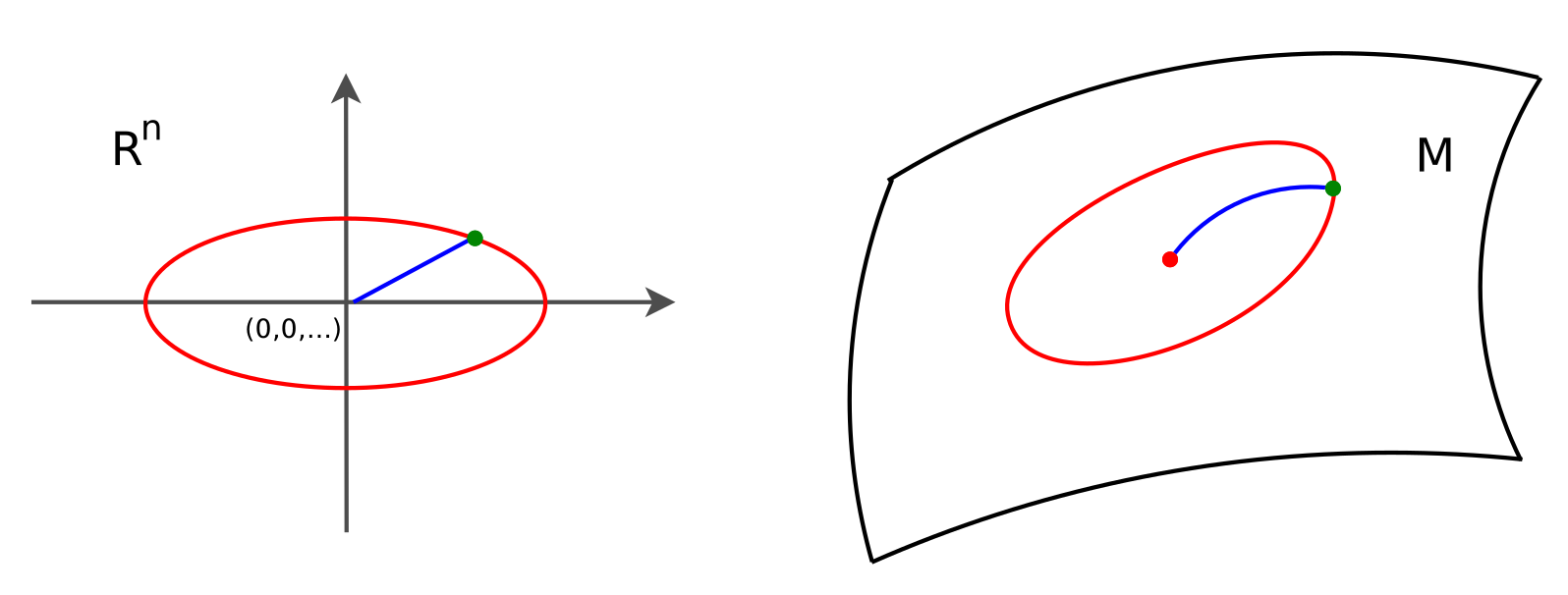

Covariance and principal components

Infinitesimal Probabilistic principal components (PPCA)

map of Euclidean Brownian motion $W_t$ to $M$ via the frame bundle $FM$ : $\qquad\qquad du_t=H_i(u_t)\circ dW_t$
$\theta=u_0$ , $u_0=(x,\sigma)\in FM$
$x\in M$ mean, $\Sigma=\sigma\sigma^T$ (infinitesimal) covariance
$(\bar{x}_{\mathrm{ML}},\bar{\sigma})=\mathrm{argmax}_\theta\mathcal{L}(\theta)$

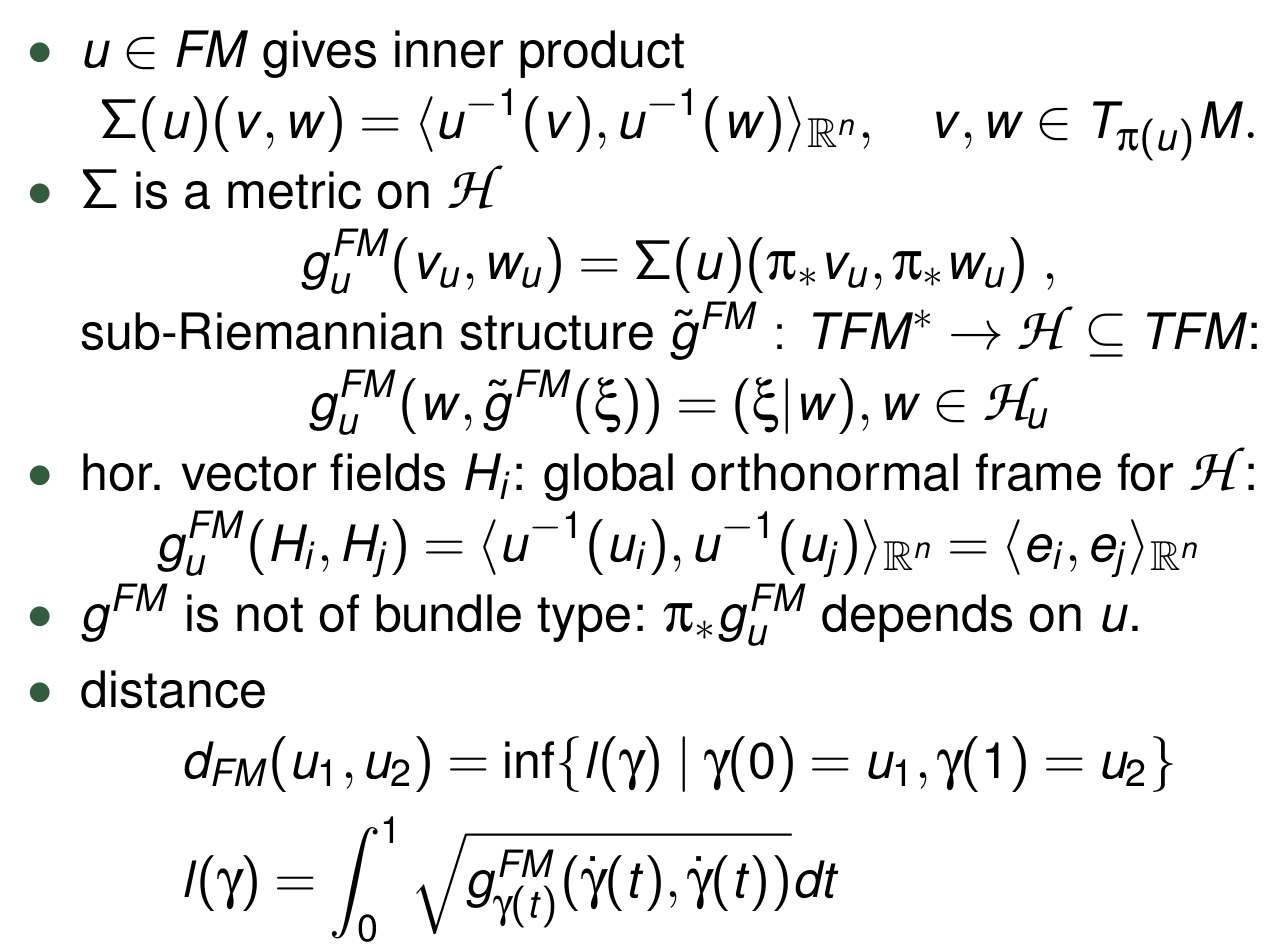

Frame bundles

$\pi:FM\to M$ is the bundle of linear frames, i.e.
$u=(u_1,\ldots,u_d)\in FM$ is an ordered basis for $T_xM$ , $x=\pi(u)$
$FM$ is a $\mathrm{GL}(n)$ principal bundle: $u:\mathbb R^d\to T_x M$ linear, invertible
$OM$ the subbundle of orthonormal frames (orientations)
horizontal lift $h_u:T_xM\to H_uFM$ and fields: $H_i:FM\to TFM$

$h_u=(\pi_*|_{H_uFM})^{-1}$
$H_i(u)=h_u(ue_i)$

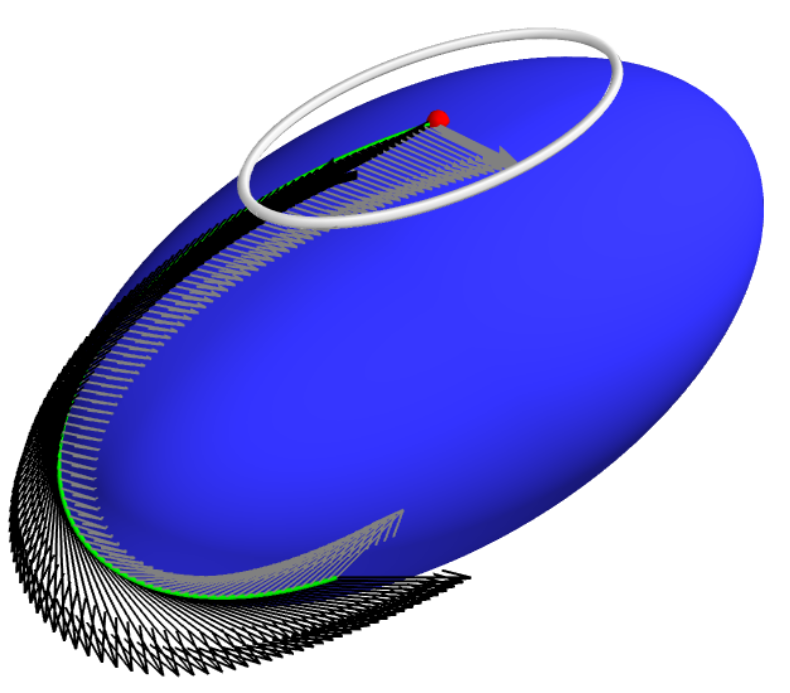

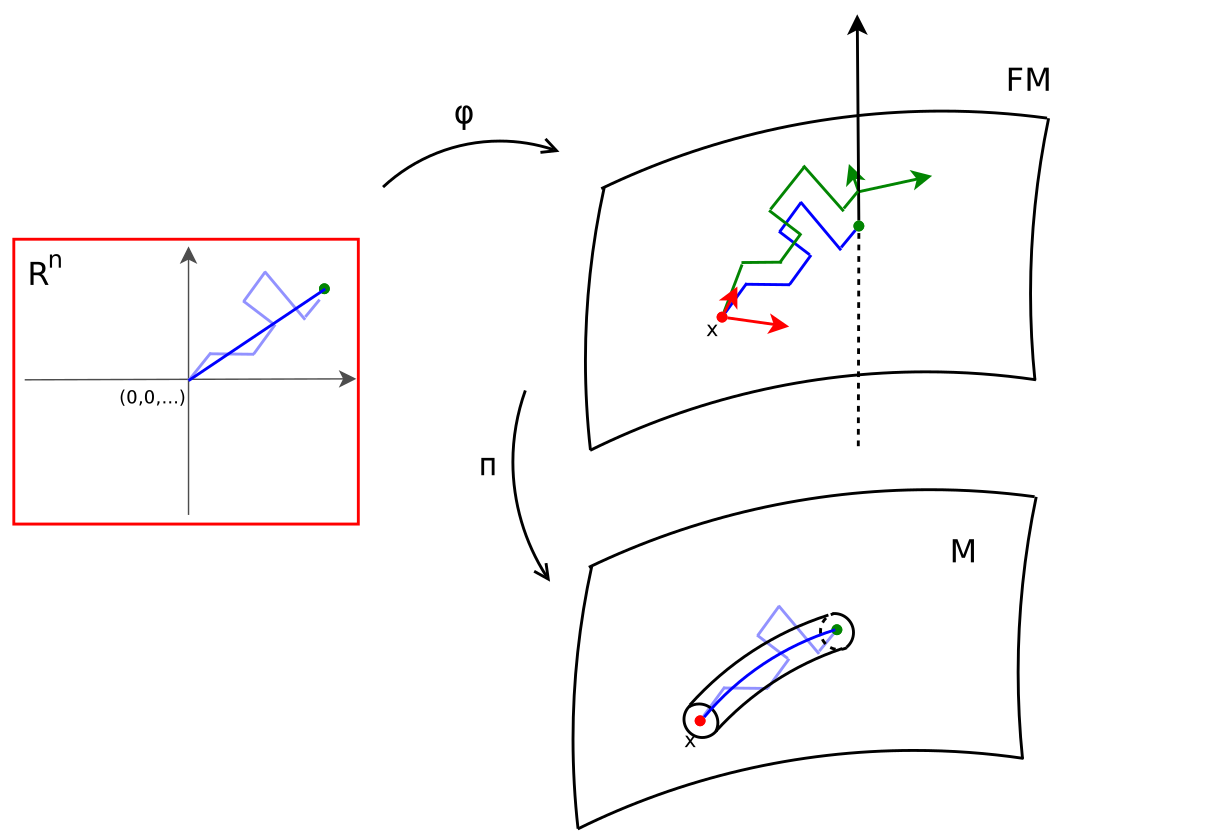

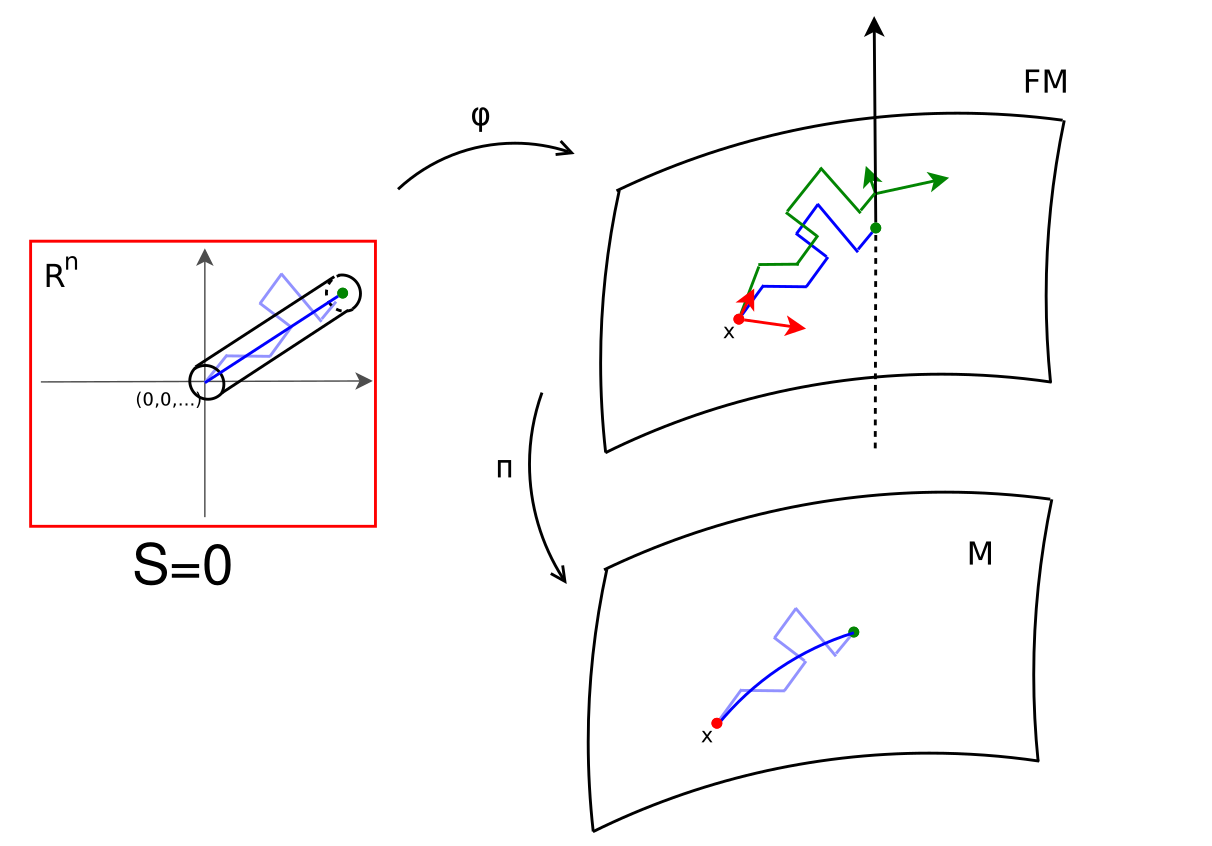

Transporting along all paths

Stochastic development:

$dU_t=\sum_{i=1}^d H_i\circ_{\mathcal S} dW_t^i$

$W_t$ Euclidean Brownian motion

$X_t=\pi(U_t)$ Riemannian Brownian motion

$X_t$ supports stochastic parallel transport

Fix $T>0$ : $U_T$ probability distribution in $FM$

... as opposed to geodesics only

Need measure on path space $W ([0, T ], M )$

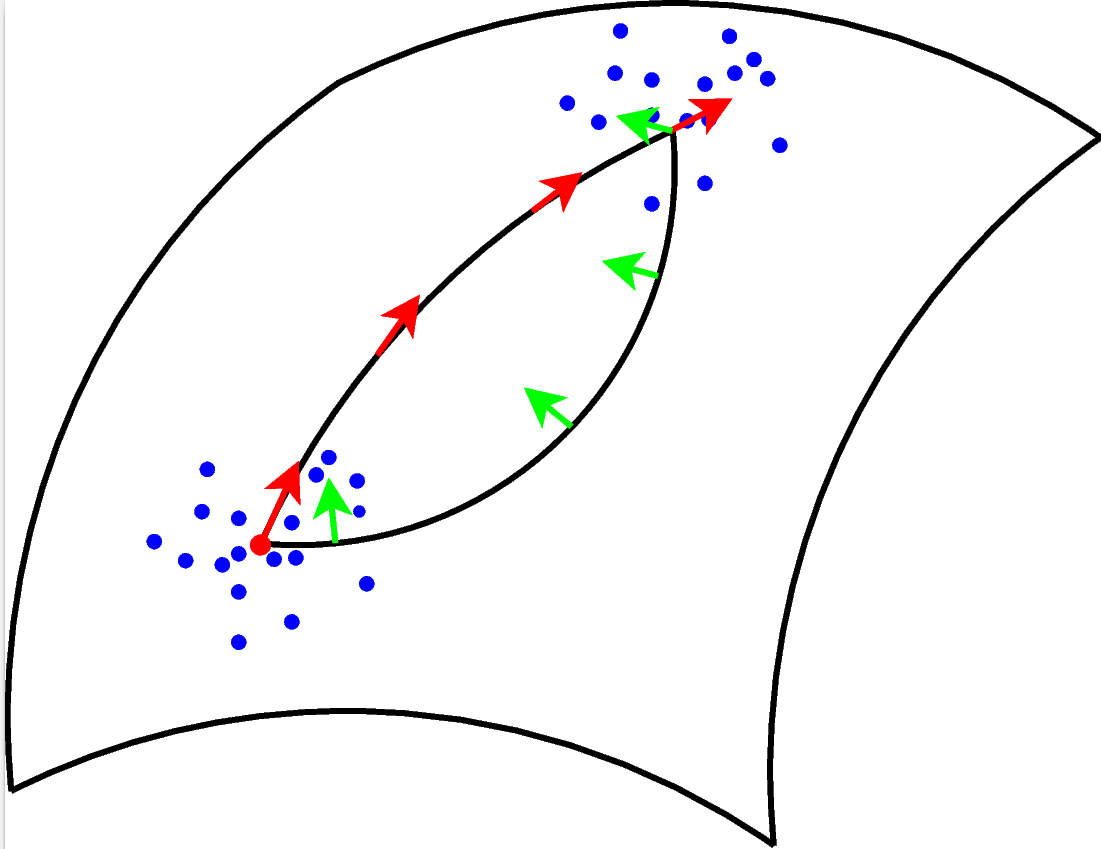

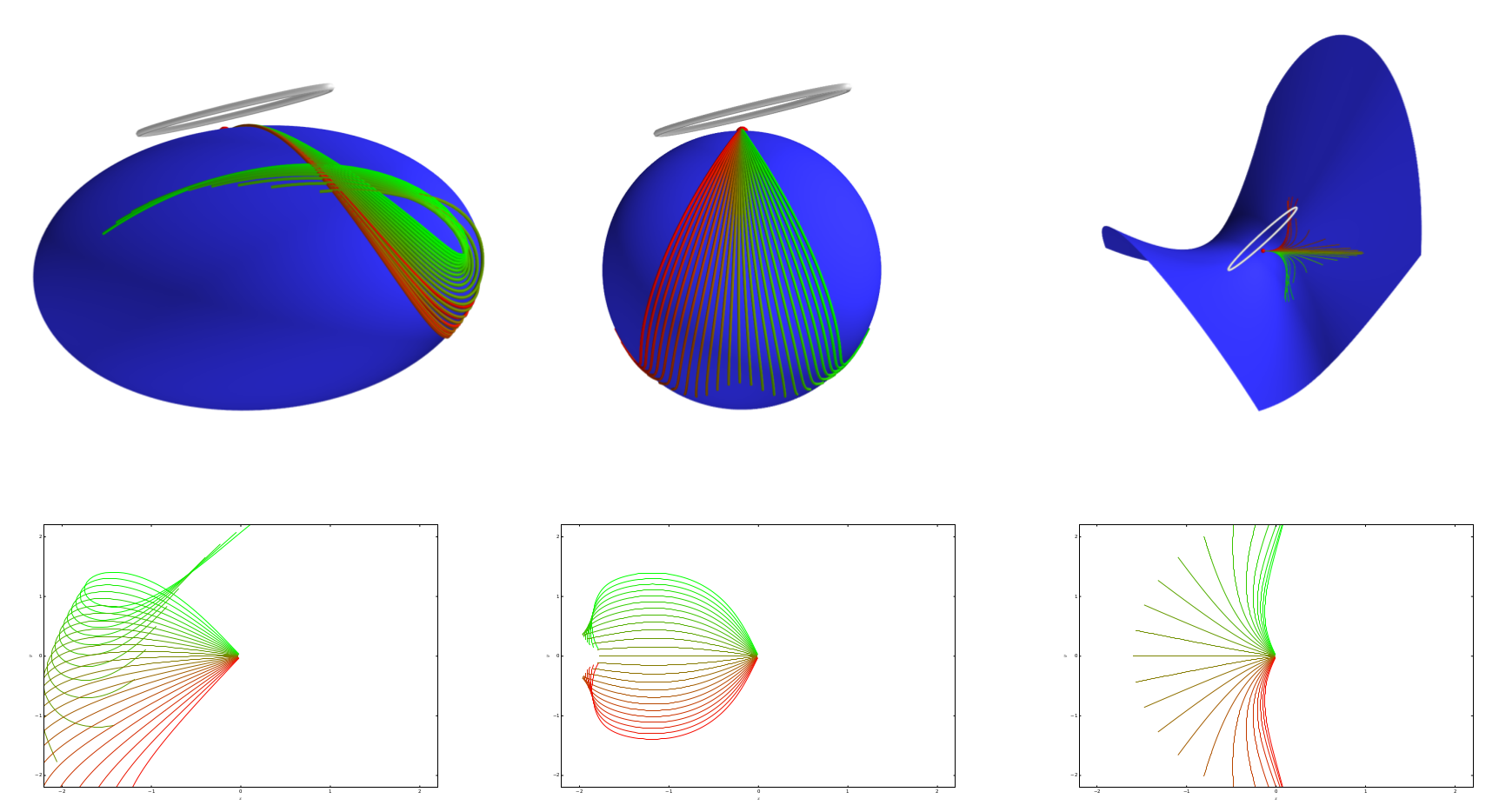

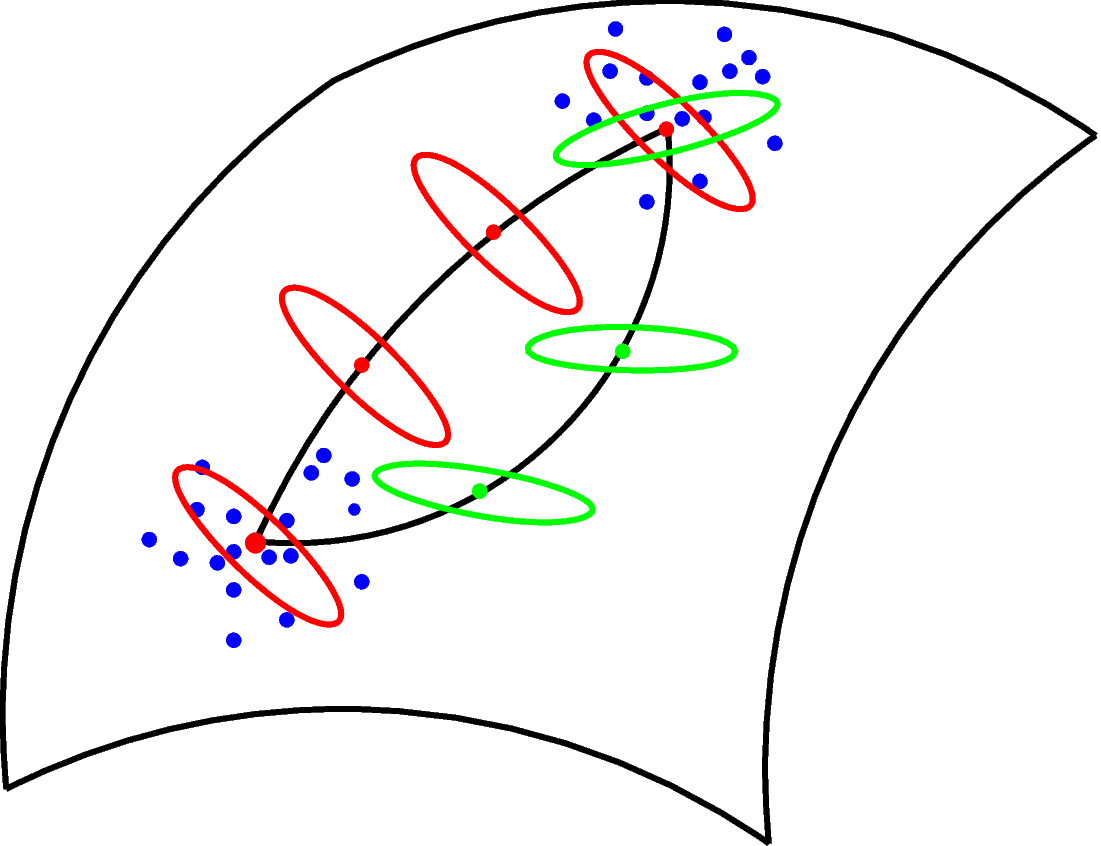

Covariance transport

du_t=H_i(u_t)\circ dW_t^i

du_t=H_i(u_t)\circ dW_t^i

u_t\in FM

u_t\in FM

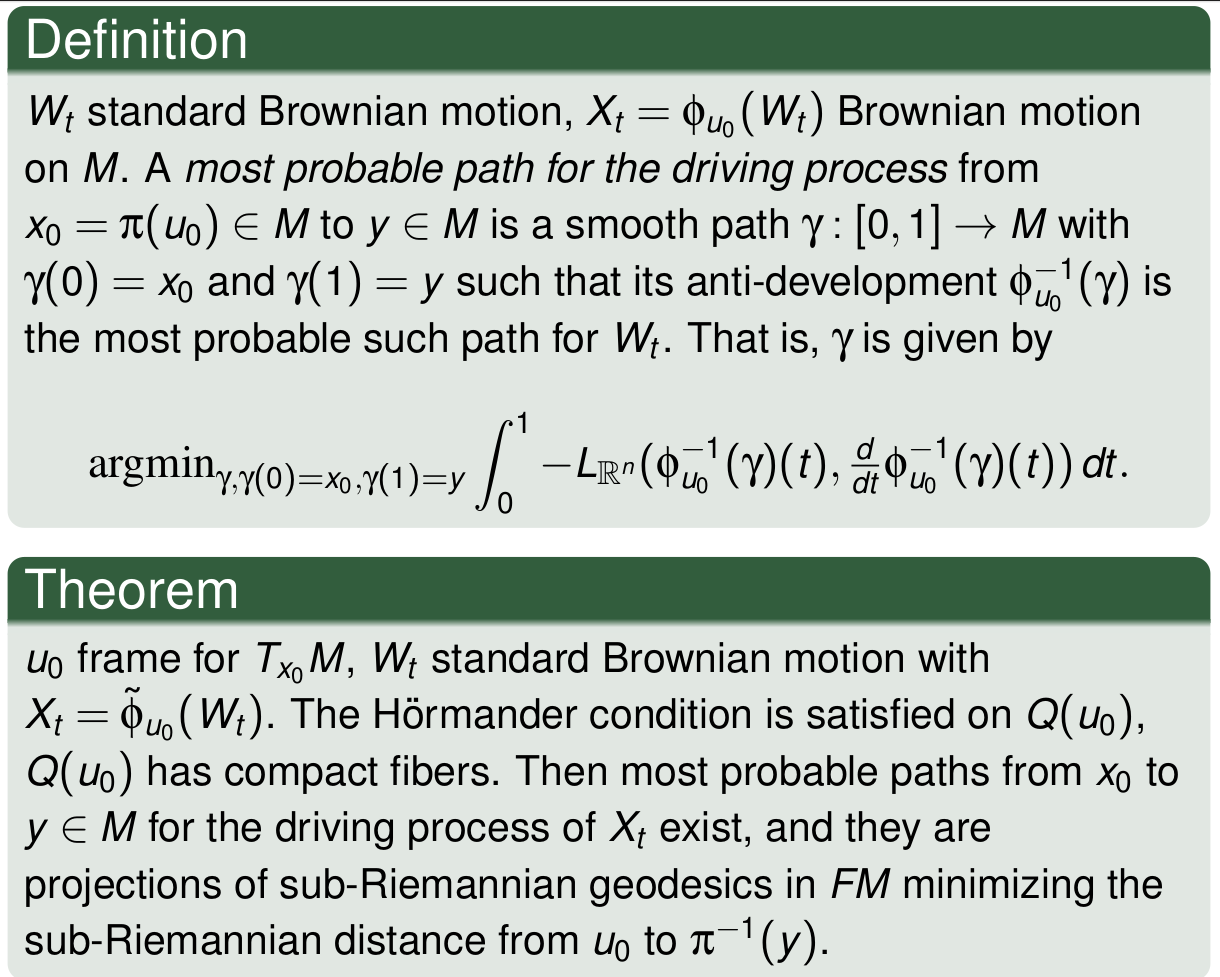

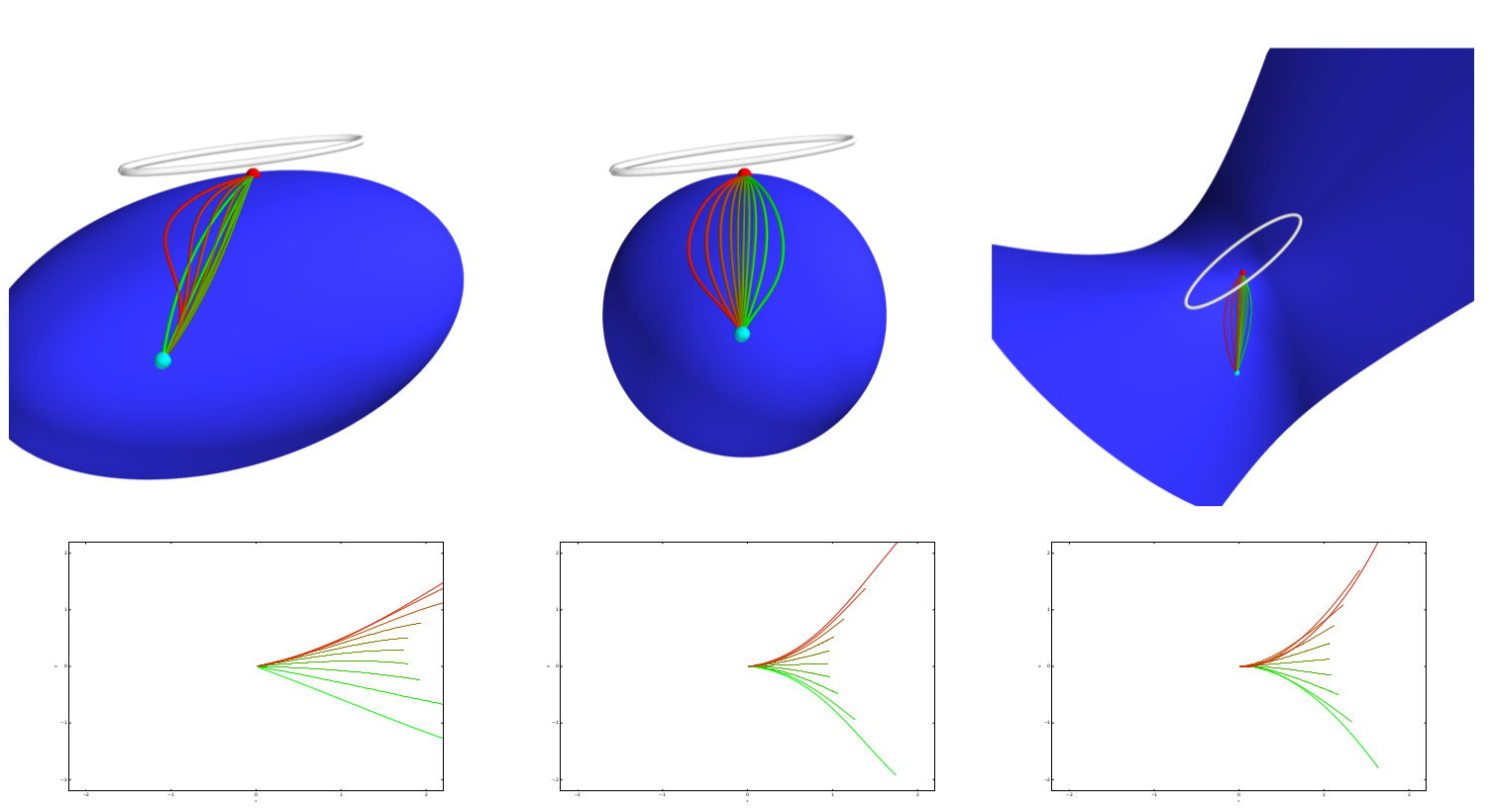

Most probable paths

in $\mathbb R^d$ , straight lines are most probable for stationary (isotropic) diffusion processes
Onsager-Machlup functional, $\gamma_t\in M$ : $L_M(\gamma(t),\dot{\gamma}(t))=-\frac{1}{2}\|\dot{\gamma}(t)\|^2_g+\frac{1}{12}S(\gamma(t))$
most probable paths maximize $L_M(\gamma)$ : $\int_0^1 L_M(\gamma(t),\dot{\gamma}(t))dt = -E(\gamma)+ \frac{1}{12}\int_0^1S(\gamma(t))dt$

sub-Riemannian geodesics

Curvature and covariance

Sommer,Svane,JGM'15; Sommer,Entropy,'16

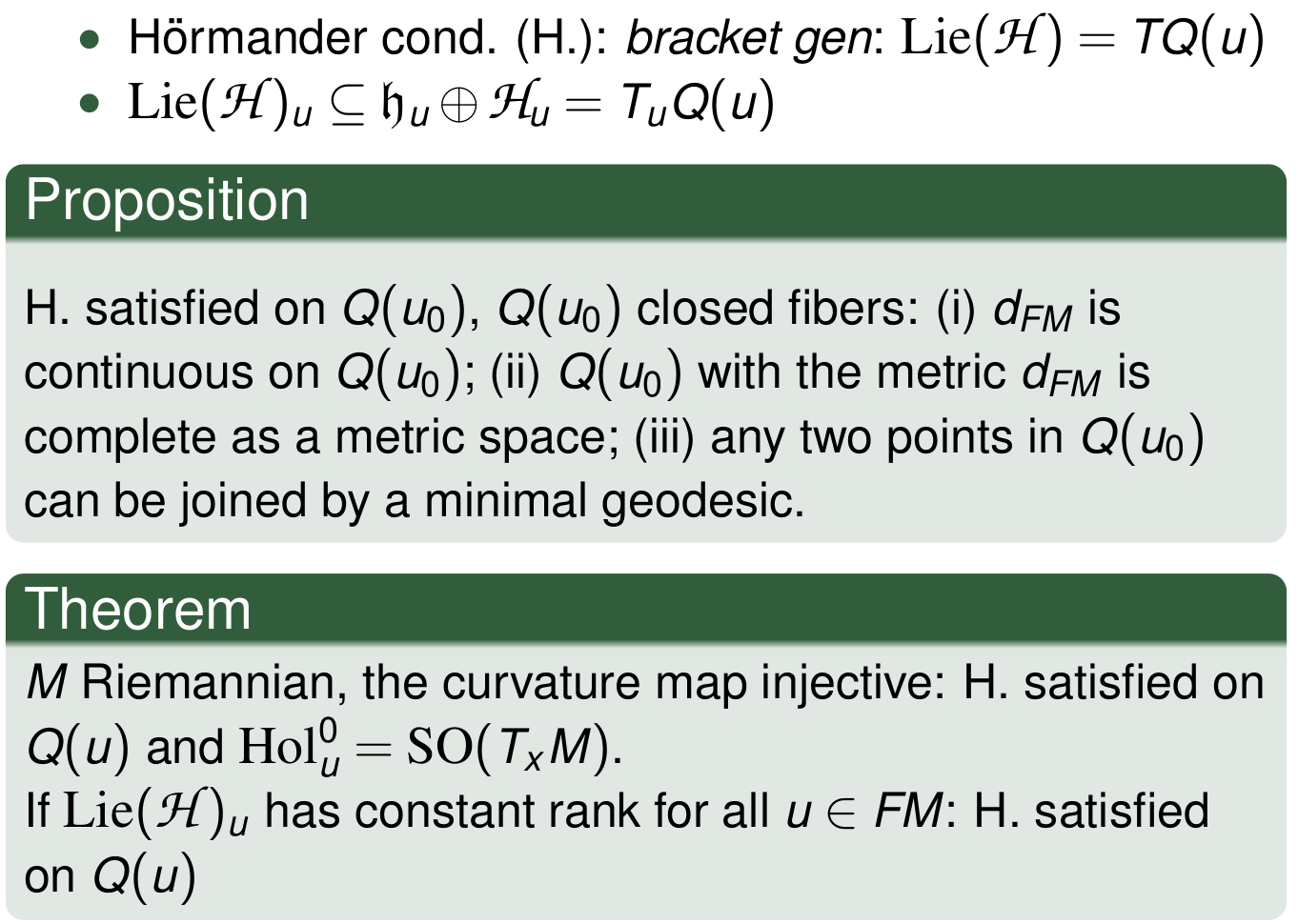

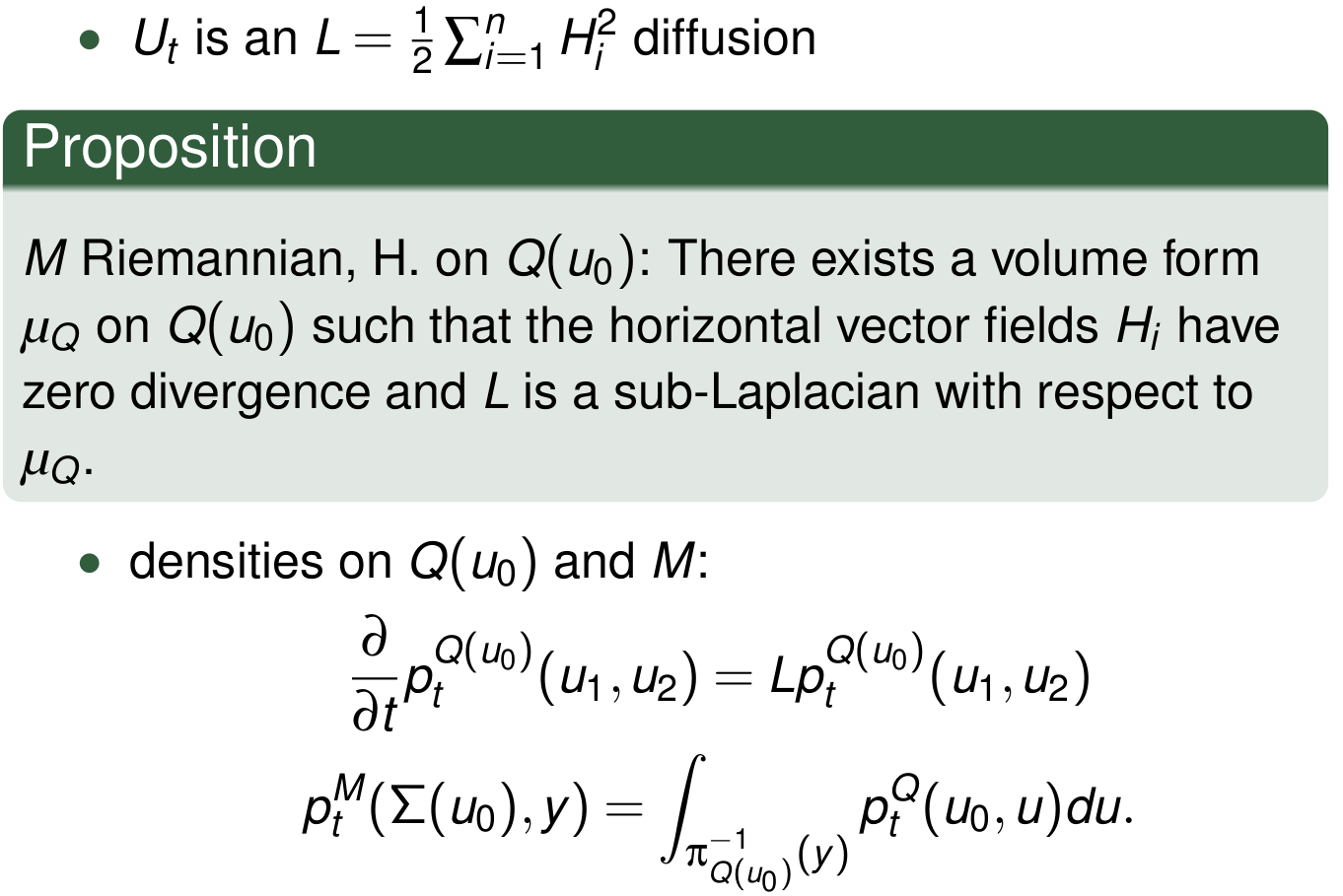

sub-Riemannian structure

Hörmander condition

Smooth density

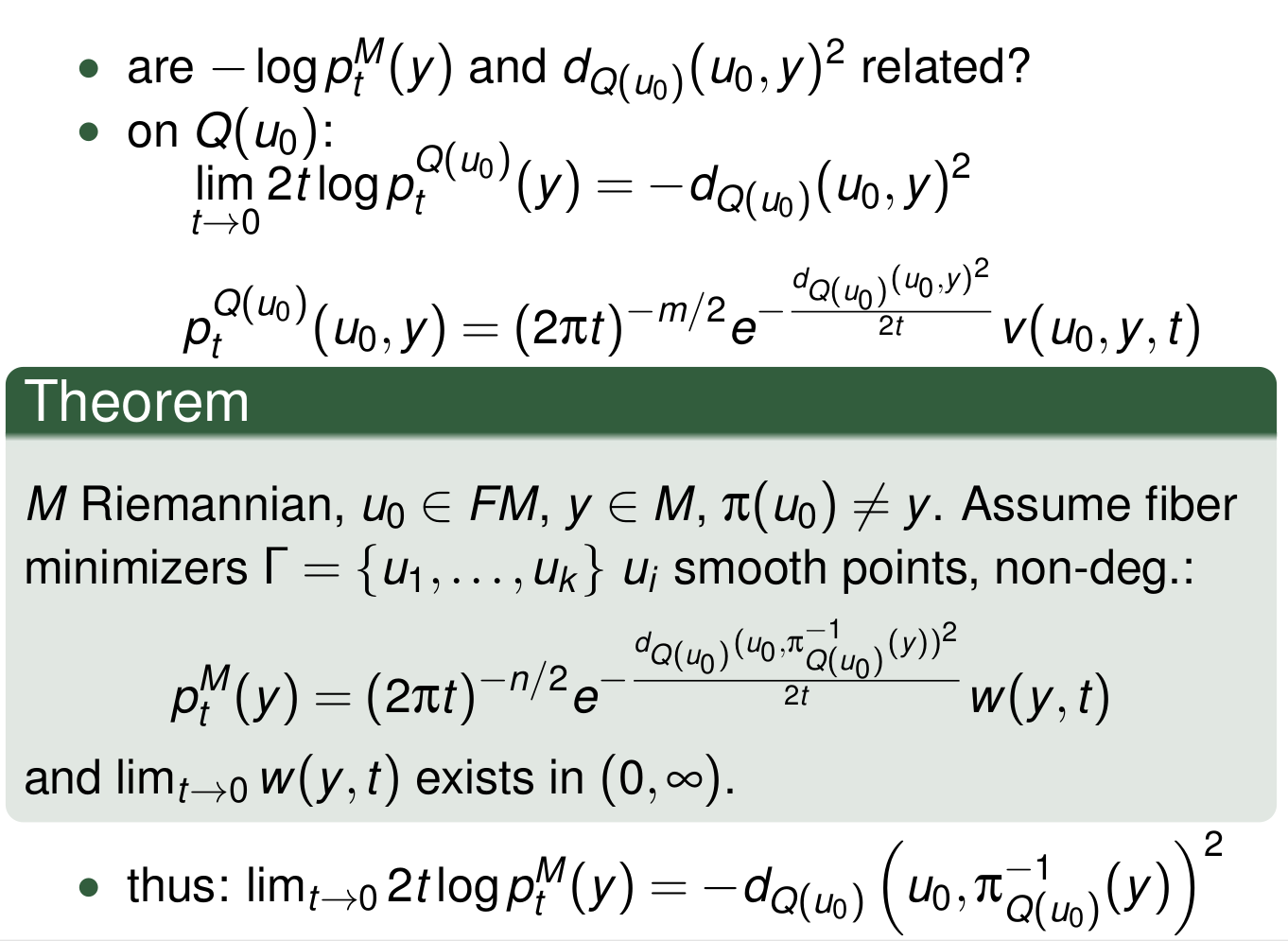

Small time asymptotics

smooth, global support
Composition:
$k_2\ast_{W_{T/2}} (k_1\ast_{W_{T/2}} f)(u)=$
$\mathrm{E}[k_2(-W_{T/2})k_1(-(W_T-W_{T/2}))f(U_T^u)]$
Tensors: $k^n_m$ , $f:OM\to\mathbb R^m$
$y^n=\mathrm{E}[k^n(-W_t)f(U_T^u)]$
Equivariance: $a\in O(d)$
$k\ast_{W_T} (a.f)(u)=a.(k\ast_{W_T} f)(u)$
Non-linearities $\phi_i$ :
$\phi_n(k_n\ast_{W_{T/n}} \phi_{n-1}(\cdots \phi_1(k_1\ast_{W_{T/n}} f))(u)$
precomputed density $\rho$

Geometry and deep learning:

Intrinsic convolutions

Sommer,Bronstein,TPAMI'20

Stochastic Shapes and Probalistic Geometric Statistics

code: http://bitbucket.com/stefansommer/theanogeometry

slides: https://slides.com/stefansommer

References:

Sommer, Bronstein: Horizontal Flows and Manifold Stochastics in Geometric Deep Learning, TPAMI, 2020, doi: 10.1109/TPAMI.2020.2994507
Hansen, Eltzner, Huckemann, Sommer: Diffusion Means on Riemannian Manifolds, in preparation, 2020.
Højgaard Jensen, Sommer: Simulation of Conditioned Diffusions on Riemannian Manifolds, in preparation, 2020.
Sommer: Anisotropic Distributions on Manifolds: Template Estimation and Most Probable Paths, IPMI 2015, doi: 10.1007/978-3-319-19992-4_15.
Sommer, Svane: Modelling Anisotropic Covariance using Stochastic Development and Sub-Riemannian Frame Bundle Geometry, JoGM, 2017, arXiv:1512.08544.
Sommer: Anisotropically Weighted and Nonholonomically Constrained Evolutions, Entropy, 2017, arXiv:1609.00395 .
Sommer: Anisotropic Distributions on Manifolds: Template Estimation and Most Probable Paths, IPMI 2015, doi: 10.1007/978-3-319-19992-4_15.
Sommer, Svane: Modelling Anisotropic Covariance using Stochastic Development and Sub-Riemannian Frame Bundle Geometry, JoGM, 2017, arXiv:1512.08544.
Sommer: Anisotropically Weighted and Nonholonomically Constrained Evolutions, Entropy, 2017, arXiv:1609.00395 .
Arnaudon, Holm, Sommer: A Stochastic Large Deformation Model for Computational Anatomy, IPMI 2017, arXiv:1612.05323.
Arnaudon, Holm, Sommer: A Geometric Framework for Stochastic Shape Analysis, Foundations of Computational Mathematics, arXiv:1703.09971.
Arnaudon, Holm, Sommer: String Methods for Stochastic Image and Shape Matching. JMIV, 2018, arXiv:1805.06038.
Sommer, Joshi: Brownian Bridge Simulation and Metric Estimation on Lie Groups and Homogeneous Spaces, in preparation, 2018.
Sommer: An Infinitesimal Probabilistic Model for Principal Component Analysis of Manifold Valued Data, Sankhya A, arXiv:1801.10341.
Kuhnel, Fletcher, Joshi, Sommer: Latent Space Non-Linear Statistics, arXiv:1805.07632, 2018.
Højgaard Jensen, Mallasto, Sommer: Simulation of Conditioned Diffusions on the Flat Torus, GSI 2019., arXiv:1906.09813.

http://ipmi2021.org

Stochastic Shape Analysis and Probabilistic Geometric Statistics

stochastic shapes and probabilistic geometric statistics

Statistical shape analysis

Geometric statistics

Geometric data: Directional statistics

Geometric data: Diffusion MRI

Geometric data: Functional signals

Shape matching

Riemannian view

Evolution with noise

Least-squares $\leftrightarrow$ probabilistic

Inferring geometry of landmarks spaces

Stochastic matching

Schauer/v.d. Meulen shape bridges

Stochastic Euler-Poincaré equations

Landmark E-P bridges

Landmark E-P bridges

Geometric statistics

Diffusion mean on $\mathbb S^2$

Manifold bridges

From means to covariance
$SO(3)$ and $\mathbb S^2$

Beyond the mean: PCA

Covariance and principal components

Frame bundles

Transporting along all paths

Covariance transport

Most probable paths

sub-Riemannian geodesics

Curvature and covariance

sub-Riemannian structure

Hörmander condition

Smooth density

Small time asymptotics

Geometry and deep learning:

Intrinsic convolutions

Stochastic Shapes and Probalistic Geometric Statistics

Stochastic Shape Analysis and Probabilistic Geometric Statistics - a sub-Riemannian viewpoint

Stochastic Shape Analysis and Probabilistic Geometric Statistics - a sub-Riemannian viewpoint

Stefan Sommer

Stochastic Shape Analysis and Probabilistic Geometric Statistics

Stochastic Shape Analysis and Probabilistic Geometric Statistics - a sub-Riemannian viewpoint

More from Stefan Sommer
