OpenMP

Parallel Algorithms

David Mayerich

Scalable Tissue Imaging and Modeling (STIM) Laboratory

Department of Electrical and Computer Engineering

Cullen College of Engineering

University of Houston

David Mayerich

STIM Laboratory, University of Houston

OpenMP

  • Open Multi-Processing

  • Multi-threaded shared-memory

  • C/C++ (1998) and Fortran (1997)

  • Current Version: 6.0 (2024)


  • Primarily consists of preprocessor directives:

David Mayerich

STIM Laboratory, University of Houston

CMake Setup

project(mp_project)
#...
find_package(OpenMP)
#...
add_executable(mp_exe mp_exe.cpp)
if(OpenMP_CXX_FOUND)
    target_link_libraries(mp_exe
			PUBLIC OpenMP::OpenMP_CXX
	)
endif()
#...

OpenMP comes with your compiler, so you won't get it on vcpkg

#pragma omp construct
{
  // code affected by this construct
}
#pragma omp parallel
{
  // code to parallelize
}
num_threads(4)

OpenMP Basics

  • OpenMP uses preprocessor directives to assign work

  • Create a basic "Hello World!" application that outputs an integer

David Mayerich

STIM Laboratory, University of Houston

#include <stdio.h>

int main(int argc, char** argv) {
  int id = 0;
  printf("Hello From %d\n", ID);
}

OpenMP Basics

  • OpenMP uses preprocessor directives to assign work

  • Create a basic "Hello World!" application that outputs an integer

  • #pragma omp parallel
    launch threads to do work inside the block

    • How many threads?

    • Specified by the OMP_NUM_THREADS environment variable:
      export OMP_NUM_THREADS=4

David Mayerich

STIM Laboratory, University of Houston

#include <stdio.h>

int main(int argc, char** argv) {
  #pragma omp parallel
  {
  	int id = 0;
  	printf("Hello From %d\n", id);
  }
}

OpenMP Basics

  • OpenMP uses preprocessor directives to assign work

  • Create a basic "Hello World!" application that outputs an integer

  • #pragma omp parallel
    launch threads to do work inside the block

    • How many threads?

    • Specified by the OMP_NUM_THREADS environment variable:
      export OMP_NUM_THREADS=4

David Mayerich

STIM Laboratory, University of Houston

#include <stdio.h>
#include <omp.h>

int main(int argc, char** argv) {
  omp_set_num_threads(10);
  #pragma omp parallel
  {
  	int id = 0;
  	printf("Hello From %d\n", id);
  }
}

OpenMP Basics

  • OpenMP uses preprocessor directives to assign work

  • Create a basic "Hello World!" application that outputs an integer

  • #pragma omp parallel
    launch threads to do work inside the block

    • How many threads?

    • Specified by the OMP_NUM_THREADS API or environment variable:
      export OMP_NUM_THREADS=4

  • omp_get_thread_num()
    retrieve an index for the current thread


David Mayerich

STIM Laboratory, University of Houston

#include <stdio.h>
#include <omp.h>

int main(int argc, char** argv) {
  omp_set_num_threads(10);
  #pragma omp parallel
  {
  	int id = omp_get_thread_num();
  	printf("Hello From %d\n", ID);
  }
}

OpenMP Basics

  • OpenMP uses preprocessor directives to assign work

  • Create a basic "Hello World!" application that outputs an integer

  • #pragma omp parallel
    launch threads to do work inside the block

    • How many threads?

    • Specified by the OMP_NUM_THREADS API or environment variable:
      export OMP_NUM_THREADS=4

  • omp_get_thread_num()
    retrieve an index for the current thread


David Mayerich

STIM Laboratory, University of Houston

#include <stdio.h>
#include <omp.h>

int main(int argc, char** argv) {
  omp_set_num_threads(10);
  #pragma omp parallel
  {
  	int id = omp_get_thread_num();
  	printf("Hello %d ", ID);
    printf("from %d\n", ID);
  }
}

Demo

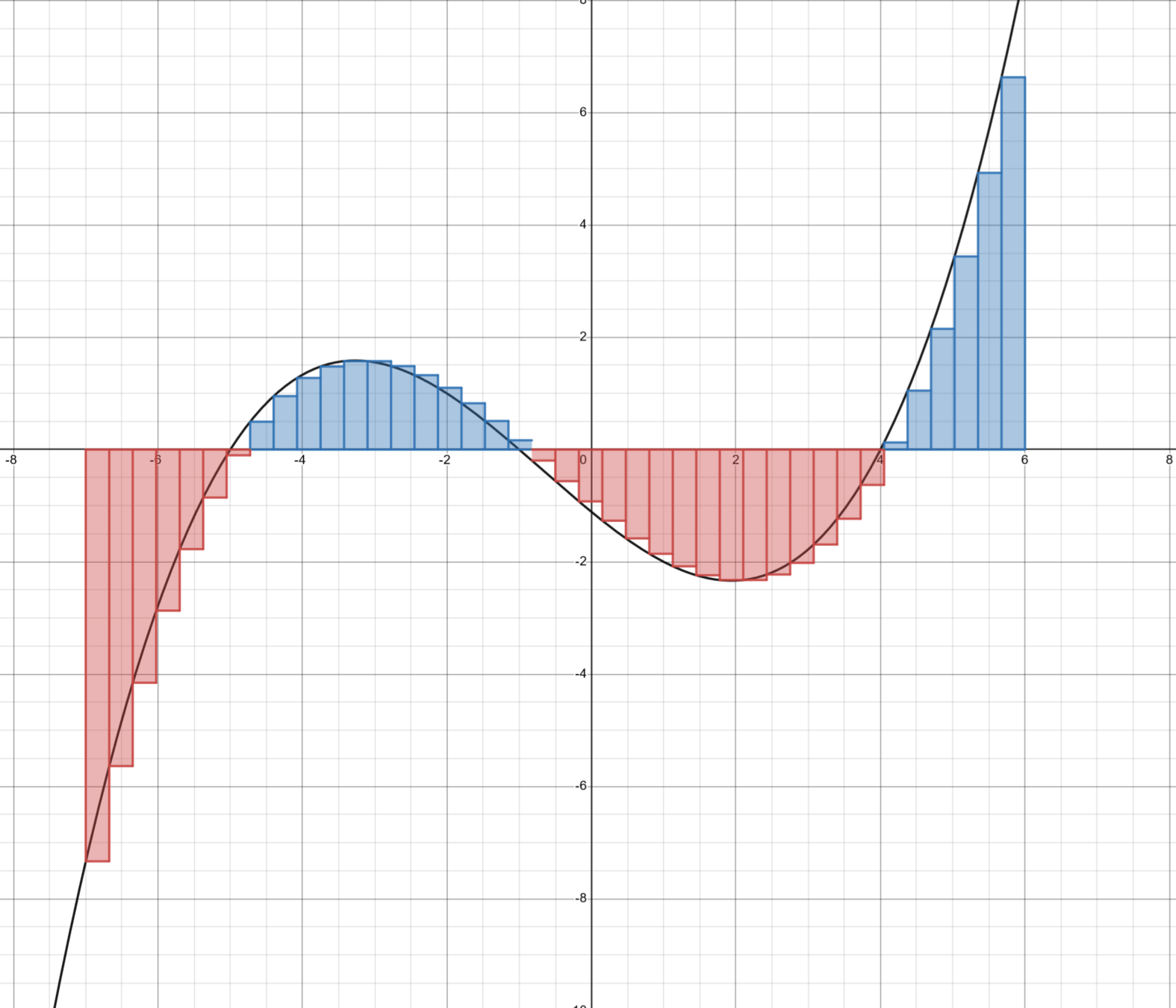

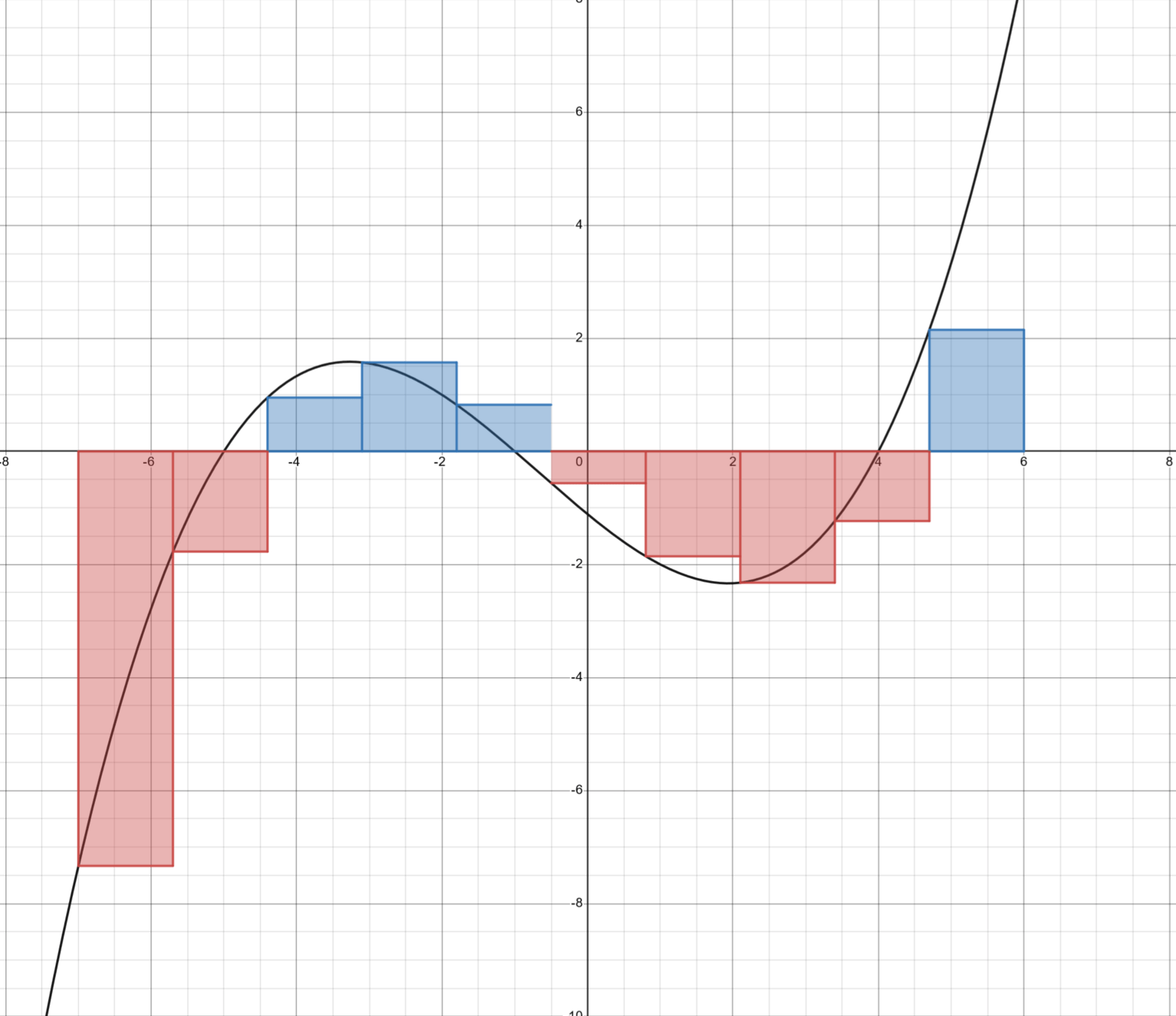

Calculate \(\pi\) with a Riemann Sum

David Mayerich

STIM Laboratory, University of Houston

\int_0^1 \frac{4}{1+x^2}dx=\pi
// set the number of steps
static long N = BIG_NUM;
double step;
int main(int argc, char** argv) {
  // step size (smaller -> accurate)
  step = 1.0/N;
  // integral becomes a summation
  double sum = 0.0;
  for(int i=0; i<N; i++) {
    // calculate the integrand
    x = (i + 0.5) * step;
    sum += 4.0 / (1.0 + x * x);
  }
  // approximate integral (pi)
  pi = step * sum;
}

\(N=10\)

\(\Delta_x=1.44\)

\(\pi=3.14243\)

\(N=20\)

\(\Delta_x=0.684\)

\(\pi=3.14180\)

\(N=40\)

\(\Delta_x=0.333\)

\(\pi=3.14164\)

\(N=80\)

\(\Delta_x=0.165\)

\(\pi=3.14161\)

Solution Using std::threads

David Mayerich

STIM Laboratory, University of Houston

#include <thread>
using namespace std;

void pi_sum(unsigned ti, /* ... */);

unsigned n = BIG_NUM;
unsigned nt = NUM_THREADS;
double step;
int main(int argc, char** argv) {
  double sum = 0.0;
  double t_sum = new double[nt];
  thread* t = new thread[nt];
  for(unsigned ti=0; i<nt; ti++)
    t[ti] = thread(pi_sum, ti, /*...*/);
  for(unsigned ti=0; ti<nt; ti++) {
    t[ti].join();
    sum += t_sum[ti];
  }
  pi = step * sum;
}
// set the number of steps
static long N = BIG_NUM;
double step;
int main(int argc, char** argv) {
  // step size (smaller -> accurate)
  step = 1.0/N;
  // integral becomes a summation
  double sum = 0.0;
  for(int i=0; i<N; i++) {
    // calculate the integrand
    x = (i + 0.5) * step;
    sum += 4.0 / (1.0 + x * x);
  }
  // approximate integral (pi)
  pi = step * sum;
}

serial C++

parallel with std::threads

implement thread

avoid races

launch threads

synchronize

Work Distribution Patterns

Round Robin (Cyclic)

  • Given \(N\) threads:

    • \(t_0\) accesses: [0]->[N]->[2*N]

    • \(t_1\) accesses: [1]->[N+1]->[2*N+1]

    • \(\cdots\)

David Mayerich

STIM Laboratory, University of Houston

Block (Contiguous)

  • Given \(N\) threads:

    • \(t_0\) accesses: [0]->[1]->[2]

    • \(t_1\) accesses: [N+0]->[N+1]->[N+2]

    • \(\cdots\)

\(t_0\)

\(t_1\)

\(t_2\)

\(t_3\)

\(t_0\)

\(t_1\)

A0

A4

A8

AC

B0

B4

B8

BC

D0

D4

D8

DC

E0

E4

E8

EC

F0

F4

F8

Work Distribution Patterns

Round Robin (Cyclic)

  • Given \(N\) threads:

    • \(t_0\) accesses: [0]->[N]->[2*N]

    • \(t_1\) accesses: [1]->[N+1]->[2*N+1]

    • \(\cdots\)

David Mayerich

STIM Laboratory, University of Houston

Block (Contiguous)

  • Given \(N\) threads:

    • \(t_0\) accesses: [0]->[1]->[2]

    • \(t_1\) accesses: [N+0]->[N+1]->[N+2]

    • \(\cdots\)

A0

A4

A8

AC

B0

B4

B8

BC

D0

D4

D8

DC

E0

E4

E8

EC

F0

F4

F8

\(t_0\)

\(t_1\)

\(t_2\)

\(t_3\)

\(t_0\)

\(t_1\)

Work Distribution Patterns

Round Robin (Cyclic)

  • Given \(N\) threads:

    • \(t_0\) accesses: [0]->[N]->[2*N]

    • \(t_1\) accesses: [1]->[N+1]->[2*N+1]

    • \(\cdots\)

David Mayerich

STIM Laboratory, University of Houston

Block (Contiguous)

  • Given \(N\) threads:

    • \(t_0\) accesses: [0]->[1]->[2]

    • \(t_1\) accesses: [N+0]->[N+1]->[N+2]

    • \(\cdots\)

A0

A4

A8

AC

B0

B4

B8

BC

D0

D4

D8

DC

E0

E4

E8

EC

F0

F4

F8

\(t_0\)

\(t_1\)

\(t_2\)

\(t_3\)

\(t_0\)

\(t_1\)

Trade-Offs: Memory

David Mayerich

STIM Laboratory, University of Houston

Round Robin (Cyclic)

  • Can mess up spatial locality
    • threads may be out-of-sync
    • may be on different processors

Block (Contiguous)

  • Local accesses within a thread will be cached

same cache?

maybe...

A0

A4

A8

AC

B0

B4

B8

BC

D0

D4

D8

DC

E0

E4

E8

EC

F0

F4

F8

cached on \(t_0\)'s processor

cached on \(t_3\)'s processor

\(t_0\)

\(t_1\)

\(t_2\)

\(t_3\)

\(t_0\)

\(t_1\)

\(t_0\) fetches cached with \(t_0\)'s processor

Trade-Offs: Work

David Mayerich

STIM Laboratory, University of Houston

Round Robin (Cyclic)

  • More likely to distribute work evenly

Block (Contiguous)

  • If effort is distributed unevenly, individual threads are easily overloaded

# calculations

\(t_0\)

\(t_1\)

\(t_2\)

\(t_3\)

\(t_0\)

\(t_1\)

\(t_2\)

\(t_3\)

\(t_0\)

\(t_1\)

\(t_2\)

\(t_3\)

\(t_0\)

\(t_1\)

\(t_2\)

Scheduling Guidelines

David Mayerich

STIM Laboratory, University of Houston

Round Robin (Cyclic)

  • Load balancing: usually better at distributing work between threads

Block (Contiguous)

  • Load balancing: worse (on average) at distributing work

  • Memory access: doesn't guarantee locality

  • Memory access: local fetches will be cached with the thread

  • Architectures: CPUs with uneven work, GPUs (coalescing)

  • Architectures: CPUs with uniform work

Which do you think will win?

(I'll do RR, you do blocked)

Round-Robin Distribution

David Mayerich

STIM Laboratory, University of Houston

\(t_0\)

id=0

\(t_2\)

id=2

\(t_1\)

id=1

\(t_3\)

id=3

void pi_sum(unsigned ti, unsigned nt,
            unsigned N,  double* sum) {
  // step size has to be passed or
  //   calculated here
  double step = 1.0 / N;
  // sum must be initialized to zero
  *sum = 0.0;
  // enter a round-robin FOR loop
  for(int i=ti; i<N; i+=nt) {
    double x = (i + 0.5) * step;
    *sum += 4.0 / (1.0 + x * x);
  }
}

Round-Robin Distribution

David Mayerich

STIM Laboratory, University of Houston

\(t_0\)

id=0

\(t_2\)

id=2

\(t_1\)

id=1

\(t_3\)

id=3

void pi_sum(unsigned ti, unsigned nt,
            unsigned N,  double* sum) {
  // step size has to be passed or
  //   calculated here
  double step = 1.0 / N;
  // sum must be initialized to zero
  *sum = 0.0;
  // enter a round-robin FOR loop
  for(int i=ti; i<N; i+=nt) {
    double x = (i + 0.5) * step;
    *sum += 4.0 / (1.0 + x * x);
  }
}

OpenMP Round-Robin Implementation

David Mayerich

STIM Laboratory, University of Houston

// set the number of steps
static long N = BIG_NUM;
double step;
int main(int argc, char** argv) {
  // step size (smaller -> accurate)
  step = 1.0/N;
  // integral becomes a summation
  double sum = 0.0;
  for(int i=0; i<N; i++) {
    // calculate the integrand
    x = (i + 0.5) * step;
    sum += 4.0 / (1.0 + x * x);
  }
  // approximate integral (pi)
  pi = step * sum;
}

serial C++

static long N = BIG_NUM;
#define T 4
void main() {
  double sum[T];
  omp_set_num_threads(T);
  {...}
  double pi = 0;
  for(int i=0; i<T; i++)
    pi += sum[i] * step;
}

parallel with OpenMP

implement thread

#pragma omp parallel
{
  int id = omp_get_thread_num();
  int nt = omp_get_num_threads();
  if(id == 0) nthreads = nt;
  sum[id] = 0;
  for(int i=id; i<N; i+=nt) {
    double x = (i + 0.5) * step;
    sum[id] += 4.0 / (1.0 + x * x);
  }
}

OpenMP Round-Robin Implementation

David Mayerich

STIM Laboratory, University of Houston

static long N = BIG_NUM;
#define T 4
void main() {
  double sum[T];
  omp_set_num_threads(T);
  {...}
  double pi = 0;
  for(int i=0; i<T; i++)
    pi += sum[i] * step;
}

parallel with OpenMP

implement thread

#pragma omp parallel
{
  int id = omp_get_thread_num();
  int nt = omp_get_num_threads();
  if(id == 0) nthreads = nt;
  sum[id] = 0;
  for(int i=id; i<N; i+=nt) {
    double x = (i + 0.5) * step;
    sum[id] += 4.0 / (1.0 + x * x);
  }
}
#include <thread>
using namespace std;

void pi_sum(unsigned ti, /* ... */);

unsigned n = BIG_NUM;
unsigned nt = NUM_THREADS;
double step;
int main(int argc, char** argv) {
  double sum = 0.0;
  double t_sum = new double[nt];
  thread* t = new thread[nt];
  for(unsigned ti=0; i<nt; ti++)
    t[ti] = thread(pi_sum, ti, /*...*/);
  for(unsigned ti=0; ti<nt; ti++) {
    t[ti].join();
    sum += t_sum[ti];
  }
  pi = step * sum;
}
void pi_sum(unsigned ti, unsigned nt,
            unsigned N,  double* sum) {
  // step size has to be passed or
  //   calculated here
  double step = 1.0 / N;
  // sum must be initialized to zero
  *sum = 0.0;
  // enter a round-robin FOR loop
  for(int i=ti; i<N; i+=nt) {
    double x = (i + 0.5) * step;
    *sum += 4.0 / (1.0 + x * x);
  }
}

parallel with std::threads

OpenMP Round-Robin Implementation

David Mayerich

STIM Laboratory, University of Houston

static long N = BIG_NUM;
#define T 4
void main() {
  double sum[T];
  omp_set_num_threads(T);
  {...}
  double pi = 0;
  for(int i=0; i<T; i++)
    pi += sum[i] * step;
}

parallel with OpenMP

implement thread

#pragma omp parallel
{
  int id = omp_get_thread_num();
  int nt = omp_get_num_threads();
  if(id == 0) nthreads = nt;
  sum[id] = 0;
  for(int i=id; i<N; i+=nt) {
    double x = (i + 0.5) * step;
    sum[id] += 4.0 / (1.0 + x * x);
  }
}
#include <thread>
using namespace std;

void pi_sum(unsigned ti, /* ... */);

unsigned n = BIG_NUM;
unsigned nt = NUM_THREADS;
double step;
int main(int argc, char** argv) {
  double sum = 0.0;
  double t_sum = new double[nt];
  thread* t = new thread[nt];
  for(unsigned ti=0; i<nt; ti++)
    t[ti] = thread(pi_sum, ti, /*...*/);
  for(unsigned ti=0; ti<nt; ti++) {
    t[ti].join();
    sum += t_sum[ti];
  }
  pi = step * sum;
}
void pi_sum(unsigned ti, unsigned nt,
            unsigned N,  double* sum) {
  // step size has to be passed or
  //   calculated here
  double step = 1.0 / N;
  // sum must be initialized to zero
  *sum = 0.0;
  // enter a round-robin FOR loop
  for(int i=ti; i<N; i+=nt) {
    double x = (i + 0.5) * step;
    *sum += 4.0 / (1.0 + x * x);
  }
}

parallel with std::threads

implicit barrier

Control Execution: single

  • Use omp single to specify a line of code that only one thread will execute

  • Any thread can execute it (but there's an implicit barrier afterwards)

David Mayerich

STIM Laboratory, University of Houston

#pragma omp parallel
{
  int id = omp_get_thread_num();
  int nt = omp_get_num_threads();
  if(id == 0) nthreads = nt;
  sum[id] = 0;
  for(int i=id; i<N; i+=nt) {
    double x = (i + 0.5) * step;
    sum[id] += 4.0 / (1.0 + x * x);
  }
}
int nt;
#pragma omp parallel
{
  int id = omp_get_thread_num();

  #pragma omp single
  nt = omp_get_num_threads();

  if(id == 0) nthreads = nt;
  sum[id] = 0;
  for(int i=id; i<N; i+=nt) {
    double x = (i + 0.5) * step;
    sum[id] += 4.0 / (1.0 + x * x);
  }
}

Control Execution: barrier

  • Placing an omp barrier in an omp parallel block makes all threads wait

David Mayerich

STIM Laboratory, University of Houston

int* data = new int[N];
int nthreads;

#pragma omp parallel
{
  int id = omp_get_thread_num();
  #pragma omp single
  nthreads = omp_get_num_threads();

  each thread writes to an index
  data[id] = id * 10;

  // wait for all threads to finish writing
  #pragma omp barrier

  // each thread reads from its neighbor
  int neighbor = (id + 1) % nthreads;
  printf("Thread %d read data[%d] = %d\n", id, neighbor, data[neighbor]);
}

launches a bunch of threads

only one executes this line

they all wait here for their friends

Control Execution: critical and atomic

David Mayerich

STIM Laboratory, University of Houston

int total = 0;

#pragma omp parallel
{
  int id = omp_get_thread_num();
  int my_result = (id + 1) * 100;

  #pragma omp critical
  {
    total += my_result;
    printf("Thread %d added %d", id, my_result);
    printf(", total is now %d\n", total);
  }
}
printf("Final total = %d\n", total);
int total = 0;

#pragma omp parallel
{
  int id = omp_get_thread_num();
  int my_result = (id + 1) * 100;

  #pragma omp atomic
  total += my_result;
}
printf("Final total = %d\n", total);

  • Atomics simplify this for memory writes

  • A critical region only allows one thread in at a time

launches a bunch of threads

only one may enter

only one may write

Summary

Basic Concepts

  • OpenMP implements shared-memory parallelism

  • Preprocessor directives (with some API functions)

  • The number of threads can be set by the environment variable:
        OMP_NUM_THREADS
    or the API function:
        omp_set_num_threads(10);

David Mayerich

STIM Laboratory, University of Houston

Preprocessor Directives

  • omp parallel - launch threads that all execute this block of code

    • omp_get_thread_num() returns an id for each thread

  • omp single - only one thread executes this block of code

  • omp critical - only one thread executes this block of code at a time

  • omp atomic - only one thread is allowed to write at a time

D.4 OpenMP

By STIM Laboratory

D.4 OpenMP

  • 118

More from STIM Laboratory
