Angular Material (1)

Ashraful Karim Miraz

What is Material Design?

Text

Text

https://www.google.com/design/spec

Angular JS

DI

Services

Modules

Data Binding

Standard Directives

Animations & Effects

Data-aware Components

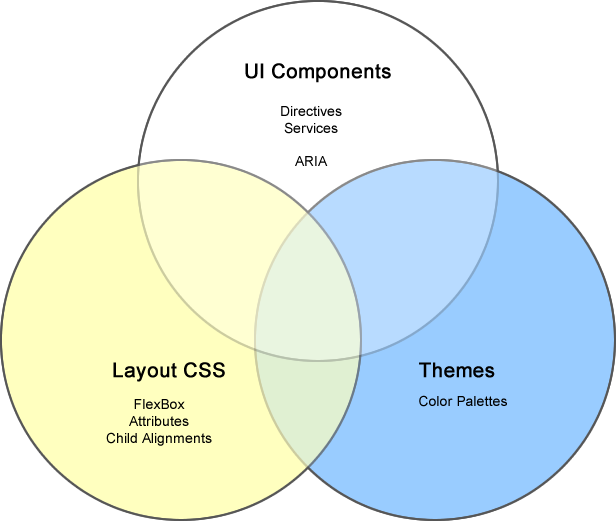

Angular Material

Elements

Themes

Angular JS

CSS layout

ARIA support

Ink & UX Effects

Component Services

Rich UI components

Angular Material Design

SDK, Docs, Demos

Live, Online Docs

Text

API Documentation

Embedded Demos

Demo Source Code

Links to Specifications

Links to GitHub Repos

ARIA

Accessibility for Rich Internet Apps

Support for Screen Readers

Keyboard Navigation

Focus Support

... supported within each Angular Material component

CSS Layouts

Why create a Layout system for Angular Material ?

Flexbox-based CSS
Abstracts FlexBox Complexity to Attributes
CSS Attribute Selectors (not directives)

Horizontal and Vertical layouts
Mobile-first responsive design
Multiple Viewport Sizes

Grid and Alignment

Easy element alignments & layouts

Elements evenly take up space (flex)
Set specific sizes for each breakpoint
Easily align layout child elements

Sticky headers/footers
Vertically center

Useful Links

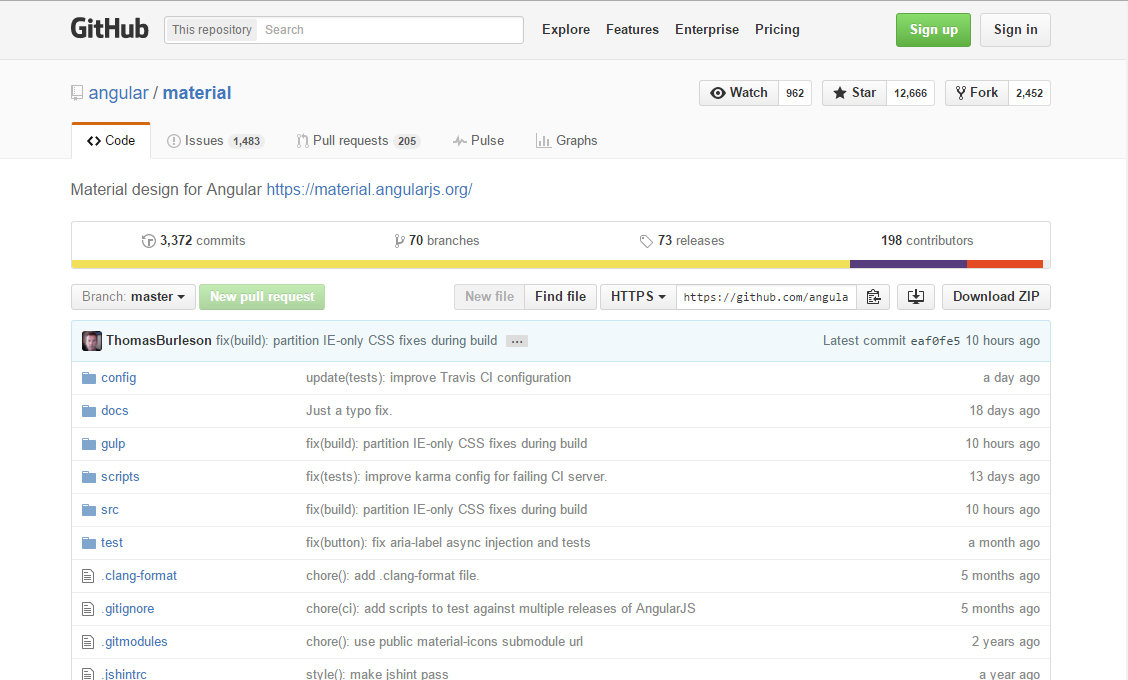

Angular Material

https://github.com/angular/material/

Bower Library

https://github.com/angular/bower-material

Online Docs

https://material.angularjs.org/

Material Specification

https://www.google.com/design/spec/material-design/

Lets Start

Angular Material

Examples

http://codepen.io/tag/angular-material

<!DOCTYPE html>
<html lang="en" >
   <head>
      <link rel="stylesheet" href="http://ajax.googleapis.com/ajax/libs/angular_material/1.0.5/angular-material.min.css">
      <script src="http://ajax.googleapis.com/ajax/libs/angularjs/1.4.9/angular.min.js"></script>
      <script src="http://ajax.googleapis.com/ajax/libs/angularjs/1.4.9/angular-animate.min.js"></script>
      <script src="http://ajax.googleapis.com/ajax/libs/angularjs/1.4.9/angular-aria.min.js"></script>
      <script src="http://ajax.googleapis.com/ajax/libs/angularjs/1.4.9/angular-messages.min.js"></script>
      <script src="http://ajax.googleapis.com/ajax/libs/angular_material/1.0.5/angular-material.min.js"></script>
      <script type="text/javascript">
         angular.module('firstApplication', ['ngMaterial']);
      </script>
   </head>
   <body ng-app="firstApplication" ng-cloak>
      <md-toolbar class="md-warn">
         <div class="md-toolbar-tools">
            <h2>HTML 5</h2>
         </div>
      </md-toolbar>
      <md-content flex layout-padding>
         <p>HTML5 is the next major revision of the HTML standard superseding HTML 4.01, XHTML 1.0, and XHTML 1.1.
         HTML5 is a standard for structuring and presenting content on the World Wide Web.</p>
         <p>HTML5 is a cooperation between the World Wide Web Consortium (W3C) and the Web Hypertext Application
         Technology Working Group (WHATWG).</p>
         <p>The new standard incorporates features like video playback and drag-and-drop that have been previously
         dependent on third-party browser plug-ins such as Adobe Flash, Microsoft Silverlight, and Google Gears.</p>
      </md-content>
   </body>
</html>

http://www.tutorialspoint.com/angular_material/src/first_application.htm

Introduction Directives

Less Controller Dependency

Button
Card
Checkbox
Content
Datepicker
Divider
Input
List
Menu
Progress (Circuler/Linear)

Radio Button
Select
Sidenav*
Slider
Subheader
Switch
Tabs
Toolbar
Tooltip
Whiteframe

H.W

Create a Student registration form.

Data type:

Name, Age, Class (DD), Section (Radio), Roll No., Birth of Date

Create a Card view with Toolbar with Form Title (Student Reg.) and a Save Button

After save the Details will show on a Toolbar with Name and Other information with Content.
