Behind 1k stars repository 😂

Trung Vo

Frontend Engineer

AngularAir - 21 Nov 2020

@trungvose

About me

Hi, My name is Trung 😊

Experienced FE engineer, specialized in branding, interactive application
Frontend Engineer @cakedefi
Organizer @Angular Vietnam
Write, code, and talk about Angular

Angular Vietnam | @ngvnofficial

Biggest Angular group in APAC
Advocate and grow the Angular developer community in Vietnam
13k members
Founded in 2017 by
- Tiep Phan: Angular GDE
- Chau Tran: NestJS core team
100 Days Of Angular series

Agenda

What is Angular Jira Clone?
Motivation
High Level Architecture
Technical Decisions
- TailwindCSS
- ngrx vs Akita
- Deploy to Netlify/Heroku
Q&A

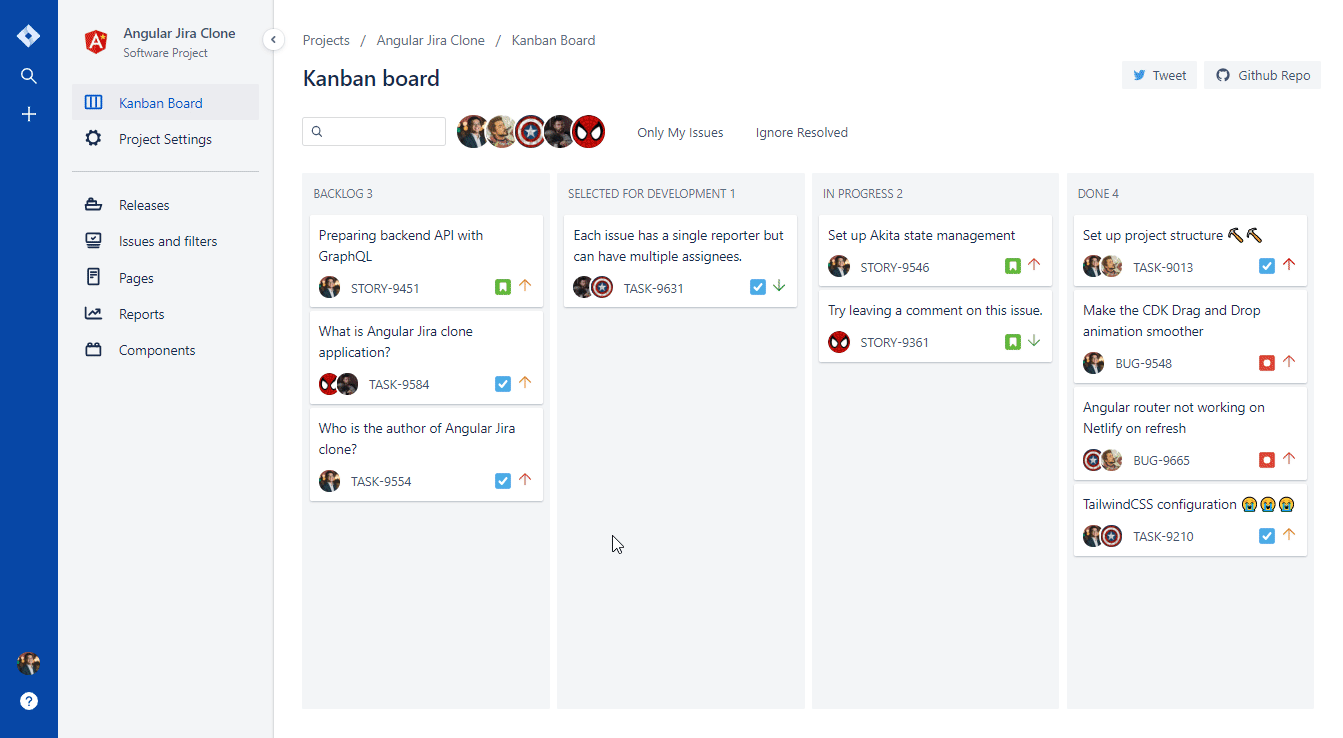

What is Angular Jira Clone?

A simplified Jira clone built with Angular 9
An example of a modern, real-world Angular code base.
Demo: jira.trungk18.com/
Source code: github.com/trungk18/jira-clone-angular

Motivation

There are Angular examples on the web but most of them are way too simple
Experiment what I wanted to try for a long time: Akita, TailwindCSS, ng-zorro
Demonstrate my experience after working with Angular for four years
Part of our technical series angular-vietnam/100-days-of-angular - only available in Vietnamese 🤓

Techstack

Angular CLI
Akita state management
NestJS
UI modules:
- TailwindCSS
- Angular CDK drag and drop
- ng-zorro UI components
- ngx-quill
Netlify

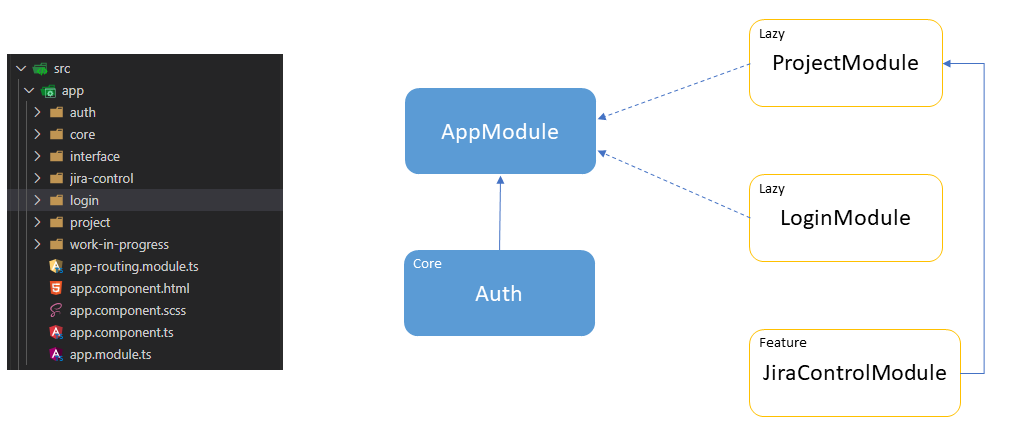

High Level Design

TailwindCSS

A utility-first CSS framework packed with classes like flex, pt-4, text-center and rotate-90 that can be composed to build any design, directly in your markup.

5/10 Front end engineer that I know don' really enjoy writing CSS

Trung Vo

Why TailwindCSS?

I always encounter some use case where I need to set a simple CSS

padding-left: 5px
margin: 0 auto
cursor: pointer

1. Quick and dirty way: inline style

<button style="padding-left: 5px;">Submit</button>
<i style="cursor: pointer;"></i>

✅ Quick

❌ Difficult to override
❌ Messy code base

2. Create a new class for each element

<button class="my-button">Submit</button>
<i class="fa fa-help my-icon"></i>

✅ More structure code,
✅ Encapsulated in a component

❌ If scoped inside a component, won't be able to reuse

.my-button {
  padding-left: 5px;
}

.my-icon {
  cursor: pointer;
}

3. Create a common CSS on a top-level component

<button class="pl-1">Submit</button>
<i class="fa fa-help pl-1 icon-active"></i>

✅ Can reuse the class

❌ Need to spend effort to structure CSS code
❌ Difficult for team member to follow without guideline

.pl-1 {
  padding-left: 5px;
}

.icon-active {
  cursor: pointer;
}

4. TailwindCSS

✅ Clear documentation with most of the util class written

✅ Maintain by a big community

✅ Integrated IDE support

✅ Support PurgeCSS, only load what you actually use for production bundle

✅ Reuse the same class, bundle size could be smaller

✅ Easy customization

❌ Learning curve for new team member

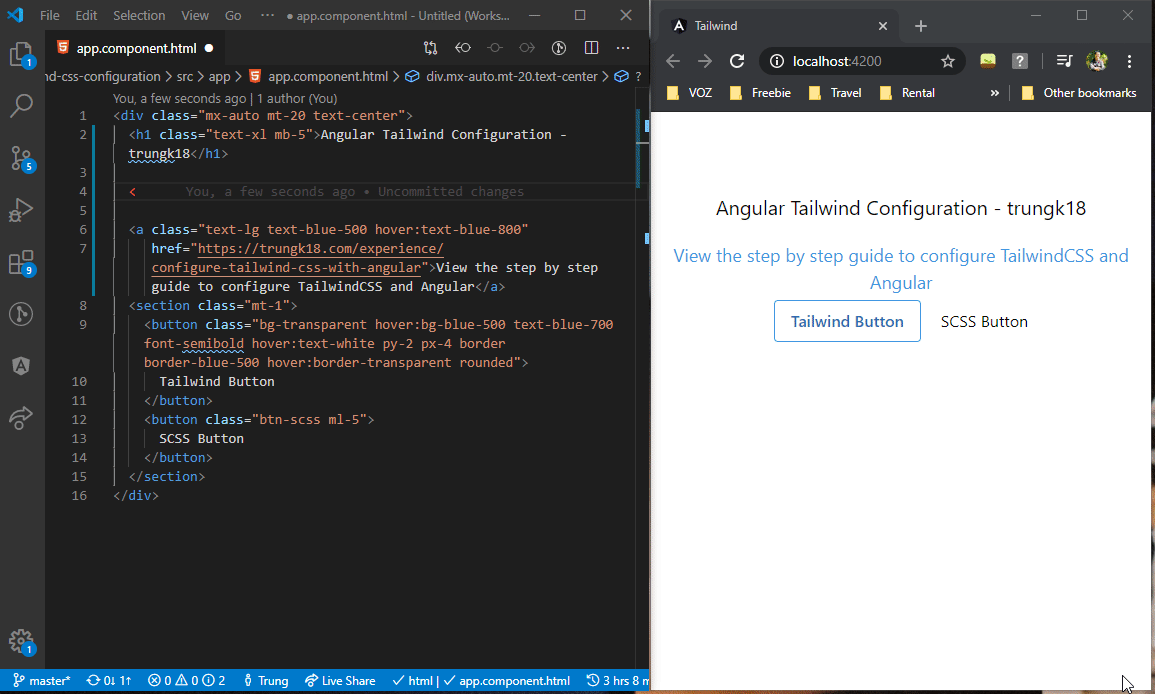

TailwindCSS @apply

<button
  class="bg-transparent
    text-blue-700
    font-semibold
    hover:bg-blue-500
    hover:text-white
    hover:border-transparent
    py-2
    px-4
    border
    border-blue-500
    rounded"
>
  Submit
</button>

.btn-tailwind {
  @apply bg-transparent text-blue-700 font-semibold py-2 px-4 border border-blue-500 rounded;

  &:hover {
    @apply bg-blue-500 text-white border-transparent;
  }
}

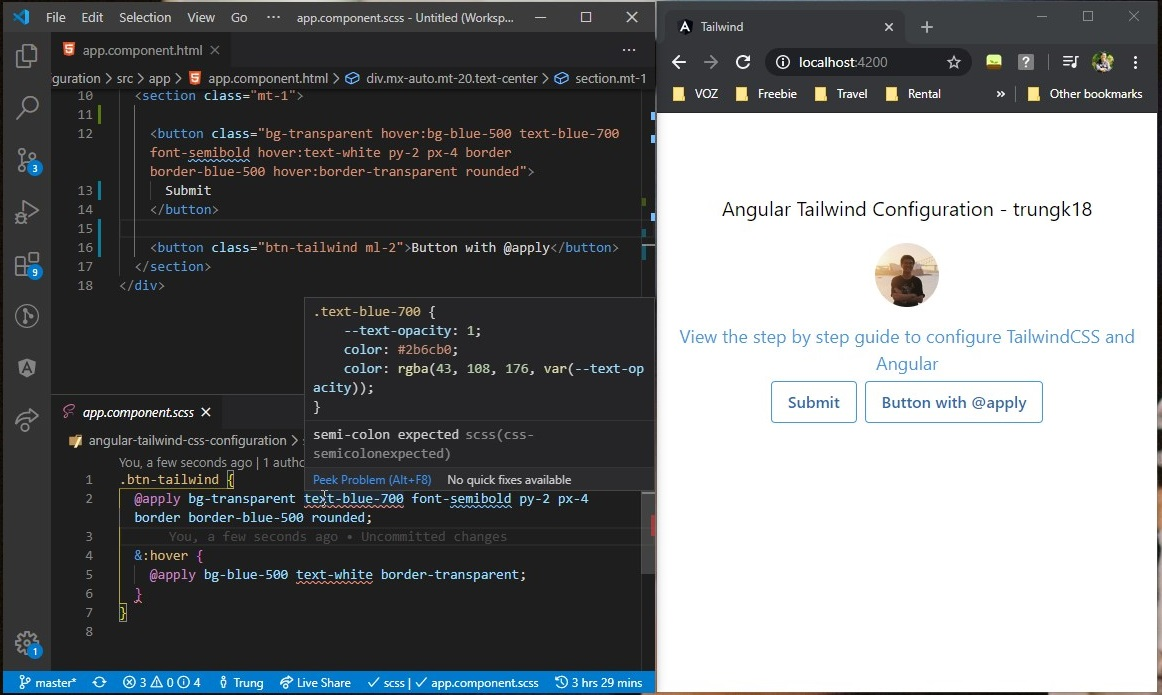

TailwindCSS @apply

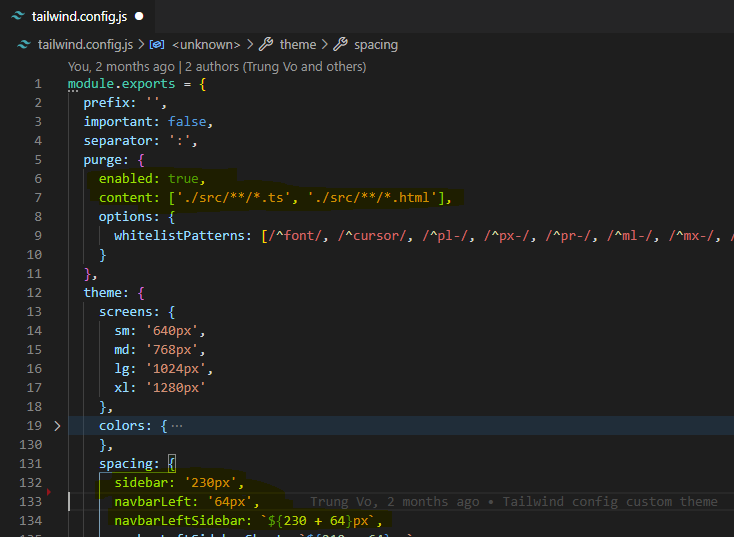

See more: https://trungk18.com/experience/configure-tailwind-css-with-angular

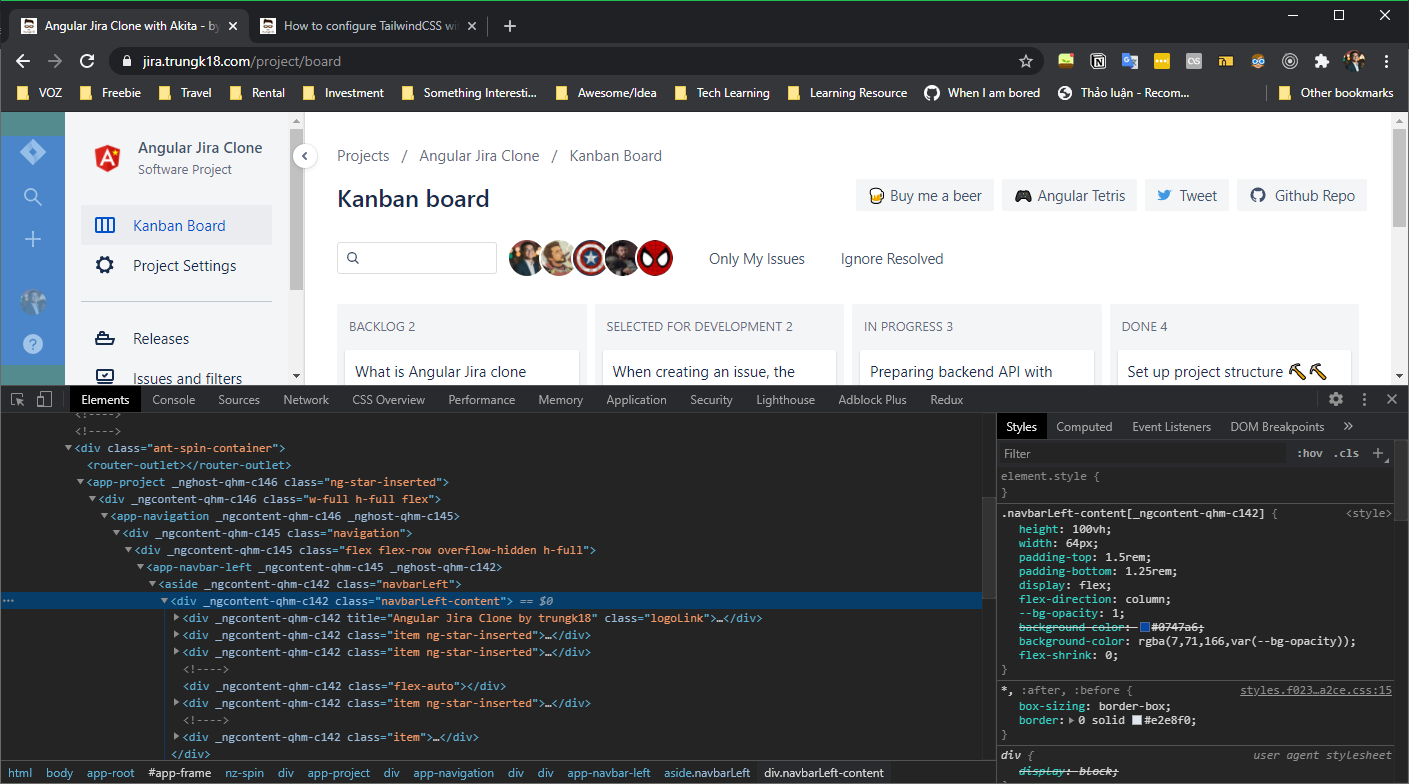

TailwindCSS + Jira Layout

Content

Sidebar

Nav

TailwindCSS + Layout

State Managment: Akita vs ngrx

✅ Avoid state manipulation everywhere
✅ Predictable data flow
✅ Easy to isolate bug
✅ Consistent when dealing with asynchronous

❌ NOT an easy concept to grasp.

What is state?

The data (whatever that is!).
All the variables in all the of the components.
All the variables in the entire application.
A store, like a Redux or Flux store.
The behavior of the app at a given moment in time (this is my definition!).

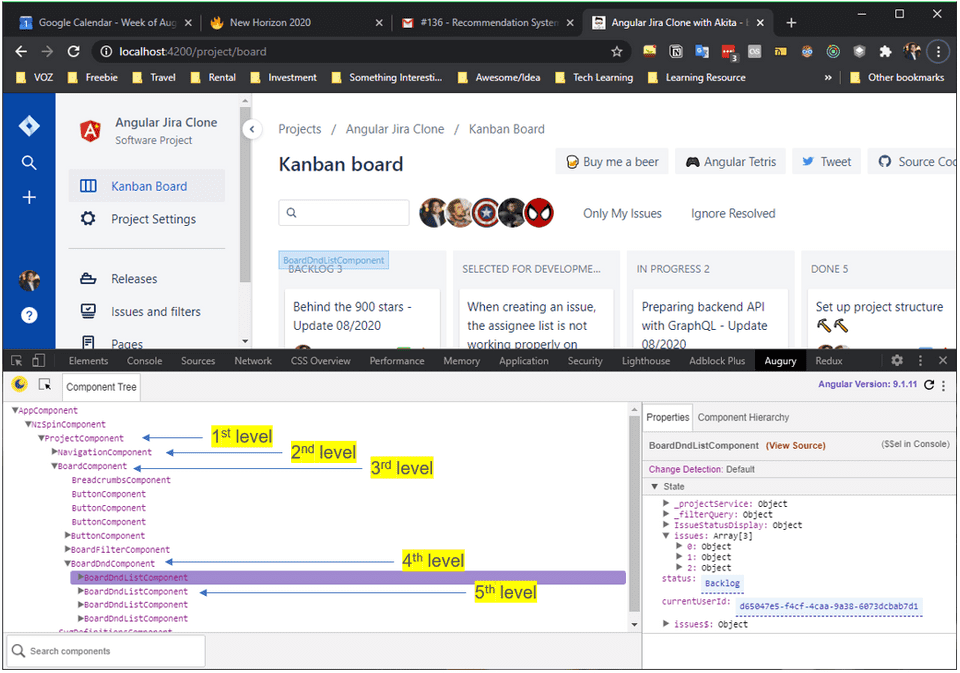

When you should use state management?

<ProjectComponent [data]='data'>
  <BoardComponent [data]='data'>
    <BoardDndComponent [data]='data'>
      <BoardDndListComponent [data]='data'>
      </BoardDndListComponent>
    </BoardDndComponent>
  </BoardComponent>
</ProjectComponent>

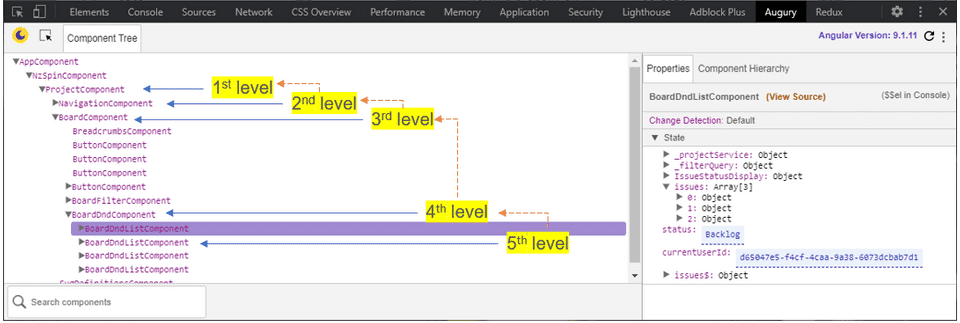

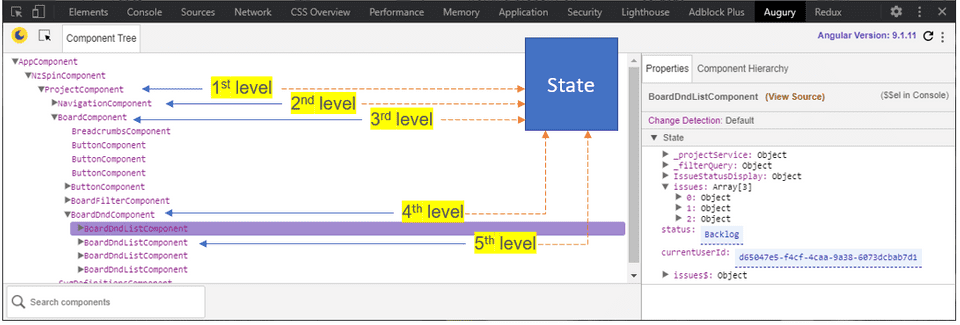

When you should use state management?

What is state management?

Provides with tools to create the data structure
Provides a way to update them when the new actions occur
Provides development tool

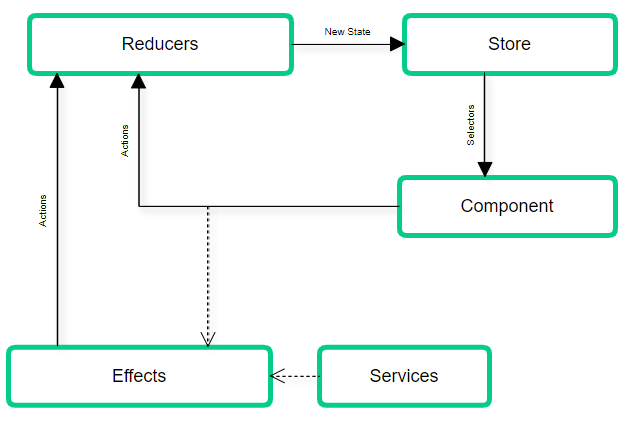

ngrx

Why not NgRx? Too much boilerplate

Let’s start with the boilerplate issue. Whenever I needed to use ngrx, I had to:

Create a set of actions.
Create a reducer function with a big switch statement.
Add the reducer to the StoreModule.forRoot or StoreModule.forFeature call.
Call select function in my component or create selectors to get the current state.
Call the dispatch function to dispatch an action.

Why not NgRx? Fetch Data

Add an action that will be dispatched when data needs to be:
- Fetched
- Finished successfully
- Failed
Add an Effects class that will call the data service

It’s not a big problem if it’s not often needed. But fetching data from API is what front end dev do, though!

Too many concepts

RxJS

Angular

Modules

Dependency Injection

Components

Service

Observable

Decorator

switchMap

concatMap

whateverMap

Subject

BehaviorSubject
ReplaySubject

ngrx

Action

Dispatcher

Reducer

Effect

Selector

Akita

A state management pattern

Built on top of RxJS
Encourages simplicity, less boiler plate
Based on object-oriented design principles

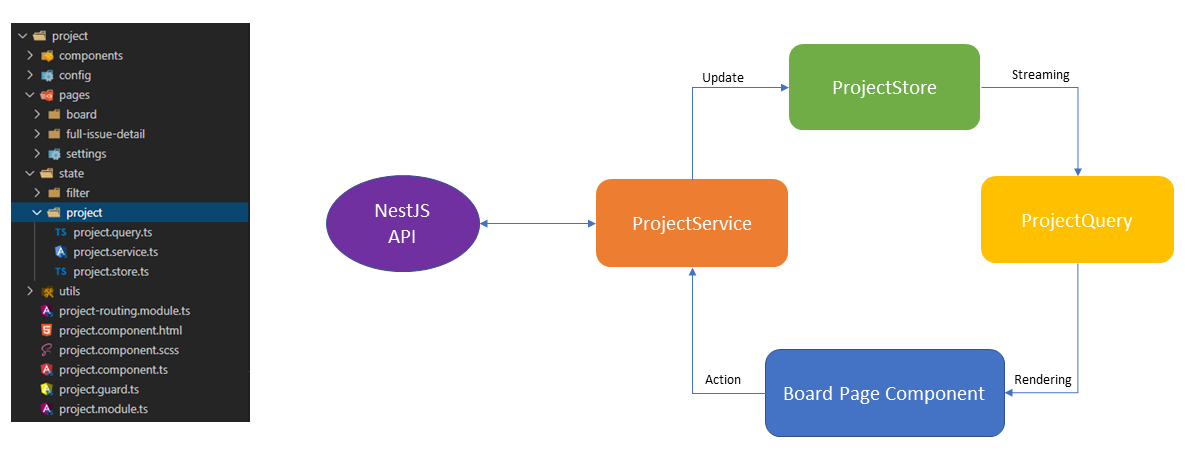

Akita

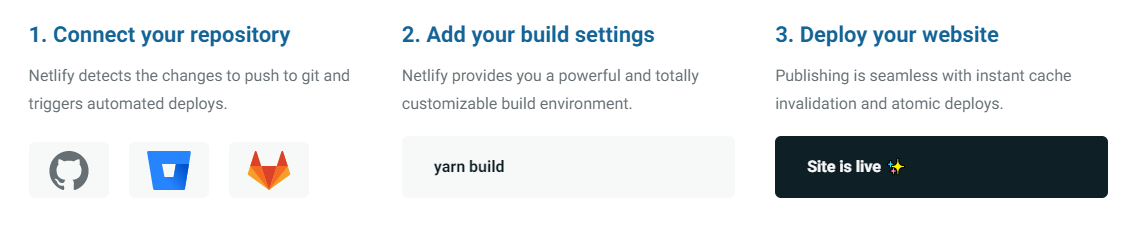

Deploy to Netlify

Netlify is an automation platform for web projects that is focused toward frontend developers.

The main features include continuous integration out of the box, free SSL, and CDN. The platform is great of the easy of use, fast deployment, and continuous integration.
