Introduction to Apache Spark and PixieDust

Lisa Jung

IBM

Upkar Lidder

IBM

> ulidder@us.ibm.com

> @lidderupk

> upkar.dev

Prerequisites

@lidderupk

IBM Developer

1. Create IBM Cloud Account using THIS URL

3. If you already have an account, use the above URL to sign into your IBM Cloud account.

2. Check your email and activate your account. Once activated, log back into your IBM Cloud account using the link above.

http://bit.ly/pixie-sign

@lidderupk

IBM Developer

Why are we here today?

1. What is Apache Spark?

2. Why do we need it? A historical context

3. Basic architecture and components

4. Spark data structures

5. Commonly used APIs to work with DataFrames

6. Spark and PixieDust demo

@lidderupk

IBM Developer

What is Apache Spark?

Framework for Big Data processing distributed across clusters, like map-reduce. It provides high-level APIs in Java, Scala, Python and R.

in-memory fast computations
lazy system
multiple language support
real time streaming
SQL support
Machine Learning Support

@lidderupk

IBM Developer

Why do we need it? A historical context

Era of Big Data ...

Volume
Veracity
Velocity
Volatility

ETL tools are old school ...

Need to know propriety tools
Cannot work with Language of choice

Hadoop is cool, but ...

Takes too long
Lots of disk IO

@lidderupk

IBM Developer

Basic architecture and components

Spark SQL - Full SQL2003 support, DataFrames and Datasets

MLlib - Spark's scalable machine learning library. Supports Classification, Regression, Decision Trees, Recommendation, Clustering with feature transformation, ML pipelines, Model evaluation, hyper-parameter optimization and tuning.

Spark Streaming - brings Apache Spark's language-integrated API to stream processing, letting you write streaming jobs the same way you write batch jobs. It supports Java, Scala and Python.

Spark GraphX - API for graphs and graph-parallel computation.

@lidderupk

IBM Developer

Spark data structures

RDD - Resilient Distributed Dataset

low level structure, compile-time type safe
gives full control over physical data placement across the cluster
lazily evaluated and automatically distributed
DataFrames and Datasets compile down to RDD

DataFrames --> Dataset[Row]

untyped - checked against built in schema at runtime
each record is of type Row
higher level abstraction -> logical plan -> physical plan -> optimized

Datasets

typed - checked at compile type
can only be used with JVM languages - Java and Scala
offer strong type-safety
added in Spark 1.6

@lidderupk

IBM Developer

Operations on RDD

Transformations	Actions
select	count
distinct	collect
sum	save
filter	show
limit	more ...
groupBy
more ...

Transformations

Actions

Create new dataset from an existing one.
All transformations are lazy.

Return a value after running a computation.
Nothing actually happens until you call an action!

@lidderupk

IBM Developer

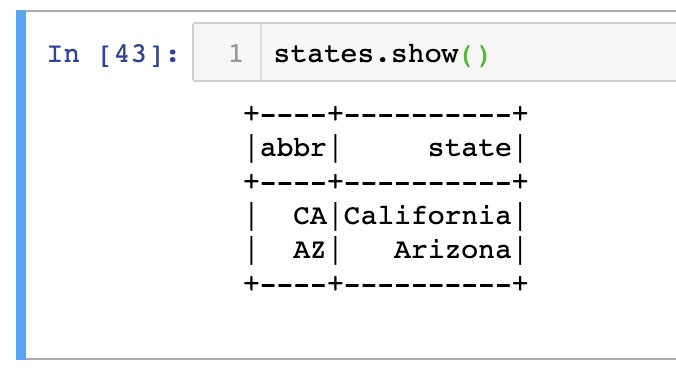

createDataFrame with Row

A dataframe is collection of pyspark.sql.Row

from pyspark.sql import Row

california = Row(state='California', abbr='CA')
arizona = Row(state='Arizona', abbr='AZ')

states = spark.createDataFrame([california, arizona])

@lidderupk

IBM Developer

Handle missing values

# drop(how='any', thresh=None, subset=None)
df5 = df4.na.drop()
df5.show()

# fill(value, subset=None)
df4.na.fill(50).show()
df5.na.fill(False).show()

# replace(to_replace, value=<no value>, subset=None)[source]
df4.na.replace(10, 20).show()
df4.na.replace('Alice', None).show()
df4.na.replace(['Alice', 'Bob'], ['A', 'B'], 'name').show()

@lidderupk

IBM Developer

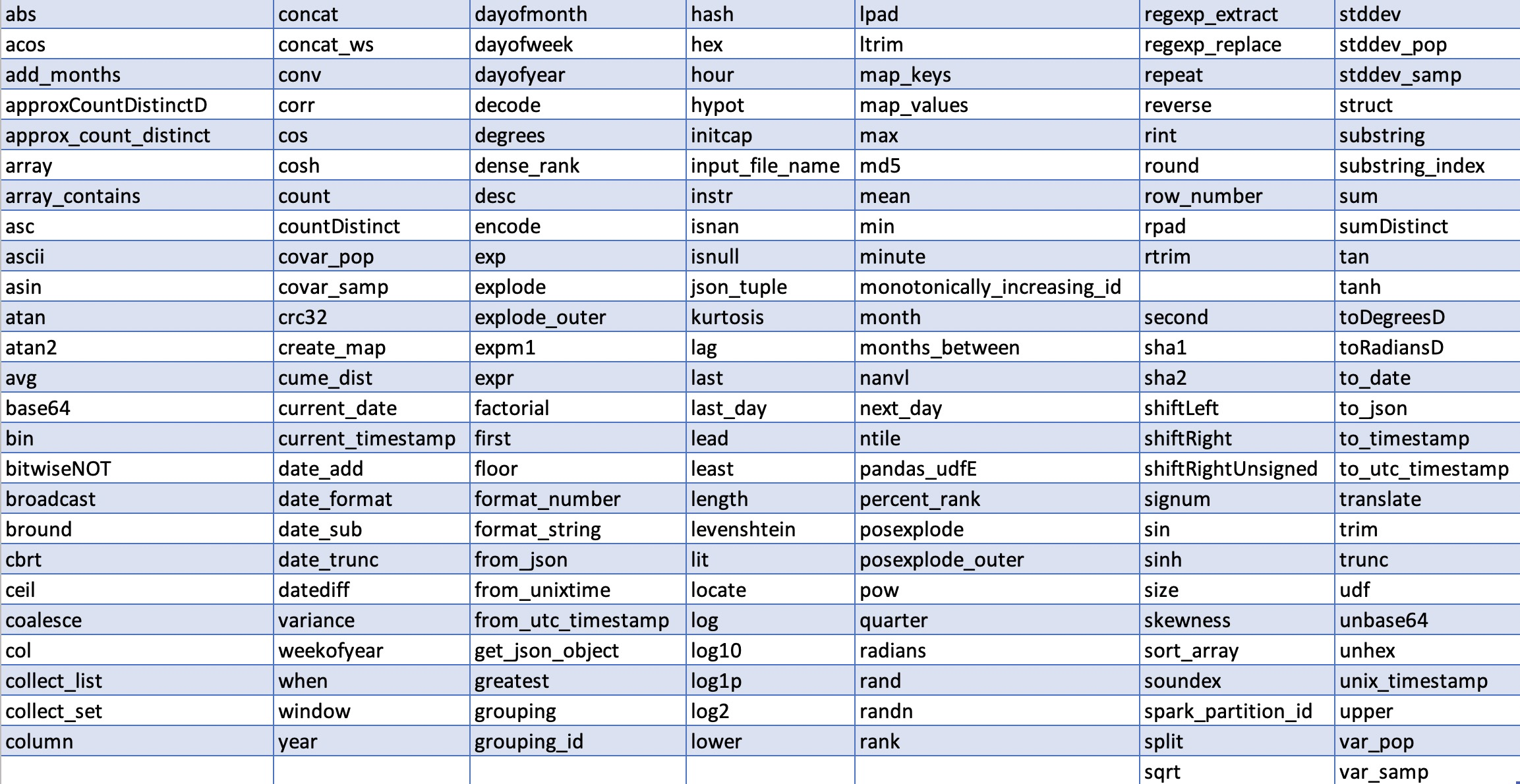

Built-in Functions for dataframes

@lidderupk

IBM Developer

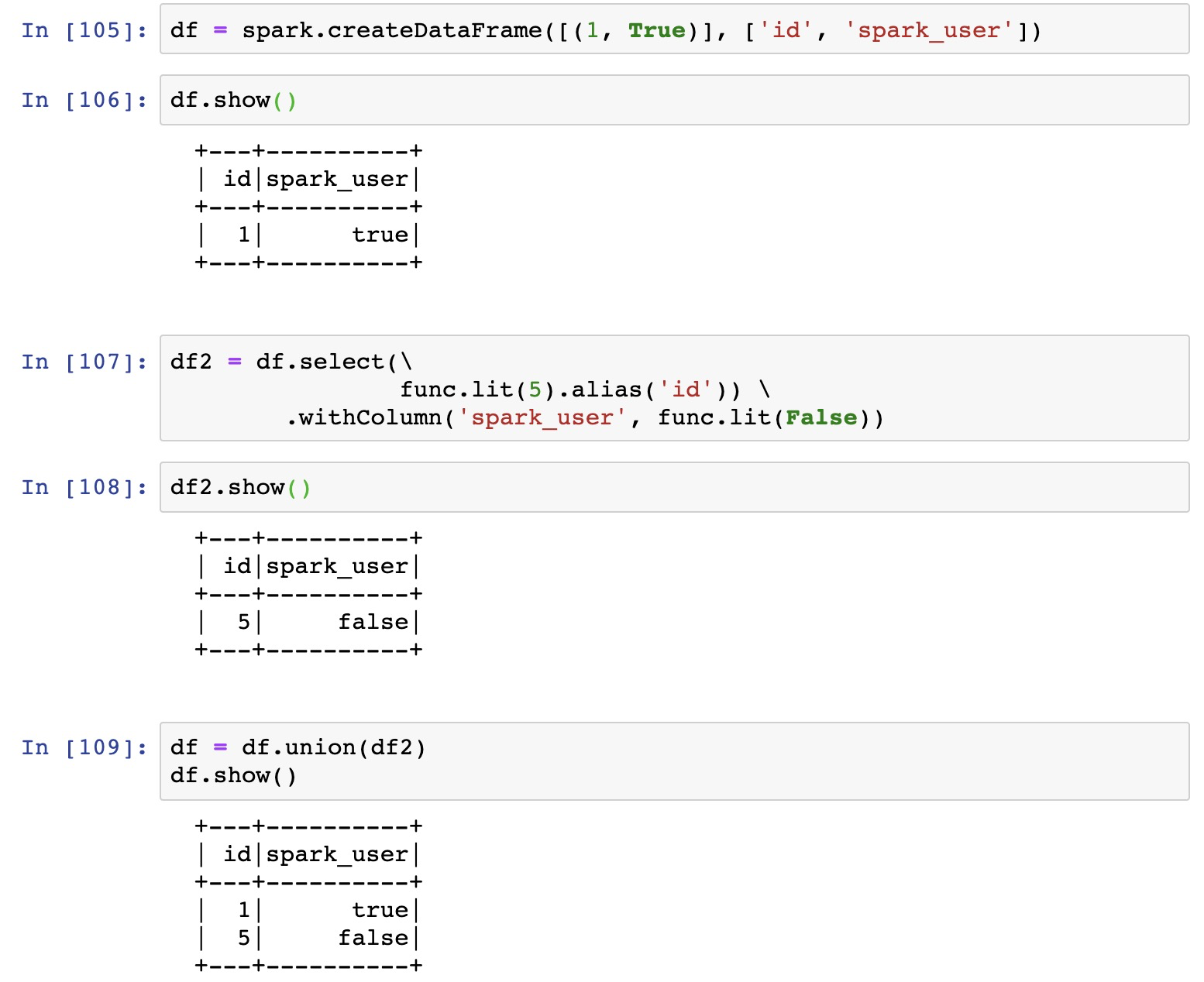

withColumn, lit, alias

import pyspark.sql.functions as func

@lidderupk

IBM Developer

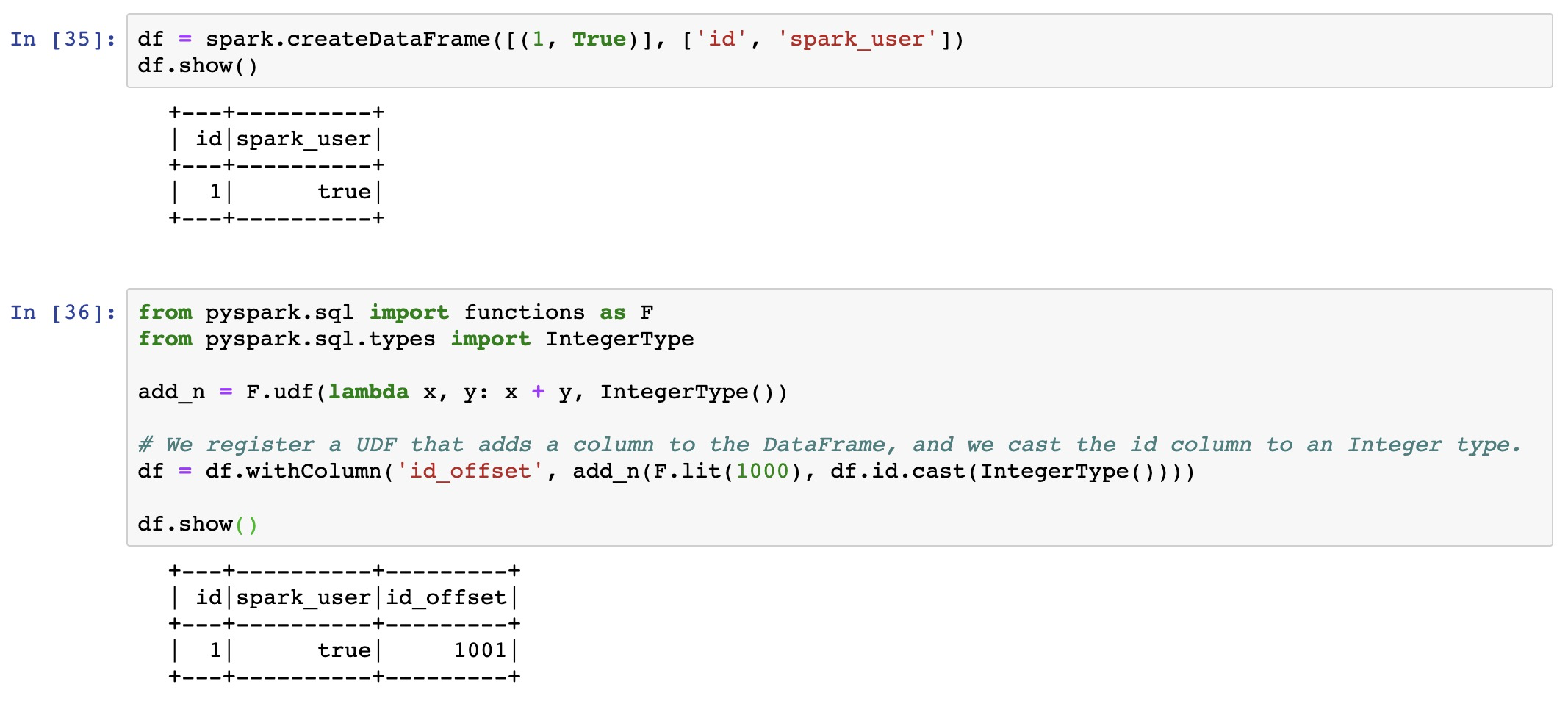

User Defined Functions 1

@lidderupk

IBM Developer

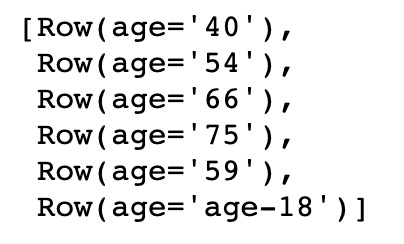

User Defined Functions 2

# ---------------------------------------
# Cleanse age (enforce numeric data type)
# ---------------------------------------

def fix_age(col):
    """
    input: pyspark.sql.types.Column
    output: the numeric value represented by col or None
    """
    try:
      return int(col)
    except ValueError:
      # age-33
      match = re.match('^age\-(\d+)$', col)
      if match:
        try:
          return int(match.group(1))
        except ValueError:
          return None
      return None

fix_age_UDF = func.udf(lambda c: fix_age(c), types.IntegerType())
customer_df = customer_df.withColumn("AGE", fix_age_UDF(customer_df["AGE"]))
customer_df

@lidderupk

IBM Developer

User Defined Functions 3

# ------------------------------
# Derive gender from salutation
# ------------------------------
def deriveGender(col):
    """ input: pyspark.sql.types.Column
        output: "male", "female" or "unknown"
    """
    if col in ['Mr.', 'Master.']:
        return 'male'
    elif col in ['Mrs.', 'Miss.']:
        return 'female'
    else:
        return 'unknown';

# register the user defined function
deriveGenderUDF = func.udf(lambda c: deriveGender(c), types.StringType())

# crate a new column by deriving GENDER from GenderCode
customer_df = customer_df.withColumn("GENDER", deriveGenderUDF(customer_df["GenderCode"]))
customer_df.cache()

@lidderupk

IBM Developer

filter

import matplotlib.pyplot as plt
import pandas as pd
%matplotlib inline

# nothing happens
condition_gen_x_y = "GENERATION = 'Gen_X' or GENERATION = 'Gen_Y'"
# nothing happens
boomers_df = customer_df.filter("GENERATION = 'Gen_X' or GENERATION = 'Gen_Y'")
# something happens now!
boomers_df.groupBy('GENERATION').count().show()

# convert to pandas dataframe from spark dataframe!
boomers_df = boomers_df.toPandas()
# eager evaluation now!
boomers_df.groupby('GENERATION')['GENERATION'].count().plot(kind='bar')
plt.show()

@lidderupk

IBM Developer

Transformation and action - Example

lines = sc.textFile("data.txt")


lineLengths = lines.map(lambda s: len(s))


totalLength = lineLengths.reduce(lambda a, b: a + b)

@lidderupk

IBM Developer

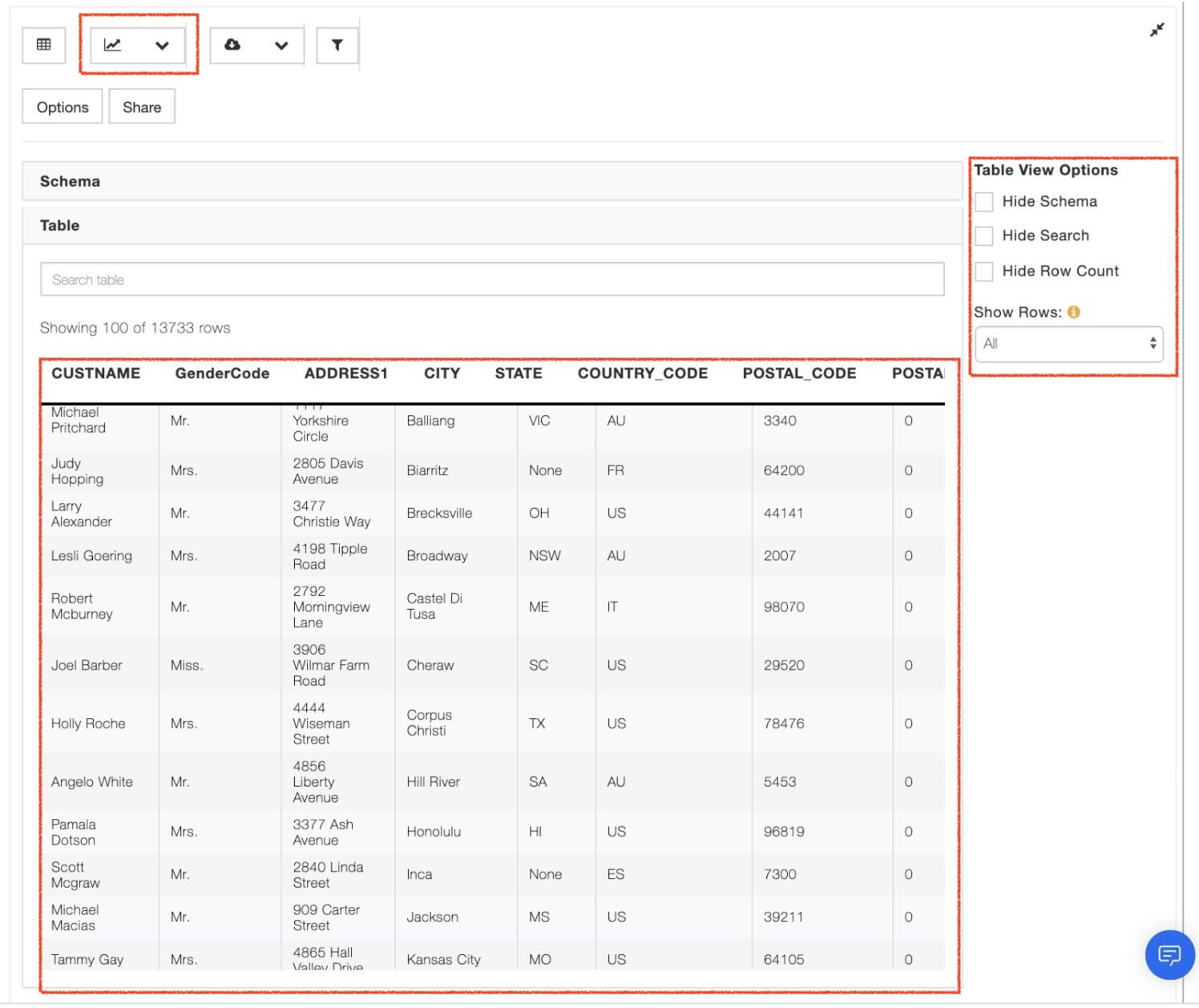

What's up with PixieDust?

PixieDust is an open source helper library that works as an add-on to Jupyter notebooks to improve the user experience of working with data.

One single API called display() lets you visualize your Spark object in different ways: table, charts, maps, etc.

display(raw_df)

@lidderupk

IBM Developer

What's up with PixieDust?

#Spark CSV Loading
from pyspark.sql import SparkSession
try:
    from urllib import urlretrieve
except ImportError:
    #urlretrieve package has been refactored in Python 3
    from urllib.request import urlretrieve

data_url = "https://data.cityofnewyork.us/api/views/e98g-f8hy/rows.csv?accessType=DOWNLOAD"
urlretrieve (data_url, "building.csv")

spark = SparkSession.builder.getOrCreate()
building_df = spark.read\
  .format('org.apache.spark.sql.execution.datasources.csv.CSVFileFormat')\
  .option('header', True)\
  .load("building.csv")
building_df

import pixiedust
pixiedust.sampleData(data_url)

Spark

PixieDust

Code from Data Analysis with Python, David Taieb

@lidderupk

IBM Developer

Let's look at some data!

http://bit.ly/pixie-lab

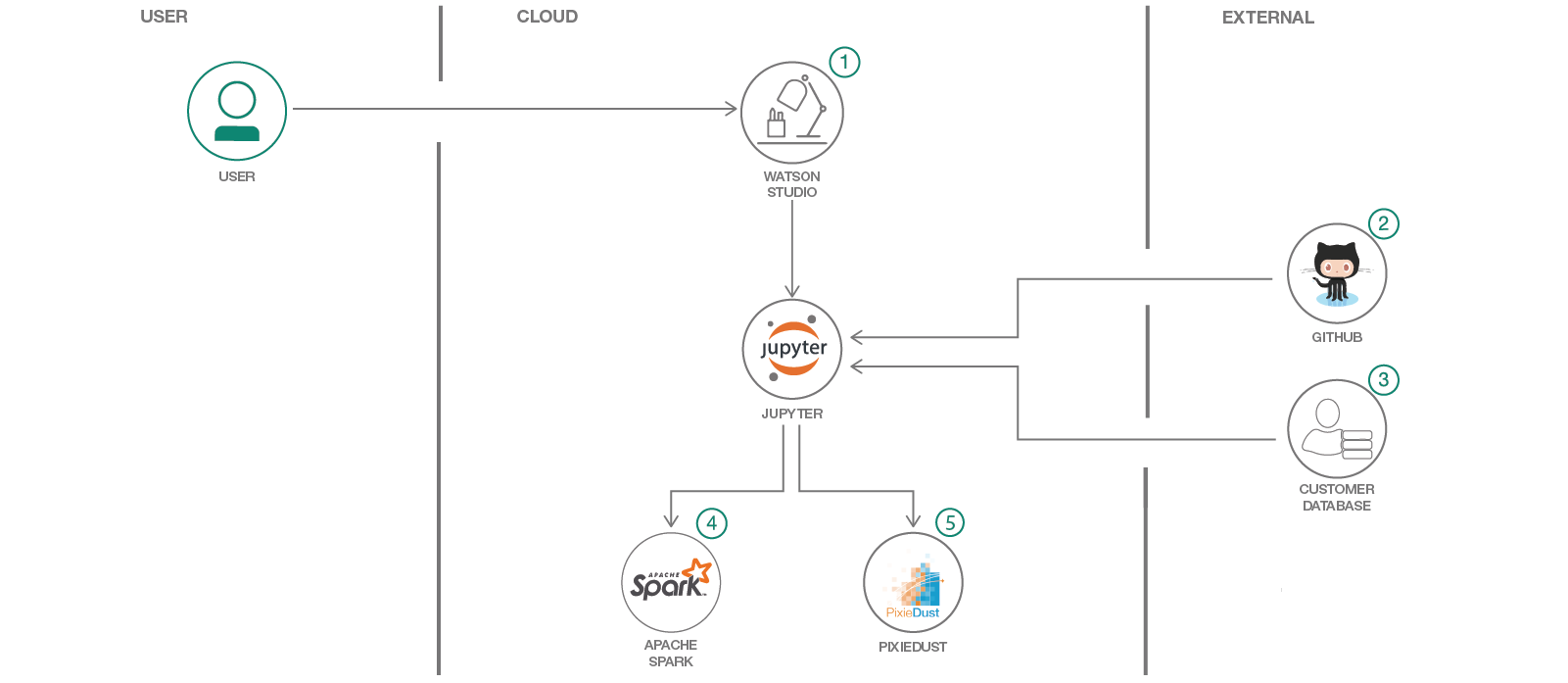

Workshop - Goals

@lidderupk

IBM Developer

Use Apache Spark, PixieDust and Jupyter Notebooks to analyze and visualize customer purchase data from Github. Run the notebook on a cluster of distributed nodes on IBM Cloud.

Steps

@lidderupk

IBM Developer

Sign up / Log into IBM Cloud - http://bit.ly/pixie-sign
Create Watson Studio Service.
Sign into Watson Studio and create a new Data Science Project. It also creates a Cloud Object Store for you.
Add a Notebook to your project
Import ipynb file from Github
Explore!

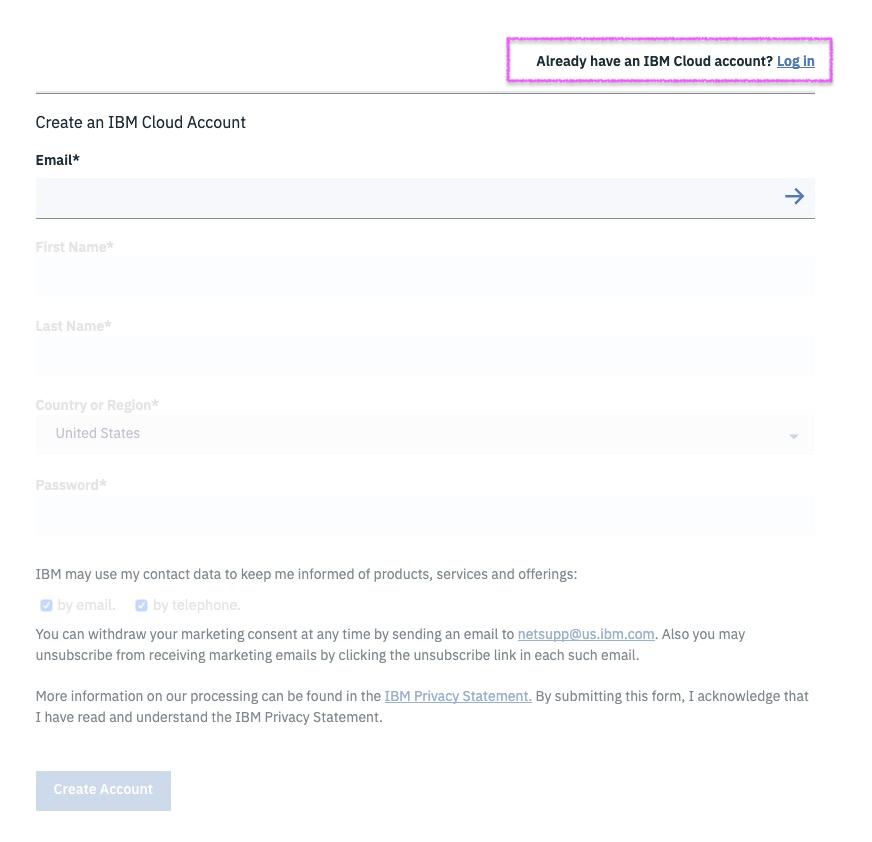

Step 1 - sign up/ log into IBM Cloud

@lidderupk

IBM Developer

http://bit.ly/pixie-sign

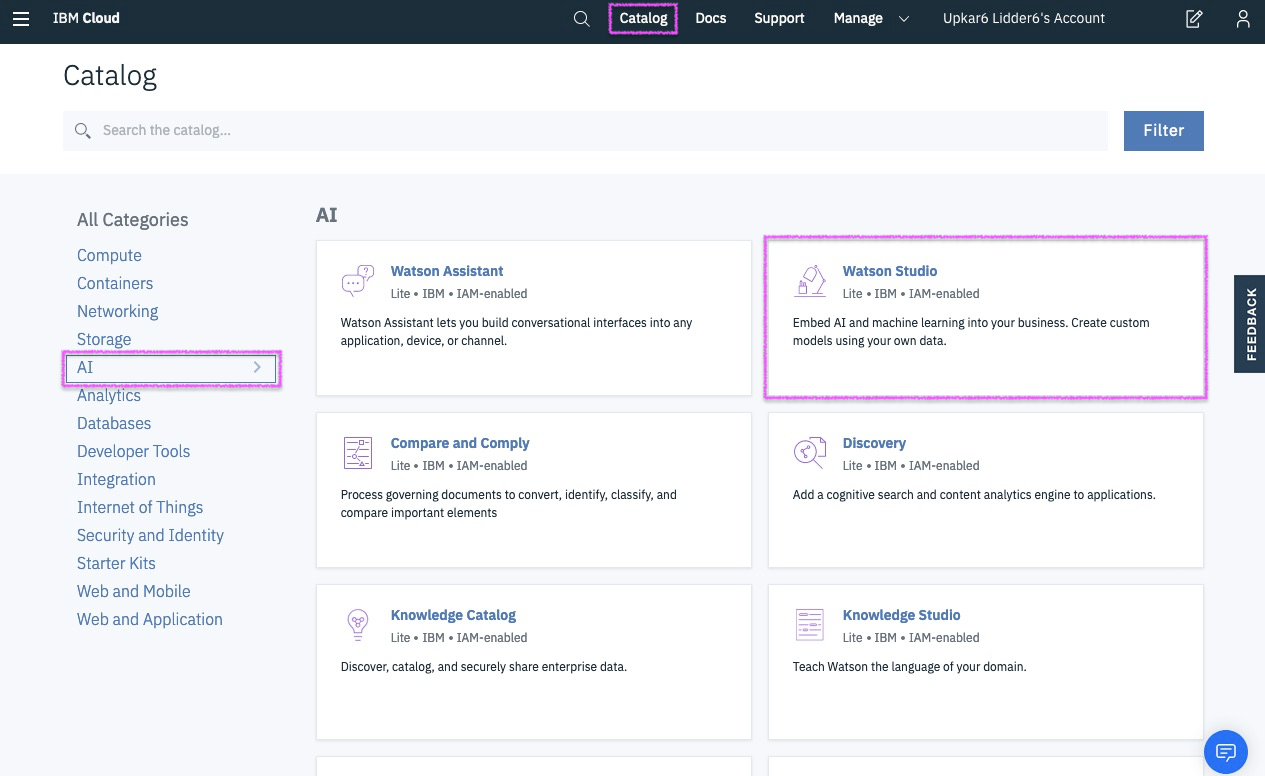

Step 2 - locate Watson Studio in Catalog

@lidderupk

IBM Developer

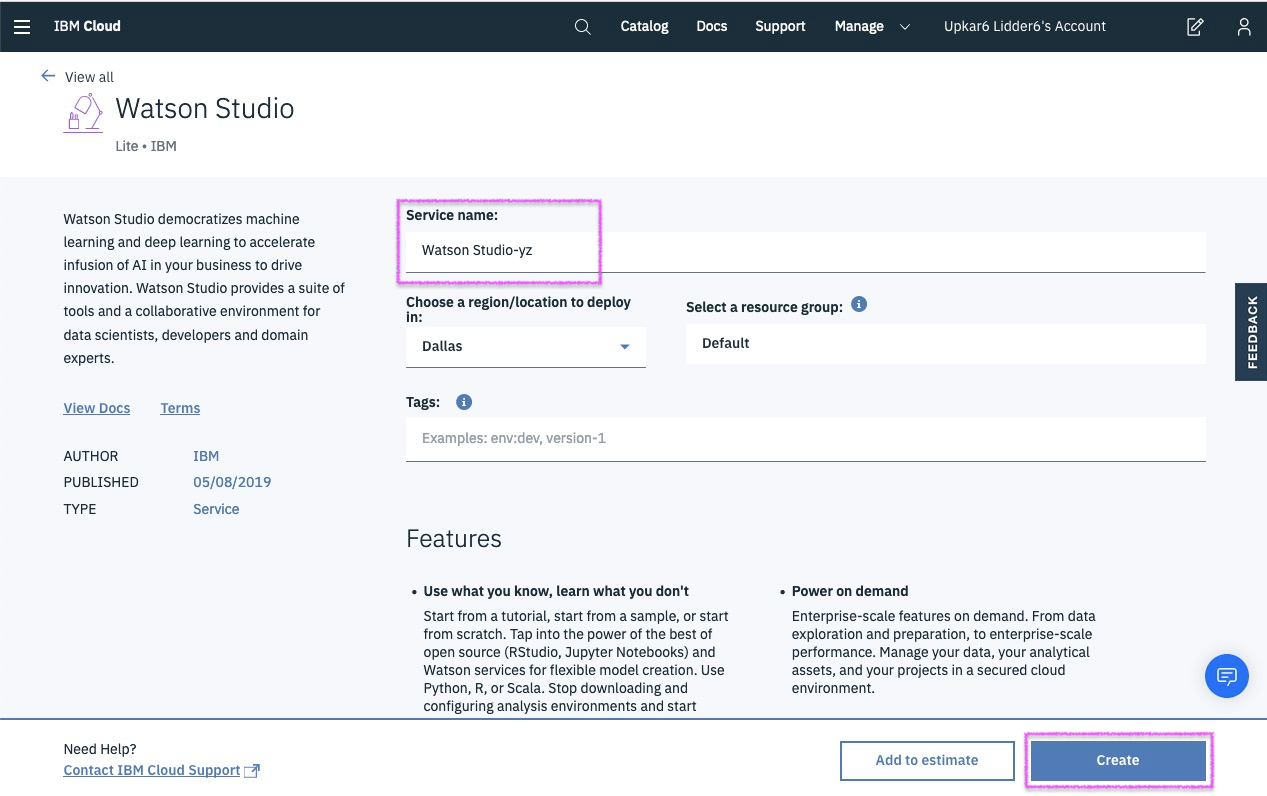

Step 3a - create Watson Studio instance

@lidderupk

IBM Developer

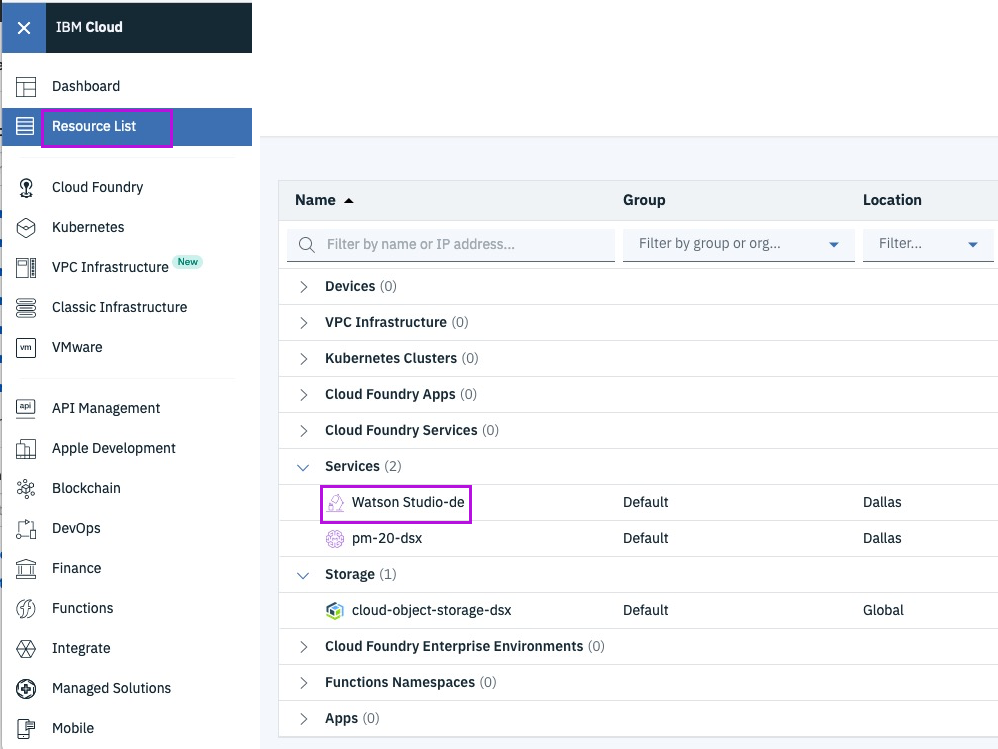

Step 3b - already have Watson Studio? Find it in Resources

@lidderupk

IBM Developer

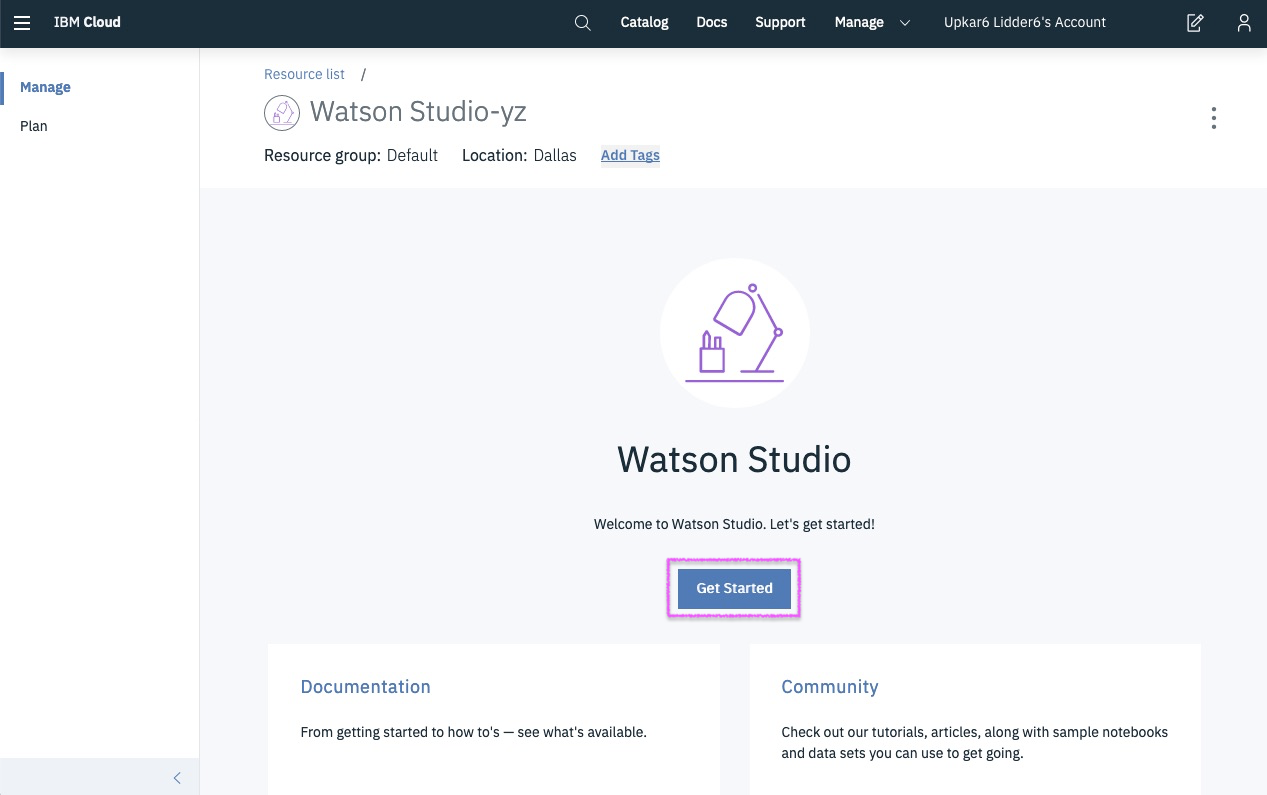

Step 4 - launch Watson Studio

@lidderupk

IBM Developer

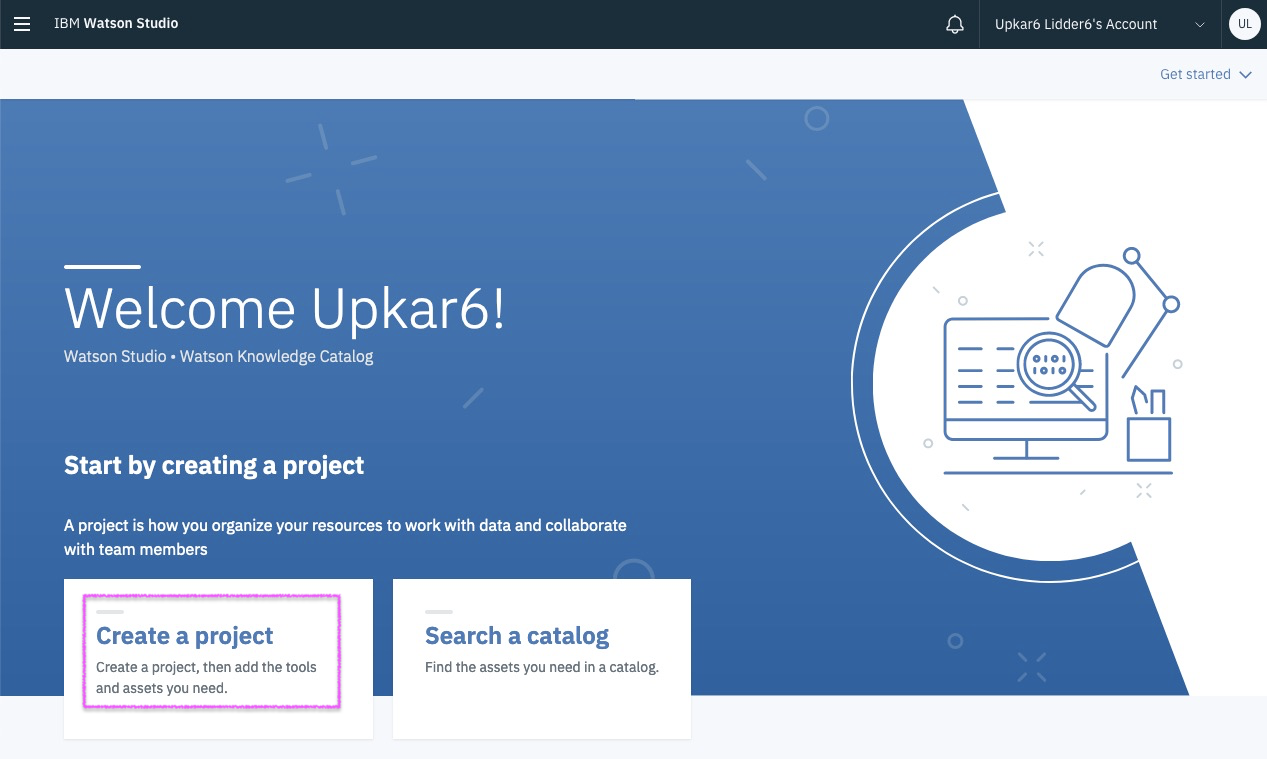

Step 5 - create a new project

@lidderupk

IBM Developer

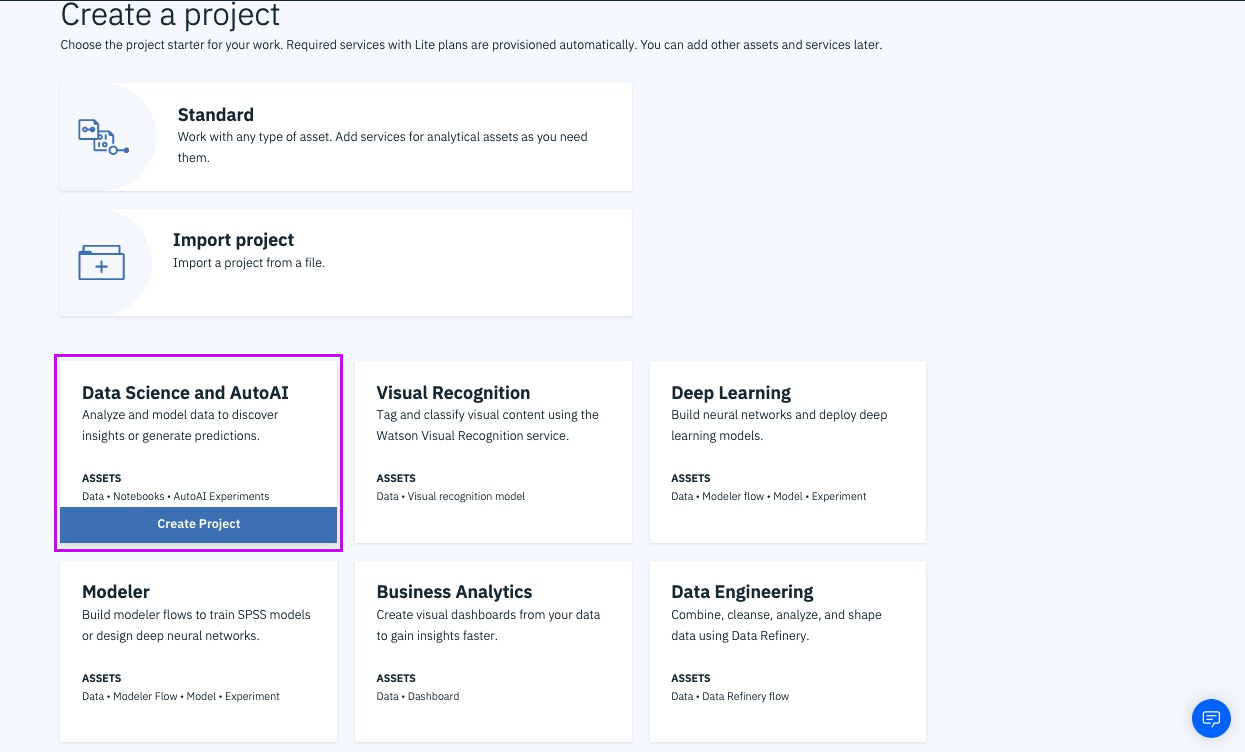

Step 6a - pick Data Science starter

@lidderupk

IBM Developer

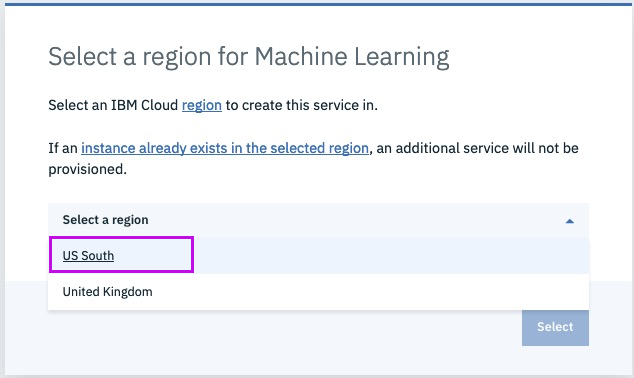

Step 6b - pick region [US South]

@lidderupk

IBM Developer

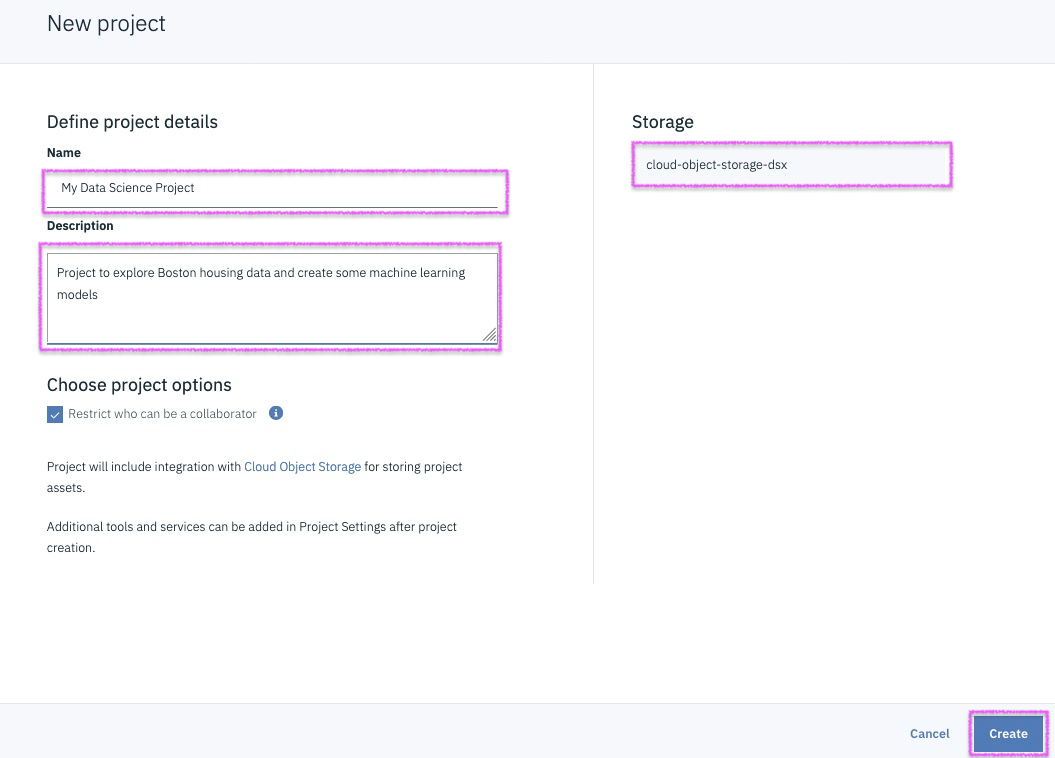

Step 7 - give the project a name and assign COS

@lidderupk

IBM Developer

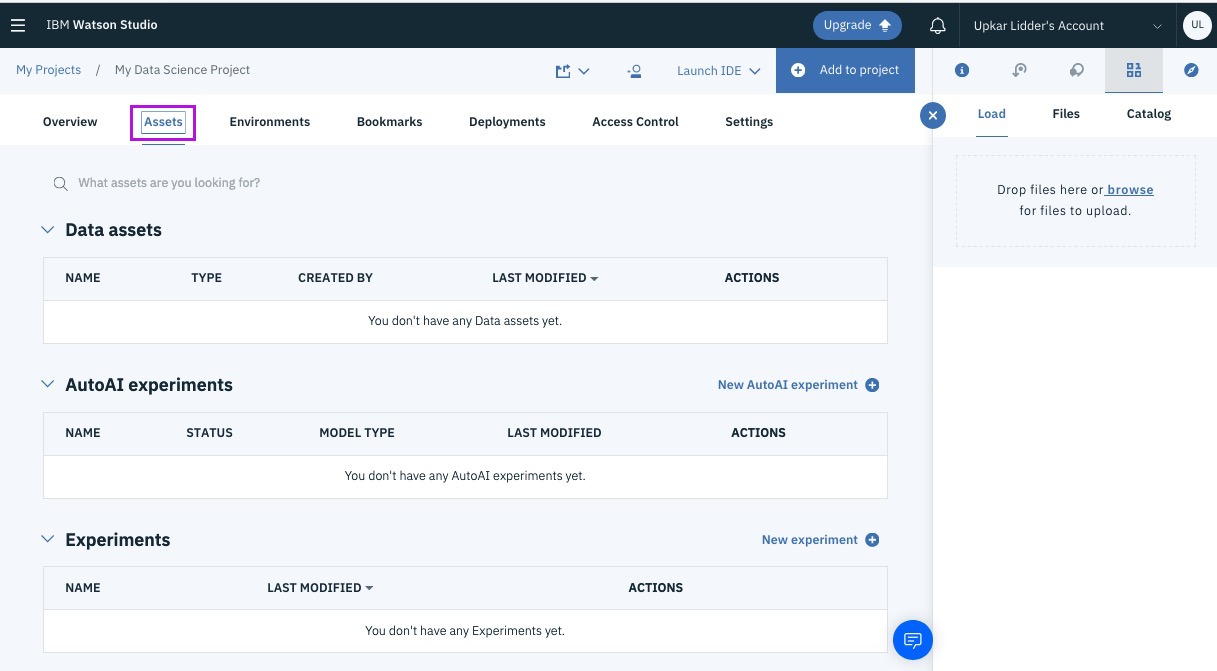

Step 8 - open asset tab, this is your goto page!

@lidderupk

IBM Developer

@lidderupk

IBM Developer

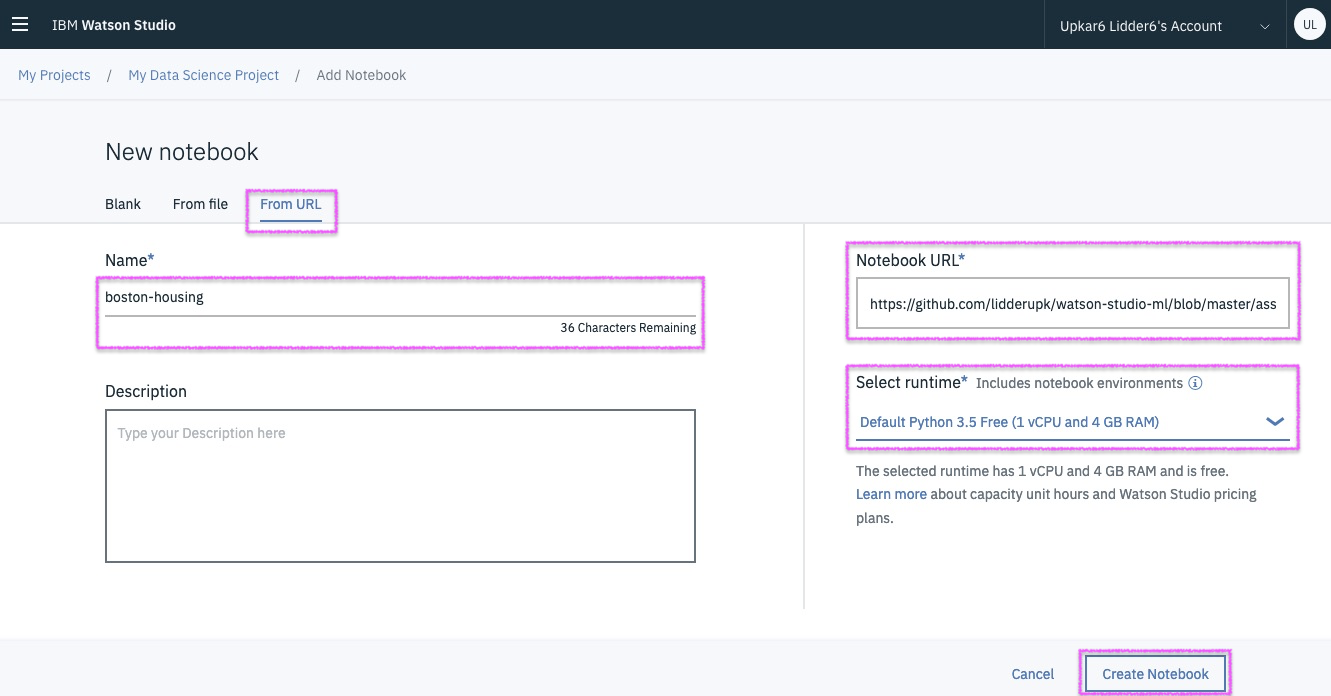

Step9 - create a new notebook from URL

Grab the FULL URL from : http://bit.ly/pixie-lab-notebook

@lidderupk

http://bit.ly/pixie-lab-notebook

https://training.databricks.com/visualapi.pdf

@lidderupk

IBM Developer

More Resources

Slides explaining transformations and actions with visuals

https://spark.apache.org/docs/2.3.3/api/python/index.html

Spark official docs

https://docs.databricks.com/spark/latest/dataframes-datasets/index.html

Databricks training

https://developer.ibm.com/patterns/category/spark/?fa=date%3ADESC&fb=

IBM Code Patterns

Thank you

Let's chat !

@lidderupk

IBM Developer

Upkar Lidder, IBM

@lidderupk

https://github.com/lidderupk/

ulidder@us.ibm.com
