SNF-ROM: Projection-based nonlinear reduced order modeling with smooth neural fields
JUL 22, 2024
Vedant Puri, Aviral Prakash, Levent Burak Kara, Yongjie Jessica Zhang
Mechanical Engineering, Carnegie Mellon University
Motivation: accelerate PDE solvers
1

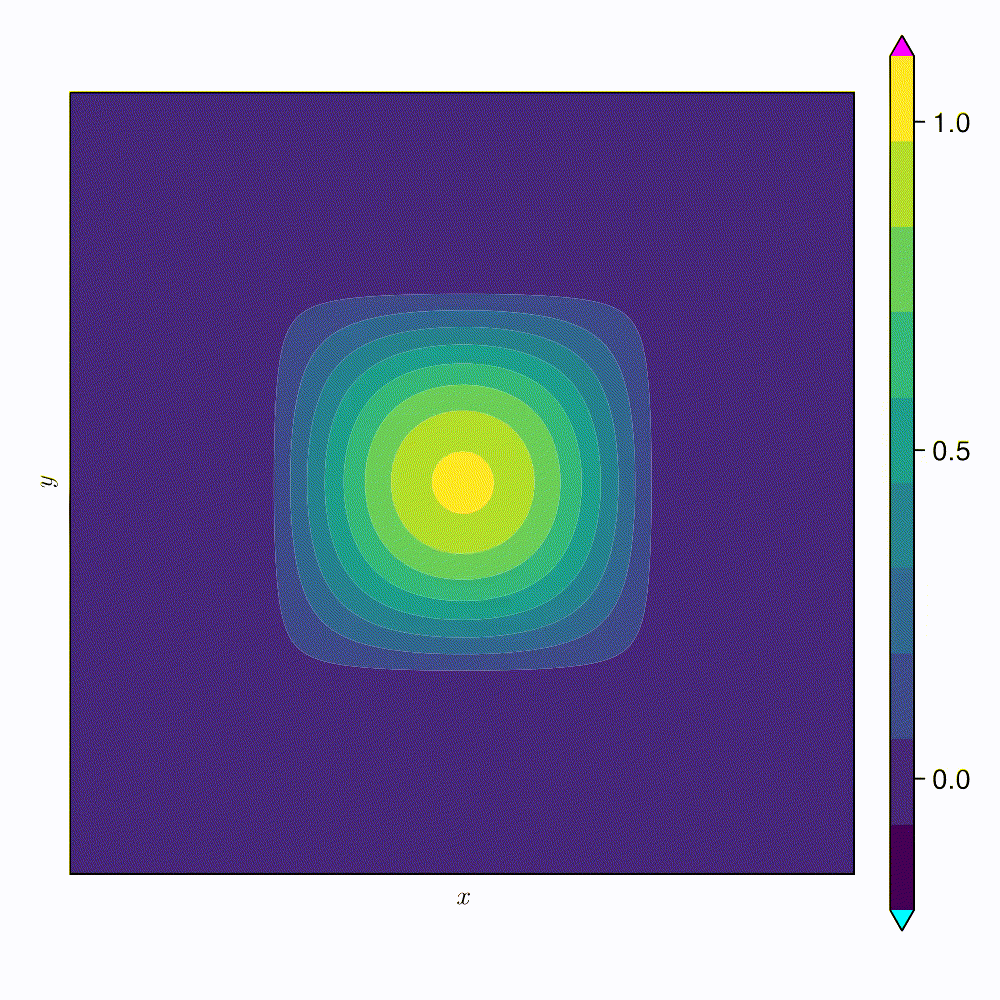

2D Viscous Burgers problem \( (\mathit{Re} = 1\text{k})\)
\frac{\partial \boldsymbol{u}}{\partial t}
+
\boldsymbol{u} \cdot \boldsymbol{\nabla}\boldsymbol{u}
=
\nu \Delta \boldsymbol{u}
t=0
t=0.5
Nonlinear model order reduction
- Spatial discretization that captures the signal with \(2\) DoFs
- \(0.068~\text{s}\) wall-time, \(261~\text{MiB}\) GPU allocation
- \(199\times\) speed-up, \(0.37\%\) relative error
Full order model (FOM)
- Fourier spectral PDE solver
- \(512 \times 512\) grid \( (\approx 262~\text{k}) \) grid points
- \(13.44~\text{s}\) wall-time, \(640~\text{GiB}\) GPU allocation
Model order reduction learns data-driven spatial discretizations
2
\begin{pmatrix}
\hspace{0.8em}
\\
\\
\\
\\
\end{pmatrix}
\begin{pmatrix}
\hspace{0.8em}
\\
\\
\\
\\
\end{pmatrix}
\mathbb{R}^{N_\text{FOM}}
\bar{u}(0)
\bar{u}(T)
\text{Full-order model (FOM) solves an ODE of size } \mathcal{O}(N_\text{FOM})

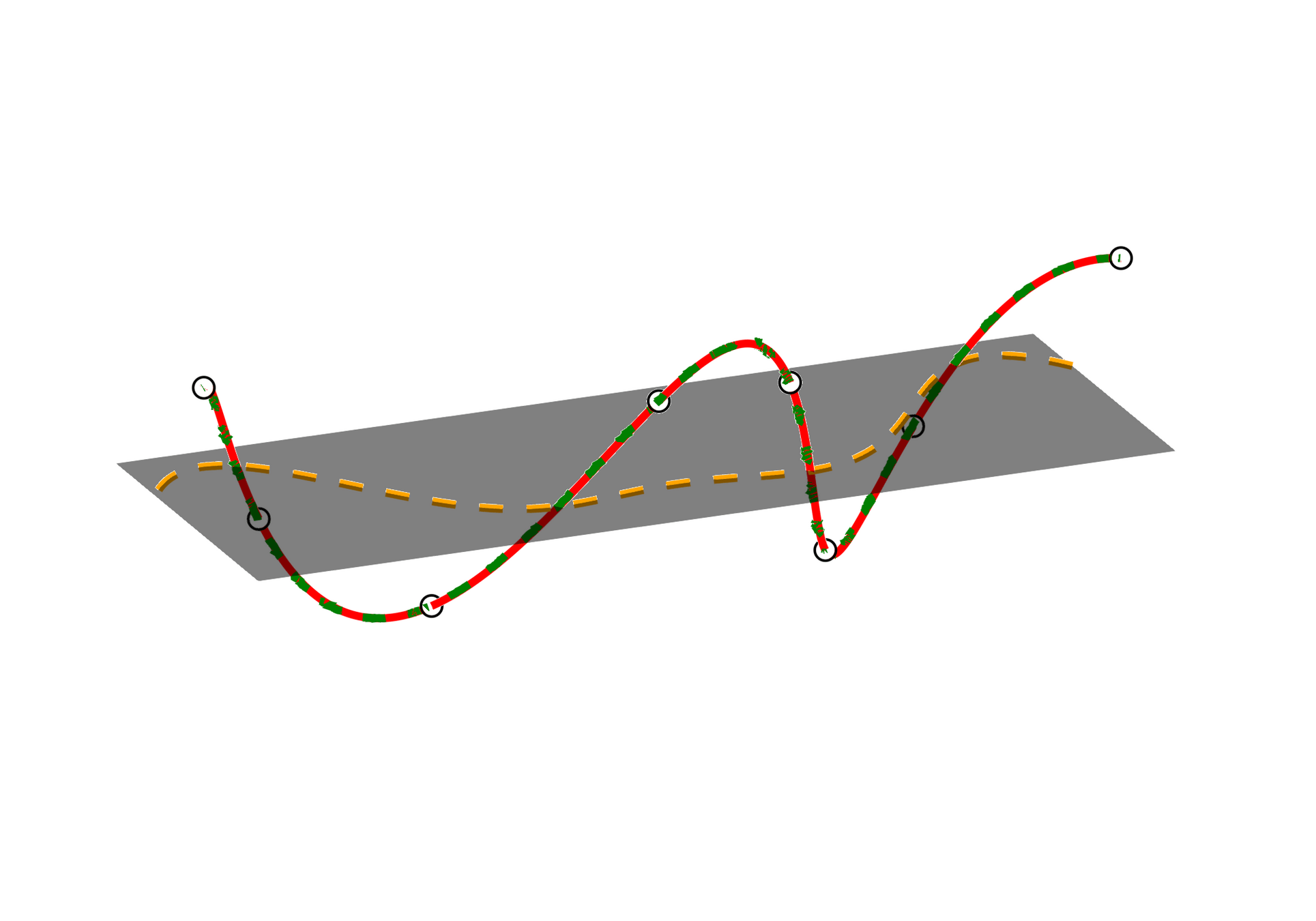

\text{Linear ROMs project the governing ODE to a linear subspace}
\text{Nonlinear ROMs project the ODE onto a low-dimensional nonlinear manifold}
\frac{\partial \boldsymbol{u}}{\partial t}
=
\mathcal{L}(\boldsymbol{x}, t, \boldsymbol{u})
\implies
\frac{\mathrm{d}\bar{u}}{\mathrm{d} t}
=
\mathcal{L}(t, \bar{u})
Convolutional autoencoder ROMs (CAE-ROMs)
4
\begin{pmatrix}
\textcolor{blue}*\\
\textcolor{blue}*\\
\end{pmatrix}
\begin{pmatrix}
\hspace{0.8em}
\\
\\
\\
\\
\end{pmatrix}
\begin{pmatrix}
\hspace{0.8em}
\\
\\
\\
\\
\end{pmatrix}
- Unsupervised learning technique for data compression
- No control over latent trajectory of ROM DoFs
- ROM dynamics evaluation deviates from learned prediction
\text{Relative error vs time}
\text{Predictions}
\text{Distribution of ROM states}
\text{Encoder}
\text{Decoder}
\bar{u}(t)
\bar{u}(t)
\tilde{u}(t)
SNF architecture: directly model the intrinsic ROM manifold
5
\(\text{Coordinates}\)
\(\text{Loss } (L)\)
\(\text{PDE Problem}\)
\((\boldsymbol{x}, t, \boldsymbol{\mu})\)
\(\text{ Parameters}\)
\( \text{and time}\)
\(\text{Smooth neural field MLP }(g_\theta)\)
\(\text{Backpropagation}\)
\(\text{ Intrinsic ROM manifold}\)
\(\tilde{u}\)
\(\boldsymbol{x}\)
\(\boldsymbol{u}\left( \boldsymbol{x}, t; \boldsymbol{\mu} \right)\)
\(\mathcal{\tilde{U}}\)
\(\nabla_\theta L\)
\(\nabla_\varrho L\)
\(\nabla_\theta L\)

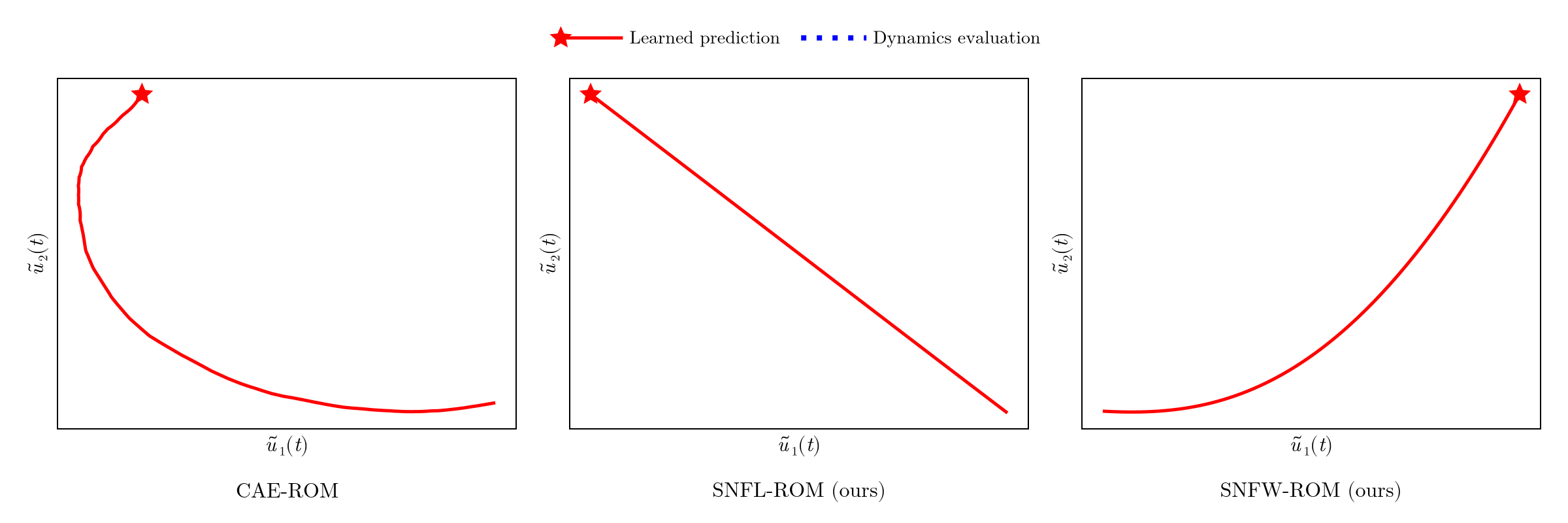

Modeling \(\tilde{\mathcal{U}}\) as a learnable function \(\Xi_\varrho\) restricts ROM states to follow a smooth trajectory.
\tilde{\mathcal{U}} =
\left\{
\tilde{u}(t; \mathbf{\mu})
|~ t,\, \mathbf{\mu}
\right\}
Neural field are ill-equipped to handle high-order derivatives
8
- Grid independent. easy implementation of hyper-reduction
- Problem: inaccurate high-order derivatives
\(\text{Neural field MLP } (g_\theta)\)
\(\boldsymbol{x}\)
\(\boldsymbol{u}\left( \boldsymbol{x} \right)\)
\frac{\mathrm{d}}{\mathrm{d}x} \mathrm{NN}(x)
\mathrm{NN}(x)
\frac{\mathrm{d}^2}{\mathrm{d}x^2} \mathrm{NN}(x)
\dfrac{\mathrm{d}^k}{\mathrm{d}x^k} \mathrm{NN}(x) \neq u^{(k)}(x)

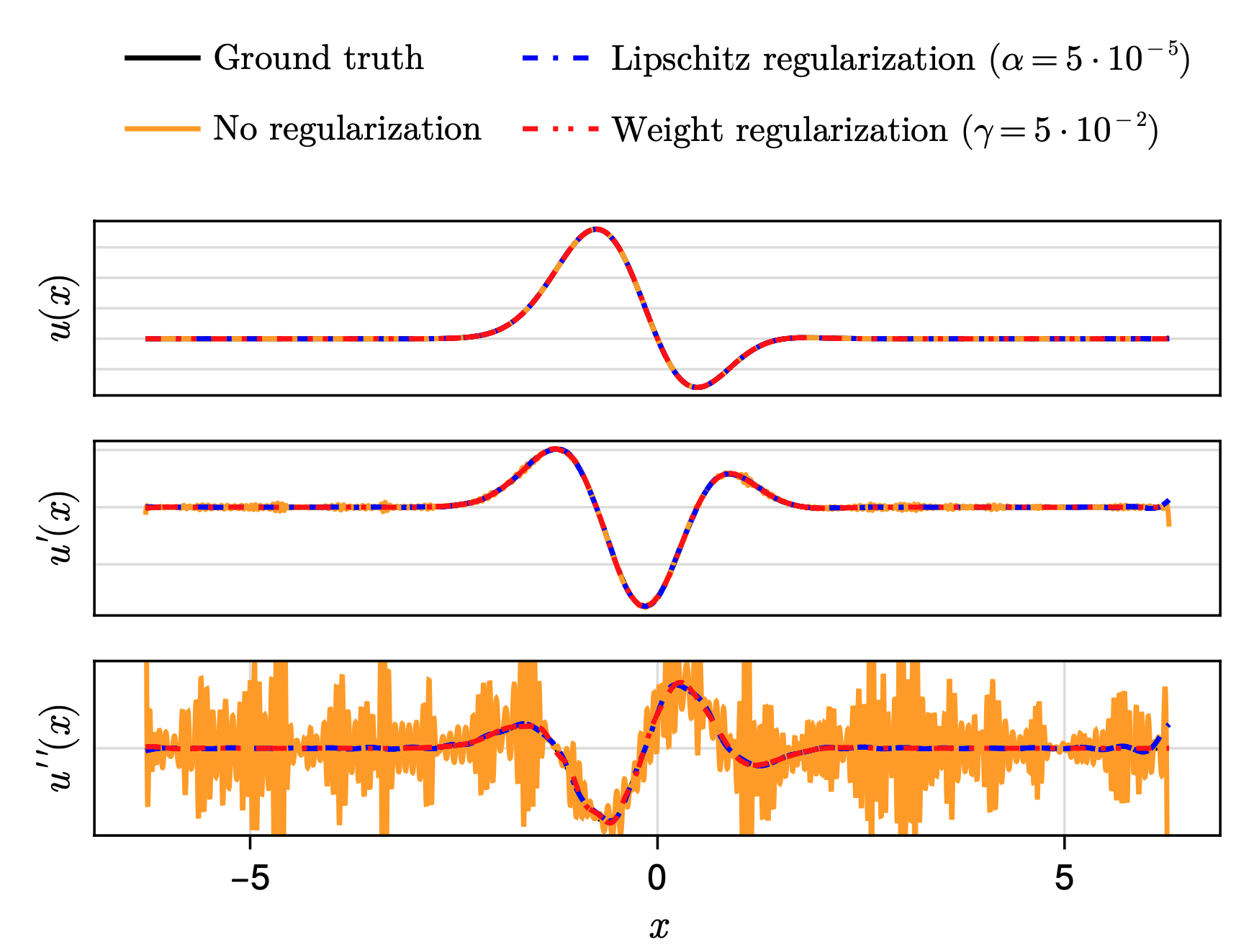

Solution: Apply regularization to ensure that the learned neural field is inherently smooth
- Lipschitz regularization penalizes the Lipschitz constant of the MLP
- Weight regularization penalizes high-frequency components in \( \dfrac{\mathrm{d}}{\mathrm{d}x}\mathrm{NN}(x)\)
Dynamics evaluation with Galerkin projection
3
\bar{u}(t=0)
\tilde{u}(t=0)
\tilde{u}(t=T)
\bar{u}(t=T)
\mathbb{R}^{N_\text{FOM}}
\bar{u}(0)
\tilde{u}(0)
\tilde{u}(T)
\mathcal{M}
\bar{u}(T)
h_\text{ROM}
g_\text{ROM}
\text{Manifold}\\
\text{projection}
\text{Model}\\
\text{inference}
\frac{\mathrm{d} \bar{u}}{\mathrm{d} t} = \mathcal{L}(\bar{u}, t)
\mathbf{J}_g\frac{\mathrm{d} \tilde{u}}{\mathrm{d} t} = \mathcal{L}(g_\text{ROM}(\tilde{u}), t)
\text{FOM evaluation: } \mathcal{O}(N_\text{FOM})
\text{ROM evaluation: } \mathcal{O}(N_\text{ROM})
\begin{pmatrix}
\hspace{0.4em}
\\
\\
\end{pmatrix}
\begin{pmatrix}
\hspace{0.4em}
\\
\\
\end{pmatrix}
Experiment: 2D viscous Burgers problem \( (\mathit{Re} = 1\mathrm{k})\)
6

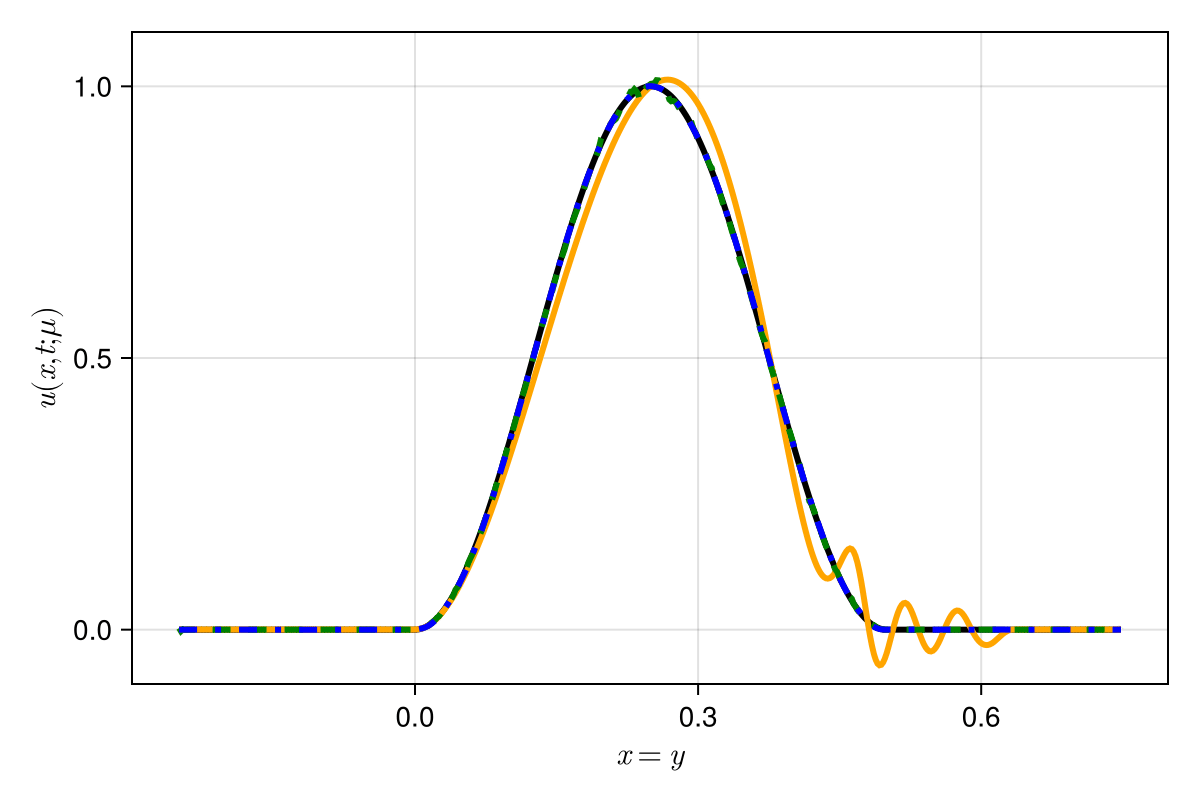

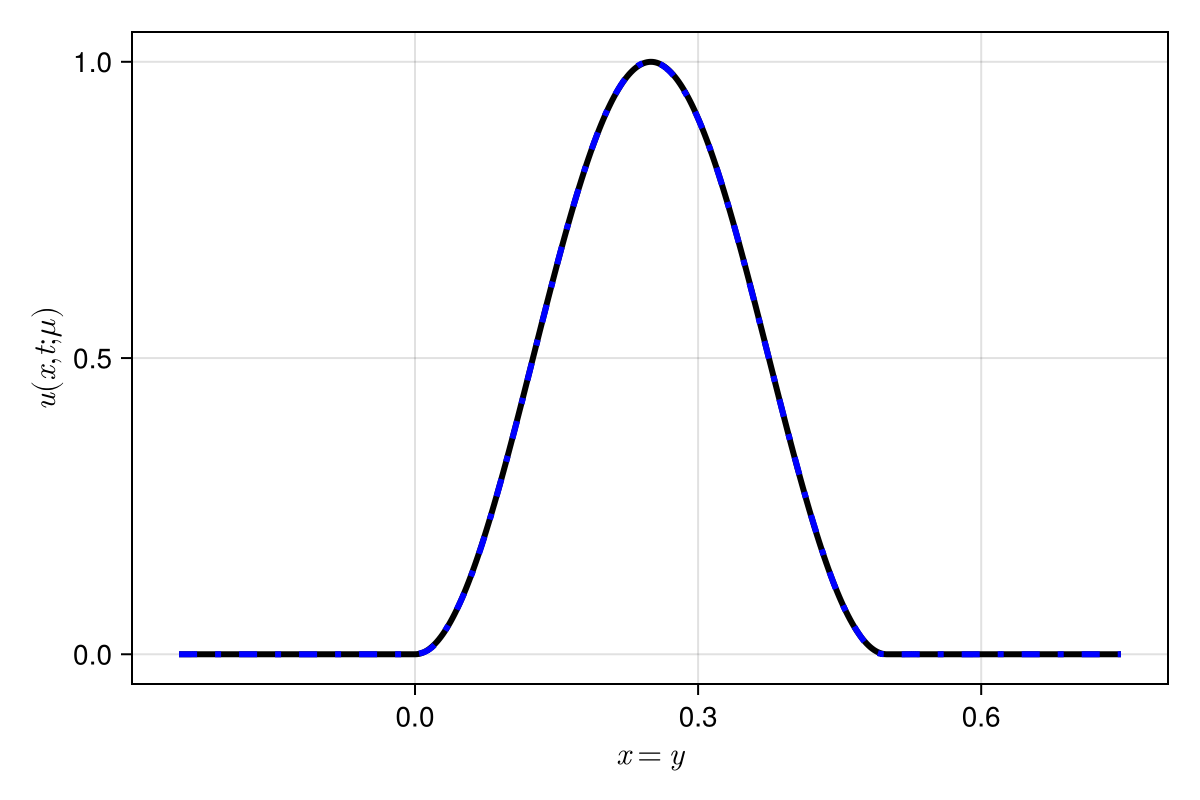

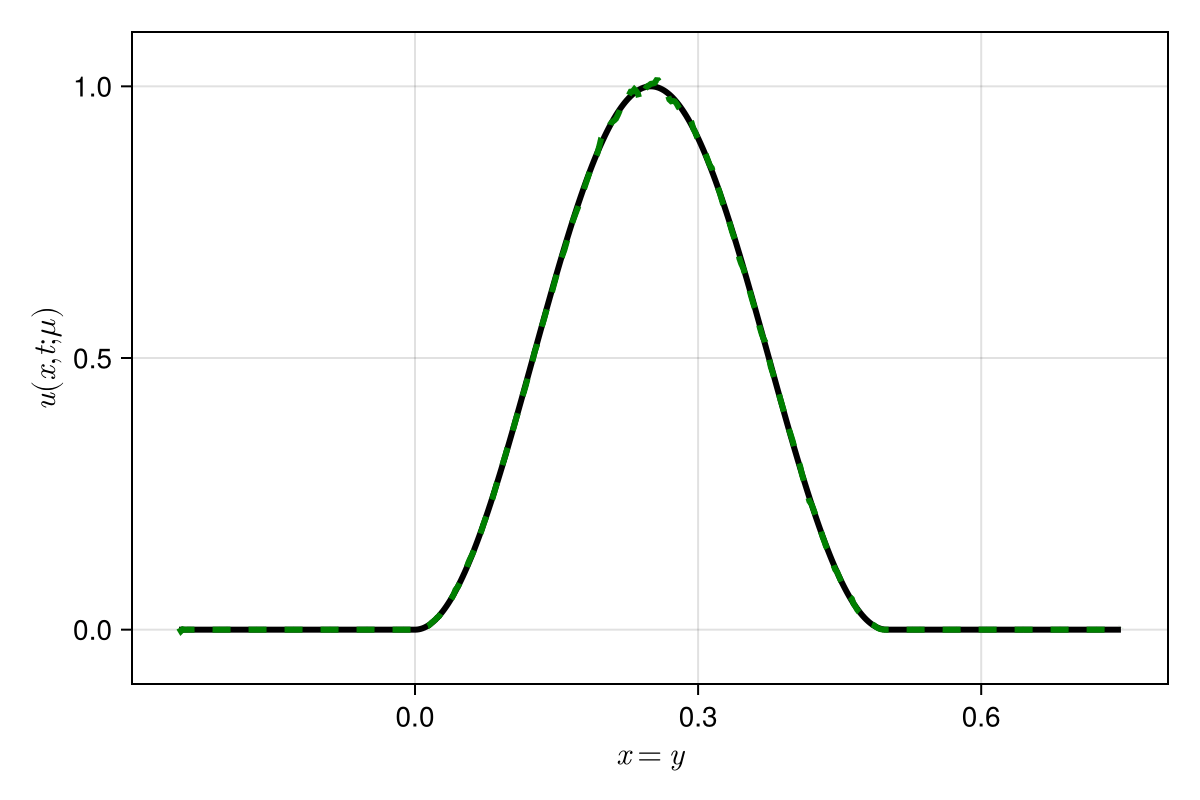

Experiment: 1D scalar advection problem
7
Smooth trajectory of ROM states allows for taking larger time-steps without sacrificing accuracy
\(\text{Predictions}\)
\(\text{Relative error } (\Delta t = \Delta t_0)\)
\(\text{Relative error } (\Delta t = 10\Delta t_0)\)
\(\text{CAE-ROM}\)
\(\text{SNFL-ROM}\)
\(\text{SNFW-ROM}\)
Experiment: 1D Kuramoto-Sivashinsky problem
9
\frac{\partial {u}}{\partial t}
+
u\frac{\partial {u}}{\partial x}
+
\frac{\partial^2 {u}}{\partial x^2}
+
\nu\frac{\partial^4 {u}}{\partial x^4}
=
0
\(\text{Predictions}\)
\(\text{Relative error } (\Delta t = \Delta t_0)\)
\(\text{Relative error } (\Delta t = 10\Delta t_0)\)
Major takeaways
10
AB
Thanks for your attention.
Questions?
Scan QR code to access project website

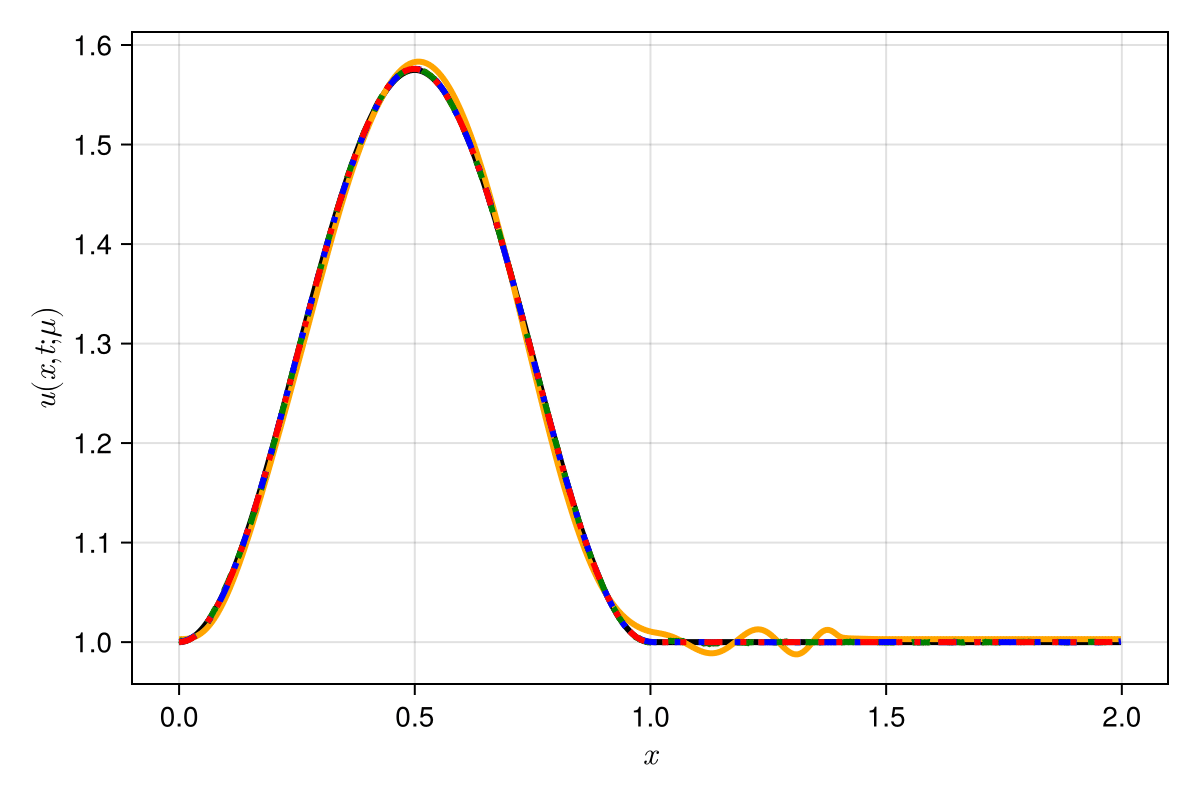

Experiment: 1D viscous Burgers problem \((\mathit{Re} = 10\text{k})\)
10
\(\text{Predictions}\)
\(\mu = 0.600 \text{ (training)}\)
\(\mu = 0.575 \text{ (inteprolation)}\)
\(\mu = 625 \text{ (extrapolation)}\)
\(\text{CAE-ROM}\)
\(\text{SNFL-ROM}\)
\(\text{SNFW-ROM}\)
Title
1
Model order reduction
1
\begin{pmatrix}
\hspace{0.8em}
\\
\\
\\
\\
\end{pmatrix}
\begin{pmatrix}
\hspace{0.8em}
\\
\\
\\
\\
\end{pmatrix}
\mathbb{R}^{N_\text{FOM}}
\bar{u}(0)
\bar{u}(T)
\text{Full-order model (FOM)}
\text{Linear ROM}
\text{Nonlinear ROM}
\text{POD Manifold}
Plan for presentation
- Motivation
- Accelerate PDE solvers. show 2D Burg as example
- Model order reduction
- make animation akin to poster. Compare e_proj vs N
- CAEs: analyze increasing error in time-evolution
- Fix: directly model the intrinsic ROM manifold (Sec. 4.1)
- Show examples
- INRs: non-differentiability. large errors in time-evolution
- Fix: neural field regularization (Sec. 4.2)
- Results: compare accuracy and speed-up
- Conclusions
1
Notes
- Motivating acceleration example
- MOR: make anim for MOR akin to poster. di
SNF-ROM-presentation - draft 1
By Vedant Puri
SNF-ROM-presentation - draft 1
Presented at WCCM 2024
