Malware homelab & analysis automation

@xanhacks - Hack2G2 workshop
October 2023

https://slides.com/xanhacks/workshop-malware-hack2g2/

https://github.com/xanhacks/workshop-malware-hack2g2

Prerequisites

1

  • docker & docker-compose installed
  • Bash shell (or equivalent)
  • 5GB of disk storage
  • Basic knowledge in a programming language

Exercises

2

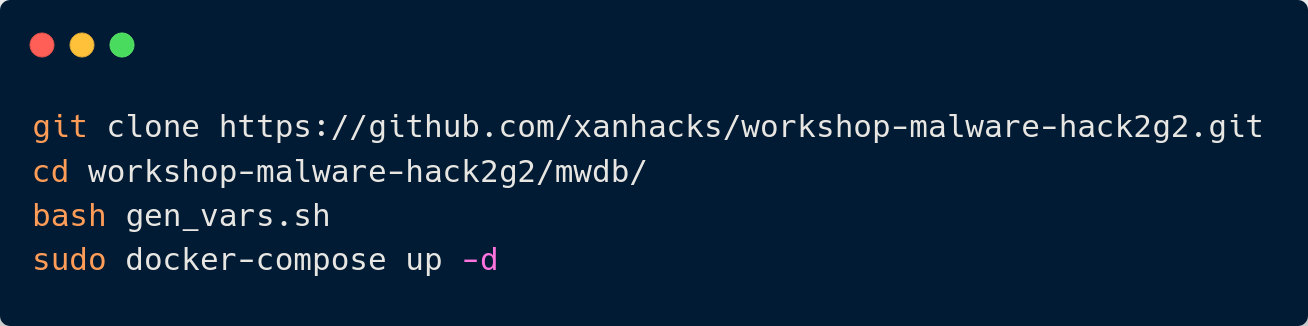

  1. Setup MWDB & Karton using docker-compose
  2. Create a Python script to add samples on MWDB from a well-known database (like MalwareBazaar)
  3. Reverse the given malware using dnSpy or ILSpy
  4. Create a Python script to extract the malware's configuration with dnlib
  5. Embed the Python script to a Karton task to auto-extract the malware's configuration on new upload

Do not hesitate to ask for help!

Glossary

3

  • Malware: Software specifically designed to disrupt, damage, or gain unauthorized access to computer systems.
  • Sample: A file representative of a malware.
  • Malware's configuration: Settings of the malware (C2 IP address/port, version, persistence mechanism...).
  • Command & Control server (C&C or C2): A server controlled by an attacker which is used to communicate with the malware.
  • Malware types: Ransomware, RAT, Wiper, Worm...
  • Hash: A unique cryptographic identifier generated from a malware file.

Features

4

  1. Database of samples

  2. Web API & Interface to view/edit information

  3. Automation of :
    1. Download samples from well-known malware databases to fill our database
    2. Simple tasks on samples (strings, unzip, exif...)
    3. Extraction of malware's configuration

  4. Easy to deploy and update

MWDB - Malware Database

5

  • Project name: MWDB (Malware Database)
  • Github: https://github.com/CERT-Polska/mwdb-core
  • Description: Malware repository component for samples & static configuration with REST API interface.

MWDB - Architecture & Docs

6

Documentation

  • https://mwdb.readthedocs.io
  • https://karton-core.readthedocs.io
  • https://mwdblib.readthedocs.io

Download samples from Internet

7

  • Well-known malware databases:
    • VirusTotal (enterprise account)
    • Tria.ge (free - account needed)
    • MalwareBazaar (free - no account)
    • ...

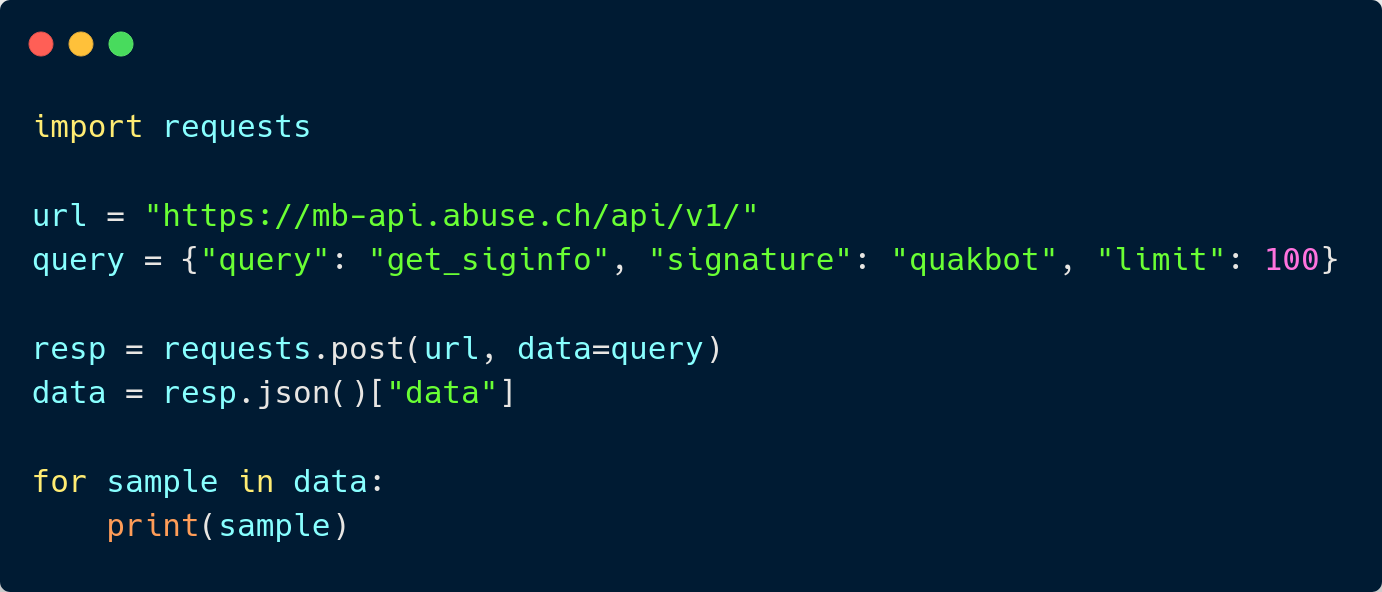

  • Python script to download samples from well-known malware database and upload it to our MWDB.

MWDBLIB - Client Python Library

8

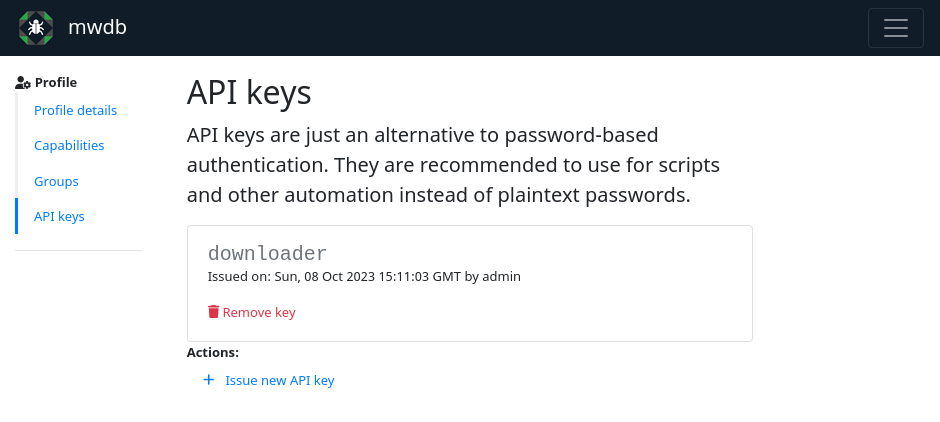

http://mwdb/profile/api-keys

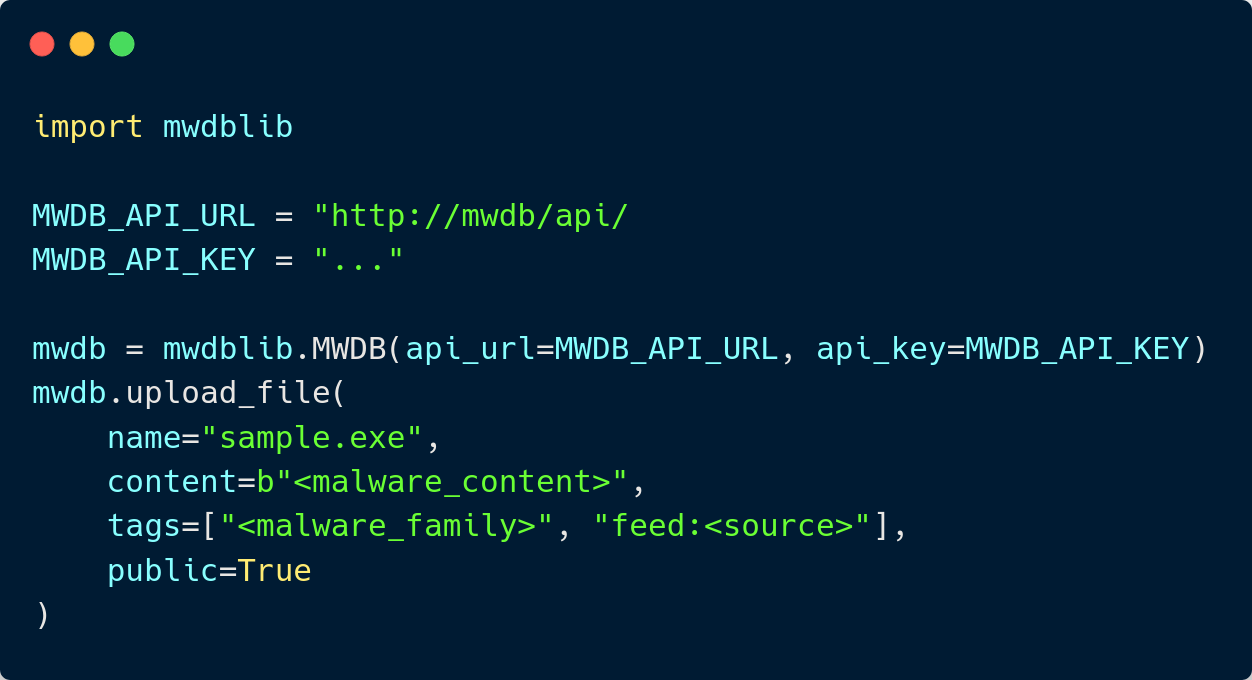

Upload a sample to MWDB using mwdblib

Karton - Tasks executor

9

  • Project name: Karton
  • Github: https://github.com/CERT-Polska/karton
  • Description: Execute tasks on new uploaded samples (integration with MWDB)

New sample

Malware Configuration

Extractor

MWDB

Karton

Success

Fail

Upload

Malware

Configuration

Nothing

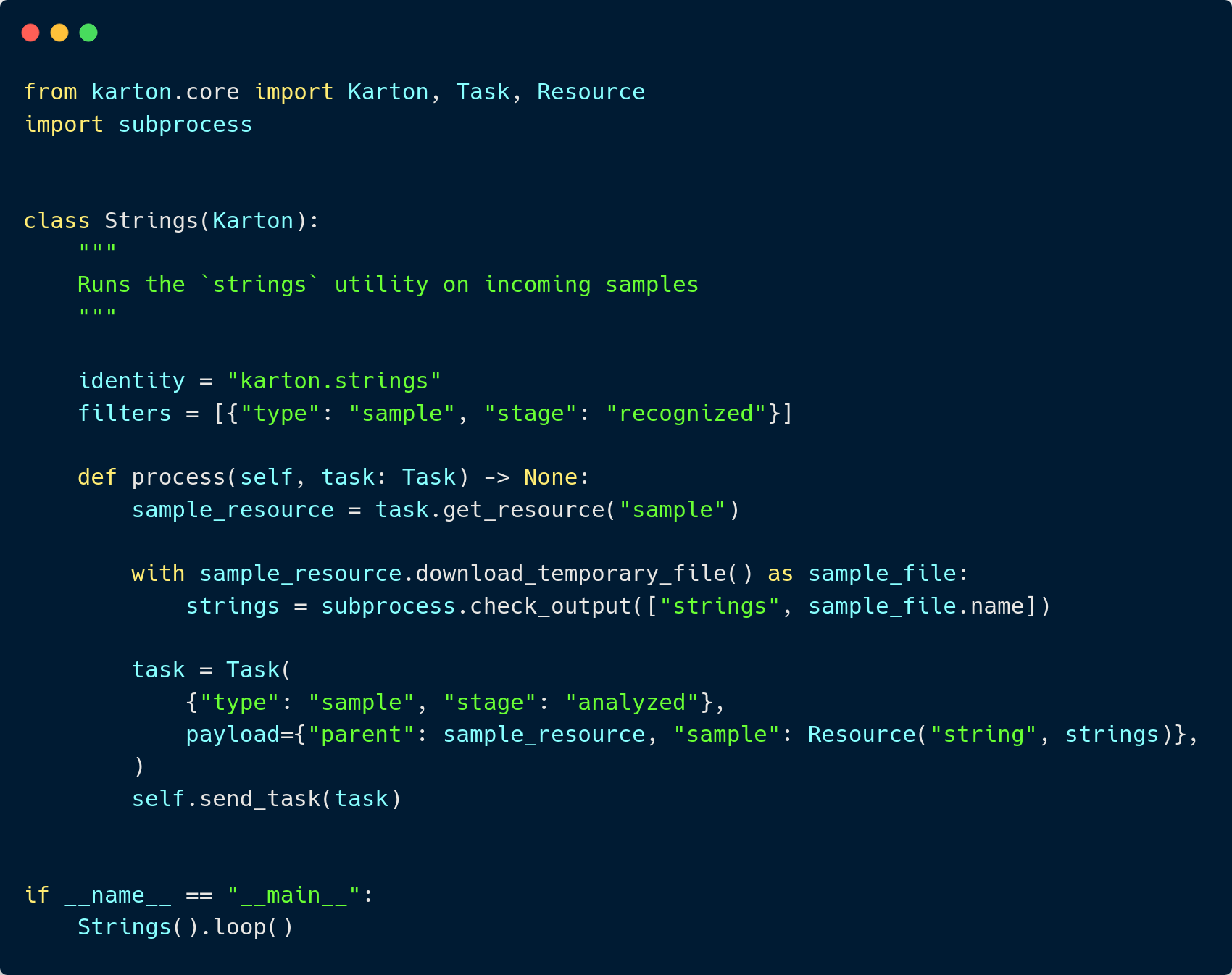

Karton - Example of task

10

https://github.com/CERT-Polska/karton-playground/

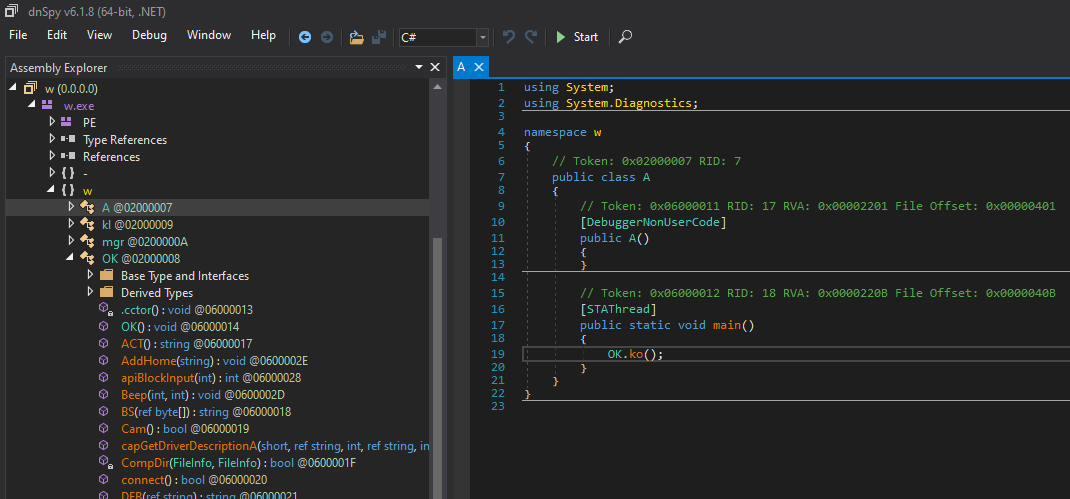

dnSpy - Reversing .NET binaries

11

  • Project name: dnSpy
  • Github: https://github.com/dnSpy/dnSpy
  • Description: .NET debugger and assembly editor

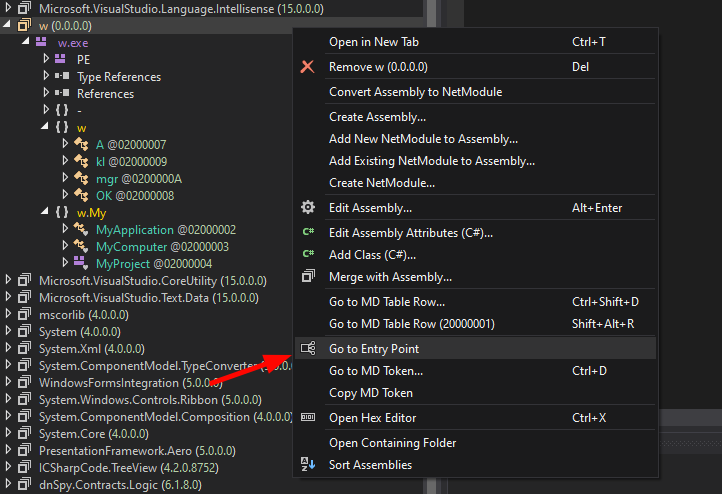

dnSpy - Finding the Entrypoint

12

Right click on the binary -> Go to Entry Point

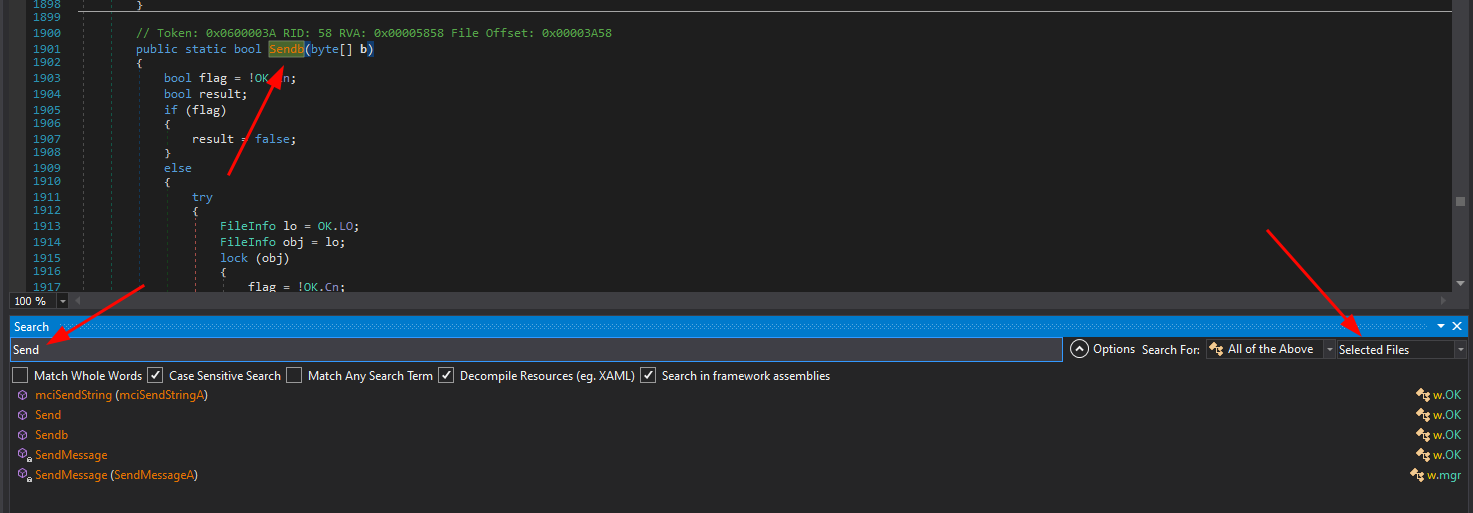

dnSpy - Code search

13

CTRL+F

dnSpy - Usage analysis

14

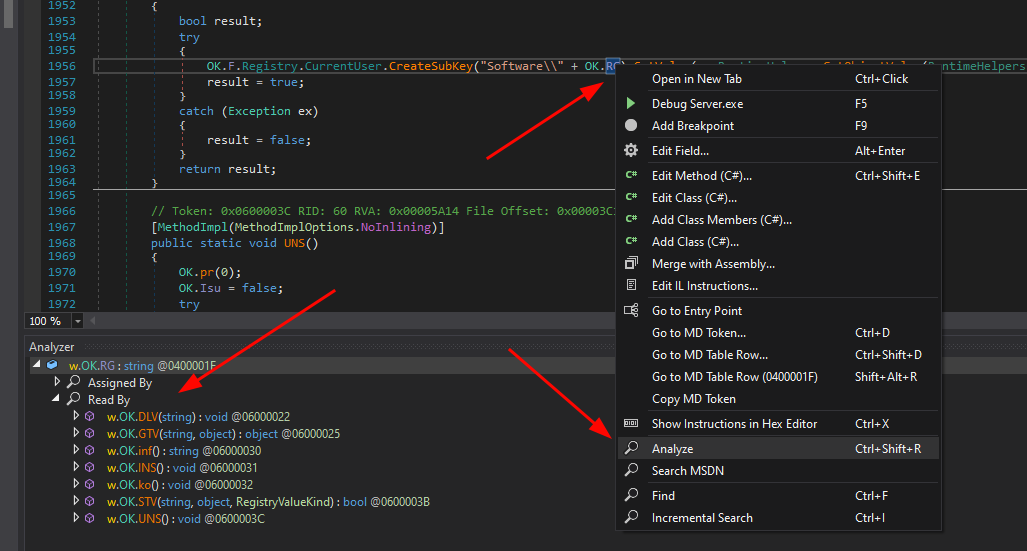

Right click on the symbol -> Analyze

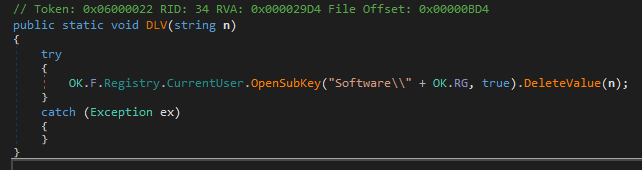

dnSpy - Rename symbols

15

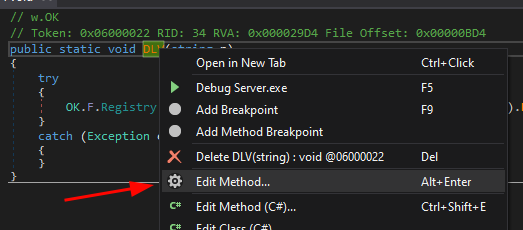

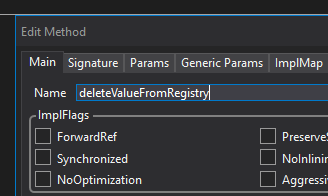

Right click on the symbol -> Edit Field... / Edit Method...

Let's begin!

16

workshop-malware-hack2g2
