Omnibenchmark:

(Re-)design and future plans

Science talk

Zürich, 04.10.23

Omnibenchmark:

General design and concepts

GitLab

Docker

Workflow

Module:

Template code

Module code

Omnibenchmark components

Omnibenchmark design

Omnibenchmark:

Current limitations

Design Limitations

1. Limited project "cross-talk"

Design Limitations

1. Limited project "cross-talk"

Module:

project triples (renku ontology)

--> renku-python

Renku rest api

  • GET /knowledge-graph/entities

Allows finding projects, datasets, workflows, and persons

--> omb is "file-centric" (activity-centric)

  • GET /knowledge-graph/projects/:namespace/:name

Finds details of the project with the given namespace/name

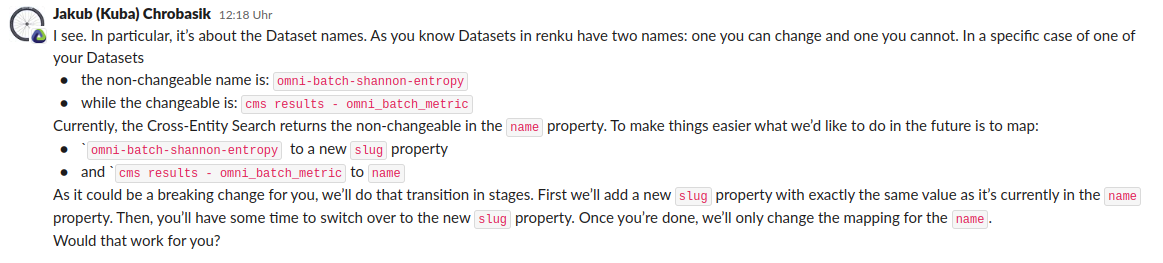

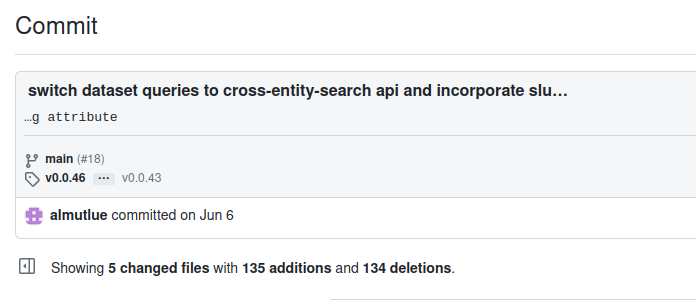

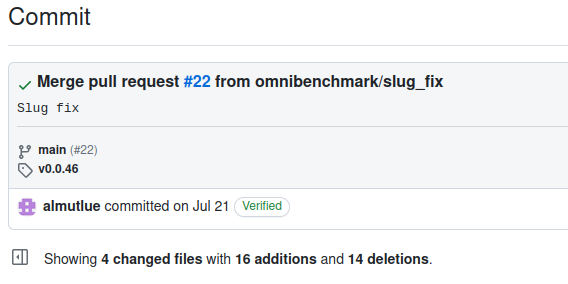

Renku rest api

  • version

https://renkulab.io/knowledge-graph/version

  • scope and speed of queries

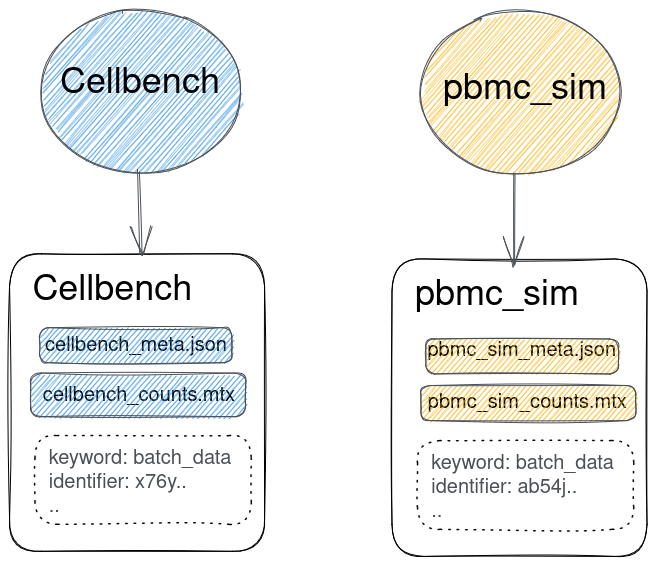

Why project "cross-talk"?

Why project "cross-talk"?

Why project "cross-talk"?

Why project "cross-talk"?

Why project "cross-talk"?

Why project "cross-talk"?

Why project "cross-talk"?

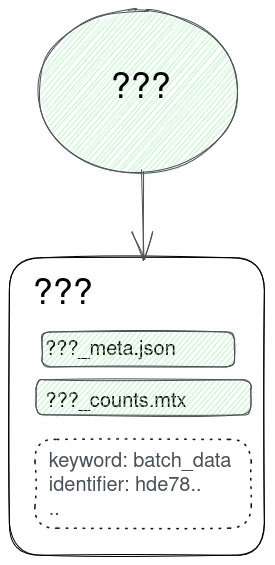

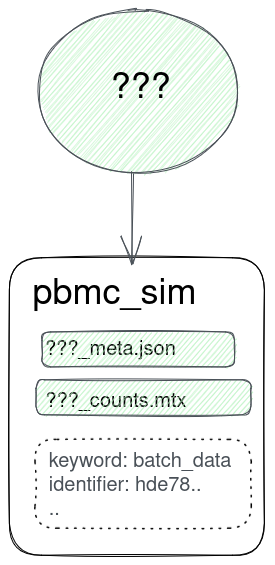

How to implicitly match files from the same origin dataset?

Why project "cross-talk"?

Lineages!

Lineages

  • fast and performant

--> renku ontology is not file-centric

Lineages

  • fast and performant

--> renku ontology is not file-centric

Lineages

  • ontology  (Izaskun)

  • generate + send triples during benchmark execution   (plugin, omni-cli, Ben)

  • queries (Izaskun)

  • adapt omnibenchmark-python (Almut)

  • integrate into orchestrator runs

Design Limitations

1. Limited project "cross-talk"

2. Missing concept of versions

Where do versions help?

  • Define scope (storage policies etc.)
  • Reduce search space in queries
  • Reproducibility/ Releases
  • Prevent race conditions
  • (Local benchmarks)

Epochs to version benchmarks

epoch == 1 (full?) orchestrator run

--> benchmarks are defined by the orchestrator (scope + order + epoch)

--> epoch as part of omni-ontology (cross-project communication)

--> orchestrator as .yaml file (local graph/epochs)

Design Limitations

1. Limited project "cross-talk"

2. Missing concept of versions

3. Renku dependency

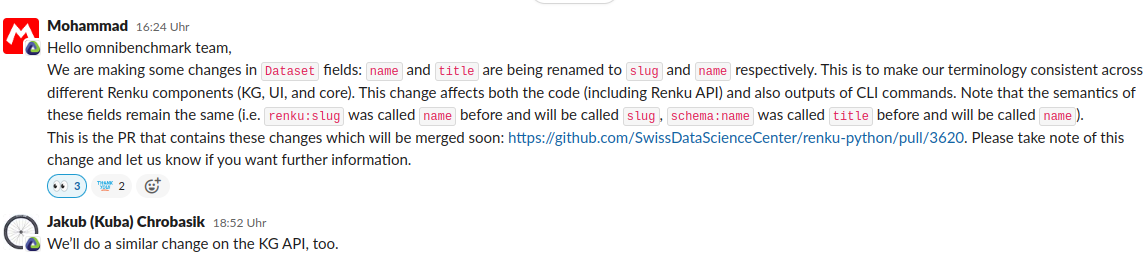

Omnibenchmark-Renku Relationship

Renku is a set of microservices:

RENKU SERVICE RELATIONSHIP STATUS
renku-python complicated
renku graph in separation
renku GUI open relationship
renkuLab long distance

Omnibenchmark-Renku strategy

  • reduce dependencies
  • increase interaction

Omnibenchmark-Renku strategy

  • reduce dependencies
  • increase interaction/communication

Omnibenchmark-Renku strategy

Summary

  • some OMB base changes in progress
  • OMB ontology, epoch concept
  • Reduce some renku dependency
  • user facing changes?

Design: Benchmark modules

Data

standardized datasets

= 1 "module" (renku project                       )

Methods

method results

Metrics

metric results

Dashboard

interactive result exploration

Method user

Method developer/

Benchmarker

The omnibenchmark ecosystem

omnibenchmark-python

Omnibenchmark Python

1. User module specification

# src/config.yaml
---
data:
    name: "out_dataset"
    title: "Output of an example OmniObject"
    description: "describe module here"
    keywords: ["example_dataset"]
script: "path/to/method/dataset/metric/script.py"
benchmark_name: "omni_celltype"
inputs:
    keywords: ["import_this", "import_that"]
    files: ["count_file", "dim_red_file"]
    prefix:
        count_file: "counts"
        dim_red_file: ["features", "genes"]
outputs:
    files:
        corrected_counts:
            end: ".mtx.gz"
        meta:
            end: ".json"
parameter:
    names: ["param1", "param2"]
    keywords: ["param_dataset"]

Omnibenchmark Python

1. User module specification

# src/run_workflow.py
from omnibenchmark import get_omni_object_from_yaml, renku save

## Load config
omni_obj = get_omni_object_from_yaml('src/config.yaml')

## Check for new/updates of input datasets
omni_obj.update_object()
renku_save()

## Create output dataset
omni_obj.create_dataset()

## Generate and run workflow
omni_obj.run_renku()
renku_save()

## Store results in output dataset
omni_obj.update_result_dataset()
renku_save()

Omnibenchmark Python

1. User module specification

Omnibenchmark Python

2. Manage input import/updates

data:
    name: "iris_random_forest"
    title: "Random Forest"
    description: "Random forest applied on the iris dataset"
    keywords: ["iris_method"]
script: "src/iris-random-forest.R"
benchmark_name: "iris_example"
inputs:
    keywords: ["iris_filtered"]
    files: ["iris_input"]
    prefix:
        iris_input: "_filt_dataset"
outputs:
    template: "data/${name}/${name}_${unique_values}_${out_name}.${out_end}"
    files:
        rf_model:
             end: ".rds"
parameter:
    keywords: ["iris_parameters"]
    names: ["train_split", "rseed"]

Example: Method module

Omnibenchmark Python

2. Manage input import/updates

Example: Method module

  • benchmark: iris_example
  • keyword: iris_filtered

"endpoints"

1.

Omnibenchmark Python

2. Manage input import/updates

Example: Method module

  • benchmark: iris_example
  • keyword: iris_filtered

Omnibenchmark Python

2. Manage input import/updates

Example: Method module

  • benchmark: iris_example
  • keyword: iris_filtered

"endpoints"

1.

2.

Orchestrator

Omnibenchmark Python

2. Manage input import/updates

data:
    name: "iris_random_forest"
    title: "Random Forest"
    description: "Random forest applied on the iris dataset"
    keywords: ["iris_method"]
script: "src/iris-random-forest.R"
benchmark_name: "iris_example"
inputs:
    keywords: ["iris_filtered"]
    files: ["iris_input"]
    prefix:
        iris_input: "_filt_dataset"
outputs:
    template: "data/${name}/${name}_${unique_values}_${out_name}.${out_end}"
    files:
        rf_model:
             end: ".rds"
parameter:
    keywords: ["iris_parameters"]
    names: ["train_split", "rseed"]

Example: Method module

Omnibenchmark Python

2. Generalize user specifications

data:
    name: "iris_random_forest"
    title: "Random Forest"
    description: "Random forest applied on the iris dataset"
    keywords: ["iris_method"]
script: "src/iris-random-forest.R"
benchmark_name: "iris_example"
inputs:
    keywords: ["iris_filtered"]
    files: ["iris_input"]
    prefix:
        iris_input: "_filt_dataset"
outputs:
    template: "data/${name}/${name}_${unique_values}_${out_name}.${out_end}"
    files:
        rf_model:
             end: ".rds"
parameter:
    keywords: ["iris_parameters"]
    names: ["train_split", "rseed"]

Example: Method module

Omnibenchmark Python

3. Generalize user specifications

Example: Method module

iris-random-forest.R

*._filt_dataset*.

  • benchmark: iris_example
  • keyword: iris_filtered

Omnibenchmark Python

2. Generalize user specifications

The omnibenchmark ecosystem

omni-validator

renku-python

renku-KG

REST-API

omnibenchmark-python

omni-sparql

triple store

omni-cli

omni-utils

The omnibenchmark Infrastructure

  • omni ontology triples
  • project-specific renku ontology triples

GitLFS

File storage

?

imlsomnibenchmark

  • Version control (git)
  • CICD
  • UI
  • API

renkuLab

renku GUI

  • Interactive sessions
  • Authentication (?)
  • Queries
  • Boards(?)
