👋 Hello

Press Spacebar or the down arrow to continue

We would like to introduce to you what we do at buildingSMART.

Topics will be explained on multiple levels.

If you want to learn more about each, use the Spacebar or the down arrow.

💡 General idea

What is it?

👷‍♀️ Practice

How can it benefit me?

👨🏾‍💻 Technology

How does it work?

You can always skip to the next topic with the right arrow.

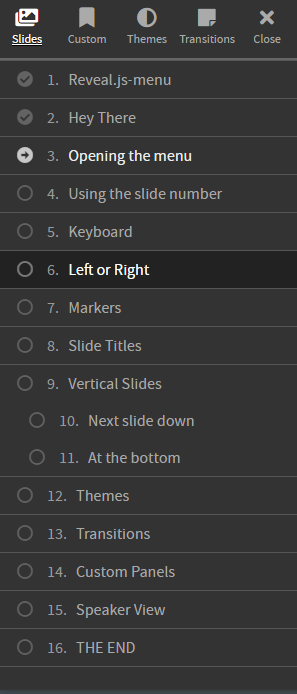

...or browse the side menu to go to the topic which interest you most

OpenBIM

OpenBIM extends the benefits of BIM (Building Information Modeling) by improving the accessibility, usability, management and sustainability of digital data in the built asset industry.



At its core, openBIM is a collaborative process that is vendor-neutral.



openBIM processes can be defined as sharable project information that supports seamless collaboration for all project participants.



openBIM facilitates interoperability to benefit projects and assets throughout their lifecycle.

OpenBIM

Read more at our website

OpenBIM

openBIM permits digital workflows based on vendor-neutral formats such as IFC, BCF, COBie, CityGML, gbXML, etc...

IFC

...

Industry Foundation Classes

IFC

Industry Foundation Classes

IFC

Industry Foundation Classes

IFC

Industry Foundation Classes

ISO-10303-21;
HEADER;
FILE_DESCRIPTION(('ViewDefinition [CoordinationView]'),'2;1');
FILE_NAME('','2022-10-28T09:26:25',(),(),'IfcOpenShell v0.7.0-e508fb44','IfcOpenShell v0.7.0-e508fb44','');
FILE_SCHEMA(('IFC4'));
ENDSEC;
DATA;
#1=IFCWALL('2Sc5UrK6v71xBjXf39cbDc',$,$,$,$,$,$,$,$);
#2=IFCPROPERTYSET('0$7bojXM19OuqF4C8SAf4n',$,'MyPset',$,(#4));
#3=IFCRELDEFINESBYPROPERTIES('3VOe_Zrtn2KRZVZLHaeIoT',$,$,$,(#1),#2);
#4=IFCPROPERTYSINGLEVALUE('LoadBearing',$,IFCLABEL('true'),$);
#5=IFCWALL('0IHJWTQr18MPe35cb6T6vm',$,$,$,$,$,$,$,$);
#6=IFCPROPERTYSET('3M0uoI2QL6jANIJ0Ibrc3O',$,'MyPset',$,(#8));
#7=IFCRELDEFINESBYPROPERTIES('1qqkLcjoj37QOi5BMwJonU',$,$,$,(#5),#6);
#8=IFCPROPERTYSINGLEVALUE('LoadBearing',$,IFCLABEL('false'),$);
#9=IFCWALL('2vVJJnDoHBhfLI7cTrBFLp',$,$,$,$,$,$,$,$);
ENDSEC;
END-ISO-10303-21;

STEP

ISO-10303-21;
HEADER;
FILE_DESCRIPTION(('ViewDefinition [CoordinationView]'),'2;1');
FILE_NAME('','2022-10-28T09:26:25',(),(),'IfcOpenShell v0.7.0-e508fb44','IfcOpenShell v0.7.0-e508fb44','');
FILE_SCHEMA(('IFC4'));
ENDSEC;
DATA;
#1=IFCWALL('2Sc5UrK6v71xBjXf39cbDc',$,$,$,$,$,$,$,$);
#2=IFCPROPERTYSET('0$7bojXM19OuqF4C8SAf4n',$,'MyPset',$,(#4));
#3=IFCRELDEFINESBYPROPERTIES('3VOe_Zrtn2KRZVZLHaeIoT',$,$,$,(#1),#2);
#4=IFCPROPERTYSINGLEVALUE('LoadBearing',$,IFCLABEL('true'),$);
#5=IFCWALL('0IHJWTQr18MPe35cb6T6vm',$,$,$,$,$,$,$,$);
#6=IFCPROPERTYSET('3M0uoI2QL6jANIJ0Ibrc3O',$,'MyPset',$,(#8));
#7=IFCRELDEFINESBYPROPERTIES('1qqkLcjoj37QOi5BMwJonU',$,$,$,(#5),#6);
#8=IFCPROPERTYSINGLEVALUE('LoadBearing',$,IFCLABEL('false'),$);
#9=IFCWALL('2vVJJnDoHBhfLI7cTrBFLp',$,$,$,$,$,$,$,$);
ENDSEC;
END-ISO-10303-21;

XML

ISO-10303-21;
HEADER;
FILE_DESCRIPTION(('ViewDefinition [CoordinationView]'),'2;1');
FILE_NAME('','2022-10-28T09:26:25',(),(),'IfcOpenShell v0.7.0-e508fb44','IfcOpenShell v0.7.0-e508fb44','');
FILE_SCHEMA(('IFC4'));
ENDSEC;
DATA;
#1=IFCWALL('2Sc5UrK6v71xBjXf39cbDc',$,$,$,$,$,$,$,$);
#2=IFCPROPERTYSET('0$7bojXM19OuqF4C8SAf4n',$,'MyPset',$,(#4));
#3=IFCRELDEFINESBYPROPERTIES('3VOe_Zrtn2KRZVZLHaeIoT',$,$,$,(#1),#2);
#4=IFCPROPERTYSINGLEVALUE('LoadBearing',$,IFCLABEL('true'),$);
#5=IFCWALL('0IHJWTQr18MPe35cb6T6vm',$,$,$,$,$,$,$,$);
#6=IFCPROPERTYSET('3M0uoI2QL6jANIJ0Ibrc3O',$,'MyPset',$,(#8));
#7=IFCRELDEFINESBYPROPERTIES('1qqkLcjoj37QOi5BMwJonU',$,$,$,(#5),#6);
#8=IFCPROPERTYSINGLEVALUE('LoadBearing',$,IFCLABEL('false'),$);
#9=IFCWALL('2vVJJnDoHBhfLI7cTrBFLp',$,$,$,$,$,$,$,$);
ENDSEC;
END-ISO-10303-21;

TTL

ISO-10303-21;
HEADER;
FILE_DESCRIPTION(('ViewDefinition [CoordinationView]'),'2;1');
FILE_NAME('','2022-10-28T09:26:25',(),(),'IfcOpenShell v0.7.0-e508fb44','IfcOpenShell v0.7.0-e508fb44','');
FILE_SCHEMA(('IFC4'));
ENDSEC;
DATA;
#1=IFCWALL('2Sc5UrK6v71xBjXf39cbDc',$,$,$,$,$,$,$,$);
#2=IFCPROPERTYSET('0$7bojXM19OuqF4C8SAf4n',$,'MyPset',$,(#4));
#3=IFCRELDEFINESBYPROPERTIES('3VOe_Zrtn2KRZVZLHaeIoT',$,$,$,(#1),#2);
#4=IFCPROPERTYSINGLEVALUE('LoadBearing',$,IFCLABEL('true'),$);
#5=IFCWALL('0IHJWTQr18MPe35cb6T6vm',$,$,$,$,$,$,$,$);
#6=IFCPROPERTYSET('3M0uoI2QL6jANIJ0Ibrc3O',$,'MyPset',$,(#8));
#7=IFCRELDEFINESBYPROPERTIES('1qqkLcjoj37QOi5BMwJonU',$,$,$,(#5),#6);
#8=IFCPROPERTYSINGLEVALUE('LoadBearing',$,IFCLABEL('false'),$);
#9=IFCWALL('2vVJJnDoHBhfLI7cTrBFLp',$,$,$,$,$,$,$,$);
ENDSEC;
END-ISO-10303-21;

(JSON)

IFC

Industry Foundation Classes

BCF

BIM Collaboration Format

IDS

Information Delivery Specification

What?
bSDD is an online service with
classifications, materials and their properties.



Why?
To enrich BIM models, improve interoperability

and data quality



How?

By unifying how we define information for a certain context, and showing how it relates to other information systems.

buildingSMART Data Dictionary

How bSDD works?

Instead of calling an object 'wall', you point to the exact definition of a wall in the bSDD. Others can see what you mean by 'wall' and how it is related to the classification they are using.



bSDD also shows what properties describe a 'wall',
and how to define their values.



Apart from that, bSDD allows showing how one classification relates to others by defining relations between them.





buildingSMART Data Dictionary

buildingSMART Data Dictionary

buildingSMART Data Dictionary

Use-case 1: The modeler

...



Use-case 1: The modeler

...



Use-case 3: The modeler

...

buildingSMART Data Dictionary

buildingSMART Data Dictionary

Search page

ISO 12006-3:2022
— Framework for object-oriented information

ISO 23386:2020
— Methodology to describe, author and maintain properties in interconnected
data dictionaries

ISO 23387:2020
Data templates for construction objects used in the life cycle of built assets — Concepts and principles

Web of Data technologies

(Linked Data)

buildingSMART Data Dictionary

Related standards

buildingSMART Data Dictionary

Data model

buildingSMART Data Dictionary

Data example

buildingSMART Data Dictionary

Example of classification page

buildingSMART Data Dictionary

API documentation

{
  domain(namespaceUri : "http://identifier.buildingsmart.org/uri/sbe/swedishmaterials-1") {
    namespaceUri
    copyrightNotice
    languageCode
    classificationSearch(searchText: "asfaltbetong", languageCode: "sv-SE") {
      name
      namespaceUri
      synonyms
      relatedIfcEntityNames
      properties {
        name
        isRequired
        pattern
      }
    }
  }
}

buildingSMART Data Dictionary

GraphQL API

Validation Service

Community

Community

Rooms

🏢🏗️💻⚖️🌳🚆🌉🧱✈️

Chapters

...

...

Community

Partners, ...

MVD

Model View Definition

MVD / IDS

IDM

Information Delivery Manual

UCM

Use-Case Management System

Software certification

Professional certification

Accelerated Projects

Awards

Events

Let's stay in touch!

newsletter...



podcast...
