What information is lost when a continuous signal becomes discrete?
ENTRYTASK
#introductions
From Analog...
...to Digital
Distortions
Sampling Limitations
Noise
What is the sampling rate here?
19/6000s = 0.0032 Hz
[104, 104, 104, 103, 103, 102, 101, 101, 100, 100, 99, 99, 98, 98, 98, 99, 99, 100, 100]How to represent the data?
What information is lost when a continuous signal becomes discrete?
Examples: resolution, timing, certain frequencies..
Fourier Analysis
any signal can be decomposed into harmonic signal components
complex
with circular frequency

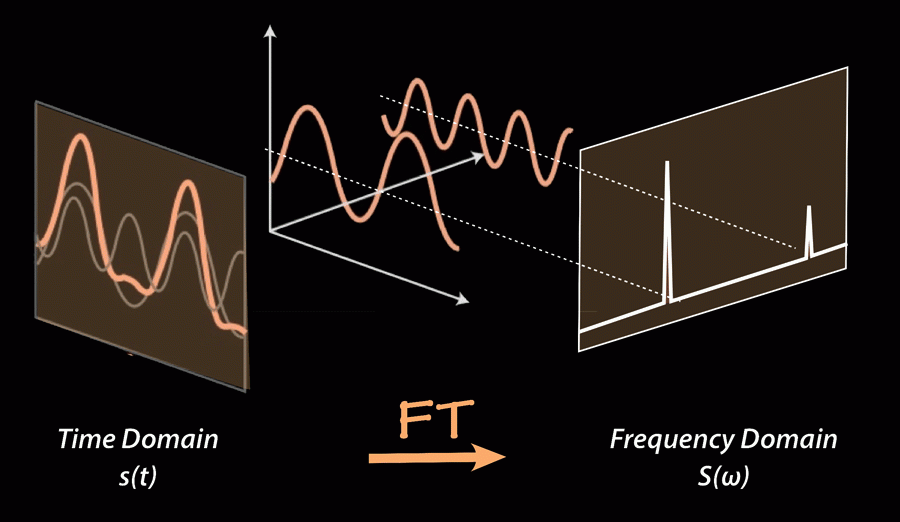

many different waves combined
Fourier Analysis
usually high frequency noise
60 Hz noise: electric humming around transformers
Frequency in images ~ level of detail
0
0
low pass filter
high pass filter
Next time
Electrocardiogram
JOURNAL
Intro to Research
How to read a paper
How to write a paper
+ 10 Sessions
