The AMIGO Suite
Jayender Jagadeesan, PhD
Harvard Medical School
Mahsa Geshvadi
Magnetic resonance imaging
MRI

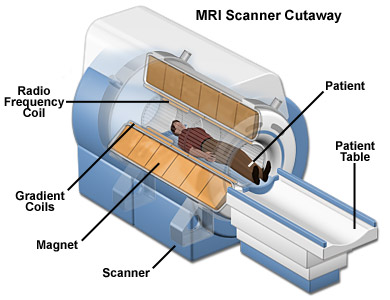

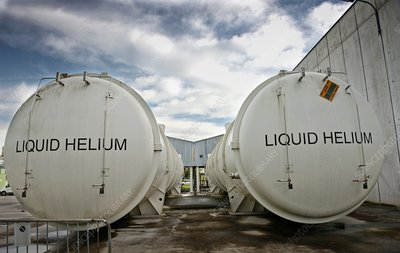

Magnet

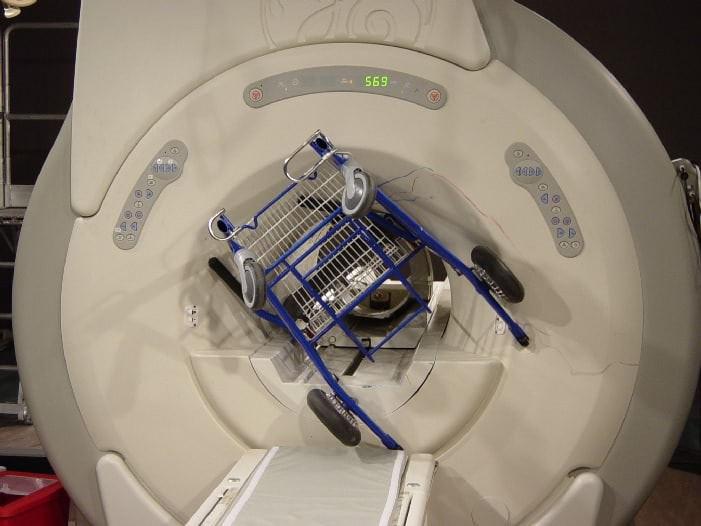

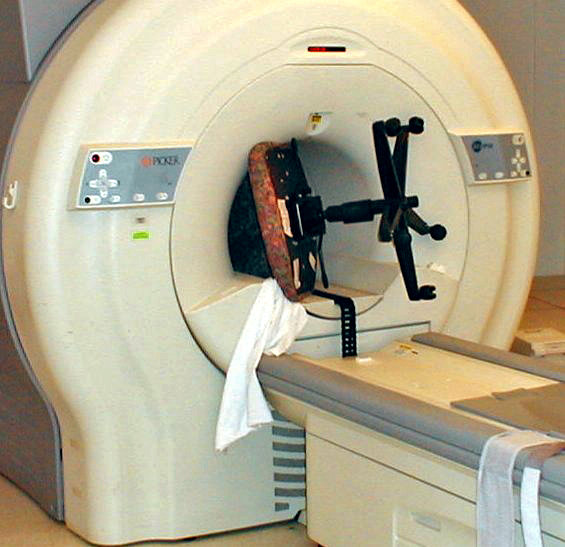

Extremely Powerful
Always On!
1.5 Tesla
3 Tesla
7 Tesla
60,000x stronger than earth magnetic field
$6.5 million

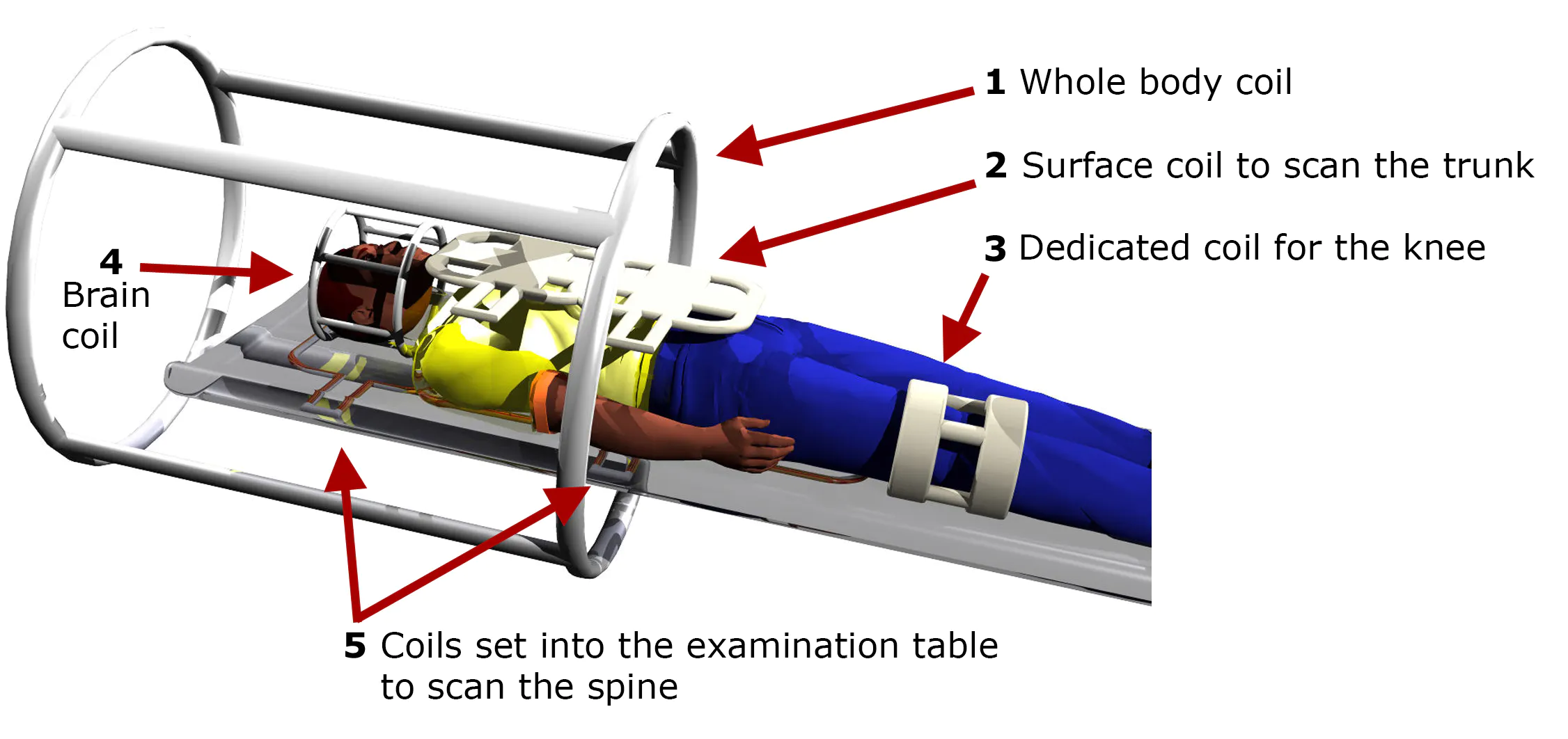

Coils
to enhance contrast
Image Volumes
Voxel size for CT: 0.625-1.25 mm^3
similar to MRI
0.1-1 mm^3
Dr. Raymond Damadian's Indomitable (1977)
Sir Peter Mansfield (1973)
+ Paul Lauterbur
Magnet
Radio Frequency
Gradient Coil
Electro-Magnetic Field

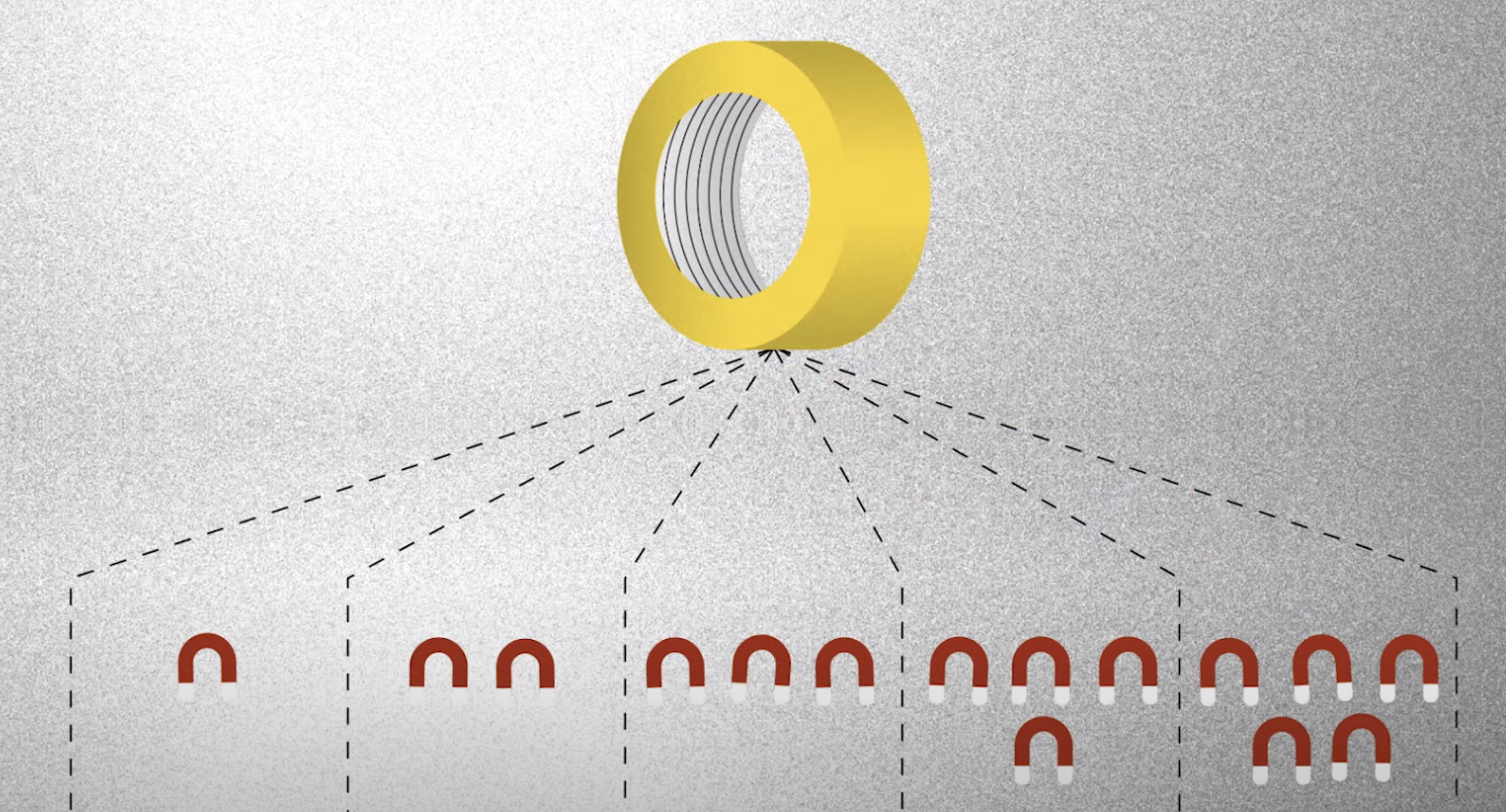

cuts large Magnetic Field into
smaller sections
stimulates atoms

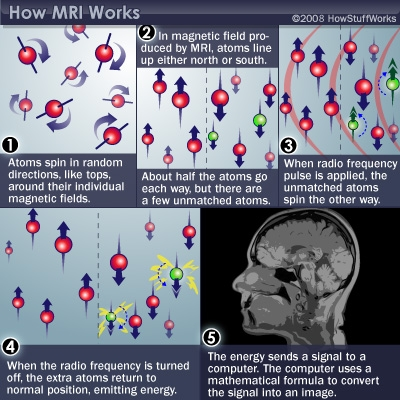

Hydrogen Atoms (Water + Fat)
specific frequency of resonance is called the Larmour frequency

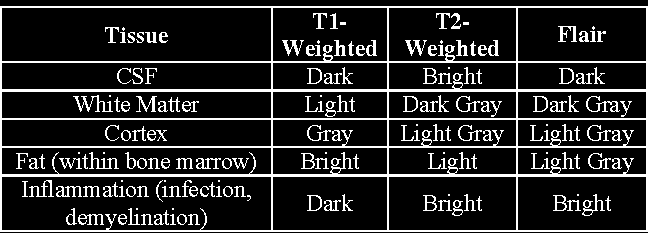

Different tissues (such as fat and water) have different relaxation times
Magnet
RF Pulse

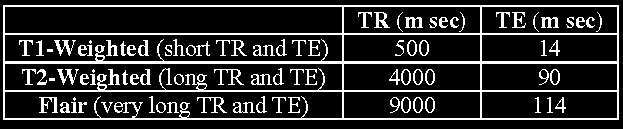

Echo Time (TE)
Repetition Time (TR)
different per tissue!
Fourier Transformation
snapping back

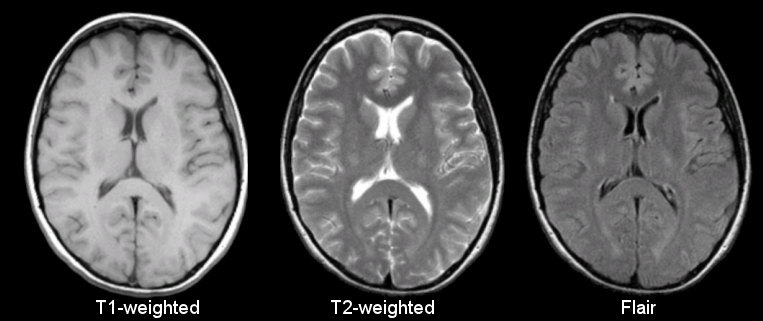

Structural MRI
Structural MRI
MRI Physicist develops sequences

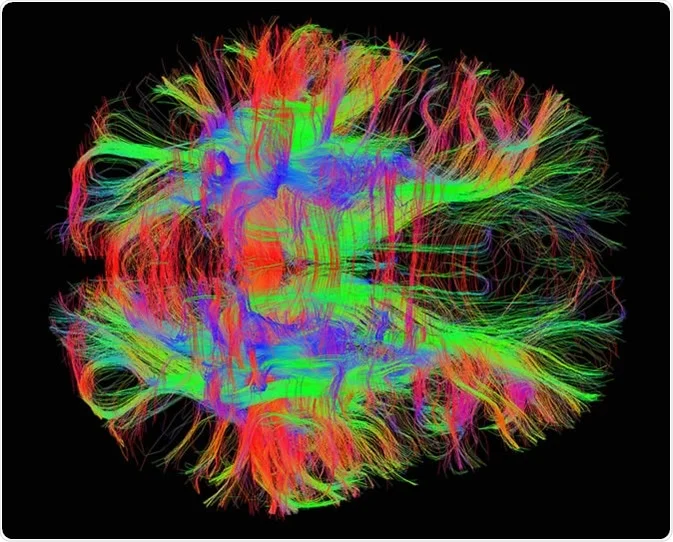

Diffusion Weighted Imaging (DWI)
Motion of water molecules
White Matter Pathways
Approximation!
DTI
fMRI

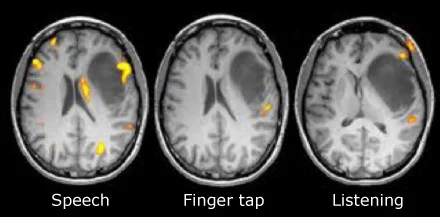

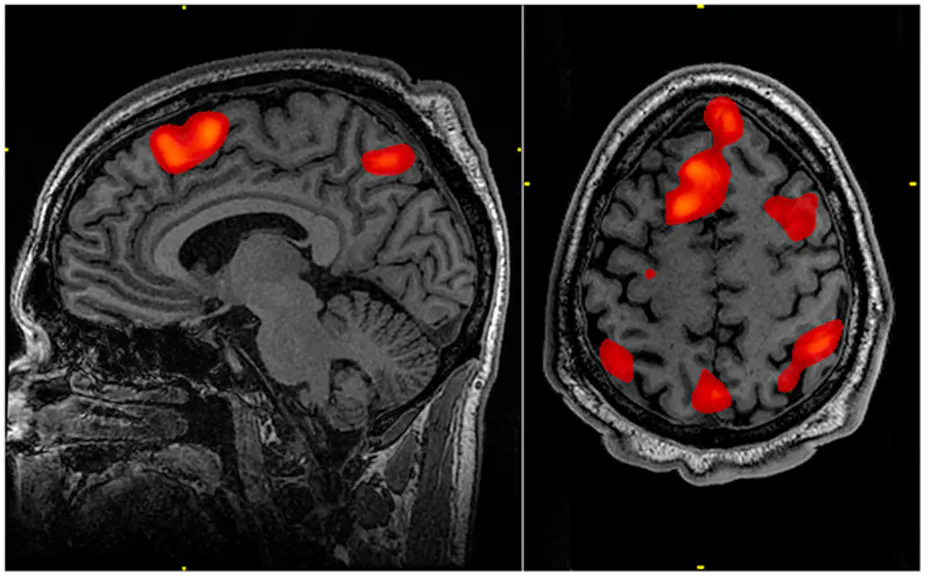

functional MRI
localized brain activity
Magnetic resonance angiography (MRA)

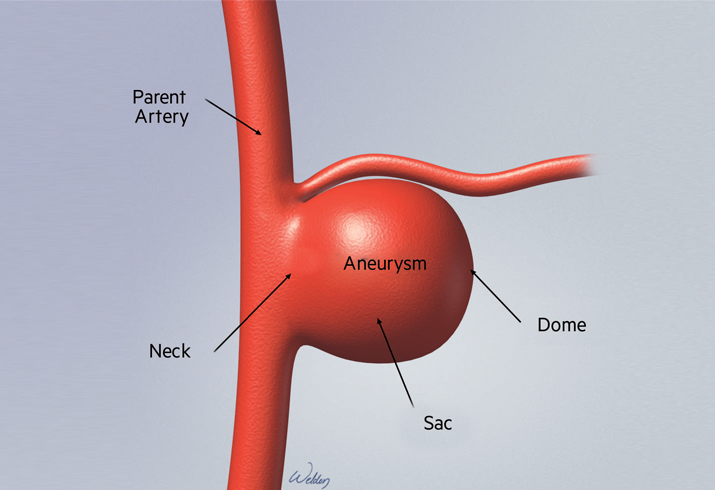

Aneurysm

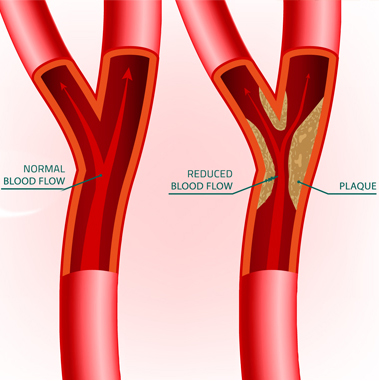

Stenosis
brain tumor
- Tumors
- Inflammation
- Certain organs’ blood supply
- Blood vessels

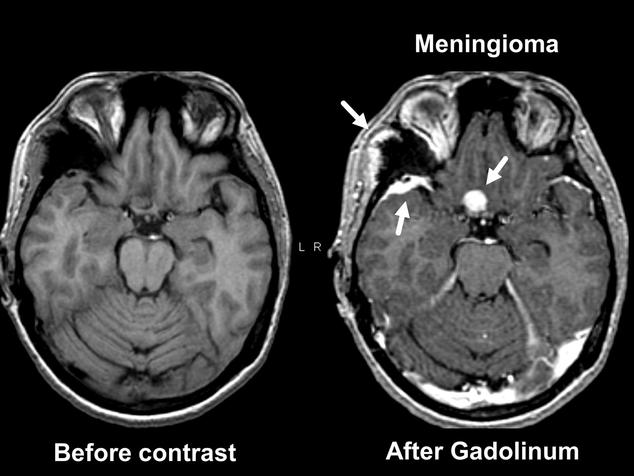

Gadolinium
Contrast Agent

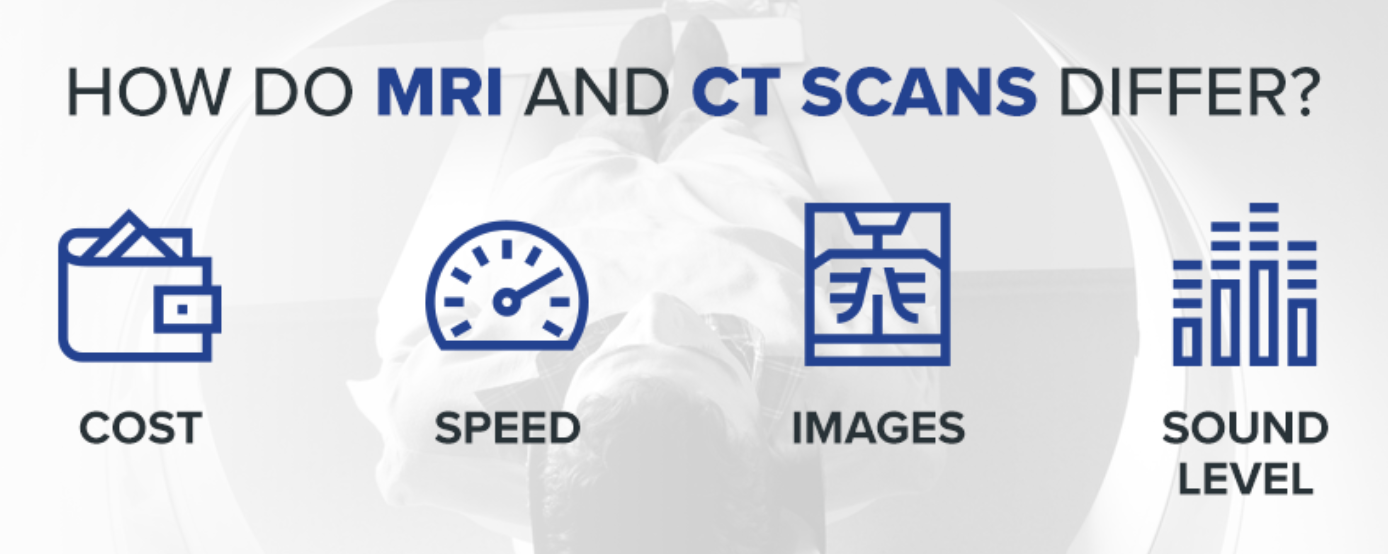

MRI $2000
CT $1200

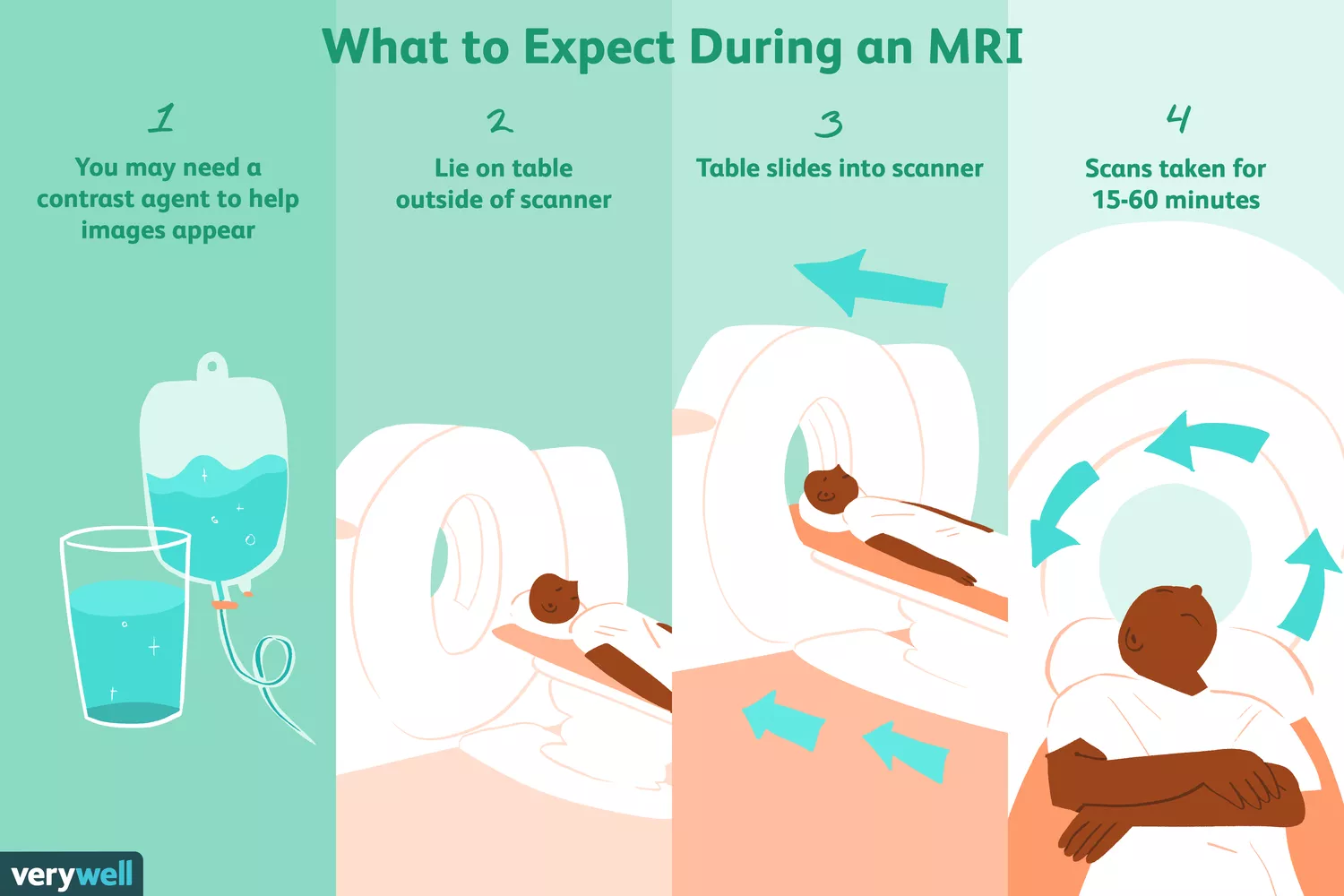

10 mins
1 hour
better contrast
super noisy
- An IUD
- Artificial joints
- A pacemaker
- Eye implants
- Aneurysm clips
- Shrapnel
- Orthopedic hardware
- Dark tattoos

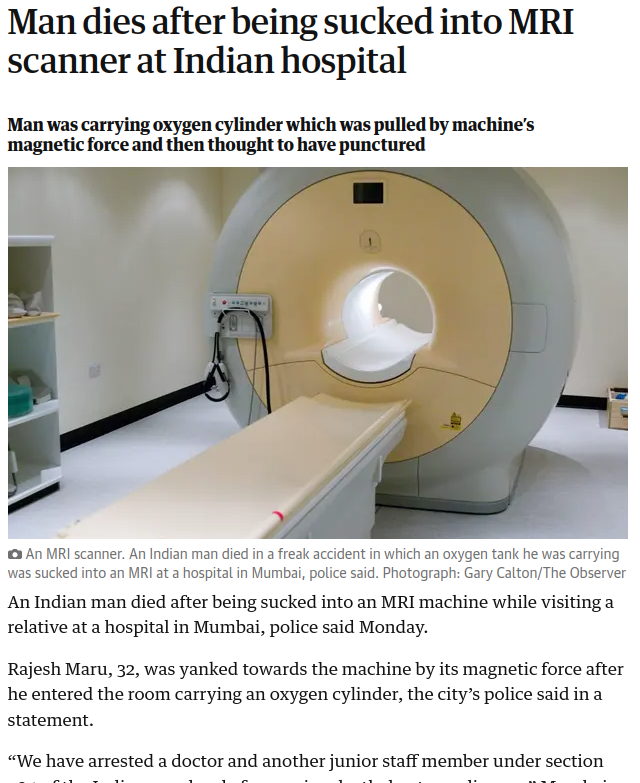

MRI: Risk
The AMIGO Suite
Is an MRI in there?
Jayender Jagadeesan, PhD
Harvard Medical School
Mahsa Geshvadi
CS666 Lecture 17b
By Avanith Kanamarlapudi
CS666 Lecture 17b
