Automated Inspection Platform for Microelectronics

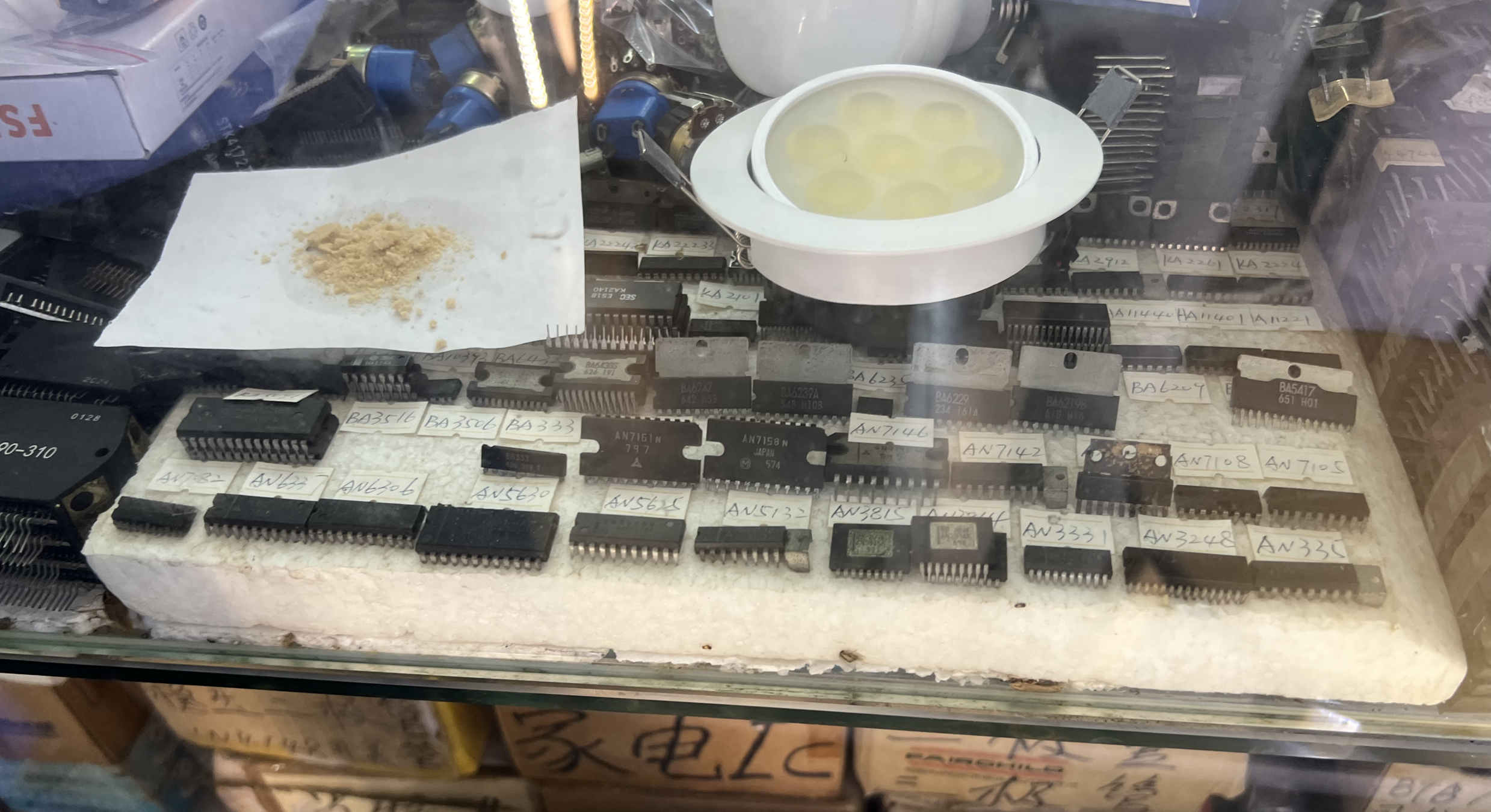

We're securing a $100B microelectronics open market
used when traditional supply chains fall short.
The open market is critical for sourcing components that are lower cost, faster lead time, or simply unavailable elsewhere.
High-reliability industries such as aerospace and defense rely on the open market for legacy components.

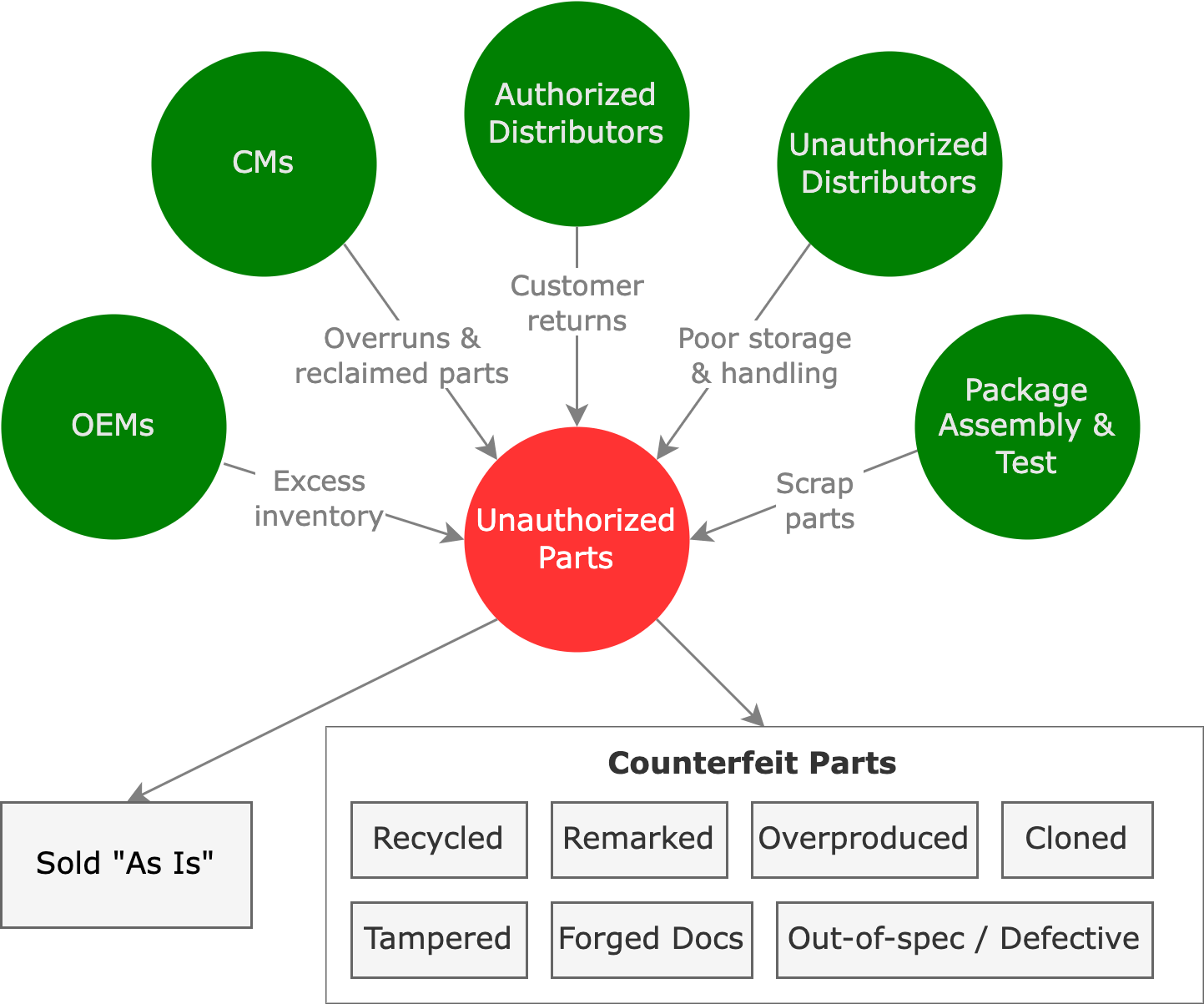

Inspection must be performed to detect counterfeits that flood the open market, especially for high-reliability applications.
© 2024 Chiplytics Inc. Proprietary and Confidential. All Rights Reserved.
"The USAF Research Laboratory determined his malfunctioning DRS contained six suspected counterfeit Metal-Oxide Semiconductor Field-Effect Transistors (MOSFET), three suspected counterfeit serial flash memory chips, and a suspected counterfeit parallel flash memory chip."
An F-16 Pilot died when his ejection seat failed. Was it Counterfeit?
Inspection in the open market remains
infrequent, slow, and error-prone
© 2024 Chiplytics Inc. Proprietary and Confidential. All Rights Reserved.
Counterfeit microelectronics still make it into our nation's most safety-critical systems.
Automated, data-driven inspection
for 100% test coverage
of mission critical microelectronics
Our Approach
© 2024 Chiplytics Inc. Proprietary and Confidential. All Rights Reserved.
Chiplytics Microelectronics Inspection Platform (MIP)
Runs Power Spectrum Analysis (PSA), a rapid, generalized electrical test that detects subtle anomalies between parts
Turnkey advanced electrical and visual inspection that handles large varieties and volumes of microelectronics
© 2024 Chiplytics Inc. Proprietary and Confidential. All Rights Reserved.

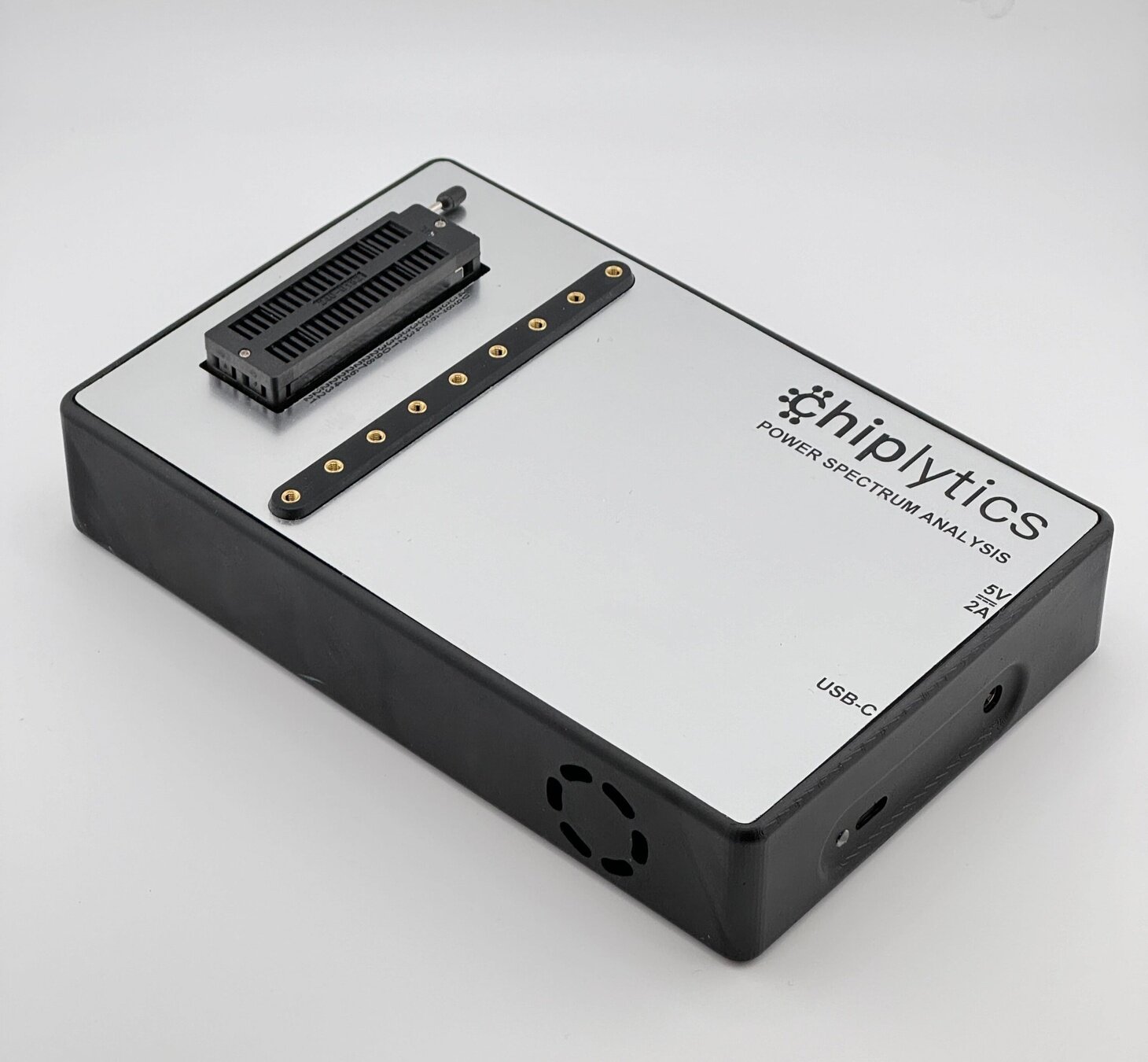

Chiplytics Power Spectrum Analysis (PSA) System
Our Products
MSRP: $25,000 | Software License: $10,000/year
Sockets: $500 / part number
MSRP: $100,000 | Software: $500/part number
PSA is an electrical testing technique licensed from Sandia National Laboratories that evaluates a component's unique response to a non-invasive input signal
Advantages
- Fast, non-invasive, and data-driven enables scalable 100% electrical test coverage
- Reveals subtle anomalies such as differences in manufacturers, performance, and degredation
- Lower cost, more repeatable, and smaller form factor compared to traditional bench top lab equipment
-
Accompanying software enhances automation and scalability of data acquisition
-
Chiplytics provides low lead-time Quickturn Sockets to interface with any package type
© 2024 Chiplytics Inc. Proprietary and Confidential. All Rights Reserved.

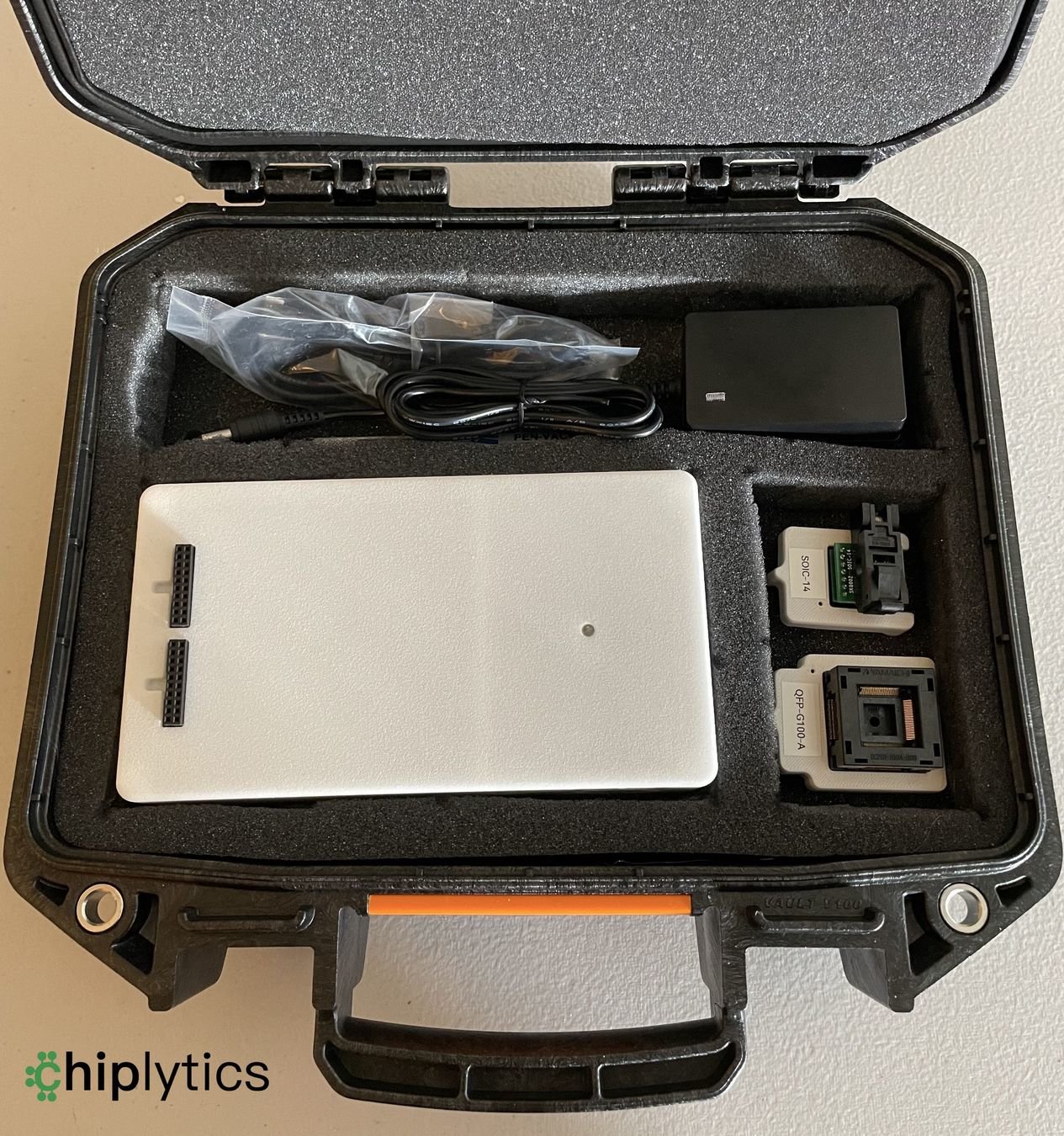

Chiplytics PSA System | Overview
Quickturn
Socket
Available to ship
© 2024 Chiplytics Inc. Proprietary and Confidential. All Rights Reserved.
Cloud-based Electrical Testing
Includes PSA as well as electrical tests already used in the standards (AS6081, AS6171)

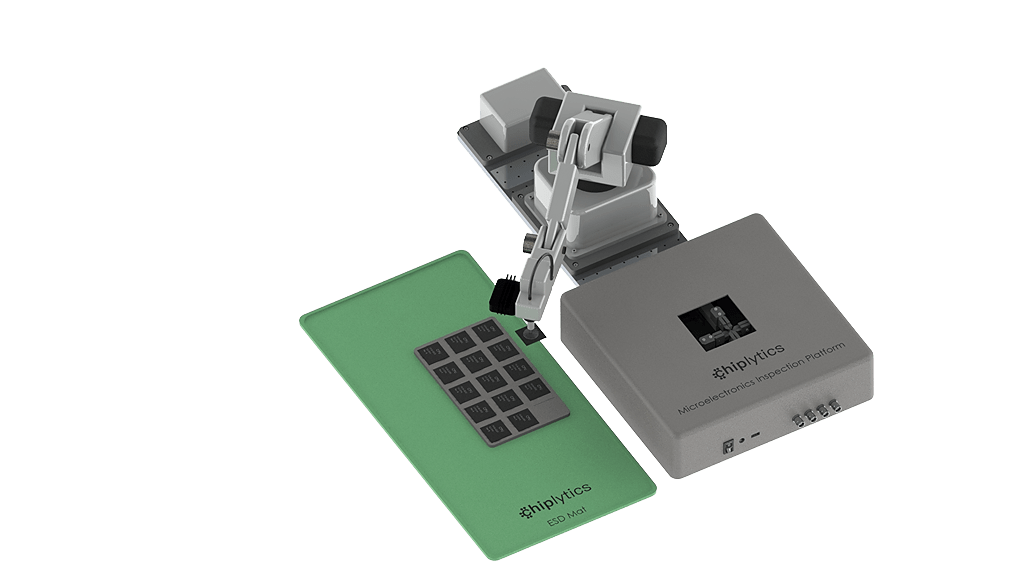

Chiplytics MIP | Overview

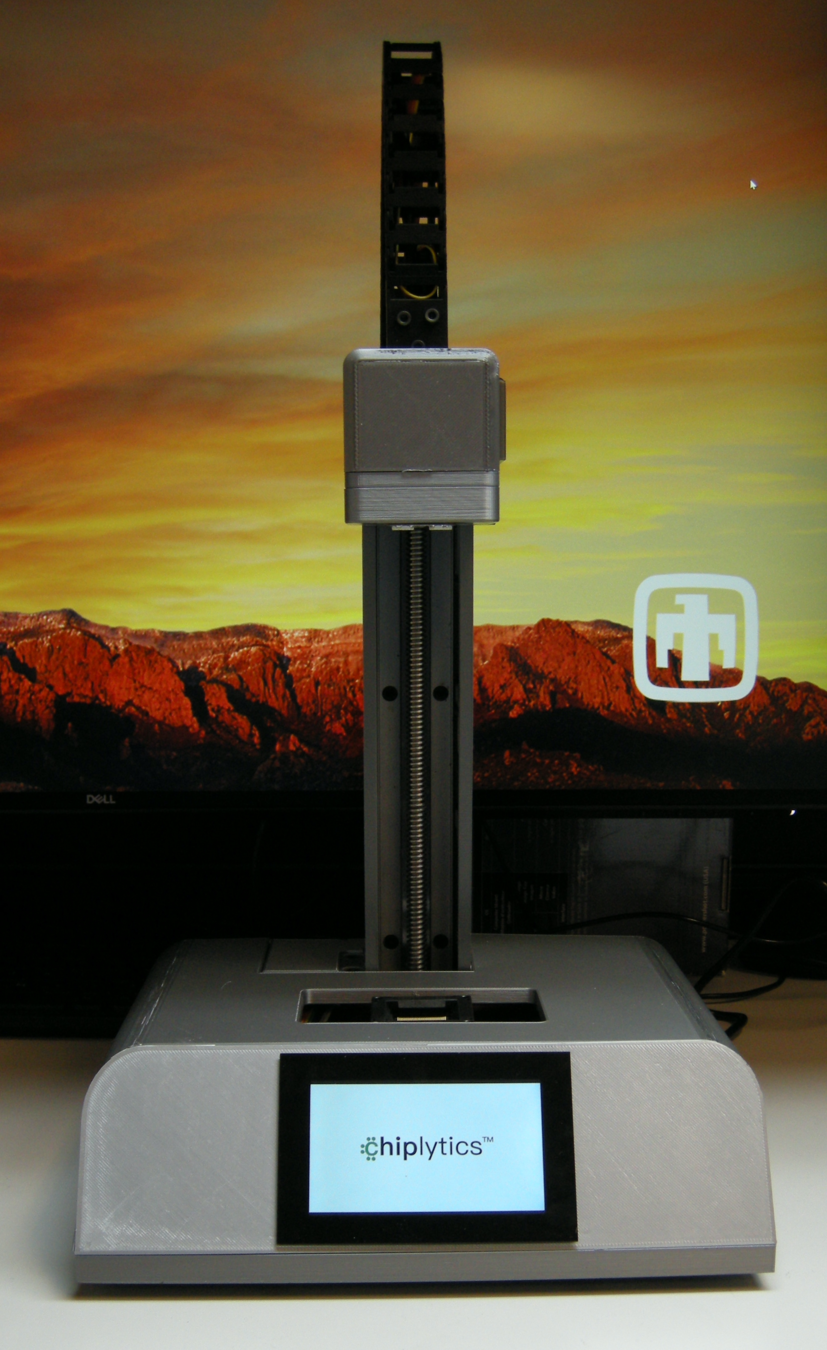

Automation Platform
Adds automation and computer vision for comprehensive high-volume inspection
Socketless IC Probing
Instantly test components including complex package types with high pin counts
V1 ships June '24
Early Traction
© 2024 Chiplytics Inc. Proprietary and Confidential. All Rights Reserved.
2021
- 100+ customer discovery interviews through FedTech Defense Startup Studio
2022
- Company formed through Scout VC Incubator
- PSA Commercial license secured along with Sandia funding for lab personnel
- Chiplytics PSA prototype validated against Sandia equipment
-
Paid pilot run with U.S. Army DEVCOM
2023
- Convertible note investment from Scout VC follow-on and New Mexico Vintage Fund
- Research partnership with UMD's CALCE, leading institution developing counterfeit mitigation standards
- Fulfilled purchase order from Honeywell's Kansas City National Security Campus for 5 PSA Systems and 5 Quickturn Sockets
- Air Force Research Laboratory AFWERX Phase I STTR in partnership with CALCE
"The Chiplytics PSA system shows promise in being a screening tool for semiconductor technologies for use in commercial and DoD settings. The toolset was able to differentiate between differences in manufacturers, different date codes, and even different parametric qualities."
- Josh Hartsell, Engineer, U.S. Army DEVCOM
Please reach out!
contact@chiplytics.io
