Fearless programming and reasoning with infinities

Alexander Gryzlov

IMDEA Software Institute

06/06/2024

Agenda

Totality, partiality and fixed points
Infinite data
Interfaces and objects
Automata
Extra ideas & conclusions

Part 1

purely functional programming

programming and reasoning with

referentially transparent

higher-order functions

Having explicit effects simplifies

reasoning and formalization

Totality, partiality and fixed points

Purity

Very useful for reasoning about

intention and correctness

Types classify well-behaved programs,

but we inevitably lose some

So there's a quest to regain expressivity by

making type system more powerful

Allow more communication between

types and programs!

Totality

Pushing type-based reasoning further gives

dependent types

We can program the type-checker itself and build structures with invariants

data Vec (A : 𝒰 ℓ) : ℕ → 𝒰 ℓ where
  []  : Vec A zero
  _∷_ : A → Vec A n → Vec A (suc n)

Totality

data Format = Number Format | Str Format
            | Lit String Format | End

PrintfType : Format → 𝒰
PrintfType (Number fmt) = (i : Int) → PrintfType fmt
PrintfType (Str fmt) = (str : String) → PrintfType fmt
PrintfType (Lit str fmt) = PrintfType fmt
PrintfType End = String

printfFmt : (fmt : Format) → (acc : String) → PrintfType fmt
printfFmt (Number fmt) acc = λ i → printfFmt fmt (acc ++ show i)
printfFmt (Str fmt) acc = λ str → printfFmt fmt (acc ++ str)
printfFmt (Lit lit fmt) acc = printfFmt fmt (acc ++ lit)
printfFmt End acc = acc

toFormat : (xs : List Char) → Format
toFormat [] = End
toFormat ('%' :: 'd' :: chars) = Number (toFormat chars)
toFormat ('%' :: 's' :: chars) = Str (toFormat chars)
toFormat ('%' :: chars) = Lit "%" (toFormat chars)
toFormat (c :: chars) = case toFormat chars of
                             Lit lit chars' => Lit (strCons c lit) chars'
                             fmt => Lit (strCons c "") fmt

printf : (fmt : String) -> PrintfType (toFormat (unpack fmt))
printf fmt = printfFmt _ ""

Totality

This however means that purity is not enough

Functions have to be total: defined everywhere

Otherwise the type-checking crashes or fails

= inconsistent logic

{-# TERMINATING #-}
void : ⊥
void = void

oops : 2 + 2 ＝ 5
oops = absurd void

Safety and liveness

Correctness properties typically split into

safety (nothing bad ever happens)
liveness (something good eventually happens)

Totality also has two aspects:

defined input (no crashing)
producing output (no hanging)

Safety & liveness reasoning

Partial functions violating safety

some arguments are not handled

Typically handled by either restricting the domain

or wrapping codomain in Maybe/Either

Violation of liveness = non-termination

We need to reason about unfolding computations

Non-termination

Temporal aspects are typically "invisible"

How to model endless computation?

Total programming usually restricts to

terminating functions

Too narrow, cannot reason about interactive programs

Need to model control flow in the type system

Non-termination hacks

We can try adding hacks:

construct individual terminating steps
make a small unsafe function that spins the steps
alternatively, add number of steps and then unsafely generate an infinite number

data Fuel = Dry | More Fuel

limit : ℕ → Fuel
limit  zero   = Dry
limit (suc n) = More (limit n)

{-# TERMINATING #-}
forever : Fuel
forever = More forever

There should be a fully formal solution

Type-level time

A natural way of reasoning about time is to split it into steps/ticks on some global clock

The flow of time should be unidirectional

...

A thunk calculus

Add a special type constructor ▷
▷A is "A, but available one step later"
Essentially a type-level thunk () ⇒ A
Can also be thought of as staging (to run in the next stage)
The program generates a new program that runs after the first one and so on

...

▷

▷▷

▷▷▷

Structure of later

It's an applicative functor

(will write ap as ⊛)

next : A → ▷A
ap : ▷(A → B) → ▷A → ▷B

Functorial structure

We can derive a functorial action (will write map as ⍉)
All the laws hold definitionally (by symbolic computation)

map : (A → B) → ▹ A → ▹ B
map f a▹ = next f ⊛ a▹

ap-map : (f : A → B) → (x▹ : ▹ A)
       → (next f ⊛ x▹) ＝ f ⍉ x▹
ap-map f x▹ = refl

Not a monad

There is no monadic structure

flatten : ▹ ▹ A → ▹ A

This ensures that the temporal structure is preserved

▷

For an arbitrary type there's also typically no

▹ A → A

(though we can do it for universes)

Guarded recursion

We can schedule computations, what now?
Terminating → Productive recursive programs
Every recursive call is "guarded" by a thunk, returning control
Infinite / streaming computations, servers, OSs

...

▷

▷▷

▷▷▷

Guarded recursion

A form of Y-combinator
Postulated definition, unfolding made propositional
Can be erased into a general recursive fixpoint

fix: (▹ A → A) → A

postulate
  dfix : (▹ A → A) → ▹ A
  pfix : (f : ▹ A → A) → dfix f ＝ next (f (dfix f))

fix : (▹ A → A) → A
fix f = f (dfix f)

fix-path : (f : ▹ A → A) → fix f ＝ f (next (fix f))
fix-path f i = f (pfix f i)

Ticked type theory

We'll use Agda proof assistant for interactive examples
Guarded modality is encoded as a function from a modal Tick: 𝕋
A tick is a proof of an elapsed time step
Can encode next, ap and map
Black triangle ▸ is a type-level time shift

▹_ : 𝒰 ℓ → 𝒰 ℓ
▹_ A = (@tick α : Tick) → A

▸_ : ▹ 𝒰 ℓ → 𝒰 ℓ
▸ A▹ = (@tick α : Tick) → A▹ α

Ticked cubical type theory

Technically we're using the cubical mode of Agda
Equality is encoded as a function from a continuous interval type 𝕀
The interval is allowed to commute with the tick ("time-travel")
Allows to reason about the future in the present

▹-ext : {A : 𝒰 ℓ} {x▹ y▹ : ▹ A}
      → ▹[ α ] (x▹ α ＝ y▹ α)
      → x▹ ＝ y▹
▹-ext p i α = p α i

▹-iso : x▹ ＝ y▹ ≅ (▹[ α ] (x▹ α ＝ y▹ α))

Logical justification

A flavour of provability modality
1933 - Gödel's analysis of S4
1950s - (Weak) Löb's axiom: □(□A → A) → □A
We're using the strong version: (□A → A) → A
1960s - GL system
1970s - intuitionistic systems, fixed points
2000s - links to formal semantics and category theory

Nakano's approximation

Nakano, [2000] "A modality for recursion"
▷was initially written ⏺
Continued by many authors, most notably:
Atkey-McBride'13
A series of papers by Birkedal and coauthors in 2010s
Viewed as a special type constructor in the type system

Programming with `▷`

So, to recap we have essentially 4 new constructs:

▷, next, ap/⊛, fix

(+ ▸, map/⍉ and some proof machinery)

What can we write with these?

Part 2

Which infinite types make sense?

Infinite data

Fitting the fix

Previously, I've said that for an arbitrary type there typically is no

▹ A → A

However, that is the type of function we need:

We can construct such types with ▹

fix: (▹ A → A) → A

Partiality effect

Recall the motivation of having a non-termination effect
We can express it with 2 constructors + a guard annotation
Many names: L(ift), Event, Delay

data Part (A : 𝒰) : 𝒰 where
  now   : A → Part A
  later : ▹ Part A → Part A

...

Partiality functor

Mapping a function = waiting until the end and applying it

map-body : (A → B)
         → ▹ (Part A → Part B)
         →    Part A → Part B
map-body f m▹ (now a)   = now (f a)
map-body f m▹ (later p) = later (m▹ ⊛ p)

map : (A → B) → Part A → Part B
map f = fix (map-body f)

...

Partiality applicative

Unwind both structures "in parallel"

pure : A → Part A
pure = now

ap-body : ▹ (Part (A → B) → Part A → Part B)
          →  Part (A → B) → Part A → Part B
ap-body a▹ (now f)    (now x)    = now (f x)
ap-body a▹ (now f)    (later x▹) = later (a▹ ⊛ next (now f) ⊛ x▹)
ap-body a▹ (later f▹) (now x)    = later (a▹ ⊛ f▹ ⊛ next (now x))
ap-body a▹ (later f▹) (later x▹) = later (a▹ ⊛ f▹ ⊛ x▹)

ap : Part (A → B) → Part A → Part B
ap = fix ap-body

...

Partiality monad

Essentially an arbitrary sequence of nested ▹'s
Reassociating makes it a monad (▹▹▹(▹▹A) → ▹▹▹▹▹A)

flatten-body : ▹ (Part (Part A) → Part A)
             →   Part (Part A) → Part A
flatten-body f▹ (now p)    = p
flatten-body f▹ (later p▹) = later (f▹ ⊛ p▹)

flatten : Part (Part A) → Part A
flatten = fix flatten-body

...

Partiality effect

never : Part ⊥
never = fix later

collatz-body : ▹ (ℕ → Part ⊤) → ℕ → Part ⊤
collatz-body c▹ 1 = now tt
collatz-body c▹ n =
  if even n then later (c▹ ⊛ next (n ÷2))
            else later (c▹ ⊛ next (suc (3 · n)))

collatz : ℕ → Part ⊤
collatz = fix collatz-body

Wraps potentially non-terminating computations

Indexed partiality monad

Complexity can be made explicit by

indexing with steps

data Delayed (A : 𝒰) : ℕ → 𝒰 where
  nowD   : A → Delayed A zero
  laterD : ∀ {n} → ▹ (Delayed A n) → Delayed A (suc n)

Cannot express infinite computations anymore:

there's no ▹ (Delayed A n) → Delayed A n

Indexed partiality monad

Can be made more explicit by indexing with steps

mapᵈ : (A → B) → Delayed A n → Delayed B n

apᵈ : Delayed (A → B) m
    → Delayed A n
    → Delayed B (max m n)

runs sequentially

Encoding applicative via bind changes complexity!

_>>=ᵈ_ : Delayed A m
       → (A → Delayed B n)
       → Delayed B (m + n)

runs "in parallel"

Conaturals

Unary numbers extended with numerical infinity

≅ Part⊤

data ℕ∞ : 𝒰 where
  ze : ℕ∞
  su : ▹ ℕ∞ → ℕ∞

infty : ℕ∞
infty = fix su

+-body : ▹ (ℕ∞ → ℕ∞ → ℕ∞) → ℕ∞ → ℕ∞ → ℕ∞
+-body a▹    ze        ze     = ze
+-body a▹ x@(su _)     ze     = x
+-body a▹    ze     y@(su _)  = y
+-body a▹   (su x▹)   (su y▹) =
      su (next (su (a▹ ⊛ x▹ ⊛ y▹)))

_+_ : ℕ∞ → ℕ∞ → ℕ∞
_+_ = fix +-body

Conatural subtraction

∸-body : ▹ (ℕ∞ → ℕ∞ → Part ℕ∞)
       →    ℕ∞ → ℕ∞ → Part ℕ∞
∸-body s▹    ze      _      = now ze
∸-body s▹ x@(su _)   ze     = now x
∸-body s▹   (su x▹) (su y▹) = later (s▹ ⊛ x▹ ⊛ y▹)

_∸_ : ℕ∞ → ℕ∞ → Part ℕ∞
_∸_ = fix ∸-body

(Saturating) subtraction is partial:

∞ ∸ ∞ never terminates

Conatural proof

∸ᶜ-infty : infty ∸ᶜ infty ＝ never
∸ᶜ-infty = fix λ cih▹ →
  infty ∸ᶜ infty
    ~⟨ ... unroll subtraction and infinity definitions with fix-path ... ⟩
  later ((next _∸ᶜ_) ⊛ next infty ⊛ next infty)
    ~⟨⟩
  later (next (infty ∸ᶜ infty))
    ~⟨ ap later (▹-ext cih▹) ⟩
  later (next never)
    ~⟨ fix-path later ⁻¹ ⟩
  never
    ∎

Proofs typically follow this pattern:

unroll fixed points by a necessary amount of steps
apply equations + "coinductive hypothesis"
roll fixed points back

Co/free monad

Partiality is just an instantiation of the free monad with the ▷ functor

Free monad is an F-branching tree with data on the leaves
Cofree comonad is a tree with data at the branches
What do we get by instantiating Cofree with ▷ ?

data Free (F : 𝒰 → 𝒰) (A : 𝒰) : 𝒰 where
  Pure : A → Free F A
  Roll : F (Free F A) → Free F A

data Cofree (F : 𝒰 → 𝒰) (A : 𝒰) : 𝒰 where
  Cof : A → F (Cofree F A) → Cofree F A

Streams

Another classical infinite structure
An inductive list with a delayed tail and no empty case
A lazy linear producer of values

data Stream (A : 𝒰) : 𝒰 where
  cons : A → ▹ Stream A → Stream A

...

Stream functions

headˢ : Stream A → A
headˢ (cons x _) = x

tail▹ˢ : Stream A → ▹ Stream A
tail▹ˢ (cons _ xs▹) = xs▹

repeatˢ : A → Stream A
repeatˢ a = fix (cons a)

mapˢ-body : (A → B)
          → ▹ (Stream A → Stream B)
          →    Stream A → Stream B
mapˢ-body f m▹ as = cons (f (headˢ as)) (m▹ ⊛ (tail▹ˢ as))

mapˢ : (A → B) → Stream A → Stream B
mapˢ f = fix (mapˢ-body f)

natsˢ-body : ▹ Stream ℕ → Stream ℕ
natsˢ-body n▹ = cons 0 (mapˢ suc ⍉ n▹)

natsˢ : Stream ℕ
natsˢ = fix natsˢ-body

Stream comonad

extract = head

duplicate = tails

extractˢ : Stream A → A
extractˢ = headˢ

duplicateˢ-body : ▹ (Stream A → Stream (Stream A))
                →    Stream A → Stream (Stream A)
duplicateˢ-body d▹ s@(cons _ t▹) = cons s (d▹ ⊛ t▹)

duplicateˢ : Stream A → Stream (Stream A)
duplicateˢ = fix duplicateˢ-body

...

Causality

We can define stutter but not everyother
Violates casualty
(can be defined with clocks, however)

stutter : Stream A → Stream A
stutter = fix λ d▹ s →
  cons (headˢ s) (next (cons (headˢ s) (d▹ ⊛ tail▹ˢ s)))

-- everyother : Stream A → Stream A
-- everyother = fix λ e▹ s →
--   cons (headˢ s) (e▹ ⊛ tail▹ˢ (tail▹ˢ s {!!}))

...

Folds and numbers

We can define other familiar functions
foldr, scan, zipWith, interleave
numerical streams

fibˢ-body : ▹ Stream ℕ → Stream ℕ
fibˢ-body f▹ =
  cons 0 ((λ s → cons 1 $ (zipWithˢ _+_ s) ⍉ (tail▹ˢ s)) ⍉ f▹)

fibˢ : Stream ℕ
fibˢ = fix fibˢ-body

primesˢ-body : ▹ Stream ℕ → Stream ℕ
primesˢ-body p▹ = cons 2 ((mapˢ suc ∘ scanl1ˢ _·_) ⍉ p▹)

primesˢ : Stream ℕ
primesˢ = fix primesˢ-body

Part 3

Let's look at the definition of the stream again

Objects and interfaces

A datatype with a single constructor is essentially a record

data Stream (A : 𝒰) : 𝒰 where
  cons : A → ▹ Stream A → Stream A

Iterator

We can treat the stream as an iterator object with two methods:

reading the head value
advancing by one step

record Stream (A : 𝒰) : 𝒰 where
  constructor cons
  field
    hd  : A
    tl▹ : ▹ Stream A

Branching iterator

Can be generalized to an infinite binary tree

data Tree∞ (A : 𝒰) : 𝒰 where
  node : A → ▹ Tree∞ A → ▹ Tree∞ A
       → Tree∞ A

record Tree∞ (A : 𝒰) : 𝒰 where
  constructor node
  field
    val : A
    l▹  : ▹ Tree∞ A
    r▹  : ▹ Tree∞ A

...

Branching iterator

Or a rose tree with arbitrary branching

data RTree (A : 𝒰) : 𝒰 where
  rnode : A → List (▹ RTree A) → RTree A

record RTree (A : 𝒰) : 𝒰 where
  constructor rnode
  field
    val : A
    ch▹ : List (▹ RTree A)

...

Terminating iterators

Multiple constructors makes this harder

data Colist (A : 𝒰) : 𝒰 where
  cnil  : Colist A
  ccons : A → ▹ Colist A → Colist A

record Colist0 (A : 𝒰) : 𝒰 where
  constructor ccons0
  field
    hd  : Maybe A
    tl▹ : ▹ Colist0 A

record Colist1 (A : 𝒰) : 𝒰 where
  constructor ccons1
  field
    hd   : A
    emp? : Bool
    tl▹  : ▹ Colist1 A

Set interface

How would we represent an infinite set of ℕ?

(a finite set is usually some search structure RedBlackTree ℕ)

Typically via a function ℕ → Prop/Bool

We can also use Stream Bool

Generally, Stream A ≅ ℕ → A

Tabulation of a function

However, this is not very efficient

...

1

3

1

0

Set interface

Instead, we can encode a set interface as

a recursive guarded record

(actual implementation a bit more technical)

record Setℕ : 𝒰 where
  constructor mkSet
  field
    emp? : Bool
    has? : ℕ → Bool
    ins  : ℕ → ▹ Setℕ
    uni  : ▹ Setℕ → Part Setℕ

Strict positivity

Guarded recursion has two general areas of application:

Working with potentially infinite data structures
Encoding non-strictly-positive recursive types

Strictly positive type appears to the left of 0 arrows
A syntactic approximation of monotonicity

Strict positivity

Strictly positive type appears to the left of 0 arrows
Another syntactic approximation
Positive type appears in even positions
Negative type appears in odd positions

data Expr : 𝒰 → 𝒰 where
  Foo : ((Expr a → Expr a) → Expr b) → Expr (a → b)
          ^^^^^^----------------------- positive occurrence
                   ^^^^^^-------------- negative occurrence
                             ^^^^^^---- strictly positive occurrence

A finite set object

finiteSet-body : ▹ (List ℕ → Setℕ)
               →   List ℕ → Setℕ
finiteSet-body f▹ l =
  mkSet (empty? l)
        (λ n → elem? n l)
        (λ n → f▹ ⊛ next (n ∷ l))
        (λ x▹ → later ((λ x →
           foldrP (λ n z →
              later (now ⍉ (z .ins n))) x l) ⍉ x▹))

finiteSet : List ℕ → Setℕ
finiteSet = fix finiteSet-body

Carries around the search structure (here a List)

An infinite set object

evensUnion-body : ▹ (Setℕ → Setℕ)
                →    Setℕ → Setℕ
evensUnion-body e▹ s =
  mkSet false
        (λ n → even n or s .has? n)
        (λ n → e▹ ⊛ s .ins n)
        (λ x▹ → later ((λ f →
           mapᵖ f (s .uni x▹)) ⍉ e▹))

evensUnion : Setℕ → Setℕ
evensUnion = fix evensUnion-body

Delegates to the parameter

Objects with IO

This idea can be extended to state and effects

Encode IO as a form of a partiality monad and

abstract over methods using polynomials

record IOTree : 𝒰 (ℓsuc 0ℓ) where
  field
    Command : 𝒰
    Response : Command → 𝒰

data IOProg (I : IOTree) (A : 𝒰) : 𝒰 where
  ret : (a : A) → IOProg I A
  bnd : (c : Command I) (f : Response I c → ▹ IOProg I A) → IOProg I A

record Interface : 𝒰 (ℓsuc 0ℓ) where
  field
    Method : 𝒰
    Result : Method → 𝒰

record IOObj (Io : IOTree) (I : Interface) : 𝒰 where
  field
    mth : (m : Method I) → IOProg Io (Result I m × IOObj Io I)

Part 4

Let's go back to the idea of function tabulation

Stream A ≅ ℕ → A

What is the infinite tree isomorphic to?

Automata

data Tree∞ (A : 𝒰) : 𝒰 where
  node : A → ▹ Tree∞ A → ▹ Tree∞ A
       → Tree∞ A

Word consumers

Tree∞ A ≅ ℕ₂ → A

(the type of binary numbers)

There's general construction to tabulate

T → A into some F A

where the structure of F mirrors that of T

...

1

10

11

101

100

110

111

Tries

We can think of structures as infinite tries whose branching factor is determined by T

...

Word automata

This idea can be generalized even further, to tabulated polymorphic functions:

data Stream (A : 𝒰) : 𝒰 where
  cons : A → (⊤ → ▹ Stream A) → Stream A

data Tree∞ (A : 𝒰) : 𝒰 where
  cons : A → (Bool → ▹ Tree∞ A) → Tree∞ A

data Moore (X A : 𝒰) : 𝒰 where
  mre : A → (X → ▹ Moore X A) → Moore X A

Word automata

Moore X A ≅ List X → A

Deterministic Moore automaton, common special case is

Moore X Bool ≅ List X → Bool

which is typically called a recognizer

data Moore (X A : 𝒰) : 𝒰 where
  mre : A → (X → ▹ Moore X A) → Moore X A

Operations on automata

pure : B → Moore A B
pure b = fix (pure-body b)

map : (B → C)
    → Moore A B → Moore A C
...

ap : Moore A (B → C) → Moore A B → Moore A C
..

zipWith : (B → C → D)
        → Moore A B → Moore A C → gMoore A D
zipWith f = ap ∘ map f

cat : Moore A B → Moore B C → Moore A C
...

Regular expressions

Lang : 𝒰 → 𝒰
Lang A = Moore A Bool

∅ : Lang A
∅ = pure false

ε : Lang A
ε = mre true λ _ → ∅

char : A → Lang A
char a = Mre false λ x →
           if ⌊ x ≟ a ⌋ then ε else ∅

compl : Lang A → Lang A
compl = map not

_⋃_ : Lang A → Lang A → Lang A
_⋃_ = zipWith _or_

_⋂_ : Lang A → Lang A → Lang A
_⋂_ = zipWith _and_

Mealy automata

data Mealy (X A : 𝒰) : 𝒰 where
  mly : (X → A × ▹ Mealy X A) → Mealy X A

data Moore (X A : 𝒰) : 𝒰 where
  mre : A → (X → ▹ Moore X A) → Moore X A

Mealy X A ≅ Stream X → Stream A

transducer automaton

Resumptions

data Res (I O A : 𝒰) : 𝒰 where
  ret  : A → Res I O A
  cont : (I → O × ▹ Res I O A) → Res I O A

A Mealy automaton that possibly terminates
a combination of a partiality and state monad

Harrison, Procter, [2015] "Cheap (But Functional) Threads”

Coroutines

Passing control back and forth via thunks is conceptually programming with coroutines

Can be compiled into patterns of communication between consumer and producer automata

data Consume (A B : 𝒰) : 𝒰 where
  end  : B → Consume A B
  more : (A → ▹ Consume A B) → Consume A B

pipe-body : ▹ (Stream A → Consume A B → Part B)
          →    Stream A → Consume A B → Part B
pipe-body p▹ _           (end x)   = now x
pipe-body p▹ (cons h t▹) (more f▹) = later (p▹ ⊛ t▹ ⊛ f▹ h)

pipe : Stream A → Consume A B → Part B
pipe = fix pipe-body

Part 5

Where to go next?

Extra ideas & conclusions

Clocked type theory

We can work "under" thunks but not remove them
Delayedness never decreases
Weaker than proper coinduction
Can be extended by a constant ☐ modality or clock variables to allow forcing "completed" thinks
force : (∀ κ → ▹ κ (A κ)) → ∀ κ → A κ
Controlled violation of causality
E.g. we can write everyother function on streams

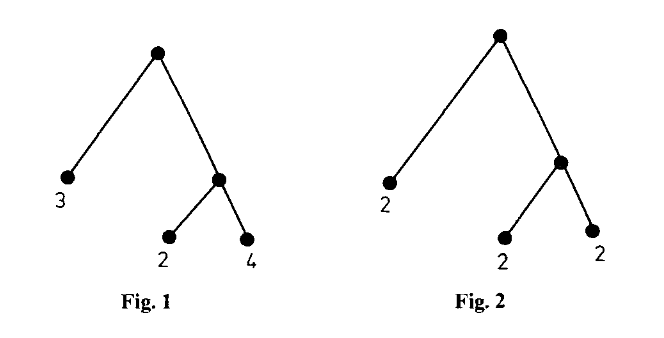

Bird's algorithm

aka replaceMin
later generalized to value recursion (MonadFix) in Haskell
given a binary tree with data in leaves, replaces all values with a minimum in a single pass

Bird's algorithm

Classical form is somewhat weird

replaceMin :: Tree -> Tree

replaceMin t =
  let (r, m) = rmb (t, m) in r
  where
  rmb :: (Tree, Int) -> (Tree, Int)
  rmb (Leaf x, y) = (Leaf y, x)
  rmb (Node l r, y) =
    let (l',ml) = rmb (l, y)
        (r',mr) = rmb (r, y)
     in
   (Node l' r', min ml mr)

Guarded decomposition

We can decompose this in two temporal phases
Compute the minimum and construct the thunk
Then run the thunk
Uses the feedback combinator
feedback : (▹ A → B × A) → B feedback f = fst (fix (f ∘ snd⍉_))
Inserts intermediate data between steps
Cannot run the thunk without clocks

Guarded decomposition

replaceMinBody : Tree ℕ
               → ▹ ℕ → ▹ (Tree ℕ) × ℕ
replaceMinBody (Leaf x) n▹ = Leaf ⍉ n▹ , x
replaceMinBody (Br l r) n▹ =
  let (l▹ , nl) = replaceMinBody l n▹
      (r▹ , nr) = replaceMinBody r n▹
    in
  (Br ⍉ l▹ ⊛ r▹) , min nl nr

feedback : (▹ A → B × A) → B
feedback f = fst (fix (f ∘ (snd ⍉_)))

-- main function

replaceMin : Tree ℕ → ▹ Tree ℕ
replaceMin t = feedback (replaceMinBody t)

Continuations

We can reason about control-flow based algorithms
Harper's algorithm for matching on regexps with continuations
Hofmann's algorithm for tree BFS

data StdReg = NoMatch | MatchChar Char | Or StdReg StdReg
            | Plus StdReg | Concat StdReg StdReg

type MatchT = (String -> Bool) -> Bool

matchi :: StdReg -> Char -> String -> MatchT
matchi  NoMatch       c cs k = False
matchi (MatchChar c') c cs k = if c == c' then k cs else False
matchi (Or r1 r2)     c cs k = matchi r1 c cs k || matchi r2 c cs k
matchi (Plus r)       c cs k = matchi r c cs (\cs -> k cs || matchh cs (Plus r) k)
matchi (Concat r1 r2) c cs k = matchi r1 c cs (\cs -> matchh cs r2 k)

matchh :: String -> StdReg -> MatchT
matchh []       r k = False
matchh (c : cs) r k = matchi r c cs k

match :: String -> StdReg -> Bool
match s r = matchh s r null

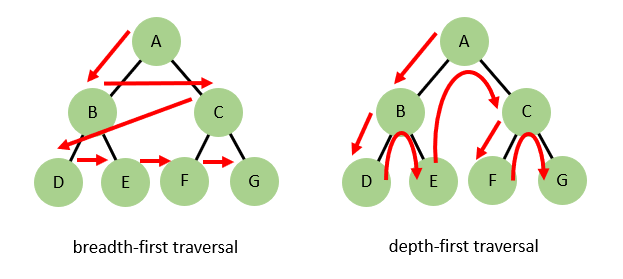

Breadth-first traversal

Another form of a binary tree, data on both leaves and nodes
Compute a breadth-first traversal

Hoffman's algorithm

Typically done with queues
Hoffman invented a purely functional continuation-based algorithm in 1993
Requires a intermediate (non-strictly) positive datatype

data Rou A where
  Over : Rou A
  Next : ((Rou A → List A) → List A) → Rou A
---        ^^^^^

Hoffman's algorithm

We can encode this in guarded theory by switching to Colists
requires smart constructors that transport terms over the fixpoint (un)rolling equalities internally

data RouF (A : 𝒰) (R▹ : ▹ 𝒰) : 𝒰 where
  overRF : RouF A R▹
  nextRF : ((▸ R▹ → ▹ Colist A) → Colist A) → RouF A R▹

Rou : 𝒰 → 𝒰
Rou A = fix (RouF A)

overR : Rou A
nextR : ((▹ Rou A → ▹ Colist A) → Colist A) → Rou A

Stream calculus

exact real numbers, series

stream differential equations

Search algorithms

can encode sequential topology
constructive Tychonoff's theorem

→c-searchable : (ds : is-discrete X)
              → c-searchable X (discrete-clofun ds)
              → c-searchable (Stream X) (closenessˢ ds)

A generic framework for

search/selection/minimization algorithms

Vs coinduction

Coinductive mechanisms are more liberal
Productivity checker is purely syntactic
Spend a few hours on a proof, get shot down
Guarded constructions are type-directed

Conclusion

A principled way to work with non-termination
A common theme is overcoming syntactic approximations
Thunks, streams, partiality
Non-strictly positive datatypes
Synthetic topology and domain theory
Concurrency models (quotienting & cubical gizmos)

Fearless programming and reasoning with infinities

Agenda

Part 1

Purity

Totality

Totality

Totality

Safety and liveness

Safety & liveness reasoning

Non-termination

Non-termination hacks

Type-level time

A thunk calculus

Structure of later

Functorial structure

Not a monad

Guarded recursion

Guarded recursion

Ticked type theory

Ticked cubical type theory

Logical justification

Nakano's approximation

Programming with ▷

Part 2

Fitting the fix

Partiality effect

Partiality functor

Partiality applicative

Partiality monad

Partiality effect

Indexed partiality monad

Indexed partiality monad

Conaturals

Conatural subtraction

Conatural proof

Co/free monad

Streams

Stream functions

Stream comonad

Causality

Folds and numbers

Part 3

Iterator

Branching iterator

Branching iterator

Terminating iterators

Set interface

Set interface

Strict positivity

Strict positivity

A finite set object

An infinite set object

Objects with IO

Part 4

Word consumers

Tries

Word automata

Word automata

Operations on automata

Regular expressions

Mealy automata

Resumptions

Coroutines

Part 5

Clocked type theory

Bird's algorithm

Bird's algorithm

Guarded decomposition

Guarded decomposition

Continuations

Breadth-first traversal

Hoffman's algorithm

Hoffman's algorithm

Stream calculus

Search algorithms

Vs coinduction

Conclusion

Working repos

Literature

Contacts

Programming with `▷`
