節省換燈所需的時間

Save time on changing lamps



避免人員高空墜落的危險
Avoid the danger of people falling from heights

Lighting Lift

CF-ELF-1501

燈具升降器

方便隨時降下燈具清潔

Easy to clean and maintain lamps

使維修或更換燈具更簡單

Easy maintenance and replacement

節省工程車及人員費用

Save engineering and personnel costs

說明

Description

接法



接地

Ground



電源

Power supply



電源

Power supply



電源

Power supply



電源

Power

supply



線控(黃)

Line control

(Yellow)



線控(白)

Line control

(White)



線控(紅)

Line control

(Red)

AC 220V Only

遙控

Remote control

線控+遙控

Line control

remote control

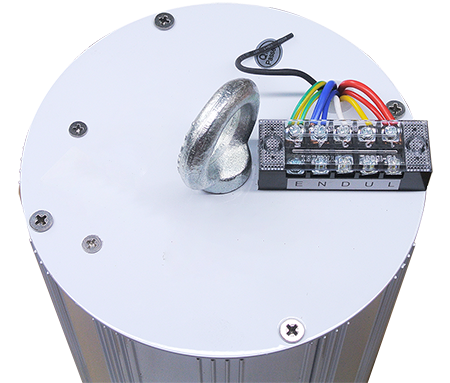

Connection

導電機構

UP

DOWN

Turn

ON

Turn

OFF

Conductive mechanism

鋼纜

Wire rope

懸吊方式

Suspension method

Watts 50W
Voltage AC 220V ±10%
Current 0.7A / 10KG
Load weight 5~15KG
Lifting average speed Ascent rate:≦2.0m/min
Descent rate:≦2.3m/min
Lifting height Standard 15M
Stainless steel wire rope Φ1.5mm*2
Size Φ156mm*H500mm

格規

Specification

測試報告

Test report

Vibration test

振動測試報告

Heat test

耐溫度測試報告

IP 54 test report

IP 54測試報告

On paper

Page 1

Page 2

Page 1

Page 2

Page 1

Page 2

連絡資訊

Contact info



鑫崈科技企業有限公司



Core Focus Technology enterprise CO.,LTD

TEL:+886-4-22802156  FAX:+886-4-22802132

core.focus156@gmail.com

40150 台中市東區建智街26號

No. 26, Jianzhi St., East Dist., Taichung City 401, Taiwan (R.O.C.)

CF-ELF-1501

By corefocus

CF-ELF-1501

Lighting Lift 燈具升降器(燈具升降系統)
