3 Camera Vendors, 2 houses, and 1(ish) UI
Using OSS to locally unify security cameras
Slides: elrey.casa/prez/321-cams | Live: elrey.casa/prez/321-cams-live
Please excuse the AI image slope 🙃
Index
Network Setup
$ w elrey
- Experience: IT/security for 30... I mean 8 years... :)
- Work: SpecterOps
- Adversary Simulation Consultant (Pentester+)
- Community
Network Setup
Initial Network Setup
Started with (2023):

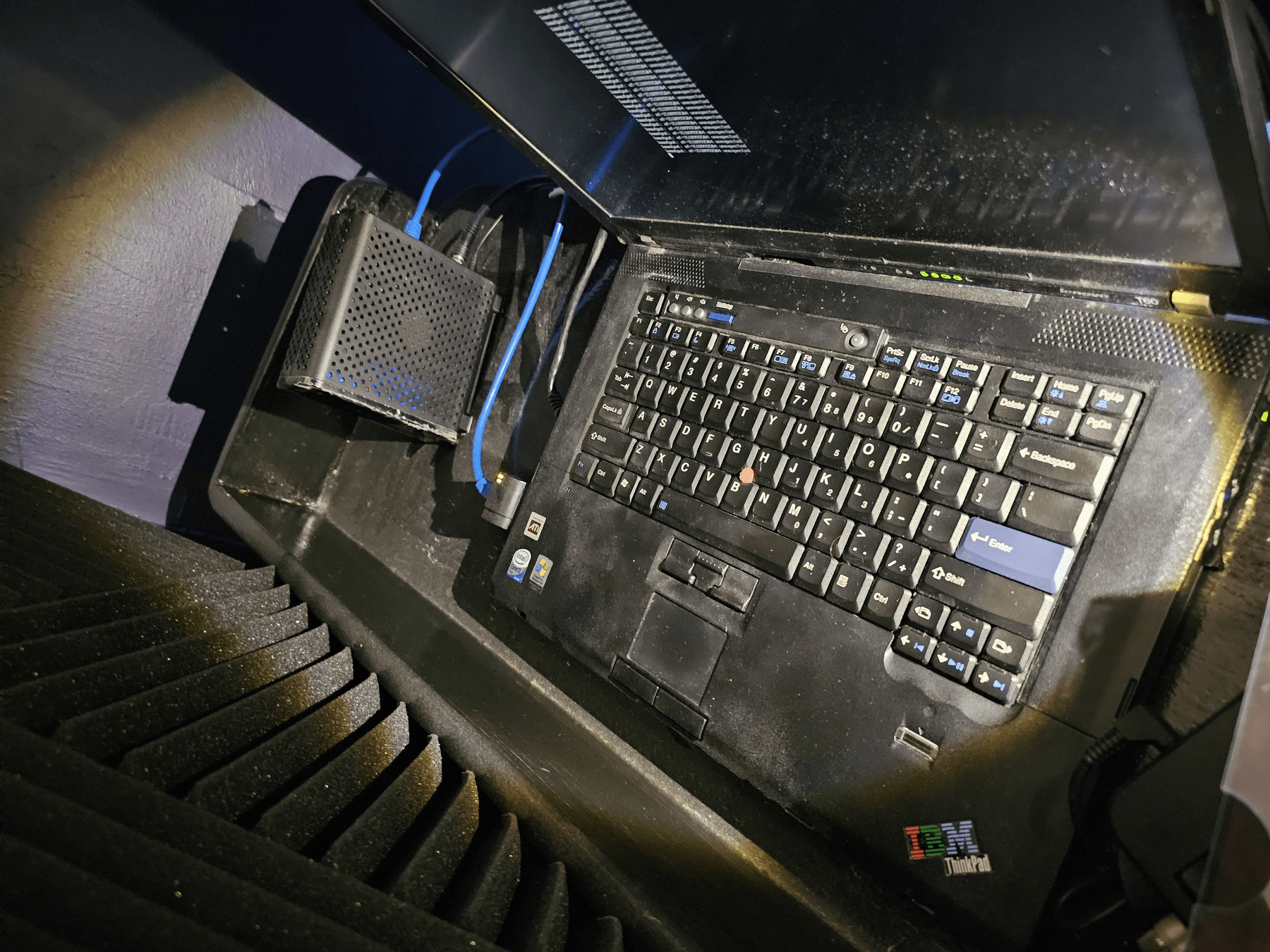

- Old laptop (Thinkpad T60) as OPNSense

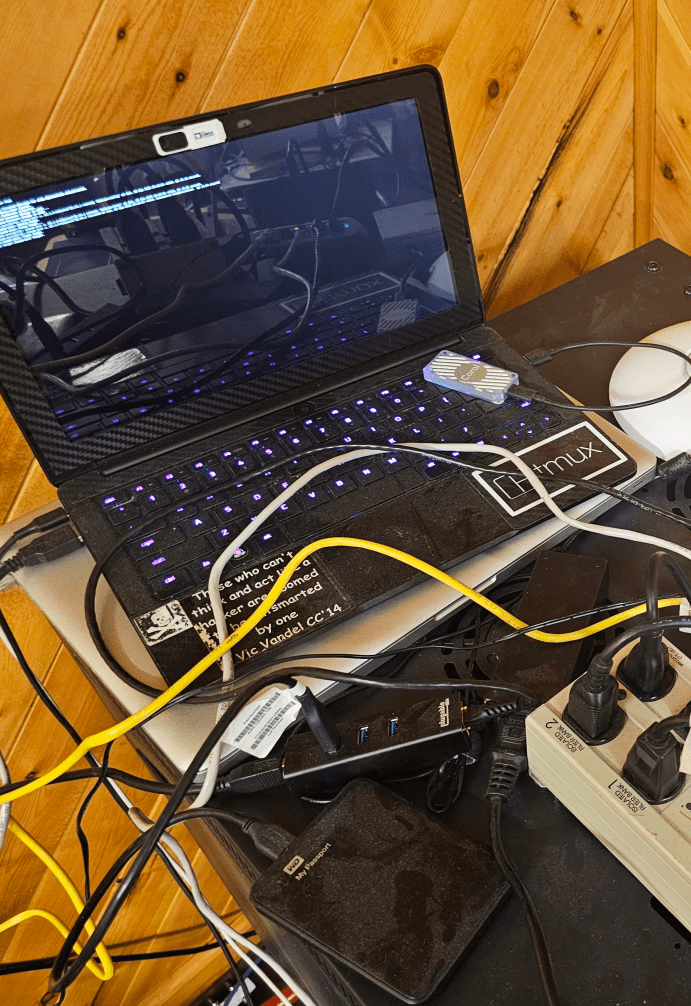

- Razer laptop
- Home Assistant (HA) via Docker

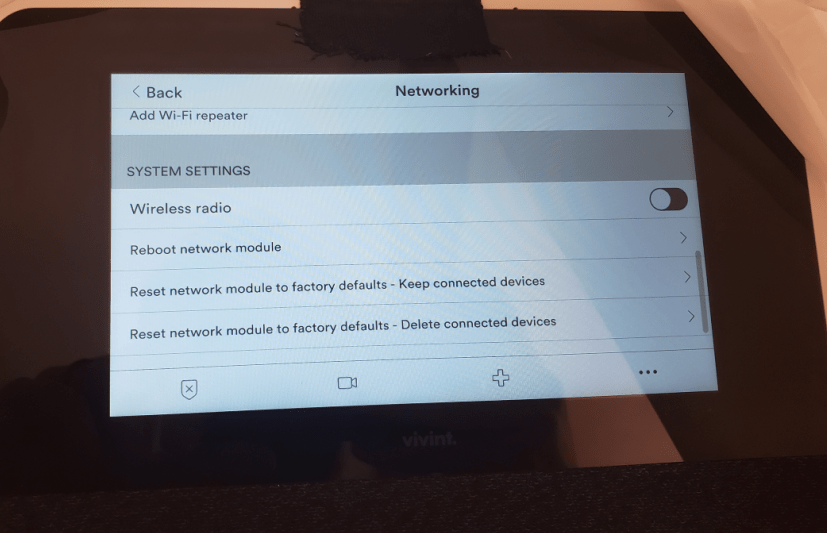

- HA Vivint integration
via Home Assistant Community Store (HACS)
Initial Network Setup Cont.

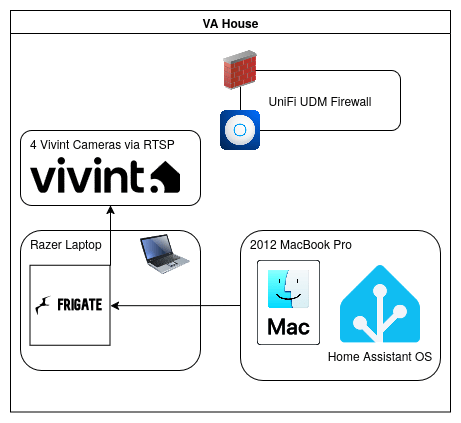

Next Iteration
Moved to (till ~Feb 2026):
- UniFi FW (already had switches)
- Dedicated HA (HAOS) on 2012 MacBook Pro - faulty logic board (removed battery)
- Razer laptop

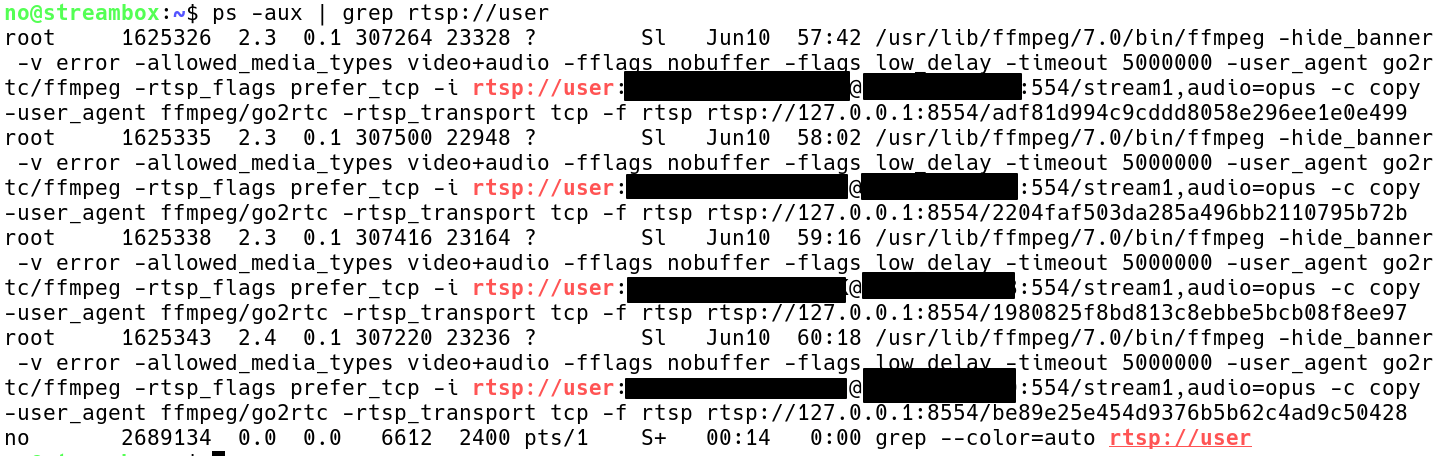

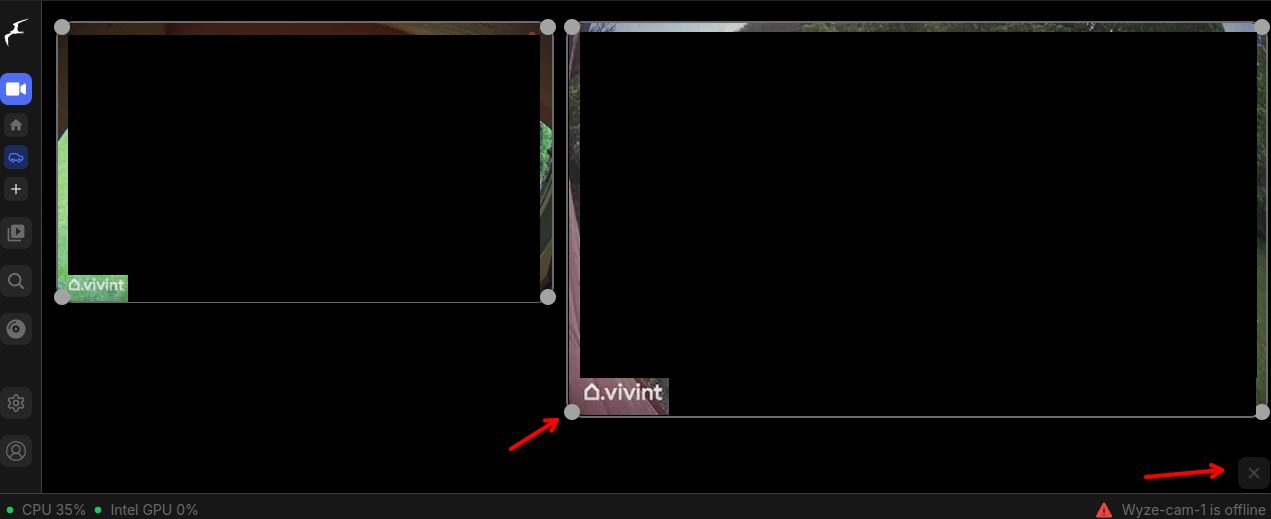

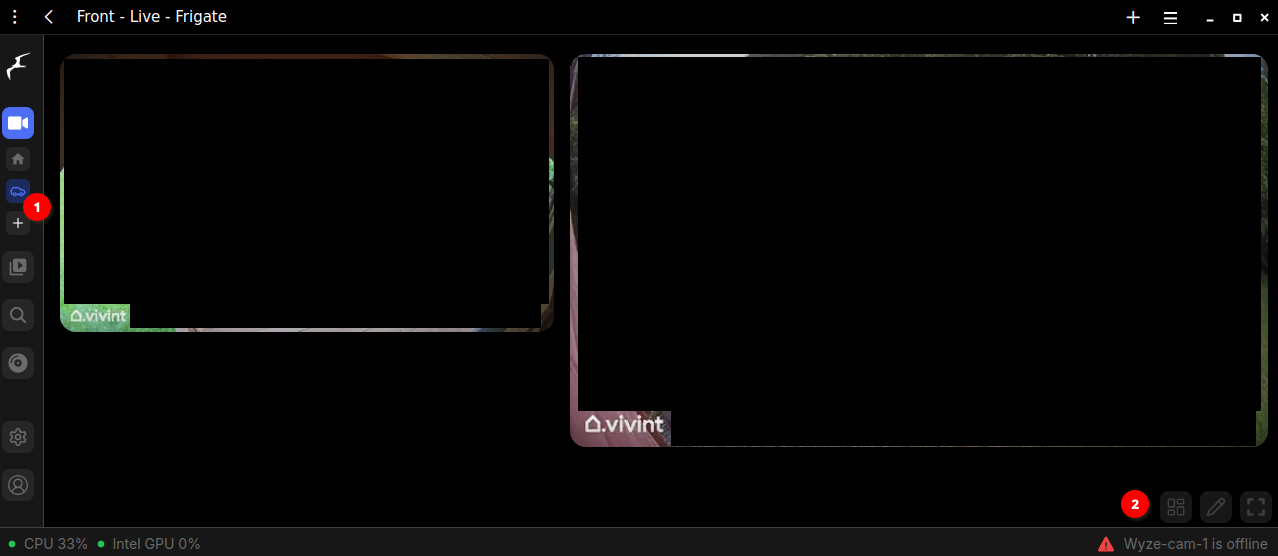

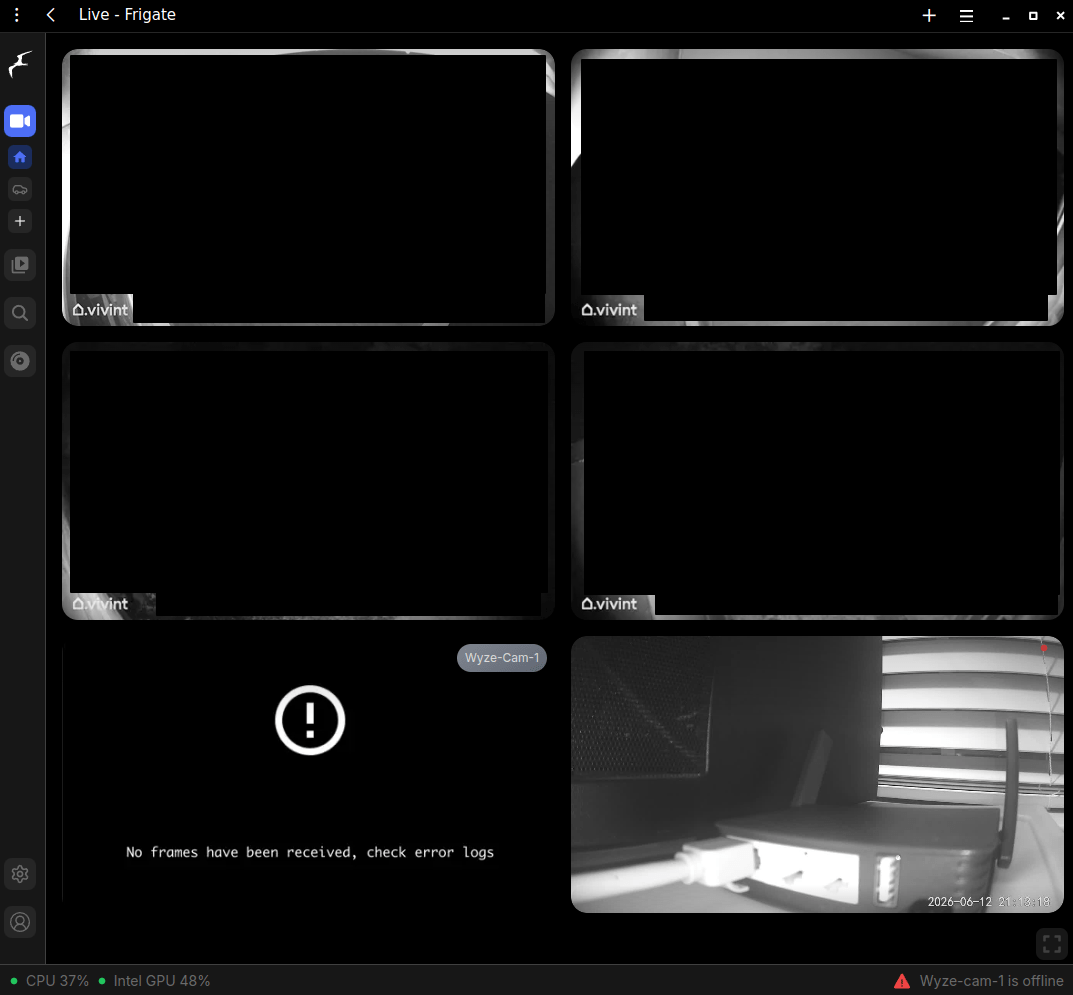

- Frigate - pi-nvr (fork of geerlingguy's)
- USB Coral TPU (2023: $71 -> 2026: $139)

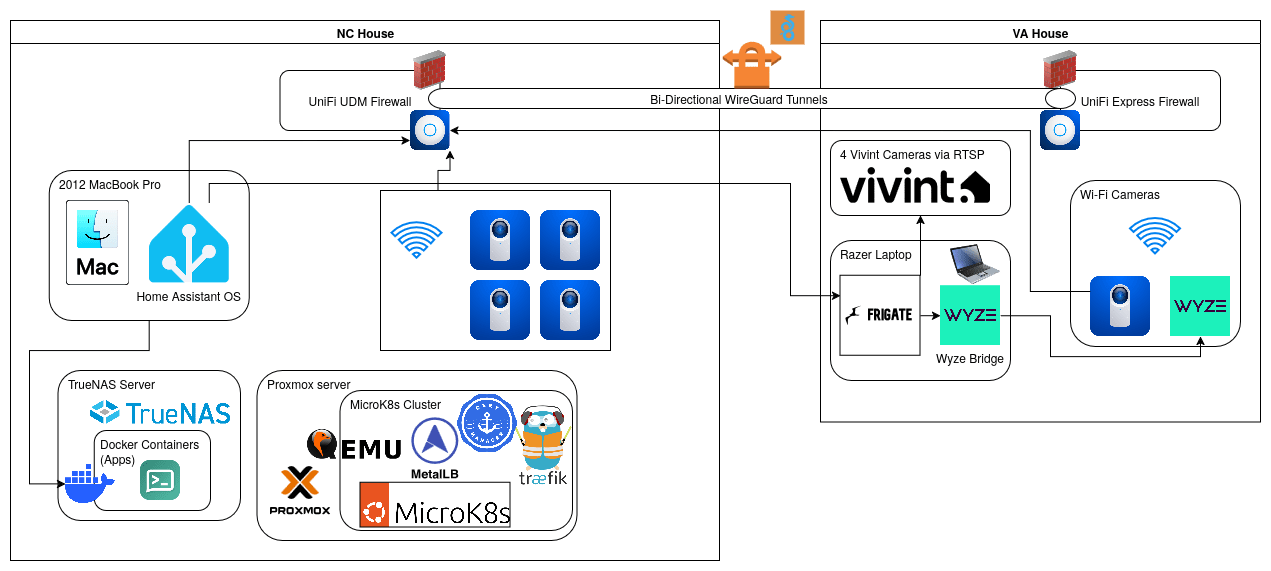

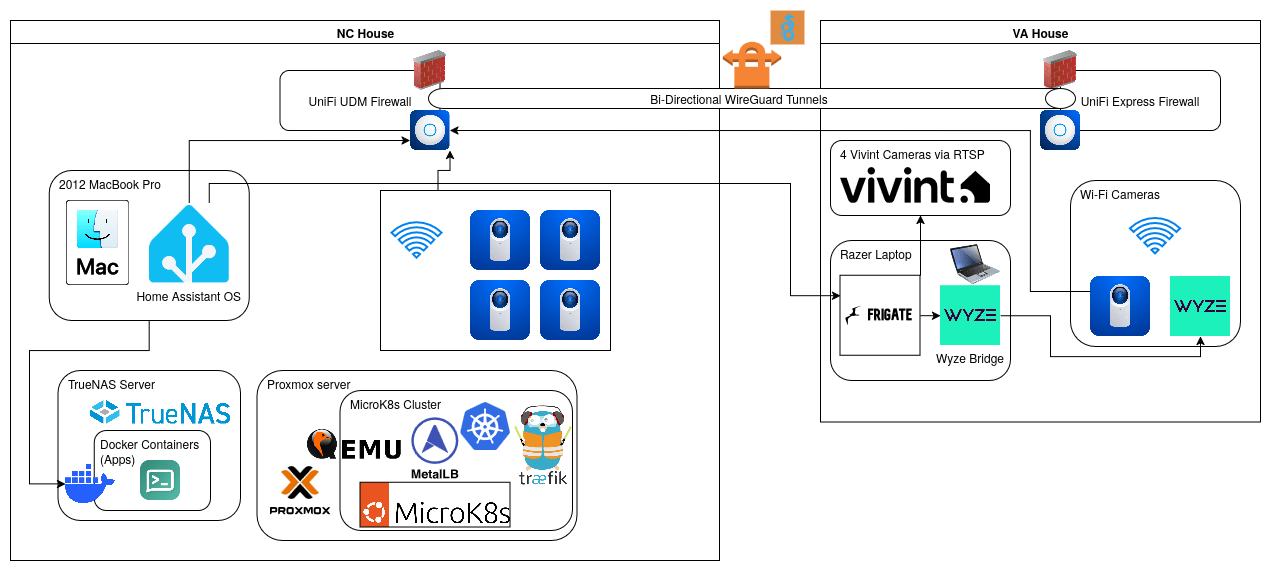

Final Network Setup

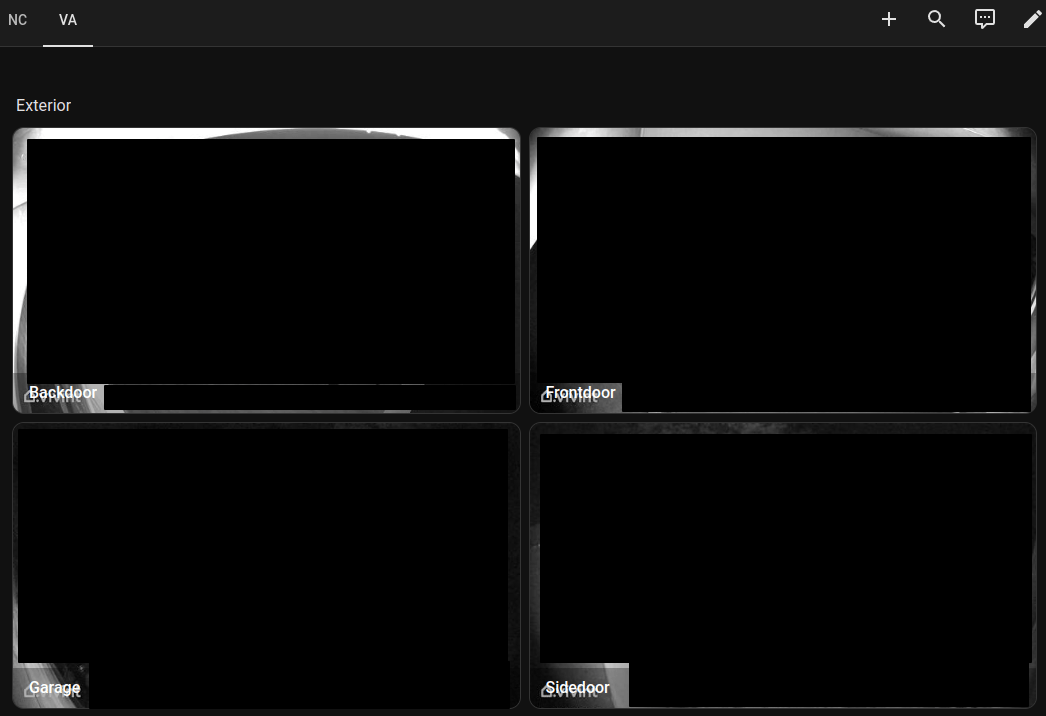

DEMO Picture Time

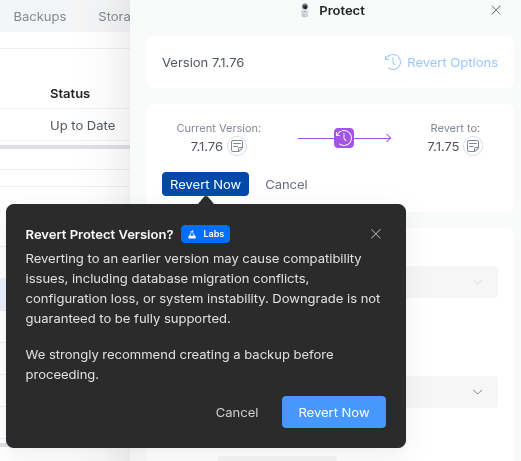

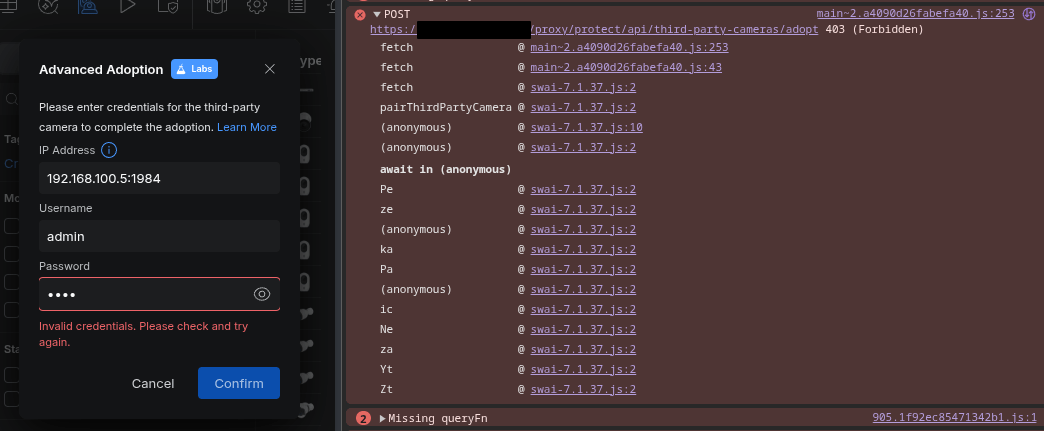

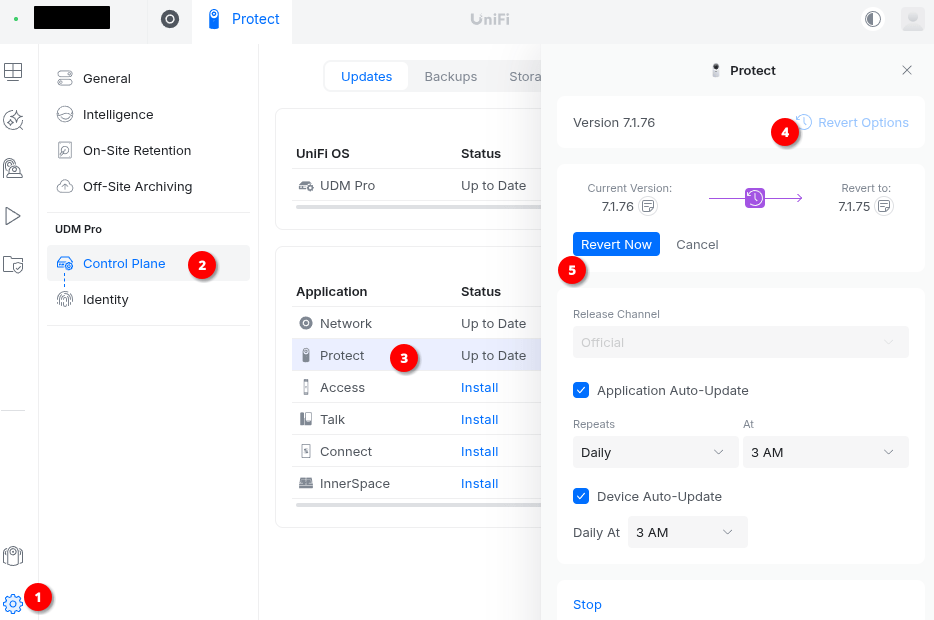

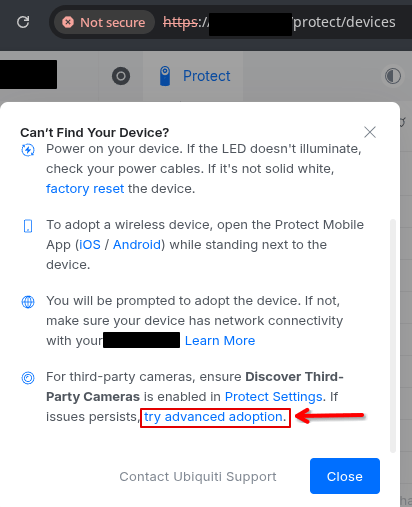

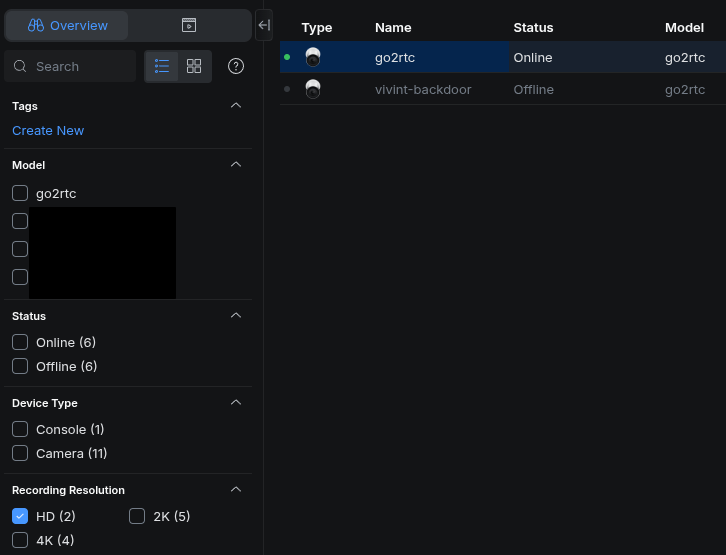

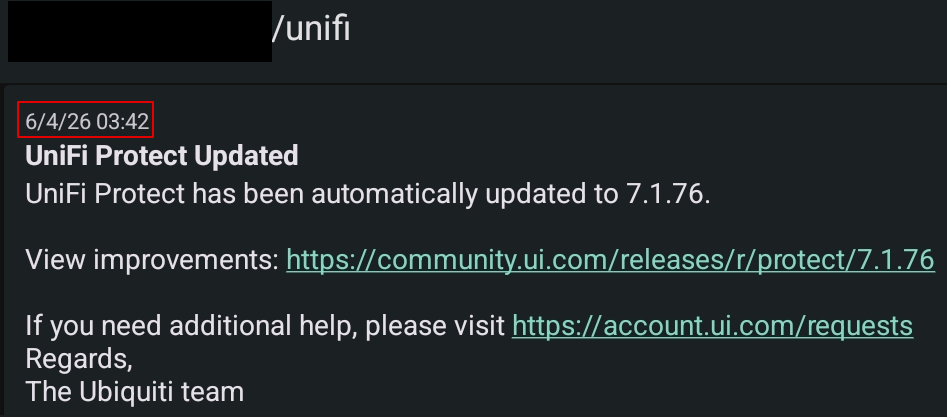

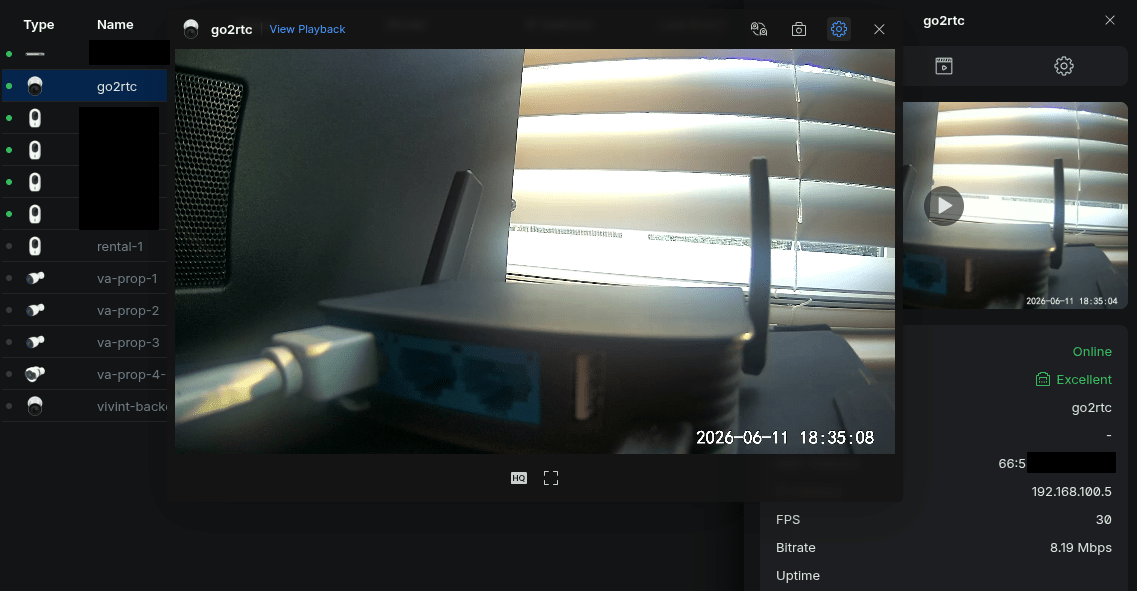

Frigate -> UniFi Protect (ONVIF)
- docker macvlan workaround (my implementation)

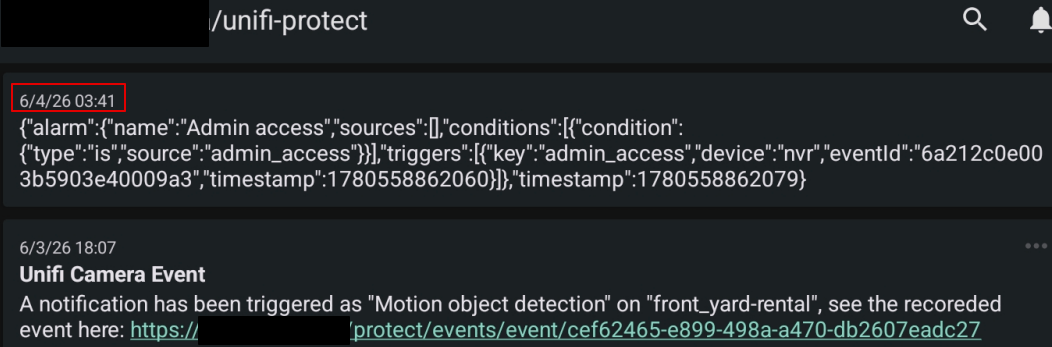

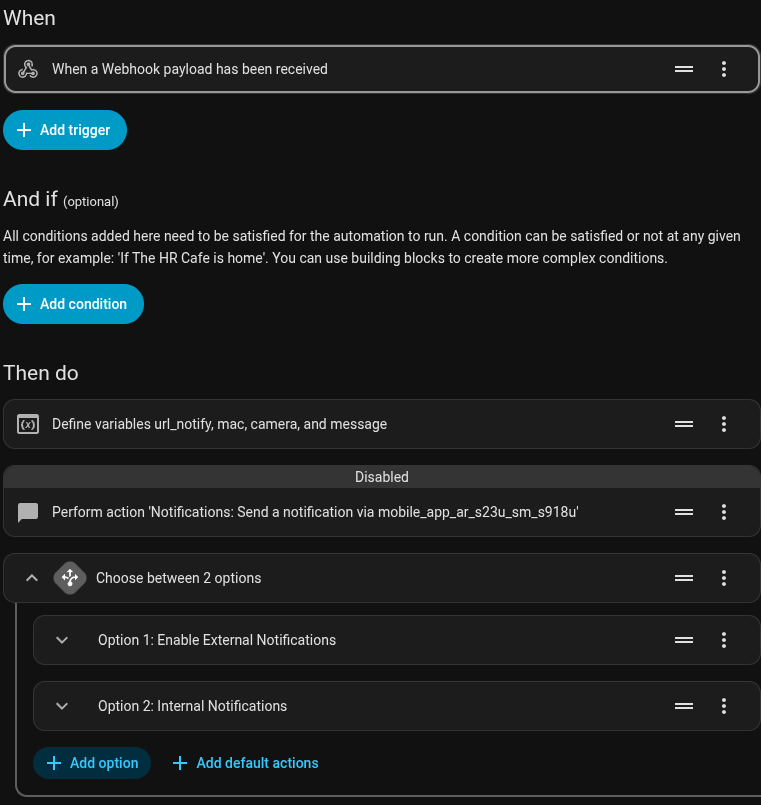

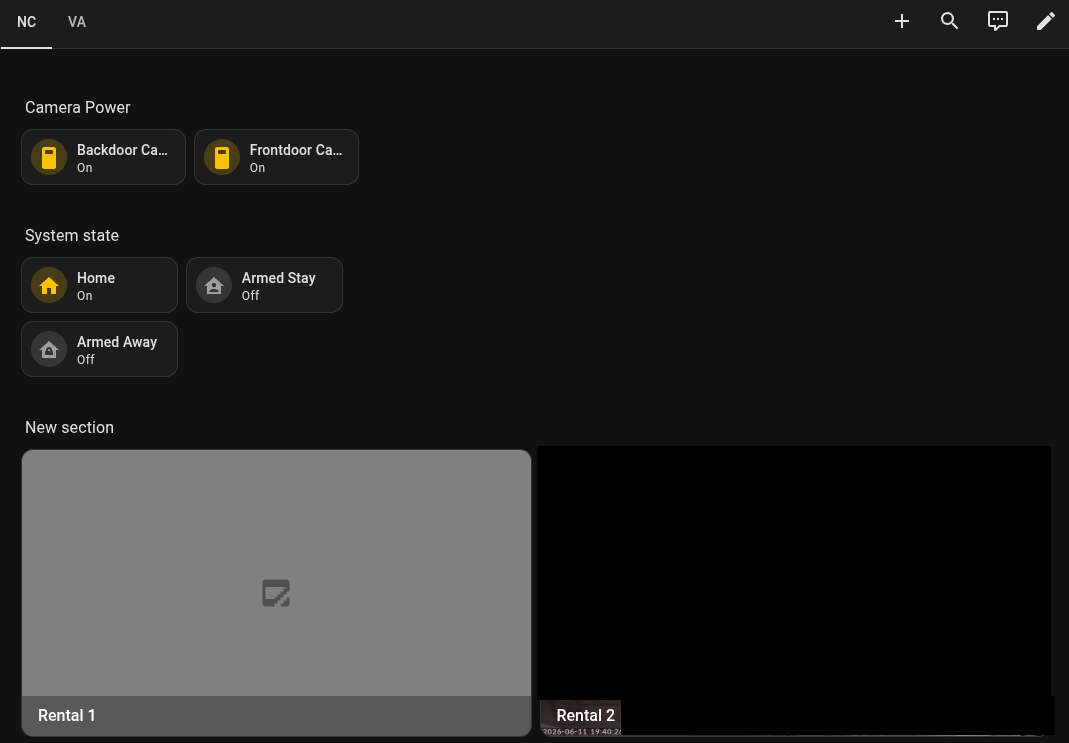

HA as glue w/webhook trigger + Protect Alarm Manager
- Initially tried UniFi Protect Integration
Final Network Setup
Questions?
- Slides: elrey.casa/prez/321-cams
- Blog post: elrey.casa/prez/oss-cams
- Links about (contact) me: elrey.casa/links
- Want more direct comms: ask for Signal username
- https://www.asknoahshow.com/
- https://linuxunplugged.com/tags/frigate
- https://selfhosted.show/tags/frigate
3 cam vendors, 2 houses, and 1 (ish) UI
By elrey741 (Alex)
