A didactic proposal for applying matrix diagonalisation:
Parametrising the intersection of a sphere and plane with the aid of GeoGebra
Work done in collaboration with Bradley Welch
Part 1:
Context and problem formulation
Main Problem: Find the parametrisation of the intersection curve of a sphere and a plane.
- What are the conditions for a sphere and a plane to intersect?
- How can we determine the parametric equations of the intersection curve of these geometric objects?
Part 1: Context and problem formulation
Part 1: Context and problem formulation
- What are the conditions for a sphere and a plane to intersect?
S: (x-x_0)^2+(y-y_0)^2+(z-z_0)^2=R^2
\Pi: Ax+By+Cz=D
Sphere of radius \(R>0,\) centred at \((x_0,y_0,z_0)\):
Plane defined by:
\(A,B\) and \(C\) real constants, not all simultaneaously zero.
Part 1: Context and problem formulation
- What are the conditions for a sphere and a plane to intersect?
S: (x-x_0)^2+(y-y_0)^2+(z-z_0)^2=R^2
\Pi: Ax+By+Cz=D
Let \(\rho\) be the shortest signed distance between the centre of the sphere and the plane.
\rho = \dfrac{Ax_0+By_0+ Cy_0-D}{\sqrt{A^2+B^2+C^2}}
That is,
Part 1: Context and problem formulation
- What are the conditions for a sphere and a plane to intersect?
S: (x-x_0)^2+(y-y_0)^2+(z-z_0)^2=R^2
\Pi: Ax+By+Cz=D
\rho = \dfrac{Ax_0+By_0+ Cy_0-D}{\sqrt{A^2+B^2+C^2}}
We can set the following cases for the intersection \(\Pi\cap S\):

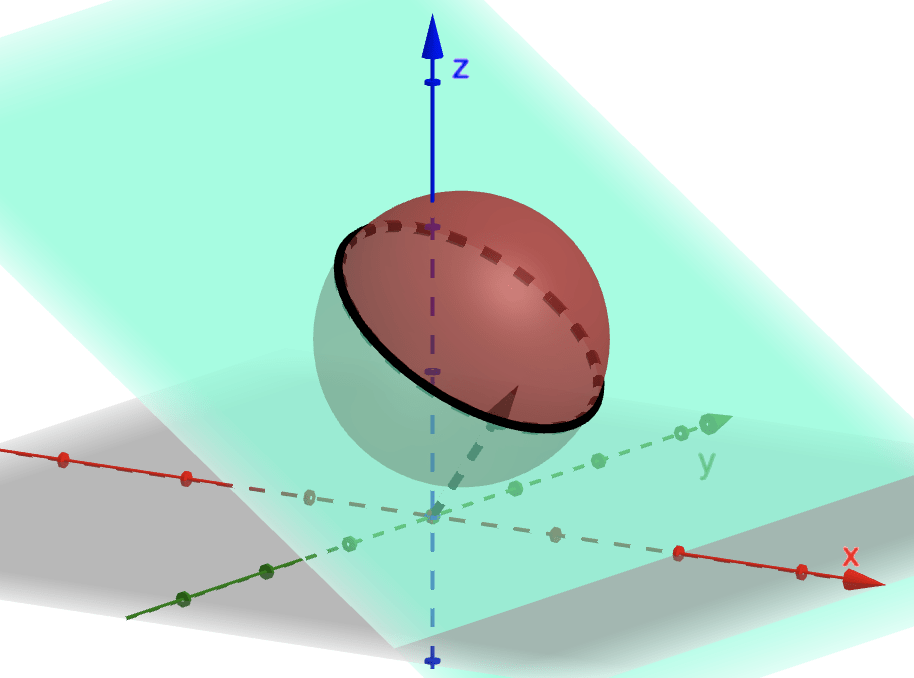

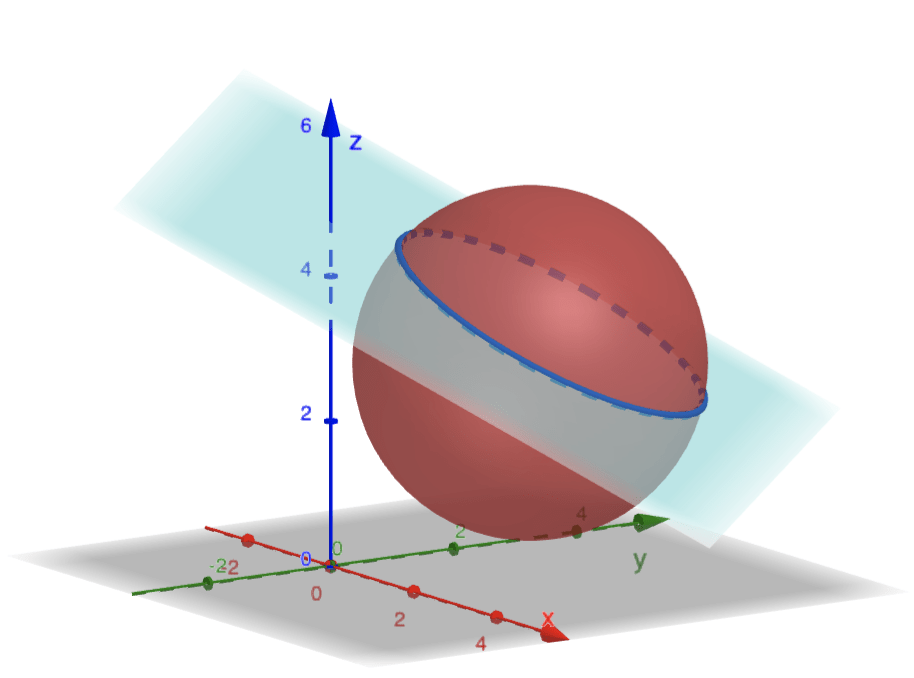

1. If \(|\rho|<R,\) then \(\Pi\cap S\) is a circle.

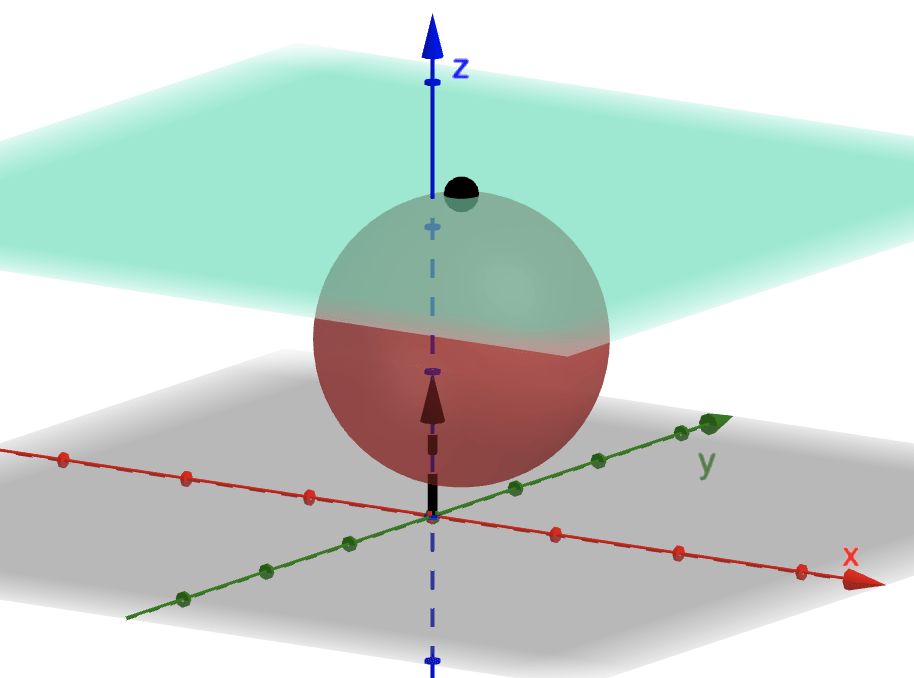

2. If \(|\rho|=R,\) then \(\Pi\cap S\) is a point.

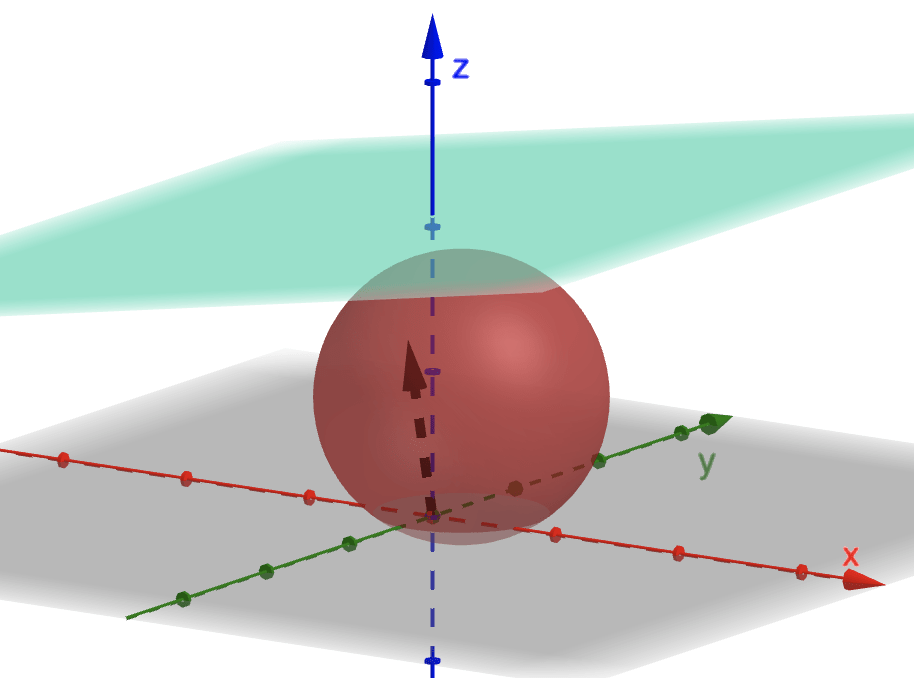

3. If \(|\rho|>R,\) then \(\Pi\cap S\) is a empty.
Part 1: Context and problem formulation
- What are the conditions for a sphere and a plane to intersect?
Part 1: Context and problem formulation
Find the parametrisation of the intersection curve of a sphere and a plane.
X=\left(x_c,y_c,z_c\right)+\left(C_1 \cos(t)+ C_2\sin(t), C_3 \cos(t)+ C_4\sin(t), C_5\sin(t)\right)
\left\{
\begin{array}{l}
x=C_1 \cos(t)+ C_2\sin(t)+x_c\\
y= C_3 \cos(t)+ C_4\sin(t)+y_c\\
z=C_5\sin(t)+z_c
\end{array}
\right.
or

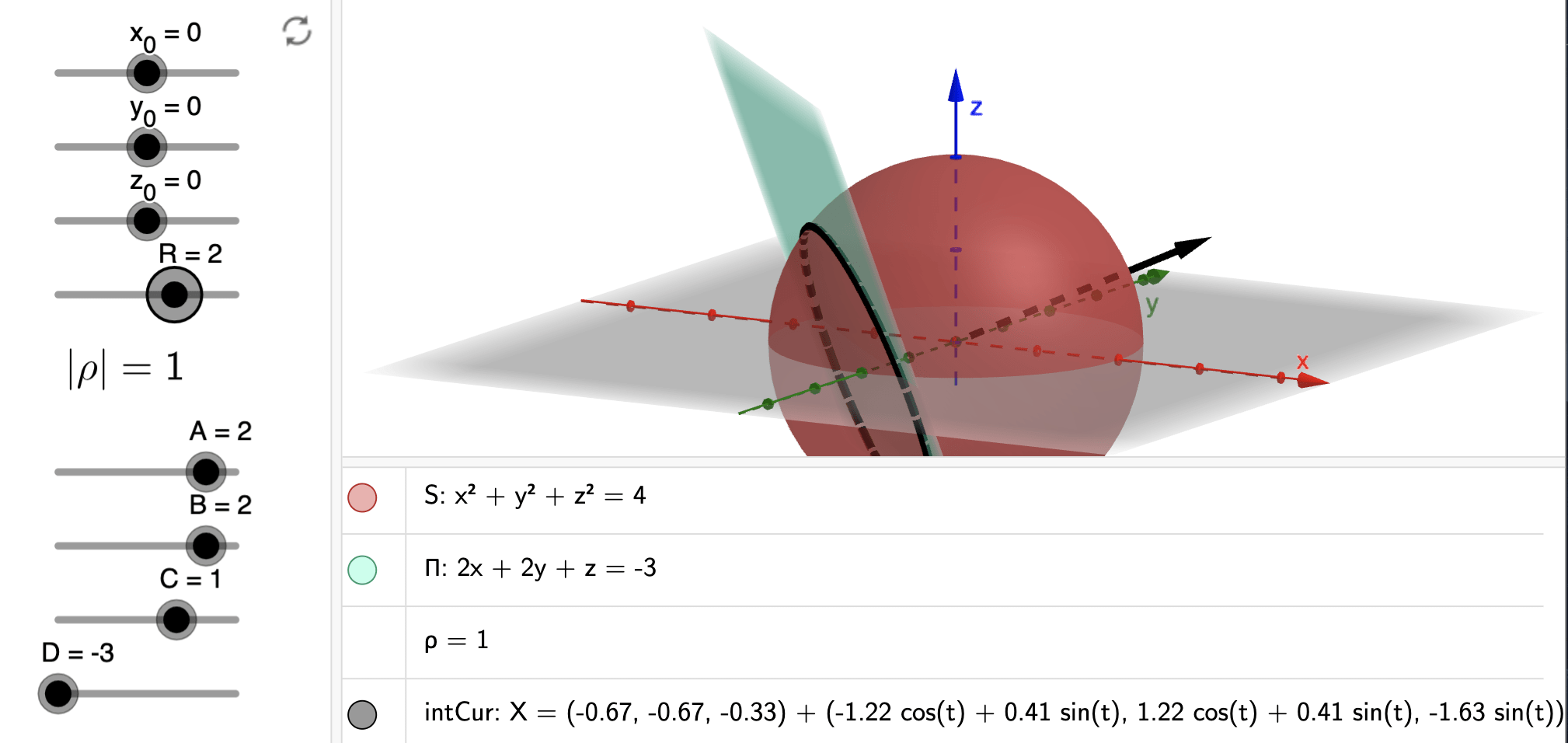

Conjecture: The solution provided by Geogebra takes the general vector form given as
The dynamic exploration in GeoGebra with different semiotic representations provides some clues to solve our main problem:
Part 1: Context and problem formulation
\left\{
\begin{array}{l}
x=C_1 \cos(t)+ C_2\sin(t)+x_c\\
y= C_3 \cos(t)+ C_4\sin(t)+y_c\\
z=C_5\sin(t)+z_c
\end{array}
\right.
- But how does GeoGebra compute this parametrisation?
- What are the mathematical concepts or relationships necessary to determine the values for the constants \(C_k, \;x_c, y_c, z_c\)?
Conjecture: The solution provided by Geogebra takes the general vector form given as
Part 2: Learning trajectory
Part 2: Learning trajectory

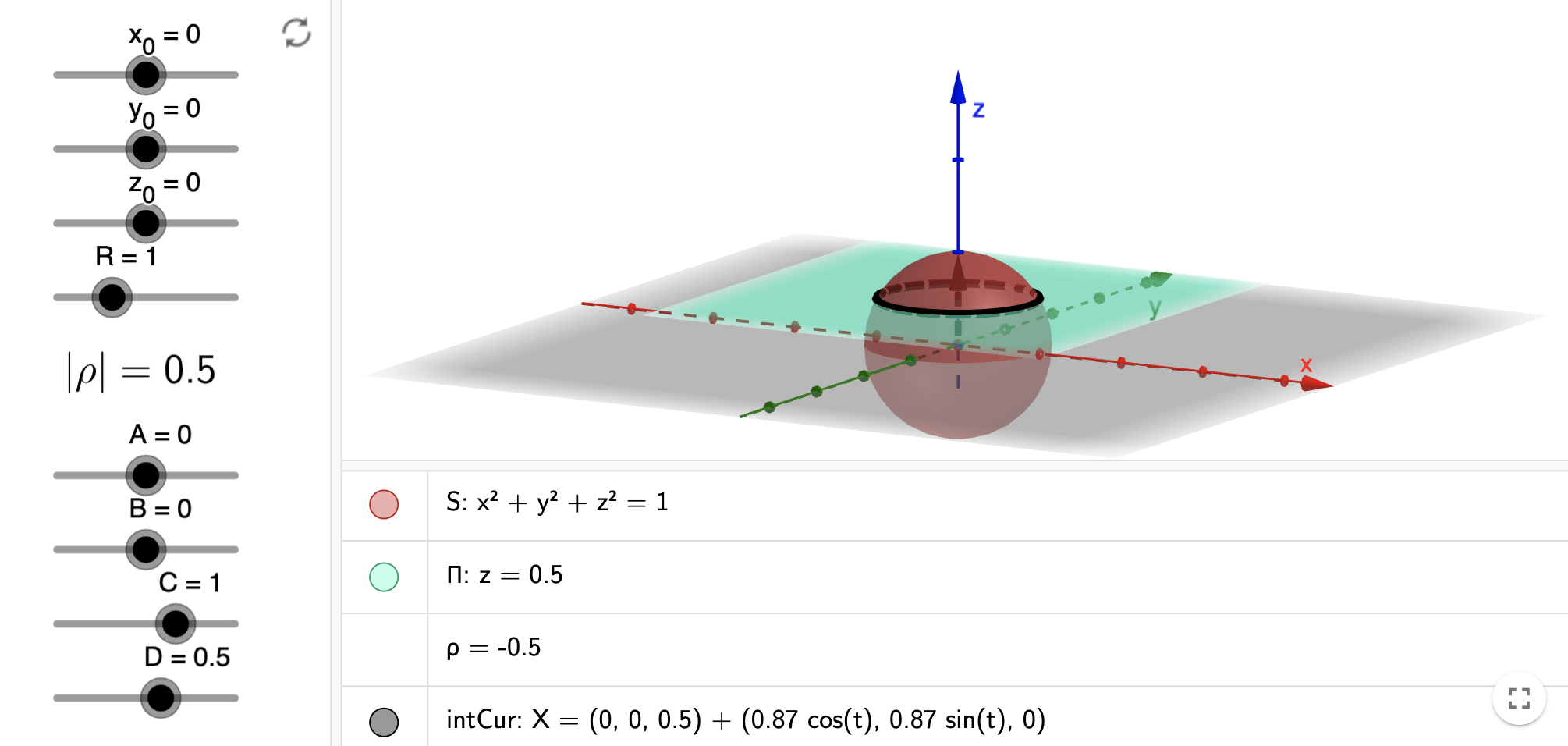

Problem 1: Find the parametric equation of the curve obtained by intersecting the sphere \(S:x^2 +y^2 +z^2 =1\) and the plane \(\Pi:z= \dfrac{1}{2}.\)
Find the parametrisation of the intersection curve of a sphere and a plane.
Before solving the general problem:
Let's try to relax the conditions and solve the simplest case:
Part 2: Learning trajectory
Problem 1: Find the parametric equation of the curve obtained by intersecting the sphere \(S:x^2 +y^2 +z^2 =1\) and the plane \(\Pi:z= \dfrac{1}{2}.\)
Substitute \(z=\dfrac{1}{2}\) in the equation of the sphere:
\(x^2+y^2+\left(\dfrac{1}{2}\right)^2=1\)
Using the identity \(\;\cos^2(t)+\sin^2(t)=1\)
\(\Rightarrow\;\dfrac{4}{3}x^2+\dfrac{4}{3}y^2=1\)
\Rightarrow \left\{
\begin{array}{rcl}
x&=&\dfrac{\sqrt{3}}{2}\cos(t) \\
\\
y&=&\dfrac{\sqrt{3}}{2}\sin(t) \\
\\
z&=&\dfrac{1}{2}
\end{array}
\right. \qquad t\in[0, 2\pi].
Part 2: Learning trajectory
\Rightarrow \left\{
\begin{array}{rcl}
x&=&\dfrac{\sqrt{3}}{2} \cos(t) \\
y&=&\dfrac{\sqrt{3}}{2}\sin(t) \\
z&=&\dfrac{1}{2}
\end{array}
\right. \qquad t\in[0, 2\pi].
Part 2: Learning trajectory
\Rightarrow \left\{
\begin{array}{rcl}
x&=&\dfrac{\sqrt{3}}{2} \cos(t) \\
y&=&\dfrac{\sqrt{3}}{2}\sin(t) \\
z&=&\dfrac{1}{2}
\end{array}
\right. \qquad t\in[0, 2\pi].
Part 2: Learning trajectory
Problem 2: Compute the parametric equations of the curve obtained by intersecting the sphere and plane given by
\(S:x^2 +y^2 +z^2 =4\;\) and \(\;\Pi:2x+2y+z=-3,\)
respectively.
Rewrite the plane as \(\;z=-3-2x-2y\)
Then we obtain \(\;x^2+y^2+\left(-3-2-x-2y\right)^2=4\)
That is \(\;5x^2+8xy+5y^2+12x+12y+5=0\)
This is a conic section, also known as a quadratic form in \(\mathbb R^2,\) and can be written in matrix form as
\[\mathbf x^T M \mathbf x+ K \mathbf x+f=0\]
Now let's try a slightly more difficult problem!
Part 2: Learning trajectory
Problem 2: Compute the parametric equations of the curve obtained by intersecting the sphere and plane given by
\(S:x^2 +y^2 +z^2 =4\;\) and \(\;\Pi:2x+2y+z=-3,\)
respectively.
That is \(\;5x^2+8xy+5y^2+12x+12y+5=0\)
Let \(\mathbf{x}=\begin{pmatrix}x\\y\end{pmatrix}.\)
\(\mathbf x^T M \mathbf x+ K \mathbf x+f=0\)
Then we have
\begin{pmatrix}
x & y
\end{pmatrix}
\begin{pmatrix}
5&4\\4&5
\end{pmatrix}
\begin{pmatrix}x\\y
\end{pmatrix}+
\begin{pmatrix}
12&12\end{pmatrix}
\begin{pmatrix}x\\
y
\end{pmatrix}+5=0.
By means of a rotation of the plane about the origin, a translation of the plane, or both, it is possible to represent every conic in a simplified standard, or canonical, form.
Part 2: Learning trajectory
That is \(\;5x^2+8xy+5y^2+12x+12y+5=0\)
\(\mathbf x^T M \mathbf x+ K \mathbf x+f=0\)
By means of a rotation of the plane about the origin, a translation of the plane, or both, it is possible to represent every conic in a simplified standard, or canonical, form.
This process is known as diagonalisation of quadratic forms.
Let \(\mathbf{x}=\begin{pmatrix}x\\y\end{pmatrix}.\)
Then we have
\begin{pmatrix}
x & y
\end{pmatrix}
\begin{pmatrix}
5&4\\4&5
\end{pmatrix}
\begin{pmatrix}x\\y
\end{pmatrix}+
\begin{pmatrix}
12&12\end{pmatrix}
\begin{pmatrix}x\\
y
\end{pmatrix}+5=0.
Problem 2: Compute the parametric equations of the curve obtained by intersecting the sphere and plane given by
\(S:x^2 +y^2 +z^2 =4\;\) and \(\;\Pi:2x+2y+z=-3,\)
respectively.
Part 2: Learning trajectory
That is \(\;5x^2+8xy+5y^2+12x+12y+5=0\)
\(\mathbf x^T M \mathbf x+ K \mathbf x+f=0\)
Let \(\mathbf{x}=\begin{pmatrix}x\\y\end{pmatrix}.\)
Then we have
The diagonalisation process and a change of variables provides the following expression:
9u^2+v^2+12\sqrt{2}u+5=0
the simplified standard form of
Problem 2: Compute the parametric equations of the curve obtained by intersecting the sphere and plane given by
\(S:x^2 +y^2 +z^2 =4\;\) and \(\;\Pi:2x+2y+z=-3,\)
respectively.
\begin{pmatrix}
x & y
\end{pmatrix}
\begin{pmatrix}
5&4\\4&5
\end{pmatrix}
\begin{pmatrix}x\\y
\end{pmatrix}+
\begin{pmatrix}
12&12\end{pmatrix}
\begin{pmatrix}x\\
y
\end{pmatrix}+5=0.
Part 2: Learning trajectory
Using again the identity \(\cos^2(t)+\sin^2(t)=1\) and rewriting everything back with the variables \(x,y\) and \(z;\)
\left\{
\begin{array} {rcl}
x &=&\dfrac{\sqrt{6}}{6}\cos(t)-\dfrac{\sqrt{6}}{2}\sin(t)-\dfrac{2}{3} \\ \\
y &=&\dfrac{\sqrt{6}}{6}\cos(t)+\dfrac{\sqrt{6}}{2}\sin(t)-\dfrac{2}{3} \\ \\
z &=&-\dfrac{2\sqrt{6}}{3}\cos(t)-\dfrac{1}{3}
\end{array}
\right. \qquad t\in[0, 2\pi].
Problem 2: Compute the parametric equations of the curve obtained by intersecting the sphere and plane given by
\(S:x^2 +y^2 +z^2 =4\;\) and \(\;\Pi:2x+2y+z=-3,\)
respectively.
we obtain the solution:
Part 2: Learning trajectory
\left\{
\begin{array} {rcl}
x &=&\dfrac{\sqrt{6}}{6}\cos(t)-\dfrac{\sqrt{6}}{2}\sin(t)-\dfrac{2}{3} \\
y &=&\dfrac{\sqrt{6}}{6}\cos(t)+\dfrac{\sqrt{6}}{2}\sin(t)-\dfrac{2}{3} \\
z &=&-\dfrac{2\sqrt{6}}{3}\cos(t)-\dfrac{1}{3}
\end{array}
\right. \qquad t\in[0, 2\pi].
Part 2: Learning trajectory
Problem 3: Find the parametrisation of the intersection curve of the sphere and plane \[ \left\{ \begin{array} {rl} S: &(x-x_0)^2+(y-y_0)^2+(z-z_0)^2=R^2 \\ \\ \Pi: & Ax+By+Cz=D, \\ \end{array} \right. \] where \(A,B,C\) are not all simultaneously zero.
General problem!
To simplify some calculations, first we translate both objects to the origin: \[ \left\{ \begin{array} {rl} S_0: &x^2+y^2+z^2=R^2 \\ \\ \Pi_0: & A(x+x_0)+B(y+y_0)+C(z+z_0)=D \\ \end{array} \right. \]
Part 2: Learning trajectory
Problem 3: Find the parametrisation of the intersection curve of the sphere and plane \[ \left\{ \begin{array} {rl} S: &(x-x_0)^2+(y-y_0)^2+(z-z_0)^2=R^2 \\ \\ \Pi: & Ax+By+Cz=D, \\ \end{array} \right. \] where \(A,B,C\) are not all simultaneously zero.
Substituing the equation of the plane \(\Pi_0\) into the sphere \(S_0\) yields
\[ \left\{ \begin{array} {rl} S_0: &x^2+y^2+z^2=R^2 \\ \\ \Pi_0: & A(x+x_0)+B(y+y_0)+C(z+z_0)=D \\ \end{array} \right. \]
x^2+y^2+(\alpha_0-\alpha_1x-\alpha_2y -\alpha_3)^2=R^2
\text{where}\quad \alpha_0=\frac{D}{C},
\quad
\alpha_1=\frac{A}{C},
\quad
\alpha_2=\frac{B}{C}
\quad
\text{and}
\quad
\alpha_3=z_0+ \frac{A}{C} x_0 + \frac{B}{C}{y_0}
Part 2: Learning trajectory
Problem 3: Find the parametrisation of the intersection curve of the sphere and plane \[ \left\{ \begin{array} {rl} S: &(x-x_0)^2+(y-y_0)^2+(z-z_0)^2=R^2 \\ \\ \Pi: & Ax+By+Cz=D, \\ \end{array} \right. \] where \(A,B,C\) are not all simultaneously zero.
x^2+y^2+(\alpha_0-\alpha_1x-\alpha_2y -\alpha_3)^2=R^2
This expression is in fact a quadratic form:
\(ax^2+bxy+cy^2+dx+ey+f=0\)
So we can rewrite it as
\(\mathbf{x}^{T} M\mathbf{x}+K\mathbf{x}+f=0\)
Thus we can apply the process of diagonalisation
to obtain the solution of the general problem.
Part 2: Learning trajectory
Problem 3: Find the parametrisation of the intersection curve of the sphere and plane \[ \left\{ \begin{array} {rl} S: &(x-x_0)^2+(y-y_0)^2+(z-z_0)^2=R^2 \\ \\ \Pi: & Ax+By+Cz=D, \\ \end{array} \right. \] where \(A,B,C\) are not all simultaneously zero.
Thus we can apply the process of diagonalisation
to obtain the solution of the general problem.
\left\{
\begin{array} {rcl}
x &=& p_{1,1}u+p_{1,2}v \\ \\
y &=&p_{2,1}u+p_{2,2}v \\ \\
z &=&\alpha_0-\alpha_1x-\alpha_2y -\alpha_3
\end{array}
\right. \quad\quad t\in[0, 2\pi].
+\,x_0
+\,y_0
+\,z_0
Part 3: Final comments
Part 3: Final comments
- The sequence of problems mentioned before can be adapted within a problem-solving learning environment for:
- discussing the geometric properties of the intersection curve of the sphere and plane,
S: (x-x_0)^2+(y-y_0)^2+(z-z_0)^2=R^2
\Pi: Ax+By+Cz=D
\rho = \dfrac{Ax_0+By_0+ Cy_0-D}{\sqrt{A^2+B^2+C^2}}
Part 3: Final comments
- The sequence of problems mentioned before can be adapted within a problem-solving learning environment for:
- discussing the geometric properties of the intersection curve of the sphere and plane,
- establishing mathematical connections, in this case, with the process of diagonalisation of quadratic forms to solve a geometric problem.
S: (x-x_0)^2+(y-y_0)^2+(z-z_0)^2=R^2
\Pi: Ax+By+Cz=D
\rho = \dfrac{Ax_0+By_0+ Cy_0-D}{\sqrt{A^2+B^2+C^2}}
\(\mathbf{x}^{T} M\mathbf{x}+K\mathbf{x}+f=0\)
\left\{
\begin{array} {rcl}
x &=& p_{1,1}u+p_{1,2}v + x_0 \\
y &=&p_{2,1}u+p_{2,2}v + y_0 \\
z &=&\alpha_0-\alpha_1x-\alpha_2y -\alpha_3 + z_0
\end{array}
\right. \\t\in[0, 2\pi].
Part 3: Final comments

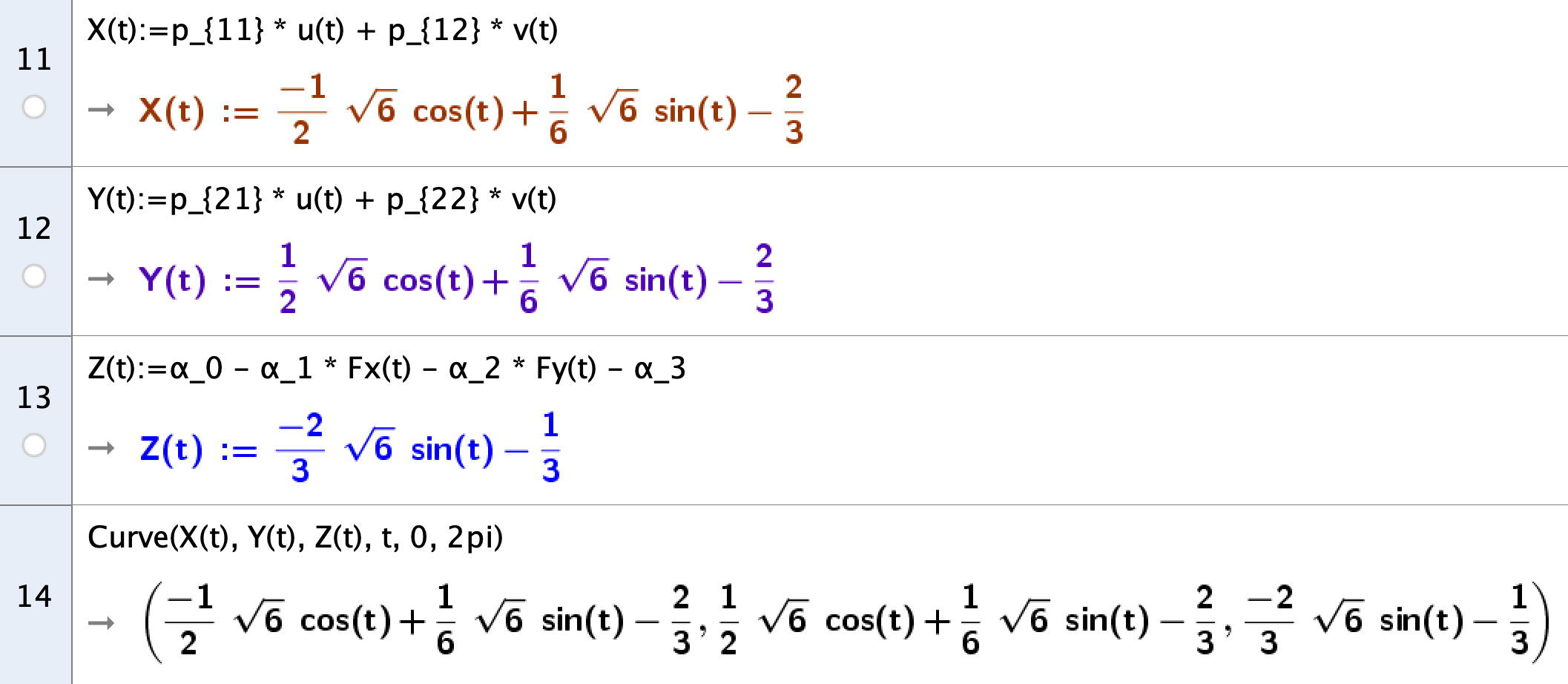

- GeoGebra offers different semiotic representations (e.g. geometric, algebraic, CAS) and a set of affordances for students to explore and model these problems dynamically.
Algebraic view
CAS view
3D view
Part 3: Final comments
- The exploration of these models opens up novel approaches for learners to engage in mathematical thinking since they can generate different representations of a problem to visualise and contrast how numeric, graphic, and algebraic approaches are connected.
Algebraic view
CAS view
3D view
Part 3: Final comments
- Collaboration with Bradley Welch, a UQ student soon to become a senior maths and chemistry teacher.
- Future work: Implement the didactic proposal in the classroom to analise how this can help students to develop their problem-solving skills and create more meaningful mathematical connections.
- The general solution, together with the didactic proposal, has been recently published in the International Journal of Mathematical Education in Science and Technology:
- Welch, B. G. & Ponce Campuzano, J. C. (2023). Applying matrix diagonalisation in the classroom with GeoGebra: parametrising the intersection of a sphere and plane.
- https://doi.org/10.1080/0020739X.2023.2233513
- But how does GeoGebra compute this parametrisation?
- What are the mathematical concepts or relationships necessary to determine the values for the constants \(C_k, \;x_c, y_c, z_c\)?
\left\{
\begin{array}{l}
x=C_1 \cos(t)+ C_2\sin(t)+x_c\\
y= C_3 \cos(t)+ C_4\sin(t)+y_c\\
z=C_5\sin(t)+z_c
\end{array}
\right.
/*
GeoGebra - Dynamic Mathematics for Everyone
http://www.geogebra.org
This file is part of GeoGebra.
This program is free software; you can redistribute it and/or modify it
under the terms of the GNU General Public License as published by
the Free Software Foundation.
*/
/*
* AlgoJoinPointsSegment
*
* Created on 21. August 2003
*/
package org.geogebra.common.geogebra3D.kernel3D.algos;
import org.geogebra.common.geogebra3D.kernel3D.geos.GeoConic3D;
import org.geogebra.common.kernel.Construction;
import org.geogebra.common.kernel.StringTemplate;
import org.geogebra.common.kernel.commands.Commands;
import org.geogebra.common.kernel.geos.GeoElement;
import org.geogebra.common.kernel.kernelND.GeoCoordSys2D;
import org.geogebra.common.kernel.kernelND.GeoQuadricND;
import org.geogebra.common.kernel.matrix.CoordMatrix;
/**
*
* @author ggb3D
*
*/
public class AlgoIntersectPlaneQuadric extends AlgoElement3D {
// inputs
/** plane */
protected GeoCoordSys2D plane;
/** second coord sys */
protected GeoQuadricND quadric;
// output
/** intersection */
protected GeoConic3D conic;
private CoordMatrix cm = new CoordMatrix(3, 3);
private CoordMatrix tmpMatrix = new CoordMatrix(3, 4);
private CoordMatrix parametricMatrix;
/**
* Creates new AlgoIntersectLinePlane
*
* @param cons
* the construction
* @param plane
* plane
* @param quadric
* quadric
* @param addToCons
* whether to add to cons
*/
AlgoIntersectPlaneQuadric(Construction cons, GeoCoordSys2D plane,
GeoQuadricND quadric, boolean addToCons) {
super(cons, addToCons);
this.plane = plane;
this.quadric = quadric;
conic = newConic(cons);
// end
if (addToCons) {
end();
}
}
/**
* Creates new AlgoIntersectLinePlane
*
* @param cons
* the construction
* @param plane
* plane
* @param quadric
* quadric
*/
AlgoIntersectPlaneQuadric(Construction cons, GeoCoordSys2D plane,
GeoQuadricND quadric) {
this(cons, plane, quadric, true);
}
/**
* end of contructor for this algo
*/
protected void end() {
setInputOutput(new GeoElement[] { plane.toGeoElement(), quadric },
new GeoElement[] { conic });
}
/**
*
* @param cons1
* construction
* @return new conic for intersection
*/
protected GeoConic3D newConic(Construction cons1) {
return new GeoConic3D(cons1, true);
}
/**
* return the intersection
*
* @return the intersection
*/
public GeoConic3D getConic() {
return conic;
}
// /////////////////////////////////////////////
// COMPUTE
@Override
public void compute() {
conic.setCoordSys(plane.getCoordSys());
if (!quadric.isDefined() || !plane.isDefined()) {
conic.setUndefined();
return;
}
intersectPlaneQuadric(plane, quadric, conic);
}
private void intersectPlaneQuadric(GeoCoordSys2D inputPlane,
GeoQuadricND inputQuad, GeoConic3D outputConic) {
if (parametricMatrix == null) {
parametricMatrix = new CoordMatrix(4, 3);
}
CoordMatrix qm = inputQuad.getSymetricMatrix();
CoordMatrix pm = inputPlane.getCoordSys()
.getParametricMatrix(parametricMatrix);
// sets the conic matrix from plane and quadric matrix
cm.setMul(tmpMatrix.setMulT1(pm, qm), pm);
outputConic.setCoordSys(inputPlane.getCoordSys());
outputConic.setMatrix(cm);
}
@Override
public Commands getClassName() {
return Commands.IntersectPath;
}
@Override
final public String toString(StringTemplate tpl) {
StringBuilder sb = new StringBuilder();
sb.append(getLoc().getPlain("IntersectionCurveOfAB",
plane.getLabel(tpl), quadric.getLabel(tpl)));
return sb.toString();
}
}We need to study the source code of GeoGebra, which is written in Java.
For example this:
- Future work: Investigate more in depth the source code of GeoGebra
Matrix diagonalisation
By Juan Carlos Ponce Campuzano
Matrix diagonalisation
A didactic proposal for applying matrix diagonalisation: parametrising the intersection of a sphere and plane with the aid of GeoGebra
