Symplectic integrators for classical spin systems
Klas Modin
Joint work with
Robert McLachlan
Massey University
Olivier Verdier
Western Norway University
Outline
- Symplectic integrators on R2n
- Slightly dissipative systems
- Spherical midpoint method
Illustration

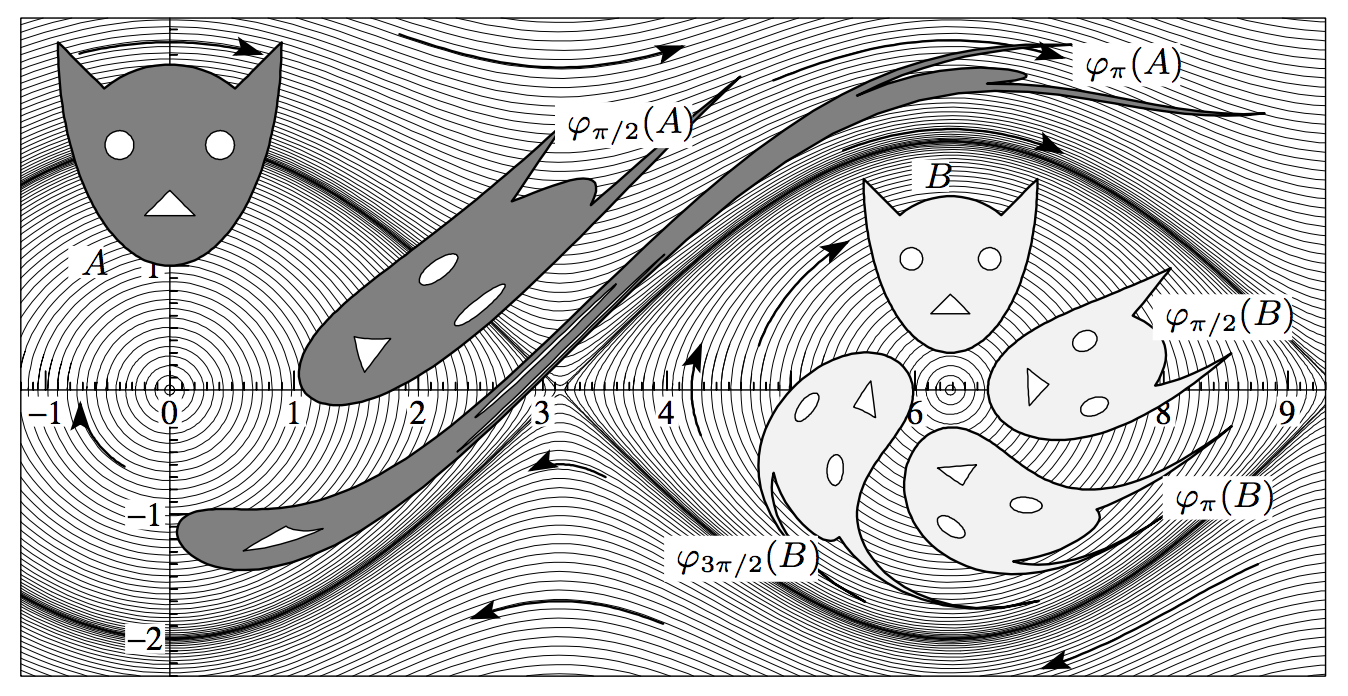

- Non-linear pendulum H(q,p)=p2/2−cos(q)
q˙=p,p˙=−sin(q)
\dot q = p, \quad \dot p = - \sin(q)
q
q
p
p
Illustration
- Non-linear pendulum H(q,p)=p2/2−cos(q)
q˙=p,p˙=−sin(q)
\dot q = p, \quad \dot p = - \sin(q)
Illustration
- Non-linear pendulum H(q,p)=p2/2−cos(q)
q˙=p,p˙=−sin(q)
\dot q = p, \quad \dot p = - \sin(q)
Why?
Hamiltonian dynamics on co-tangent bundles
Phase space T∗Q
Simplest case T∗Rn≃R2n
q˙i=∂pi∂H(q1,…,qn,p1,…,pn)
\displaystyle\dot q^i = \frac{\partial H}{\partial p_i}(q^1,\ldots,q^n,p_1,\ldots,p_n)
p˙i=−∂qi∂H(q1,…,qn,p1,…,pn)
\displaystyle\dot p_i = -\frac{\partial H}{\partial q^i}(q^1,\ldots,q^n,p_1,\ldots,p_n)
Typical examples: celestial mechanics, molecular dynamics
\mathbf{z}=(q,p) \;\Rightarrow\; \dot \mathbf{z} = X_H(\mathbf{z})
Symplectic property of the flow
Symplectic 2-form:
Ω=dqi∧dpi
\Omega = dq^i\wedge dp_i
On R2n:
Ωz(U,V)=U⊤(0In×n−In×n0)V
\displaystyle\Omega_z(U,V) = U^\top \begin{pmatrix} 0 & -I_{n\times n} \\ I_{n\times n} & 0 \end{pmatrix} V
Hamiltonian vector fields fulfill (defining property)
Ωz(XH,⋅)=dH
\Omega_z(X_H,\cdot) = d H
Ωz(XH,XG)={H,G}(z)
\Omega_z(X_H,X_G) = \{H,G \}(z)
Flow φt preserves the symplectic form:
Ωφt(z)(Dφt(z)⋅U,Dφt(z)⋅V)=Ωz(U,V)
\Omega_{\varphi_t(z)}(D\varphi_t(z)\cdot U,D\varphi_t(z)\cdot V) = \Omega_z(U,V)
Geometric interpretation: the "symplectic area" of 2D surfaces in phase space are preserved
Consequences of symplecticness
This explains why symplectic integrators are superior!
- "Almost" conservation of tori for Hamiltonian perturbations of integrable systems (KAM theory)
- Convergence towards correct macroscopic equilibrium (e.g. temperature in MD)
Common symplectic integrators on R2n
- Verlet scheme (many names: Leap-frog, Störmer-Verlet, symmetric splitting, Strang splitting, etc) for H(q,p)=T(p)+V(q)
q(k+1)=q(k)+h∇T(p(k+1/2))
\displaystyle q^{(k+1)} = q^{(k)} + h \nabla T(p^{(k+1/2)})
p(k+1/2)=p(k)−2h∇V(q(k))
\displaystyle p^{(k+1/2)} = p^{(k)} - \frac{h}{2} \nabla V(q^{(k)})
p(k+1)=p(k+1/2)−2h∇V(q(k+1))
\displaystyle p^{(k+1)} = p^{(k+1/2)} - \frac{h}{2} \nabla V(q^{(k+1)})
- Midpoint method
z(k+1)=z(k)+hXH(2z(k+1)+z(k))
\displaystyle z^{(k+1)} = z^{(k)} + h X_H\left(\frac{z^{(k+1)}+z^{(k)}}{2} \right)
Slightly dissipative systems

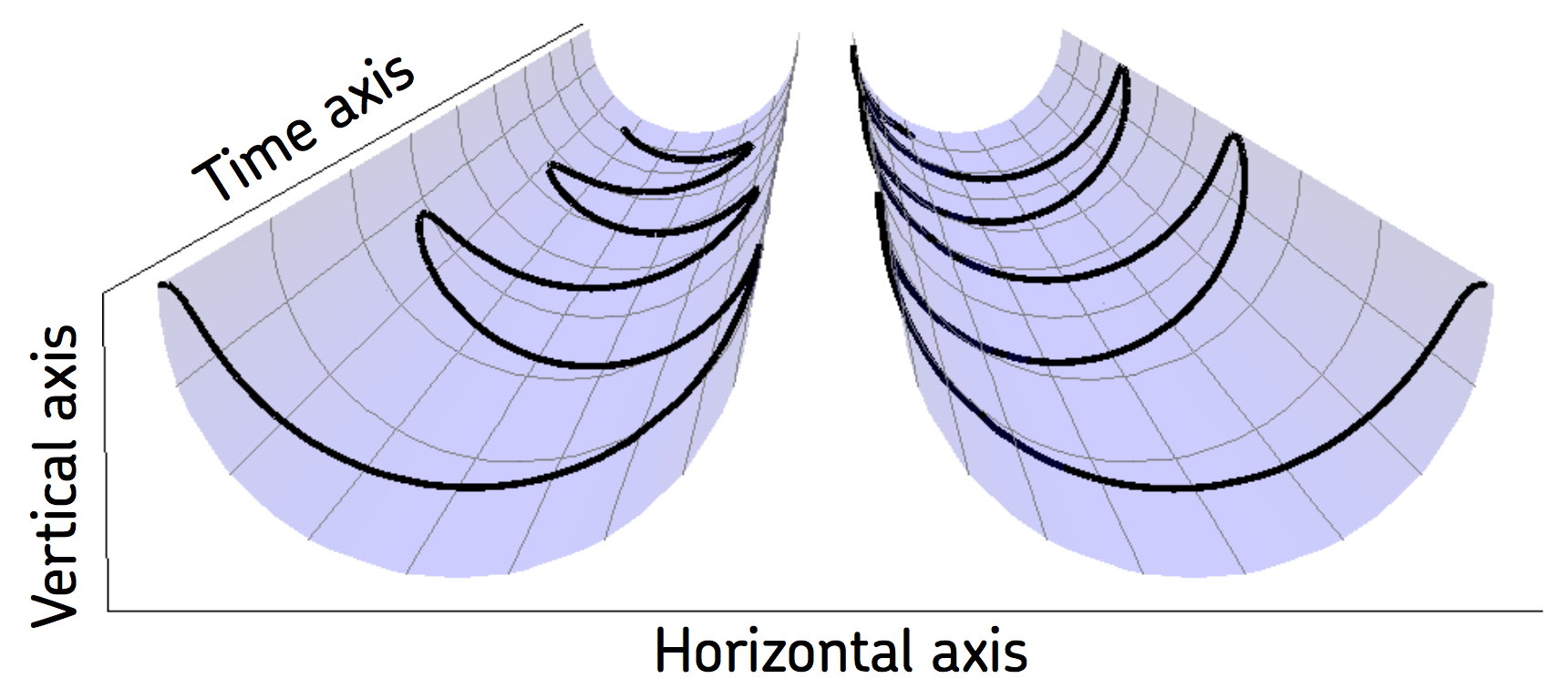

- Elastic 3D pendulum
q˙=mp,p˙=−k(1−∣q∣ℓ)q+mg
\displaystyle\dot q = \frac{p}{m}, \quad \dot p = -k\left(1-\frac{\ell}{|q|} \right)q + mg
−ε∣q∣2qq⊤p
\displaystyle -\;\varepsilon \frac{qq^\top p}{|q|^2}
Slightly dissipative systems
- Elastic 3D pendulum
q˙=mp,p˙=−k(1−∣q∣ℓ)q+mg
\displaystyle\dot q = \frac{p}{m}, \quad \dot p = -k\left(1-\frac{\ell}{|q|} \right)q + mg
−ε∣q∣2qq⊤p
\displaystyle -\;\varepsilon \frac{qq^\top p}{|q|^2}
non-symplectic
symplectic
Slightly dissipative systems
- Elastic 3D pendulum
q˙=mp,p˙=−k(1−∣q∣ℓ)q+mg
\displaystyle\dot q = \frac{p}{m}, \quad \dot p = -k\left(1-\frac{\ell}{|q|} \right)q + mg
−ε∣q∣2qq⊤p
\displaystyle -\;\varepsilon \frac{qq^\top p}{|q|^2}

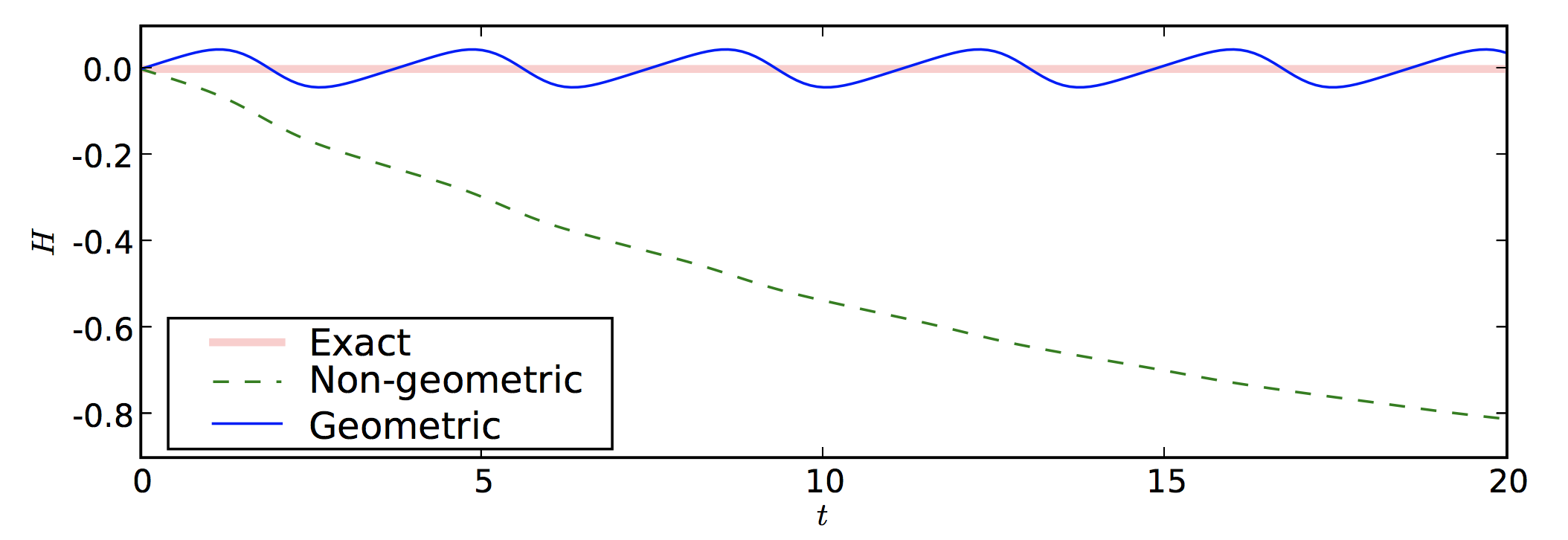

Energy behaviour
Classical spin systems
w˙i=wi×∂wi∂H
\displaystyle \dot w_i = w_i\times \frac{\partial H}{\partial w_i}
Phase space (S2)n
Symplectic structure on S2 Ωw(u,v)=det(w,u,v)
+⋯+
+\cdots +
Motivation for spin systems
-
Abundance in physics
(e.g. atomistic spin dynamics)
-
Simplest Kähler manifold
-
Simplest coadjoint orbit
-
Simplest inexact symplectic form
Some example spin systems

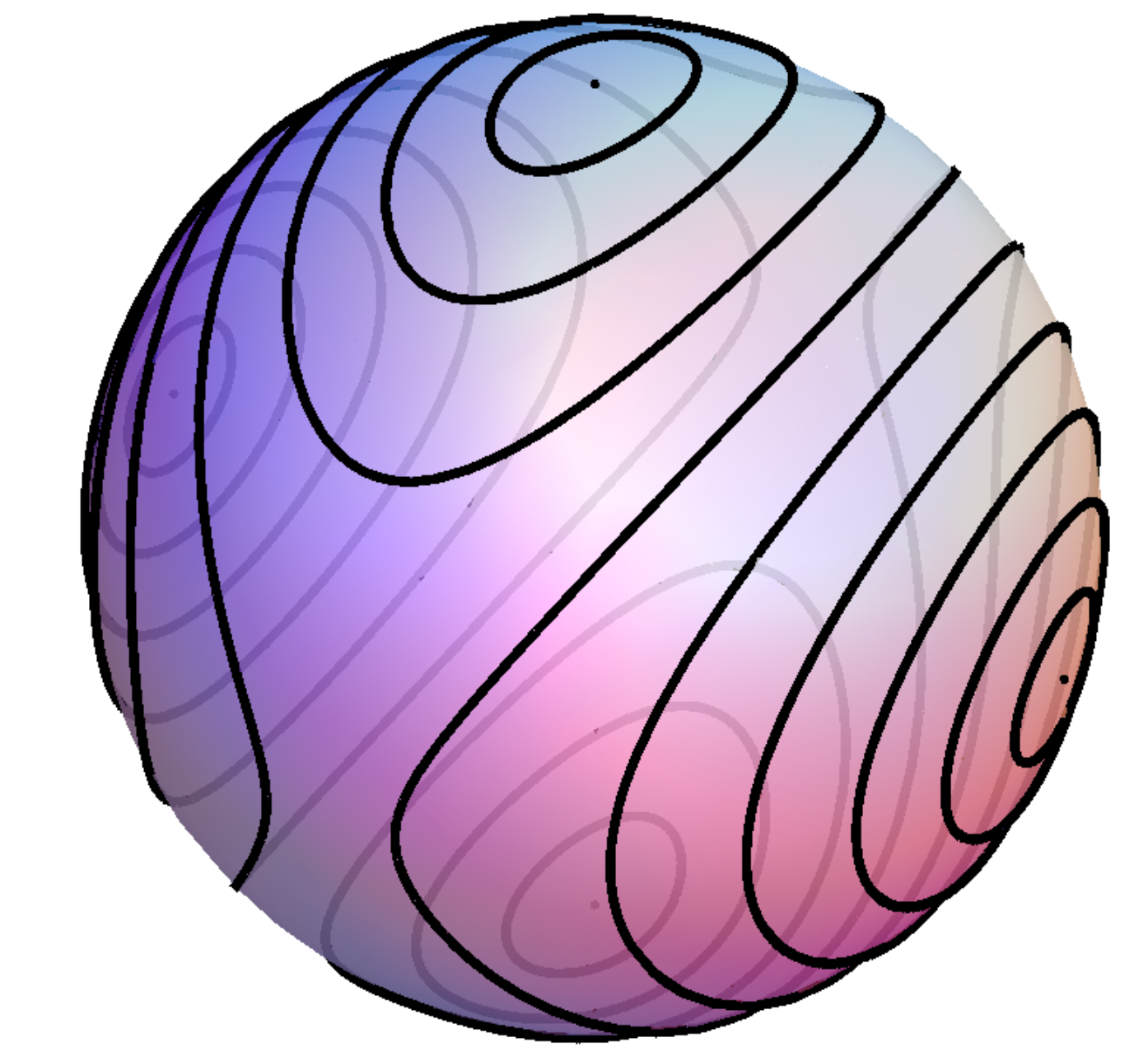

Free rigid body w˙=w×I−1w
Heisenberg spin chain
(discrete Landau-Lifshitz) w˙i=wi×(wi−1+wi+1)
Fluid particle tracking on sphere w˙=ξ(t,w),ξ(t,⋅)∈Xμ(S2)
Point vortex dynamics on spheres
(Jupiter's great red spot)
Known symplectic integrators
- Splitting methods
- S2 coadjoint orbit of reduced system on T∗SU(2)
RATTLE ⇒ 9 variables
Variational Lie ⇒ 8 variables
- Collective symplectic integrator
⇒ 4 variables
T∗SU(2)
T^*SU(2)
su(2)∗
\mathfrak{su}(2)^*
Drawbacks: many auxiliary variables, complicated, large error constants
Minimum variables (=3)
and symplectic?
- Classical midpoint method on R3
- Riemannian midpoint method on S2
⇒ not symplectic
⇒ not symplectic
Candidates:
Spherical midpoint method
hWi−wi=∣Wi+wi∣Wi+wi×∂wi∂H(∣W1+w1∣W1+w1,…,∣Wn+wn∣Wn+wn)
\displaystyle\frac{W_i - w_i}{h} = \frac{W_i+w_i}{|W_i+w_i|}\times \frac{\partial H}{\partial w_i}\left(\frac{W_1+w_1}{|W_1+w_1|},\ldots,\frac{W_n+w_n}{|W_n+w_n|} \right)
Main result
- Second order
- Equivariant w.r.t. SO(3)n
- Symplectic
- Preserves single-spin quadratic invariants
- Self-adjoint
S3≃
S^3 \simeq

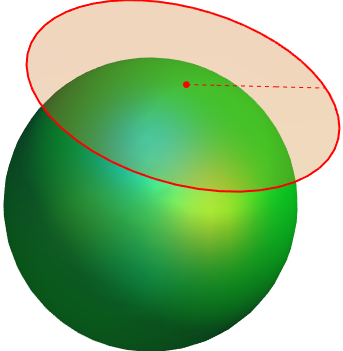

Hopf fibration
S2
S^2
π
\pi

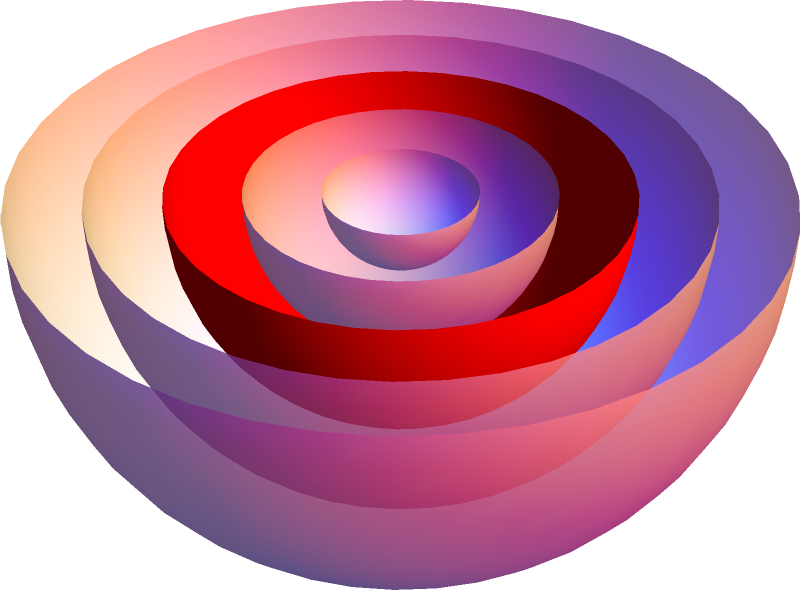

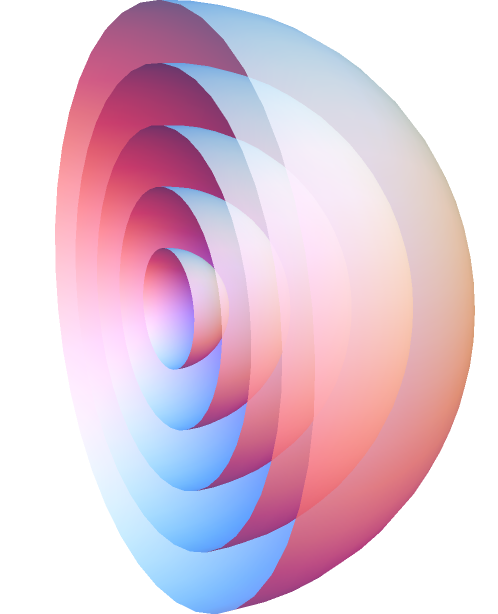

Extended Hopf fibration
R∗3
\mathbb{R}^3_*
π
\pi
T∗R∗2
T^*\mathbb{R}^2_*
π
\pi
Classical
midpoint
Riemannian
midpoint
Simple interpretation
hW−w=∣W+w∣W+w×∂w∂H(∣W+w∣W+w)
\displaystyle\frac{W - w}{h} = \frac{W+w}{|W+w|}\times \frac{\partial H}{\partial w}\left(\frac{W+w}{|W+w|} \right)
XH(w)=w×∂w∂H(w)
\displaystyle X_H(w) = w\times \frac{\partial H}{\partial w}(w)
⇒W−w=hXH(∣W+w∣W+w)
\displaystyle \Rightarrow W-w = h X_H\left(\frac{W+w}{|W+w|}\right)
XˉH(w)=XH(∣w∣w)
\displaystyle \bar X_H(w) = X_H\left(\frac{w}{|w|} \right)
⇒W−w=hXˉH(2W+w)
\displaystyle \Rightarrow W-w = h \bar X_H\left(\frac{W+w}{2}\right)
Classical midpoint method applied to XˉH

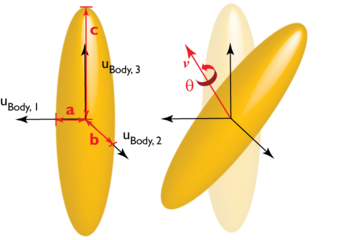

Example 1: free rigid body
w˙=w×I−1w
\dot w = w \times I^{-1}w
Example 2: irreversible rigid body
H(w)=21w⋅I(w)−1w
H(w)= \frac{1}{2} w\cdot I(w)^{-1}w
Example 3: development of chaos
H(w)=21w⋅I−1w+εsin(t)w1
H(w)= \frac{1}{2} w\cdot I^{-1}w + \varepsilon \sin(t)w^1
Example 4: Landau-Lifshitz PDE
w˙=w×w′′,w:R×S1→S2
\dot w = w\times w'', \qquad w\colon \mathbf{R}\times S^1 \to S^2
Example 5: atomistic spin dynamics ???
THANKS!
References:
Symplectic integrators for spin systems, Phys. Rev. E, 89:061301, 2014
A minimal-variable symplectic integrator on spheres, Math. Comp., 86, 2325-2344, 2016
Geometry of discrete-time spin systems, J. Nonlin. Sci., 26(5):1507-1523, 2016
*slides at slides.com/kmodin
Symplectic integrators for classical spin systems Klas Modin
Symplectic integrators for classical spin systems
By Klas Modin
Symplectic integrators for classical spin systems
Presentation given 2017-12 to physicists in Uppsala.
