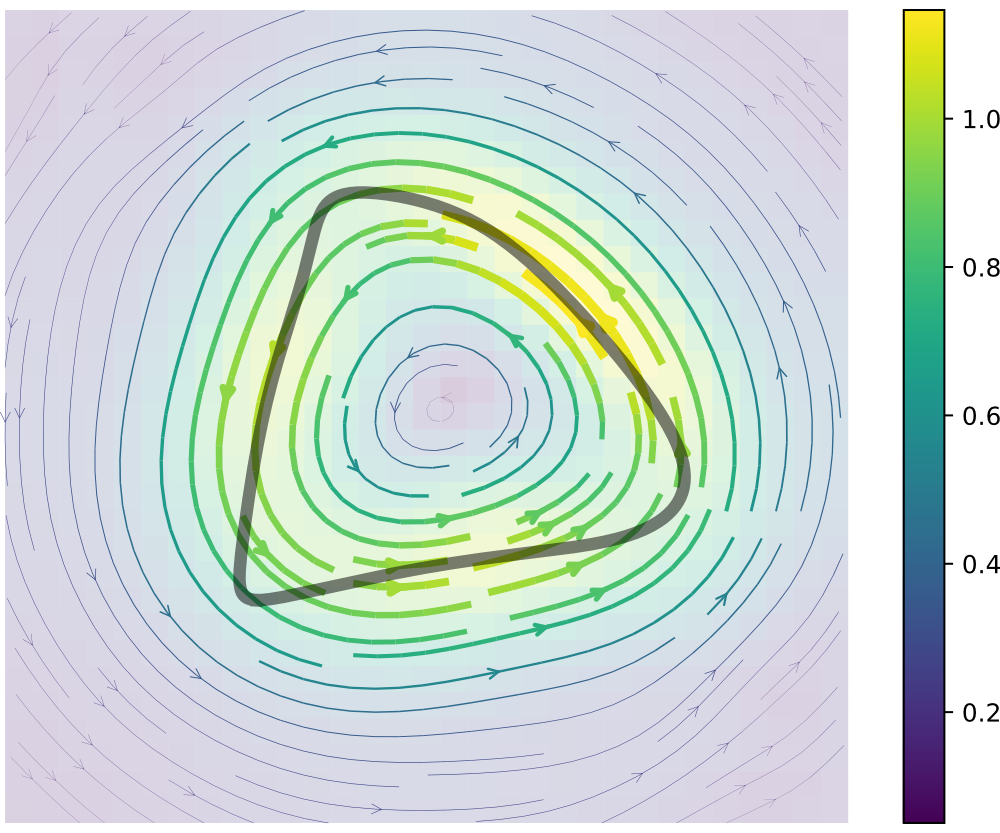

Illustrating example

Source

Target

Q: What is a 'shape' ?

A: Anything diffeomorphisms act on

Basic idea

Riemannian geometry on
manifold of diffeomorphisms
Variational problem $\Rightarrow$ PDEs

Distance between shapes =

shortest diffeomorphic warp

from source to target

History of shape analysis

Shape

analysis

Optimal transport

Information theory

Hydrodynamics

Non-linear Schrödinger eq.

Probability theory

Shallow water equations

Numerical analysis of PDE

Fluids and optimal transport

\mathrm{Diff}(M)

\mathrm{Diff}(M)

\mathrm{P}(M)

\mathrm{P}(M)

\mathrm{Id}

\mathrm{Id}

\mu

\mu

\nu

\nu

\pi(\varphi)=\varphi_*\mu

\pi(\varphi)=\varphi_*\mu

Riemannian metric

\displaystyle\mathcal{G}_\varphi(\dot\varphi,\dot\varphi) = \int_{M}\left\vert \dot\varphi \right\vert^2 \mu

\displaystyle\mathcal{G}_\varphi(\dot\varphi,\dot\varphi) = \int_{M}\left\vert \dot\varphi \right\vert^2 \mu

Induces metric

\overline{\mathcal{G}}_\mu(\dot\mu,\dot\mu) \Rightarrow d_W^2(\mu_0,\mu_1)

\overline{\mathcal{G}}_\mu(\dot\mu,\dot\mu) \Rightarrow d_W^2(\mu_0,\mu_1)

\mathrm{Hor}

\mathrm{Hor}

[Arnold (1966), Benamou & Brenier (2000), Otto (2001)]

Invariance: $\eta\in\mathrm{Diff}_{\mu}(M)$

\displaystyle\mathcal{G}_\varphi(\dot\varphi,\dot\varphi) = \mathcal{G}_{\varphi\circ\eta}(\dot\varphi\circ\eta,\dot\varphi\circ\eta)

\displaystyle\mathcal{G}_\varphi(\dot\varphi,\dot\varphi) = \mathcal{G}_{\varphi\circ\eta}(\dot\varphi\circ\eta,\dot\varphi\circ\eta)

Exactly $L^2$ -Wasserstein distance

\mathrm{Diff}_\mu(M)

\mathrm{Diff}_\mu(M)

\mathrm{Ver}

\mathrm{Ver}

Geodesic equation on $T\mathrm{Diff}_\mu/\mathrm{Diff}_\mu \simeq \mathcal{X}_{\mu}$
$\dot v + \nabla_v v = -\nabla p$

Geodesic equation on $T^*(\mathrm{Diff}/\mathrm{Diff}_\mu) \simeq T^*\mathrm{P}$
$\dot S + \frac{1}{2}|\nabla S| = 0 \quad \dot\rho + \mathrm{div}(\rho\nabla S) = 0$

$v=\nabla S$
