1.  About American Linear Lighting

2.  Our Team

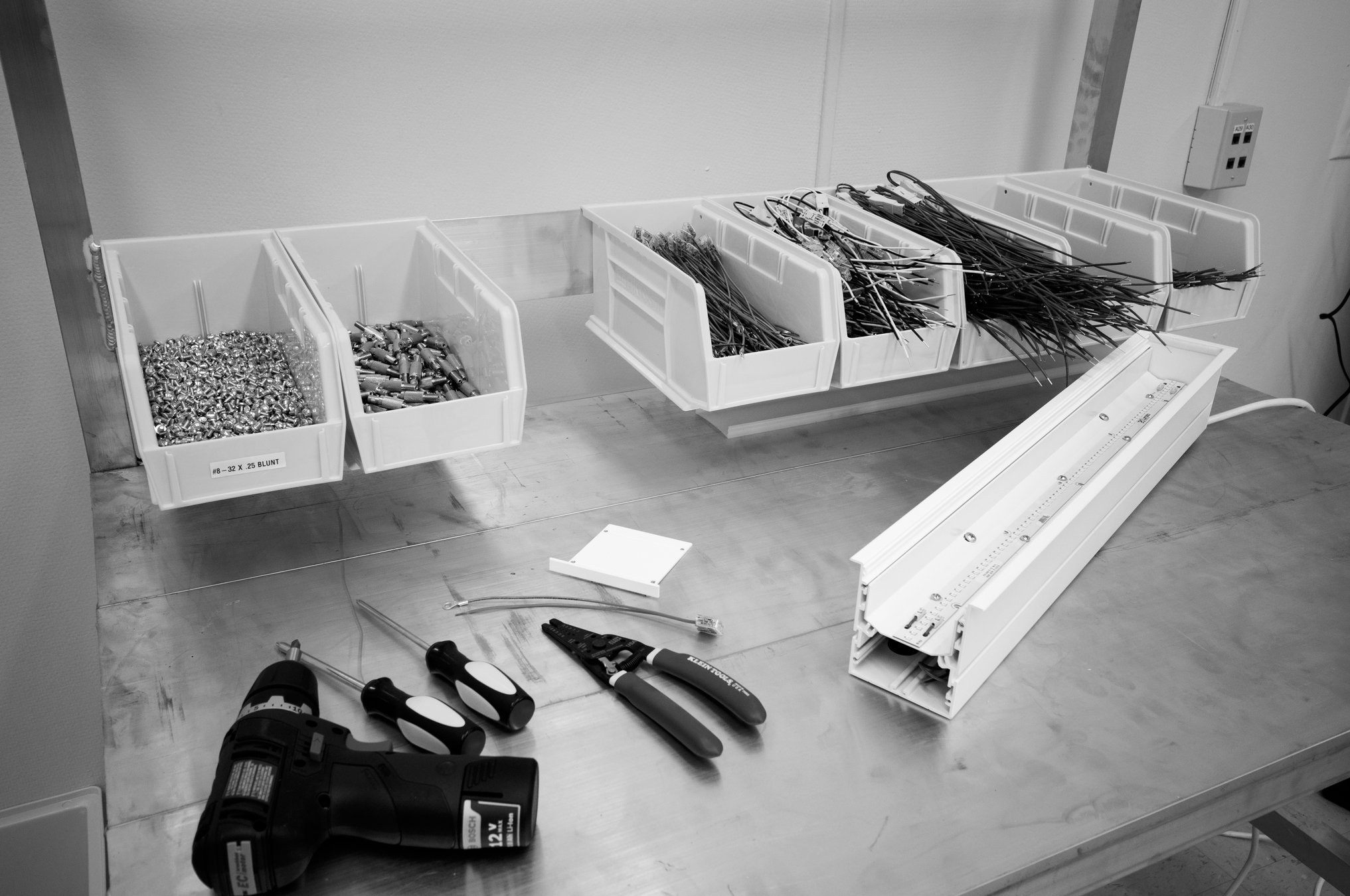

3.  Manufacturing

4.  Linear Express

•  Products

•  Components

•  Fixture Row Components

•  Field Selectability

A SERVICE BY

5.  Agency Resources

6.  Next-Day Shipping Terms & Conditions

Value Engineered Linear

A.L.L. focuses on bridging the gap between architectural appeal and affordability.

A SERVICE BY

Sales

Houston Office

Address

14701 Saint Mary's Lane

Suite 625

Houston, Texas 77079

Hours

Mon - Fri | 9AM - 5PM CST

Sat - Sun | Closed

Office Phone

832.230.3165

Denver Office

Address

702 W. 48th Avenue

Unit G

Denver, Colorado 80216

Hours

Mon - Fri | 8AM - 5PM MST

Sat - Sun | Closed

Office Phone

720.923.3100

A SERVICE BY

General Contact

Quotes

quotes@AmericanLinearLighting.com

Orders

orders@AmericanLinearLighting.com

Note: When Emailing an Order Request,
Please Type "Linear Express" into the Subject Line

Al Aylsworth

Vice President of Sales & Marketing

C 678.551.0751

al@AmericanLinearLighting.com

Ryan Kornblatt

Regional Sales Manager

C 201.710.0016

ryan@AmericanLinearLighting.com

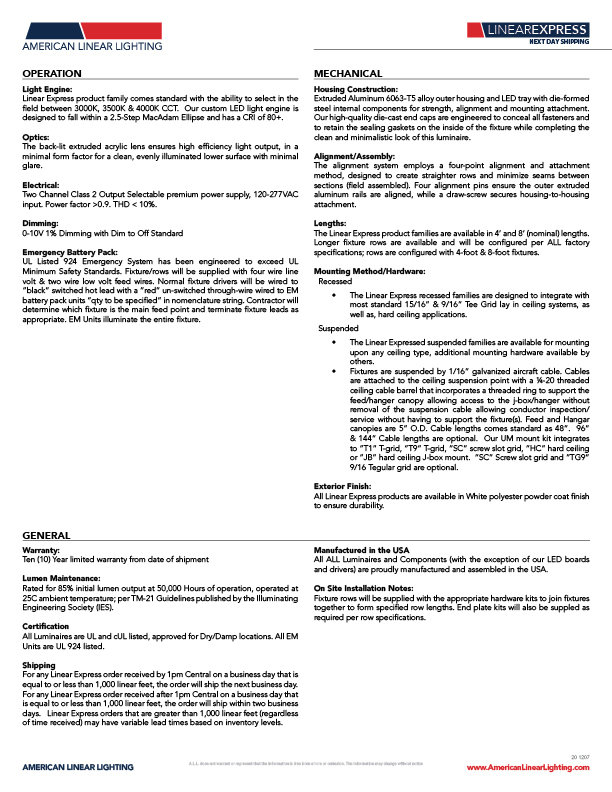

Process & Standards

- 10-Year Warranty

- All Aluminum Housing

- Manufactured in the USA

•  All ALL Luminaires and Components (with the exception of our LED boards     and drivers) are proudly manufactured and assembled in the USA.

- Optics

- Exterior Finish

- Light Engine

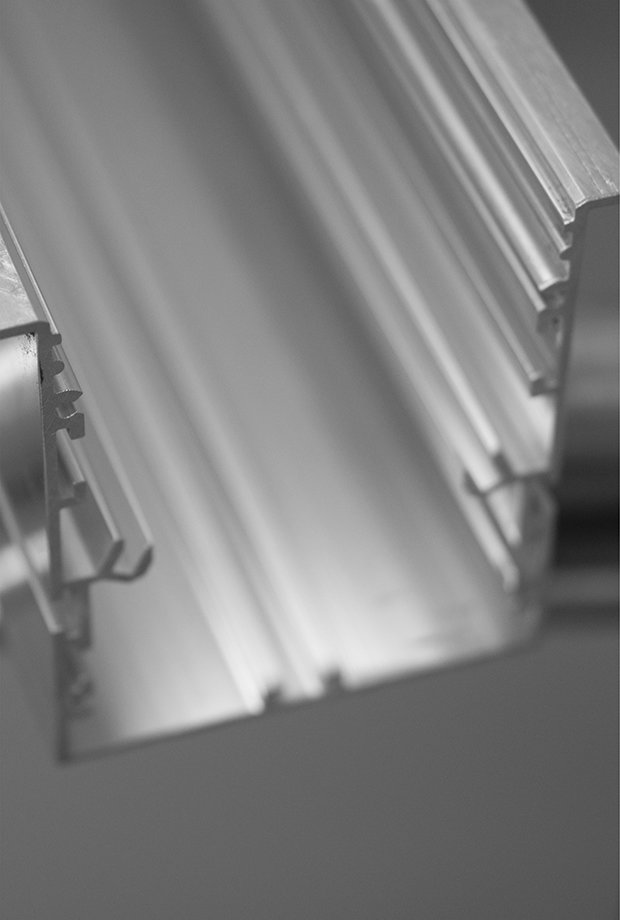

•  Extruded Aluminum Alloy Outer Housing

•  LED Tray with Die-Formed Steel Internal Components

•  Polyester Powder Coat Finish for Durability

•  3000K - 3500K - 4000K CCT

•  Standard 80+ CRI

•  Back-lit Extruded Acrylic Lens for High Efficiency Light Output

A SERVICE BY

A SERVICE BY

Field Connectable

Long Runs

•  Four-Point Alignment & Attachment Method for Straighter Rows & Minimizing Seams

•  Four Alignment Pins Ensures Outer Extruded Aluminum Rails are Aligned

•  Draw-Screw Secures Housing-to-Housing Attachment

•  Available in 4-foot & 8-foot Nominal Lengths

•  Longer Fixture Rows Available & Configured with 4-foot & 8-foot Fixtures

Low Profile Housing

•  3.5" Profile

Energy Efficient

•  Up to 120.5 Lumens Per Watt

Dimming

120/277VAC 0-10V 1% Dimming With Dim to Off Standard

A SERVICE BY

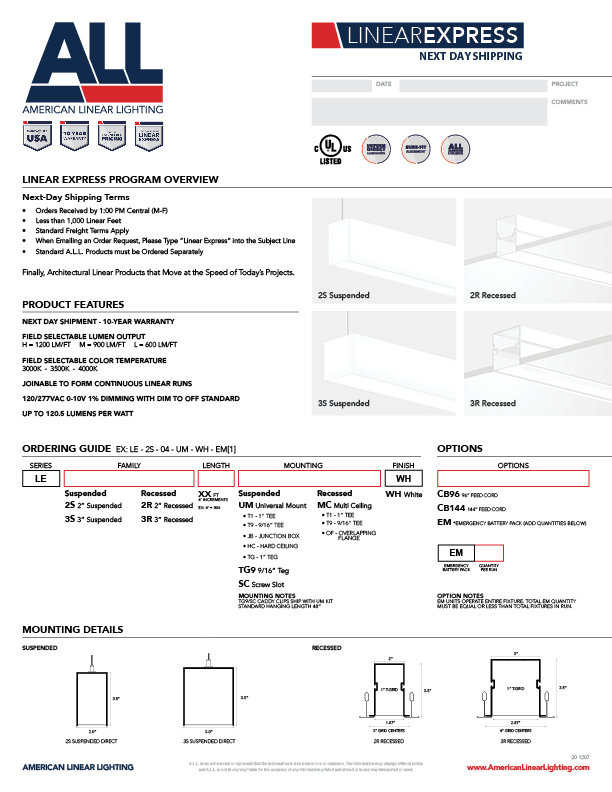

ORDERING GUIDE

EX: LE - 2S - 04 - UM - WH - EM[1]

SERIES

FAMILY

LENGTH

MOUNTING

FINISH

LE

WH

Suspended

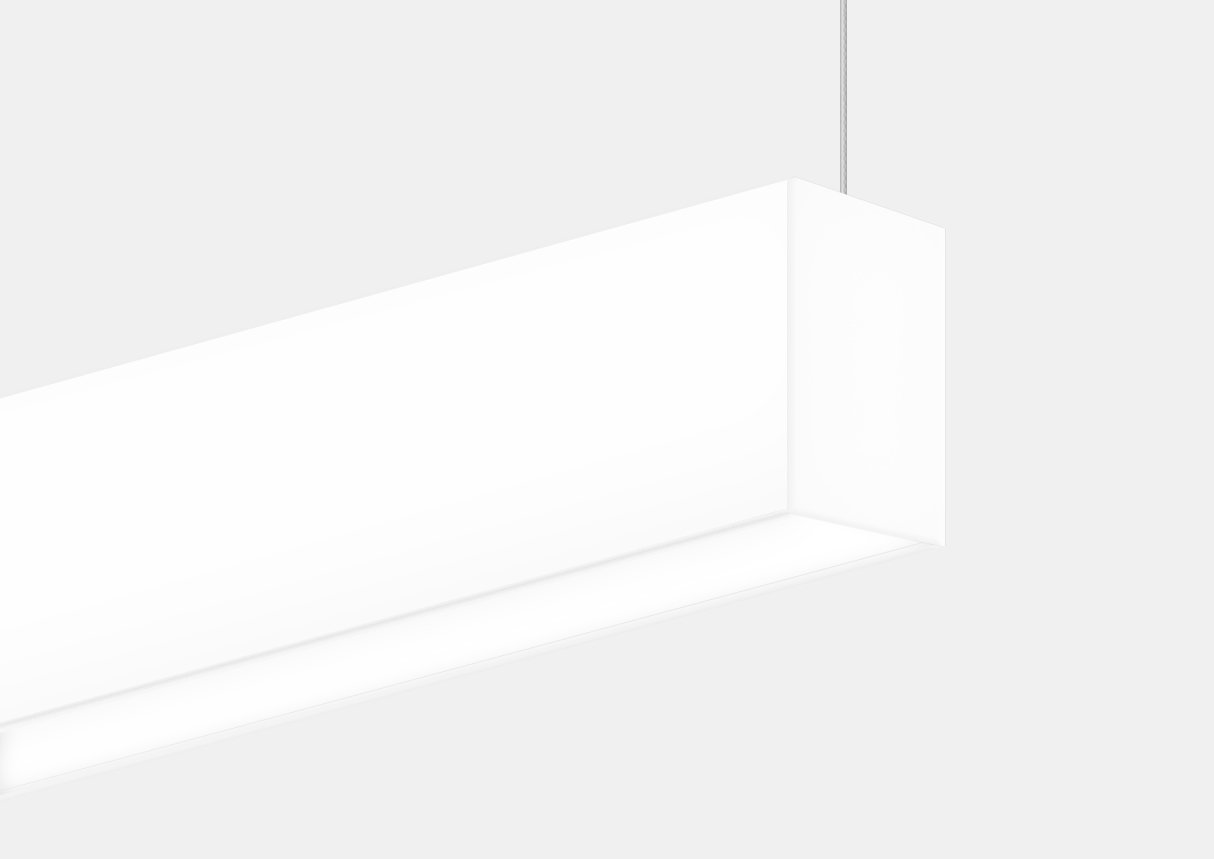

2S 2" Suspended

3S 3" Suspended

Recessed

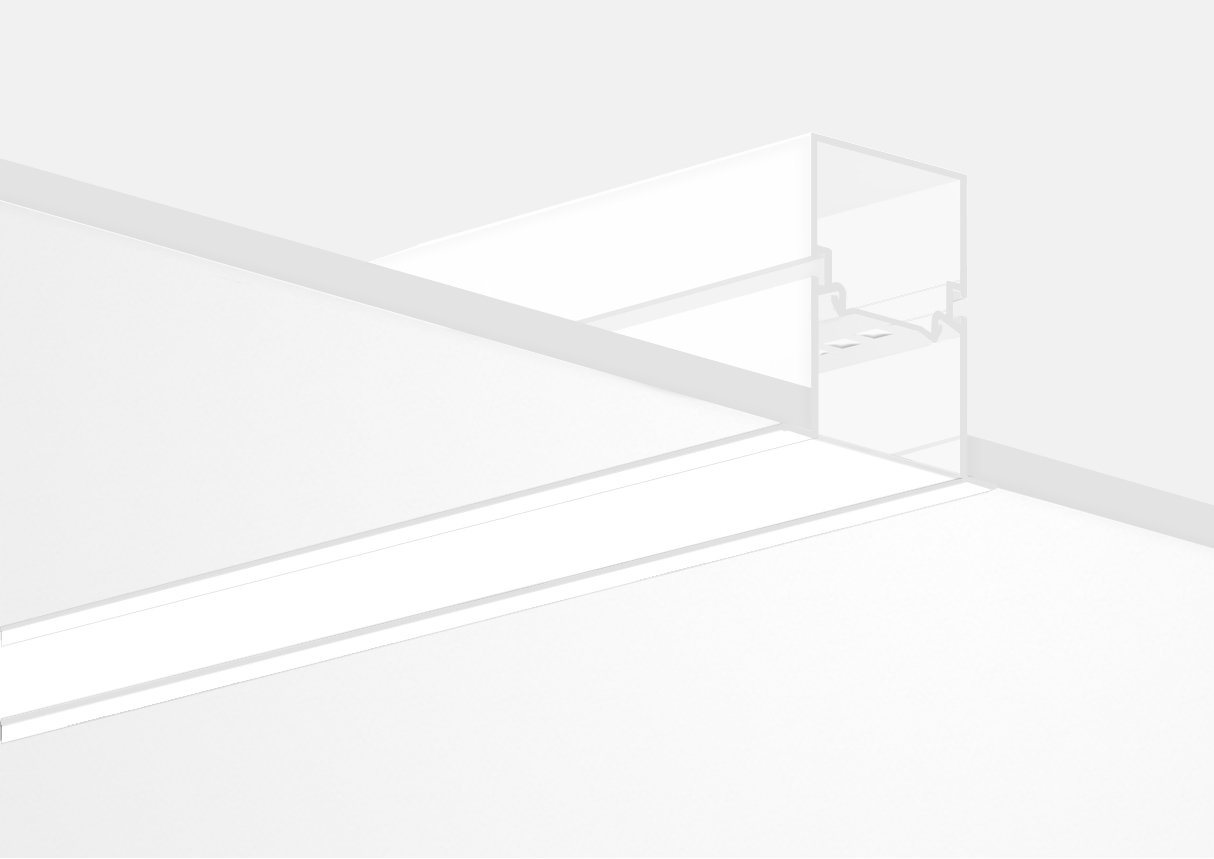

2R 2" Recessed

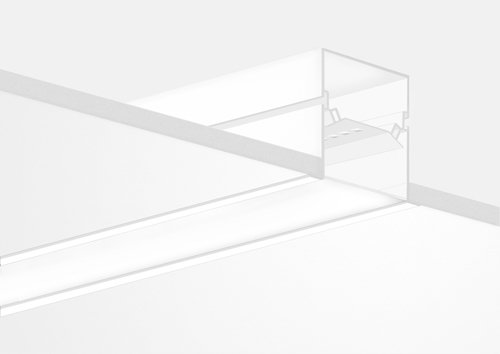

3R 3" Recessed

XX FT

4' Increments

Suspended

UM Universal Mount

Recessed

MC Multi Ceiling

WH White

OPTIONS

OPTIONS

CB96 96" Feed Cord

CB144 144" Feed Cord

EM *Emergency Battery Pack

EM

EMERGENCY BATTERY PACK

QUANTITY PER RUN

2R RECESSED

3R RECESSED

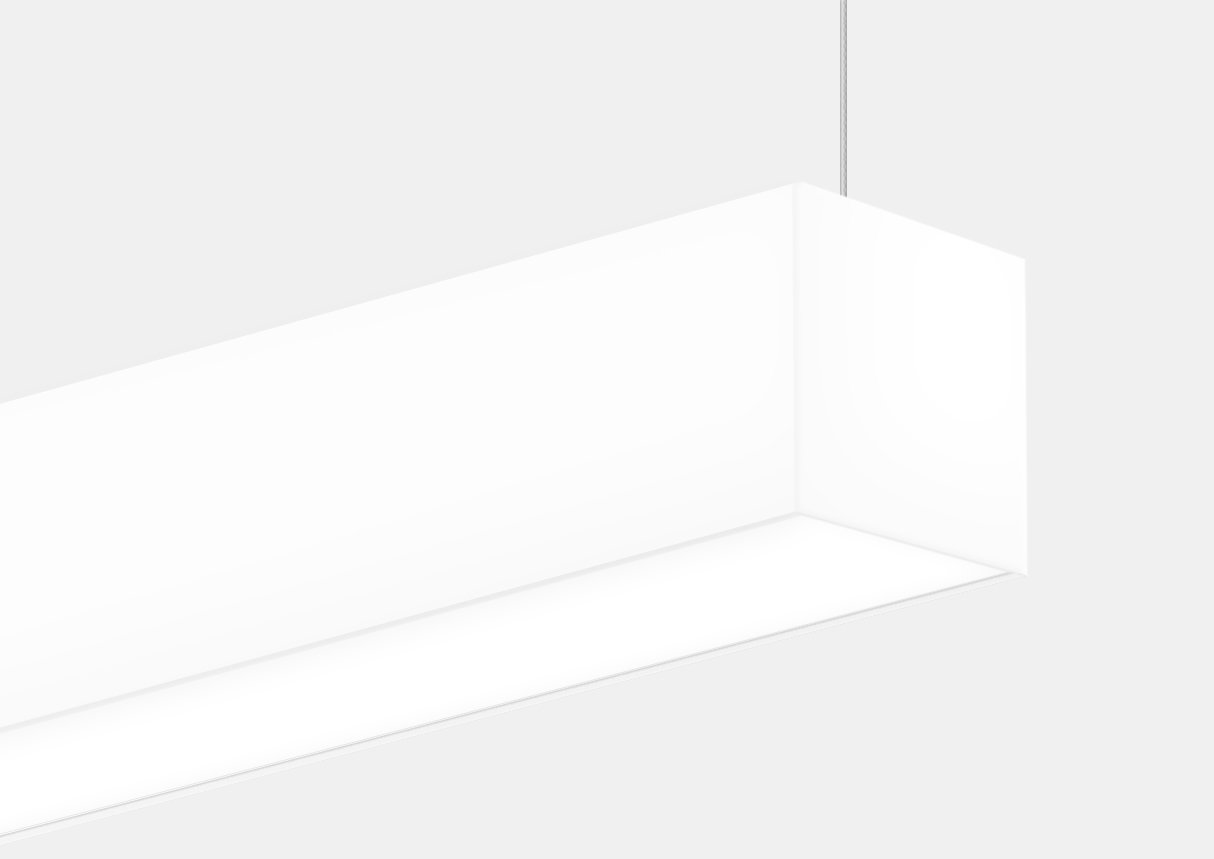

2S SUSPENDED

3S SUSPENDED

TG 1" Teg

TG9 9/16" Tee

SC Screw Slot

•  T1 - 1" TEE

•  T9 - 9/16" TEE

•  JB - JUNCTION BOX

•  HC - HARD CEILING

•  T1 - 1" TEE

•  T9 - 9/16" TEE

•  OF - OVERLAPPING                      FLANGE

A SERVICE BY

Kit Options

Suspended Options

Recessed Options

•  End Cap Kit

•  Joint Kit

•  Feeder Kit

•  Hanger Kit

•  Extended End Cap Kit

•  Joint Kit

A SERVICE BY

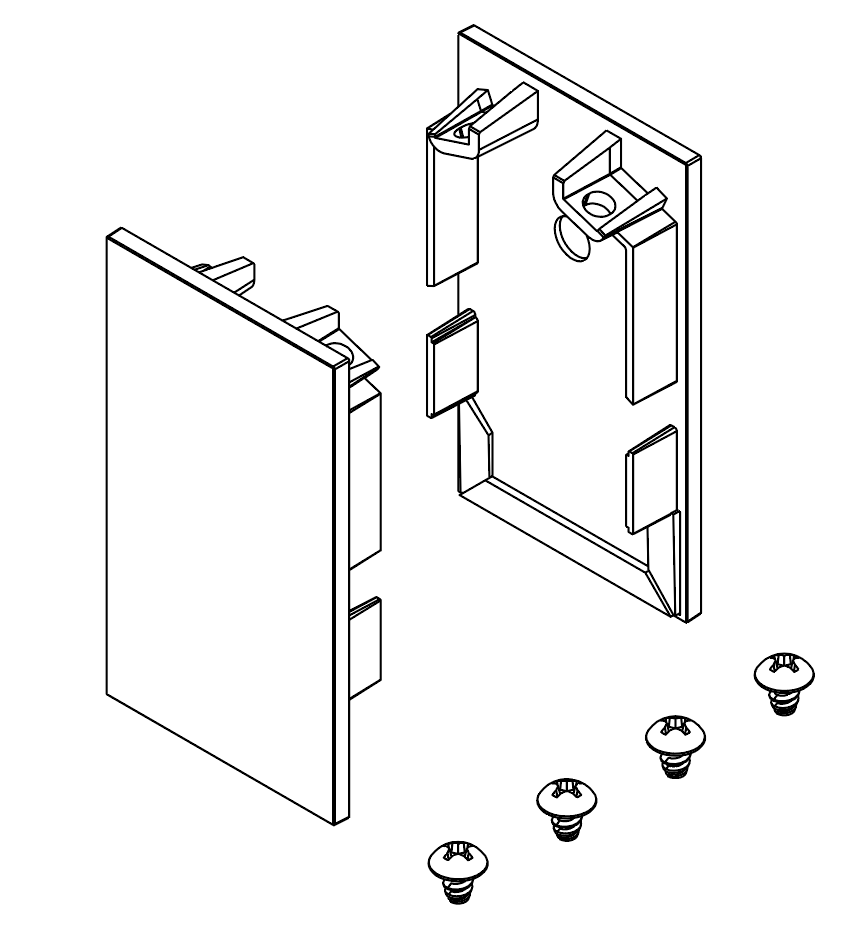

SUSPENDED END CAP KIT

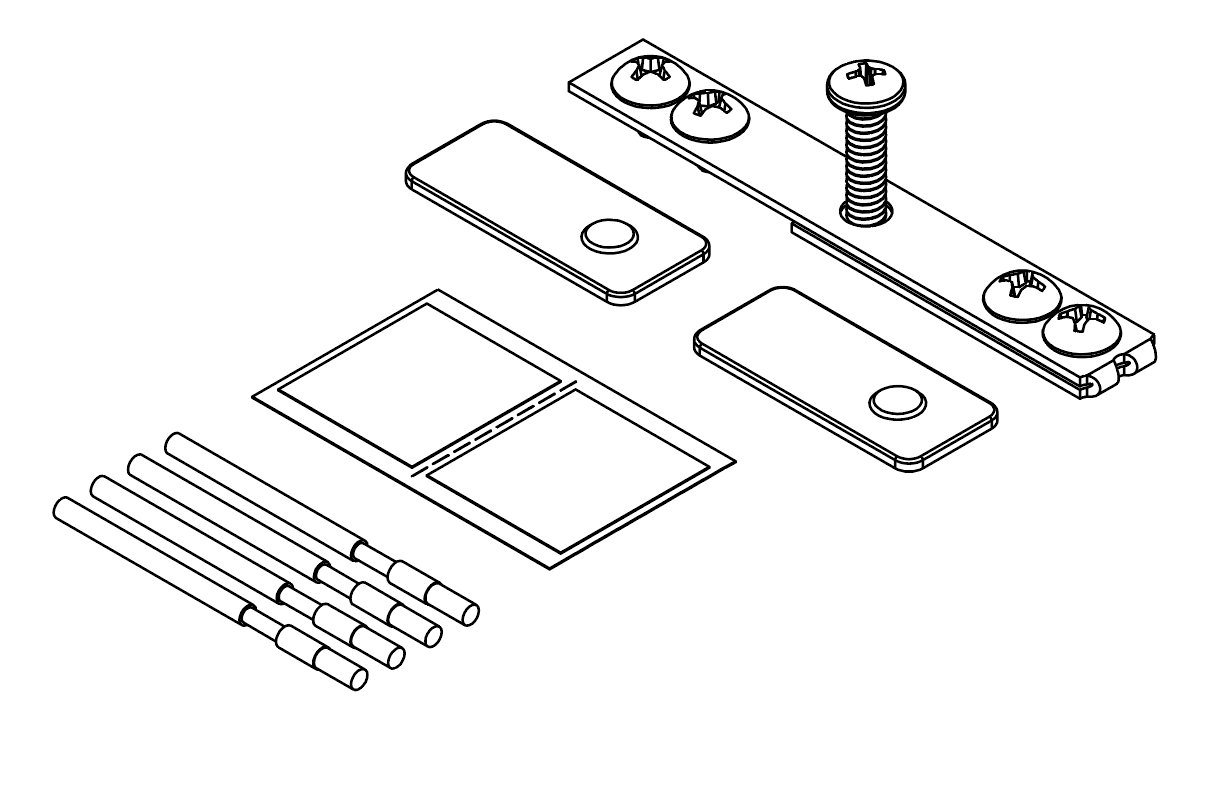

JOINT KIT

FEED KIT

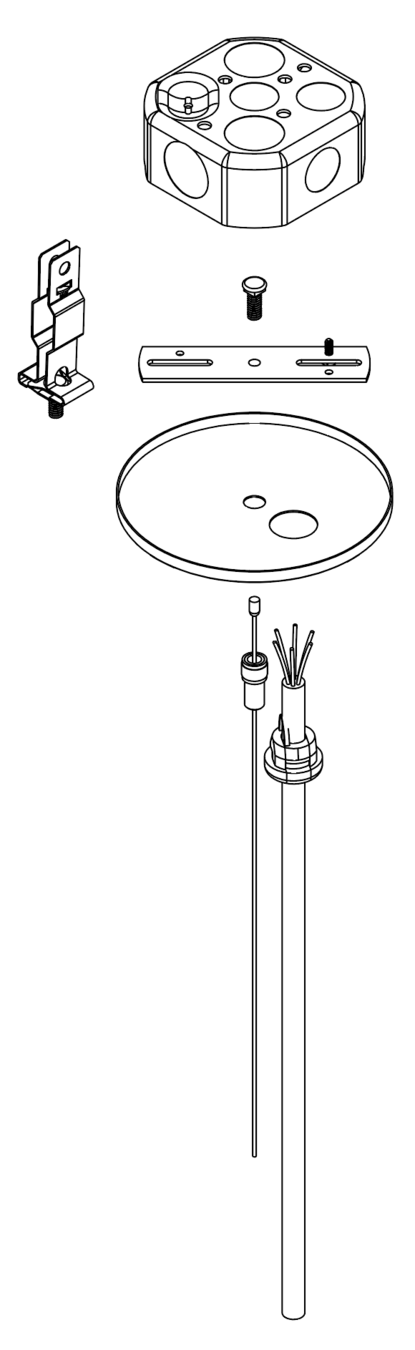

HANGER KIT

A SERVICE BY

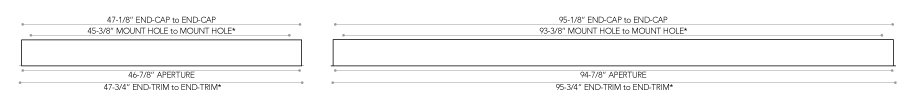

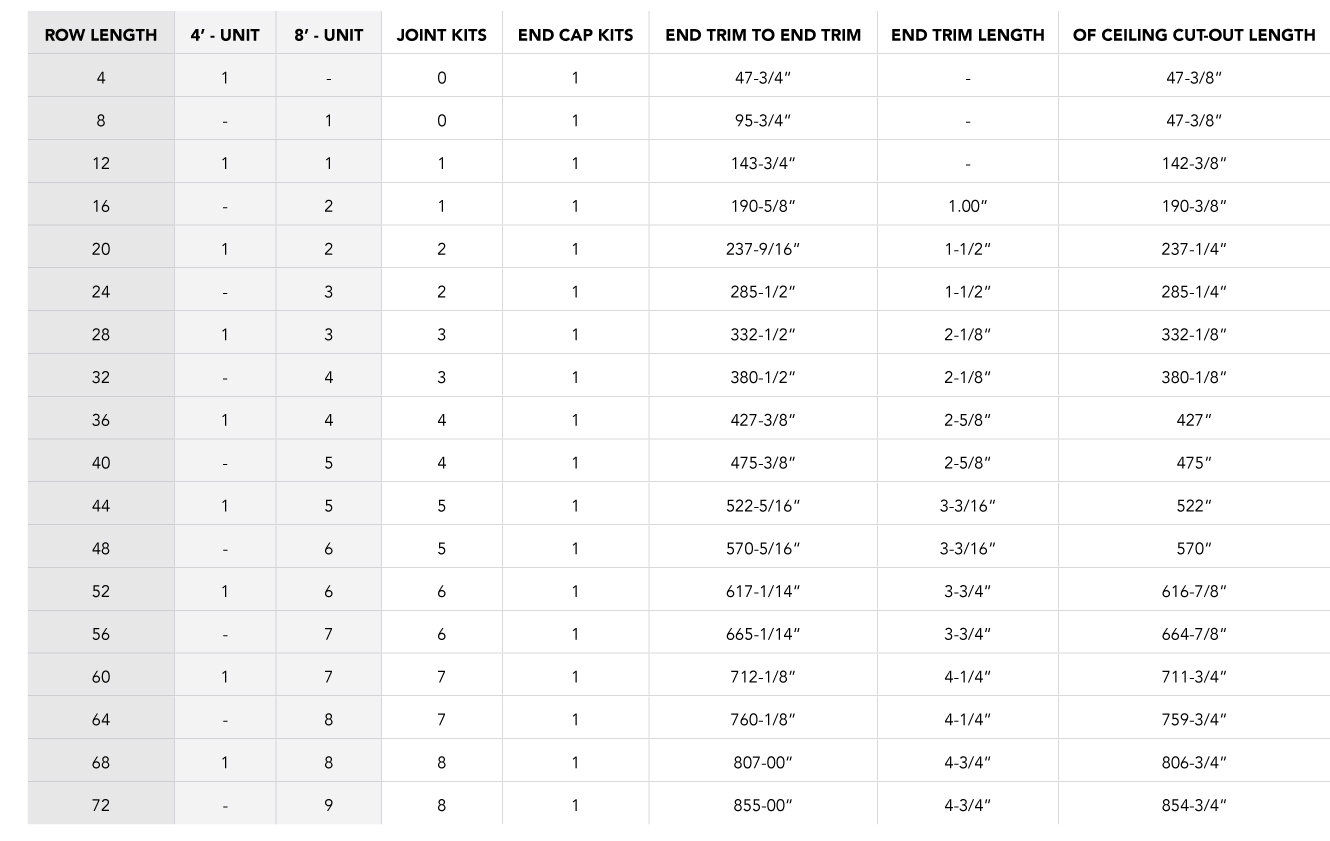

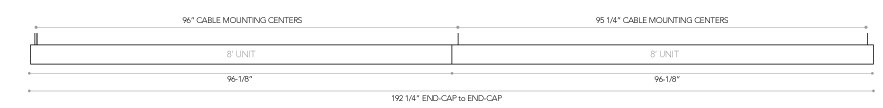

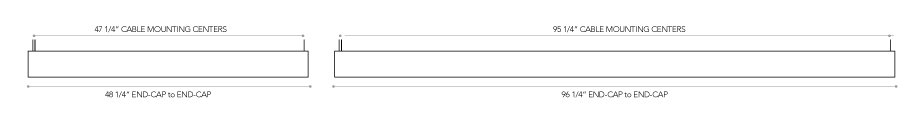

4' FIXTURE

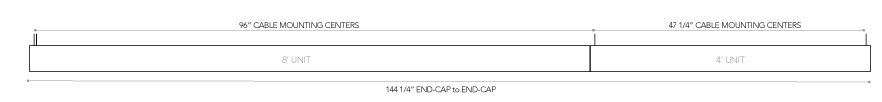

12' FIXTURE

16' FIXTURE

8' FIXTURE

A SERVICE BY

4' FIXTURE

12' FIXTURE

16' FIXTURE

8' FIXTURE

A SERVICE BY

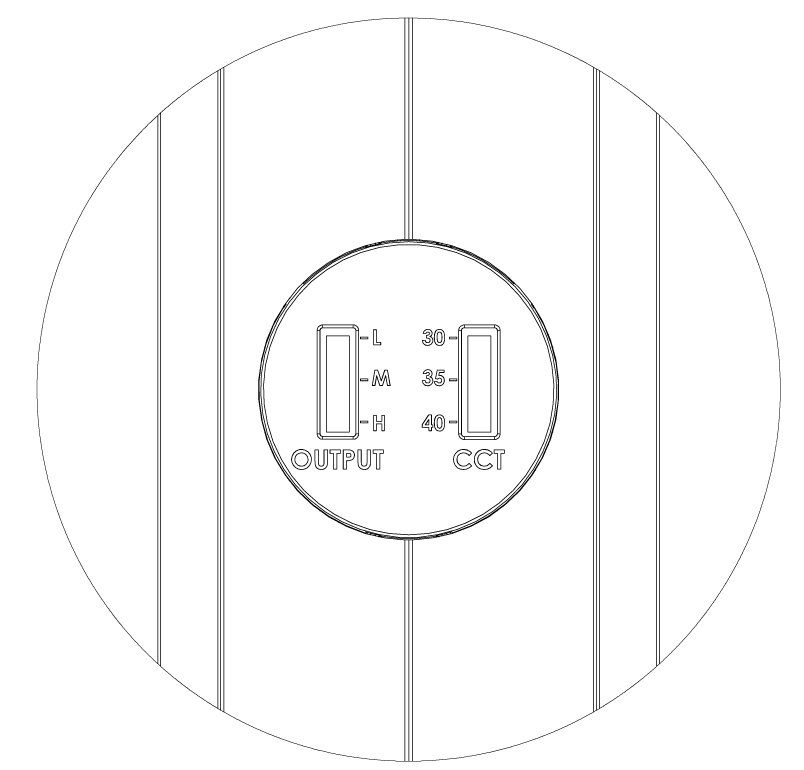

Low

Medium

High

3000K

3500K

4000K

A SERVICE BY

Website

Marketing Assets

•  Promotional Video

•  Training Video

•  Social Media Assets

•  The Lighting Exchange

Training

•  Agency Training Video (Confidential)

Agency Sales

•  Pitch Deck

•  Co-Branded Sell Sheet

Training

•  Agency Training Video (Confidential)

For Promotional & Training Videos
Please Contact Cammy McWilliams at cmcwilliams@yourlightingbrand.com

•  Orders Received by 1:00 PM Central (M-F)

•  Less than 1,000 Linear Feet

•  Standard Freight Terms Apply

•  When Emailing an Order Request, Please Type "Linear Express"     into the Subject Line

•  Standard A.L.L. Products must be Ordered Separately
