Kory Draughn, Chief Technologist

Martin Flores, Software Developer

iRODS Consortium

iRODS HTTP API v0.5.0

June 17-20, 2025

iRODS User Group Meeting 2025

Durham, NC

Rebalance - Pre 5.1.0

Rebalance halts on first issue
- Data objects after halt not replicated
  - Even if replication was possible
Large amounts of manual intervention possibly required

$ iadmin modresc thingToRebalance rebalance
remote addresses: 172.19.0.3 ERROR: rcGeneralAdmin failed with error -808000 CAT_NO_ROWS_FOUND

Rebalance - 5.1.0

Rebalance persists after issue
- All possible replications will be done
New error to notify user
- REBALANCE_NOT_COMPLETE
Additional comands in docs to query data objects requiring intervention

$ iadmin modresc thingToRebalance rebalance
remote addresses: 172.19.0.3 ERROR: rcGeneralAdmin failed with error -1834000 REBALANCE_NOT_COMPLETE

$ iquest "SELECT COLL_NAME, DATA_NAME WHERE DATA_RESC_HIER LIKE 'thingToRebalance;%' and DATA_REPL_STATUS != '1'"
COLL_NAME = /tempZone/home/alice/dataHere
DATA_NAME = foo1
------------------------------------------------------------
COLL_NAME = /tempZone/home/alice/dataHere
DATA_NAME = foo3
------------------------------------------------------------
COLL_NAME = /tempZone/home/alice/dataHere
DATA_NAME = foo5
------------------------------------------------------------

$ iquest "SELECT COUNT(DATA_ID) WHERE DATA_RESC_HIER LIKE 'thingToRebalance;%' and DATA_REPL_STATUS != '1'"
DATA_ID = 6

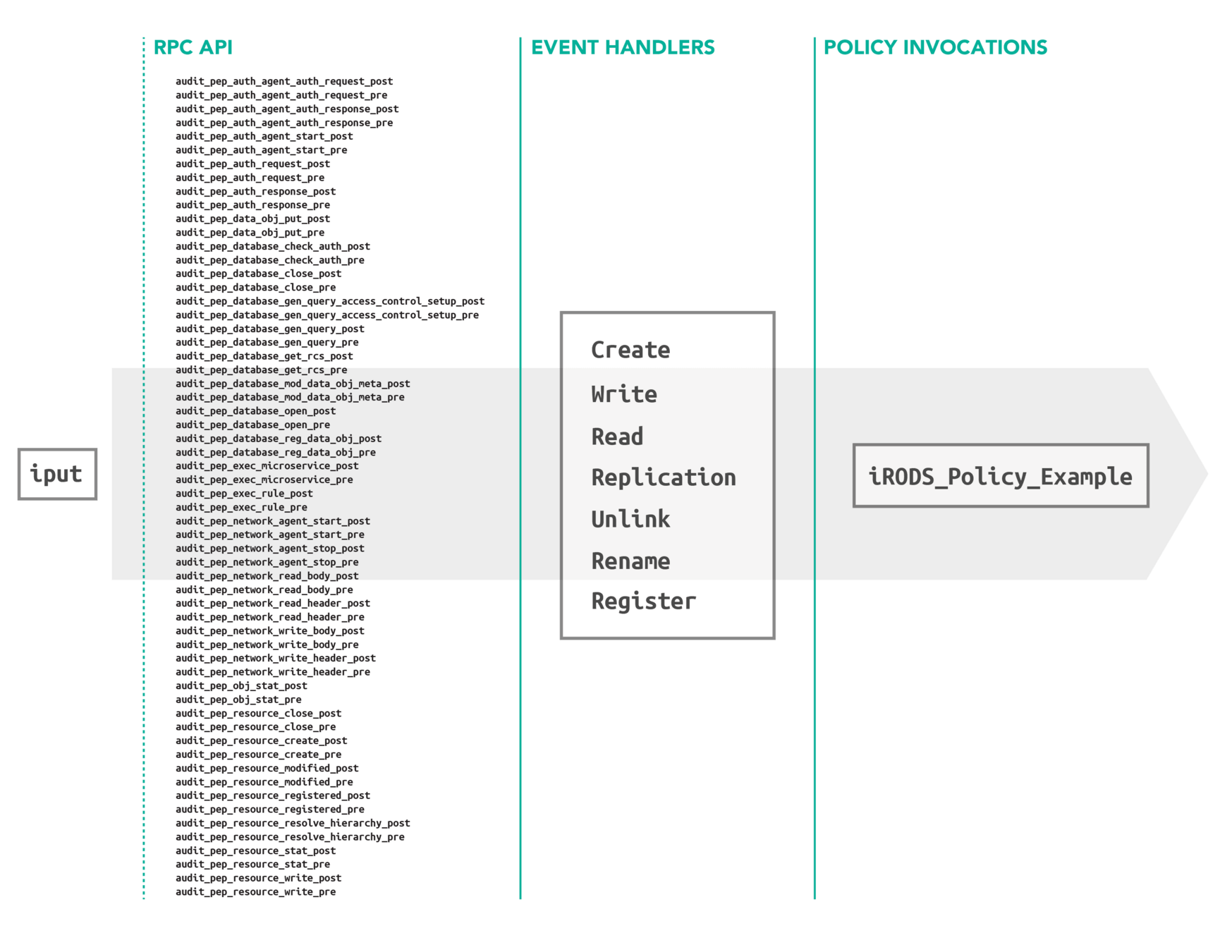

Policy Composition - Overview

Policy Composition - Example Configuration

{
    "instance_name": "irods_rule_engine_plugin-event_handler-data_object_modified-instance",
    "plugin_name": "irods_rule_engine_plugin-event_handler-data_object_modified",
    "plugin_specific_configuration": {
        "policies_to_invoke": [
            {
                "active_policy_clauses": [
                    "post"
                ],
                "events": [
                    "put",
                    "create",
                    "write",
                    "registration"
                ],
                "policy_to_invoke": "irods_policy_data_replication",
                "configuration": {
                    "destination_resource": "AnotherResc"
                }
            }
        ]
    }
}

Policy Composition - Release and Previous Presentations

https://irods.org/2026/04/initial-release-of-irods-policy-composition/
- Previous presentations at the bottom of the page

User Mapping - Overview

Abstracted Mapping of JWTs to iRODS users
Previously built-in mapping now plugins
- user_attribute_mapping -> libirods_http_api_plugin-local_file.so
- irods_user_claim -> libirods_http_api_plugin-user_claim.so
Flexible mapping
- e.g. query an external service for the mappings

User Mapping - Overview

User Mapping - Plugin Interface

Simple C interface
Full documentation in interface.h

/// Initializes the user mapping plugin.
int user_mapper_init(const char* _args);

/// Matches the given information to a user.
int user_mapper_match(const char* _param, char** _match);

/// Frees a C-string generated from the user mapping plugin.
void user_mapper_free(char* _data);

/// Executes clean-up for the user mapping plugin.
int user_mapper_close();

User Mapping - Local File Configuration Example

...
// Defines relevant information related to the User Mapping plugin system.
// Allows for the selection and configuration of the plugin.
"user_mapping": {
  // The full path to the desired plugin to load.
  "plugin_path": "/some/path/libirods_http_api_plugin-local_file.so",

  // The configuration information required by
  // the selected plugin to execute properly.
  "configuration": {
    "file_path": "/some-file.json"
  }
}
...

...
"user_attribute_mapping": {
  "rodsBob": {
    "email": "bob@bobtopia.example",
    "sub": "a.very.real.sub",
    "phone_number": "56709"
  },
  "rodsAlice": {
    "email": "al-1s@wonderland.example",
    "sub": "a.different.sub"
  }
}
...

Old Configuration

New Configuration

User Mapping - Local File Configuration Example

Text

{
    "rodsAlice": {
        "email": "alice@example.org",
        "sub": "123-abc-456-xyz"
    },
    "rodsBob": {
        "email": "bob@example.org",
        "phone": "56709"
    }
}

Local File Mapping Example

User Mapping User Claim Configuration Example

...
"user_mapping": {
  "plugin_path": "/some/path/libirods_http_api_plugin-user_claim.so",

  "configuration": {
    "irods_user_claim": "irods_username"
  }
}
...

...
"irods_user_claim": "irods_username"
...

Old Configuration

New Configuration

Local JWT Access Token Validation

Validate Tokens locally using JWKs
Similar to access token introspection
Retrieve JWKs on first validation attempt
- Minimal communication to OpenID Provider
Support for more OpenID Providers

Local JWT Access Token Validation - Supported Algorithms

Table in Section 3.1 from JWA RFC 7518

Local JWT Access Token Validation - Nonstandard Behavior

Some OpenID providers may not use client_secret for symmetric ID Tokens
- Allow for non-standard client secrets (nonstandard_id_token_secret)
JWT Profile for OAuth 2.0 Access Tokens (RFC 9068)
- Allow for "jwt" vs strictly "at+jwt" in "typ" header

HTTP API as an OAuth 2.0 Protected Resource
