Styling

or an overview of map styles, the tools and the methods

Thanks to:

 for the Space

for the pizza!

And to:

Scenes

• Maps on the web
• Need for different representation
• What are webmaps?
• Tools for styling maps
• Tool of the day: Mapbox Studio
• CartoCSS, styling in code
• Styling with OpenStreetMap
• Map of the day: Boyle Heights!
• Styling your own data
• Publishing to Mapbox
• A simple map

Maps on the Web

Google Map of Recycling Centers

Let's take a look at the kinds of maps out there on the internet, both

• interactive (maps I can click around and move)
• static (maps that are just large images or pdfs)

Note the Composition

Maps on the Web

Note the labels

and colors

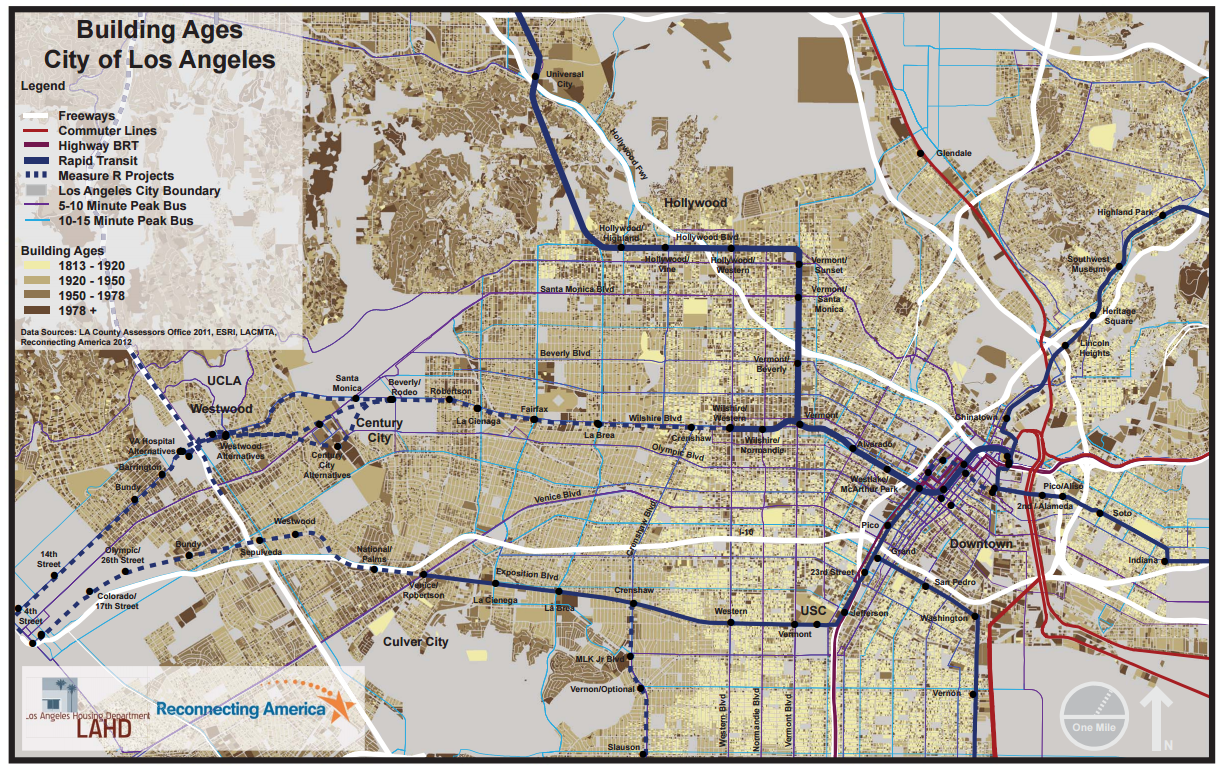

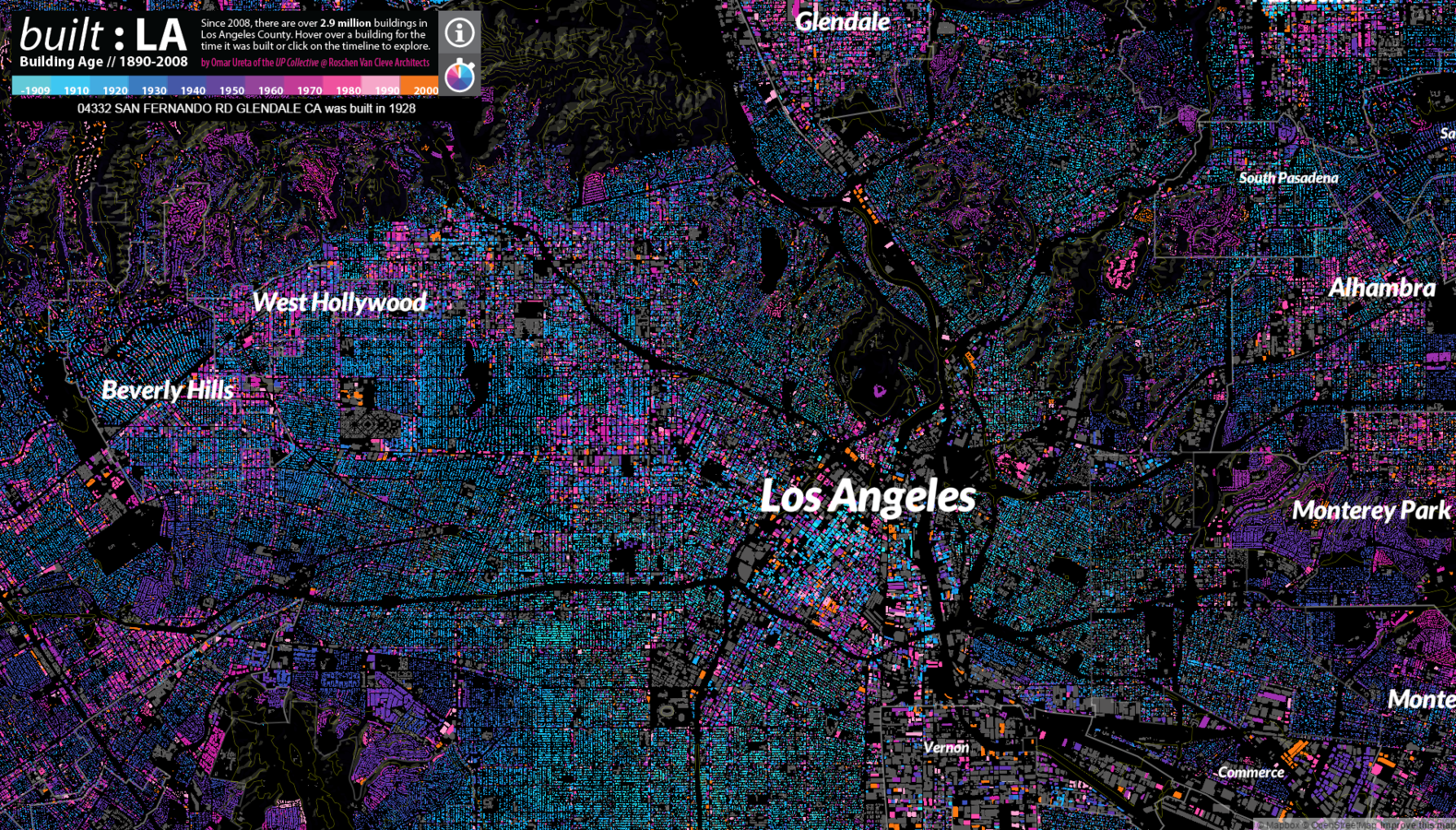

Building Ages, City of Los Angeles (LAHD and Reconnecting America)

http://www.reconnectingamerica.org/assets/Uploads/LAHD-Building-Age-Final.pdf

Maps on the Web

Note the visual hierarchy

NPR Map of the US Census 2010

http://www.npr.org/censusmap/#11.00/34.0718/-118.2593

A need for representation

Now note the composition

Racial Dot Map

http://demographics.coopercenter.org/DotMap/

A need for representation

Now see the use of labels

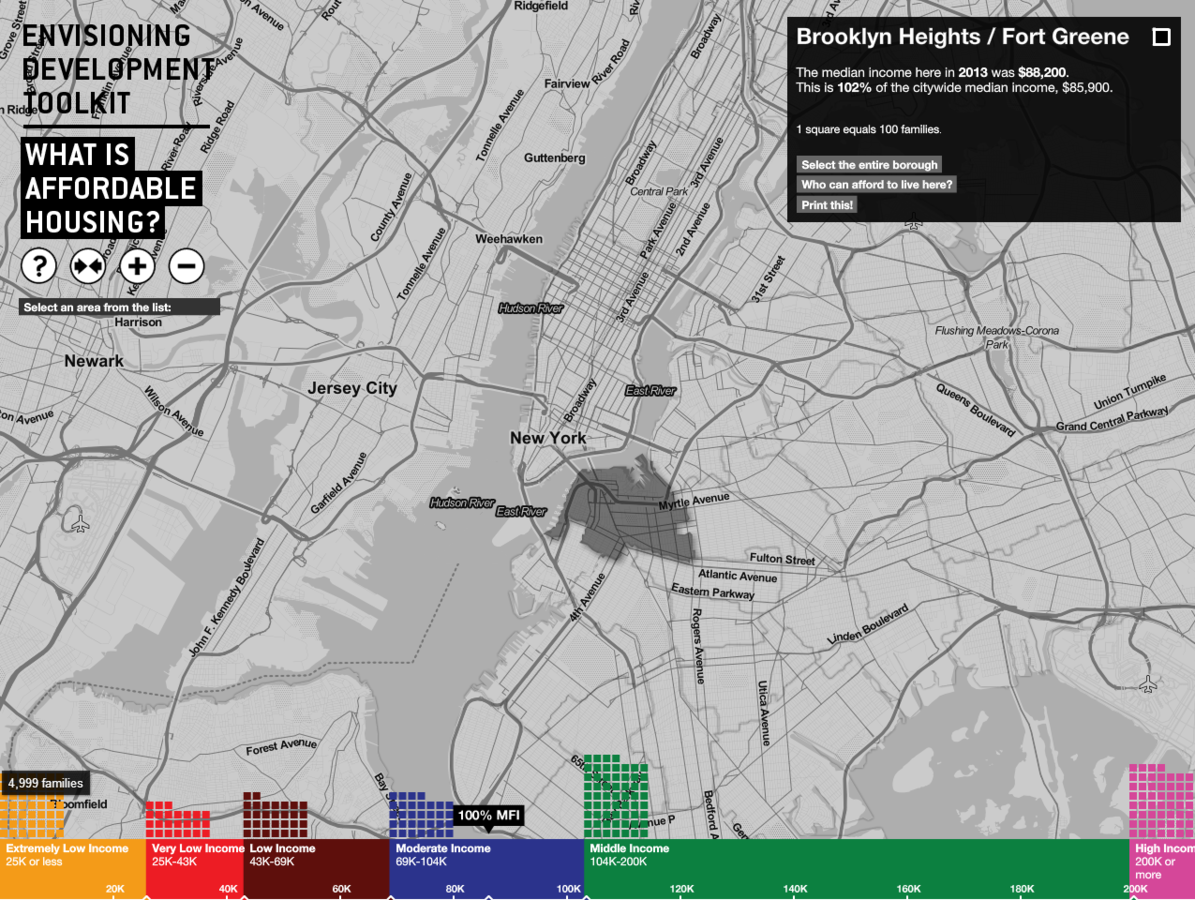

Envisioning Development Toolkit, Center for Urban Pedegogy

http://envisioningdevelopment.net/map/

A need for representation

And the use of colors

Rivers colored by the direction they flow

http://www.fastcodesign.com/3039535/gorgeous-visualization-shows-americas-rivers-in-a-new-light

And the use of the data at hand

Where are LA County's Homeless?, LA TIMES, Doug Smith and Jon Schleuss

http://graphics.latimes.com/homeless-los-angeles-2015/

A need for representation

All these maps more or less follow some sort of cartographic design

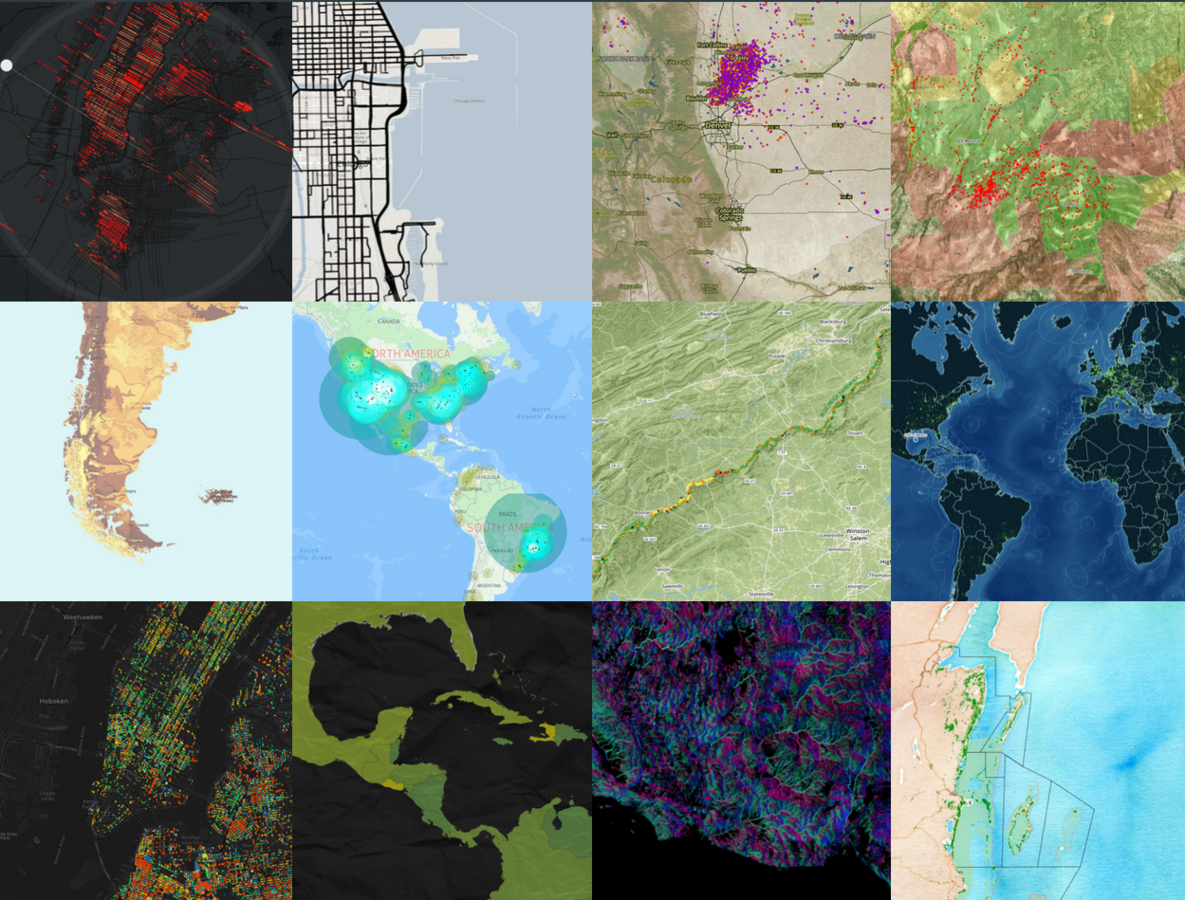

map screenshot

https://cartodb.com/gallery/natural-resources/

Cartographic Design

is about:

• Color
  • Characteristics
  • Color Schemes
• Labels
  • Font
  • Character Spacing
  • Leading
  • Placement
• Map Composition
  • Title
  • Legend
  • Scale bar
  • Balance
  • Visual Hierarchy

Thanks to Alexa Todd of MaptimePDX

https://github.com/maptime/portland/blob/gh-pages/tutorials/Cartographic-Design-Notes-and-Resources-by-Alexa-Todd.md

Cartographic Design

can also be about:

• Experimenting
• Make us ask more questions
• Maps shouldn't be a final product and should be a process of inquiry

http://www.thepolisblog.org/2010/03/mapping-as-transformative-agent-in.html

But maps must be able to tell your story

A need for representation

What are webmaps?

What are webmaps?

they are made up of Tiles

https://www.mapbox.com/guides/how-web-maps-work/

Raster

Vector

What are webmaps?

they can be displayed by these amazing mapping tools like leaflet, mapbox, esri's arcgis, and even D3

Tools for Styling Maps

There are different ways to style your maps, online and offline

Google Earth

Tools for Styling Maps

There are different ways to style your maps, online and offline

Google Maps- My Maps

Tools for Styling Maps

There are different ways to style your maps, online and offline

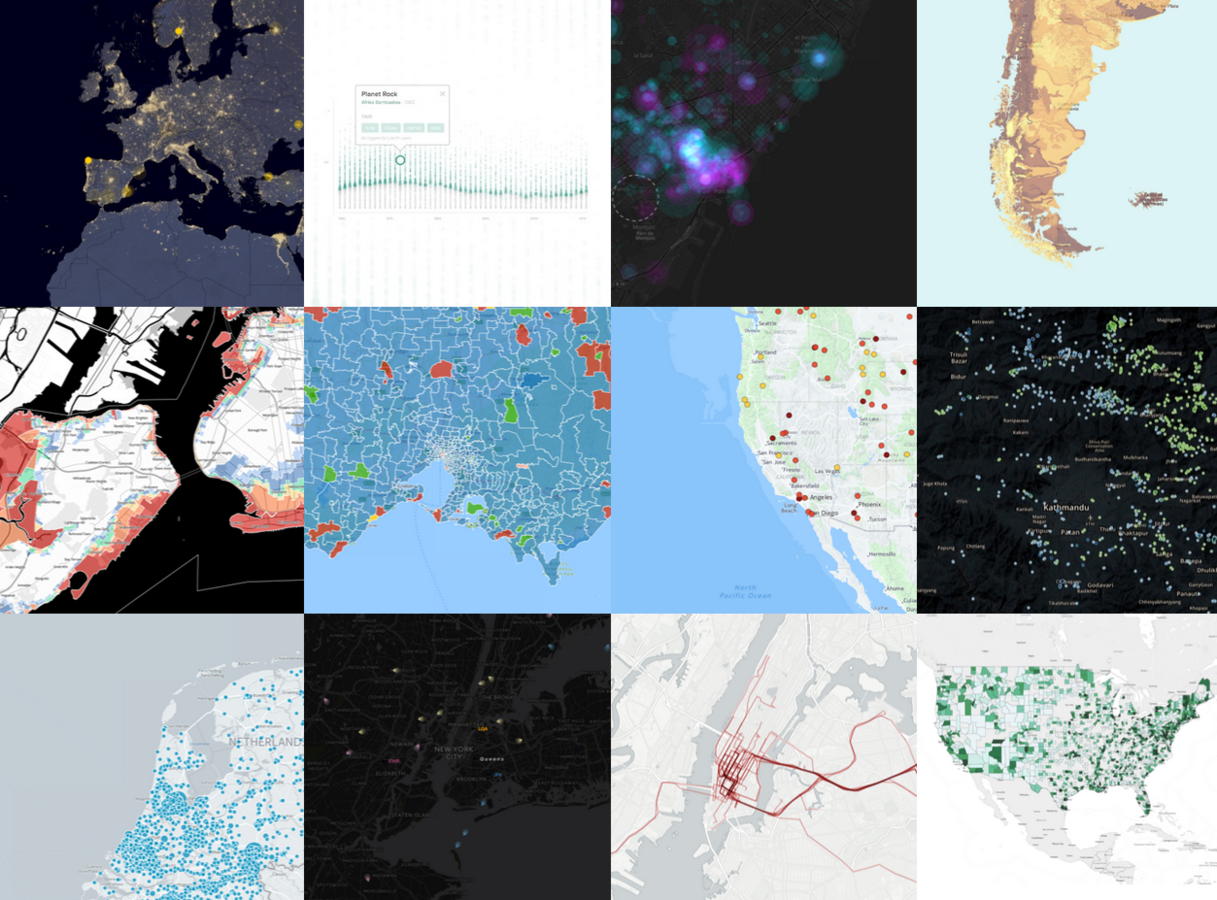

CartoDB

Tools for Styling Maps

There are different ways to style your maps, online and offline

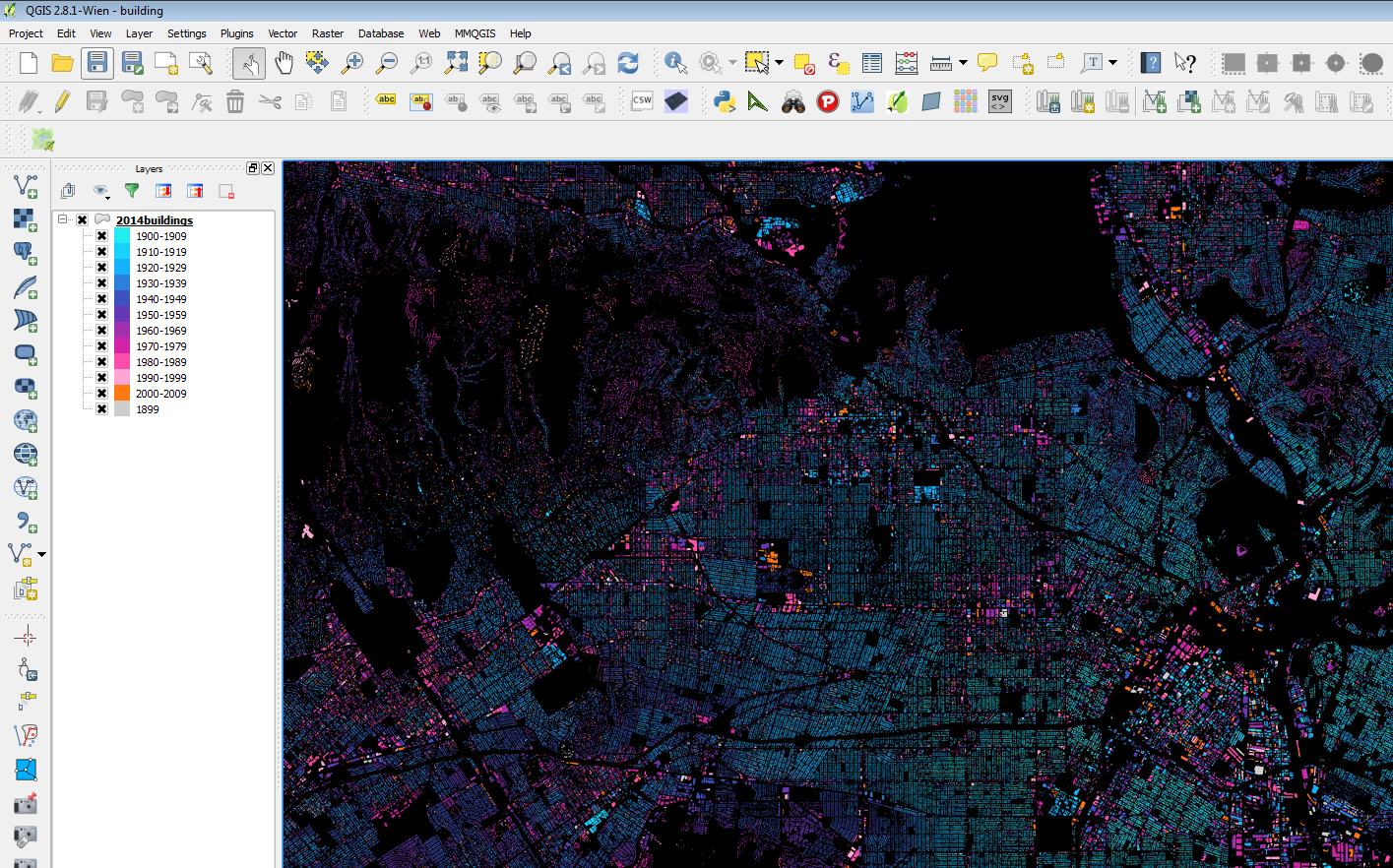

QGIS and ESRI's ArcGIS

Tools for Styling Maps

There are different ways to style your maps, online and offline

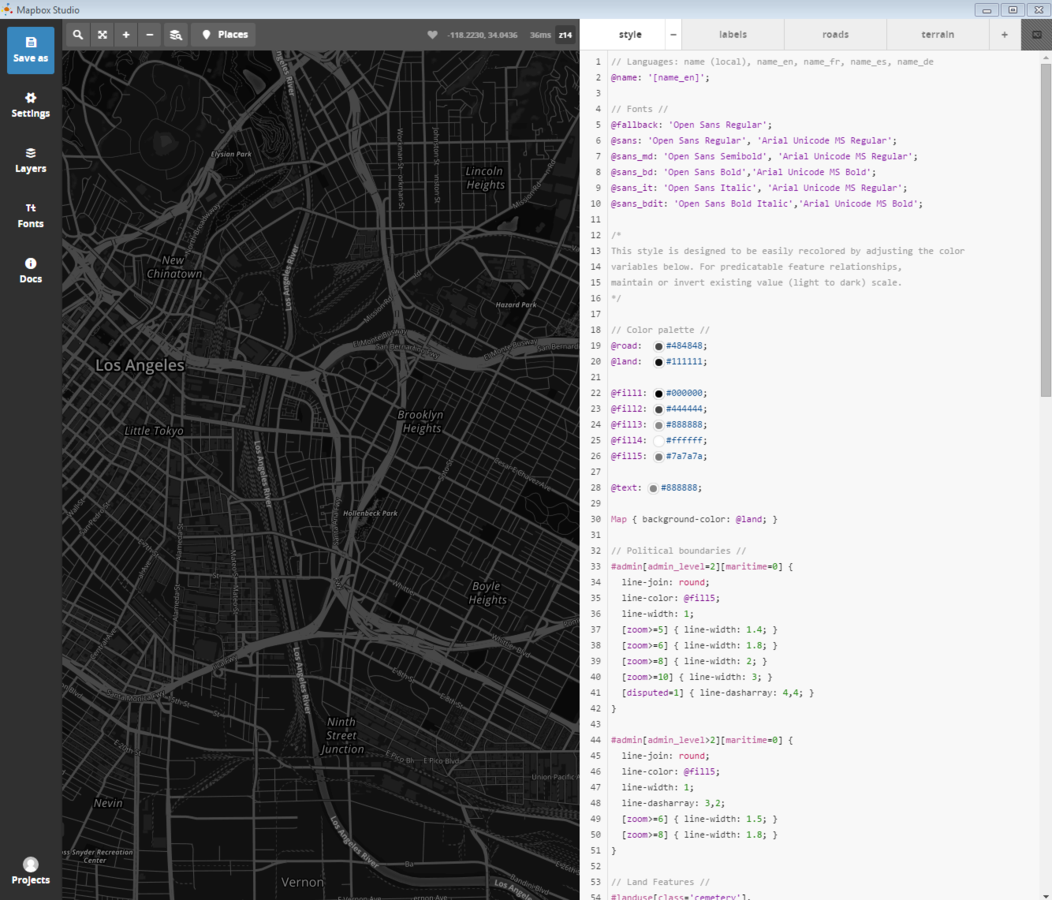

Mapbox Studio

CartoCSS, Styling in Code

CartoCSS renders

• Line (for lines & polygons)
• Polygon (for polygons)
• Point (for points)
• Text (for points, lines, and polygons)
• Shield (for points & lines)
• Line Pattern (for lines & polygons)
• Polygon Pattern (for polygons)
• Raster (for rasters)
• Markers (for points, lines, & polygons)
• Buildings

#layer {
   line-color: #C00;
   line-width: 1;
}

#layer::glow {
   line-color: #0AF;
   line-opacity: 0.5;
   line-width: 4;
}

.border::highlight {
   line-color: #FF0;
   line-opacity: 0.5;
}

.border::highlight {
   line-color: #3F6;
}

https://www.mapbox.com/tilemill/docs/manual/carto/
