Web Video Interaction

Philo van Kemenade

Human Machine Interface Course

IFS Cologne | April 2023

Netherlands Institute for
Sound & Vision

Storytellers

United

Gradual

this course

🕸 History of a dynamic medium

🎢 Web-native storytelling

💪 Web making
HTML, CSS, Javascript
Programming the modern web
Vue.js
Hypervideo template

🛠️ Mini projects in pairs

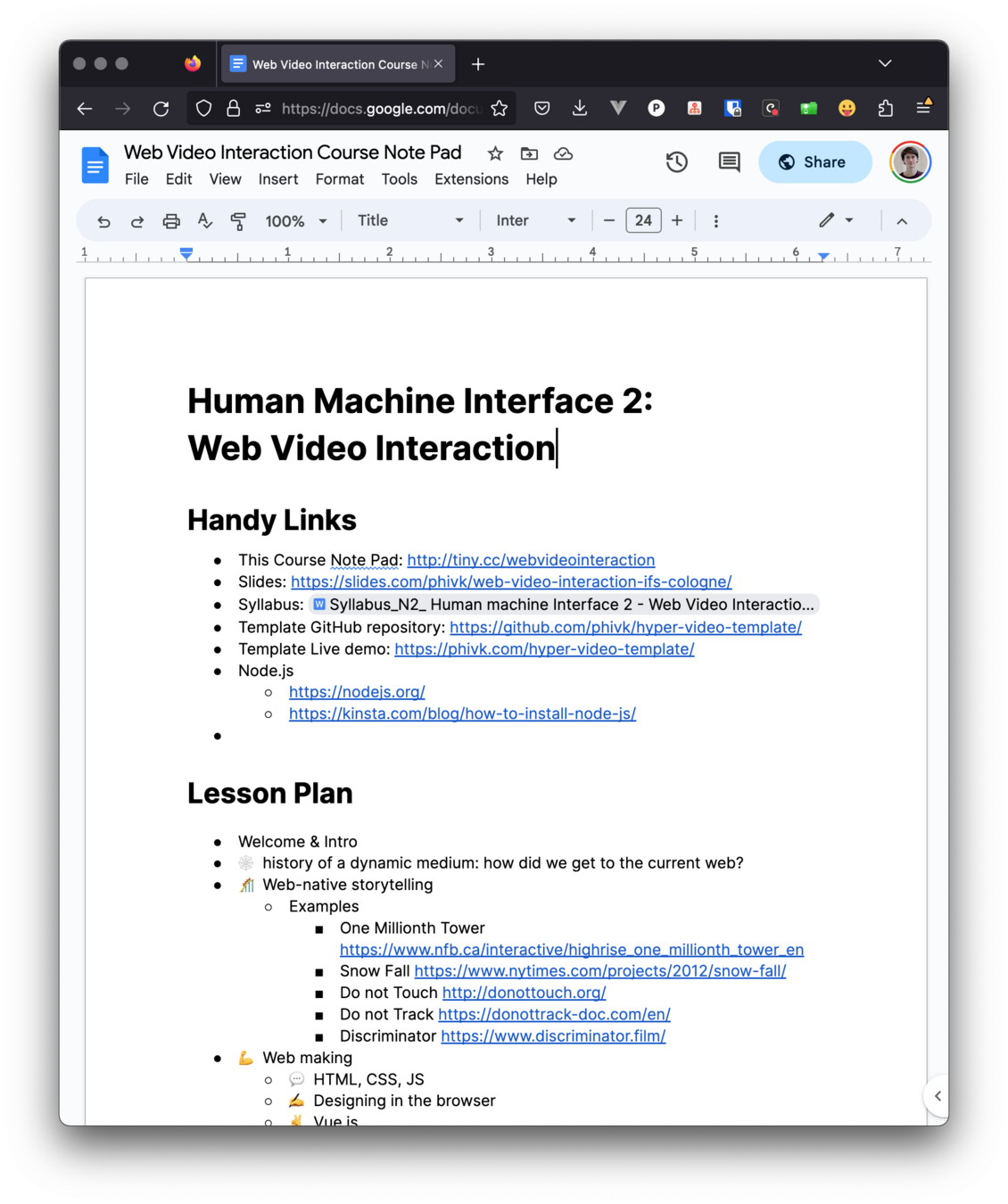

course notepad

http://tiny.cc/webvideointeraction

Do you think of the Web as a creative medium?

Why?

What experiences / examples come to mind?

exercise in break out groups

Let me introduce the word “hypertext” to mean a body of written or pictorial material interconnected in such a complex way that it could not conveniently be presented or represented on paper.

– Ted Nelson
A file system for the complex, the changing and the indeterminate (1965)

Films, sound recordings, and video recordings are also linear strings, basically for mechanical reasons. But these, too, can now be arranged as non-linear systems [...] for editing purposes, or for display with different emphasis. [...]
The hyperfilm—a browsable or vari-sequenced movie—is only one of the possible hypermedia that require our attention.

– Ted Nelson
A file system for the complex, the changing and the indeterminate (1965)

Dynamic

Interactive

Enabling an experience
using the capability of the web
as a mechanism for narration
from the start of the authoring process

Web-native storytelling

One Millionth Tower https://www.nfb.ca/interactive/highrise_one_millionth_tower_en

Snow Fall https://www.nytimes.com/projects/2012/snow-fall/

Do not Touch http://donottouch.org/

Do not Track https://donottrack-doc.com/en/

Discriminator https://www.discriminator.film/

examples

Highrise/One Millionth Tower - Open Technology

if filmmaking is like sculpting...

... webmaking is more like LEGO

Some words about writing code

Interface between

Reality

Representation

Some words about code

🌳 a skill continuum
❌ no magic
💭 naming matters

Preparation check in

Have a text editor installed on your computer, e.g. Sublime Text, Visual Studio Code
Have an updated version of Firefox or Chrome installed on your computer
Read MDN Guide: How the web works and write down any questions you have
Read Philosophy & Conclusion sections (page 13 onwards, total of 2 pages) of Nelson Ted (1965) A File Structure for the Complex the Changing and the Indeterminate
Read Tim Berners-Lee, CERN (1989) Information Management: A Proposal until ‘CERN Requirements’ section
Bonus for fun: browse around Ted Nelson’s Computer Lib / Dream Machines (I recommend starting at the Dream Machines side)
Bring at least one inspiring example of a video experience on the web (can be creative, narrative, educational, etc)

3 Web ingredients

Hypertext

Markup

Language

HTML

What's on the page?

Cascading

Style

Sheets

CSS

How does it look?

Javascript 'does' things, like interactivity or fetching data, calculations, updating 'state'

Javascript

How does it work?

HTML

<!DOCTYPE html>
<html>
  <head>
    <title>Hello World</title>
  </head>
  <body>
    <h1>Hello IFS Cologne 👋</h1>
    <p>Welcome to this very simple web page.</p>
  </body>
</html>

HTML + CSS

<!DOCTYPE html>
<html>
  <head>
    <title>Hello World</title>
    <style>
      p {
        color: red;
      }
    </style>
  </head>
  <body>
    <h1>Hello IFS Cologne 👋</h1>
    <p>Welcome to this very simple web page.</p>
  </body>
</html>

HTML + CSS + JS

<!DOCTYPE html>
<html>
  <head>
    <title>Hello World</title>
    <script>
      alert("hello world!");
    </script>
    <style>
      p {
        color: red;
      }
    </style>
  </head>
  <body>
    <h1>Hello IFS Cologne 👋</h1>
    <p>Welcome to this very simple web page.</p>
  </body>
</html>

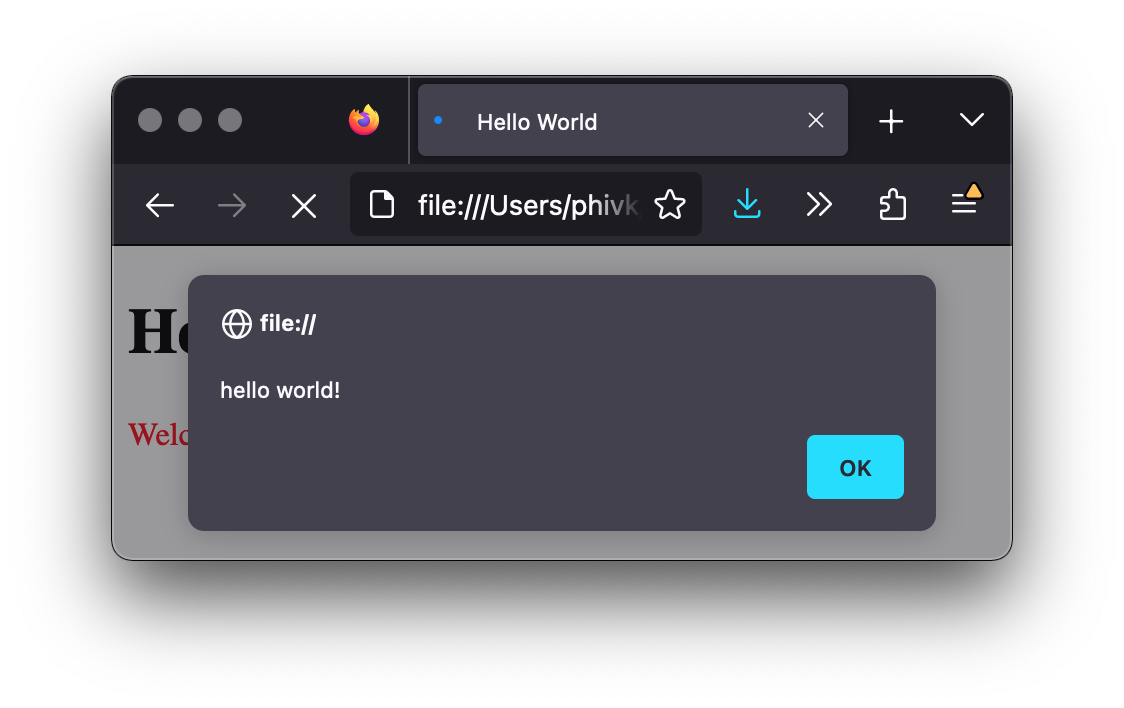

✍️ designing in the browser

Copy the HTML + CSS + JS example from the previous slide

Paste it in your favourite text editor

Save as index.html

Open the HTML file in your favourite browser

Bonus: remix by adding elements, styles and functionality
(Cheating encouraged!)

exercise

Web of pages ➡️ web of applications & data

Interaction requires 'state'

User Interfaces are made out of components

🕸 The modern web

🎱

Reactivity

Hello Vue.js

📝
Declarative rendering

📦

Modular components

🤗

Approachable

📝

Progressive

framework

Hypervideo template

phivk.com/hyper-video-template/

Hypervideo template

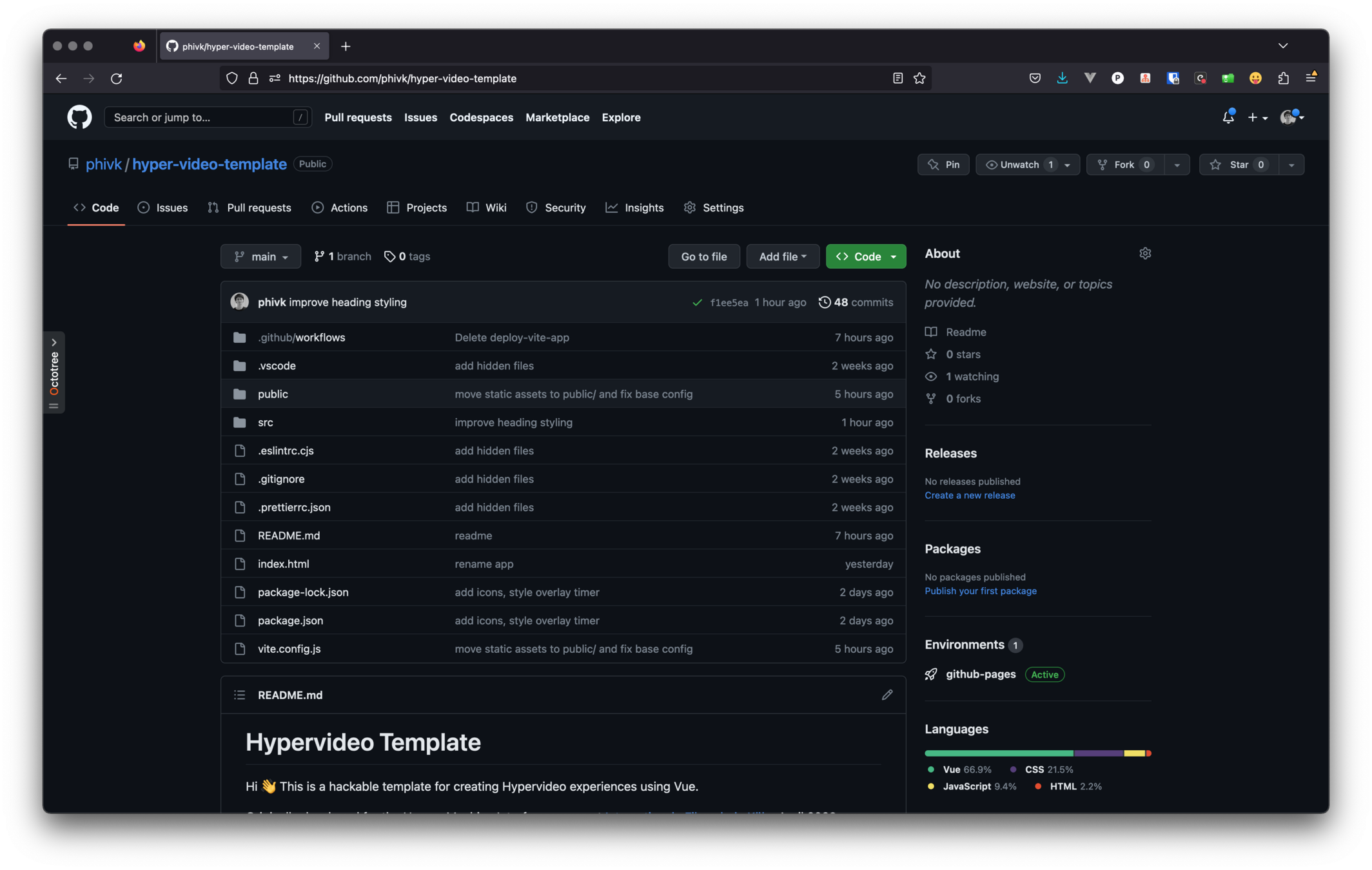

https://github.com/phivk/hyper-video-template

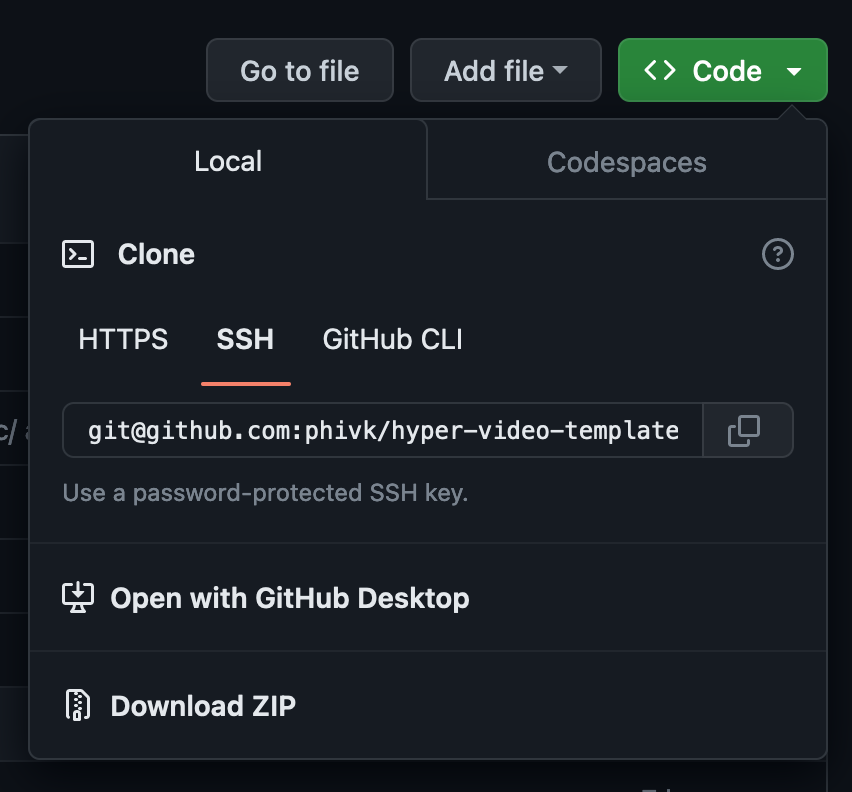

download the zip of the Hypervideo Template Repository: https://github.com/phivk/hyper-video-template

unzip

open the folder in your text editor

Bonus: browse around the files and
see if you can find the code for element on the page

Exercise

(Web) Programming 101

Programming (in JS)

variables
- types
  - string
  - int
  - object
  - array
  - boolean
functions
control statements
- if, else
- for loop
⚠️ gotchas
- commas
- close what you open () {} '' ""

Vue.js

Single File Components
- template
- script
- style
directory structure
components
props down, events up

// string
name = "Philo"

// int
age = 34

// boolean
isAwake = true

// array
interests = [
  "design",
  "film",
  "acrobatics"
]

firstInterest = interests[0]
secondInterest = interests[1]
thirdInterest = interests[2]

// object
person = {
  name: "Philo",
  homeTown: "Amsterdam",
  age: 34,
  interests: [
      "design",
      "film",
      "acrobatics"
  ]
}

personName = person["name"]
// OR
personName = person.name
personAge = person["age"]

Types of Variables in Javascript

Download and install Node.js on your computer:

https://nodejs.org/

Verify successful installation in Command Prompt or Terminal:

Node -v
npm -v

See extra instructions:

https://kinsta.com/blog/how-to-install-node-js/

Exercise: installing Node.js

In Command Prompt / Terminal, navigate to the repository directory on your computer, e.g.:

cd Downloads/hyper-video-template-main

Install project dependencies:

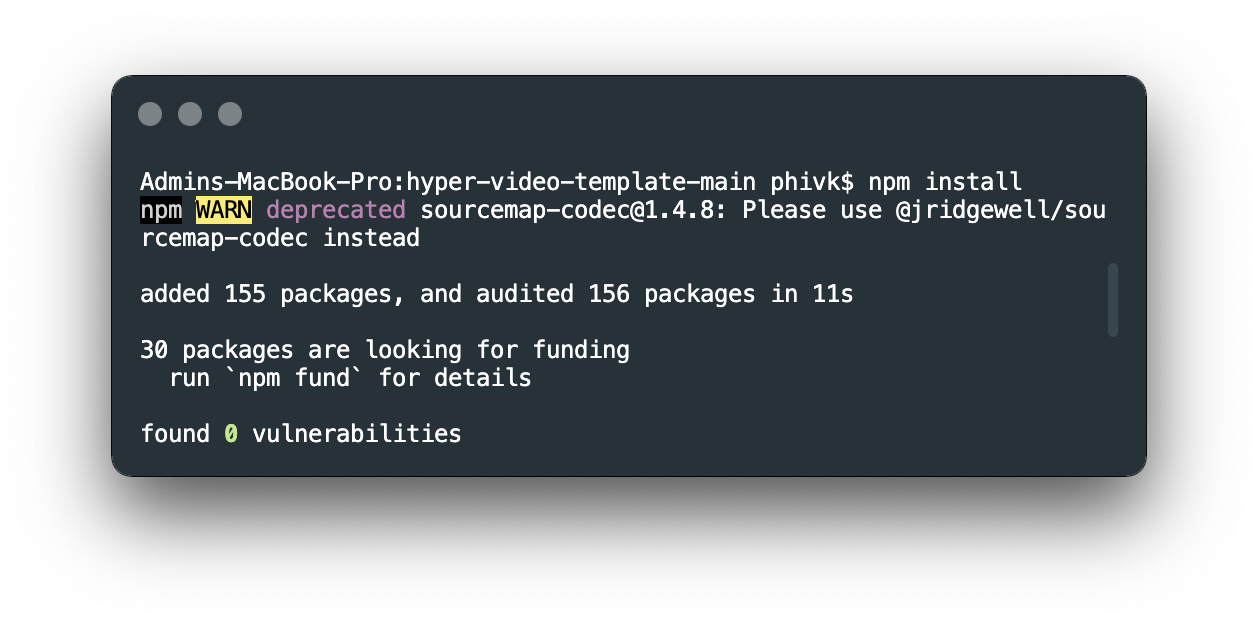

npm install

Start development server:

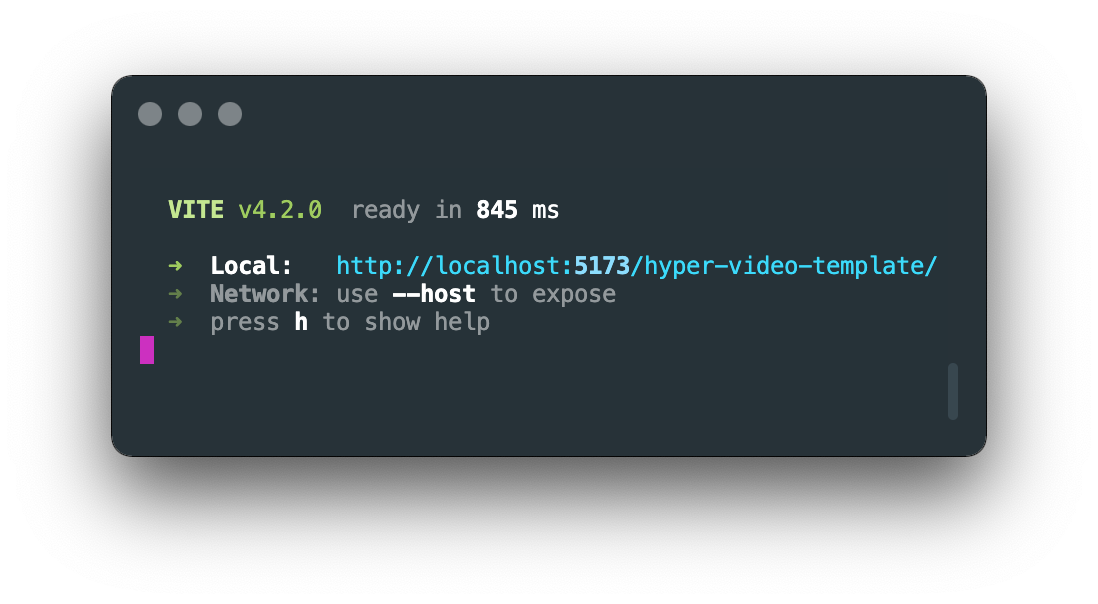

npm run dev

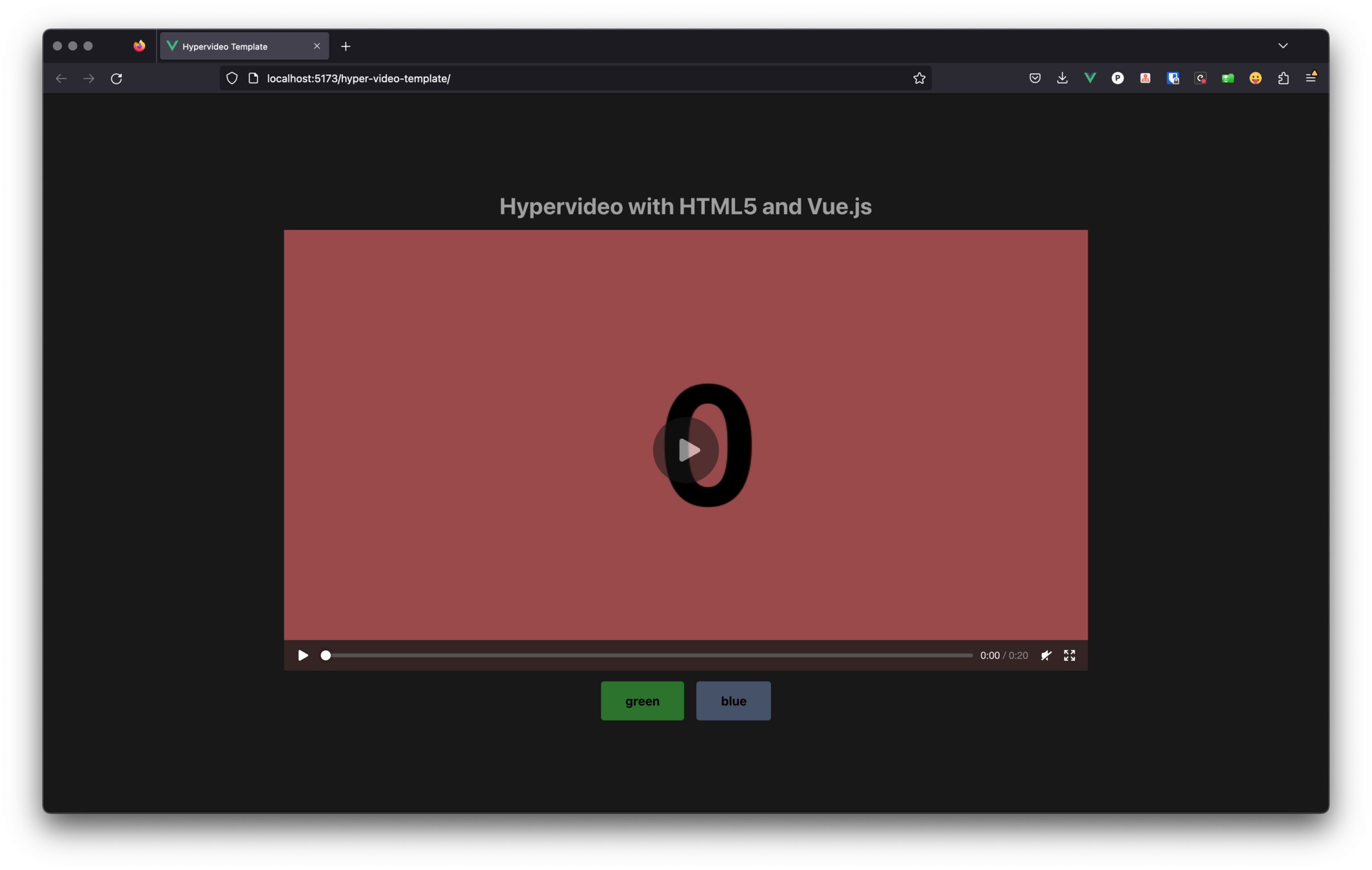

Open localhost link 🎉

Exercise: running our app

🧠 Brainstorm a concept (keep it simple)

✍️ Draw it out (paper? figma? ...?)

📦 Define the resources you need

💬 Talk collaboration

🙌 Let's go!

Mini project in pairs

can I use mp4?

https://caniuse.com/mpeg4

conversion

https://www.freeconvert.com/mp4-converter/

YouTube downloader

https://www.yourvideofile.org/

Video files on the web

Deployment options

Simplifying deployments with Surge

Using Surge

'CTRL+C' to quit dev server

# From the command line in your
# project folder run the following

# Install Surge
sudo npm install --global surge

# Build the app into the dist folder
npm run build

# Deploy to surge by typing
surge dist

import { fileURLToPath, URL } from 'node:url'

import { defineConfig } from 'vite'
import vue from '@vitejs/plugin-vue'

// https://vitejs.dev/config/
export default defineConfig({
  plugins: [vue()],
  resolve: {
    alias: {
      '@': fileURLToPath(new URL('./src', import.meta.url))
    }
  }
  // base: '/hyper-video-template/'
})

vite.config.js

command line

1. comment out base option

2. deploy to surge

Web Video Interaction IFS Cologne
