Basic Pick and Place

(part 2)

MIT 6.4210/2: Robotic Manipulation

Fall 2022, Lecture 4

Follow live at https://slides.com/d/auj49nI/live

(or later at https://slides.com/russtedrake/fall22-lec04)

Basic Pick and Place

Step 1: Kinematic Frames / Spatial Algebra

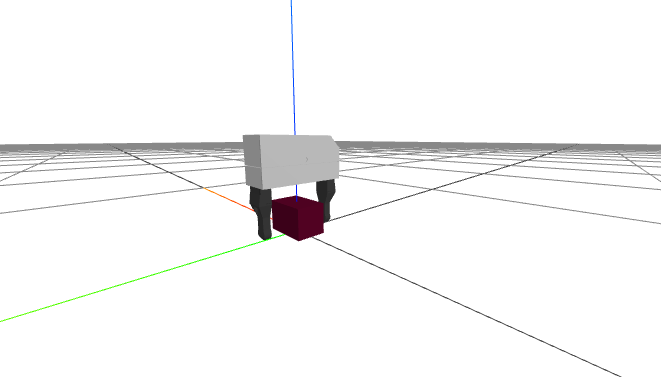

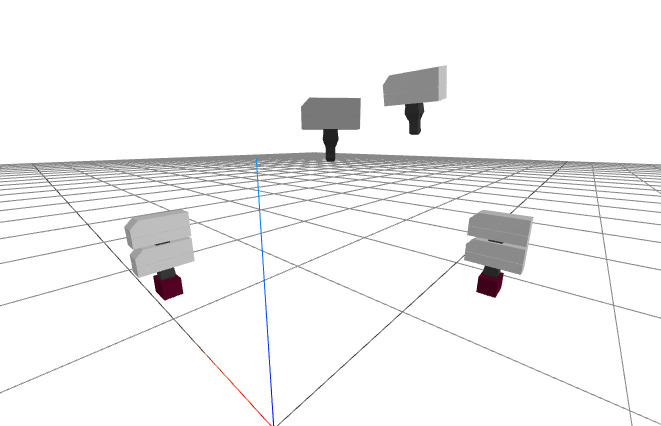

Step 2: Gripper Frame Plan "Sketch"

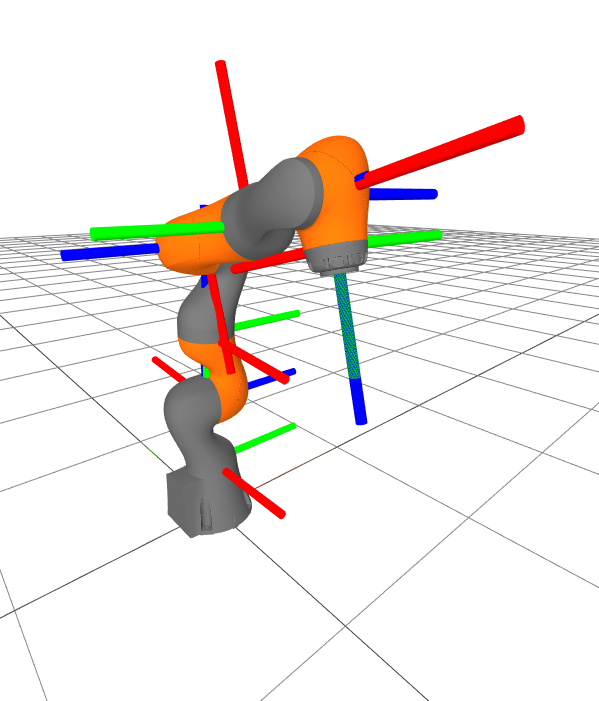

Step 3: Forward kinematics of the iiwa + WSG

X^B = f_{kin}^B(q)

generalized positions

 pose of body (or frame) \(B\)

Representations for 3D Rotation

Check yourself: A single "free" body

plant = MultibodyPlant(time_step = 0.0)
Parser(plant).AddModelFromFile(FindResourceOrThrow(
	"drake/examples/manipulation_station/models/061_foam_brick.sdf"))
plant.Finalize()
brick = plant.GetBodyByName("base_link")

context = plant.CreateDefaultContext()
X^B = f_{kin}^B(q)

What is \(X^B\) ?

X_B = plant.EvalBodyPoseInWorld(brick, context)

What is \(q\) ?

q = plant.GetPositions(context)

Step 4: Differential Kinematics

dX^B = \frac{\partial f_{kin}^B(q)}{\partial q} dq
= \underbrace{J^B(q)}dq
X^B = f_{kin}^B(q)

Kinematic "Jacobian"

Spatial Velocity

\frac{d}{dt} {}^AX^B_C \equiv \, ^AV^B_C = \begin{bmatrix} {}^A\omega^B_C \\ {}^A\text{v}^B_C \end{bmatrix}

angular velocity

translational velocity

Q: How do we represent angular velocity, \(\omega^B\)??





(w_x, w_y, w_x)

A: Unlike 3D rotations, here 3 numbers are sufficient and efficient; so we use the same representation everywhere.

note the typesetting

Spatial Velocity Algebra

Check yourself: A single "free" body

plant = MultibodyPlant(time_step = 0.0)
Parser(plant).AddModelFromFile(FindResourceOrThrow(
	"drake/examples/manipulation_station/models/061_foam_brick.sdf"))
plant.Finalize()
brick = plant.GetBodyByName("base_link")

context = plant.CreateDefaultContext()
\dot{q} = N(q) v

What is \(v\) ?

v = plant.GetVelocities(context)

What is \(q\) ?

q = plant.GetPositions(context)
v = plant.MapQDotToVelocity(context, qdot)
qdot = plant.MapVelocityToQDot(context, v)

For any MultibodyPlant (not just a single body):

Kinematics

  • Forward kinematics:    joint positions \(\Rightarrow\) pose
  • Inverse kinematics*:      pose \(\Rightarrow\) joint positions



  • Differential kinematics:
          joint positions, velocities \(\Rightarrow\) spatial velocity

  • Differential inverse kinematics:
          spatial velocity, joint positions \(\Rightarrow\) joint velocities



q \Rightarrow X^B
X^B \Rightarrow q
q, v \Rightarrow V^B
V^B, q \Rightarrow v

Our first Jacobian pseudo-inverse controller

plant.SetPositions(plant_context, iiwa, q)
J_G = plant.CalcJacobianSpatialVelocity(
    plant_context, JacobianWrtVariable.kQDot,
    G, [0,0,0], self._W, self._W)
J_G = J_G[:,0:7] # Ignore gripper terms

V_G_desired = np.array([0,    # rotation about x
                        -.1,  # rotation about y
                        0,    # rotation about z
                        0,    # x
                        -.05, # y
                        -.1]) # z
v_iiwa = np.linalg.pinv(J_G).dot(V_G_desired)

prog = MathematicalProgram()
x = prog.NewContinuousVariables(2)
prog.AddConstraint(x[0] + x[1] == 1)
prog.AddConstraint(x[0] <= x[1])
prog.AddCost(x[0] ** 2 + x[1] ** 2)
result = Solve(prog)
