Mapbox Overview
-
Why care?
-
Mapbox Studio
Desktop GIS
Web Mapping
Mapbox
CartoDB
ESRI
Apple
Microsoft
An Ecosystem of Tools for Web Mapping
What is Mapbox?
Map Clients

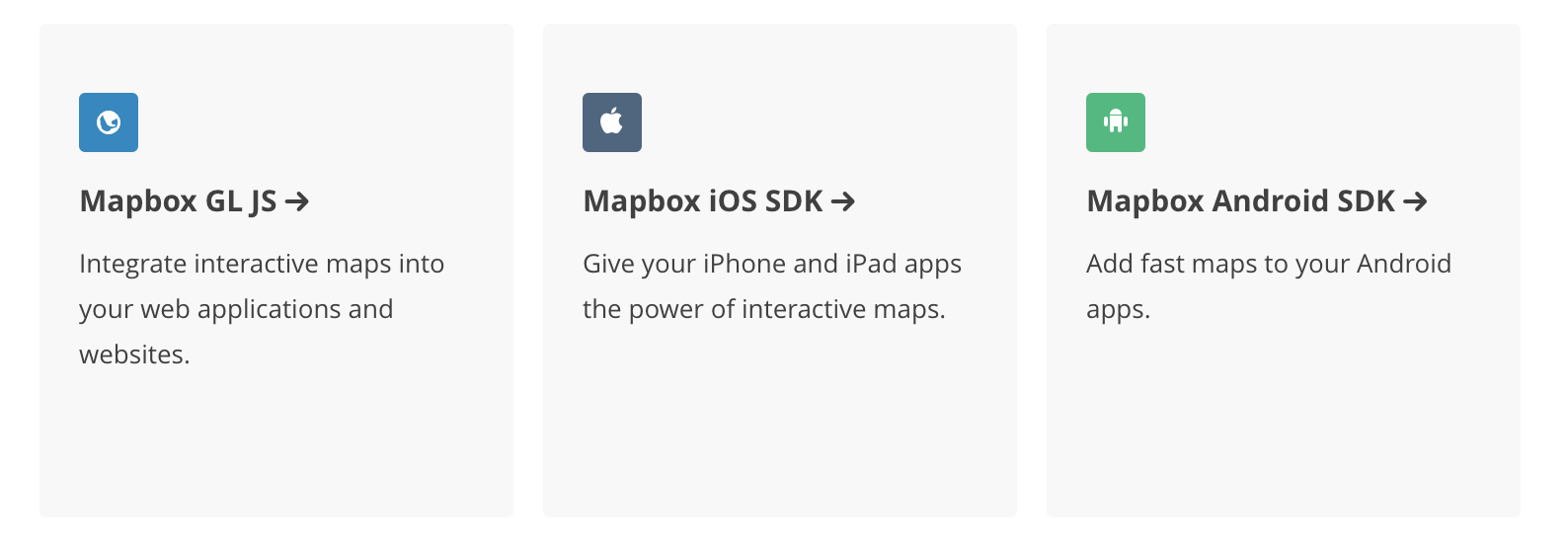

Mapping SDKs

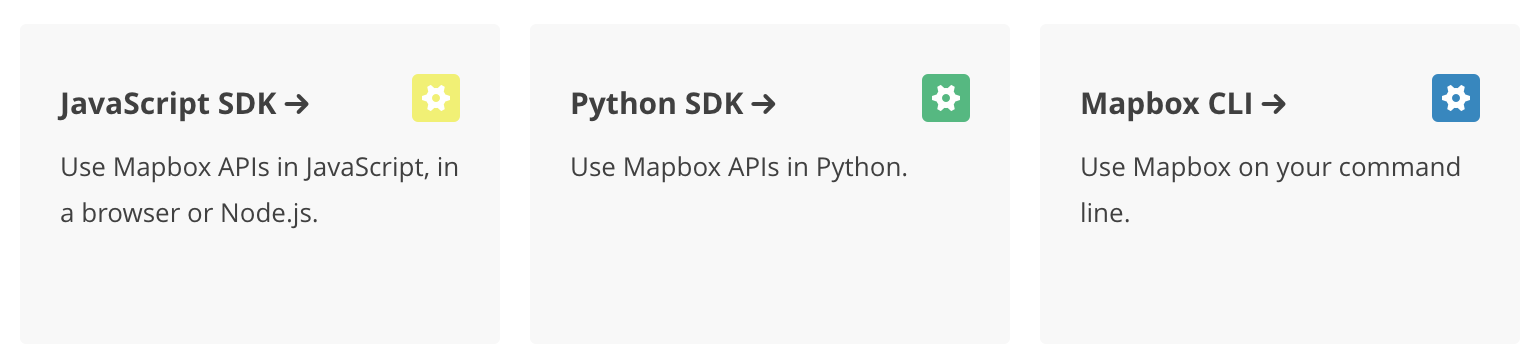

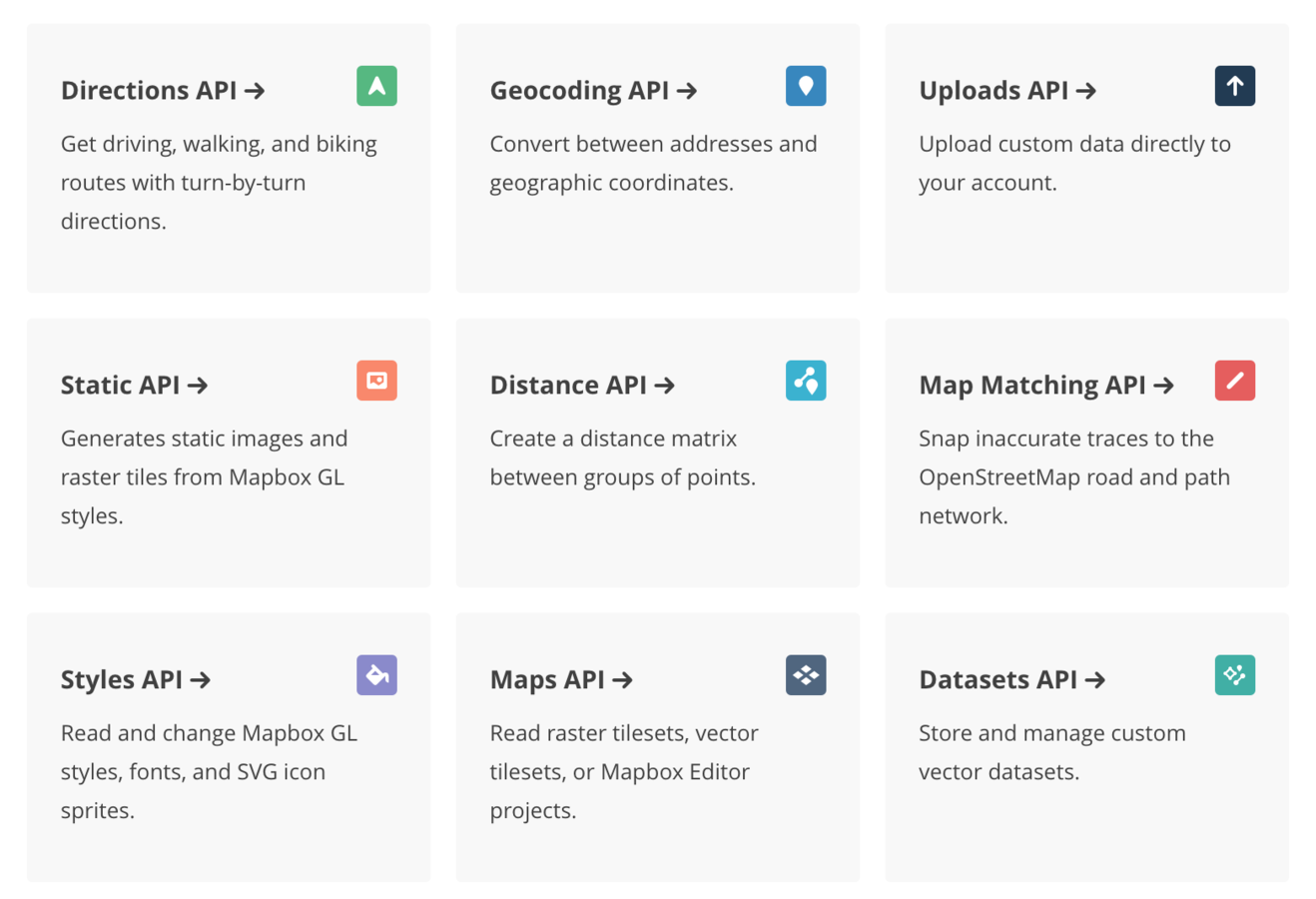

Rest APIs

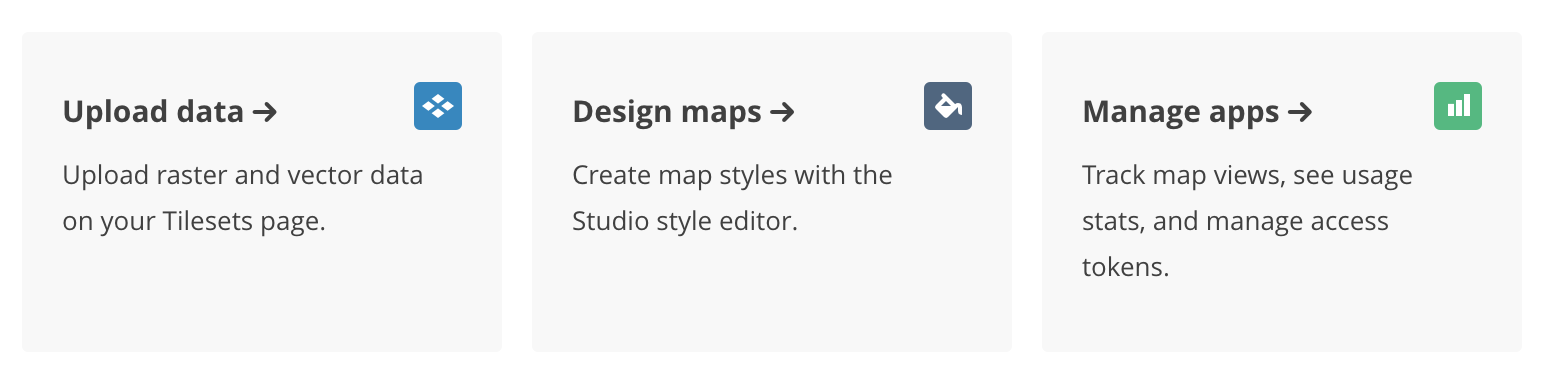

Mapbox Studio
Mapbox Significance
Open-Source
Smart Hiring
Innovation
Data Creation
Preferred by SF Tech Industry
What Mapbox will not do for us:
- Replace ArcMap/ArcPro
- Replace AGOL
- Clean the dishes in sink
How we *could* use Mapbox:
- Custom Basemaps
- Simple Slippy Maps
- Clients who want OpenSource
- Custom JS functionality
- (Eventually) Skirting ESRI licensing with custom application

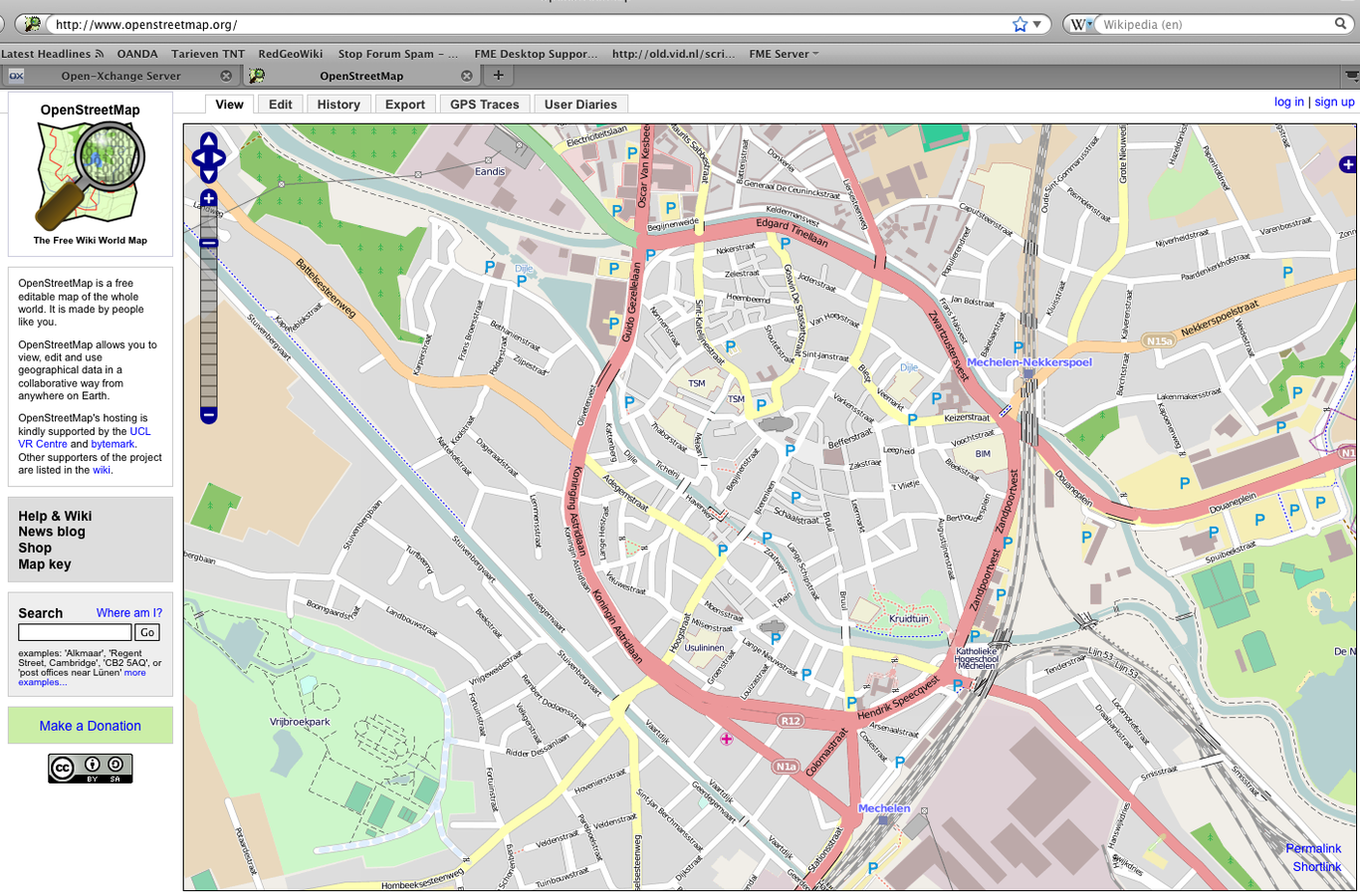

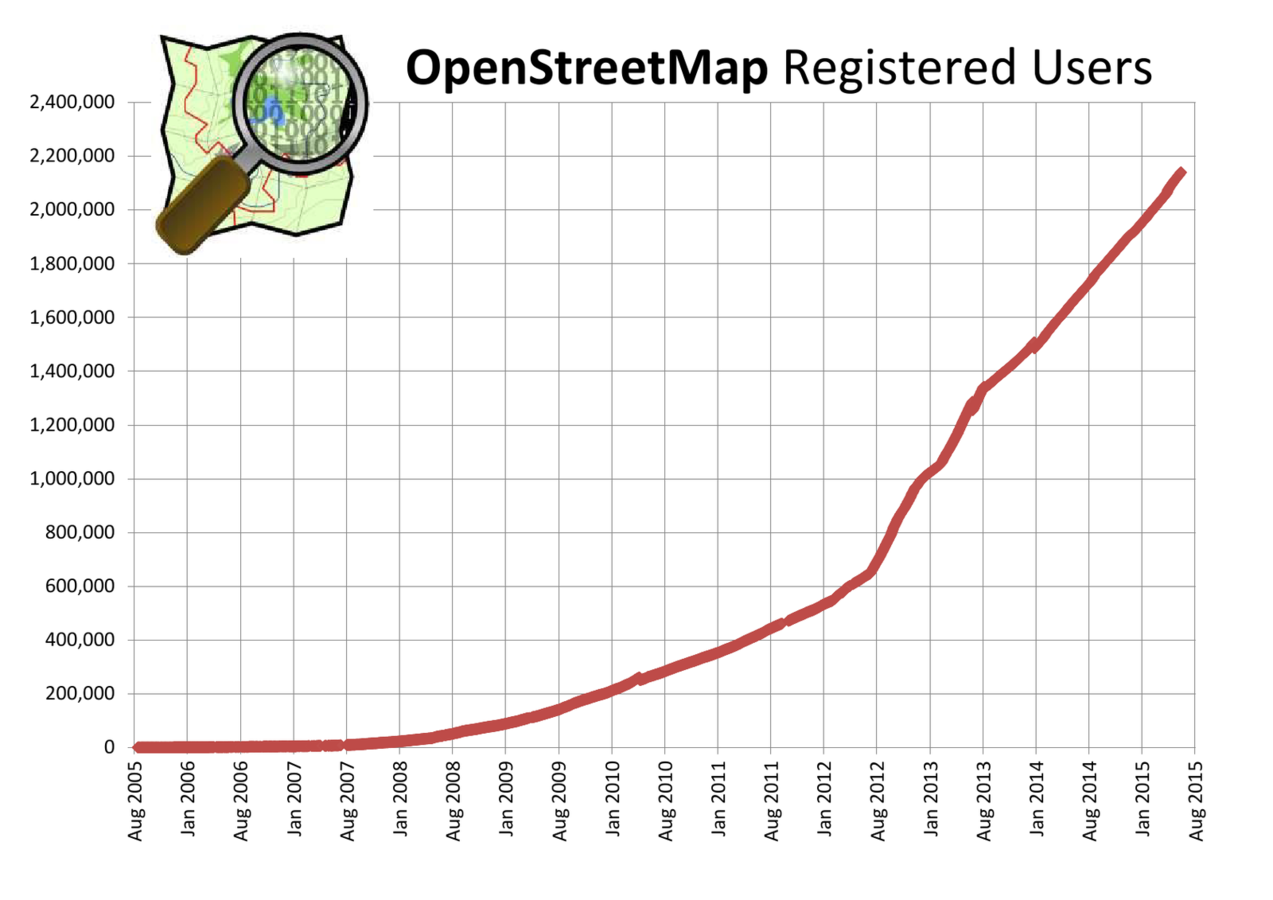

OpenStreetMap

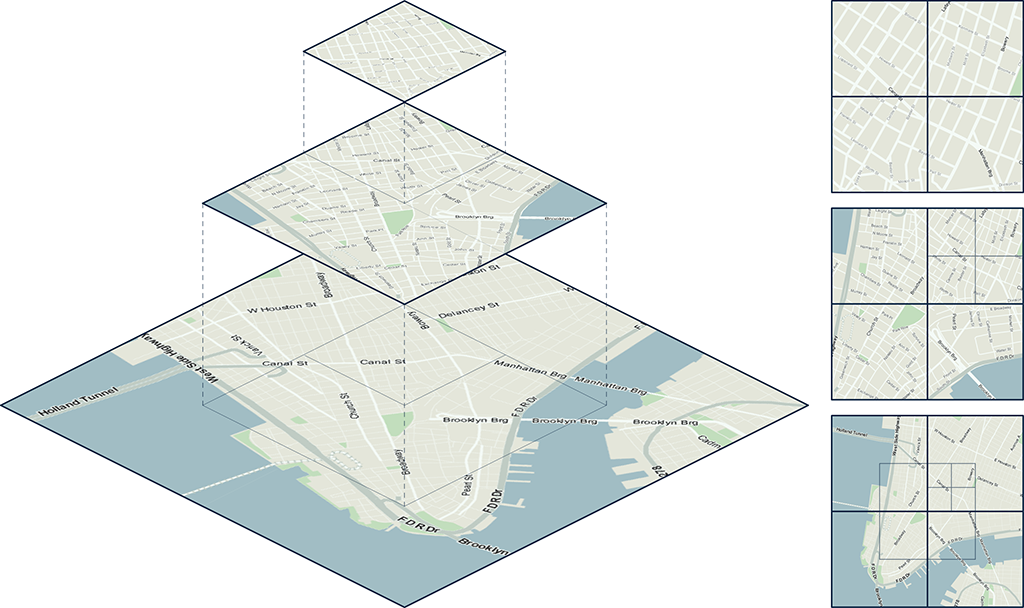

Vector Tiles

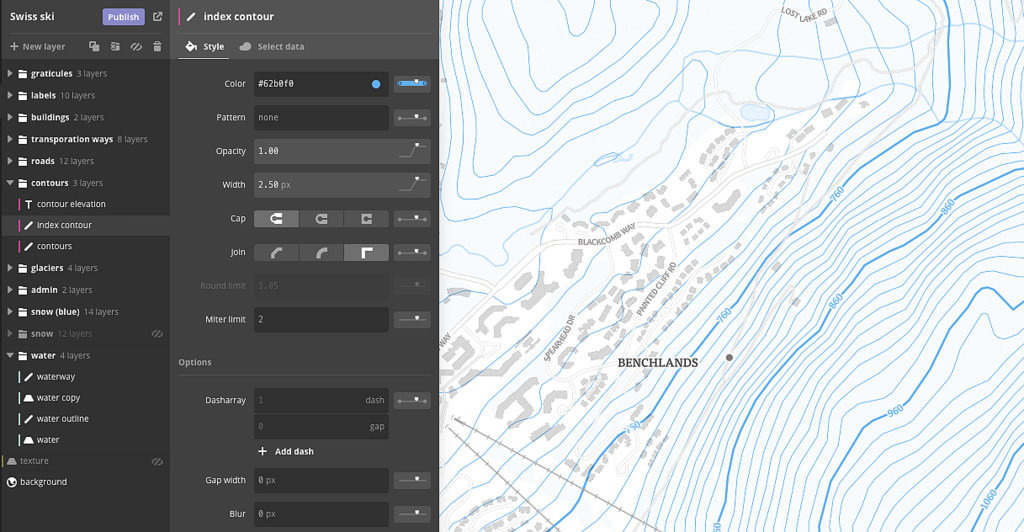

Mapbox Studio
1) Upload Spatial Data
2) Style Layers
3) Publish/Share
4) Develop Further (optional)
The Process
<!DOCTYPE html>
<html>
<head>
<meta charset='utf-8' />
<title></title>
<meta name='viewport' content='initial-scale=1,maximum-scale=1,user-scalable=no' />
<script src='https://api.tiles.mapbox.com/mapbox-gl-js/v0.14.3/mapbox-gl.js'></script>
<link href='https://api.tiles.mapbox.com/mapbox-gl-js/v0.14.3/mapbox-gl.css' rel='stylesheet' />
<style>
body { margin:0; padding:0; }
#map { position:absolute; top:0; bottom:0; width:100%; }
</style>
</head>
<body>
<style>
#menu {
background: #666666;
position: absolute;
z-index: 1;
top: 10px;
right: 10px;
border-radius: 3px;
width: 120px;
border: 1px solid rgba(0,0,0,0.4);
font-family: 'Open Sans', sans-serif;
}
#menu a {
font-size: 15px;
font-weight: bold;
color: #404040;
display: block;
margin: 0;
padding: 0;
padding: 10px;
text-decoration: none;
border-bottom: 1px solid rgba(0,0,0,0.25);
text-align: center;
}
#menu a:last-child {
border: none;
}
#menu a:hover {
background-color: #f8f8f8;
color: #404040;
}
#menu a.active {
background-color: #666666;
color: #fff;
}
#menu a.active:hover {
background: #3074a4;
}
</style>
<nav id="menu"></nav>
<div id='map'></div>
<script>
mapboxgl.accessToken = 'pk.eyJ1IjoicmNhbGxpaGFuIiwiYSI6IlRKUVFvSUEifQ.gZ65speTXetjHscGe6aDWA';
var map = new mapboxgl.Map({
container: 'map', // container id
style: 'mapbox://styles/mapbox/dark-v8',
center: [-99, 39], // starting position
minZoom: 3,
maxZoom: 8,
zoom: 4 // starting zoom,
});
map.addControl(new mapboxgl.Navigation({position: 'top-left'}));
map.dragRotate.disable();
map.on('style.load', function () {
map.addSource('land_mobile_private_transmission_towers_justtowers', {
'type': 'vector',
'url': 'mapbox://rcallihan.7z0cyrdl'
});
map.addLayer({
'id': 'Private Towers',
'type': 'circle',
'source': 'land_mobile_private_transmission_towers_justtowers',
'paint': {
'circle-radius': 2,
'circle-opacity': 0.3,
'circle-color': 'rgba(158,232,255,0.8)'
},
'source-layer': 'land_mobile_private_transmission_towers_justtowers'
});
map.addSource('OGRGeoJSON', {
'type': 'vector',
'url': 'mapbox://rcallihan.2lfg1ele'
});
map.addLayer({
'id': 'Commercial Towers',
'type': 'circle',
'source': 'OGRGeoJSON',
'paint': {
'circle-radius': 2,
'circle-color': 'rgba(242,230,142,0.8)',
'circle-opacity': 0.3
},
'source-layer': 'OGRGeoJSON'
});
});
addLayer('Private', 'Private Towers');
addLayer('Commercial', 'Commercial Towers');
function addLayer(name, id) {
var link = document.createElement('a');
link.href = '#';
link.className = 'active';
link.textContent = name;
link.onclick = function (e) {
e.preventDefault();
e.stopPropagation();
var visibility = map.getLayoutProperty(id, 'visibility');
if (visibility === 'visible' || visibility === undefined) {
map.setLayoutProperty(id, 'visibility', 'none');
this.className = '';
} else {
this.className = 'active';
map.setLayoutProperty(id, 'visibility', 'visible');
}
};
var layers = document.getElementById('menu');
layers.appendChild(link);
}
</script>
</body>
</html>Puppies
Let's Make a Map!
Mapbox Brownbag
By Ryan Callihan
