Various Types of Flanges
A flange is an external or internal protruded ridge, lip, or rim that increases strength for simple attachment/transfer of contact force with another item, or for stabilizing and controlling the movements of a machine or its parts. The term "flange" is also applied to a tool that is used to create flanges.
For more information visit: https://www.neoimpex.com/carbon-steel-astm-a105-a105n-flanges-manufacturer.html

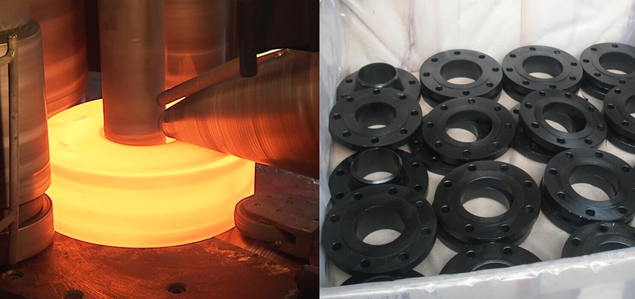

We are manufacturers, suppliers, and exporters of Carbon Steel A105 / A105N Flanges, which the American Society for Testing Materials classifies as a standard that covers forged Carbon-Steel piping parts, including carbon steel pipe flanges, that can be used in pressure systems at room temperatures as well as higher temperatures.
Standard Specification For Carbon Steel ASTM A105 / A105N Industrial Flanges
- Specifications: ASTM A105 / ASME SA105, A105N, asme sa 105 equivalent
- Dimensions: ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
- Standard: ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
- Size: 1/2″ to 48″
- Class / Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
- Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

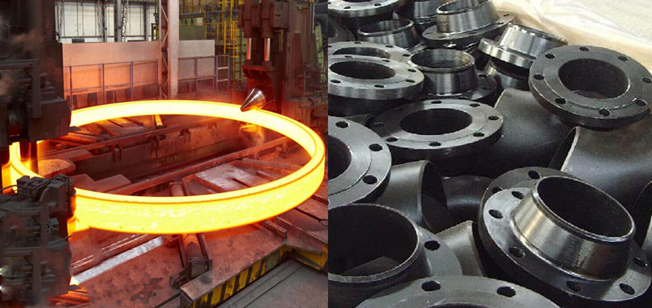

LTCS A350 LF2 Flanges which might be crafted from Low-Temperature Carbon Steel compliant to ASTM A350 specifications, adept to paintings at low-temperature services. Our LTCS A350 LF2 Orifice Flanges have yield energy of 36ksi and are normalized to advantage a terrific grain structure they join gadgets with nozzles efficiently and are utilized in extensive packages industries like mild and heavy chemical production factories.
Standard Specification For LTCS ASTM A350 LF2 / A350 LF2 Industrial Flanges
- Specifications: ASTM A350 LF2 / ASME SA350
- Dimensions: ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
- Standard: ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
- Material: ASTM A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2
- Size: 1/2″ to 48″
- Class / Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
- Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

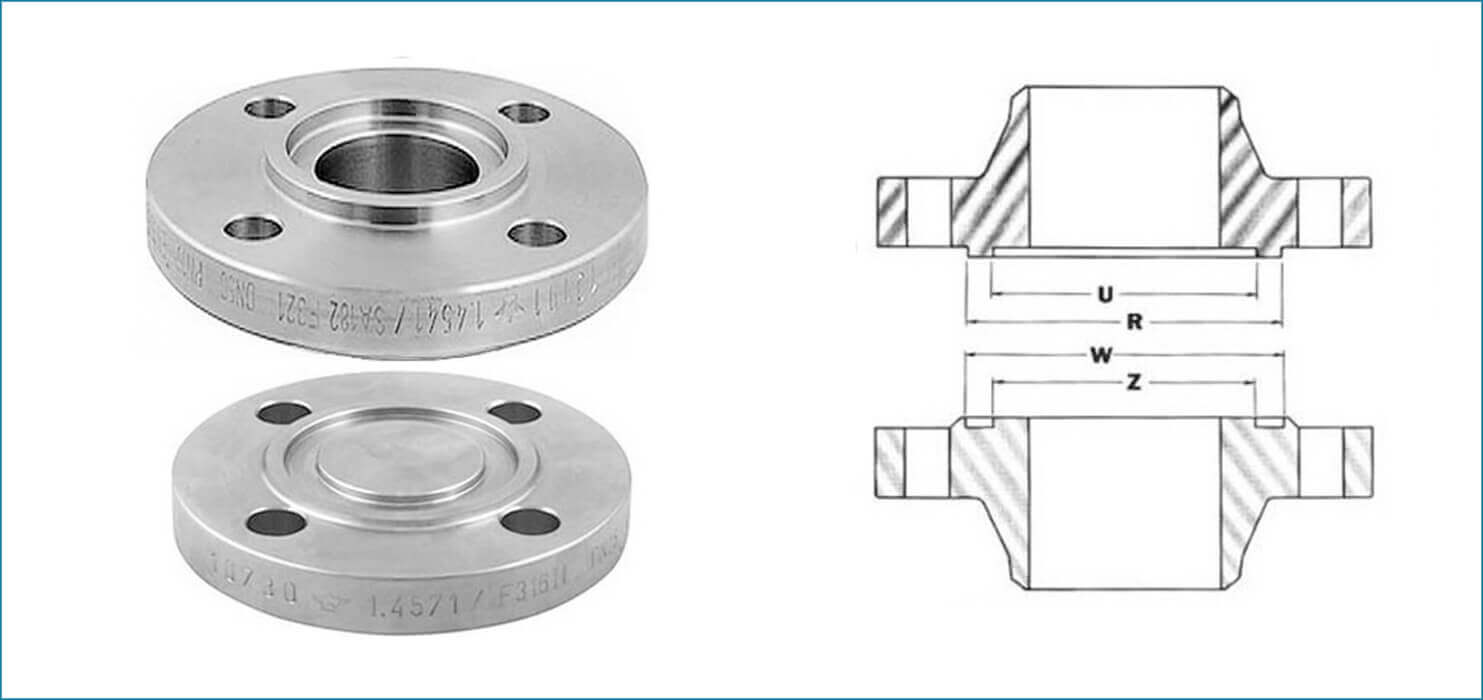

Stainless Steel Groove Flange, the Tongue Flange is synthetic with a raised ring this is machined into its face. The tongue and groove flange dimensions are produced with an identical melancholy machined onto its face. In order to have a water-tight connection, it's far vital to fit the faces of those flanges. Tongue and Groove Flange Gasket is self-aligning; they do now no longer are available touch with the internal fluid or fuelling of the tube or pipe.
Standard Specification For Tongue & Groove Flanges
- Dimensions: ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
- Size: 1/2" (15 NB) to 48" (1200NB)
- Class: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
- DIN: DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
- BS: BS4504 , BS4504, BS1560, BS10
- Flange Face Type: Flate Face (FF), Raised Face(RF), Ring Type Joint (RTJ), Gasket for Tongue and Groove Flange

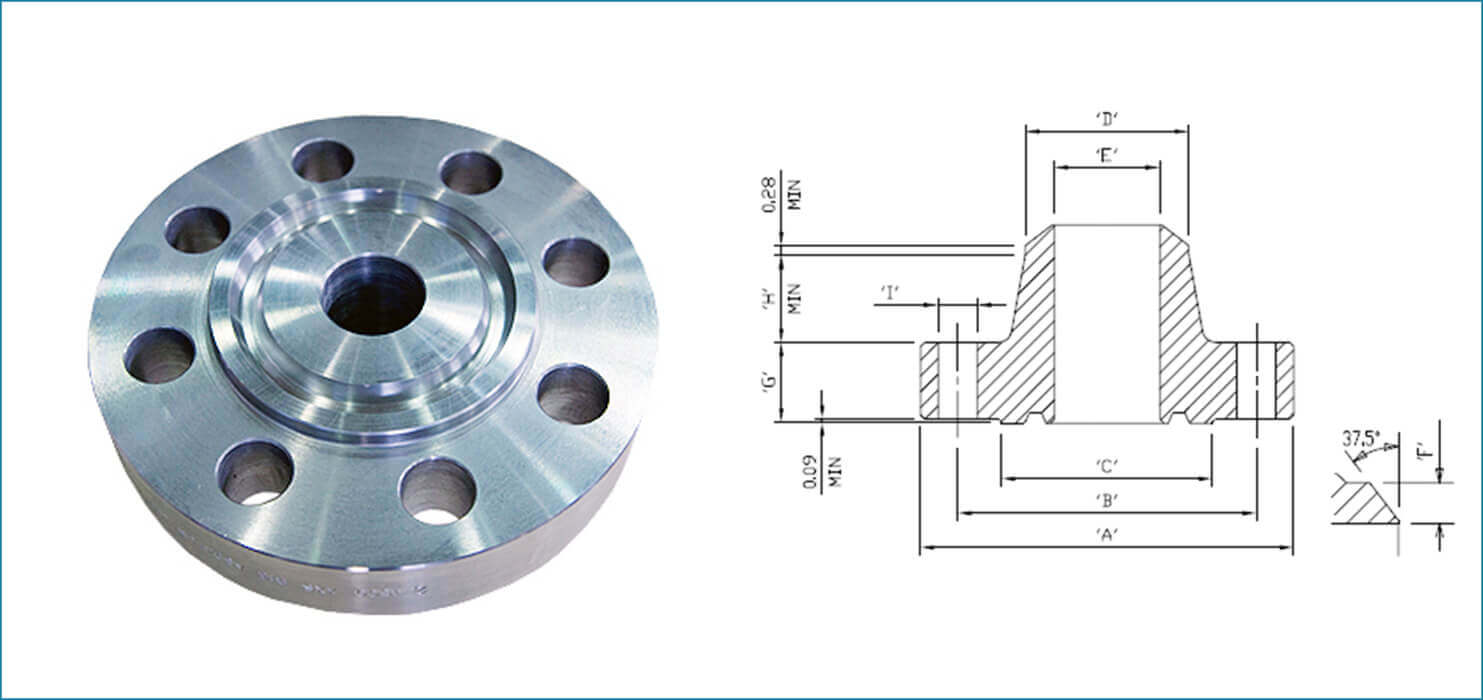

We are manufacturers, providers and exporters of various Ring Type Joint Flanges (RTJ) which might be best-in-class. A Ring kind joint flange (RTJ) is a machined metal ring with a deep groove reduce into its face. This groove rests a metallic ring that receives compression while the connecting bolts of the flange are tightened. These compression outcomes in a leak-proof, close-becoming seal at the pipe or connection.
Standard Specification For Ring Type Joint Flanges
- Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
- Size : 1/2" (15 NB) to 48" (1200NB)
- Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
- DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
- BS : BS4504 , BS4504, BS1560, BS10
- Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
About Us
Neo Impex Stainless Pvt. Ltd. (NISPL), an ISO 9001:2000 licensed Company manufacturing & exporting the greatest excellent Stainless Steel, Carbon Steel and Alloy Steel, Butt Welded Pipe Fittings & Flanges. Immediate Response, Excellent Quality, Quick Delivery, and Customer Satisfaction virtually outline Neo Impex Stainless Pvt. Ltd. We additionally manufacture and specialized in Butt Welded Fittings and Flanges in Nickel, Monel, Inconel, Incoloy, Hastalloy, Alloy 20, Duplex.
For more information please visit: https://www.neoimpex.com/
Thank you
