PWA

Progressive Web Applications

Damian Sosnowski

@sosnowsd

https://github.com/sosnowski

https://github.com/sosnowski/pwa-workshop

https://www.gft.com/pl/pl/index/o-nas/kariera/oferty-pracy/

Web apps on mobile

Native

Installable

Can work offline

Performance

Device integration

Web

Works "everywhere"

Easily accessible

Store - independent

Security / Privacy

Bound to the store

Platform specific

Complex installation

Security / Privacy

Not installable

Requires internet connection

Performance

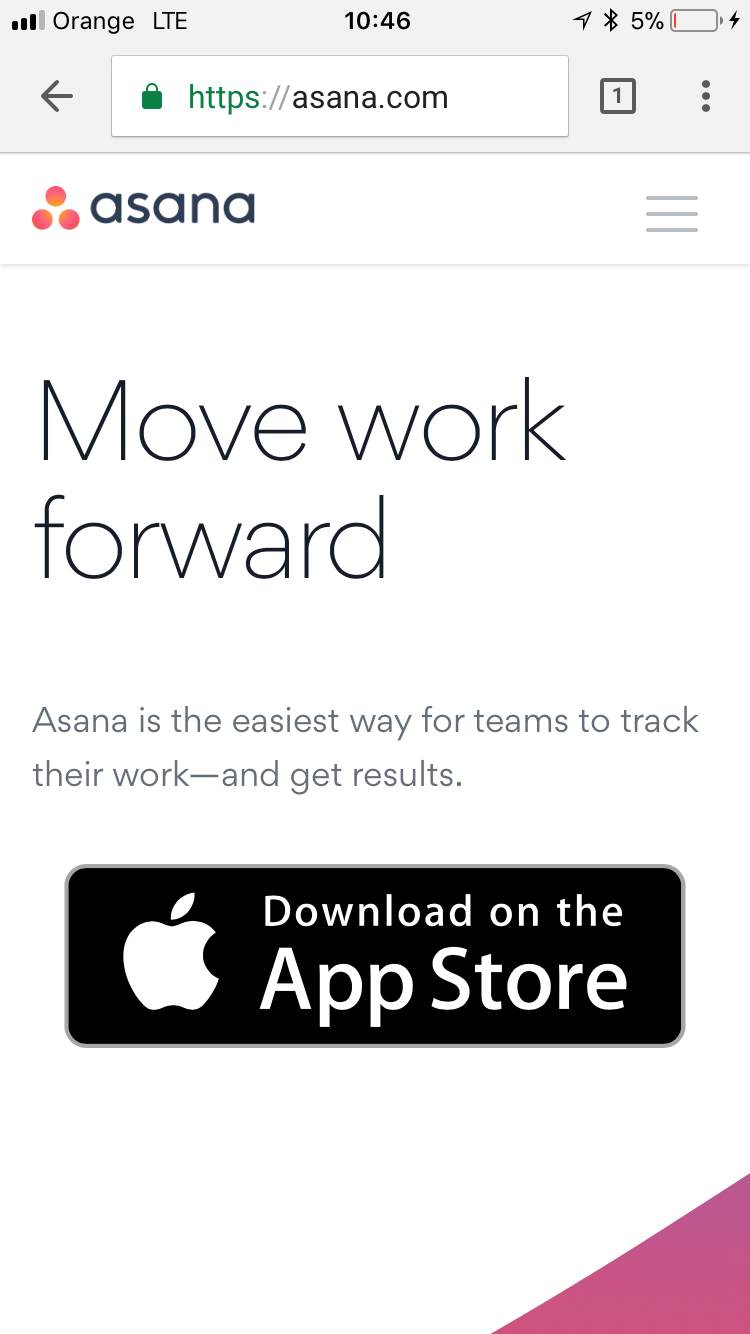

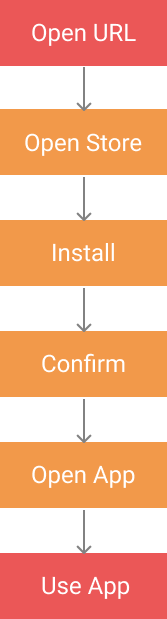

Obligatory AppStore

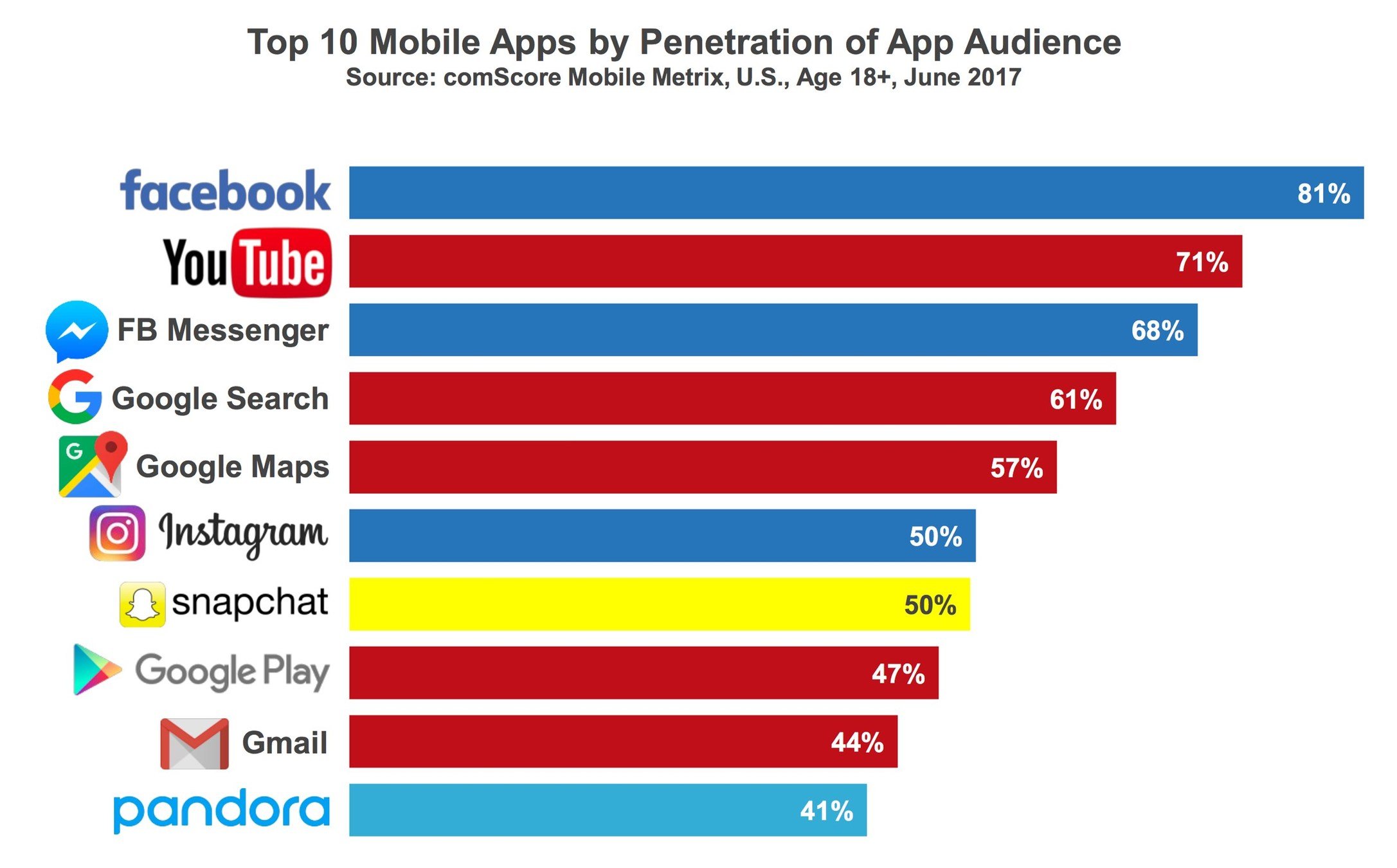

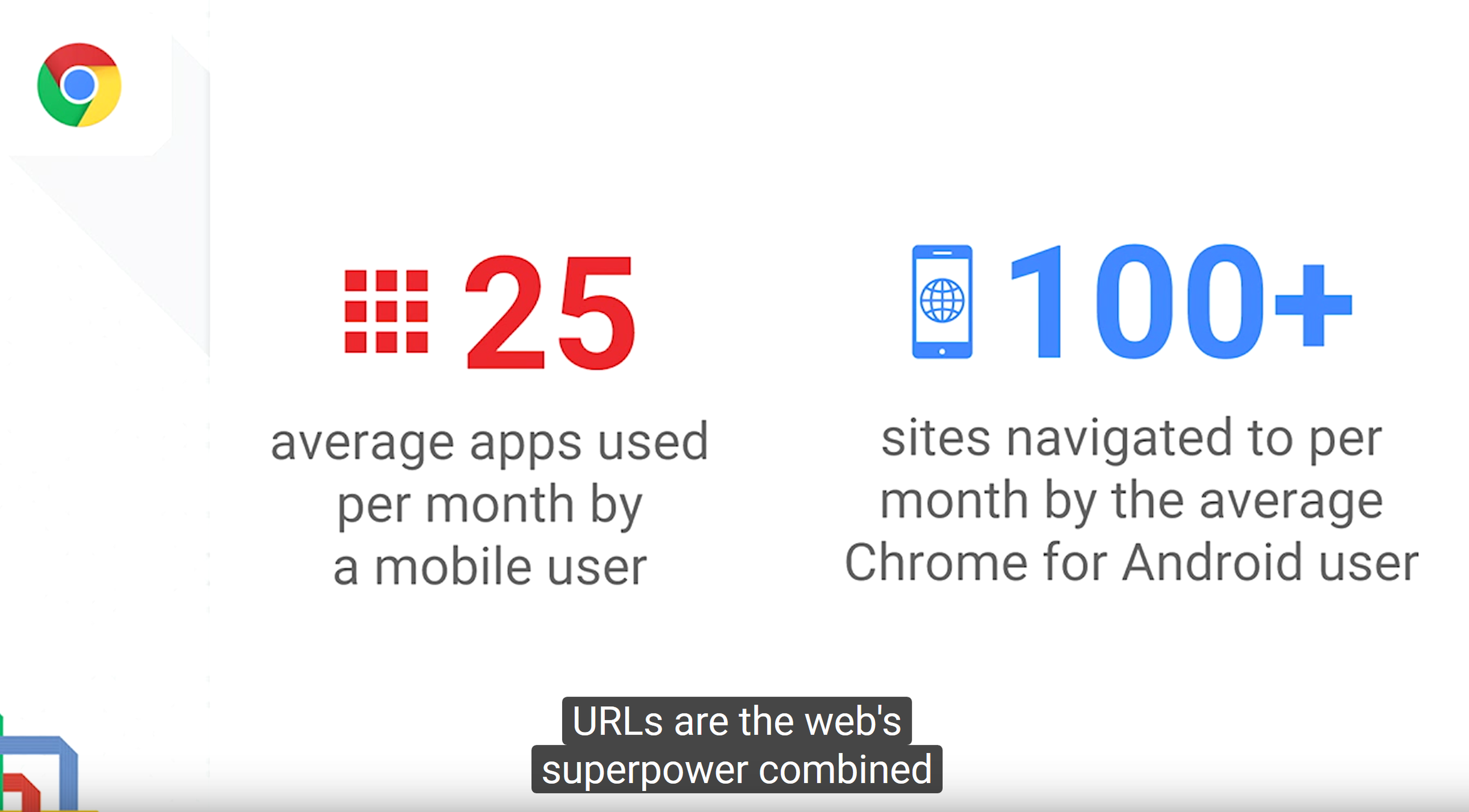

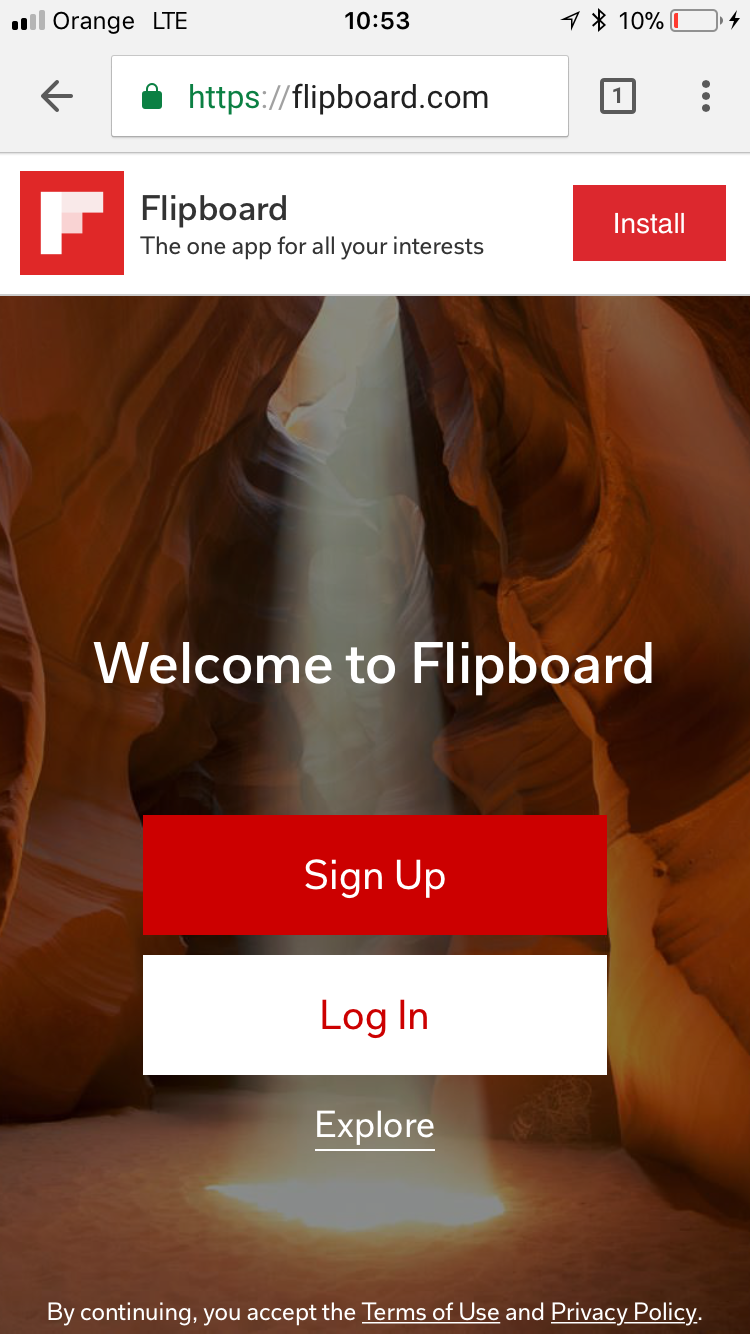

Most of the apps are "found" on the internet.

Is there something better?

PWA

"The websites that took all the right vitamins. "

Installable

Can work offline

Easily accessible

Better performance

Store independent

What is PWA

Simply a web page / web app, with few additional perks

Linkable

Responsive design

Safe - https://

Discoverable

Installable

Offline friendly

App shell architecture

Always up to date

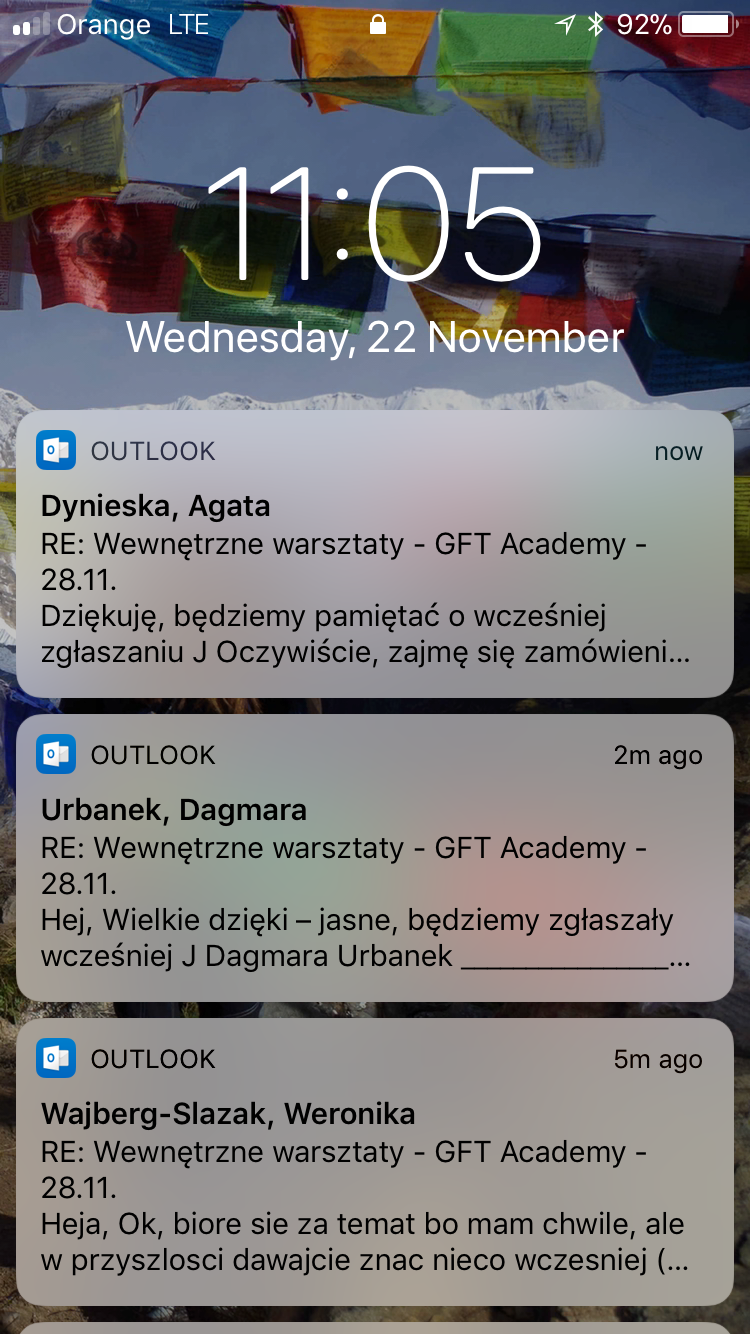

Notifications

Already done

Web App Manifest

Service Workers

Progressive!

Let's do some PWA

Web Manifest

Escaping the browser tabs.

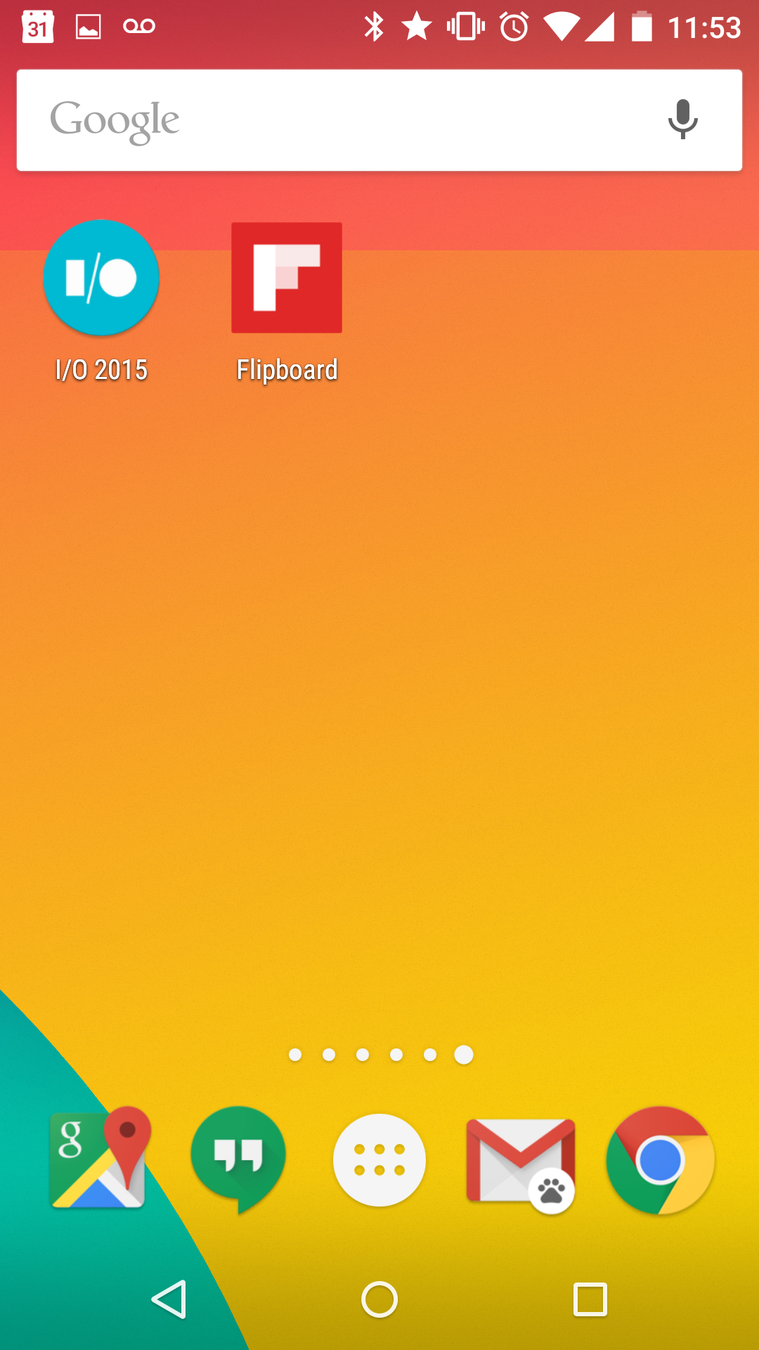

Installable web application

manifest.json

{
  "name": "My PWA app",
  "short_name": "PWAApp",
  "icons": [{
        "src": "images/touch/icon-128x128.png",
        "sizes": "128x128",
        "type": "image/png"
      },
      {
        "src": "images/touch/apple-touch-icon.png",
        "sizes": "152x152",
        "type": "image/png"
      }],
  "start_url": "/index.html",
  "display": "standalone",
  "background_color": "#3E4EB8",
  "theme_color": "#2F3BA2"
}

Most apps

"display": "standalone"

Games

"display": "fullscreen",
"orientation": "portrait"

...

"orientation": "landscape"

Manifest

<html>
    <head>
        <title>Standalone Web App</title>
        <meta name="viewport" content="width=device-width, initial-scale=1.0"/>

        <link rel="manifest" href="manifest.json">

    </head>
    <body>
        <!-- ... -->
    </body>
</html>

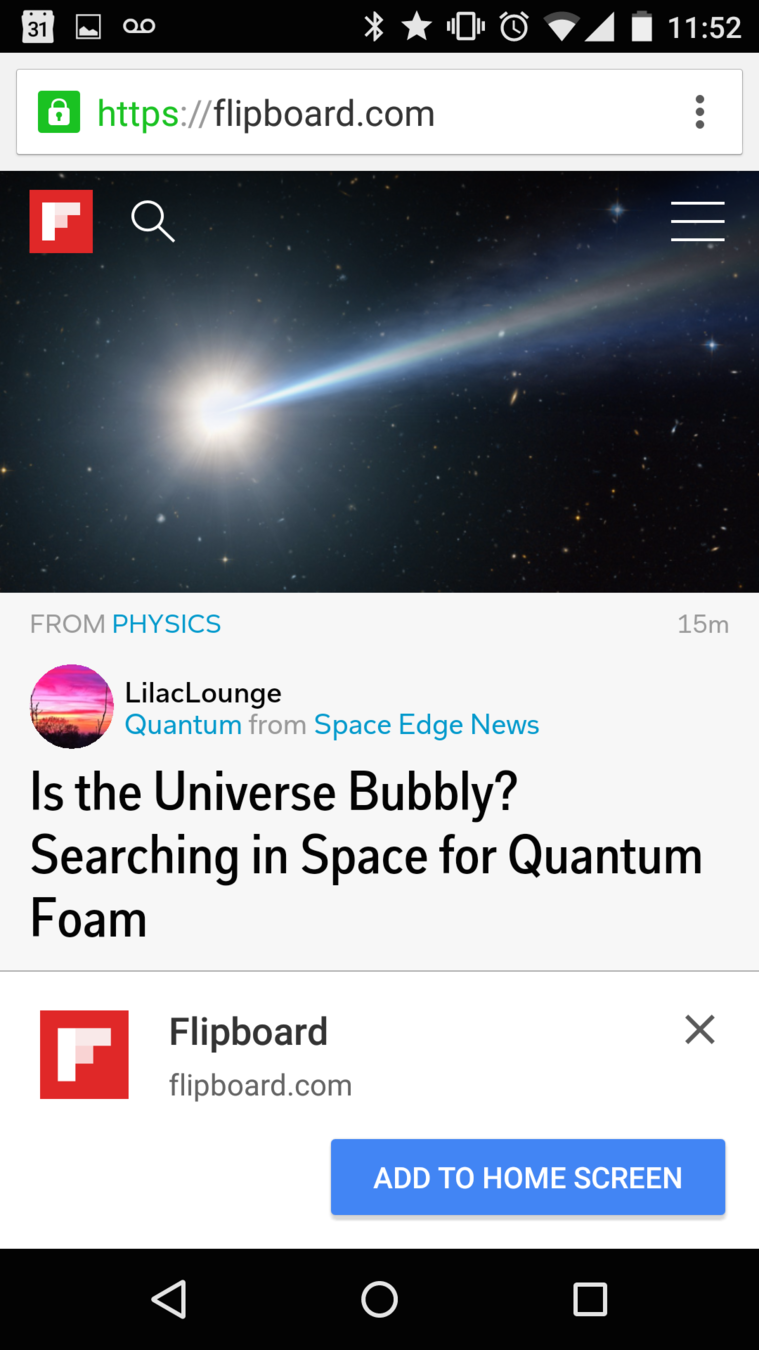

Served over HTTPS
Have a valid service worker registered
Visited twice, with at least 5 minutes between visits

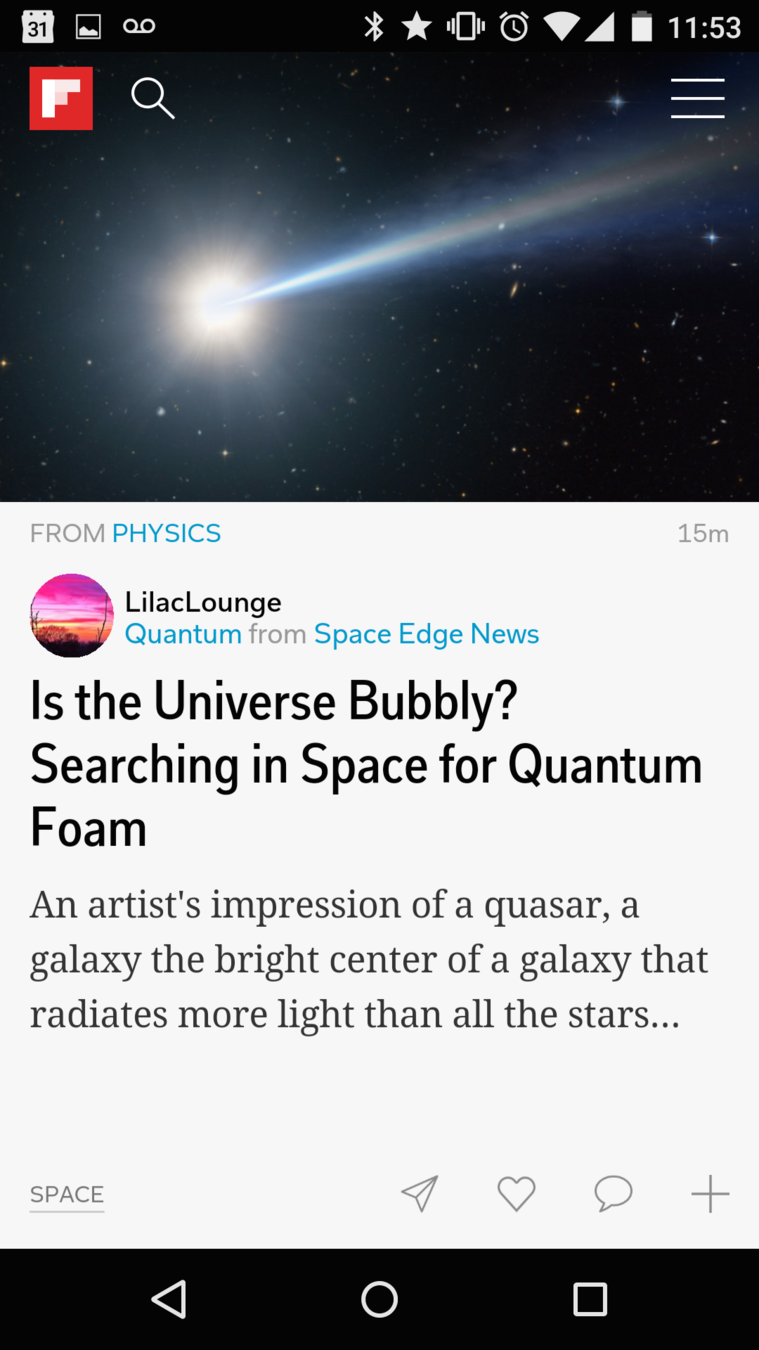

PWA application flow

Remember!

No browser navigation!

You have to provide your own custom navigation methods.

Service worker

The core of PWA

What is service worker?

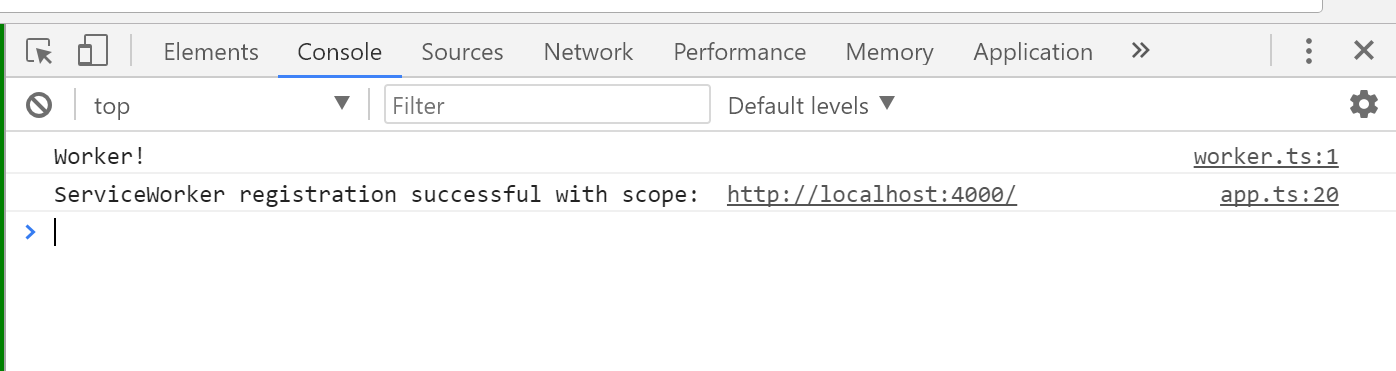

Basic Service Worker

//app.js

if ('serviceWorker' in navigator) {
    try {
        const registration = await navigator.serviceWorker.register('/worker.js');
        console.log('ServiceWorker registration successful');
    }
    catch (e) {
        console.log('ServiceWorker registration failed: ');
    }
}

//worker.js

console.log('Worker!');

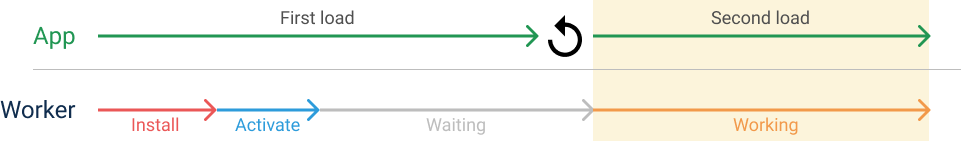

Basic Service Worker

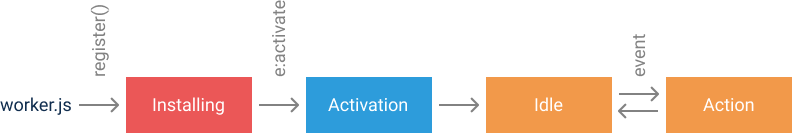

Service Worker life cycle

Offline support

Caching resources using Service Worker

Caching

self.addEventListener('install', (event) => {
    //open cache
    let openCachePromise = caches.open('app-cache-v1');

    //add all resources to cache
    let addAllPromise = openCachePromise.then((cache) => {
        return cache.addAll([
            '/',
            '/styles/main.css',
            '/script/main.js'
        ]);
    });

    //worker will wait till all operations are finished
    event.waitUntil(addAllPromise);
});

Caching - return data

self.addEventListener('fetch', (event) => {
    event.respondWith(
        caches.match(event.request)
            .then((response) => {
                // Cache hit - return response
                if (response) {
                    return response;
                }
                return fetch(event.request);
            }
        )
    );
});

When to cache

install

Open cache, add all required resources

activate

Remove all outdated caches

self.addEventListener('activate', (event) => {
    event.waitUntil(caches.delete('old_cache_name')); // don't do it this way ;)
});

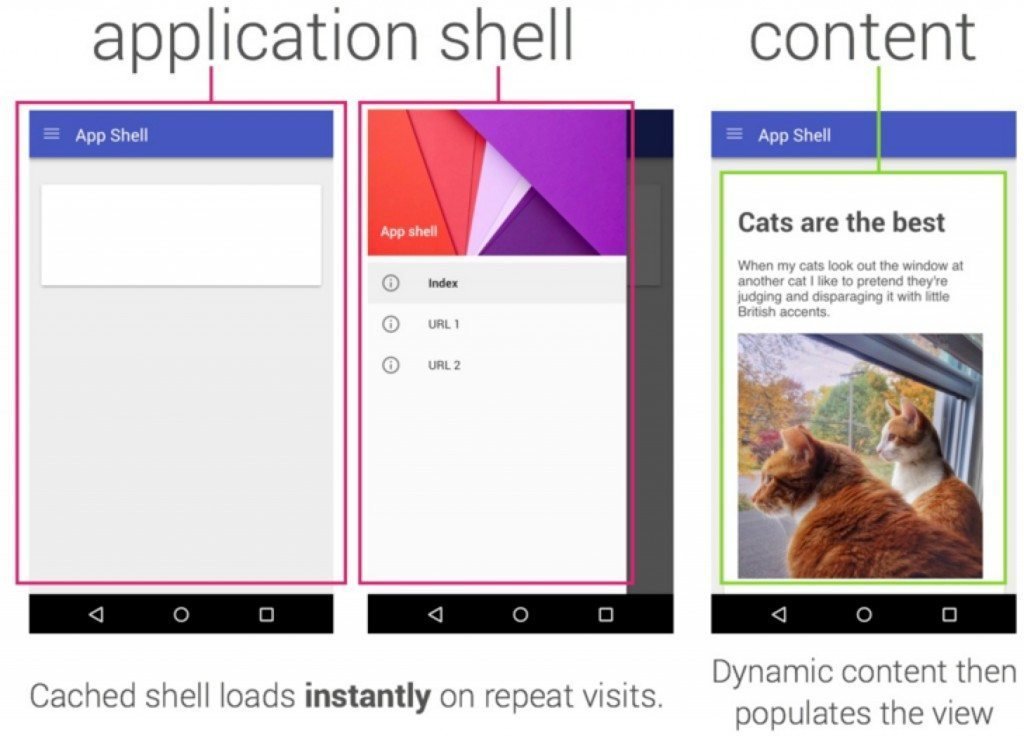

Application Shell Architecture

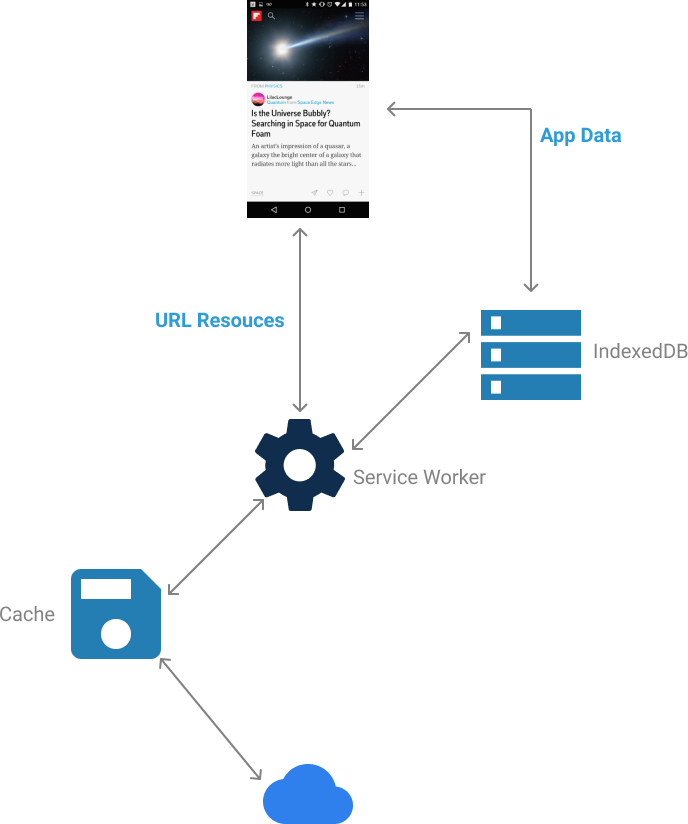

What storage should I use?

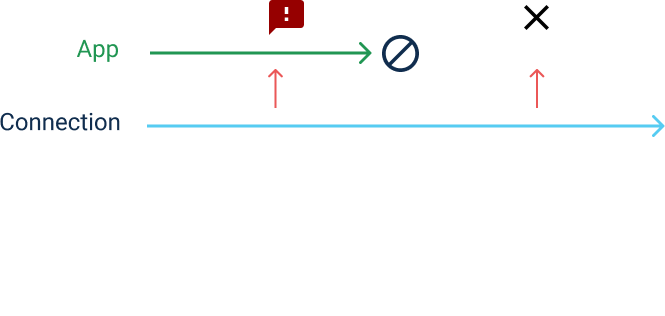

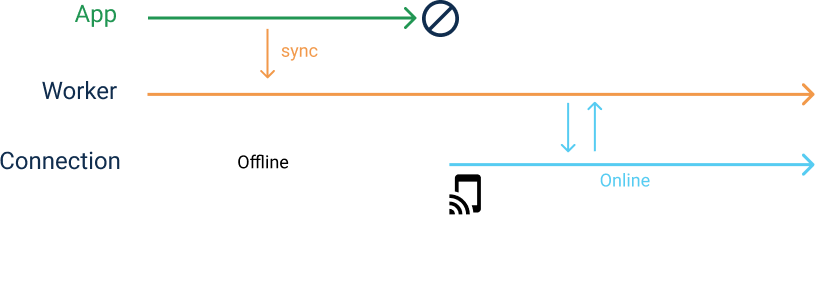

Background Sync

//app.js

swRegistration.sync.register('syncTag');

//worker.js

self.addEventListener('sync', (event) => {
    if (event.tag == 'myFirstSync') {
        //read data from DB
        //find unsychronized records
        //load new records from the server
        event.waitUntil(doSomeStuff());
    }
});

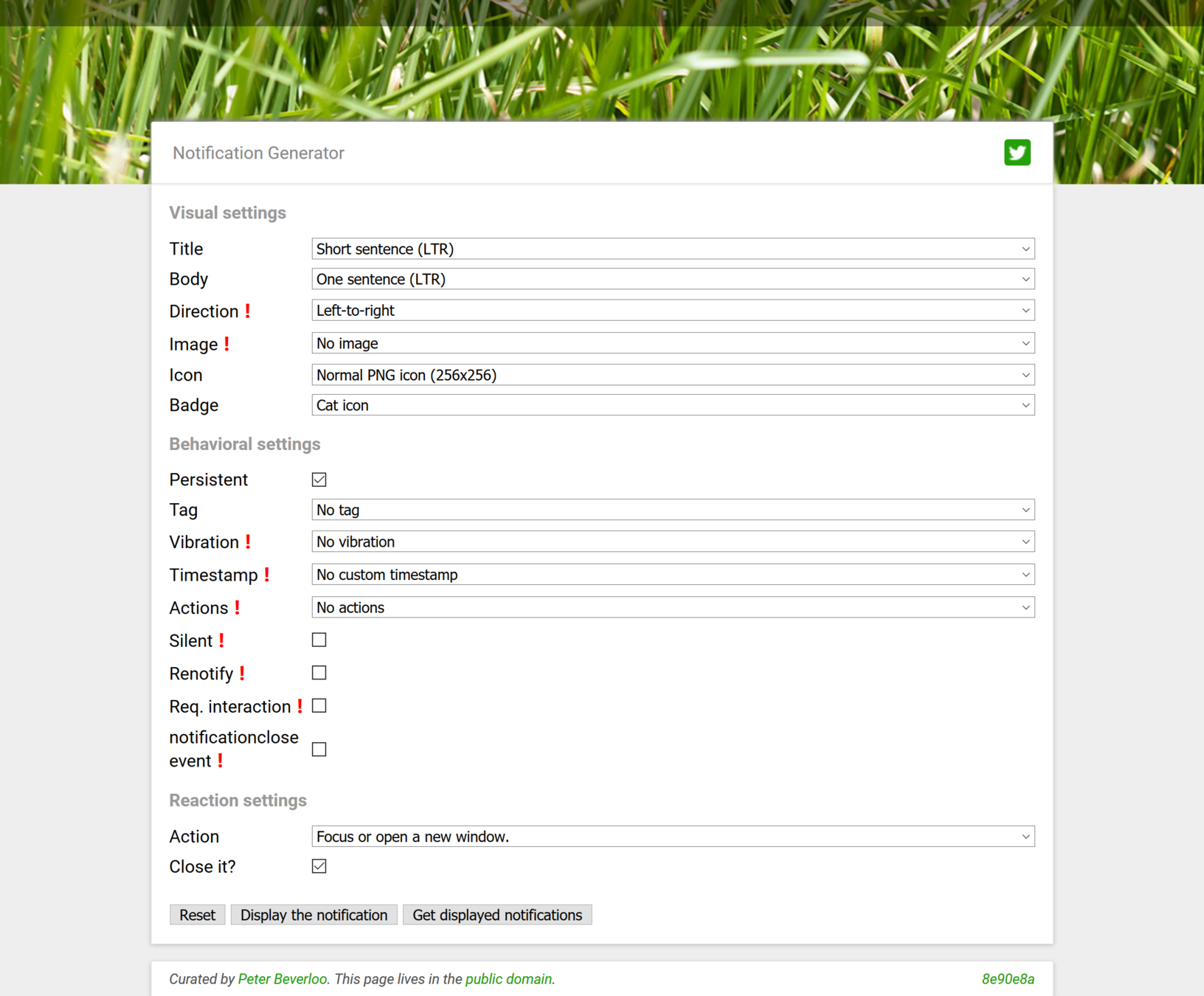

Push notifications

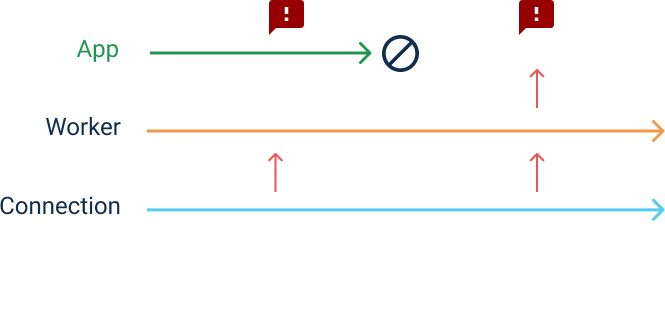

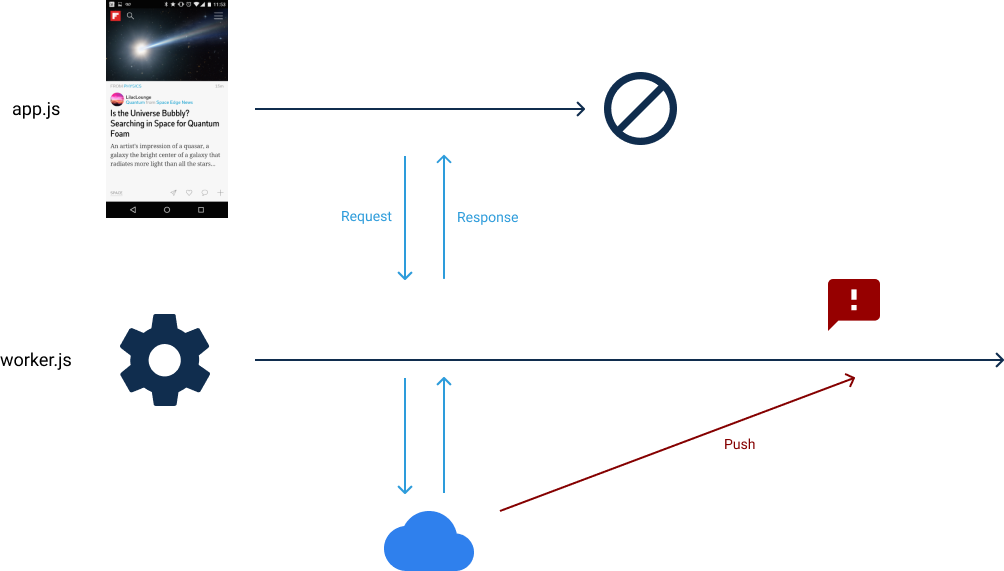

Websockets vs Push Notifcations

Quite complex API

Step 1 - permission

Notification.requestPermission().then((result) => {
  if (result === 'denied') {
    console.log('Permission wasn\'t granted.');
    return;
  }
  if (result === 'default') {
    console.log('The permission request was dismissed.');
    return;
  }
  // Do something with the granted permission.
});

var permission = Notification.permission;

Step 2 - registration

navigator.serviceWorker.ready.then(function(reg) {

  reg.pushManager.subscribe({
    userVisibleOnly: true,
    applicationServerKey: '-long-string-'
  }).then(function(sub) {
    console.log('Endpoint URL: ', sub.endpoint);

    //now you can send the data to the server

    sendSubscriptionDataToServer(sub);

  }).catch(function(e) {
    console.error('Unable to subscribe to push', e);
  });
});

{
    "endpoint": "https://android.googleapis.com/gcm/send/f1Ls...iYNxIVpLIYeZ8kq_A",
    "keys": {
        "p256dh": "BLc4xRzKlKORKWlbdgFaBrrPK3ydWAH...IO4475rds=",
        "auth": "5I2Bu2oKdyy9CwL8QVF0NQ=="
    }
}

Step 3 - send message

const webpush = require('web-push');

// VAPID keys should only be generated only once.
const vapidKeys = webpush.generateVAPIDKeys();

webpush.setVapidDetails(
  'mailto:example@yourdomain.org',
  vapidKeys.publicKey,
  vapidKeys.privateKey
);

// This is the same output of calling JSON.stringify on a PushSubscription
const pushSubscription = {
  endpoint: '.....',
  keys: {
    auth: '.....',
    p256dh: '.....'
  }
};

webpush.sendNotification(pushSubscription, 'Your Push Payload Text');

Step 4 - Receive push message

//worker.js

self.addEventListener('push', (event) => {
    let options = {
        body: event.data.text(),
        icon: 'images/example.png',
        vibrate: [100, 50, 100],
        data: {
          customData: ''
        }
    };

    event.waitUntil(
      self.registration.showNotification('Hello!', options)
    );
});
