Currents and K-functions for Fiber Point Processes

Geometric Science of Information 2021

Pernille Hansen, Rasmus Waagepetersen, Anne Marie Svane, Jon Sporring, Hans Stephensen , Jon Sporring, Stine Hasselholt, Stefan Sommer

Analysis of fiber point processes

Point processes and Ripley's K-function
Fiber/shape valued processes
Fiber K-function using currents metric
Simulation and myelin fibers results

Point processes

A point process \(X\) on a metric space \(S\) is a measurable map from some probability space \((\Omega, F, P )\) into the space of locally finite subsets of \( S\).

Usually \( S= \mathbb R^n \)

Ripley's K-function for point processes \(X\) on \(\mathbb R^n\):

\(K(t) = \frac{1}{\lambda} \mathbb E\)[#events within distance \(t\) from a point]

\(\lambda \) is the intensity (number per unit area) of events.

Ripley’s K-function is standard statistical tool for

analyzing second order moment
structure of point processes
measuring deviance from complete
spatial randomness in point sets.

Ripley's K-function

\(t\)

Ripley's K-function

\(t\)

\( K(t)\)

Ripley’s K-function is standard statistical tool for

analyzing second order moment
structure of point processes
measuring deviance from complete
spatial randomness in point sets.

clustered

dispersed

Aim

Define a K-function for point processes where every point is a shape, for example fibers in \( \mathbb R^3\)

Issues

Metric
Well-posed K-function
Uniform shape process - equivalent to Poisson point processes

K-function for fibers and shapes

\(\hat{K}(t) = \frac{1}{\hat{\lambda}}\sum_{i\not=j}\frac{1[\mathrm{dist}(p_i,p_j)<t]}{n}\)

\(\hat{\lambda}=\frac{n}{|W|}\)

Metric: Currents

A piece-wise smooth curve \( \gamma \) is characterized by the path-integral over vector fields \(w\)

where \( \tau(x)_\gamma \) is the unit tangent of \( \gamma \) at \(x\).

\(V_\gamma(w) = \int_\gamma w(x)^t\tau_\gamma(x)d \lambda(x) \)

The shape \( \gamma \) is considered a functional

\(V_\gamma\in W^* = \{ f:W\to \mathbb R | \text{linear and cont} \}. \)

This representation is a current and formally the space of \(m\)-currents is the dual space of the differential \(m\)-forms.

By considering W as a RKHS gives the inner product on \(W^*\)

\( \langle V_{\gamma_1}, V_{\gamma_2} \rangle = \int_{\gamma_1}\int_{\gamma_2} \tau_{\gamma_1}(x)^tK(x,y) \tau_{\gamma_2}(x) d\lambda(x)\lambda(y) \)

where \(K\) is the kernel of \(W\) and the induced distance measure

\( d_c(V_{\gamma_1}, V_{\gamma_2}) = ||V_{\gamma_1} - V_{\gamma_2} || \)

Define the empirical K-function on shapes \(S\)

\(c:S\to\mathbb R^d\) gives curve center points (\(c\) translation equivariant),
\(\gamma_c:=\gamma-c(\gamma)\) are centered curves,
\(\nu(S_0) \) is a measure on centered curves,
and \( |W| \) size of the observation window

Currents based K-function

\( \hat{K}(t,s) = \frac{1}{|W|\nu(S_0)} \sum \sum 1[||c(\gamma)-c(\gamma')|| \leq t, d_c(\gamma_c,\gamma_c')\leq s]\)

\( \gamma\in X:c(\gamma)\in W\)

\( \gamma' \neq \gamma \in X \)

\(K(s,t)\) measures both spatial (\(t\)) and shape (\(s\)) homogeneity

The shape K-function is the expectation

\[K(t,s)=\mathbb E[\hat{K}(t,s)]\]

Currents based K-function

\( s \) shape parameter

\( \hat{K}(s,t) = \frac{1}{|W|\nu(S_0)} \sum \sum 1[||c(\gamma)-c(\gamma')|| \leq t, d_c(\gamma_c,\gamma_c')\leq s]\)

\( \gamma\in X:c(\gamma)\in W\)

\( \gamma' \neq \gamma \in X \)

\(K(s,t)\) measures both spatial (\(t\)) and shape (\(s\)) homogeneity

\(t\) spatial parameter

Poisson centers \(c(\gamma)\) and fiber Brownian motion:

Analogue of Poisson point process

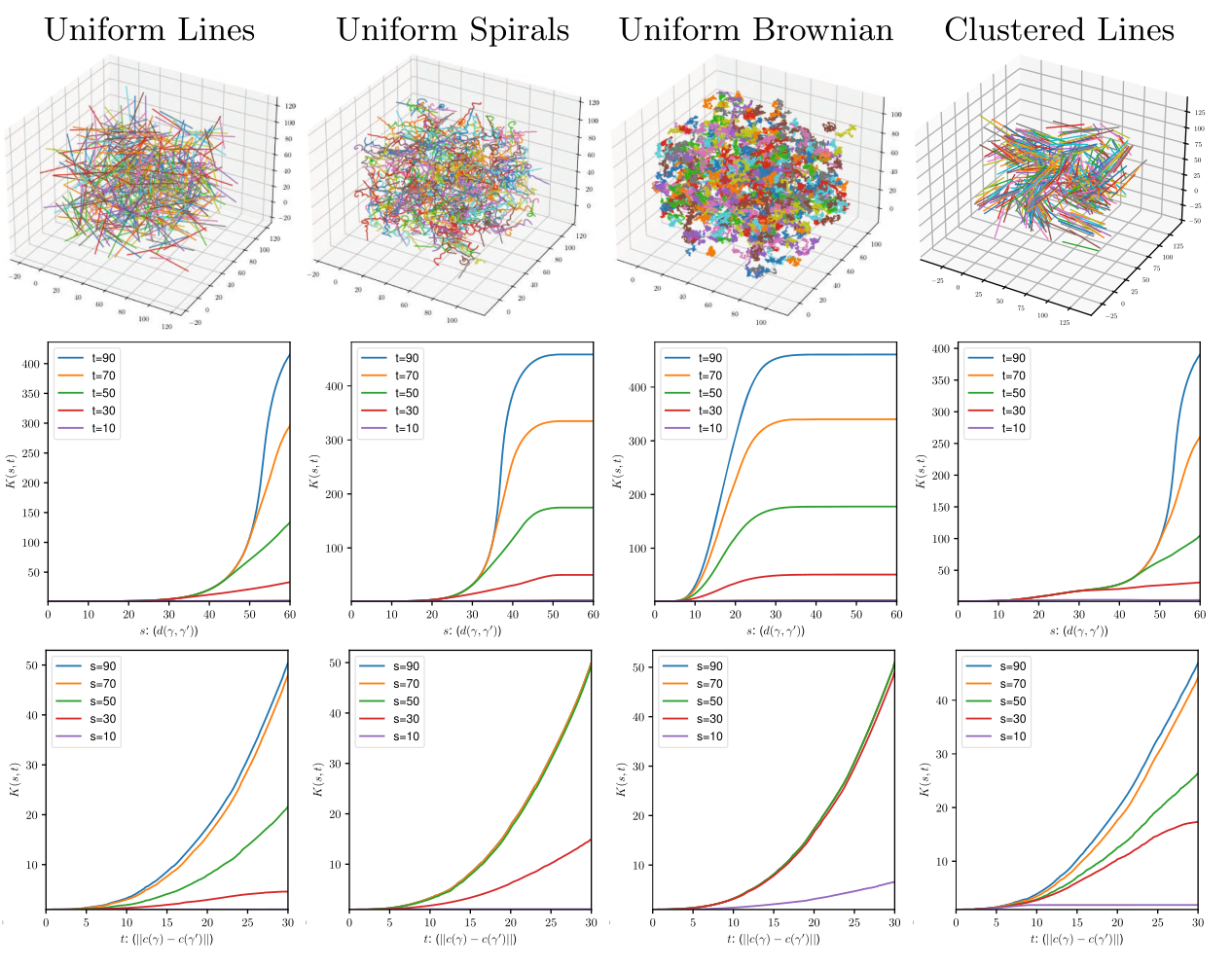

Uniform random fiber process

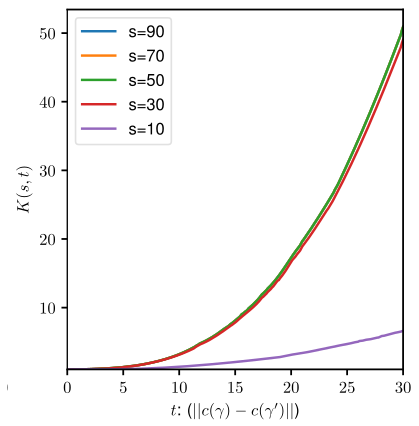

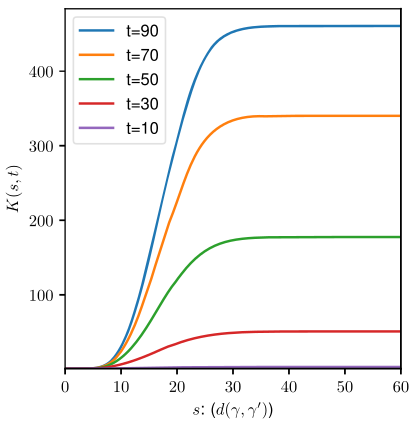

Synthetic data

Myelin fibers

Currents and K-functions for Fiber Point Processes

code: http://bitbucket.com/stefansommer/theanogeometry

http://bitbucket.com/stefansommer/jaxgeometry

slides: https://slides.com/stefansommer

References:

Hansen, Waagepetersen, Svane, Sporring, Stephensen, Hasselholt, Sommer: Currents and K-functions for Fiber Point Processes, GSI 2021, arXiv:2102.05329
Sporring, Waagepetersen, Sommer: Generalizations of Ripley's K-function with application to space of curves, IPMI 2019, arXiv:1812.06870

Acknowledgements: We thank Zhiheng Xu and Yaqing Wang from Institute of Genetics and Developmental Biology, Chinese Academy of Sciences for providing the mouse tissue used for generation of the dataset. The work was supported by the Novo Nordisk Foundation grant NNF18OC0052000.
