Introduction to Animations in React Native

Vladimir Novick

Frontend Developer & Architect

mail: vnovick@gmail.com

twitter: @VladimirNovick

github: vnovick

facebook: vnovickdev

I assume

you are familiar with

  • React

  • ReactNative

  • Basics of animation easing

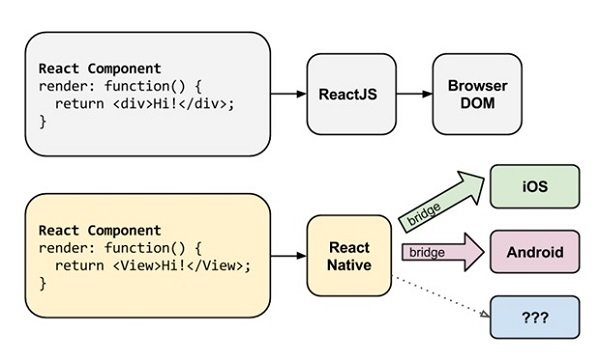

Brief mechanics of RN

What RN Animations really are

LayoutAnimation = Native

Animated = requestAnimationFrame

LayoutAnimation

  • Native Animations
  • Applied to all style properties of component
  • No need for specific values (heights/ widths)
  • Less configurable
  • Animates everything on next render
  • If another setState triggers during animation this won't affect current animation

Pros:

Cons:

Animated

  • Extremely configurable
  • Can target very specific components
  • Utilizes requestAnimationFrame to animate the values
  • If setState takes time animations can stutter

Pros:

Cons:

LayoutAnimation

// enable layout animation for Android in component constructor
if (Platform.OS === 'android') {
    UIManager
        .setLayoutAnimationEnabledExperimental(true)
}

Just works

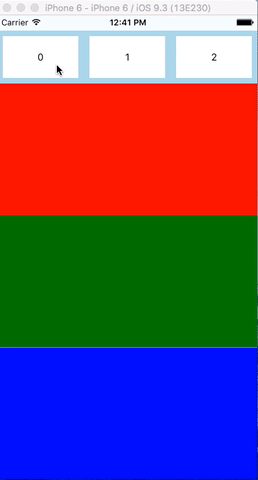

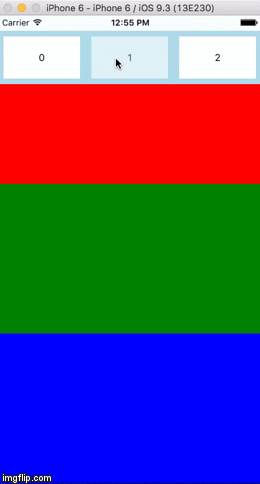

LayoutAnimation Basic usage

LayoutAnimation

  onPress(index) {
    const {
      easeInEaseOut,
      spring,
      linear
    } = LayoutAnimation.Presets;

    LayoutAnimation.configureNext(
        easeInEaseOut
//      spring
//      linear
    )
    this.setState({ index });
  }


  renderButton(index) {
    return (
      <TouchableOpacity
            key={'button' + index}
            style={styles.button}
            onPress={() => this.onPress(index)}>
        <Text>{index}</Text>
      </TouchableOpacity>
    );
  }

render() {
    const { redStyle, greenStyle, blueStyle } = this.getStyleByIndex(this.state.index)

    return (
      <View style={styles.container}>
        <View style={styles.topButtons}>
          {this.renderButton(0)}
          {this.renderButton(1)}
          {this.renderButton(2)}
        </View>
        <View style={styles.content}>
          <View style={{flexDirection: 'column', flex: 1}}>
            <View style={[redStyle, {backgroundColor: 'red'}]}/>
            <View style={[greenStyle, {backgroundColor: 'green'}]}/>
            <View style={[blueStyle, {backgroundColor: 'blue'}]}/>
          </View>
        </View>
      </View>
    );
 }

LayoutAnimation API

configureNext - configures LayoutAnimation for next render

create - helper for custom animation creation

LayoutAnimation API

LayoutAnimation beyond Presets

easeInEaseOut Preset

easeInEaseOut: create(
    300, Types.easeInEaseOut, Properties.opacity
)

Property to animate out of:

Type of animation out of:



TypesEnum = {
  spring: true,
  linear: true,
  easeInEaseOut: true,
  easeIn: true,
  easeOut: true,
  keyboard: true,
}
PropertiesEnum = {
  opacity: true,
  scaleXY: true,
};

duration

LayoutAnimation beyond Presets

Linear Preset

linear: create(
    500, Types.linear, Properties.opacity
)

spring Preset

spring: {
    duration: 700,
    create: {
      type: Types.linear,
      property: Properties.opacity,
    },
    update: {
      type: Types.spring,
      springDamping: 0.4,
    },
    delete: {
      type: Types.linear,
      property: Properties.opacity,
    },
  }

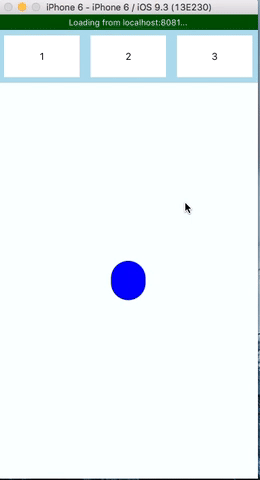

LayoutAnimation

custom animations

const CustomLayoutAnimation = {
    duration: 1000,
    create: {
      delay: 1000,
      type: LayoutAnimation.Types.spring,
      property: LayoutAnimation.Properties.scaleXY,
      springDamping: 0.2,
      initialVelocity: 1
    },
    update: {
      type: LayoutAnimation.Types.easeInEaseOut,
      property: LayoutAnimation.Properties.scaleXY
    },
    delete: {
      type: LayoutAnimation.Types.easeOut,
      property: LayoutAnimation.Properties.opacity
    },
  };

Animation to execute on initial render

Animation to execute state update

Animation to execute when component is destroyed

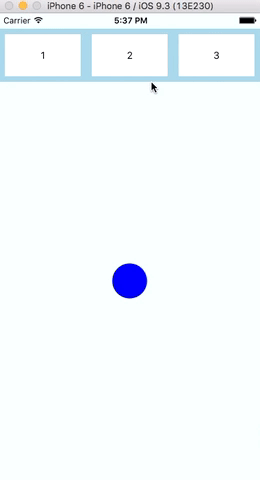

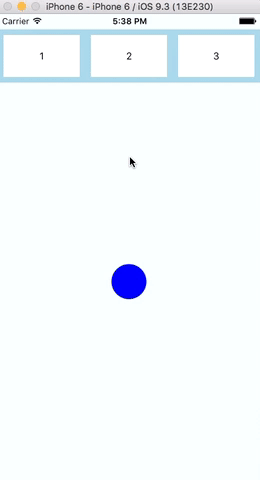

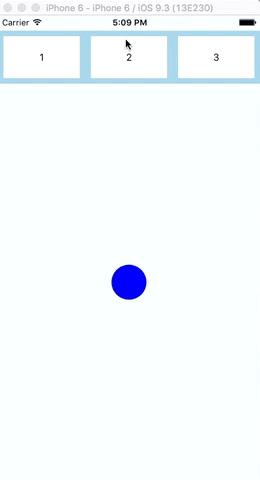

LayoutAnimation

custom animations

  onPress(index) {
    LayoutAnimation.configureNext(CustomLayoutAnimation);
    this.setState({index: index});
  }

  renderButton(index) {
    return (
      <TouchableOpacity key={'button' + index} style={styles.button} onPress={() => this.onPress(index)}>
        <Text>{index + 1}</Text>
      </TouchableOpacity>
    );
  }

  renderCircle(key) {
    var size = 50;
    return (
      <View key={key} style={{width: size, height: size, borderRadius: size / 2.0, backgroundColor: 'yellow', margin: 20}}/>
    );
  }

  render() {

    var circles = [];
    for (var i = 0; i < (1 + this.state.index); i++) {
      circles.push(this.renderCircle(i));
    }

    return (
      <View style={styles.container}>
        <View style={styles.topButtons}>
          {this.renderButton(0)}
          {this.renderButton(1)}
          {this.renderButton(2)}
        </View>
        <View style={styles.content}>

          <View style={styles.circleContainer}>
            {circles}
          </View>
        </View>
      </View>
    );
  }

Animated

Utilizes requestAnimationFrame to animate the values and setNativeProps in order to send values to the native world

Animated value types:

Animated components

  • Animated.View
  • Animated.Text
  • Animated.Image
  • createAnimatedComponent(Custom Component)

Animated.Value

Animated.ValueXY

timing/spring/decay/sequence/parallel/stagger/delay/event

Animated functions:

Animated API

Animated.Value

In order to create a simple value that can be animated we need to create a new value with

new Animated.Value(0)

Value cannot be object or array. It must be simple value.

Actual value is shielded inside Animated.Value and can be passed to style or other native prop on Animated components

Important!

Consider this

class Circle extends Component {
  constructor(props){
    super(props);
    this.state = {
      opacity: new Animated.Value(0)
    }
  }

  componentDidMount(){
    Animated.timing(
      this.state.opacity,
      {
        toValue: 50,
        duration: 10000
      }
    ).start();
  }

  render(){
    let size = 50;
    const circleStyle = {
        width: size,
        height: size,
        borderRadius: size / 2,
        backgroundColor: 'coral',
        margin: 20
    }
    return (
      <Animated.View
          key={this.props.id}
          style={{
           ...circleStyle,
            opacity: this.state.opacity
          }}
      />
    );
  }
}

Animated.Value API

  • setValue - let's you control animation values without triggering animations



  • addListener/removeListener - attach listener to animation value update



  • stopAnimation -  stops animation in the middle of execution



Animated.ValueXY

In order to create a {x: 0, y:0 } value that can be animated we need to create a new value with

new Animated.ValueXY({x: 0, y: 0})

Usually used when dealing with component position/gestures

Actual value is shielded inside Animated.ValueXY and can be passed to style or other native prop on Animated components

Reasons to use

Animated.ValueXY API

getLayout()  ->







getTranslateTransform() ->







{
    left: this._animatedValue.x,
    top: this._animatedValue.y
}
{transform: [
    {
        translateX:
            this._animatedValue.x
    },
    {
        translateY:
            this._animatedValue.y
    }
]}

setOffset - sets base offset above value. This method is also present in Animated.Value

The power of Interpolation

Interpolate is a function that gives us ability to bind to Animated.Value and change our output.

constructor(props){
    super(props);
    this._animatedXY = new Animated.ValueXY({ x: 0, y: 0});
  }

componentDidMount(){
  Animated.timing(
    this._animatedXY,
  {
    toValue: 100,
    duration: 1000
  }).start();
}

render(){
    let size = 50;
   const circleStyle = {
       width: size,
       height: this._animatedXY.y.interpolate({
         inputRange: [0, 100],
         outputRange: [0, 50]
       }),
       borderRadius: size / 2,
       margin: 20,
       backgroundColor: this._animatedXY.x.interpolate({
         inputRange: [0, 100],
         outputRange: ['coral', 'blue']
       })
   }
   return (
     <Animated.View
         key={this.props.id}
         style={{
          ...circleStyle
         }}
     />
   );
 }

Extrapolation

When interpolating values you have to specify how to extrapolate them.

Extrapolation

Three types of extrapolation:

  • extend - (default) - extend interpolation beyond inputRange



  • clamp: - stop interpolation when reached inputRange



  • identity: when you hit inputRange boundary bypass everything and assign a value
componentDidMount(){
    Animated.timing(
      this._animatedXY,
      {
        toValue: 1000,
        duration: 1000
      }
    ).start();
  }

  render(){
    let size = 50;
   const circleStyle = {
       width: size,
       height: this._animatedXY.y.interpolate({
         inputRange: [0, 100],
         outputRange: [0, 50],
         extrapolate: 'extend',
        //  extrapolate: 'clamp',
        //  extrapolate: 'identity',
       }),
       borderRadius: size / 2,
       margin: 20,
       backgroundColor: this._animatedXY.x.interpolate({
         inputRange: [0, 100],
         outputRange: ['coral', 'blue']
       })
   }

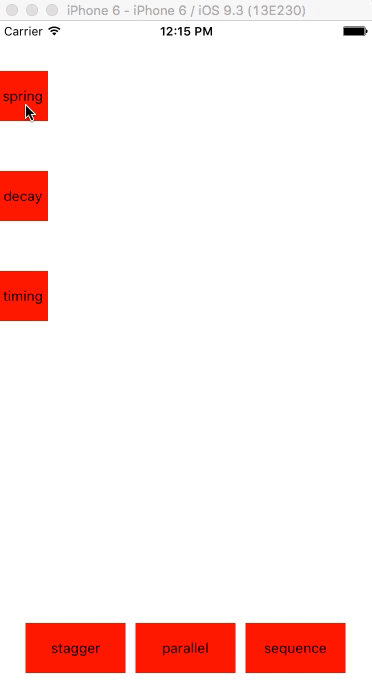

Animated Functions Overview

  • timing - animates value over a set amount of time



  • spring - animate from start to end without seting time, but setting other properties like velocity, speed, tension e.t.c



  • decay - animate with specified velocity and apply deceleration to it



  • sequence - sequence one animation after another

Animated Functions Overview



  • parallel - runs  several animations in parallel



  • stagger - runs several animations with some delay between them



  • delay - just like timing, but without animating anything just ways specified number of milliseconds



  • event - helper function to map event data to Animated values



Resources to check
