ExAIS: Executable AI Semantics
Richard Schumi Jun Sun
Singapore Management University
ICSE'22
- Semantics
- Applications
- Test Case Generation
- Model Validation
Tensorflow in Prolog
Background
- Prolog
- Tensorflow
layer(average).
layer(flatten).
ai_components(X) :- layer(X).
?- ai_components(flatten).
?- ai_components(X).
# Prolog
Prolog
- declarative: describe computation rather than control flow, lacks side effect
- logic programming: relies on first order logic
- Prolog = knowledge base (rules & fact) + query
Term
- atom: no inherent meaning
- number: float or integer
- variable: start with upper-case letter or underscore
- compound term
- list / string
model = tf.keras.models.Sequential([
tf.keras.layers.Flatten(input_shape=(28, 28)),
tf.keras.layers.Dense(128, activation='relu'),
tf.keras.layers.Dropout(0.2),
tf.keras.layers.Dense(10)
])
predictions = model(x_train[:1]).numpy()
# Tensorflow
Tensorflow
- popular DL framework from Google (OSDI'16)
- computational graph (model)
- inference / training
Semantics
- Overview
- Ex: dense
- Ex: conv1D
- Ex: dropout
- Recap
# Semantics

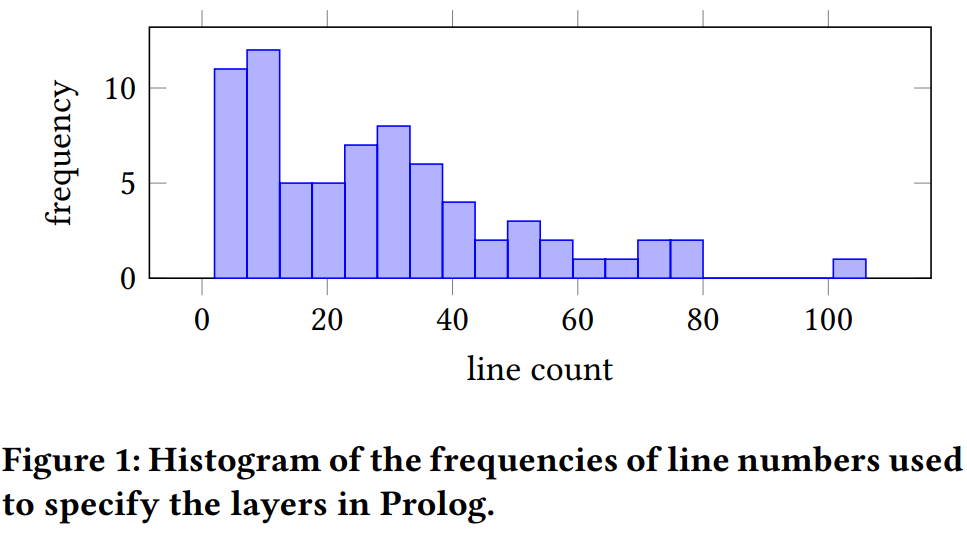

Semantics
- 72 layers (nearly all)
- 3200 lines of Prolog
- correctness guarantee:
- code review
- manual testing (ex in doc)
- automated testing (own fuzzing engine)
# Def: Dense

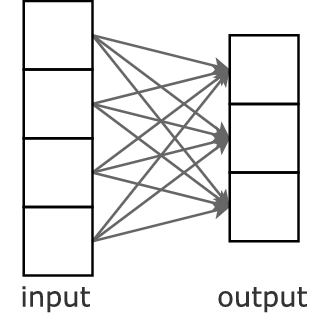

Definition: Dense
For 1-D input and output, a dense layer is an affine transformation.
\mathbf{y} = W \mathbf{x} + \mathbf{b}
- X: n-d tensor
- the first dimension denotes sample
- W: m-d tensor
- B: (m-1)-d tensor
- Y: (n+m-2)-d tensor
y_{i_2 \cdots i_{n - 1} j_2 \cdots j_m} = b_{j_2 \cdots j_m} + \sum_{k} x_{i_2 \cdots i_{n - 1} k} w_{k j_2 \cdots j_m}
dense_layer ([I|Is], IWs , Bs , [O|Os ]) :-
depth ([I|Is ] ,2),
dense_node_comp (I, IWs , Bs , O),
dense_layer (Is , IWs , Bs , Os).
dense_layer ([I|Is], IWs , Bs , [O|Os ]) :-
depth ([I|Is],D), D > 2,
dense_layer (I, IWs , Bs , O),
dense_layer (Is , IWs , Bs , Os).
dense_layer ([] , _, _, []).
dense_node_comp ([I|Is ],[ IW|IWs],Res0 ,Res) :-
multiply_list_with (IW ,I, Res1 ),
add_lists (Res0 ,Res1 , Res2 ),
dense_node_comp (Is ,IWs ,Res2 ,Res).
dense_node_comp ([] ,[] , Res ,Res).
# Semantics: Dense
Semantics: Dense
y_{i_2 \cdots i_{n - 1} j_2 \cdots j_m} = b_{j_2 \cdots j_m} + \sum_{k} x_{i_2 \cdots i_{n - 1} k} w_{k j_1 \cdots j_m}
\mathbf{y}_{i_2 \cdots i_{n - 1}} = \mathbf{b} + \sum_{k} x_{i_2 \cdots i_{n - 1} k} \mathbf{w}_{k}
# Def: Conv1D

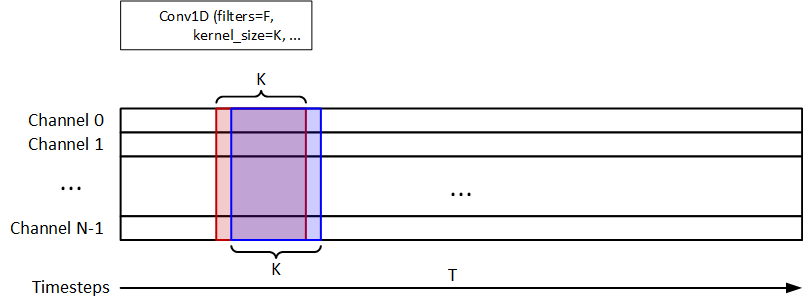

Definition: Conv1D
- I: (N, L, C)
- W: (K, C, F)
- B: (F,)
- O: (N, L - K + 1, F)
O_{i, j, k} = B_k + \sum_{0 \le j' < K, l} W_{j', l, k} I_{i, j + j', l}
arguments:
- stride: slide by a certain step (default 1)
- padding: add 0s to left and right
conv1D_layer (Is , KernelSize ,IWs ,Bs , Strides , Padding ,Os):-
check_dimensions (Is ,3) ,
check_valid_kernel (Is , KernelSize , Padding ),
check_valid_weight_shapes (Is , KernelSize ,IWs ,Bs),
pool1D (sum ,Is , KernelSize , Strides , Padding ,IWs ,Bs ,false ,Os).
pool1D ( Poolfunc ,[I|Is], PoolSize , Strides , Padding ,IWs ,Bs , MultiLayerPool ,[O|Os ]):-
pool1D ( Poolfunc ,I ,0,0, PoolSize , Strides , Padding ,IWs ,Bs , MultiLayerPool ,[] ,O),
pool1D ( Poolfunc ,Is , PoolSize , Strides , Padding ,IWs ,Bs , MultiLayerPool ,Os).
pool1D (_ ,[] ,_,_,_,_,_,_ ,[]) .
pool1D ( Poolfunc ,[[I|Is0 ]| Is ],0,0, PoolSize , Strides ,true ,IWs ,Bs , MultiLayerPool ,[] , Os) :-
atomic (I),length ([[I|Is0 ]| Is],L),
calc_padding (L, PoolSize , Strides ,LeftP , RightP ),
padding1D ([[I|Is0 ]| Is], x,LeftP , RightP , Is1),
pool1D ( Poolfunc ,Is1 ,0,0, PoolSize , Strides ,false ,IWs ,Bs , MultiLayerPool ,[] , Os).
pool1D ( Poolfunc ,[[I|Is0 ]| Is],X ,0, PoolSize , Strides ,false ,IWs ,Bs ,false ,Os0 ,Os) :-
atomic (I),length ([[I|Is0 ]| Is],LX),
get_pool_res1D ( Poolfunc ,[[I|Is0 ]| Is],X,Y, PoolSize , Strides , IWs ,Bs ,false ,O),
insert_pool_field (Os0 ,O,true ,X,Y, Strides ,Os1),
(X+ Strides + PoolSize =< LX -> X1 is X+ Strides ; X1 is LX +1) ,
pool1D ( Poolfunc ,[[I|Is0 ]| Is],X1 ,0, PoolSize , Strides ,false ,IWs ,Bs ,false ,Os1 ,Os).
pool1D ( Poolfunc ,[[I|Is0 ]| Is],X,Y, PoolSize , Strides , Padding ,IWs , Bs ,true ,Os0 ,Os) :-
atomic (I),length ([[I|Is0 ]| Is],LX),
get_pool_res1D ( Poolfunc ,[[I|Is0 ]| Is],X,Y, PoolSize , Strides , IWs ,Bs ,true ,O),
insert_pool_field (Os0 ,O,true ,X,Y, Strides ,Os1),
(X+ Strides + PoolSize =< LX -> X1 is X+ Strides ,Y1 is Y; X1 is 0,Y1 is Y+1) ,
pool1D ( Poolfunc ,[[I|Is0 ]| Is],X1 ,Y1 , PoolSize , Strides , Padding , IWs ,Bs ,true ,Os1 ,Os).
pool1D (_ ,[[I|Is0 ]| Is],X,Y,_,_,false ,_,_,_,Os ,Os) :-
atomic (I),
( length ([[I|Is0 ]| Is],LX), X >= LX;
length ([I|Is0],LY), Y >= LY).
# Semantics: Conv1D
Semantics: Conv1D
\mathbf{O}_{i, j} = \mathbf{B} + \sum_{0 \le j' < K, l} \mathbf{W}_{j', l} I_{i, j + j', l}
# Def: Dropout
Definition: Dropout

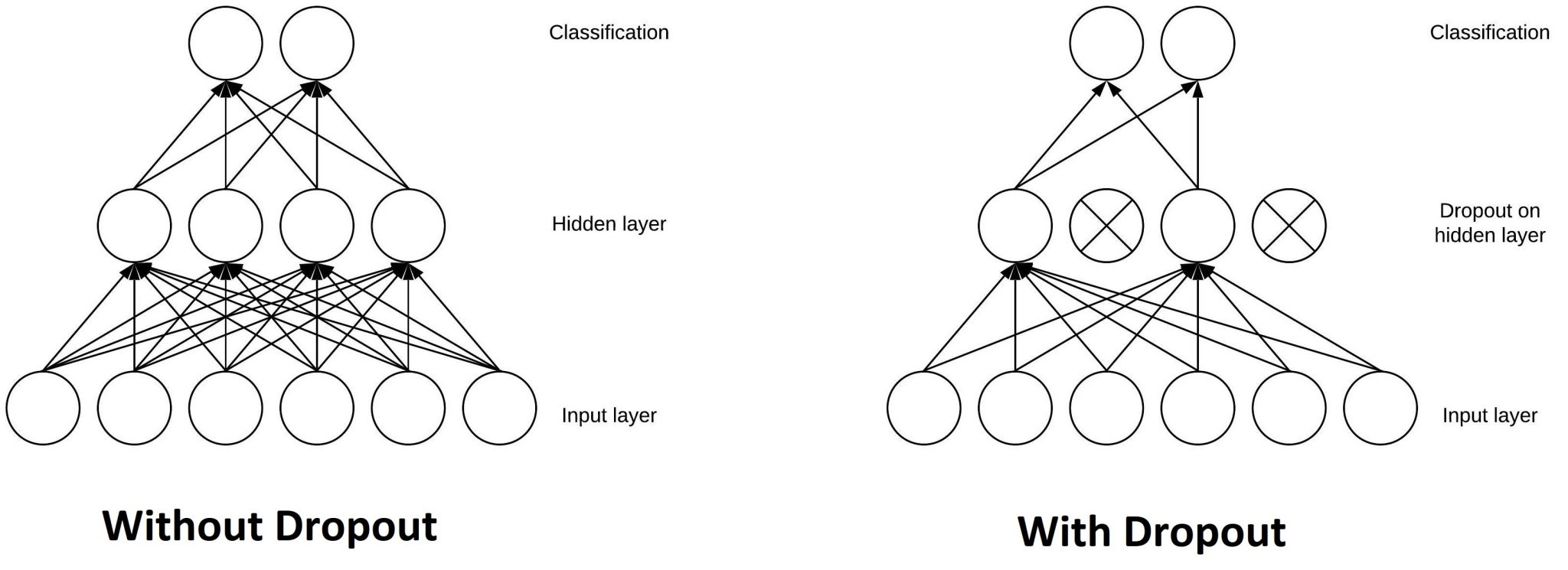

- randomly ignore some nodes with a certain probability
- proved to be able to reduce "overfitting" when training a large neural network no a small dataset
- only effect training
- characteristics: non-determinism
dropout_layer (Is , Os , Rate , AcceptedRateDiff ) :-
count_atoms (Is ,N), count_atoms (Os ,NO), NO = N,
count_occurrences (Is ,0, NZeroOrig ),
count_occurrences (Os ,0, NZeroNew ),
RealRate is ( NZeroNew - NZeroOrig ) / (N -NZeroOrig ),
Diff is abs( Rate - RealRate ),
( Diff > AcceptedRateDiff -> ( write (" Expected Rate : "),
writeln ( Rate ), write (" Actual Rate : "), writeln (
RealRate ), false ); true ).
# Semantics: Dropout
Semantics: Dropout
- Note (from Xingyu): this is not an executable way to handle non-determinism like dropout layer.
# Recap
Recap
- Identify 79 unique non-abstract and non-wrapper layers.
- Able to implement 72 of them.
- Remaining 7 layers have too generic or flexible input such as function or other layers.
- 7 are non-deterministic, only check if described properties followed.
- cost 8 work months.
- Major advantange of Prolog is declarative and high-level, which enables compactness and straightforward implementation.
- 3.2k semantics v.s. 3M source
- Only 7 layers had detailed descriptions in doc, 44 were explained with examples or reference paper, remaining 21 were under-specified or had very little examples.
Applications
- Testing
- Model Validation
- Evaluation
# Testing
Testing Approach

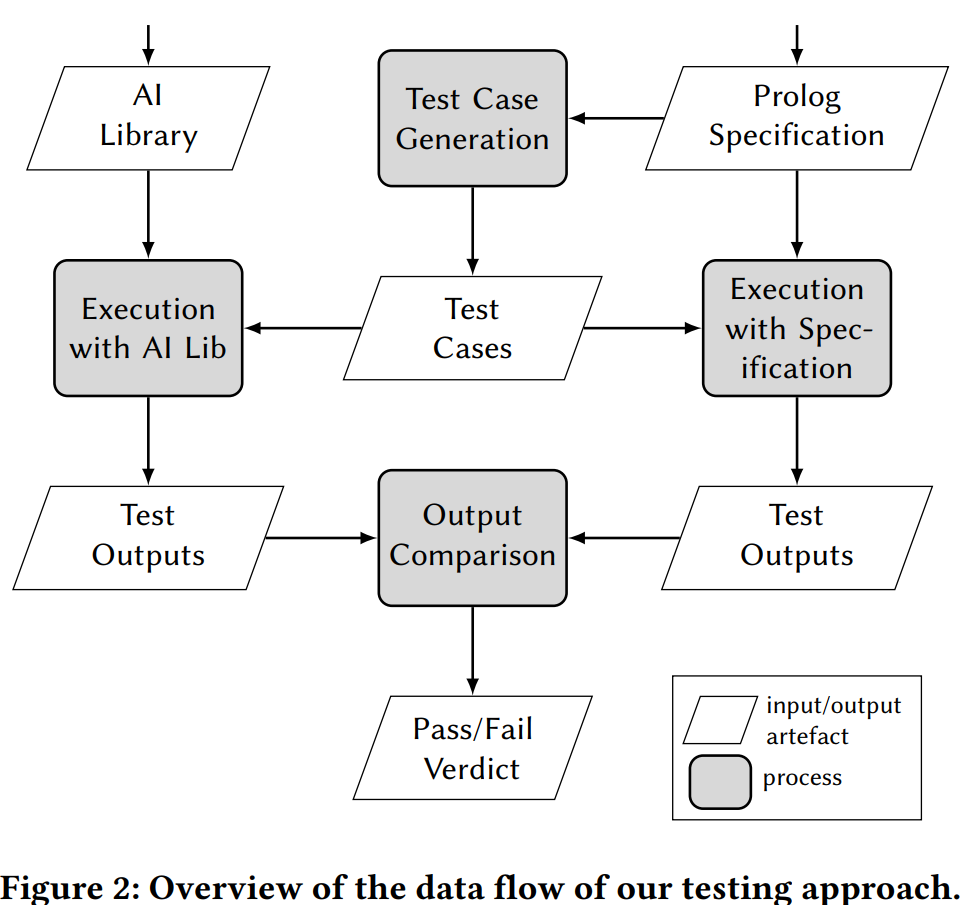

- A fuzzing method which utilises feedback from our semantics
- Test case generator produces test data in the form of tensor and a deep learning model
Model Validation
A = max_pool1D_layer ([[[1.313 ,1.02] ,[1.45 ,1.92]]] ,1 ,1 , false , Max),
B = conv1D_layer ([[[0.9421 ,0.7879] ,[0.809 ,0.855]]] ,1 ,[[[0.572 , 0.621] ,[0.5388 , 0.5741]]] ,[0 ,0] , 1, false , 1, Con),
C = cropping1D_layer (Con , 5, 5, Cro),
D = concatenate_layer ([ Max ,Cro], 1, Con1 ),
exec_layers ([A,B,C,D],["Max","Con","Cro"," Con1 "],Con1 ," Con1 ")
# Model Validation

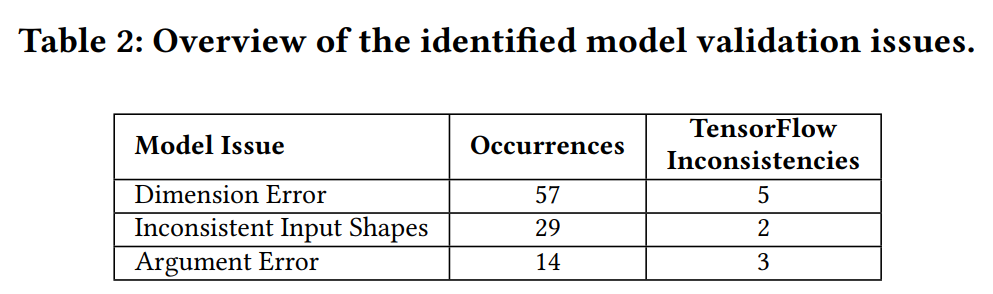

- Check if model is valid e.g. executable, that is, to detect errors such as, wrong shapes of parameters or input data, invalid arguments.
- AI libraries already produces error messages to detect such issues. However, they can be difficult to understand and rarely there is no error reported.
- By converting Tensorflow model into our Prolog representation, we can validate the models.
- In evaluation, invalid models generated by test generator are used to inspect the bugs of Tensorflow.

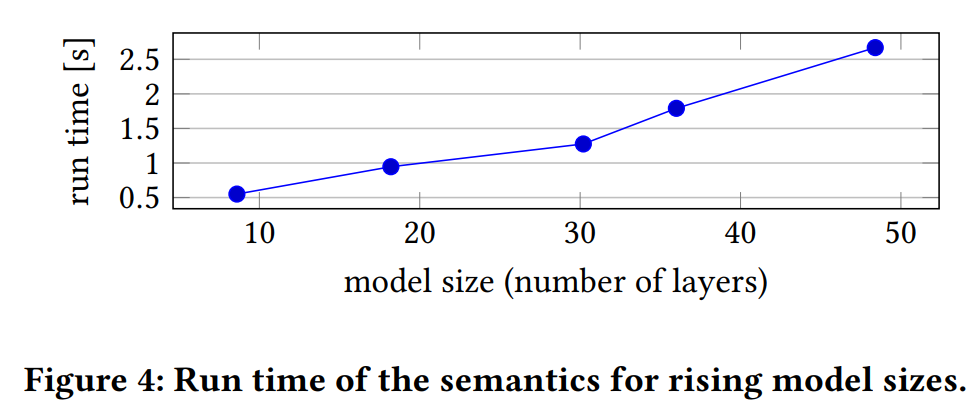

Evaluation

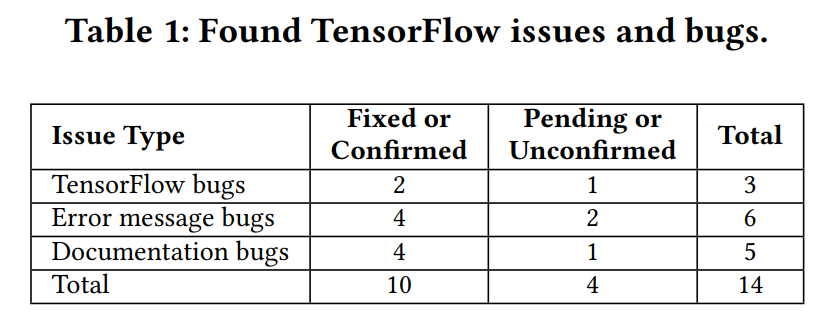

10,000 testcases generated in 35h
100 invalid models generated
Conclusion
- Tensorflow semantics in Prolog
- deterministic behavior
- Testing
- some issues are found
- https://github.com/rschumi0/ExAIS
ExAIS: Executable AI Semantics
By Xingyu Xie
ExAIS: Executable AI Semantics
- 1
